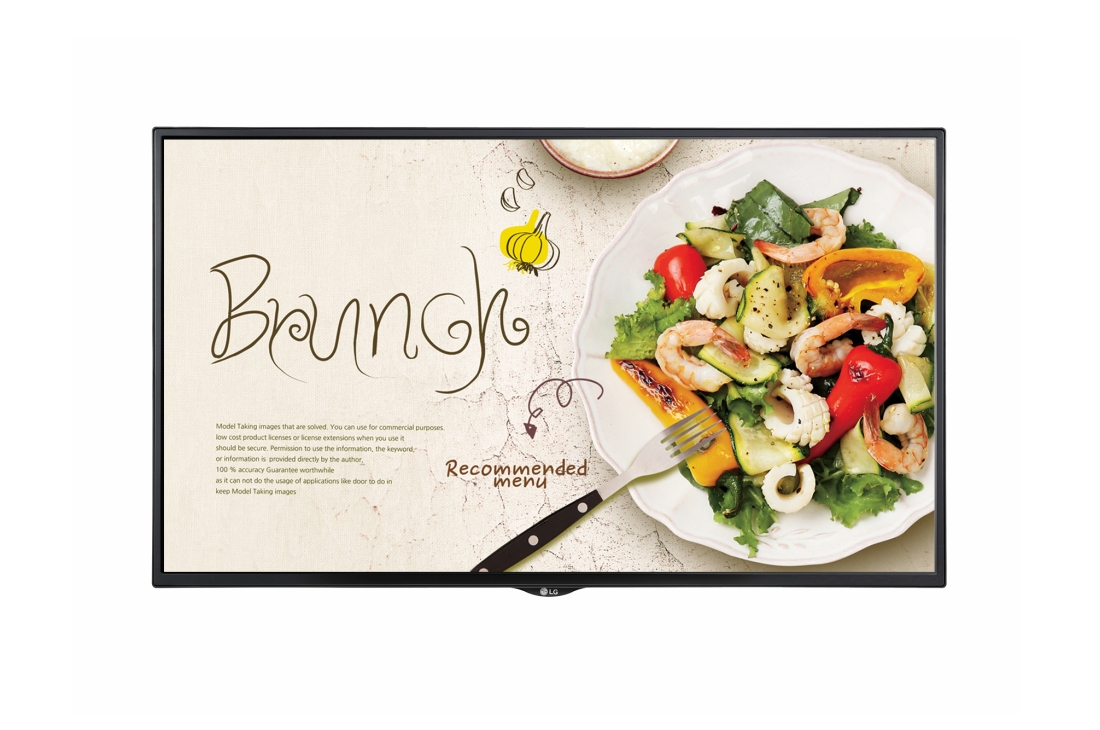

32SM5KE-B component-copyModelName
32'' 400 nits FHD Standard Signage

Key Features

Choose your Size

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (32SM5KE-B)
    ৳
    ৳
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (32SM5KE-B)
    ৳
    ৳
    LG Members Price
Total
32" 400 nits FHD Standard Signage

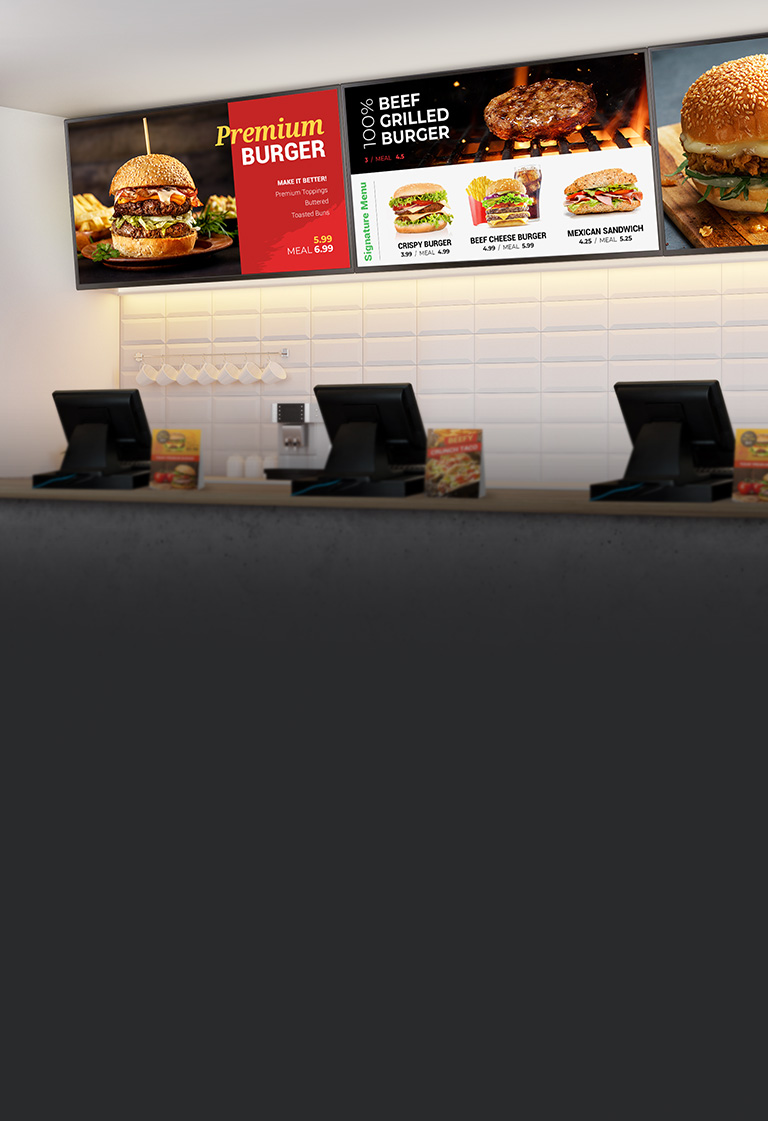

High Performance Smart Platform<br>1 High Performance Smart Platform<br>2

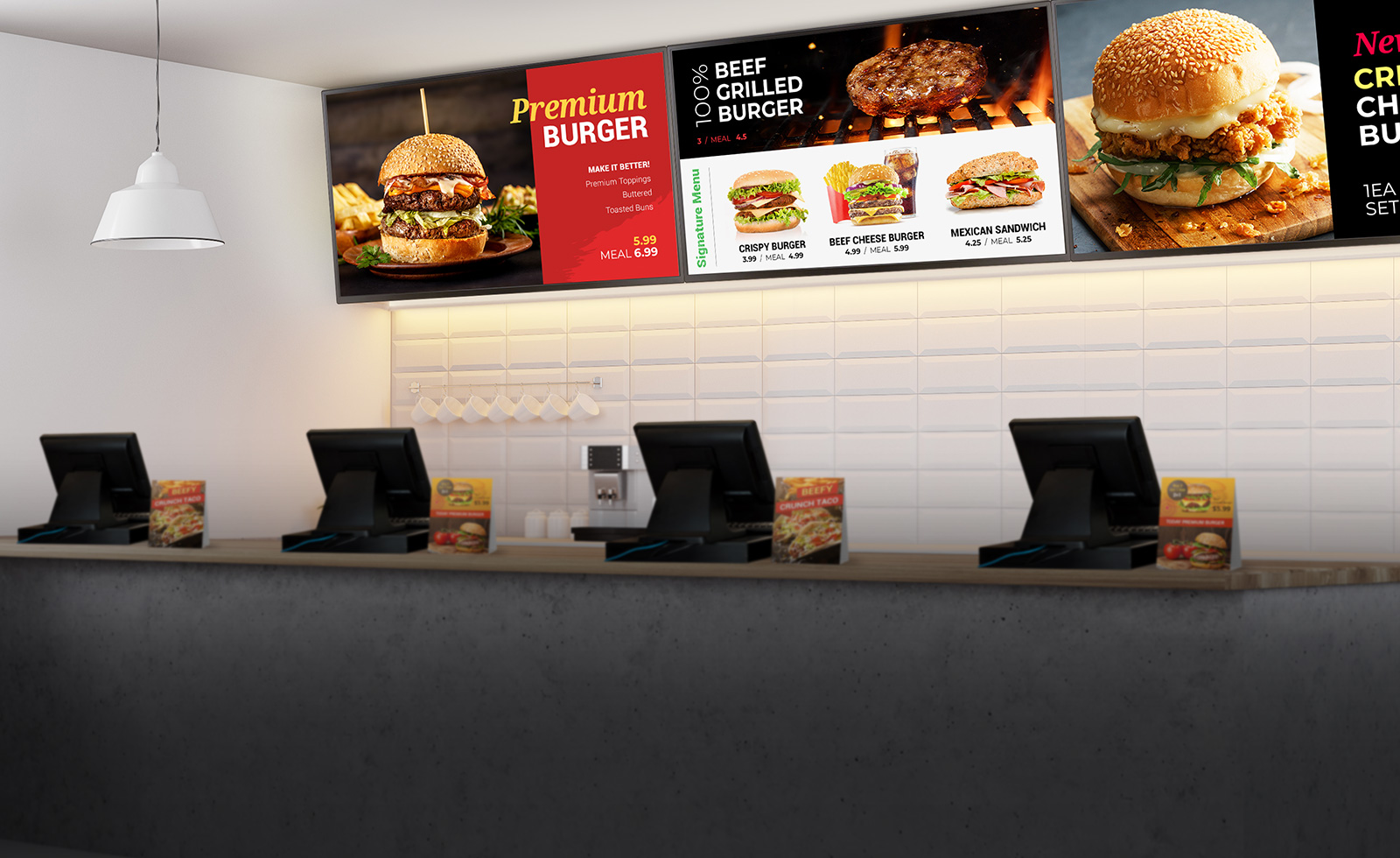

Quad Core SoC with webOS

High Performance Smart Platform

Quad Core SoC (System-on-Chip) executes several tasks at once with smooth content playback without a media player. webOS smart signage platform enhances user convenience with intuitive UI and simple development tools.

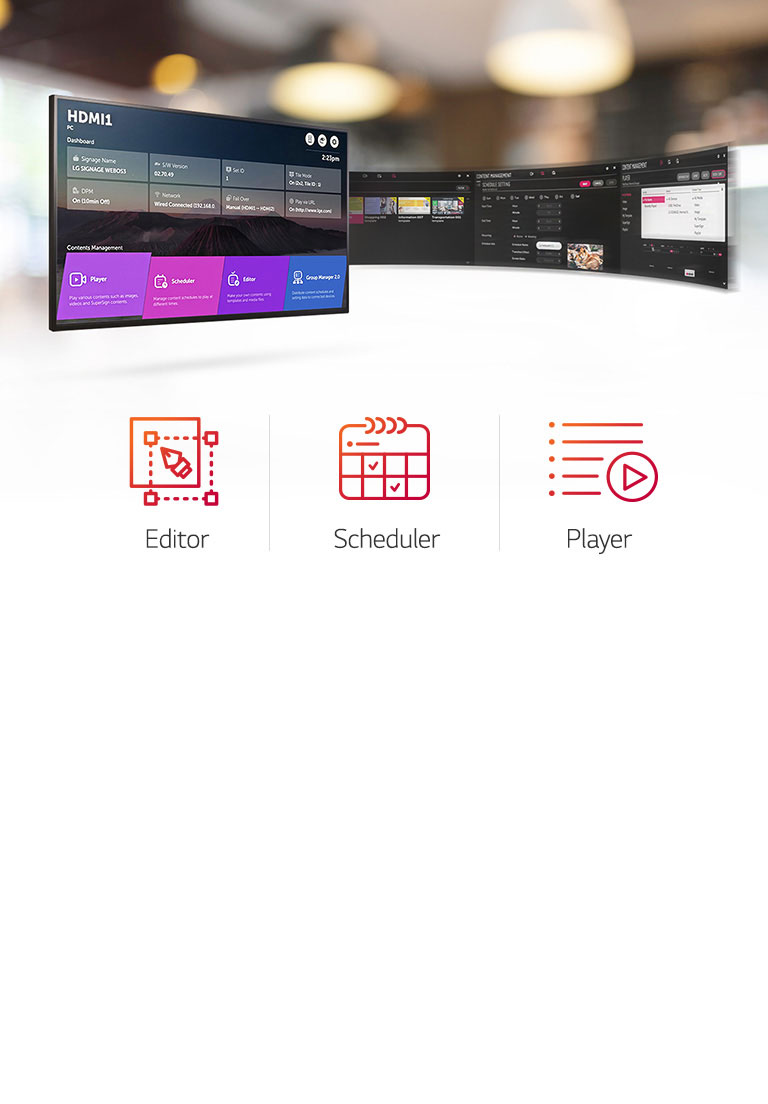

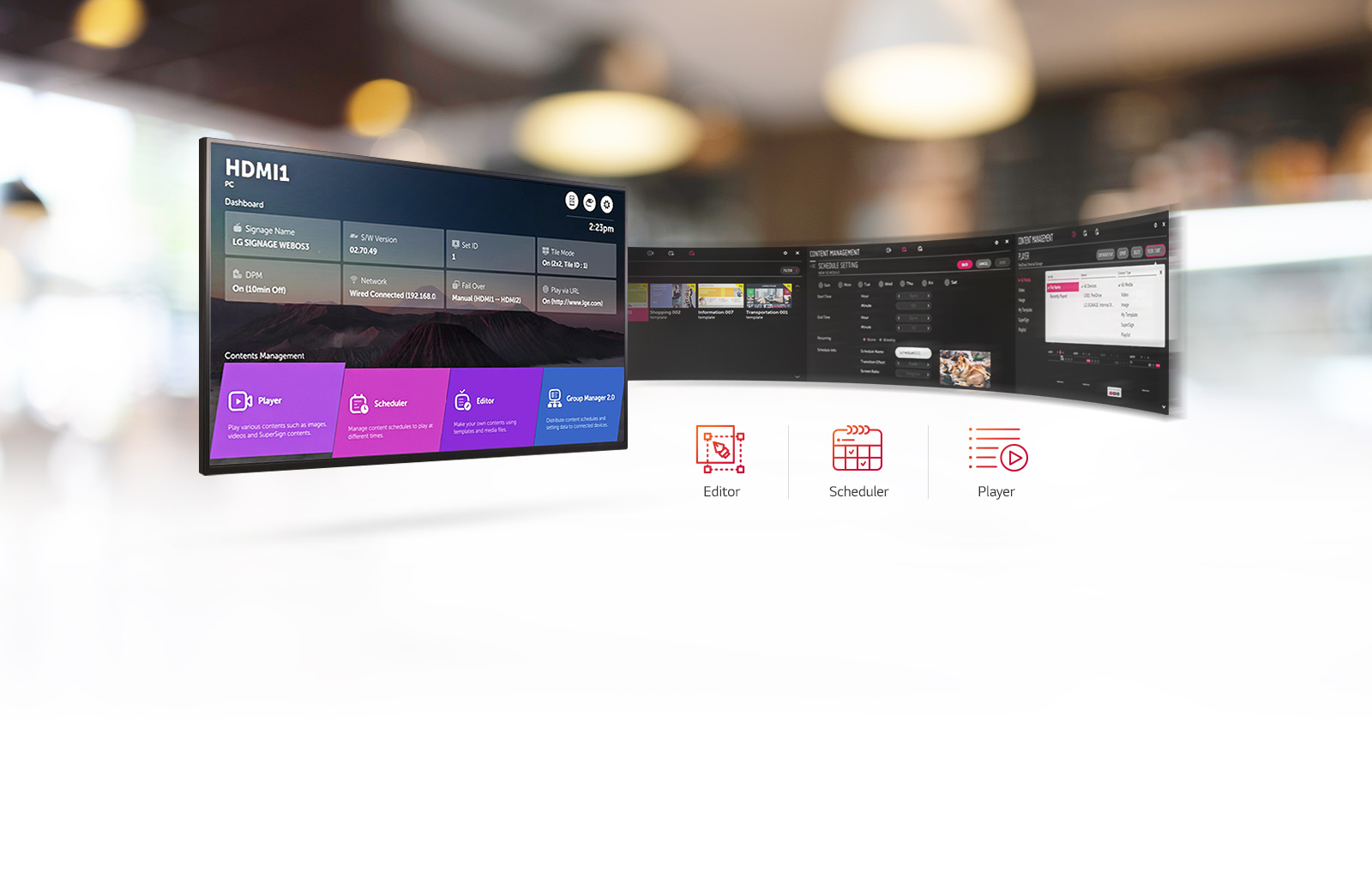

Easy Contents Management<br>1 Easy Contents Management<br>2
Integrated CMS

Easy Contents Management

Embedded CMS (Content Management System) allows users to edit and play content, and create playlists, all without a seperate PC. It's a one-stop solution that lets users manage signage simply, and effectively.
Enhanced Usability<br>1 Enhanced Usability<br>2

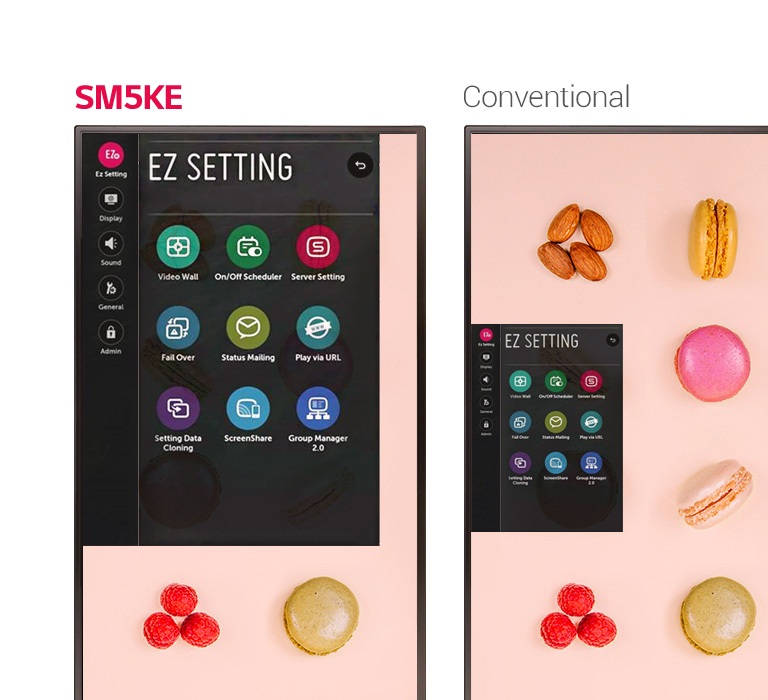

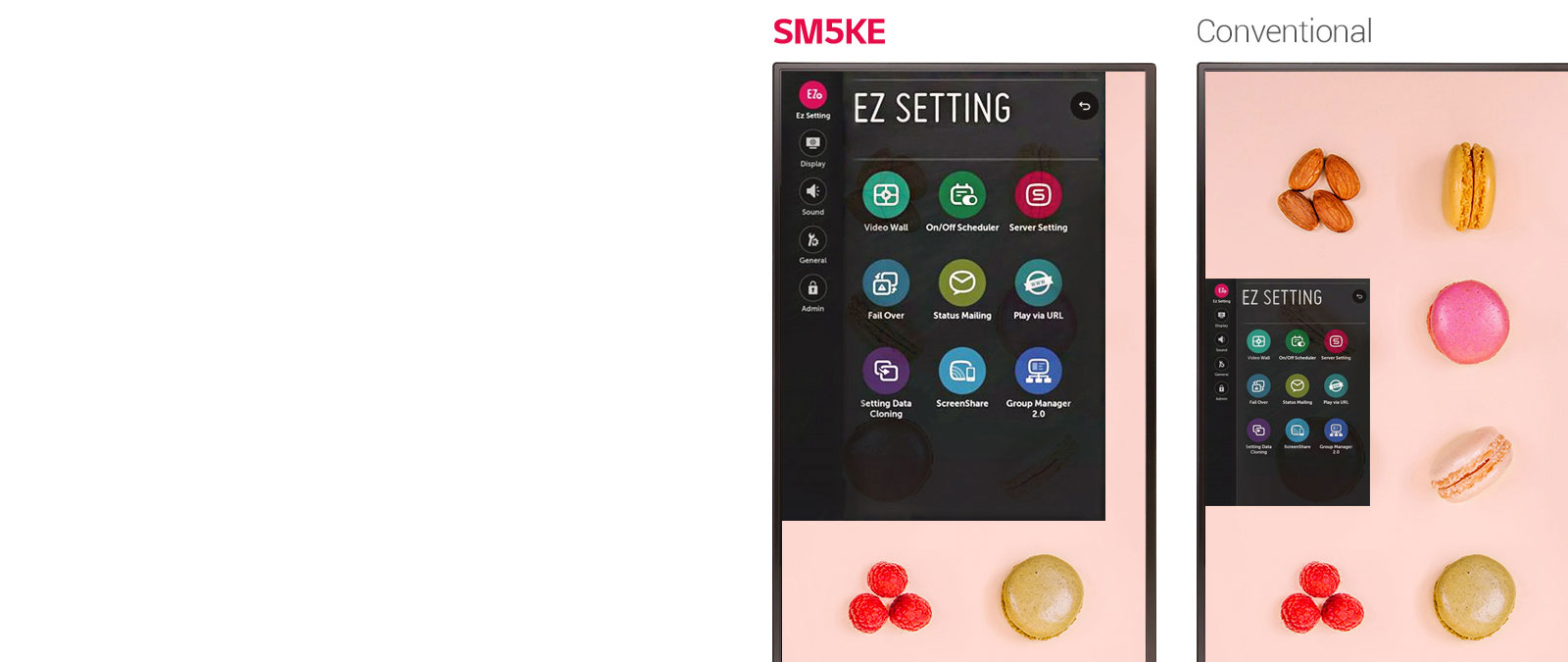

GUI for B2B & EZ Setting

Enhanced Usability

A B2B dedicated GUI for portrait and long range environment modes provides convenient user management. With the 'EZ setting', users get integrated management of signage special features through a unifying access point.
Real-time Streaming<br>1 Real-time Streaming<br>2

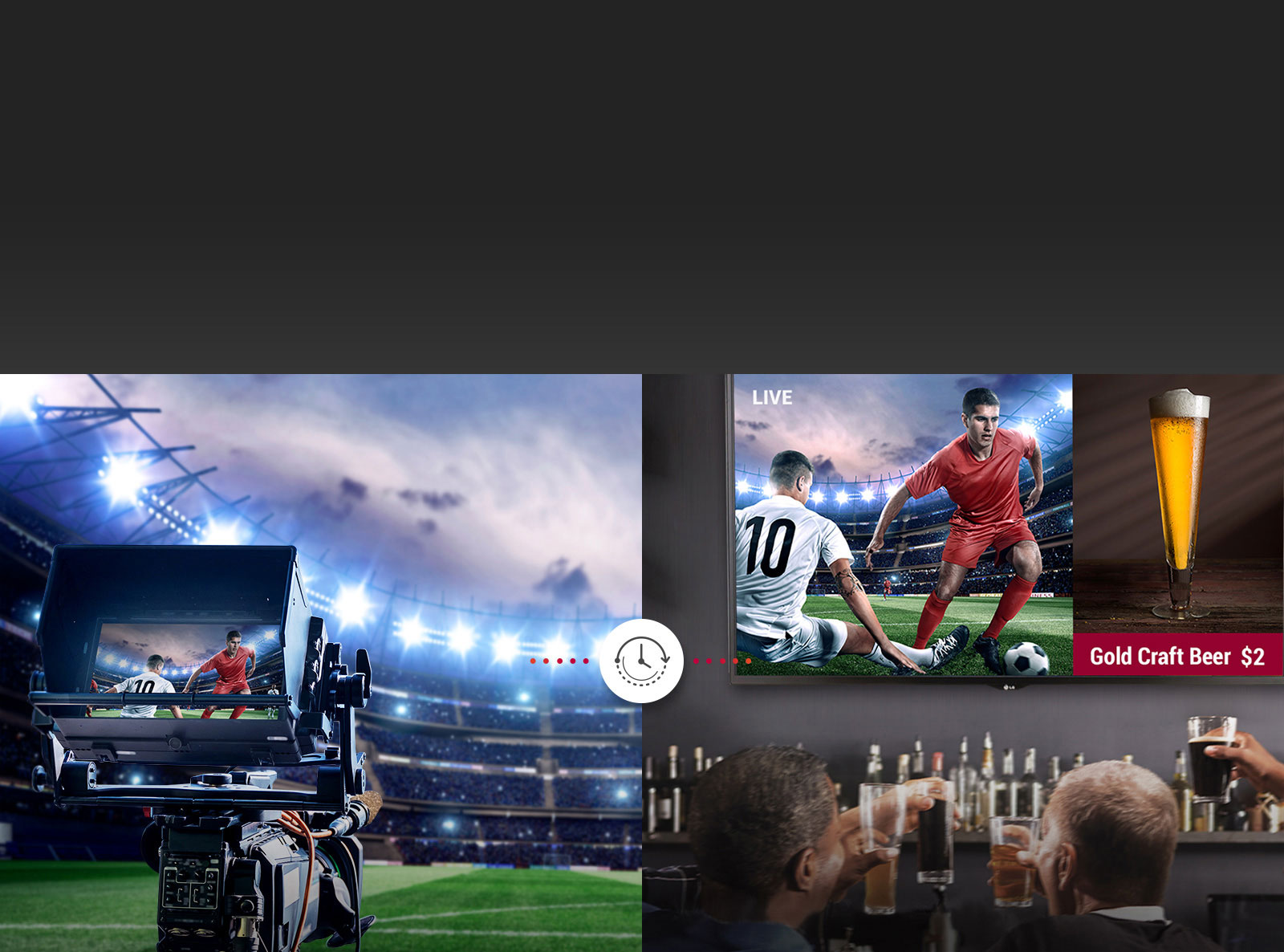

Video Streaming

Real-time Streaming

Various types of IP video streaming protocols such as RTSP/RTP/HLS and UDP Multicast are supported for real-time content streaming. It is easy to manage content as it is free from capacity limits for content playback, and provides live broadcasts.
* Image is for illustration-purposes only.
*HLS (HTTP Live Streaming) / * UDP (User Datagram Protocol)
* RTSP (Real-Time Streaming Protocol) / * RTP (Real-time Transport Protocol)

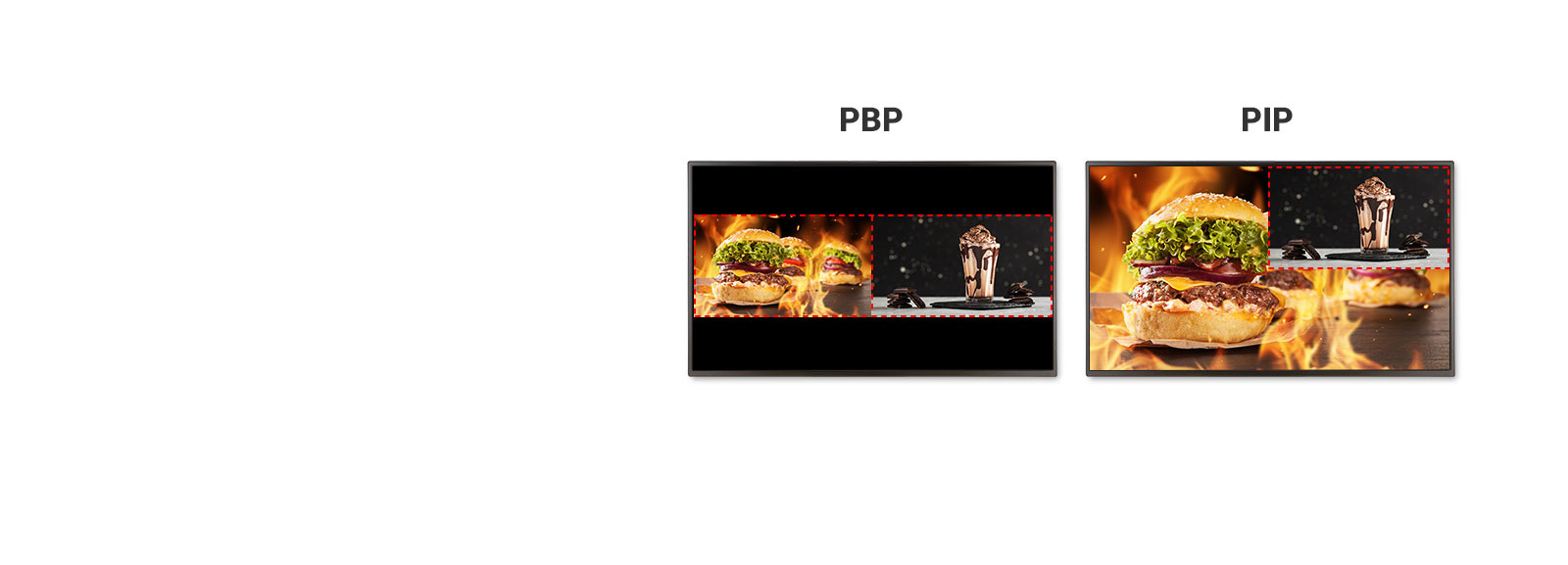

Multiple Screen Composition<br>1 Multiple Screen Composition<br>2
PBP/PIP

Multiple Screen Composition

PBP (Picture-By-Picture) and PIP (Picture-In-Picture) enables up to two divided split screens in landscape or portrait display format enabling users to more flexibly allocate space for each content source.
Suited for Industrial Design<br>1 Suited for Industrial Design<br>2
Detachable Logo & Built-in Speaker

Suited for Industrial Design

The detachable logo allows for installation in the desired orientation: landscape or portrait mode. Also, sounds can be played from built-in speakers, giving advertisements greater impact.
Wireless Solutions<br>1 Wireless Solutions<br>2

Wireless Solutions

  • Content Sharing1

    Content Sharing

    Mirroring among devices is more convenient on a Wi-Fi network.

  • Real-time Promotion1

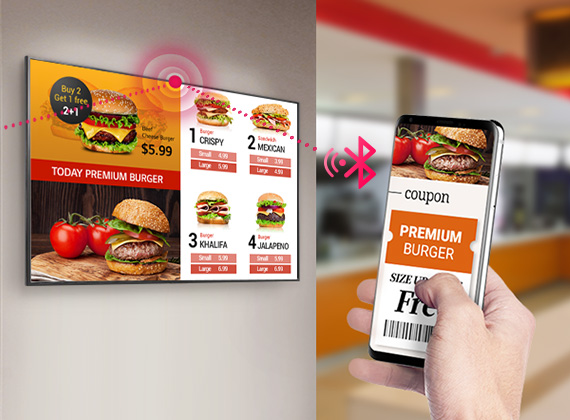

    Real-time Promotion

    With Beacon and Bluetooth Low Energy (BLE), retail stores can provide coupons and information in real-time.

Support for Network Protocol<br>1 Support for Network Protocol<br>2

Support for Network Protocol

  • HTTPS1

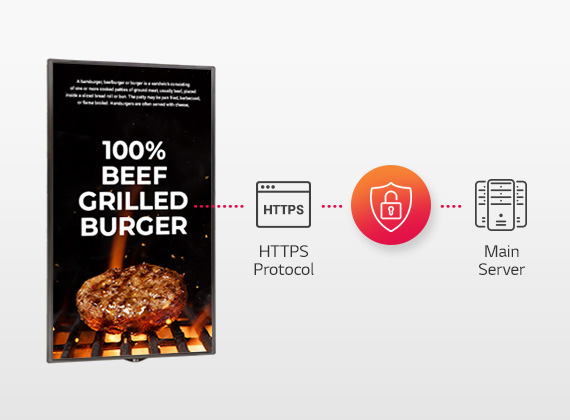

    HTTPS

    With support for the HTTPS (Hypertext Transfer Protocol over Secure Socket Layer) protocol, communication between the server and signage is more secure.

  • Proxy Server1

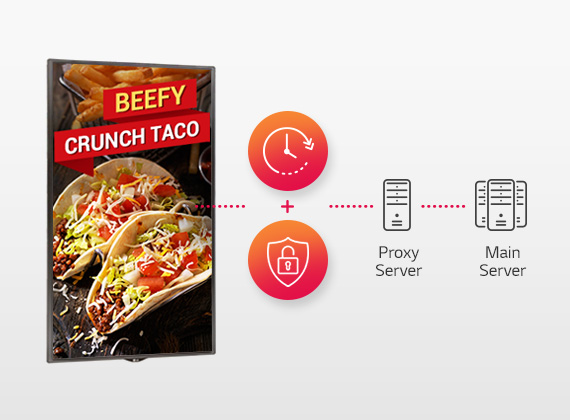

    Proxy Server

    Web access speed and security can be improved by supporting proxy server. Managers can not only block unwanted websites, but also quickly access to resources using caches.

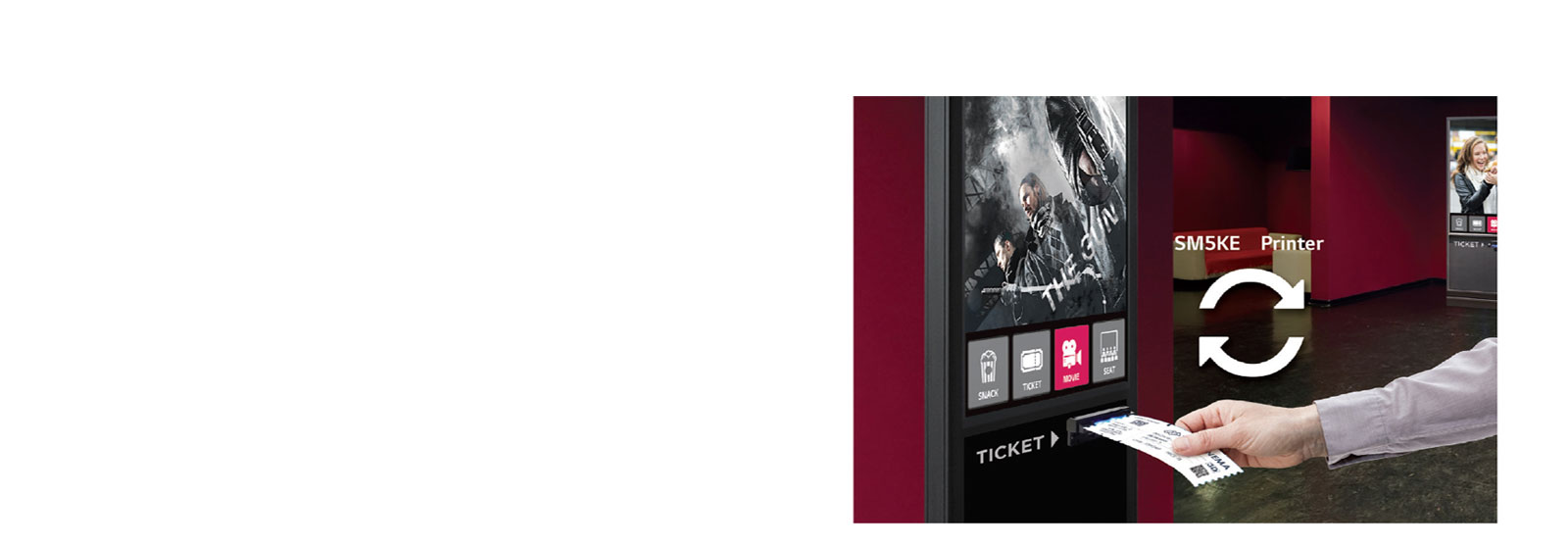

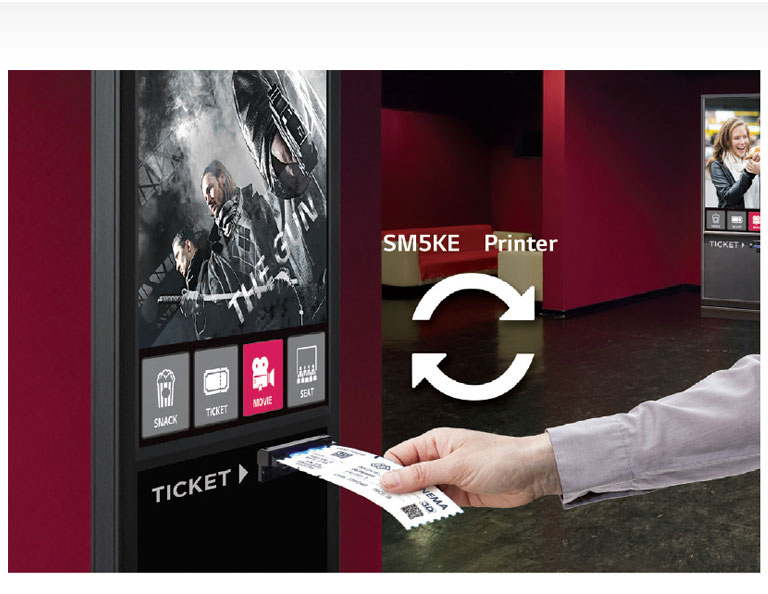

Thermal Printer Supported<br>1 Thermal Printer Supported<br>2
Value-added Offerings

Thermal Printer Supported

Users can easily enable the thermal printer solution* by plugging a USB into the display. It functions versatilely as a ticketing machine for various locations such as restaurants, movie theaters, banks and airports.
*Supported model: NIPPON PRIMEX (NP-3511, NP-3611)
Real-time Care Service<br>1 Real-time Care Service<br>2
Value-added Offerings

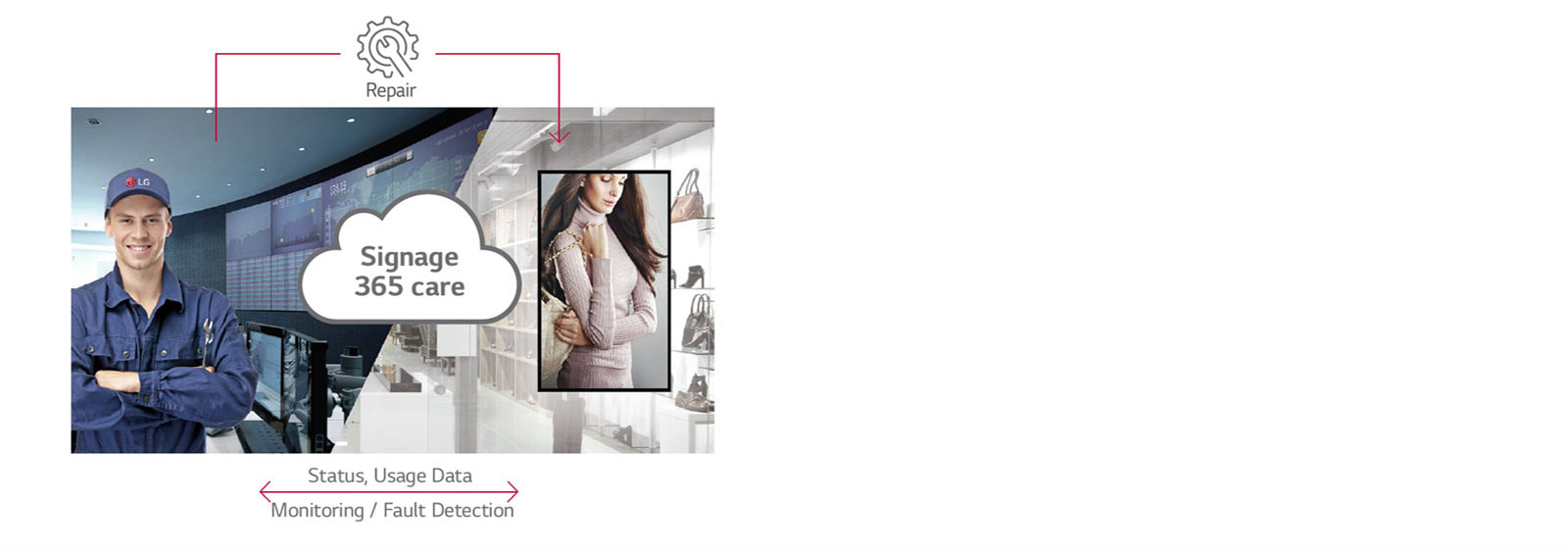

Real-time Care Service

The maintenance gets easier and faster with an optional service Signage 365 Care, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client's business.
Conformal Coating<br>1 Conformal Coating<br>2

Conformal Coating

The product can be often unavoidably exposed to dust and water during maintenance. Conformal coating on major circuit board eliminates such troubles by protecting it against dust, iron powder, humidity, etc.
Close
PANEL
  • Screen Size
    32"
    Resolution
    1,920 x 1,080 (FHD)
  • Brightness(Typ.,cd/m²)
    400
CONNECTIVITY
  • Input
    HDMI (3), DP, DVI-D, Audio, USB 3.0
    Output
    DP(SST), Audio(Off/Fixed/Variable)
  • External Control
    RS232C In/Out, RJ45 In, IR Receiver In
PHYSICAL SPECIFICATION
  • Bezel Width
    13 mm (T/R/L), 18 mm (B)
    Monitor Dimension (W x H x D)
    729.4 x 428.9 x 55.5 mm
  • Weight (Head)
    5.4 kg
    Monitor with Optional Stand Dimensions (W x H x D)
    729.4 x 481 x 154.2 mm
  • Weight (Head+Stand)
    6.2 kg
    Carton Dimensions (W x H x D)
    810 x 510 x 132 mm
  • Packed Weight
    6.7 kg
    VESA™ Standard Mount Interface
    200 x 200 mm
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %
POWER
  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ. / Max.
    60 W (TBD) / 85 W
    Smart Energy Saving
    45 W (TBD)
STANDARD(CERTIFICATION)
  • Safety
    IEC 60950-1 / EN 60950-1 / UL 60950-1
    EMC
    FCC Class "A" / CE / KCC
  • ErP / Energy Star
    N/A / Yes (Energy Star 8.0)
MEDIA PLAYER COMPATIBILITY
  • OPS Type Compatible
    Yes
    External Media player Attatchable
    Yes
SOFTWARE COMPATIBILITY
  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control+/Control
ACCESSORY
  • Basic
    Remote Controller (2ea batteries included), Power cord, QSG, HDMI cable, Regulation book, Phone to RS232C gender, Memory cover
    Optional
    Stand (ST-322T), Media Player, Wall Bracket (LSW230B), VESA Adapter (AM-B220S), OPS Kit (KT-OPSA), HDBaseT (EB-B100), Touch Overlay (KT-T32E)
