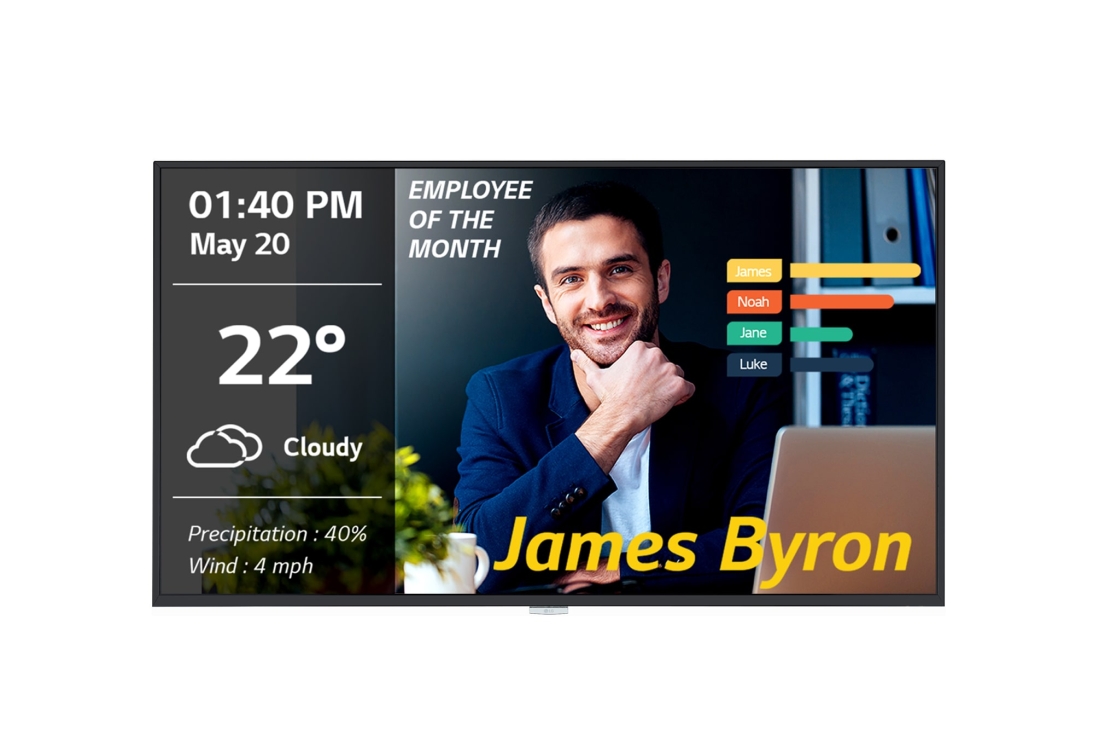

43UM3DG-B component-copyModelName
IP5x Dust-Proof Ultra HD Series

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (43UM3DG-B)
    ৳
    ৳
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (43UM3DG-B)
    ৳
    ৳
    LG Members Price
Total
IP5x Dust-Proof Ultra HD Series

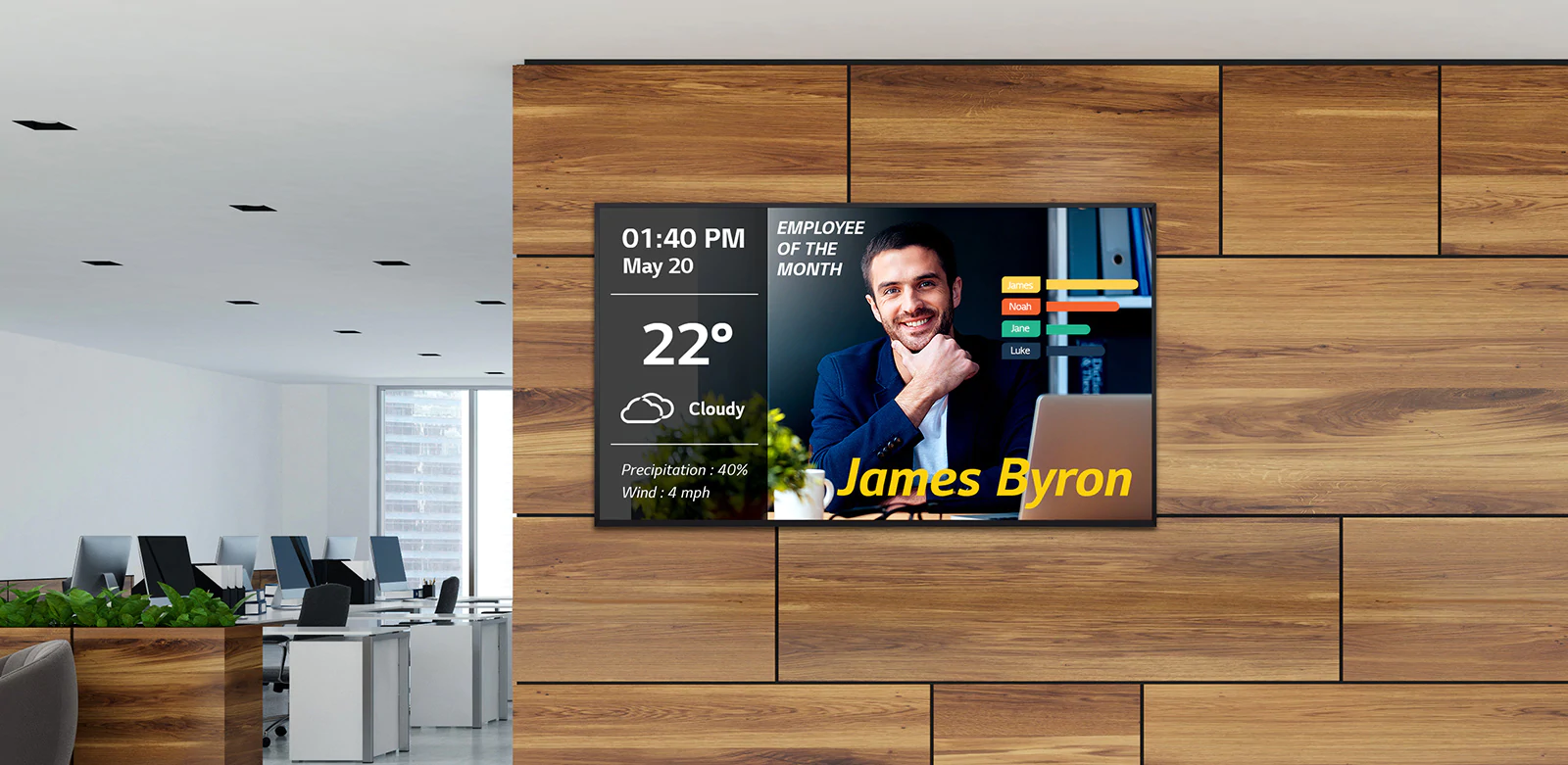

D01_UM3DG-B-01-LG-UHD-Signage-Standard-Digital-Signage-ID-D M01_UM3DG-B-01-LG-UHD-Signage-Standard-Digital-Signage-ID-M

ULTRA HD Resolution

With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle applied with LG IPS Panel, provides clear contents with no distortion
ULTRA HD Resolution1 ULTRA HD Resolution2

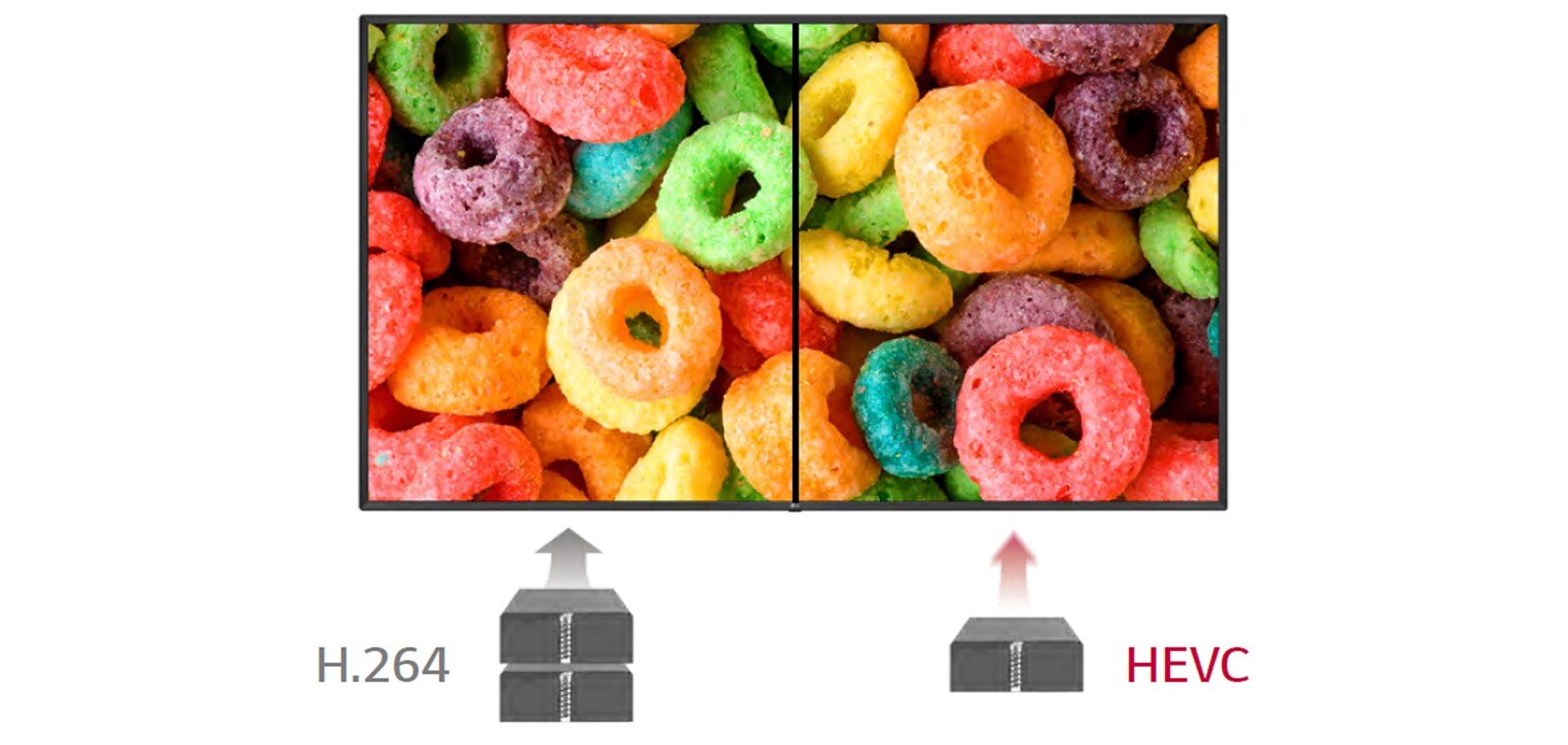

High Efficiency Video Coding

The UM3DG series supports HEVC* which efficiently compresses/decompresses high-capacity UHD contents, playing ultra-high quality videos with half the network traffic when compared to the existing H.264 codec.
High Efficiency Video Coding1 High Efficiency Video Coding2
*High Efficiency Video Coding

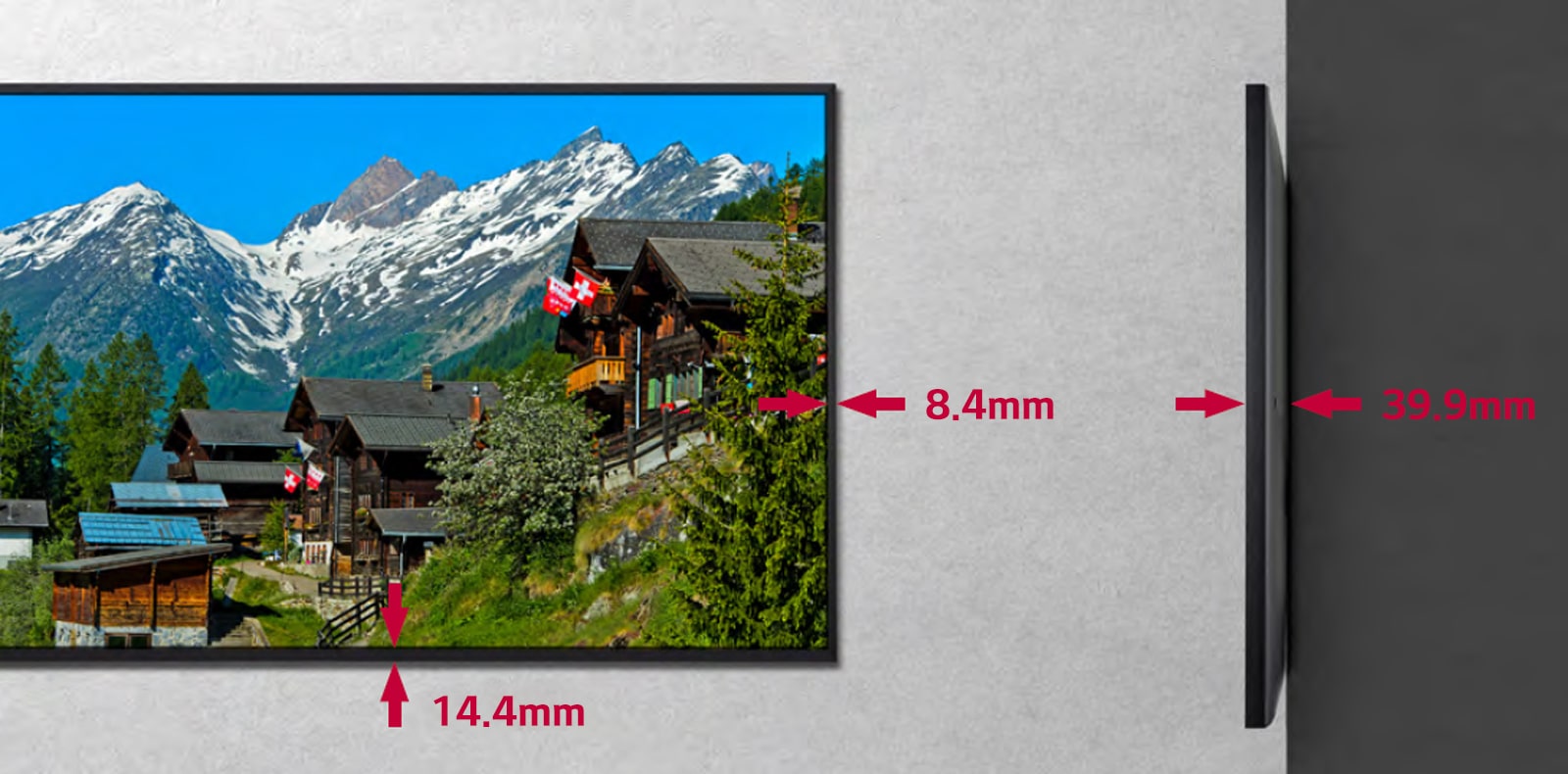

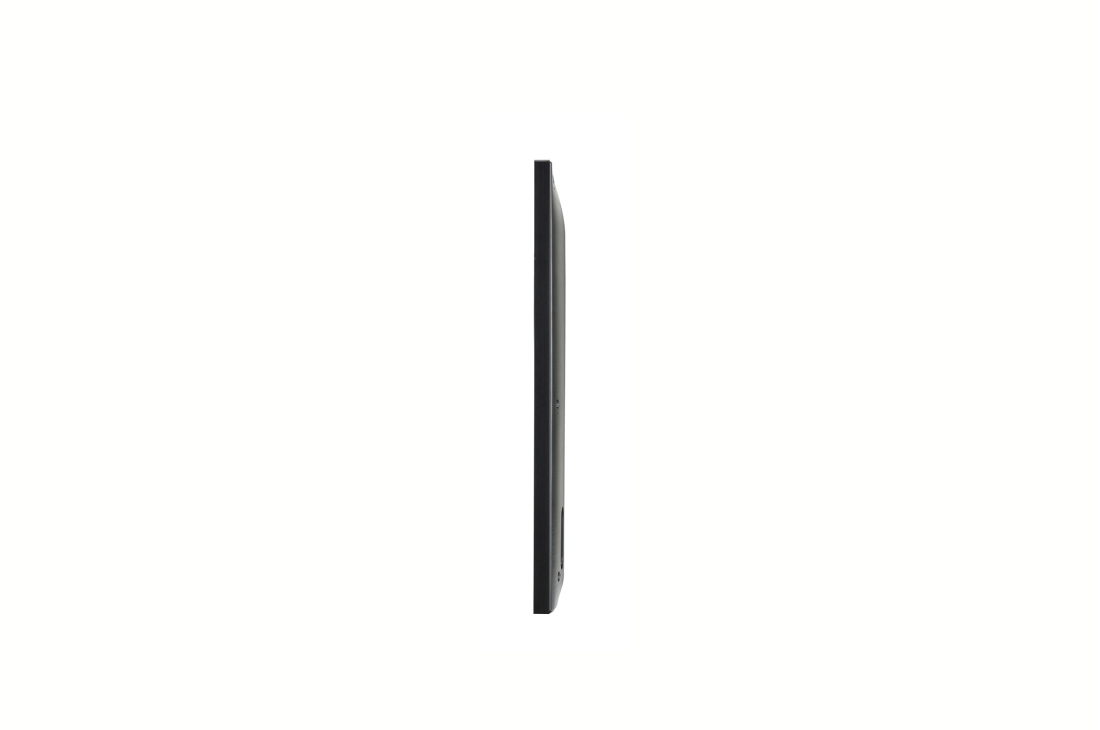

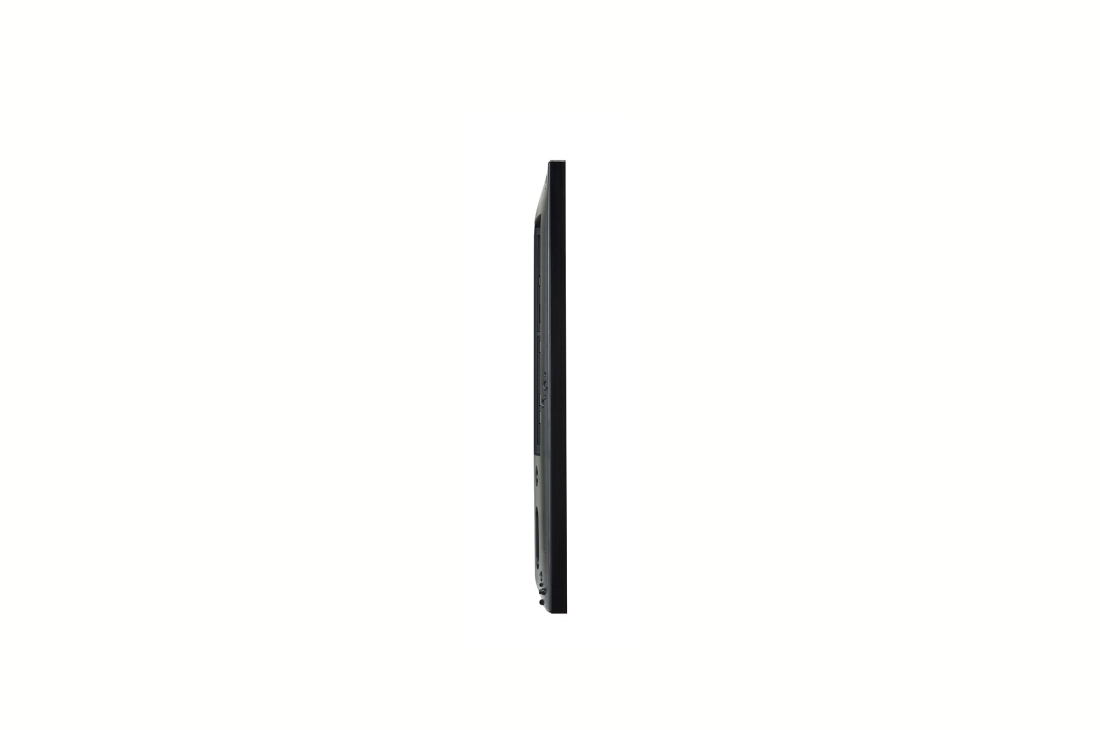

Narrow Bezel & Slim Depth

The UM3DG series has a smaller bezel size and thickness, which saves space and enables easy installation. In addition, it increases the immersive experience from the screen and provides a sophisticated design, improving the décor of the space where the product is installed.
Narrow Bezel & Slim Depth1 Narrow Bezel & Slim Depth2

Built-in Speaker

Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.
Built-in Speaker1 Built-in Speaker2

IP5x Certified Design

The IP5x Dust-Proof Certification ensures that the product is completely protected from dust, eliminating the risk of performance degradation.
IP5x Certified Design1 IP5x Certified Design2

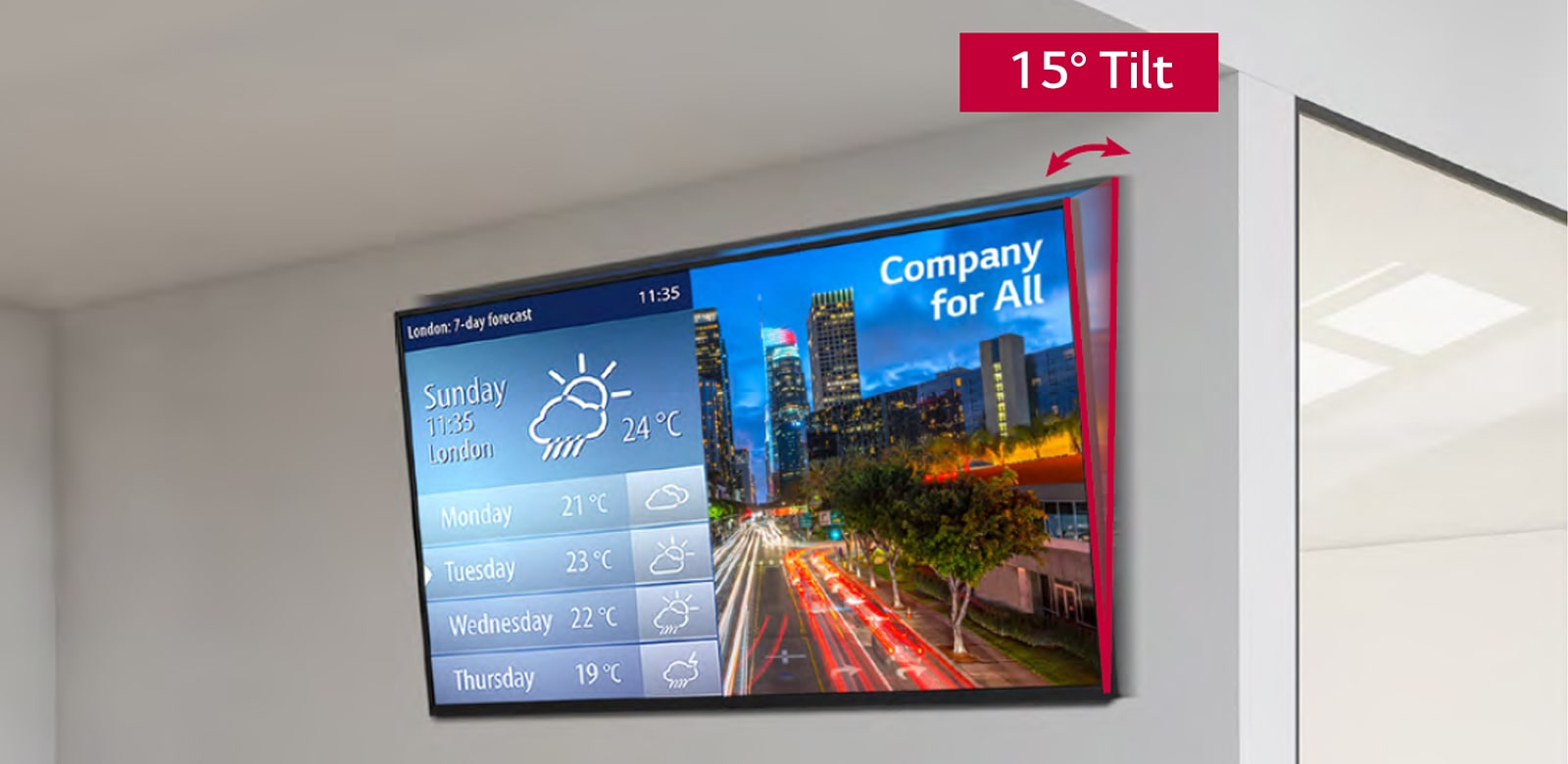

15° Tilting Installation

When a display is installed at high places, it is usually tilted for the user's comfort viewing. In consideration of this, the UM3DG series supports the installation with 15 degrees of tilt*.
15° Tilting Installation1 15° Tilting Installation2
* Tilt installation of up to 15 degrees facedown is supported. (in conditions within 30°C temperature, 50% humidity)

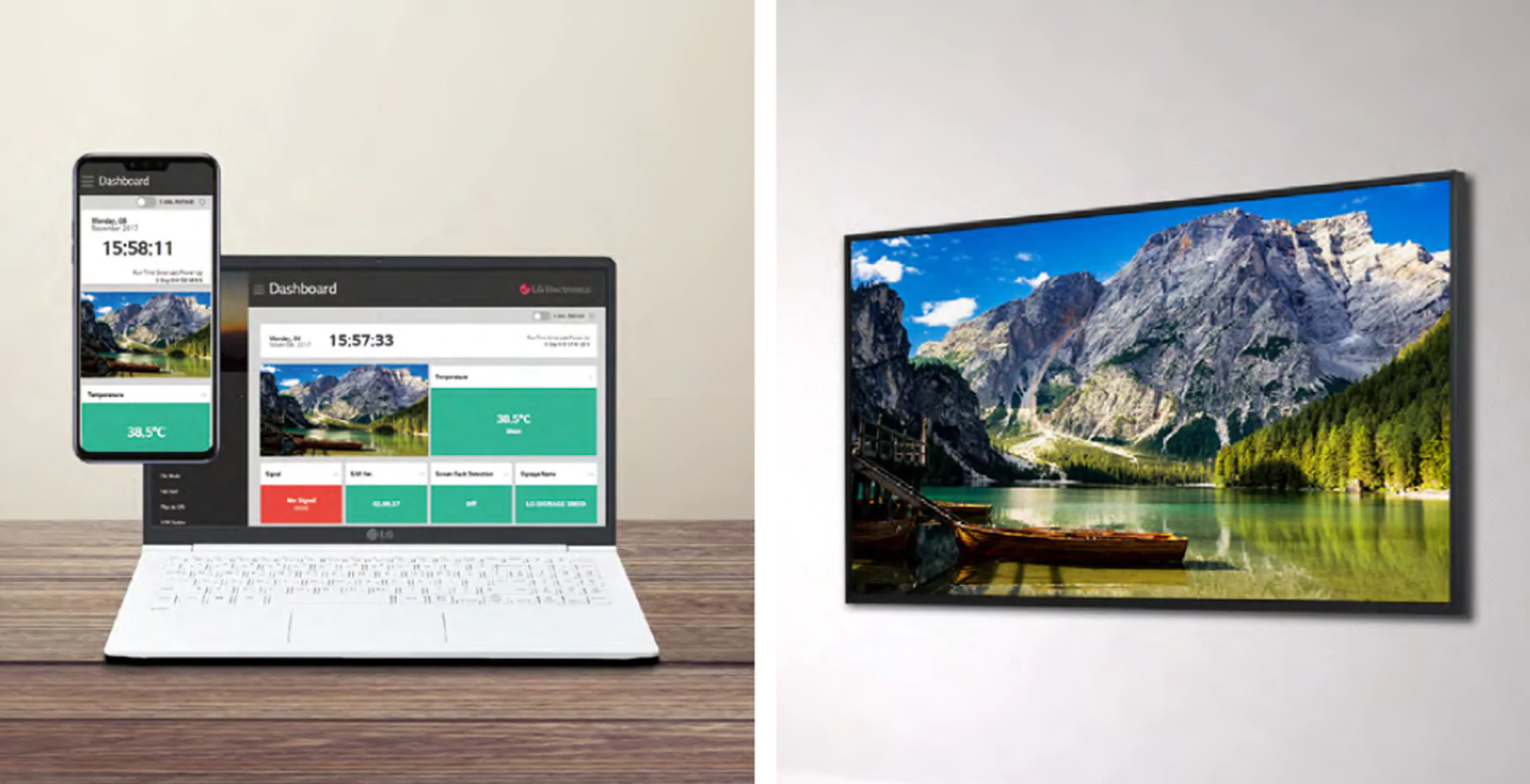

Remote Monitoring

The UM3DG series can email notifications to users when there is a problem, such as tilting of the product by external impact, so users can operate the product in a safer manner as they can get the information about the problem right away.
Remote Monitoring1 Remote Monitoring2

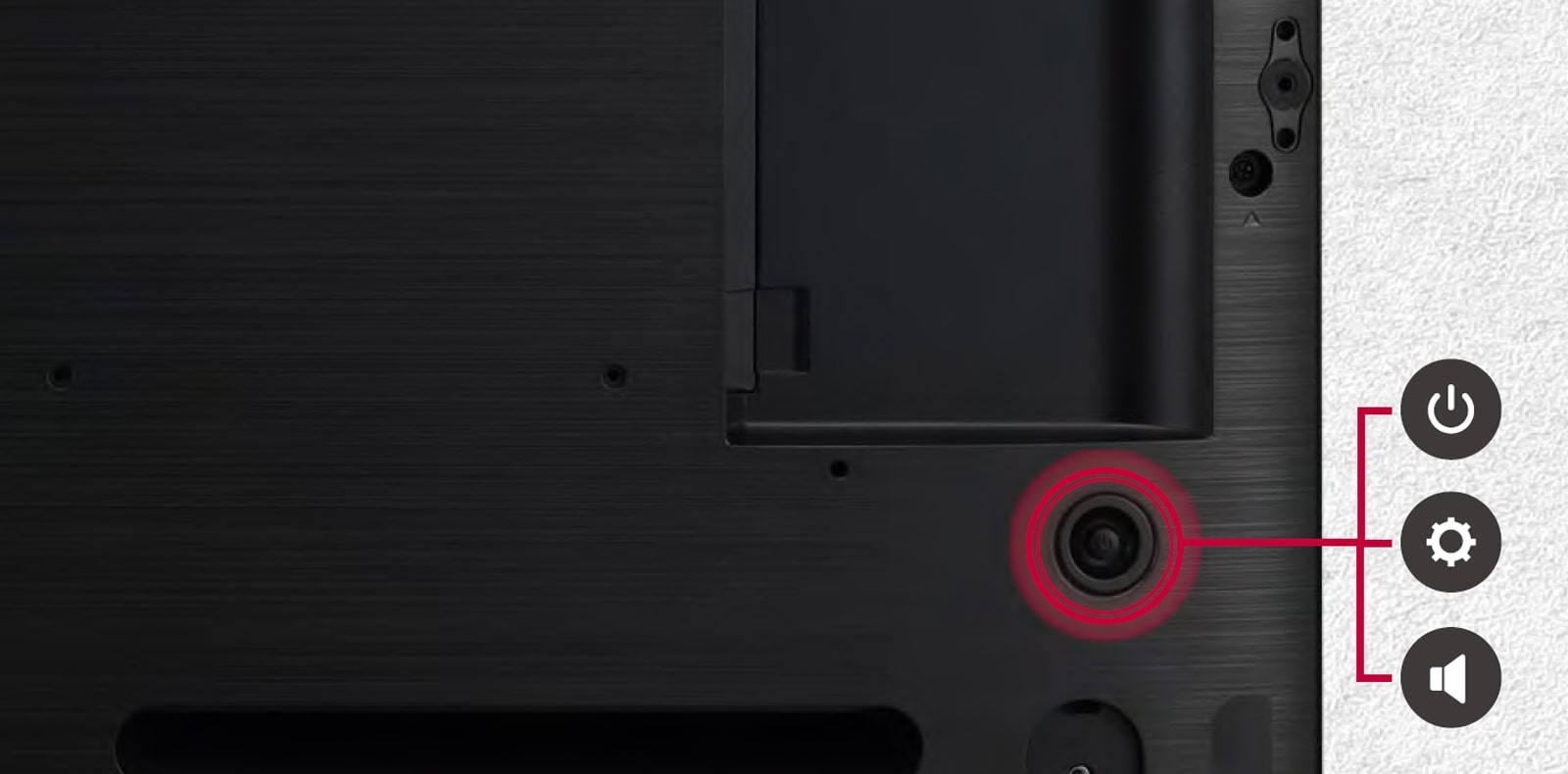

Simple Accessibility

Unlike other models where various buttons have to be pressed for control, the UM3DG series provides a single joystick to easily facilitate power on/off, input/setting operation, volume control, etc.
Simple Accessibility1 Simple Accessibility2

High-Performance with webOS

Built-in SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.
High-Performance with webOS1 High-Performance with webOS2

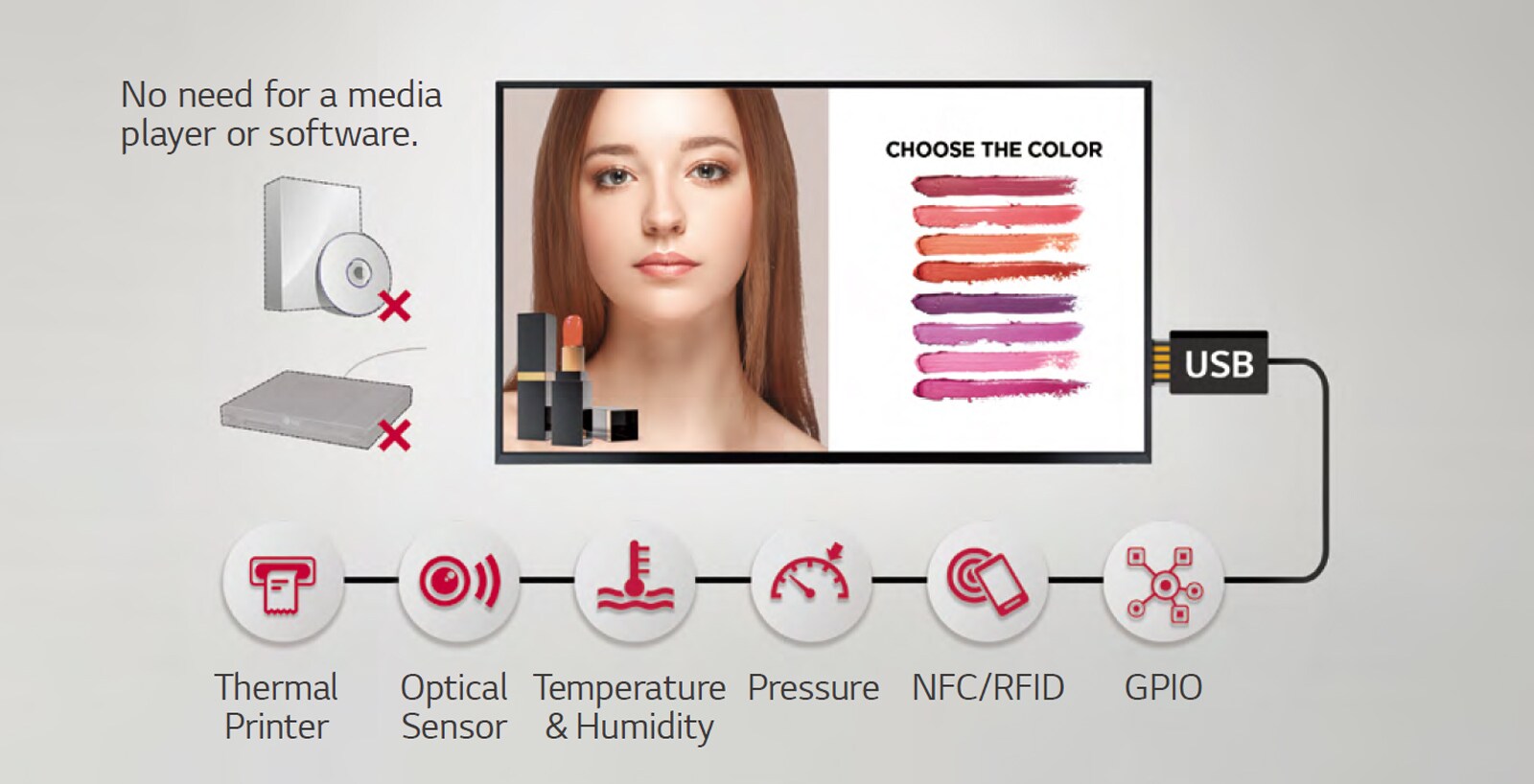

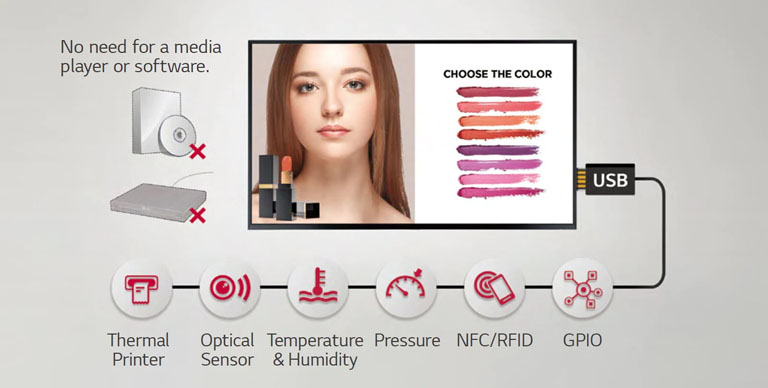

Various Sensor Applications

LG webOS smart signage platform easily supports connections with external sensors via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players for creating value-added solutions.
Various Sensor Applications1 Various Sensor Applications2

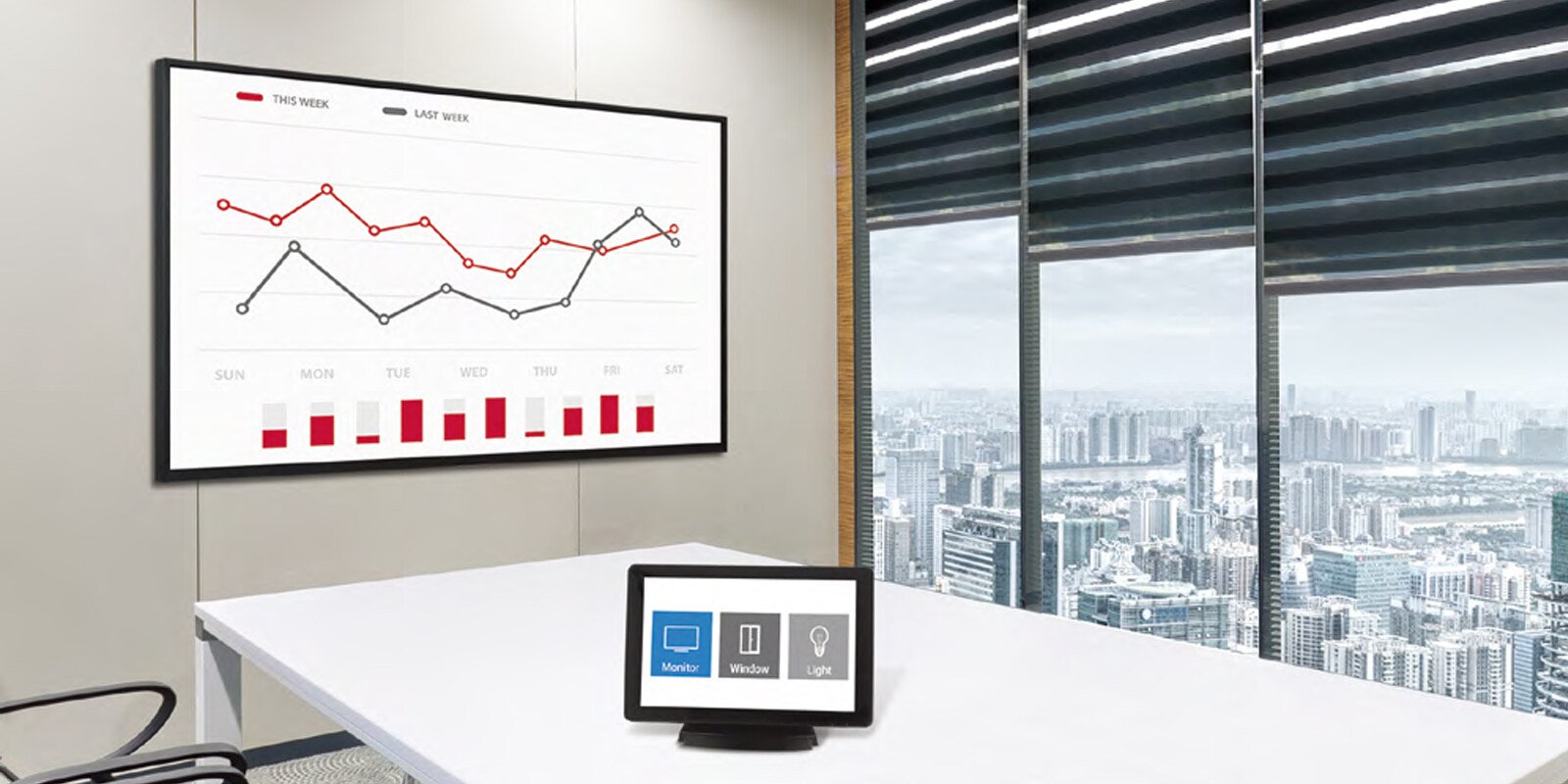

Compatibility with AV Control System

The UM3DG series has been certified Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.
Compatibility with AV Control System1 Compatibility with AV Control System2
* Network based control

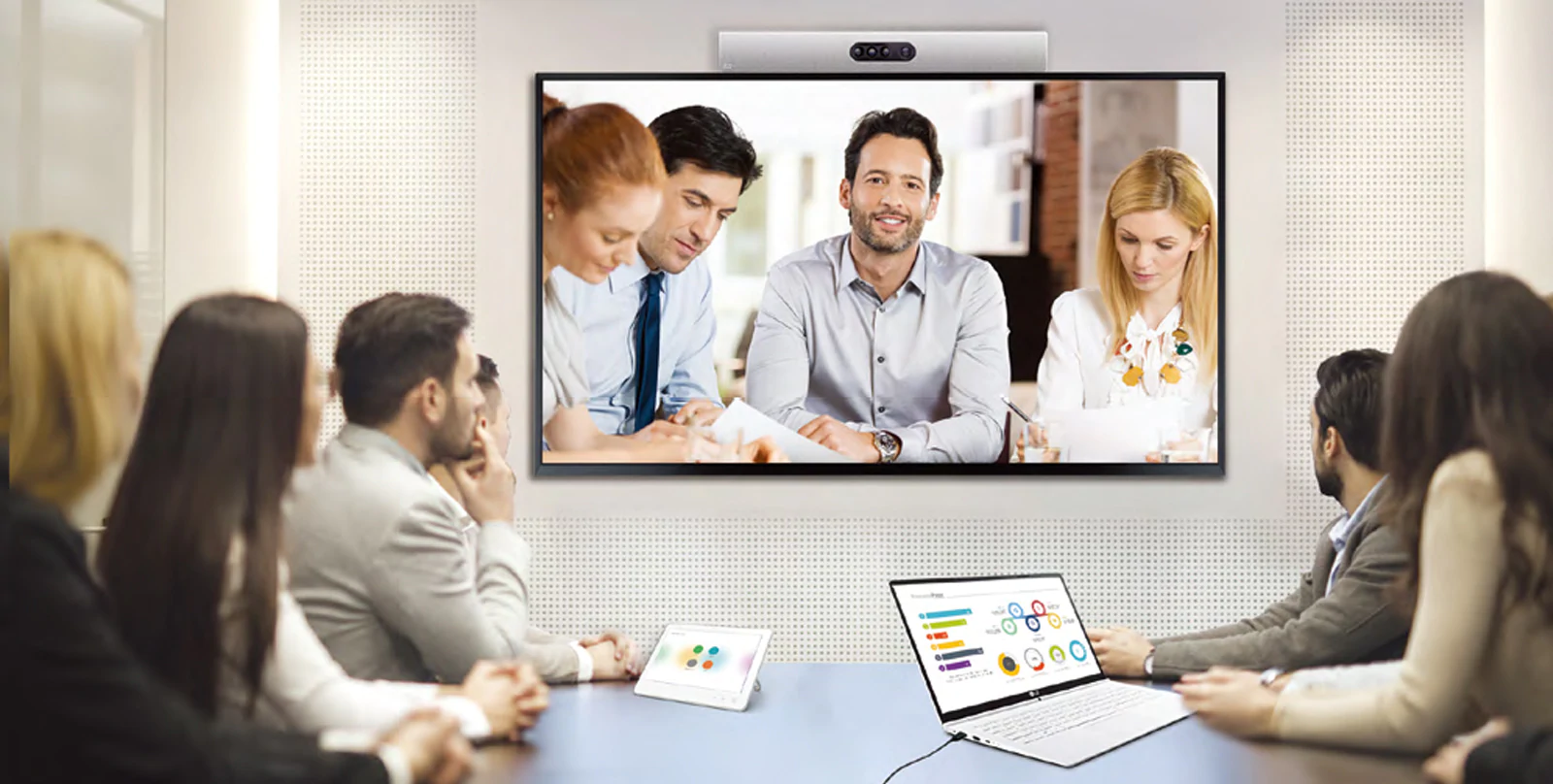

Compatibility with Video Conference System

For the optimum visual meeting, the UM3DG series has certified its compatibility with Cisco System that offers powerful and integrated control* for a smarter video conference, eliminating a waste of time for setting up the picture quality or changing input on incoming calls.
Compatibility with Video Conference System1 Compatibility with Video Conference System2
* Using an HDMI cable connection
ENERGY STAR® Certified1

ENERGY STAR® Certified

Close
PANEL
  • Screen Size
    43"
    Panel Technology
    IPS
  • Native Resolution
    3,840 x 2,160 (UHD)
    Brightness (Typ., nit)
    350
  • Contrast Ratio
    1,200:1
    Dynamic CR
    500,000 : 1 * The luminosity ratio of Full Black / Full White color on video input condition.
  • Color gamut
    BT709 95%
    Viewing Angle (H x V)
    178 x 178
  • Color Depth
    10bit(D)
    Response Time
    8ms(G to G)
  • Surface Treatment (Haze)
    1%
    Operation Hours
    18 / 7 (Hours / Day)
  • Portrait / Landscape
    Yes / Yes
CONNECTIVITY
  • Input
    HDMI (3, HDCP 2.2/1.4), USB 2.0 Type A
    Output
    Audio
  • External Control
    RS232C (4 Pin Phone Jack) In / Out, RJ45 (LAN) In, IR In
MECHANICAL SPECIFICATION
  • Bezel Color
    Black
    Bezel Width
    8.4mm(T/R/L), 14.4mm(B)
  • Weight (Head)
    11.2 kg
    Monitor Dimension (W × H × D)
    962.5 × 556.8 × 39.9 mm
  • Handle
    No
    VESA™ Standard Mount Interface
    200 x 200
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0 °C to 40 °C
    Operation Humidity
    10 % to 80 %
POWER
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ. / Max.
    70W / 105W
    Power off
    0.5 W
  • Smart Energy Saving
    50W
    DPM
    0.5W
  • BTU (British Thermal Unit)
    239 BTU/Hr(Typ.), 359 BTU/Hr(Max)
SOUND
  • Speaker
    Yes
CERTIFICATION
  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE / KC
  • ErP
    Yes
OPS COMPATIBILITY
  • OPS Type Compatible
    No
    OPS Power Built In
    No
SOFTWARE COMPATIBILITY
  • SuperSign CMS
    Yes
    SuperSign Control / Control+
    Yes
  • SuperSign WB
    Yes
    SuperSign Media Editor
    Yes
  • Signage365Care
    Yes (The availability can differ by region.)
ACCESSORY
  • Basic
    Remote Controller, Power Cord, QSG, Regulation Book, Phone to RS232C Gender
    Optional
    Stand(ST-653T), Wall bracket(LSW240B), VESA Adapter(AM-B220S)
GENERAL
  • Region
    Global
