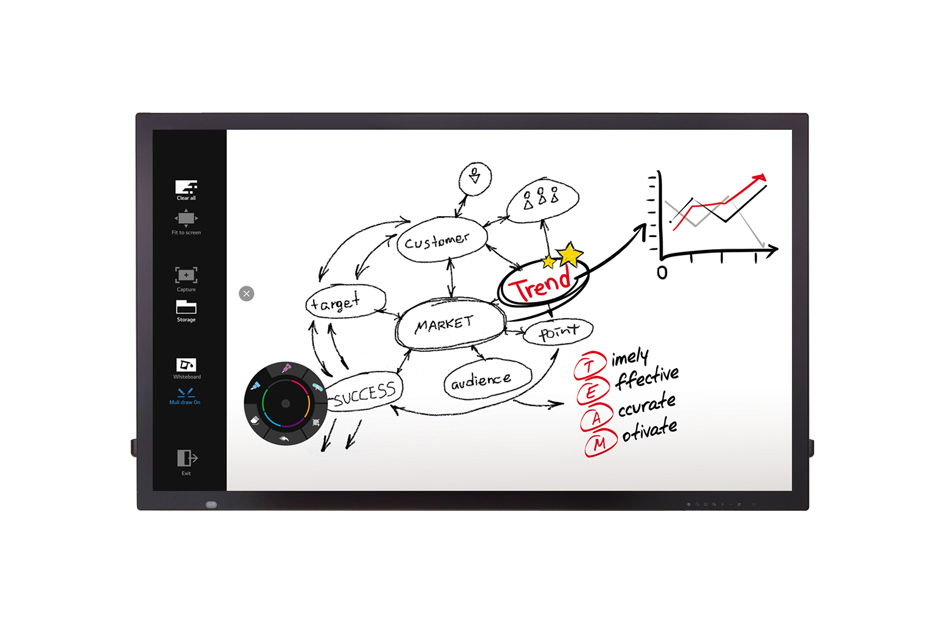

Interactive Digital Board
LG IDB: Do More Smartly, Simply1 LG IDB: Do More Smartly, Simply2
Embedded LG IDB App & webOS

LG IDB: Do More Smartly, Simply

With the IDB app, based on the webOS smart platform, get rid of the need for a PC or additional software licenses when writing/collaborating on Interactive Digital Board.
Intuitive Touch and Writing1 Intuitive Touch and Writing2
Innovative Touch Performance

Intuitive Touch and Writing

Advanced P-Cap touch-technology enables precise touch responses and realistic handwriting. Pen thickness adapts to the writing speed, with support for max. 40 point muli-touch.
All-in-One Meeting Experience1 All-in-One Meeting Experience2
Efficient Collaboration

All-in-One Meeting Experience

For effective collaboration, LG IDB combines once separate processes including participant laptop screen sharing via wired/wireless connection, writing on a shared screen, and saving annotations.
True Color, Wide View1 True Color, Wide View2
IPS Panel

True Color, Wide View

LG IPS panel features a wide viewing angle to deliver clear content regardless of where meeting participants are seated. Each pixel in the IPS panel reproduces image colors true-to-life, without distortion.
Quick and Easy Screen Sharing1 Quick and Easy Screen Sharing2
Auto Signal/Touch Switching

Quick and Easy Screen Sharing

Delivering time-saving functionality, the display can detect input/touch signals and automatically change the source if the new input has higher priority than the previous source.
Easy Menu Calling, and Control1 Easy Menu Calling, and Control2
Assistive Touch Menu

Easy Menu Calling, and Control

Providing optimal ease of use, LG IDB users can run desired functions or change settings by softly pressing the screen to call up the Touch Menu.
* The menu design(GUI) is subject to change without notice



Enjoy a Multi Screen Experience1 Enjoy a Multi Screen Experience2
PBP/PIP

Enjoy a Multi Screen Experience

Providing enhanced flexibility for users, PBP/PIP enables two different content sources to be displayed in various layout settings including full screen, original ratio, and sub-screen modes.
Close
PANEL
  • Screen Size
    55”
    Native Resolution
    1,920 x 1,080 (FHD)
  • Brightness(Module, Typ., cd/m²)
    450
CONNECTIVITY
  • Input
    HDMI (3), DP, DVI-D, RGB, Audio in, USB 3.0, USB 2.0, OPS USB 2.0
    Output
    Touch USB 2.0 (2)
  • External Control
    RS232C in/out, RJ45 in
PHYSICAL SPECIFICATION
  • Bezel Width
    32.7mm (T), 33.4(L/R), 38.8 mm(B)
    Monitor Dimension (W x H x D)
    1,276.4 x 751.9 x 63.9 mm
  • Weight (Head)
    30.1 kg
    Carton Dimensions (W x H x D)
    1,369 x 890 x 210 mm
  • Packed Weight
    36.1 kg
    VESA™ Standard Mount Interface
    300 x 300 mm
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %
POWER CONSUMPTION
  • Typ.
    ≤ 100 W
    Smart Energy Saving
    ≤ 70 W
STANDARD(CERTIFICATION)
  • Safety
    UL / cUL / CB / TUV / KC
    EMC
    FCC Class “A” / CE / KCC
SOFTWARE COMPATIBILITY
  • Content Management Software
    SuperSign Premium
    Control and Monitoring Software
    SuperSign Link
ACCESSORY
  • Basic
    Remote Controller (include battery 2ea), Power Cord, QSG, HDMI (3M), Regulation Book, Phone to RS232C Gender, Touch Pen (2ea), Touch Pen Tip (1ea)
    Optional
    OPS Kit (KT-OPSA), Wall Mount(LSW350A/B)
TOUCH
  • Touch type
    P-Cap(Ag Metal Mesh)
    Available object size for touch
    more than Ø 6 mm
  • Accuracy
    2 mm
    Interface
    USB 2.0
  • Protection Glass Thickness
    3.2T (Anti-Glare)
    Multi touch point
    Max. 40 Points
