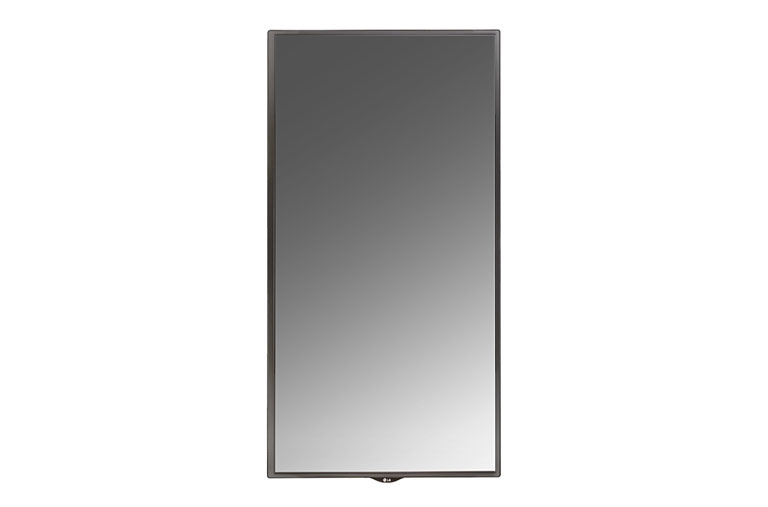

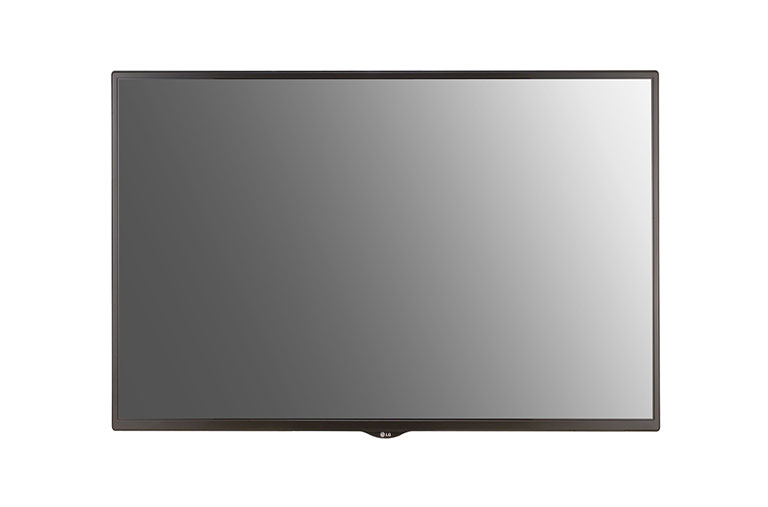

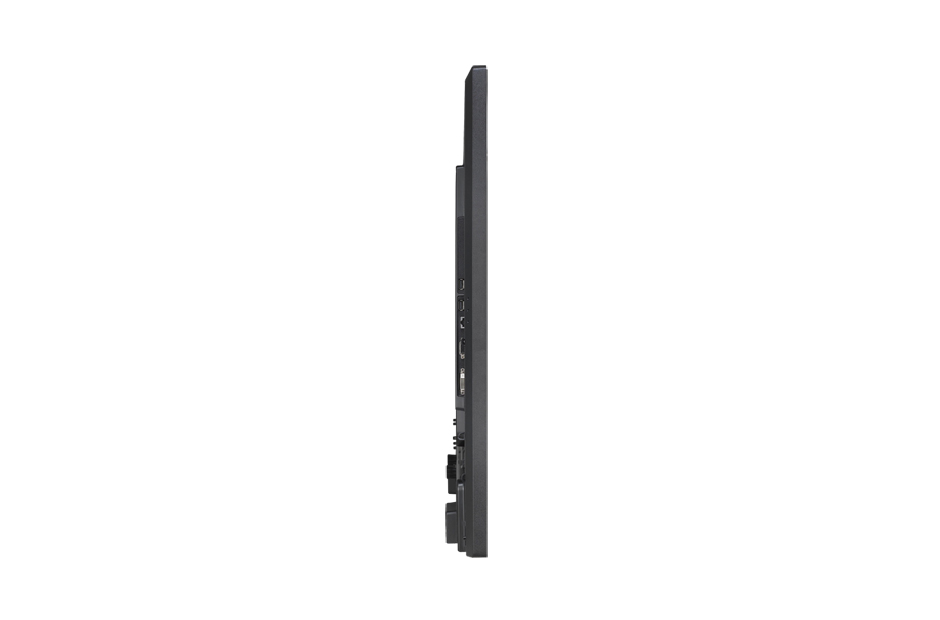

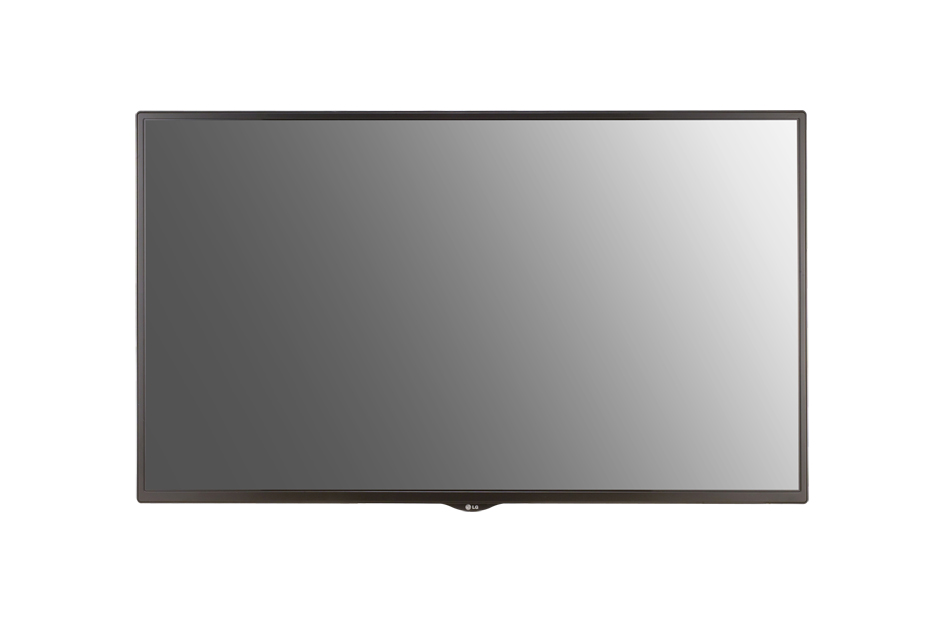

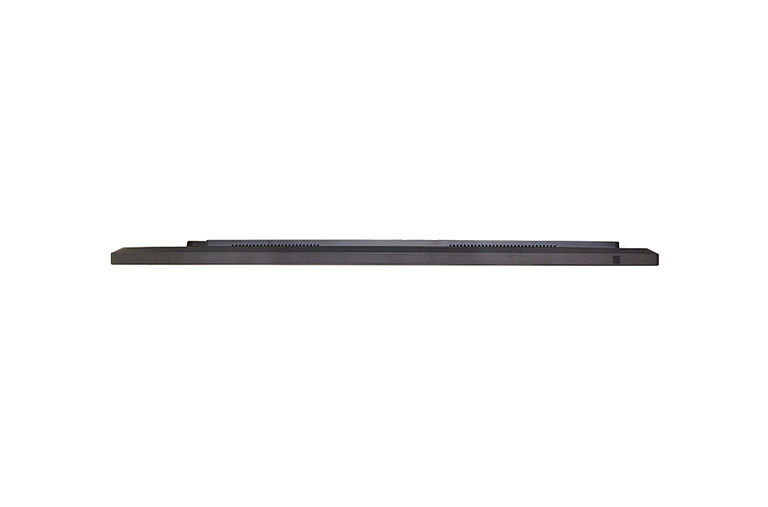

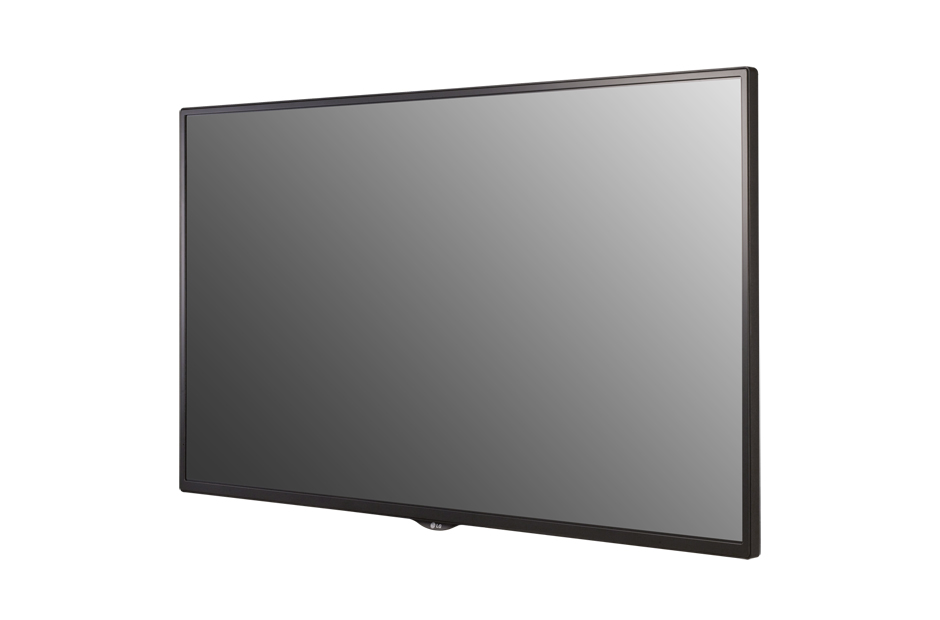

65" 450 nits FHD Standard Signage
High Performance Smart Platform<br>1 High Performance Smart Platform<br>2
Quad Core SoC with webOS

High Performance Smart Platform

Quad Core SoC (System-on-Chip) executes several tasks at once with smooth content playback without a media player. webOS smart signage platform enhances user convenience with intuitive UI and simple development tools.
Easy Contents Management<br>1 Easy Contents Management<br>2
Integrated CMS

Easy Contents Management

Embedded CMS (Content Management System) allows users to edit and play content, and create playlists, all without a seperate PC. It's a one-stop solution that lets users manage signage simply, and effectively.

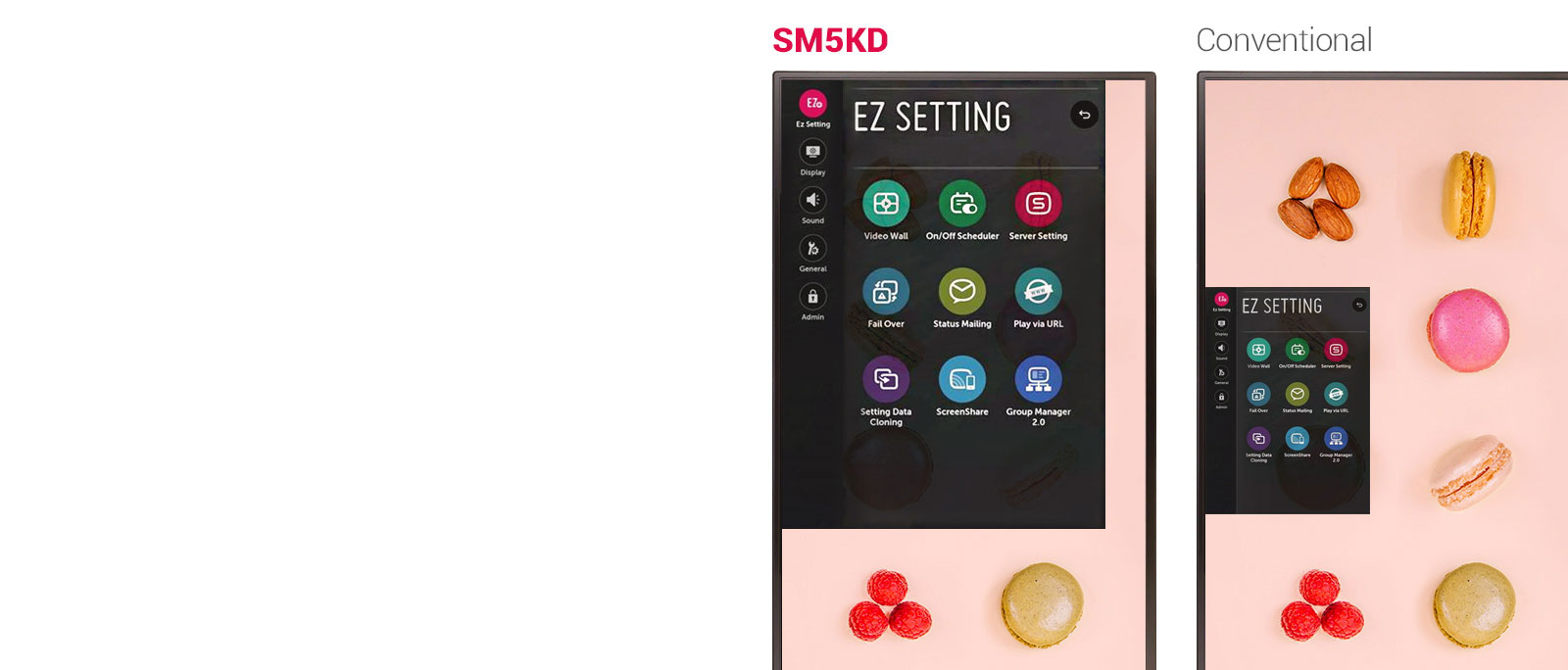

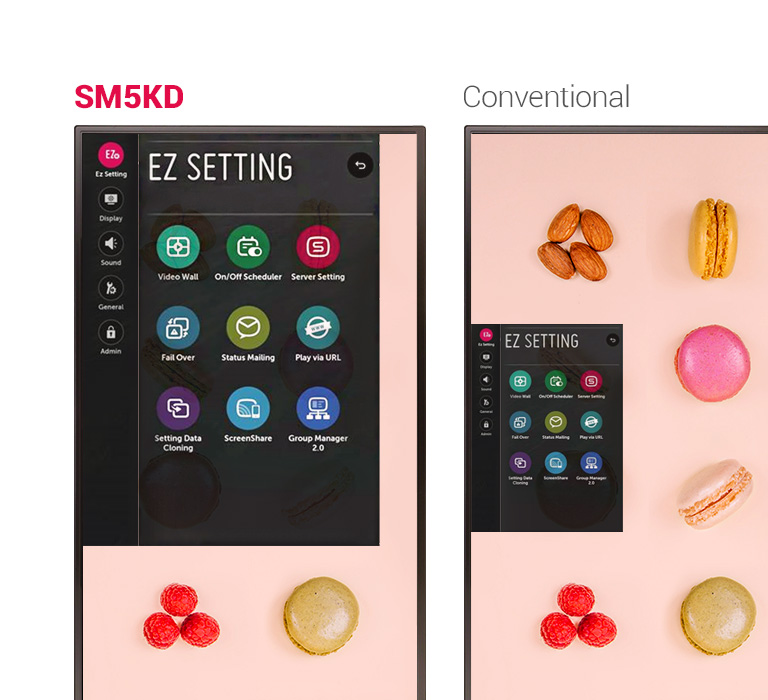

Enhanced Usability<br>1 Enhanced Usability<br>2
GUI for B2B & EZ Setting

Enhanced Usability

A B2B dedicated GUI for portrait and long range environment modes provides convenient user management. With the 'EZ setting', users get integrated management of signage special features through a unifying access point.
Real-time Streaming<br>1 Real-time Streaming<br>2
Video Streaming

Real-time Streaming

Various types of IP video streaming protocols such as RTSP/RTP/HLS and UDP Multicast are supported for real-time content streaming. It is easy to manage content as it is free from capacity limits for content playback, and provides live broadcasts.
* Image is for illustration-purposes only.
*HLS (HTTP Live Streaming) / * UDP (User Datagram Protocol)
* RTSP (Real-Time Streaming Protocol) / * RTP (Real-time Transport Protocol)

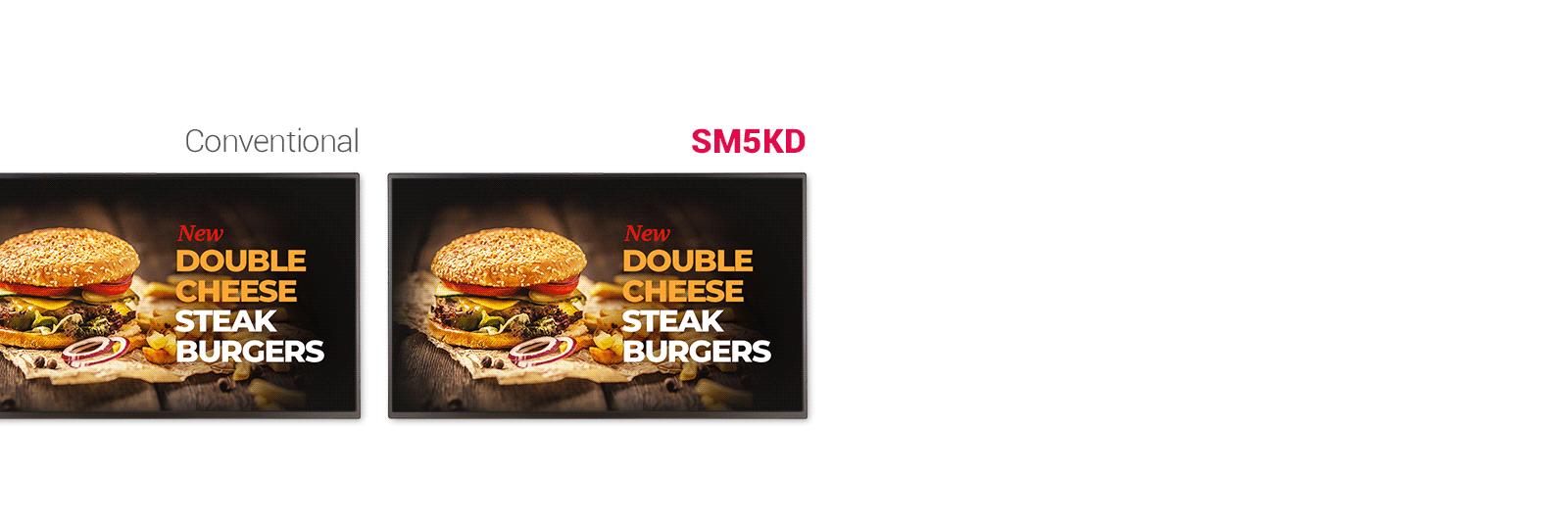

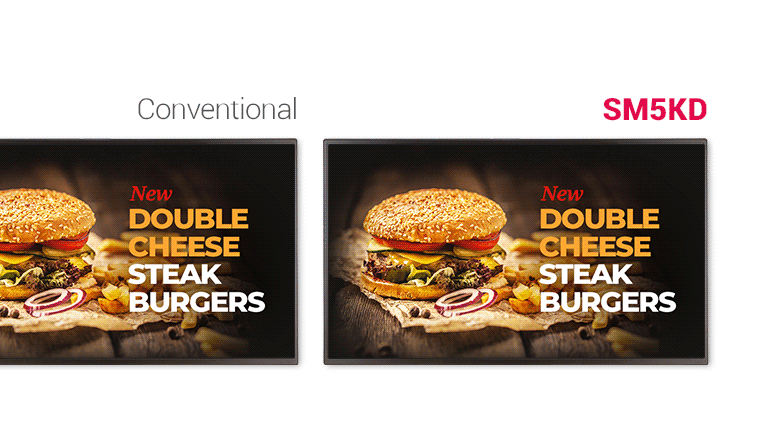

Seamless Content Playback<br>1 Seamless Content Playback<br>2
Gapless Playback

Seamless Content Playback

During playback of diverse content such as videos, images, and HTML, enjoy seamless transition between screens with no black screen gaps with webOS.
Multiple Screen Composition<br>1 Multiple Screen Composition<br>2
PBP/PIP

Multiple Screen Composition

PBP (Picture-By-Picture) and PIP (Picture-In-Picture) enables up to two divided split screens in landscape or portrait display format enabling users to more flexibly allocate space for each content source.
Suited for Industrial Design<br>1 Suited for Industrial Design<br>2
Detachable Logo & Built-in Speaker

Suited for Industrial Design

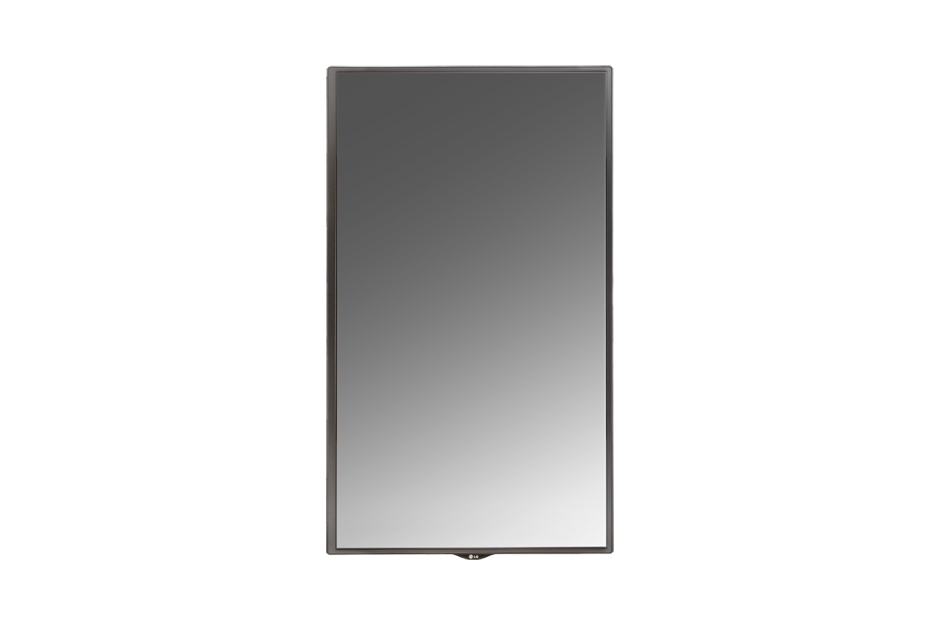

The detachable logo allows for installation in the desired orientation: landscape or portrait mode. Also, sounds can be played from built-in speakers, giving advertisements greater impact.
Wireless Solutions<br>1 Wireless Solutions<br>2

Wireless Solutions

  • Content Sharing1

    Content Sharing

    Mirroring among devices is more convenient on a Wi-Fi network.

  • Real-time Promotion1

    Real-time Promotion

    With Beacon and Bluetooth Low Energy (BLE), retail stores can provide coupons and information in real-time.

Support for Network Protocol<br>1 Support for Network Protocol<br>2

Support for Network Protocol

  • HTTPS1

    HTTPS

    With support for the HTTPS (Hypertext Transfer Protocol over Secure Socket Layer) protocol, communication between the server and signage is more secure.

  • Proxy Server1

    Proxy Server

    Web access speed and security can be improved by supporting proxy server. Managers can not only block unwanted websites, but also quickly access to resources using caches.

Conformal Coating<br>1 Conformal Coating<br>2

Conformal Coating

The product can be often unavoidably exposed to dust and water during maintenance. Conformal coating on major circuit board eliminates such troubles by protecting it against dust, iron powder, humidity, etc.
Close
PANEL
  • Screen Size
    65"
    Resolution
    1,920 x 1,080 (FHD)
  • Brightness(Typ.,cd/m²)
    450
CONNECTIVITY
  • Input
    HDMI (2), DP, DVI-D, RGB, Audio, USB 3.0
    Output
    DP, Audio
  • External Control
    RS232C in/out, RJ in, IR Receiver, Pixel Sensor
PHYSICAL SPECIFICATION
  • Bezel Width
    11.9 mm (T/R/L), 18 mm (B)
    Monitor Dimension (W x H x D)
    1,456.9 x 838 x 56.5 mm
  • Weight (Head)
    27.9 kg
    VESA™ Standard Mount Interface
    300 x 300
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %
POWER
  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ.
    120 W
    Smart Energy Saving
    85 W
STANDARD(CERTIFICATION)
  • Safety
    UL / cUL / CB / TUV / KC
    EMC
    FCC Class "A" / CE / KCC
  • ErP / Energy Star
    NA / Yes (Energy Star 7.0)
MEDIA PLAYER COMPATIBILITY
  • OPS type compatible
    Yes
    External Media player Attatchable
    Yes (MP500/MP700)
SOFTWARE COMPATIBILITY
  • Content Management Software
    SuperSign Premium
    Control and Monitoring Software
    SuperSign Link
ACCESSORY
  • Basic
    Remote Controller (included 2ea batteries), Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, Memory cover
    Optional
    Stand (ST-652T), Media Player, Wall Bracket (LSW350B), VESA Adapter (AMB330S), OPS Kit (KT-OPSA), HDBaseT (EB-B100), Touch Overlay (KT-T651)
