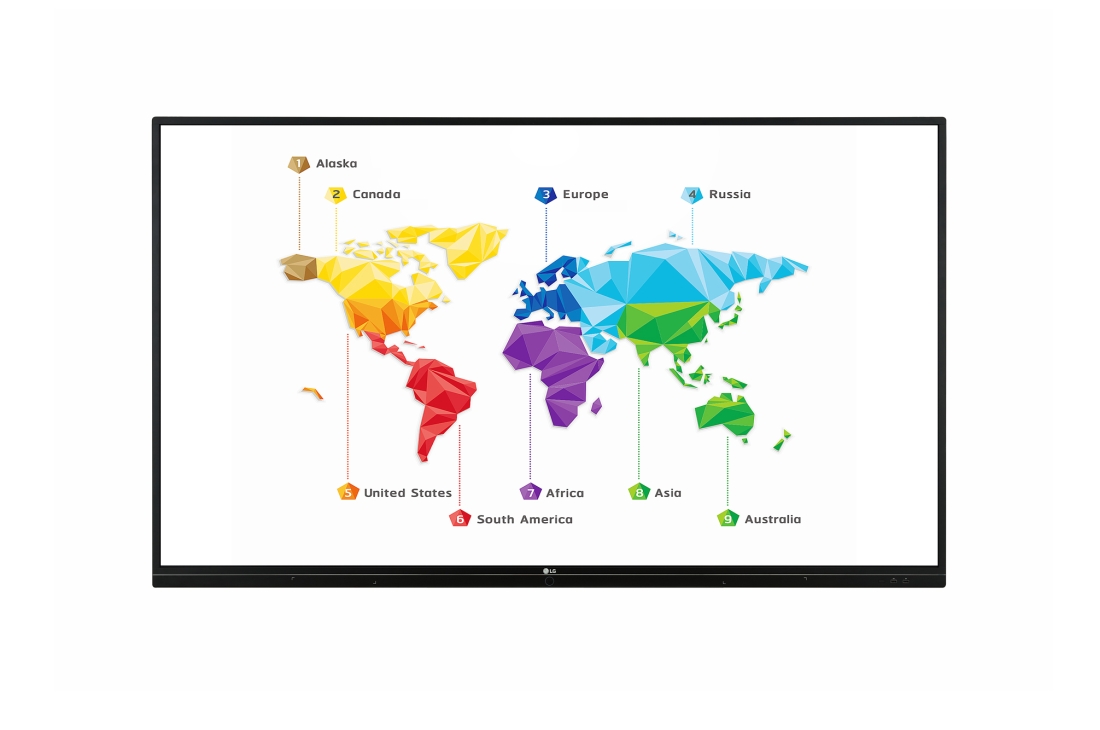

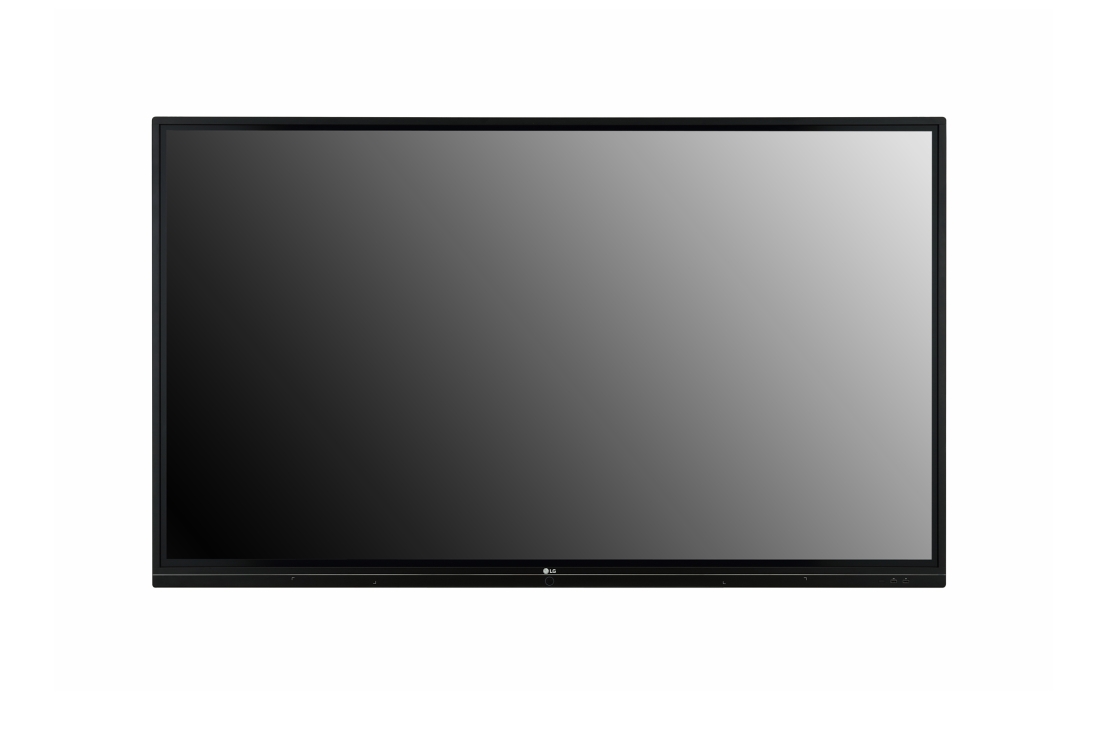

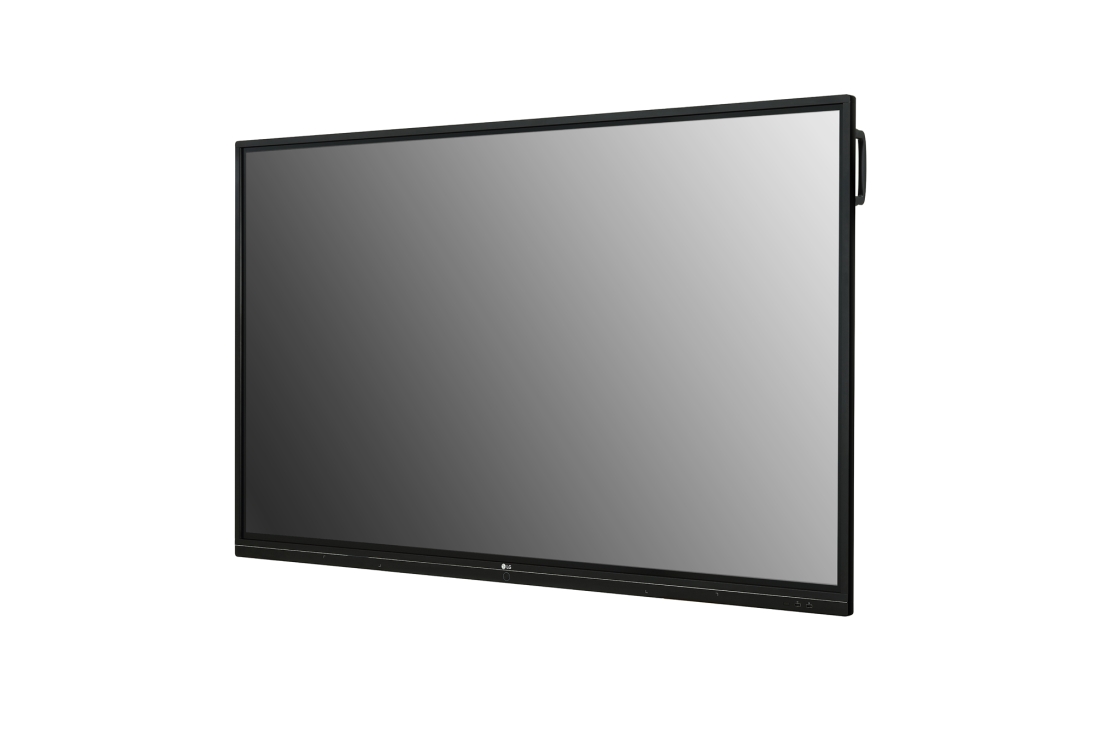

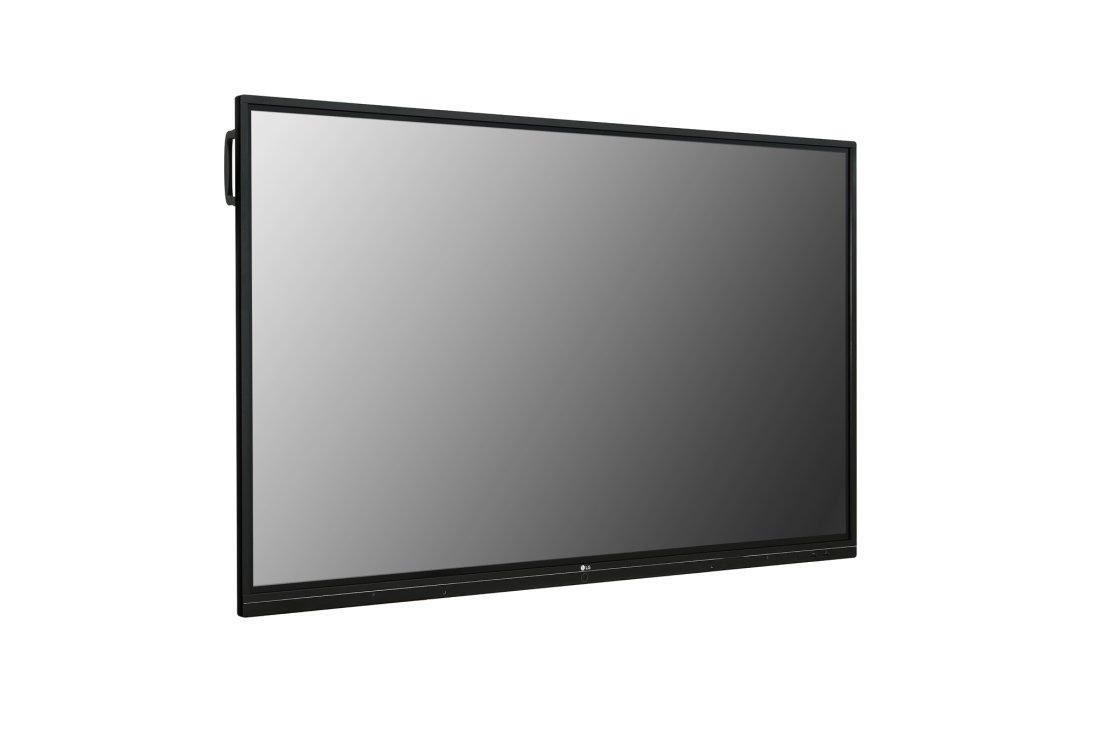

65" 350 nits UHD Interactive Digital Board
True Interactivity for Bringing People Together 1 True Interactivity for Bringing People Together 2

True Interactivity for Bringing People Together

With differentiated cutting-edge touch technology, the TR3BF Series supports multi-touch & writing functions providing accurate drawing and authentic touch quality. In addition, the Air Class and web browsers support multi-directional communication and interactive learning, which will help you achieve the successful business.
Multi Touch & Writing<br>1 Multi Touch & Writing<br>2
GENUINE TOUCH & WRITING EXPERIENCE

Multi Touch & Writing

The TR3BF Series can simultaneously use up to 20 points of multitouch and 10 points of writing, as well as 2 types of stylus pens. This function offers a lifelike board writing experience and makes collaboration much easier.
Palm erasing1 Palm erasing2
GENUINE TOUCH & WRITING EXPERIENCE

Palm erasing

The TR3BF Series allows you to easily erase texts, pictures, etc, written on the screen by using your own hands. This is not only easier than erasing with the stylus, but also makes you feel more natural, like you're erasing a real whiteboard.
Air Class1 Air Class2
EASY CONNECT & SHARING

Air Class

Air Class supports connecting up to 30 students and offers interactive meetings for all mobile devices on the same network, providing a variety of tools such as voting, answering, and sharing project texts.
Screen Sharing1 Screen Sharing2
EASY CONNECT & SHARING

Screen Sharing

The TR3BF Series allows you to share screens and content with laptops and other mobile devices. This makes meetings and classes as efficient and immersive as possible.
Built-in OPS kit1 Built-in OPS kit2
EASY CONNECT & SHARING

Built-in OPS kit

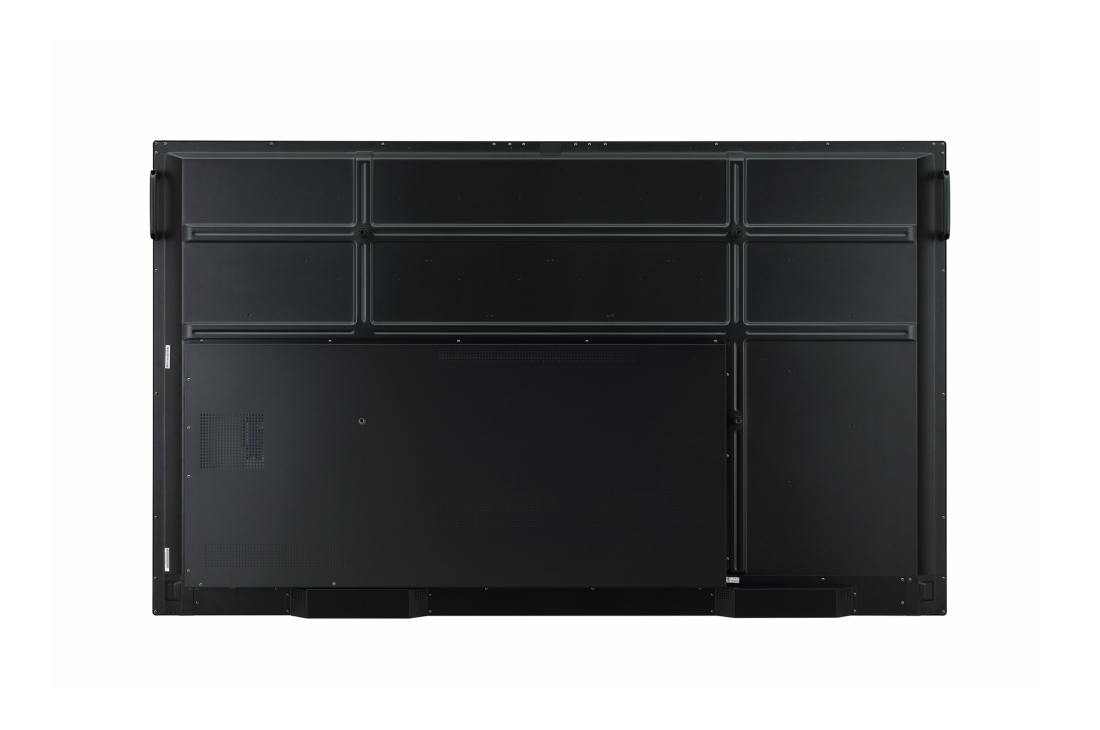

The TR3BF Series supports OPS slots, allowing you to easily and conveniently mount OPS desktop at the back of the digital board without the hassle of connecting to an external desktop, offering you more expanded functions.
Web browser1 Web browser2
USER FRIENDLY EXPERIENCE

Web browser

The TR3BF Series can use the Chrome web browser which is built into the Android OS, so you can search the web easily and quickly, without the need to connect to an external desktop.
All-in one1 All-in one2
USER FRIENDLY EXPERIENCE

All-in one

The TR3BF Series integrates both Android and Note Apps into a high performance SoC, without a PC.
Various size with Ultra HD1 Various size with Ultra HD2
SUPERIOR PICTURE QUALITY

Various size with Ultra HD

Using UHD resolution will allow you to view details at a resolution that is four times higher than FHD, even while zoomed in. Various content such as documents, images, and videos are displayed without any distortion of image quality, which is especially important in an educational and collaborating environment.
True Color, Immersive View1 True Color, Immersive View2
SUPERIOR PICTURE QUALITY

True Color, Immersive View

The TR3BF Series shows multimedia content for the attendees more vividly. The IPS panel clearly displays content at various angles, regardless of where attendees are sitting. Each pixel of the IPS panel reproduces the actual image's color without any distortion.
Close
PANEL
  • Screen Size
    65
    Panel Technology
    IPS
  • Back Light Type
    Direct
    Aspect Ratio
    16 : 9
  • Native Resolution
    3,840 x 2,160 (UHD)
    Brightness(Typ., cd/m², w/ Protection Glass)
    350
  • Contrast Ratio
    1,200:1
    Viewing Angle (H x V)
    178 x 178
  • Response Time
    9ms(G to G)
    Life Time (Typ.)
    30,000 Hrs (Min.)
  • Operation Hours
    16Hr
    Orientation
    Landscape

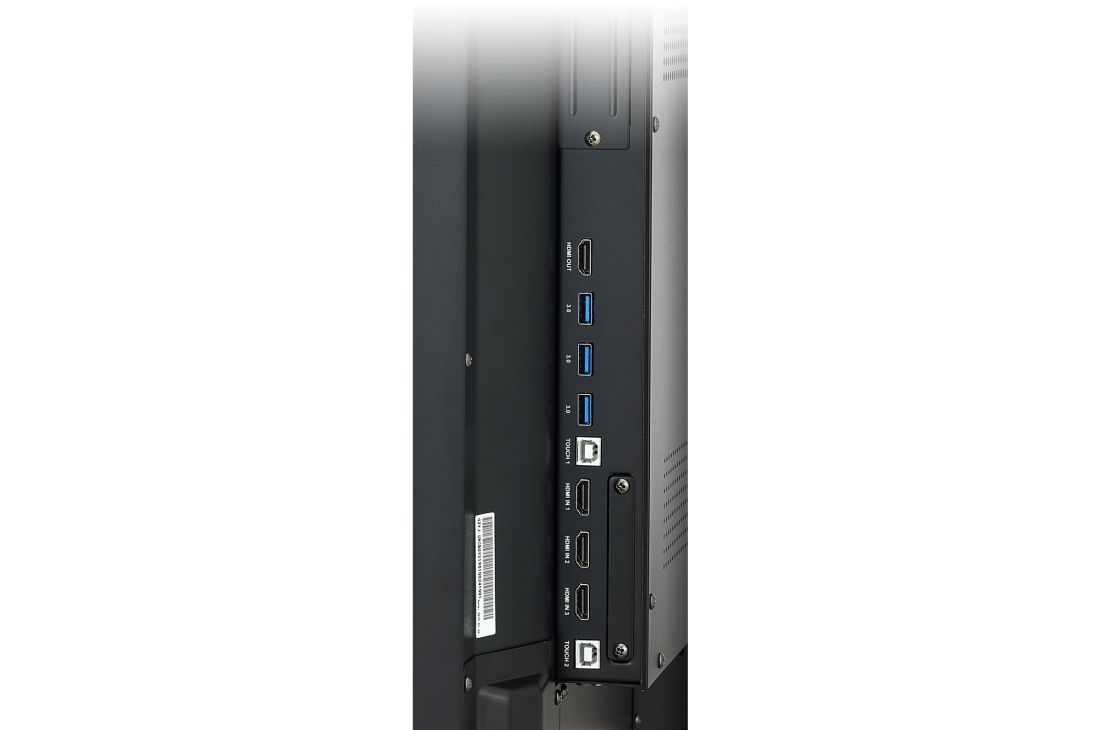

CONNECTIVITY
  • (Input) Video / Audio
    HDMI (3), RGB / Audio In
    (Input) External Control
    RS232C In, RJ45
  • (Input) USB
    USB 2.0 (3, Front : 2ea, Bottom side: 1ea Only for software update), USB 3.0 (3), Touch Out(USB2.0,B Type) (2)
    (Output) Video / Audio
    HDMI (1), Optical Output / Audio Out
MECHANICAL SPECIFICATION
  • Bezel Color
    Black
    Bezel Width(Off Bezel)
    Top/Right/Left:17.7mm, Bottom:45.7mm
  • Monitor Dimension (W × H × D)
    1,488×897×86mm
    Weight (Head)
    40kg
  • Carton Dimensions(W x H x D) with pallet
    1,700×1,175×250mm
    Packed Weight
    67.6kg
  • Handle
    Yes
    VESA™ Standard Mount Interface
    600 x 400
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0 °C to 40 °C
    Operation Humidity
    10 % to 80 %
POWER
  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
  • Power Consumption (Typ. / Max.)
    145W / 275W
SOUND
  • Speaker
    Built in 24W (12W + 12W)
STANDARD(CERTIFICATION)
  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE
  • ErP / Energy Star
    Yes(EU Only) / No
MEDIA PLAYER COMPATIBILITY
  • OPS Type Compatible
    Yes
ACCESSORY
  • Basic
    Power Cord 3 M*1, USB Cable (Type A-Type B) 5 M*1, HDMI Cable 3 M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Control
SPECIAL FEATURE
  • Embedded Writing Software
    Yes
TOUCH SPECIFICATIONS
  • Touch type
    IR
    Available object size for touch
    Ø3 mm ↑
  • Response Time
    60ms ↓ (Android) / 100ms ↓ (Windows)
    Accuracy
    1.5mm
  • Interface
    USB 2.0
    Protection Glass Thickness
    4T (Anti-Glare)
  • Protection Glass Transmission
    87%
    Operating System Support
    Windows 7/8/10/WindowsXP/Linux/Mac/Android (WindowsXP/Linux/Mac Support one point touch)
  • Multi touch point
    Max 20 points / Max 10 writing
