65UH5F-H component-copyModelName
Non-Glare Ultra HD Series

Key Features

Choose your Size

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (65UH5F-H)
    ৳
    ৳
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (65UH5F-H)
    ৳
    ৳
    LG Members Price
Total
Non-Glare Ultra HD Series
65UH5F-H_Standard_01-LG-UHD-Signage-Standard-Digital-Signage-ID-D 65UH5F-H_Standard_01-LG-UHD-Signage-Standard-Digital-Signage-ID-M
SUPERB PICTURE QUALITY

Clear View with Non-glare Coating

Viewers can be annoyed by unnecessary reflections when watching a screen under brightly lit conditions. The UH5F-H series has resolved such inconveniences by increasing the level of haze, which enhances visibility and text readability.
Clear View with Non-glare Coating1 Clear View with Non-glare Coating2
SUPERB PICTURE QUALITY

ULTRA HD Resolution

With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents with no distortion.
ULTRA HD Resolution1 ULTRA HD Resolution2
SLEEK AND PRACTICAL DESIGN

Narrow Bezel & Slim Depth

This series has a smaller bezel size and thickness, which saves space and enables easy installation. In addition, it increases the immersive experience from the screen and provides a sophisticated design, improving the décor of the space where the product is installed.
Narrow Bezel & Slim Depth1 Narrow Bezel & Slim Depth2
SLEEK AND PRACTICAL DESIGN

Detachable Logo and Built-in Speaker

This series is equipped with a new transparent logo which is well organized with surroundings. Also, its removable feature gives users flexibility for installation. Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.
Detachable Logo and Built-in Speaker1 Detachable Logo and Built-in Speaker2
PRODUCT RELIABILITY

IP5x Certified Design

The IP5x Dust-Proof Certification ensures that the product is completely protected from dust, eliminating the risk of performance degradation.
IP5x Certified Design1 IP5x Certified Design2
PRODUCT RELIABILITY

30° Tilting Installation

When a display is installed at high places, it is usually tilted for the user's comfort viewing. In consideration of this, the installation with 30 degrees of tilt* is supported.
30° Tilting Installation1 30° Tilting Installation2
* Tilt installation of up to 30 degrees facedown is supported. (In conditions within 30ºC temperature, 50% humidity)
EASY INSTALLATION

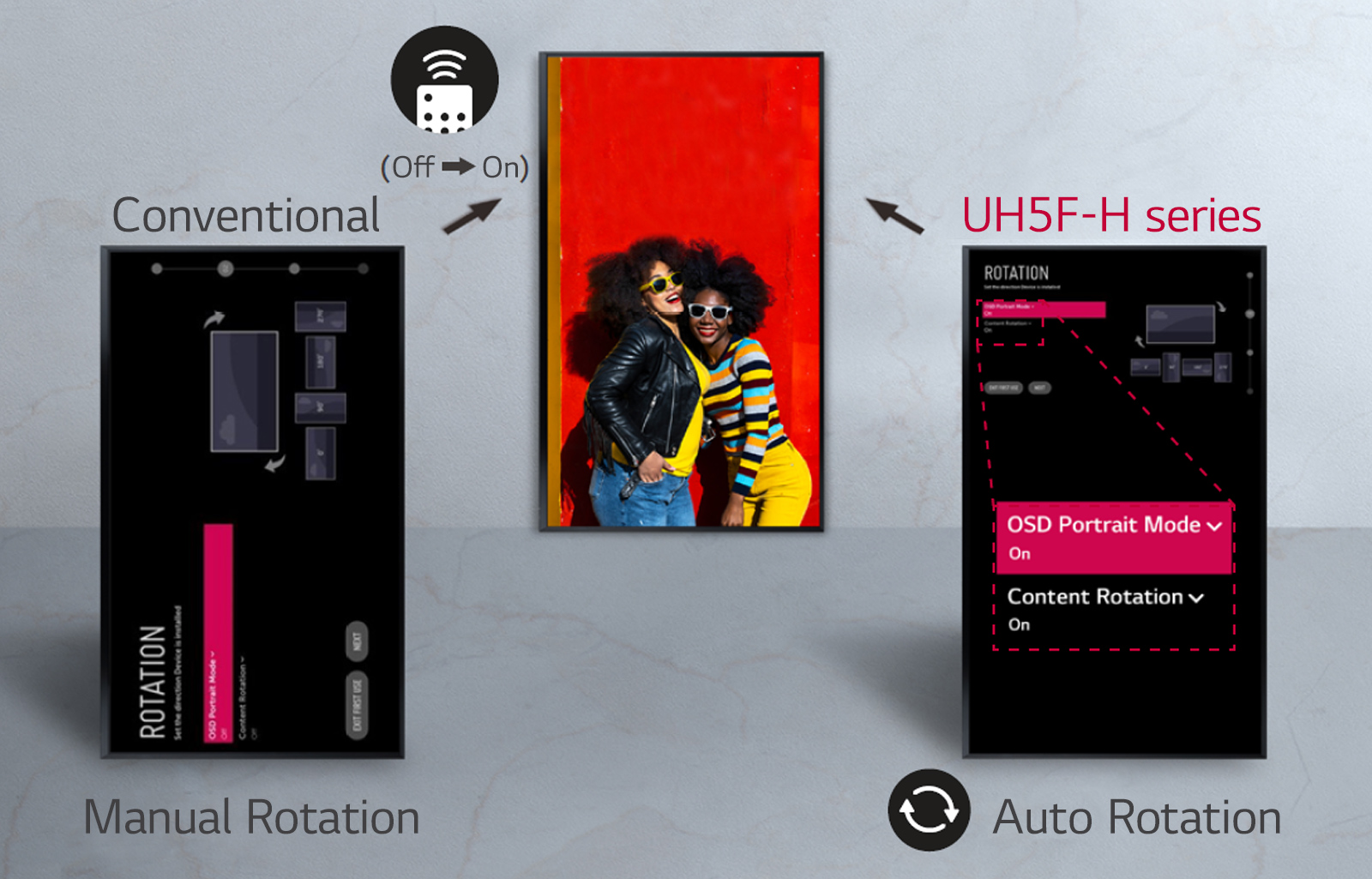

Auto Screen Rotatio

This series automatically detects its orientation (landscape or portrait mode) in the initial installation step, so manual rotation set-up process isn't required. The direction of OSD and background contents will be already set when you turn on a display at first.
Auto Screen Rotatio1 Auto Screen Rotatio2
EASY INSTALLATION

Fine Adjustment

This series is equipped with a "horizontal sensor" which shows users how the device is tilt, so that it can be precisely installed.
Fine Adjustment1 Fine Adjustment2
webOS SMART SIGNAGE PLATFORM

High-Performance with webOS

Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.
High-Performance with webOS1 High-Performance with webOS2
webOS SMART SIGNAGE PLATFORM

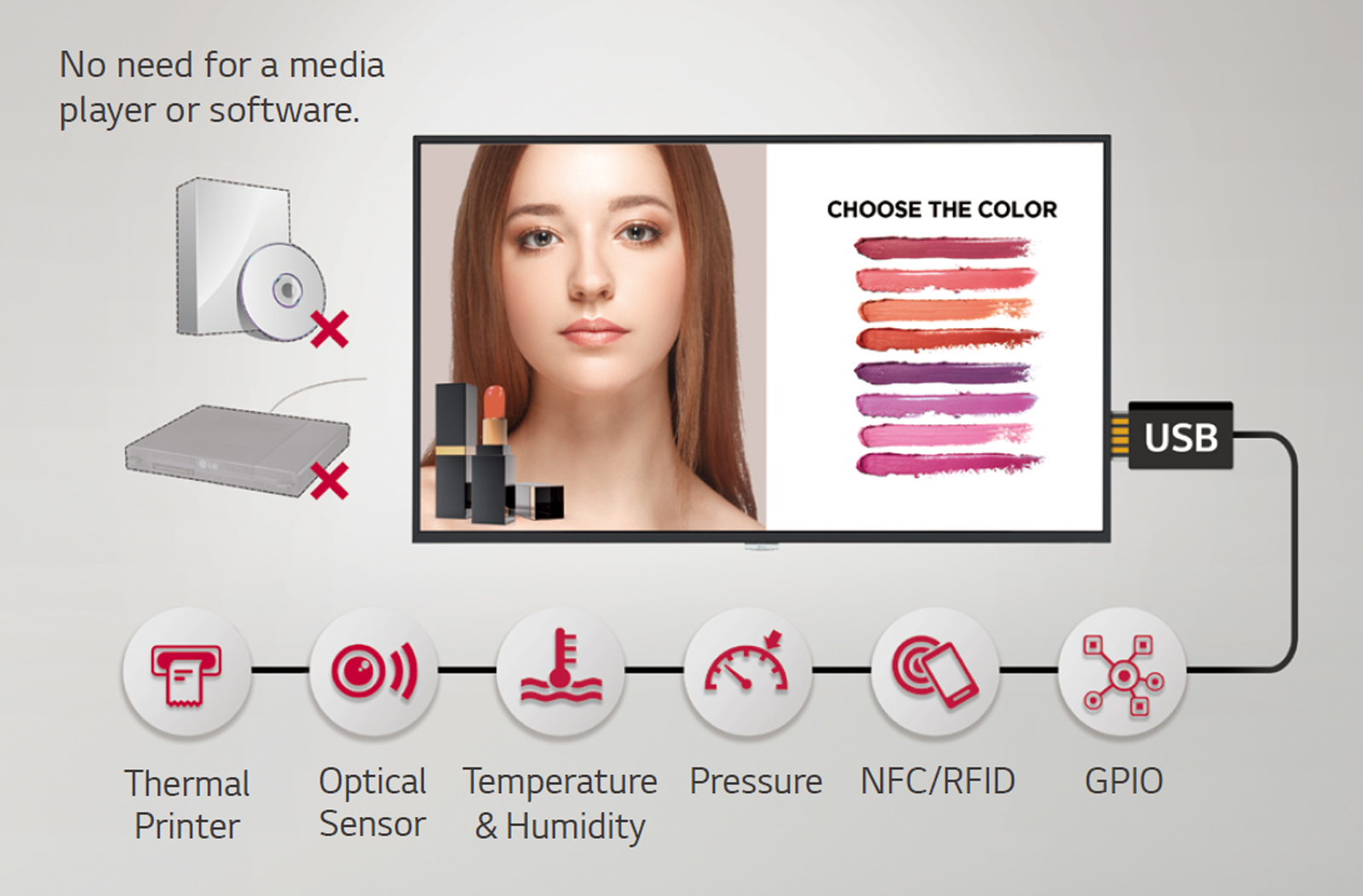

Various Sensor Applications

LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players for creating value-added solutions.
Various Sensor Applications1 Various Sensor Applications2
MEETING ROOM SOLUTION COMPATIBILITY

Compatible with AV Control System

The UH5F-H series has been certified Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.
Compatible with AV Control System1 Compatible with AV Control System2
* Network based control
MEETING ROOM SOLUTION COMPATIBILITY

Compatible with Video Conference System

For the optimum visual meeting, the UH5F-H series has certified its compatibility with Cisco System that offers powerful and integrated control* for a smarter video conference, eliminating a waste of time for setting up the picture quality or changing input on incoming calls.
Compatible with Video Conference System1 Compatible with Video Conference System2
* Using an HDMI cable connection
ENERGY STAR® Certified1

ENERGY STAR® Certified

Close
PANEL
  • Screen Size
    65"
    Panel Technology
    IPS
  • Native Resolution
    3,840 x 2,160 (UHD)
    Brightness (Typ.)
    500
  • Contrast Ratio
    1,100:1
    Dynamic CR
    1,000,000 : 1 *The luminosity ratio of Full Black / Full White color on video input condition.
  • Color gamut
    BT709 95%
    Viewing Angle (H x V)
    178 x 178
  • Color Depth
    1.07 Billion Colors (10 bit)
    Response Time
    8 ms (G to G)
  • Surface Treatment (Haze)
    Haze 28%
    Operation Hours (Hours / Day)
    24 / 7
  • Portrait / Landscape
    Yes / Yes
CONNECTIVITY
  • Input
    HDMI (2, HDCP 2.2/1.4), HDMI (1, HDCP 1.4), DP (1, HDCP 2.2/1.3), DVI-D (HDCP 1.4), Audio, USB 2.0 Type A
    Output
    DP, Audio
  • External Control
    RS232C (4 Pin Phone Jack) In / Out, RJ45(LAN) In, IR In
MECHANICAL SPECIFICATION
  • Bezel Color
    Black
    Bezel Width
    9.9mm(T/R/L), 14.4mm(B)
  • Weight (Head)
    28.2 kg
    Monitor Dimension (W × H × D)
    1,453.3 × 844.0 × 39.9 mm
  • Monitor Dimensions with Stand (W × H × D)
    1,453.3 × 893.1 × 290.0 mm
    Handle
    No
  • VESA™ Standard Mount Interface
    300 x 300 mm
SPECIAL FEATURE
  • Tilt (Facedown)
    Yes (Max. 30º) *In conditions within 30ºC temperature, 50% humidity
    IP Rating
    IP5x
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%
POWER
  • Power Supply
    AC 100-240 V~, 50 / 60 Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ. / Max.
    120W / 165W
    BTU (British Thermal Unit)
    409 BTU/Hr (Typ.),
    563 BTU/Hr (Max.)
SOUND
  • Speaker
    Yes
CERTIFICATION
  • Safety
    CB, NRTL
    EMC
    FCC Class "A" / CE / KC
  • ErP
    Yes
OPS COMPATIBILITY
  • OPS Type Compatible
    Yes
    OPS Power Built In
    No
SOFTWARE COMPATIBILITY
  • SuperSign CMS
    Yes
    SuperSign Control / Control+
    Yes
  • SuperSign WB
    Yes
    SuperSign Media Editor
    Yes
  • Signage365Care
    Yes (The availability can differ by region.)
ACCESSORY
  • Basic
    Remote Controller, Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender
    Optional
    Stand (ST-653T), Wall Bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSF)
GENERAL
  • Region
    Global
