65UH7F-H component-copyModelName
Non-Glare Ultra HD Series

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (65UH7F-H)
    ৳
    ৳
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (65UH7F-H)
    ৳
    ৳
    LG Members Price
Total
Non-Glare Ultra HD Series

LG UHD Signage

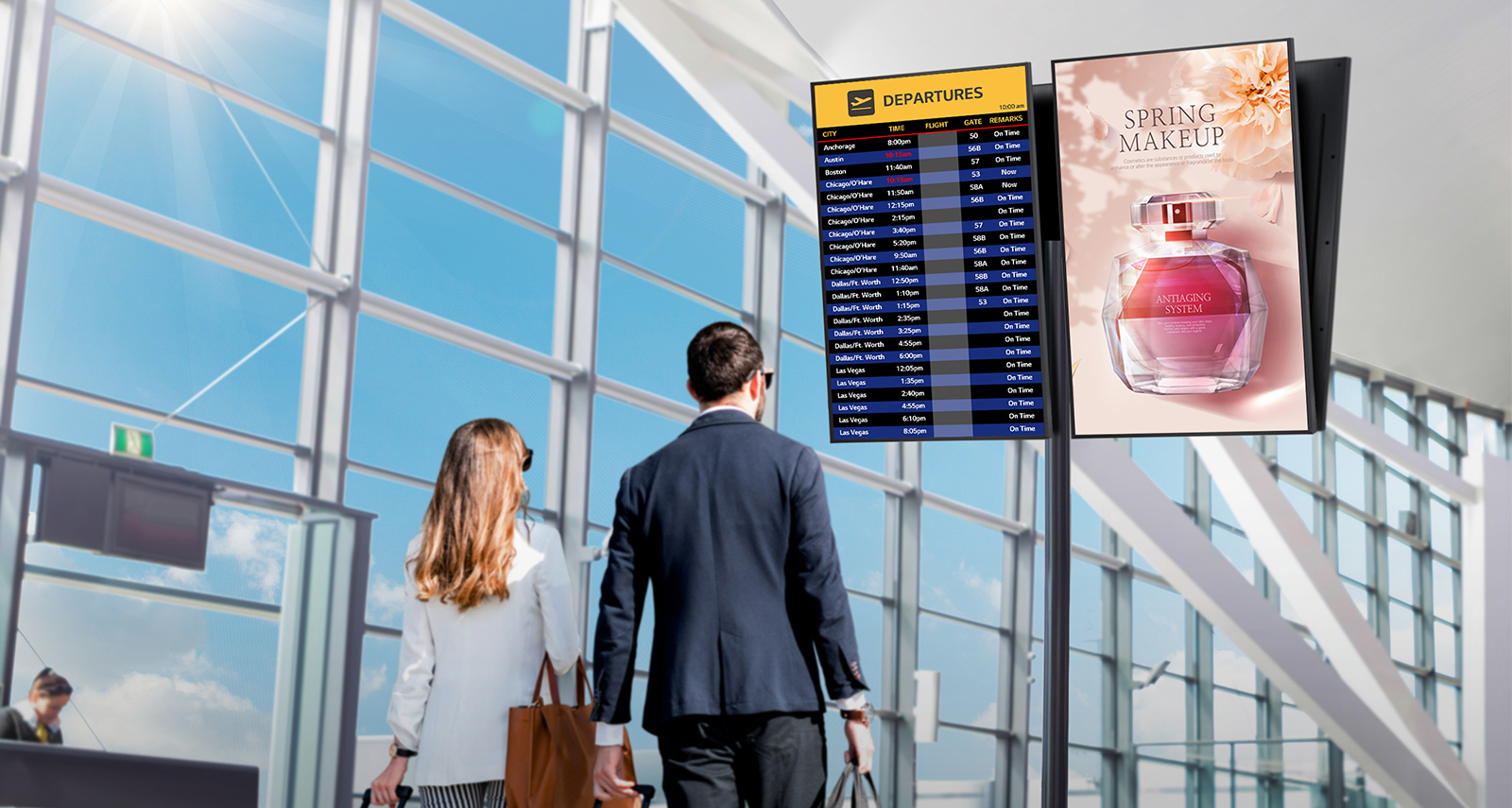

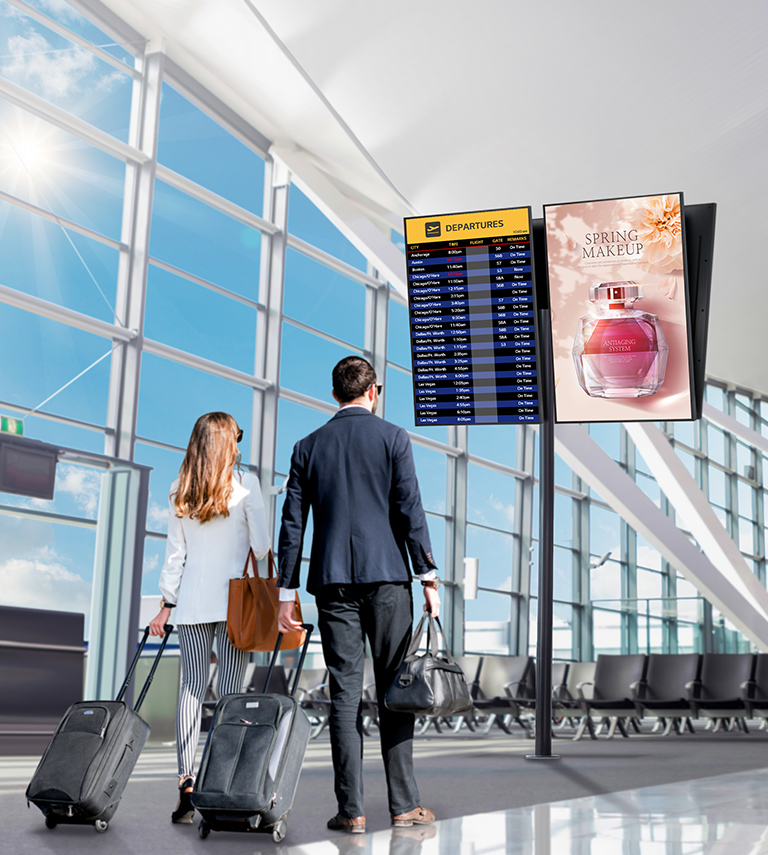

A man and a woman are checking the departure time of the flight through the signage installed at the airport. And the screen with anti-glare coating has small reflection of the light from the sun. A man and a woman are checking the departure time of the flight through the signage installed at the airport. And the screen with anti-glare coating has small reflection of the light from the sun.
*All images in this web page are for illustrative purposes only and may differ from the actual product.

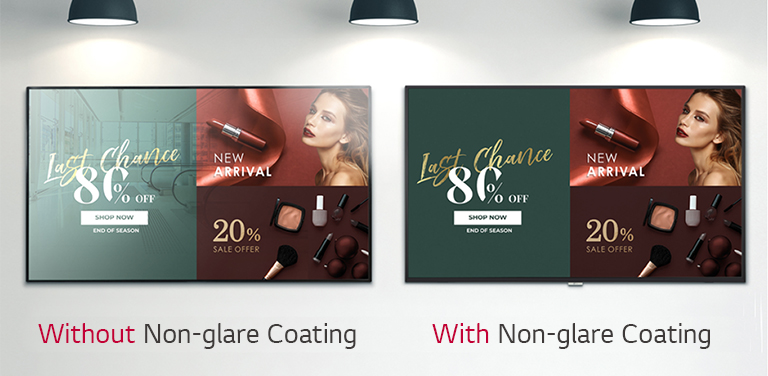

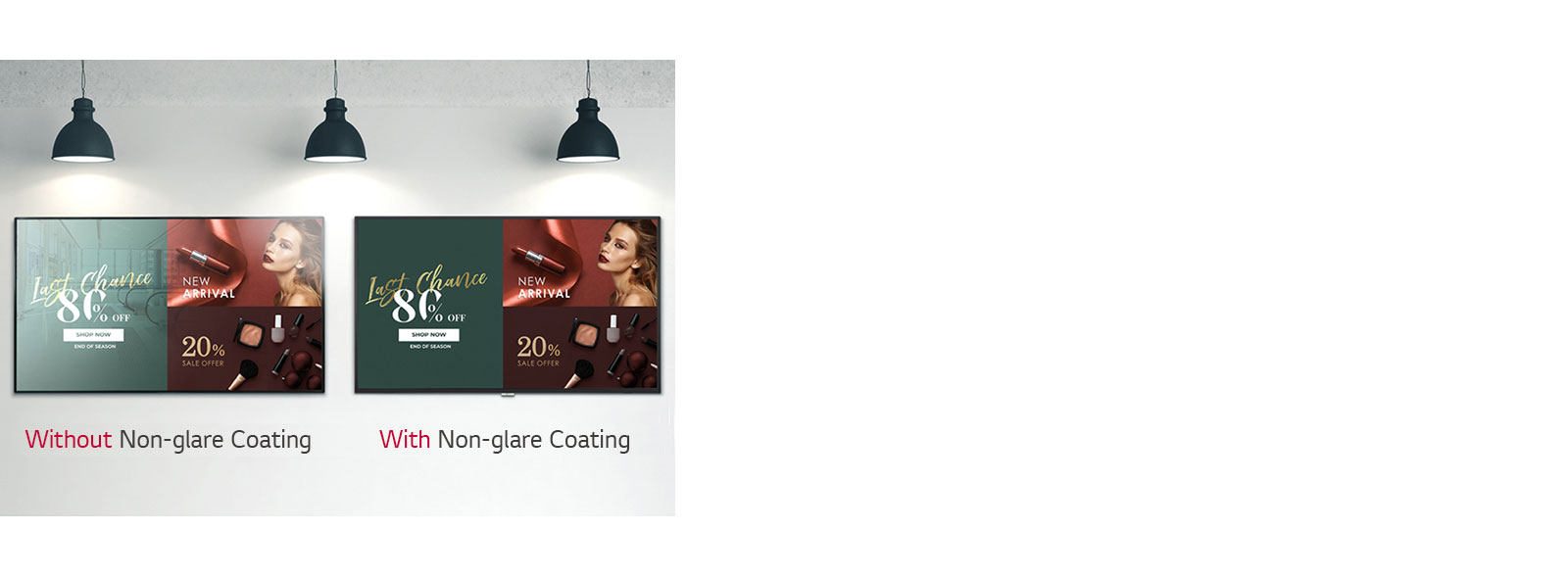

A Screen with Non-glare coating can be seen clearly under the light compared to the screen that do not. A Screen with Non-glare coating can be seen clearly under the light compared to the screen that do not.
SUPERB PICTURE QUALITY

Clear View with Non-glare Coating

Viewers can be annoyed by unnecessary reflections when watching a screen under brightly lit conditions. The UH7F-H series has resolved such inconveniences by increasing the level of haze, which enhances visibility and text readability.
*The images listed are for reference only and the actual reflection can be different.

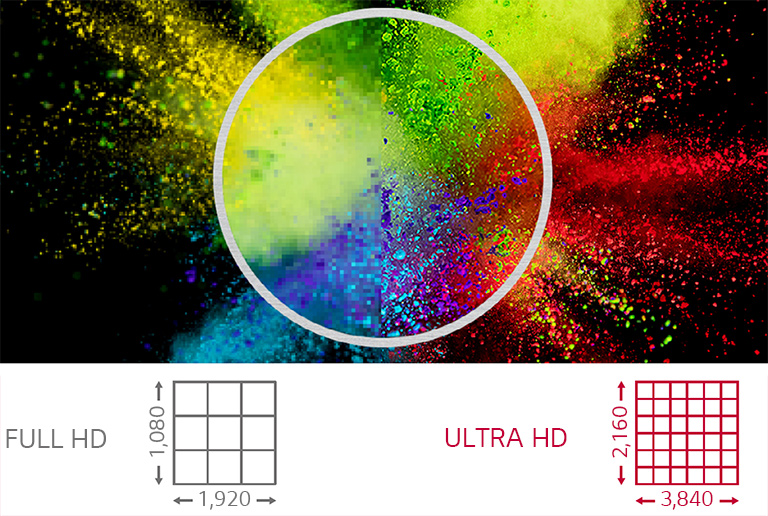

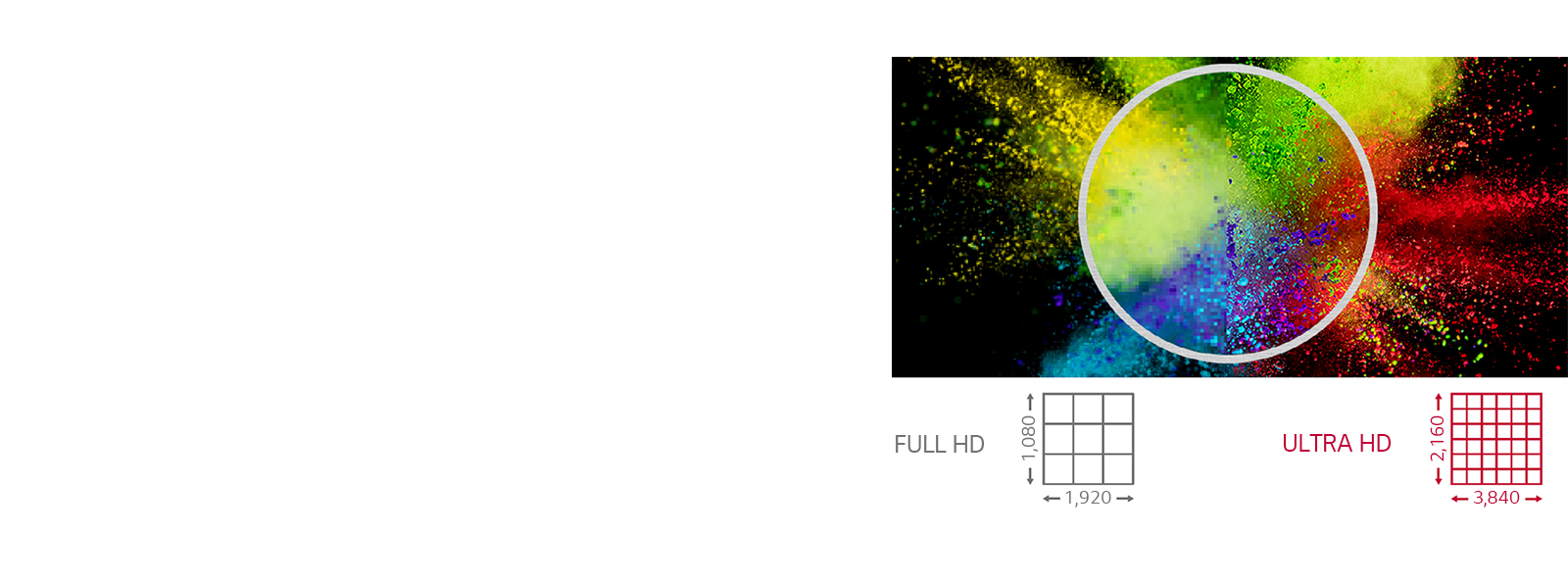

With a resolution 4 times higher than FHD, ULTRA HD displays content more clear and realistic. With a resolution 4 times higher than FHD, ULTRA HD displays content more clear and realistic.
SUPERB PICTURE QUALITY

ULTRA HD Resolution

With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents.

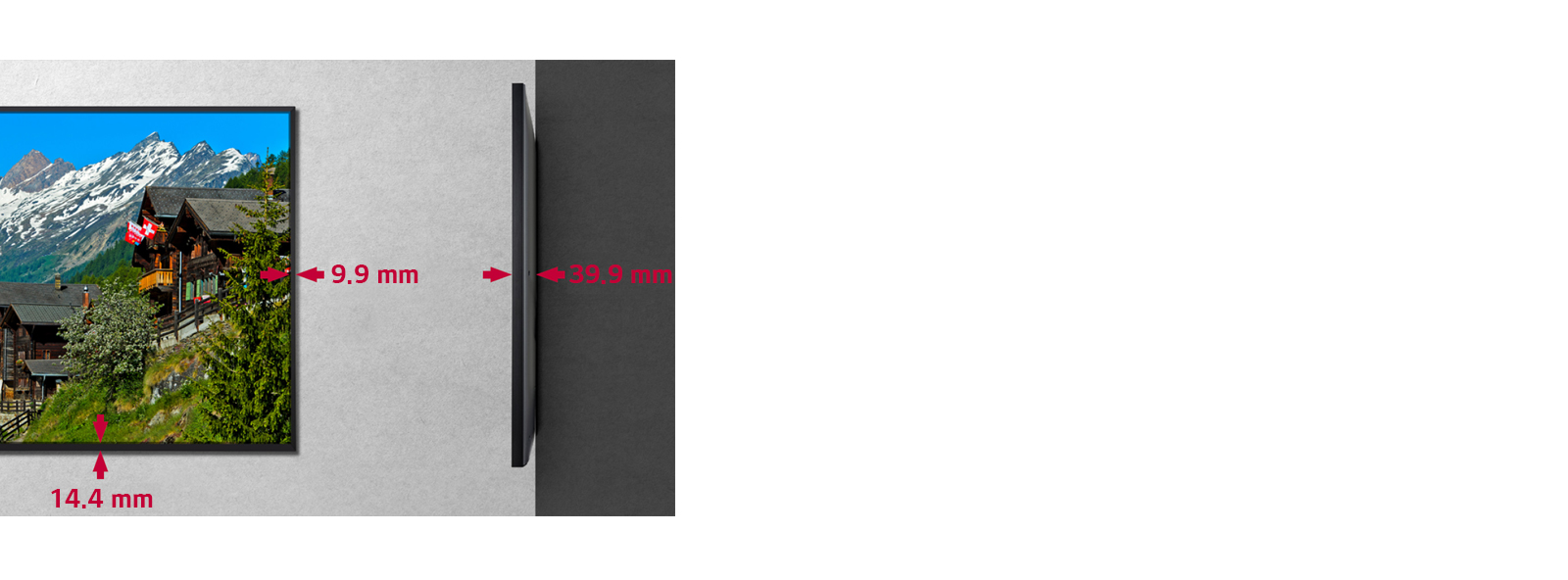

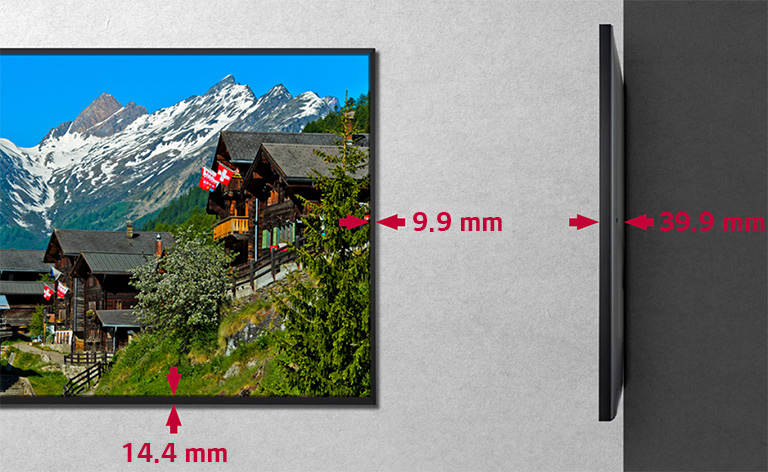

UH7F-H has a narrow bezel of 14.4mm width and 9.9mm length, and a slim depth of 39.9mm which increases screen immersion. UH7F-H has a narrow bezel of 14.4mm width and 9.9mm length, and a slim depth of 39.9mm which increases screen immersion.
SLEEK AND PRACTICAL DESIGN

Narrow Bezel & Slim Depth

This series is thin in bezel size and thickness, which saves space and enables easy installation. In addition, it increases the immersive experience from the screen and provides a sophisticated design, improving the décor of the space where the product is installed.
Logo is detachable when installing signage, and the built-in speaker is making the sound rich. Logo is detachable when installing signage, and the built-in speaker is making the sound rich.
SLEEK AND PRACTICAL DESIGN

Detachable Logo and Built-in Speaker

This series is equipped with a new transparent logo which is well organized with surroundings. Also, its removable feature gives users flexibility for installation. Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.
UH7F-H is IP5x certified, so it is protected from dust and has less risk of performance degradation. UH7F-H is IP5x certified, so it is protected from dust and has less risk of performance degradation.
PRODUCT RELIABILITY

IP5x Certified Design

The IP5x Dust-Proof Certification ensures that the product is protected from dust, reducing the risk of performance degradation.

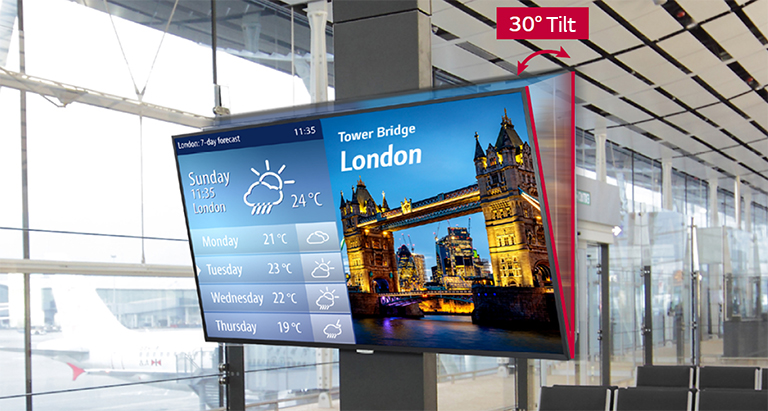

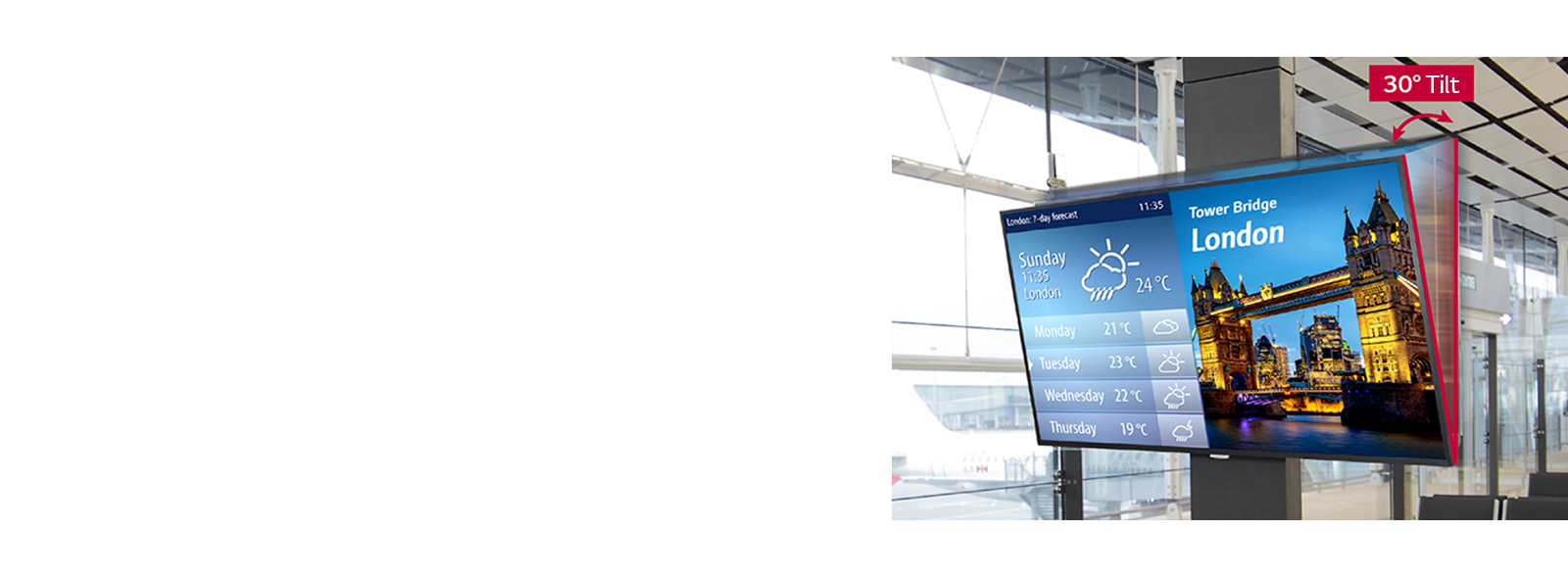

UH7F-H can be installed flexibly up to a 30 degree angle, making it comfortable for users to see when a signage is installed at a high place. UH7F-H can be installed flexibly up to a 30 degree angle, making it comfortable for users to see when a signage is installed at a high place.
PRODUCT RELIABILITY

30° Tilting Installation

For the user's comfort viewing, UH7F-H supports the installation with 30 degrees of tilt* when it is installed at high places.
*Tilt installation of up to 30 degrees facedown is supported. (In conditions within 30ºC temperature, 50% humidity).

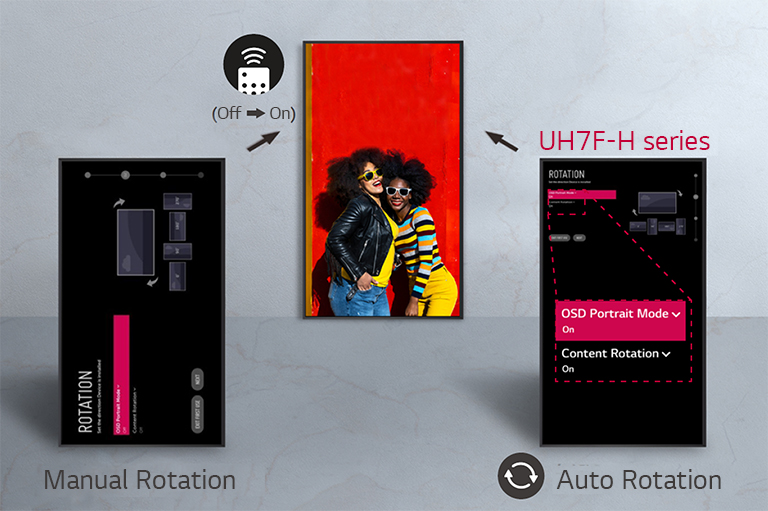

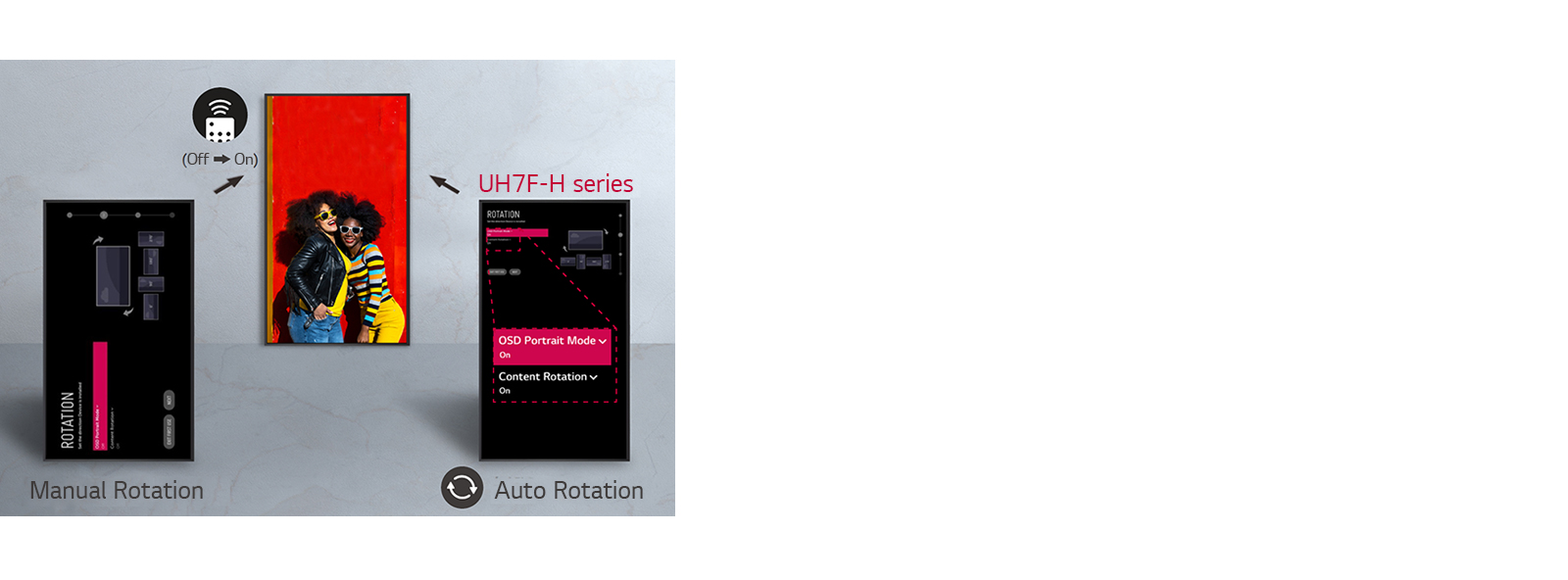

The UH7F-H series automatically adjusts the orientation of the screen, so users do not have to change the setting themselves. The UH7F-H series automatically adjusts the orientation of the screen, so users do not have to change the setting themselves.
EASY INSTALLATION

Auto Screen Rotation

This series automatically detects its orientation (landscape or portrait mode) in the initial installation step, so manual rotation set-up process isn't required. The direction of OSD and background contents will be already set when you turn on a display at first.

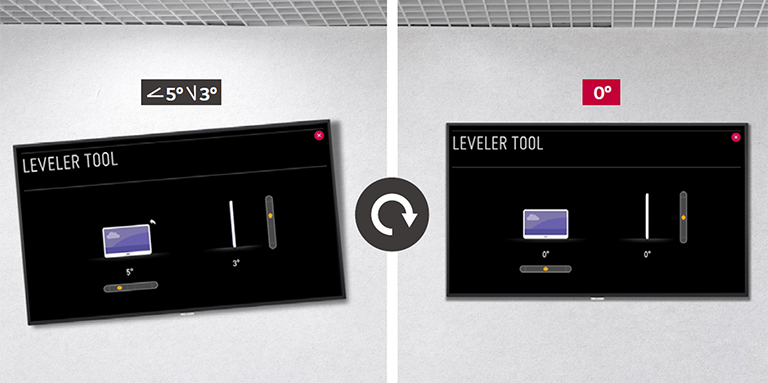

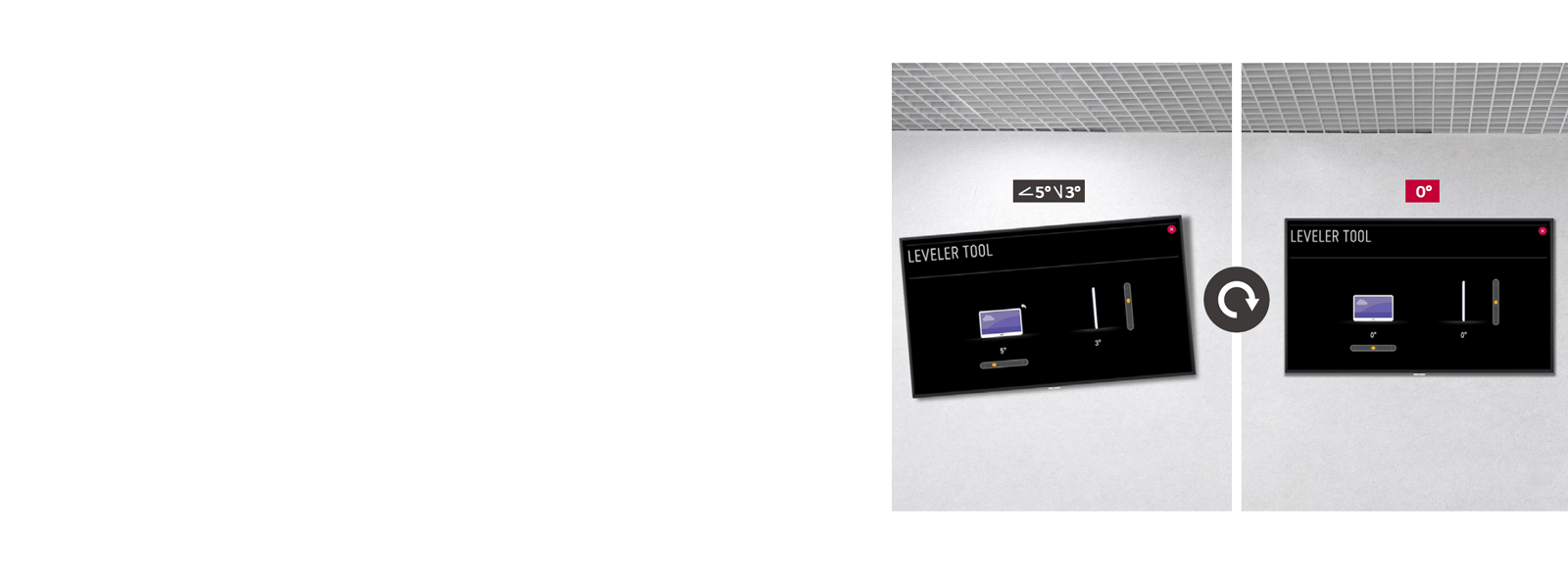

Signage can be installed more precisely through the horizontal sensor. Signage can be installed more precisely through the horizontal sensor.
EASY INSTALLATION

Fine Adjustment

This series is equipped with a "horizontal sensor" which shows users how the device is tilt, so that it can be precisely installed.

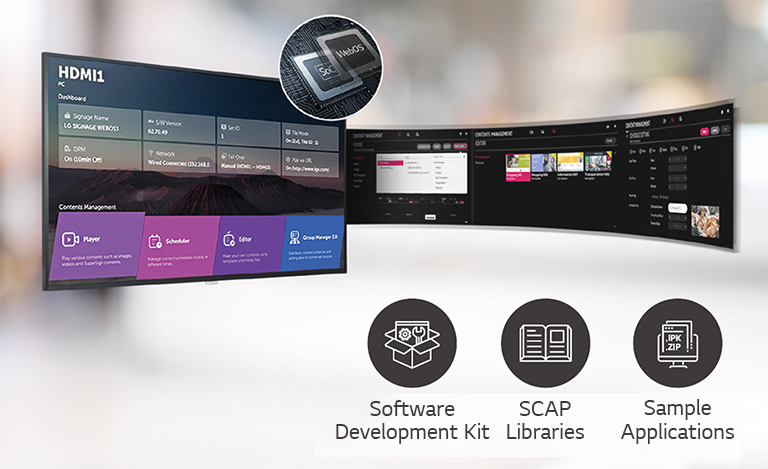

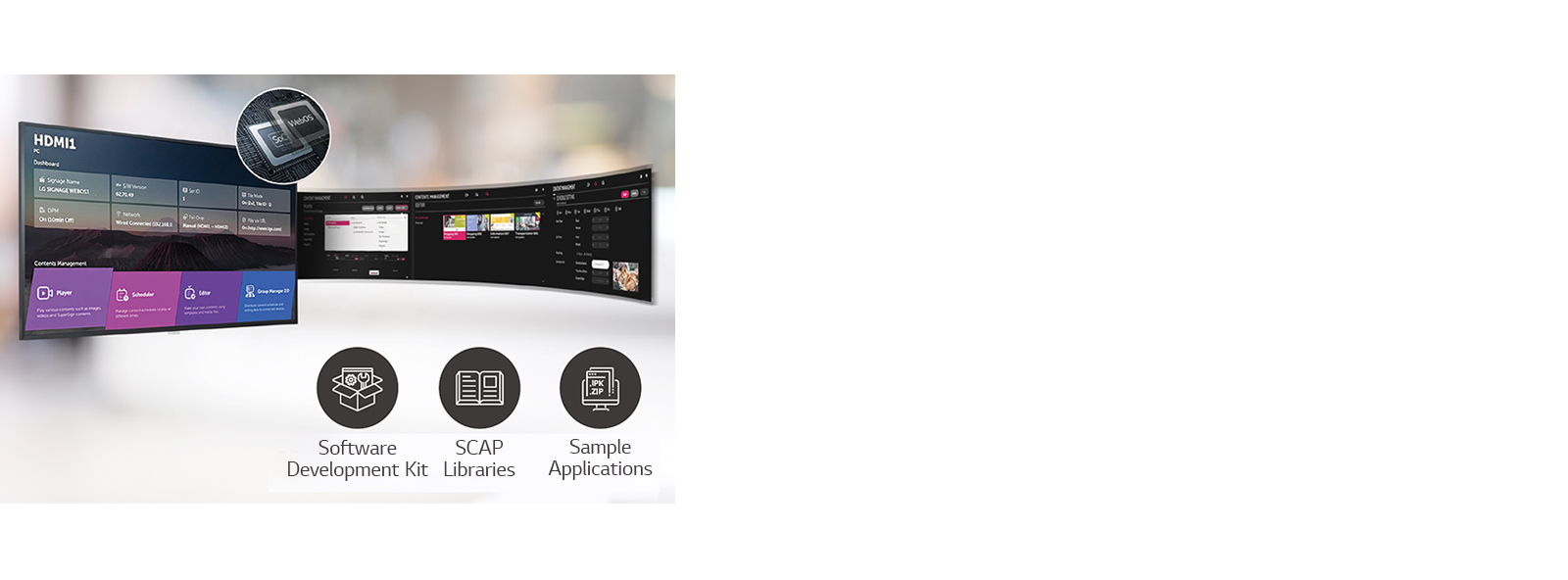

A number of tasks can be done at the same time with the intuitive GUI. A number of tasks can be done at the same time with the intuitive GUI.
webOS SMART SIGNAGE PLATFORM

High-Performance with webOS

Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback. Also, LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.

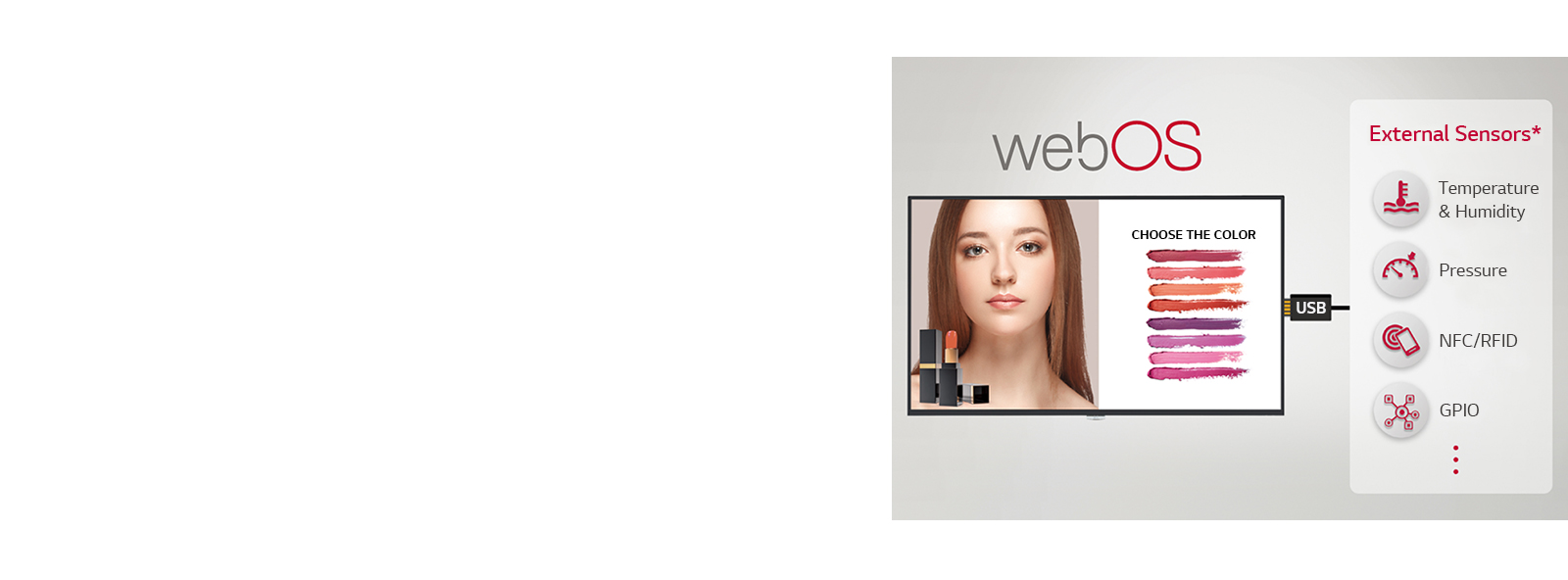

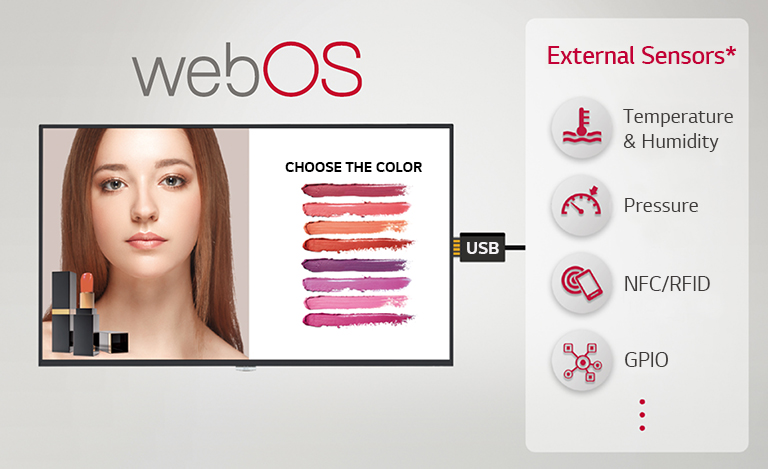

The image shows that various external sensors and signage can be connected through USB plug-in, providing easy value-added solutions. The image shows that various external sensors and signage can be connected through USB plug-in, providing easy value-added solutions.
webOS SMART SIGNAGE PLATFORM

Various Sensor Connection

LG webOS smart signage platform helps to easily provide value-added solutions by supporting simple connections with external sensors* such as GPIO, NFC/RFID, temperature sensors, etc. via USB plug-in. Also, the cost for additional software or media players can be saved by reducing the needs for purchasing them.
*LG does not provide any external sensors but webOS platform. External sensors needs to be purchased separately and tested for compatibility with webOS platform.

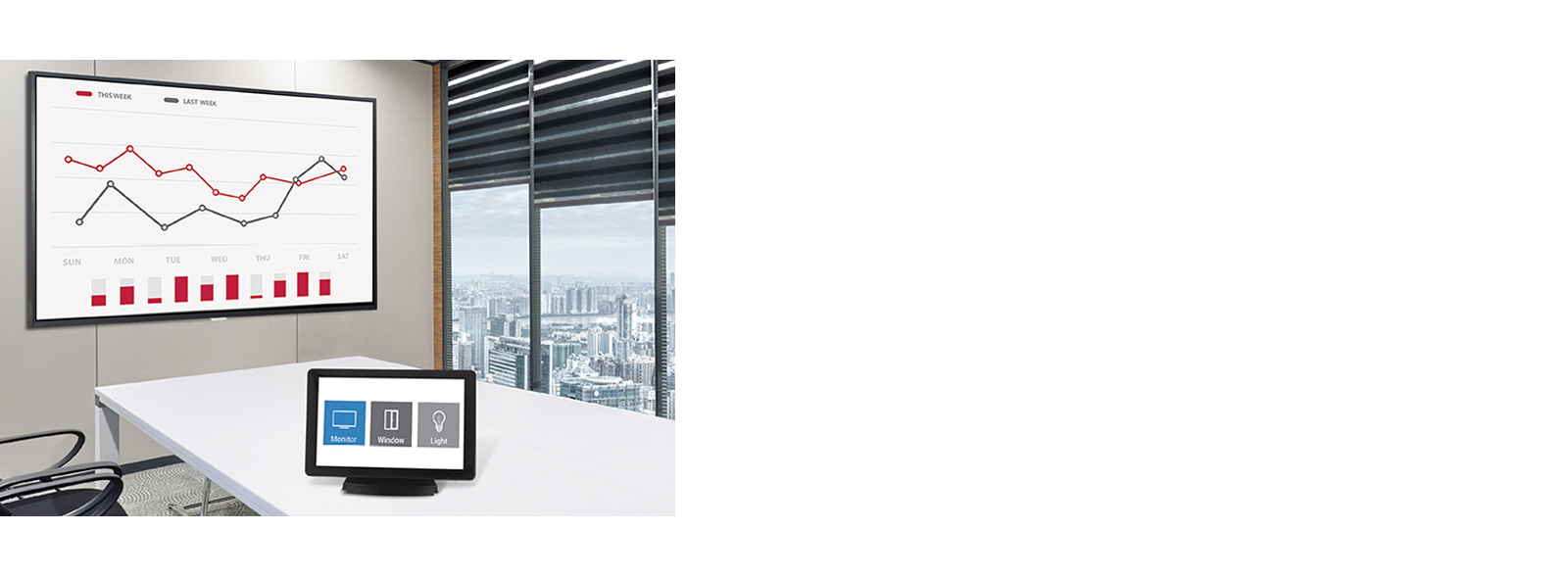

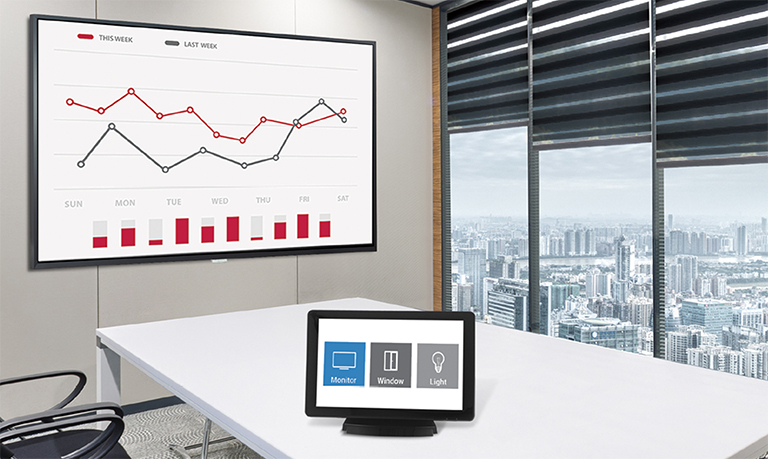

The AV control system helps users control the UH7F-H. The AV control system helps users control the UH7F-H.
MEETING ROOM SOLUTION COMPATIBILITY

Compatible with AV Control System

The UH7F-H series has supported Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.
*Network based control.

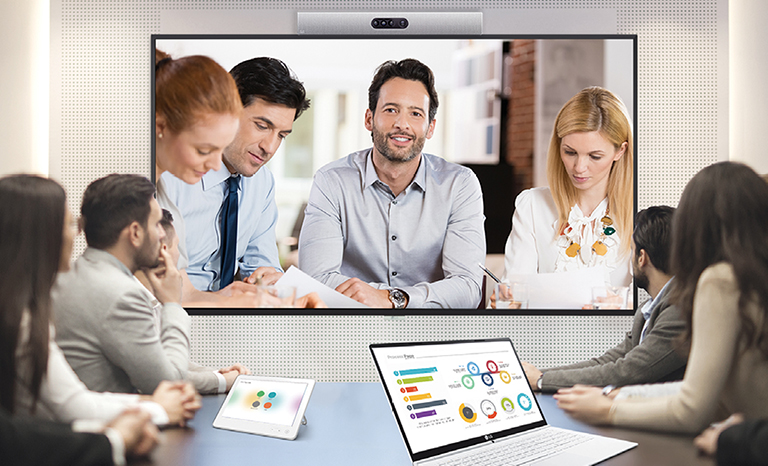

A video conference is being held as people are screened on signage installed on the wall. A video conference is being held as people are screened on signage installed on the wall.
MEETING ROOM SOLUTION COMPATIBILITY

Compatible with Video Conference System

For the optimum visual meeting, the UH7F-H series has supported its compatibility with Cisco System that offers powerful and integrated control* for a smarter video conference, eliminating a waste of time for setting up the picture quality or changing input on incoming calls.
*Using an HDMI cable connection.
Close
PANEL
  • Screen Size
    65"
    Panel Technology
    IPS
  • Native Resolution
    3840 x 2160 (UHD)
    Brightness
    700nit (Typ.)
  • Contrast Ratio
    1,100:1
    Dynamic CR
    500,000:1
  • Color gamut
    BT709 95%
    Viewing Angle (H x V)
    178 x 178
  • Color Depth
    10bit, 1.07Billion colors
    Response Time
    8ms (G to G)
  • Surface Treatment(Haze)
    28%
    Operation Hours (Hours/Day)
    24/7
  • Portrait / Landscape
    Yes / Yes
CONNECTIVITY
  • Input
    HDMI (2, HDCP 2.2/1.4), HDMI (1, HDCP 1.4), DP (1, HDCP 2.2/1.3), DVI-D (HDCP 1.4), Audio, USB 2.0 Type A
    Output
    DP, Audio
  • External Control
    RS232C (4 Pin Phone Jack) In / Out, RJ45 (LAN) In, IR In
MECHANICAL SPECIFICATION
  • Bezel Color
    Black
    Bezel Width
    T/R/L: 9.9mm, B: 14.4mm
  • Weight (Head)
    28.2 kg
    Monitor Dimension (W x H x D)
    1453.3 x 844.0 x 39.9mm
  • Monitor Dimensions with Stand(W x H x D)
    1453.3 x 893.1 x 290.0 mm
    Handle
    No
  • VESA™ Standard Mount Interface
    300 x 300
KEY FEATURE
  • Key Feature
    Internal Memory 8GB (System 4GB + Available 3.6GB), Built-in Wi-Fi, Temperature Sensor, Auto Brightness Sensor, Current Sensor, Embedded CMS (USB Auto Playback, Local Contents Scheduling, Group Manager), Image Customization, Failover, Content Sync (RS232C, Local Network), Screen Share, Video Tag (2), Play via URL, OSD Rotation, Content Rotation, PIP/PBP (4), Tile Mode Setting (Max 15 x 15), Setting Data Cloning, Firmware Update by Network, SNMP 1.4, ISM Mode, Crestron ConnectedⓇ1), Control Manager, DPM, Smart Energy Saving, Wake on LAN, Beacon, HDMI-CEC2), SI Server Setting, Detachable Logo
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %
POWER
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-in Power
POWER CONSUMPTION
  • Typ.
    130W(TBD)
    Max.
    180W(TBD)
  • BTU (British Thermal Unit)
    0 BTU/Hr(Typ.), 0 BTU/Hr(Max)
SOUND
  • Speaker
    Yes
CERTIFICATION
  • Safety
    CB/NRTL
    EMC
    FCC Class “A”/CE/KC
  • ErP / Energy Star
    Yes / Energy Star 8.0
OPS COMPATIBILITY
  • OPS Type Compatible
    Yes
    OPS Power Built In
    No
SOFTWARE COMPATIBILITY
  • SuperSign CMS
    Yes
    SuperSign Control / Control+
    Yes / Yes
  • SuperSign WB
    Yes
    SuperSign Media Editor
    Yes
  • LG ConnectedCare
    Yes
ACCESSORY
  • Basic
    Remote Controller, Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender
    Optional
    Stand(ST-653T), Wall bracket(LSW350B), VESA Adapter(AM-B330S), OPS Kit(KT-OPSF)
SPECIAL FEATURE
  • Tilt(Facedown)
    O (Max 30º degree)
    *In conditions within 30ºC temperature, 50% humidity
    IP Rating
    IP5x
