65UH7J-H component-copyModelName
New High Haze UHD Standard Signage

Key Features

Choose your Size

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (65UH7J-H)
    ৳
    ৳
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (65UH7J-H)
    ৳
    ৳
    LG Members Price
Total
New High Haze UHD Standard Signage

New High Haze UHD
Standard Signage

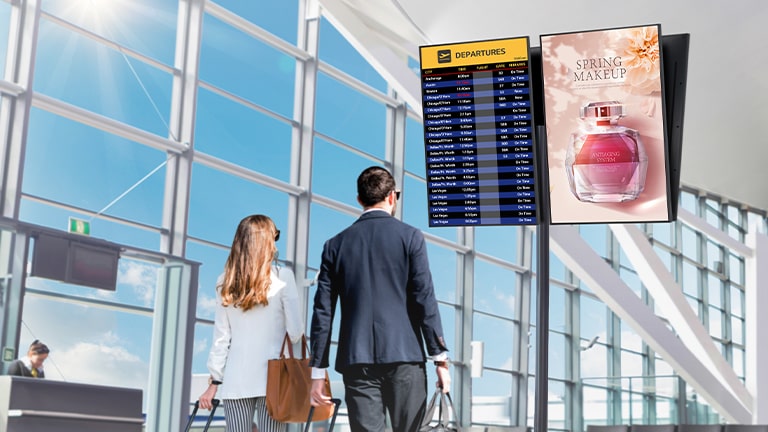

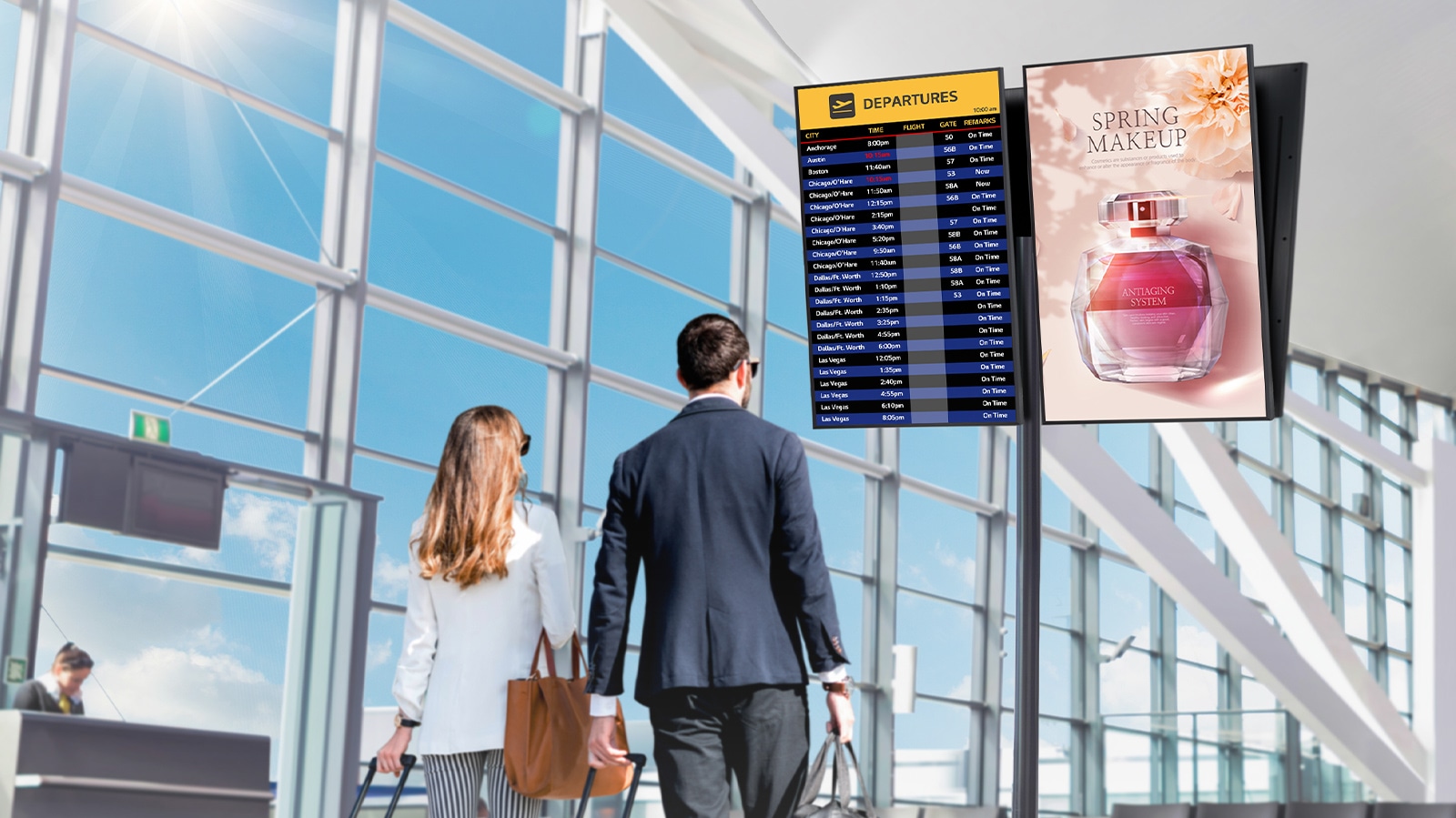

A man and a woman are checking the departure time of the flight through the signage installed at the airport. And the screen with anti-glare coating has small reflection of the light from the sun. A man and a woman are checking the departure time of the flight through the signage installed at the airport. And the screen with anti-glare coating has small reflection of the light from the sun.
* All images in this web page are for illustrative purposes only.
UH7J-H has a brightness of 700 nits, so it is clearly visible, even under strong light. UH7J-H has a brightness of 700 nits, so it is clearly visible, even under strong light.

High Brightness

With a great brightness of 700 cd/m², the UH7J-H series clearly deliver content and attract public attention, making it the most suitable display for marketing in airports, retail, shopping malls etc.

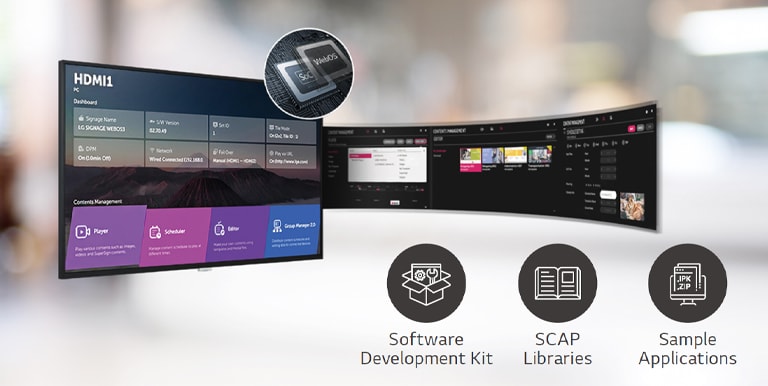

A number of tasks can be done at the same time with the intuitive GUI. A number of tasks can be done at the same time with the intuitive GUI.

High-Performance with webOS

LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.

Conformal Coating

In various places the UH7J-H series is unable to avoid exposure to environments containing dust, humidity, etc. which may hamper performance over time. The conformal coating on power board reduces these risks by protecting UH7J-H series from salt, dust, iron powder, humidity, etc.
The UH7J-H has Conformal Coating on the power board to protect video wall even in a salty or humid environment. The UH7J-H has Conformal Coating on the power board to protect video wall even in a salty or humid environment.
* Actual images (signage display) available may differ from the example images shown.

IP5x Certified Design

The IP5x Dust-Proof Certification ensures that the product is protected from dust, reducing the risk of performance degradation.
UH7J-H is IP5x certified, so it is protected from dust and has less risk of performance degradation. UH7J-H is IP5x certified, so it is protected from dust and has less risk of performance degradation.

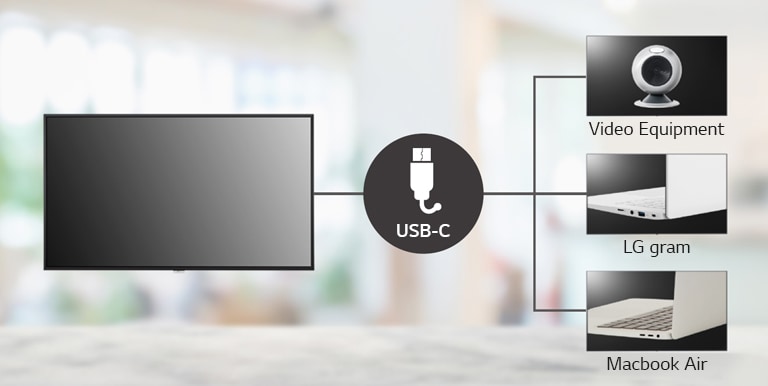

UH7J-H series supports USB-C type and can easily be connected to video equipment and laptops. UH7J-H series supports USB-C type and can easily be connected to video equipment and laptops.

Support USB-C Interface Port

The use of the USB-C type is becoming popular for connections with laptops, video devices, and tablets. The UH7J-H series supports the USB-C jack interface, allowing easy connection and use with other devices.

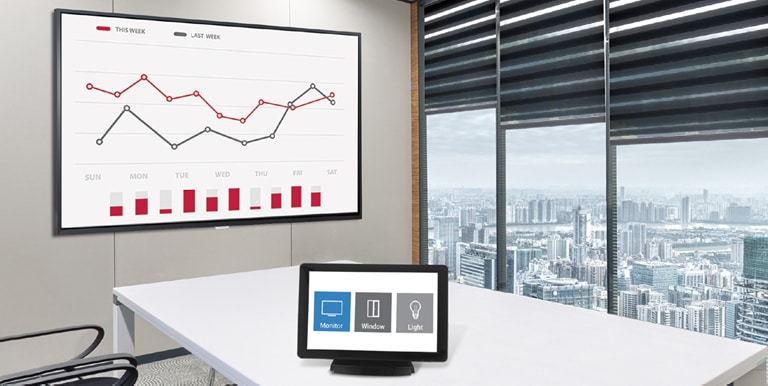

The AV control system helps users control the UH7J-H. The AV control system helps users control the UH7J-H.

Compatible with AV Control System

The UH7J-H series has supported Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

* Network based control
Close
PANEL
  • Screen Size
    65"
    Panel Technology
    IPS
  • Back Light Type
    Edge
    Aspect Ratio
    16:9
  • Native Resolution
    3840 x 2160 (UHD)
    Refresh Rate
    60 Hz
  • Brightness
    700nit (Typ.)
    Contrast Ratio
    1,100:1
  • Dynamic CR
    1,000,000:1
    Color gamut
    BT709 95%
  • Viewing Angle(H x V)
    178 X 178
    Color Depth
    10bit(D), 1.07Billion colors
  • Response Time
    8ms (G to G)
    Surface Treatment(Haze)
    28%
  • Life time
    50,000Hrs (Min.)
    Operation Hours (Hours/Day)
    24/7
  • Portrait / Landscape
    Yes / Yes
CONNECTIVITY
  • Input
    HDMI (2, HDMI1/HDMI2 : HDCP 2.2/1.4), DP (1, USB-C(DP Alternate mode) shared , HDCP2.2/1.3), DVI-D (1, HDCP1.4), Audio In, RS232C IN (1, 4pin Phone-jack), RJ45(LAN), IR IN, USB2.0 Type A(1), USB2.0 Type C ((1), without PD funtion)
    Output
    DP Out (1, Input : HDMI1/2/DVI/DP/USB-C/OPS), Audio Out, RS232C OUT (1, 4pin Phone-jack)
MECHANICAL SPECIFICATION
  • Bezel Color
    Black
    Bezel Width
    T/R/L: 9.9mm, B: 14.4mm
  • Weight(Head)
    28.2Kg
    Weight(Head+Stand)
    28.8Kg
  • Packed Weight
    35.0Kg
    Monitor Dimension(W x H x D)
    1453.3 x 844.0 x 39.9mm
    (with LG Logo)
  • Monitor Dimensions with Stand(W x H x D)
    1453.3 x 893.1 x 290.0mm
    Carton Dimensions(W x H x D) (Box outer size)
    1600.0 x 1095.0 x 175.0mm
  • VESA™ Standard Mount Interface
    300 x 300
KEY FEATURE
  • Key features
    Internal Memory 16 GB, Built-in Wi-Fi, Temperature Sensor, Auto Brightness sensor, Acceleration(Gyro) Sensor, Local Key Operation, webOS6.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Multi-screen (PIP, PBP (4)), Screen Share, Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15 × 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Connected), Power (Smart Energy Saving, PM mode, Wake on LAN, Network Ready), Beacon, HDMI-CEC, SI Server Setting, webRTC, Pro:Idiom
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %
POWER
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ.
    130W
    Max.
    190W
  • BTU (British Thermal Unit)
    444 BTU/Hr(Typ.), 649 BTU/Hr(Max.)
    Smart Enegy Saving(~70%)
    91W
  • DPM
    0.5W
    Power off
    0.5W
SOUND
  • Speaker
    Yes
CERTIFICATION
  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE / KC
  • ErP / Energy Star
    Yes (NewErP) / Yes
OPS COMPATIBILITY
  • OPS Type Compatible
    Yes
SOFTWARE COMPATIBILITY
  • SuperSign CMS
    Yes
    SuperSign Control / Control+
    Yes / Yes
  • SuperSign WB
    Yes
    SuperSign Media Editor
    Yes
  • Mobile CMS
    Yes
    Signage 365 Care
    Yes
Language
  • OSD
    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkish, Arabic
ACCESSORY
  • Basic
    Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender, USB-C Cable
    Optional
    Stand(ST-653T), Wall bracket(LSW350B), OPS Kit(KT-OPSF)
SPECIAL FEATURE
  • Tilt(Facedown)
    Yes (Max 30º degree, 30ºC temperature, humidity 50%)
    IP Rating
    IP5X
