86BH5C component-copyModelName
86'' 500 nits UHD Ultra Stretch

Key Features

Choose your Size

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (86BH5C)
    ৳
    ৳
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (86BH5C)
    ৳
    ৳
    LG Members Price
Total

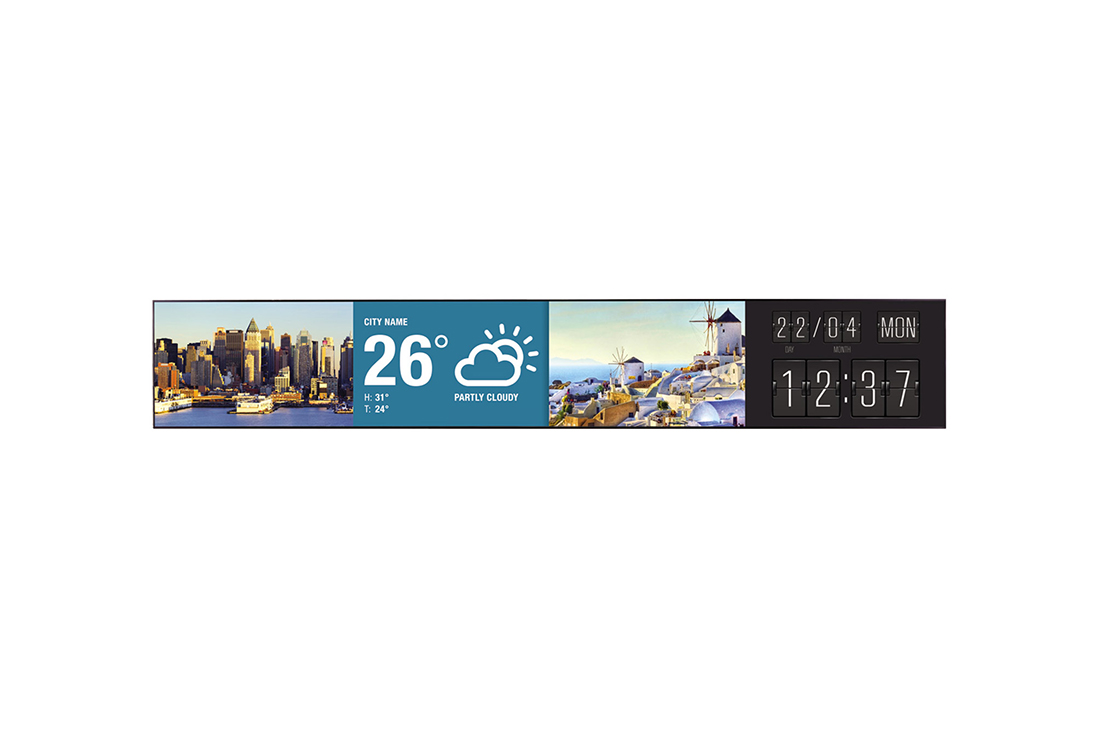

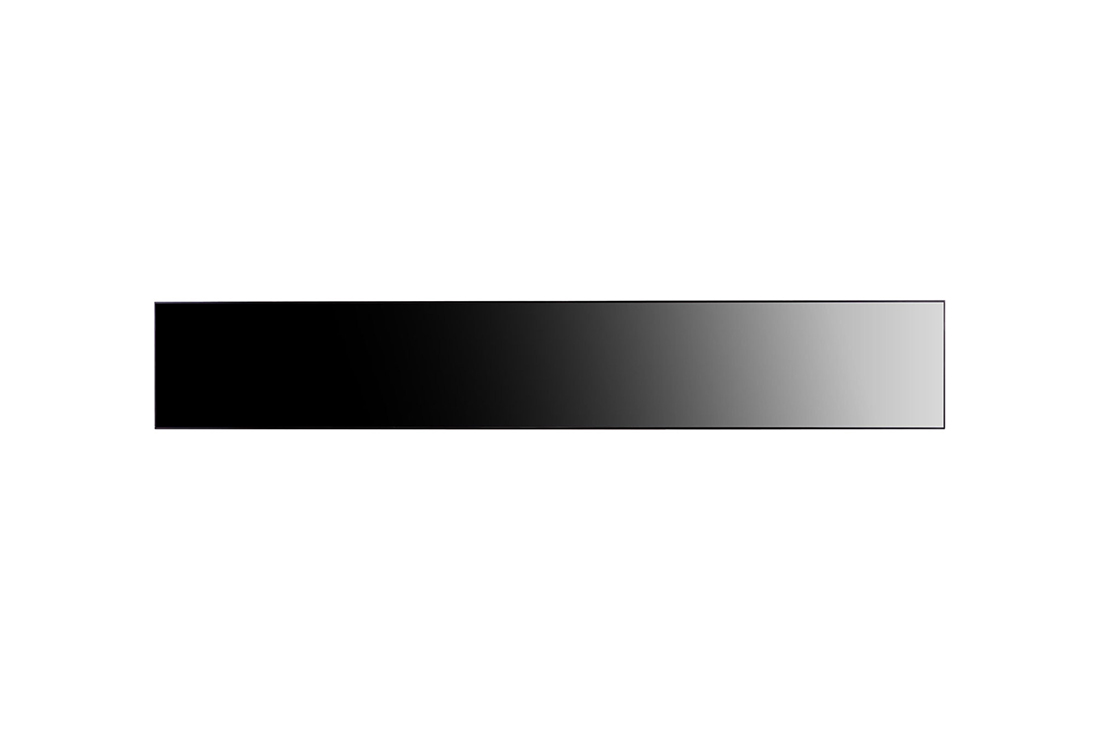

86" 500 nits UHD Ultra Stretch
Ultra HD Resolution (3840 x 600)1 Ultra HD Resolution (3840 x 600)2
New Design Confi guration

Ultra HD Resolution (3840 x 600)

Ultra HD large screens deliver an immersive
viewing experience.

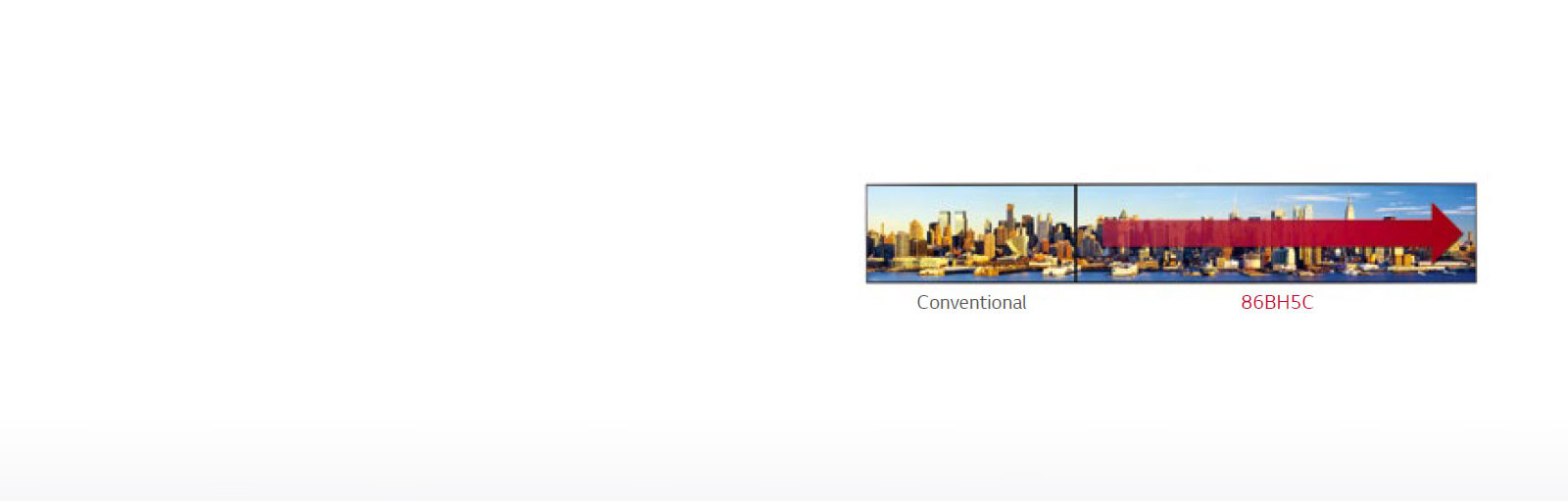

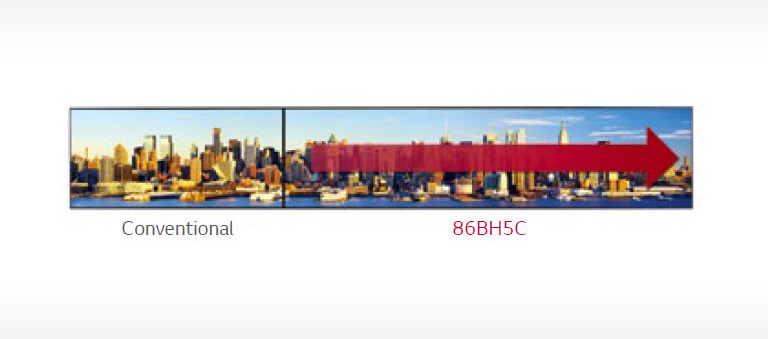

58:9 Extended Wide Format1 58:9 Extended Wide Format2
New Design Configuration

58:9 Extended Wide Format

Dynamic content is delivered on one screen since the new widescreen format is a 58:9 bar- type display.
Multiple Screens1 Multiple Screens2

Multiple Screens

4 Divided PBP in Landscape or Portrait
The Picture-by-Picture (PBP) feature allows you to divide a screen into four parts in landscape or portrait installations.

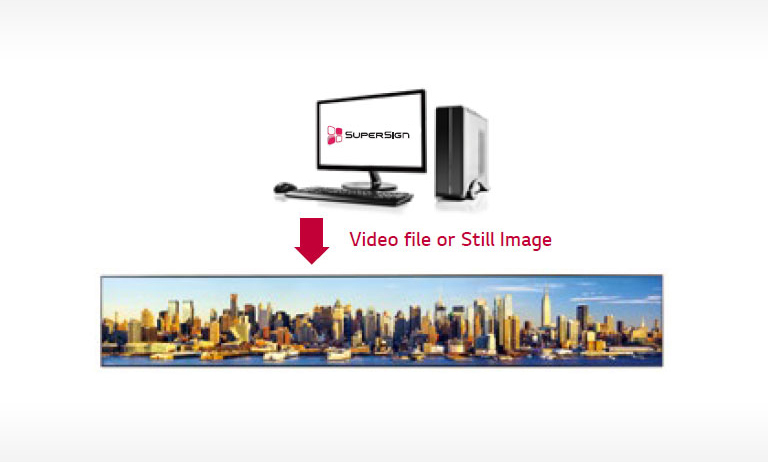

58:9 Content Editing1 58:9 Content Editing2
Content Management

58:9 Content Editing

With the LG SuperSign media editor, you can easily edit images or video clips of original content without any additional editing programs.

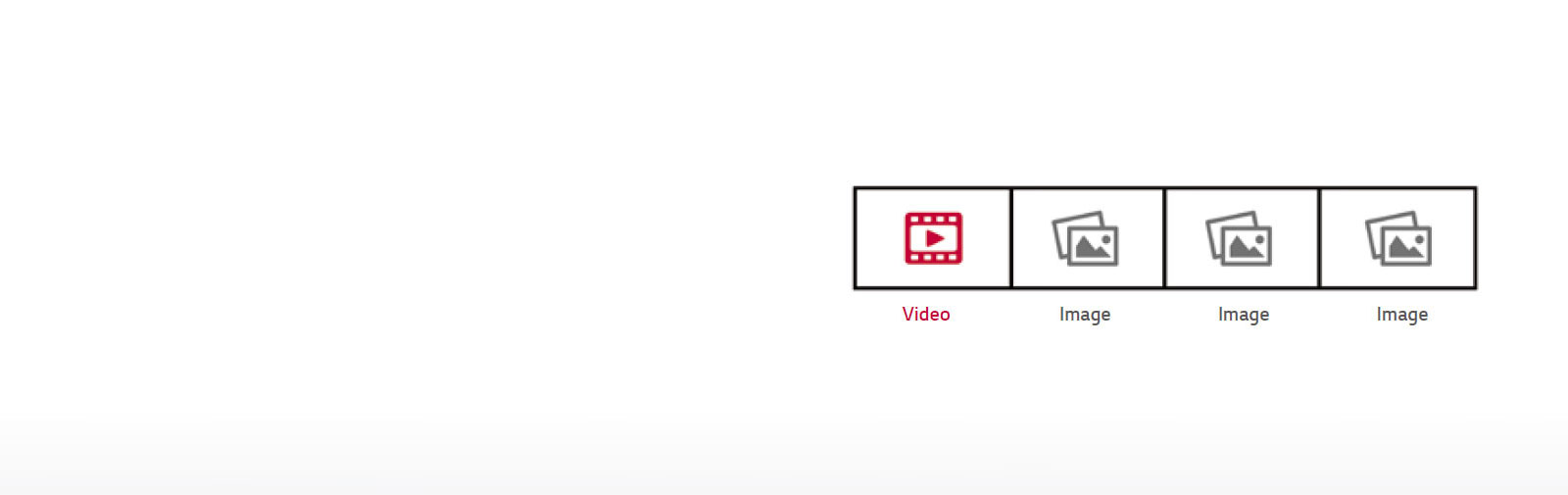

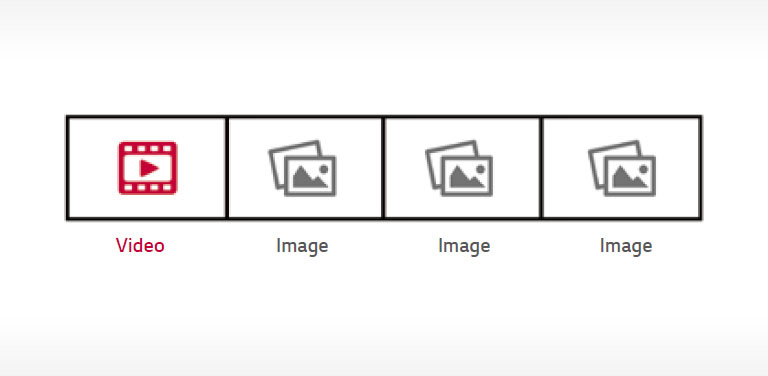

Multiple Content Creation1 Multiple Content Creation2
Content Management

Multiple Content Creation

Users can edit content that consists of one video and several still images (up to 20) with SuperSign Editor.

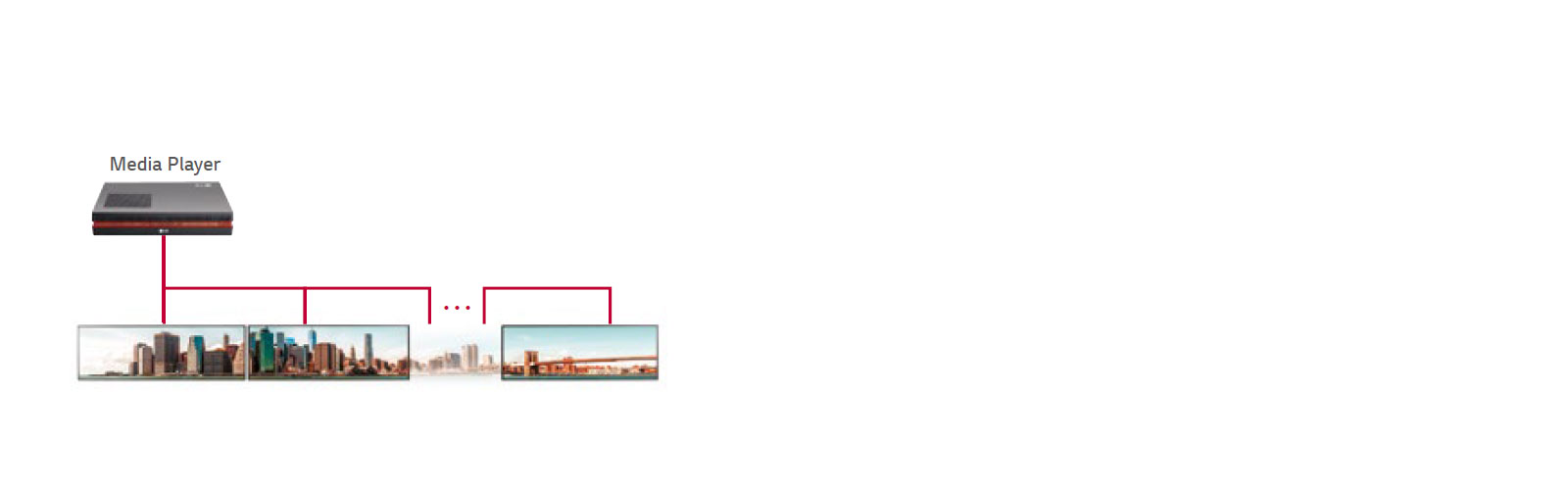

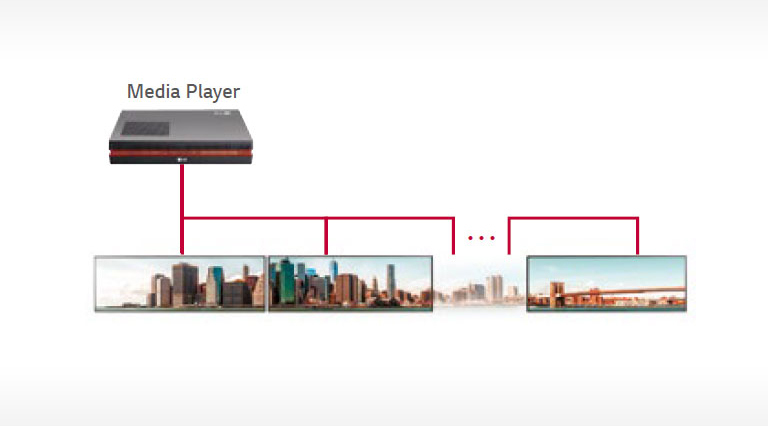

Tiling Scene with Daisy Chain1 Tiling Scene with Daisy Chain2
Convenient Connectivity Support

Tiling Scene with Daisy Chain

This product supports lateral tiling for 1x4 or 4x1 installations (landscape or portrait), and up to a 4x4 installation with a daisy chain confi guration.

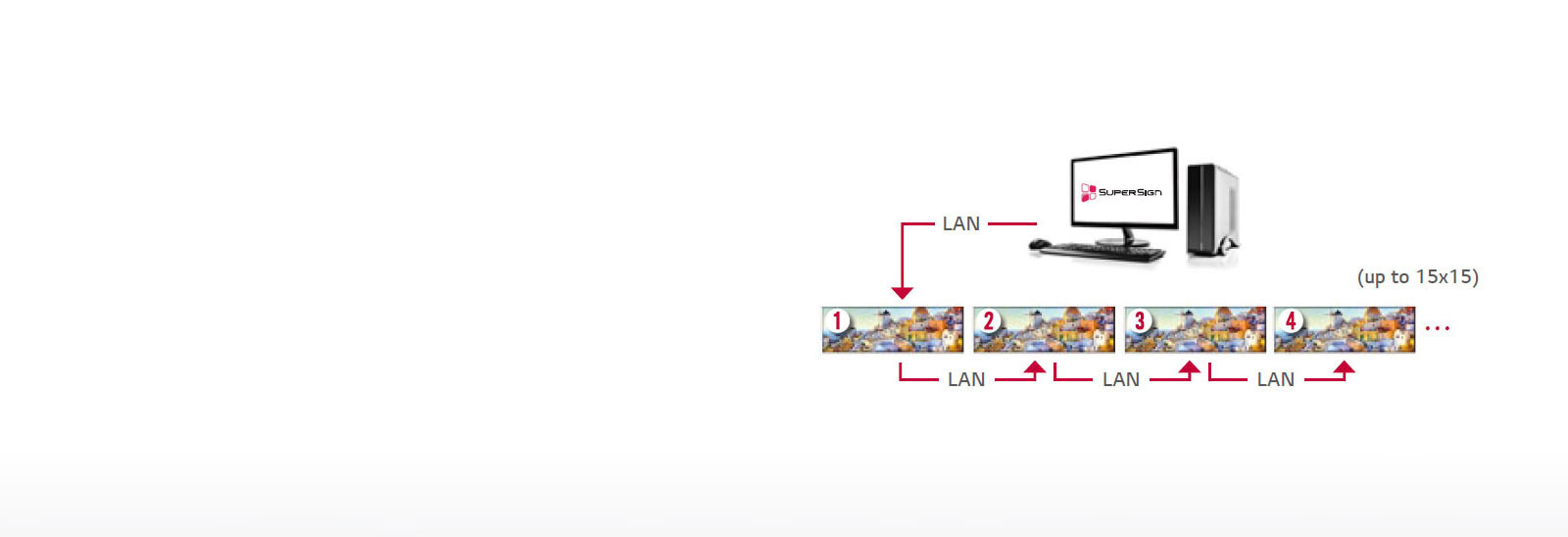

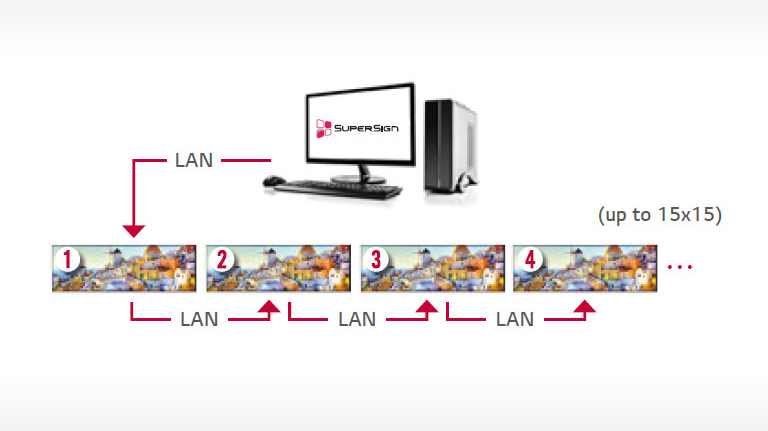

LAN Daisy Chain1 LAN Daisy Chain2
Convenient Connectivity Support

LAN Daisy Chain

The LAN daisy chain allows you to control and monitor devices, distribute content, and even update fi rmware.

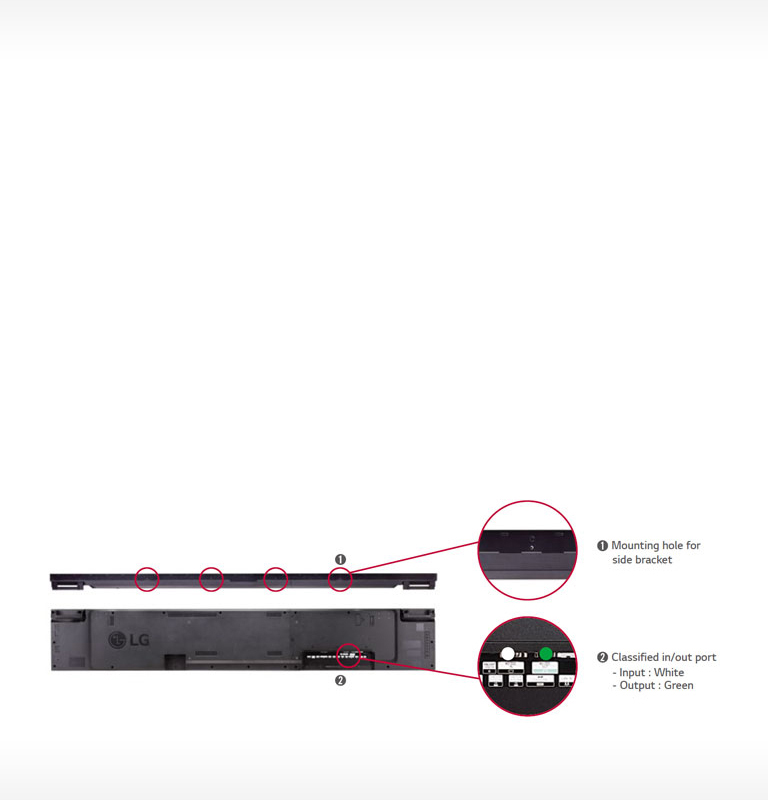

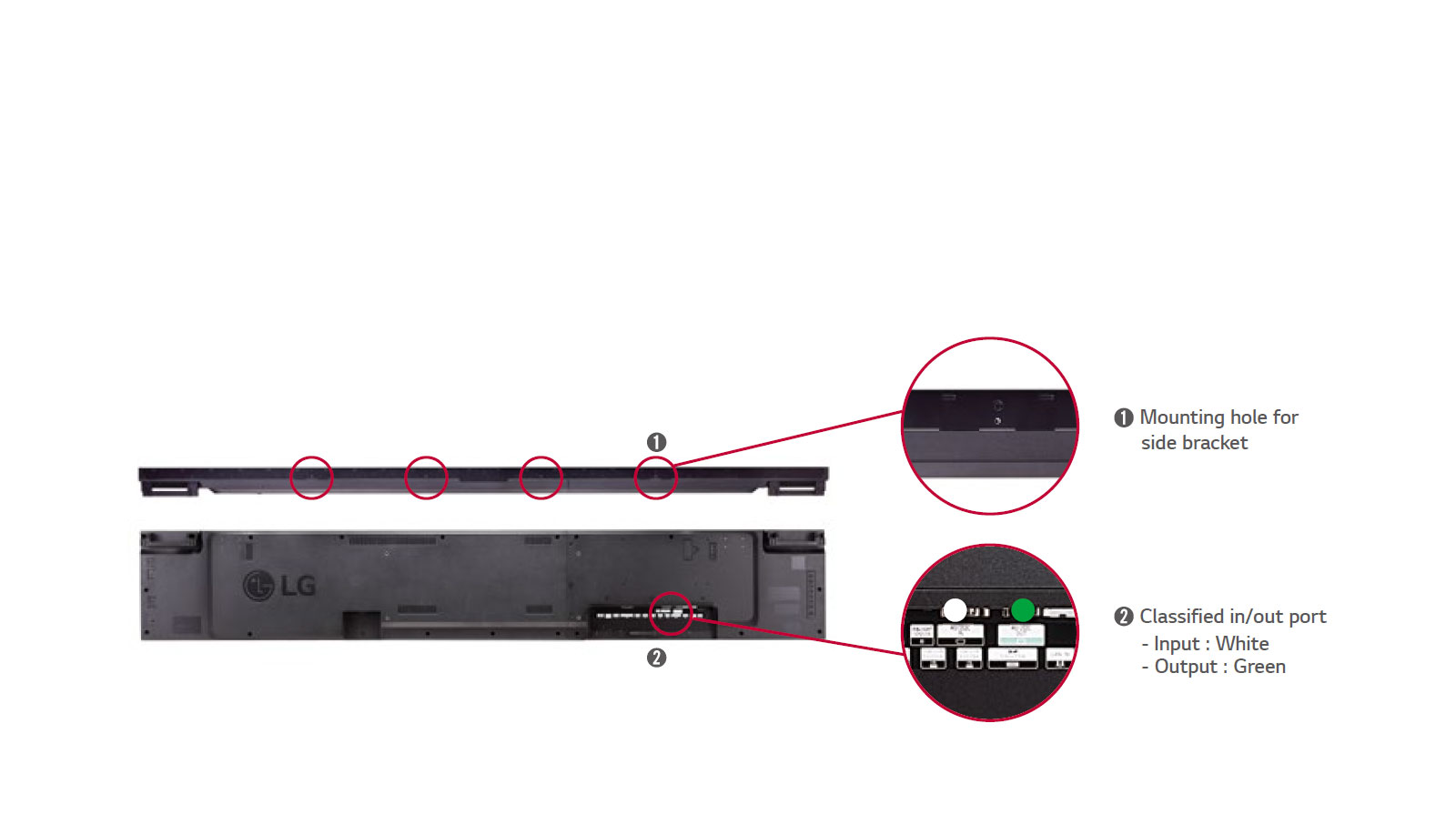

Easy Installation1 Easy Installation2

Easy Installation

Side Bracket / Classifi ed Port
This product supports side brackets for buried installations. The classified in/out port prevents errors when connecting a daisy chain.
Close
PANEL
  • Screen Size
    86"
    Resolution
    3,840 x 600 (UHD)
  • Brightness(Typ.,cd/m²)
    500
CONNECTIVITY
  • Input
    HDMI, DP, OPS, DVI-D, USB2.0, USB3.0, SD Card
    Output
    Analog Audio
  • External Control
    RS232C, RJ45, IR+B Receiver, Pixel Sensor, Analog Audio
PHYSICAL SPECIFICATION
  • Bezel Width
    4.4mm (L/R), 5.9mm (T/B)
    Monitor Dimension (W x H x D)
    2,158.3 x 348.5 x 81.7mm
  • Weight (Head)
    20.5kg
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %
POWER
  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-in Power
STANDARD(CERTIFICATION)
  • Safety
    UL / cUL / CB / TUV / KC
    EMC
    FCC Class "A" / CE / KCC
  • ErP / Energy Star
    NA / NA
MEDIA PLAYER COMPATIBILITY
  • OPS Type Compatible
    Yes
    External Media player Attatchable
    No
SOFTWARE COMPATIBILITY
  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control +
ACCESSORY
  • Basic
    Remote Controller (2ea Batteries included), Power Cord, DP (3M), RS-232C Cable (3M), Owner's Manual (Website upload)
    Optional
    AN-WF500 (WiFi USB Dongle), MP700, KT-OPSA (OPS KIT), KT-SP0 (RGB Sensor) ** Stand is not available
