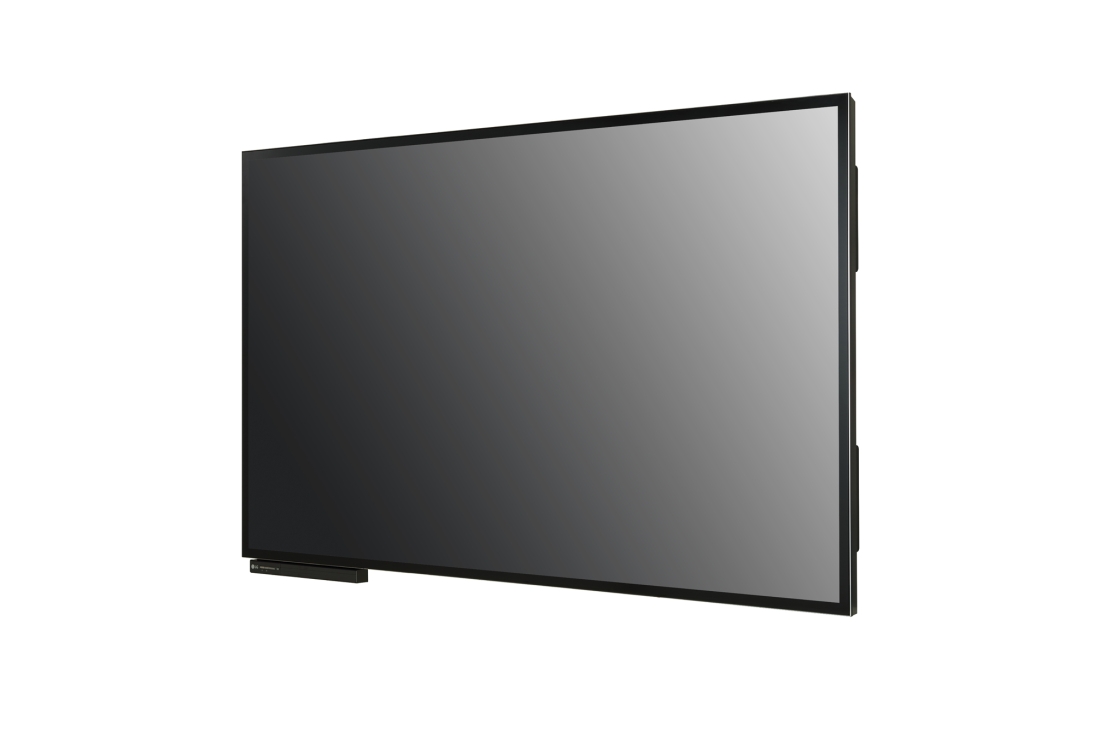

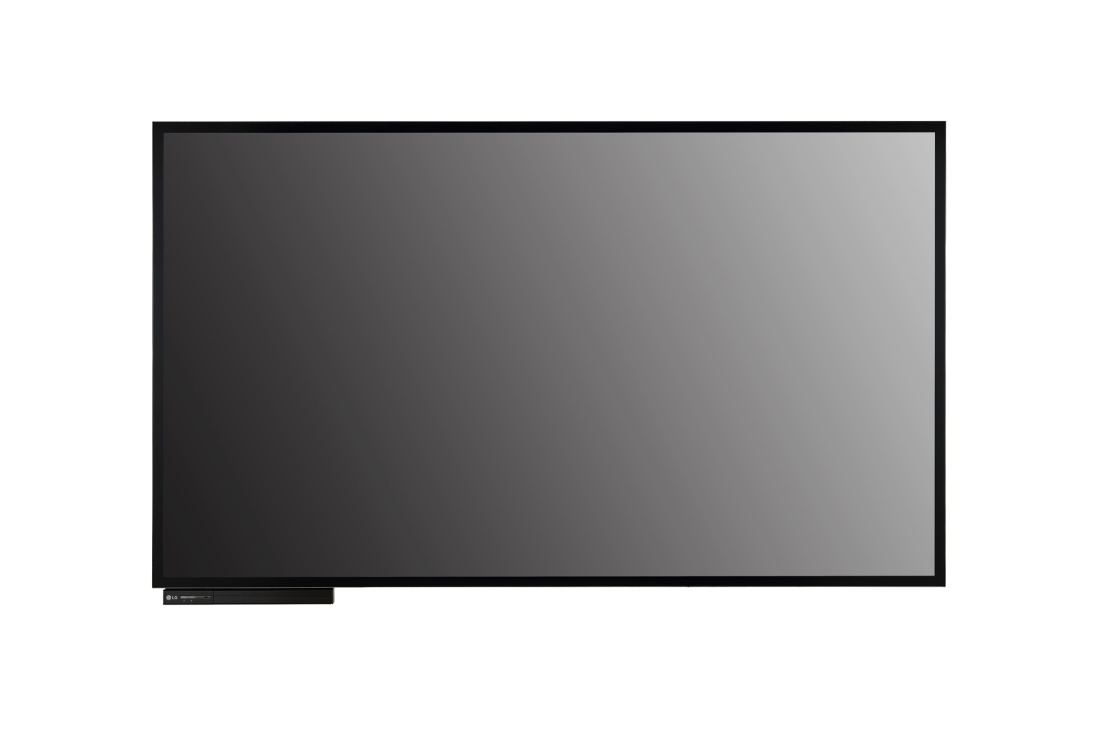

86" 350 nits UHD Interactive Digital Board
Interactivity for the Most Collaborative Meeting1 Interactivity for the Most Collaborative Meeting2

Interactivity for the Most Collaborative Meeting

In a complex writing environment such as meeting rooms and classrooms, TN3F is the ideal solution. The In-Cell Touch and Active Pen, which incorporate state-of-the-art touch technology, provide an unrivaled cursive writing experience.
In-Cell Touch<br>1 In-Cell Touch<br>2
NATURAL CURSIVE WRITING EXPERIENCE

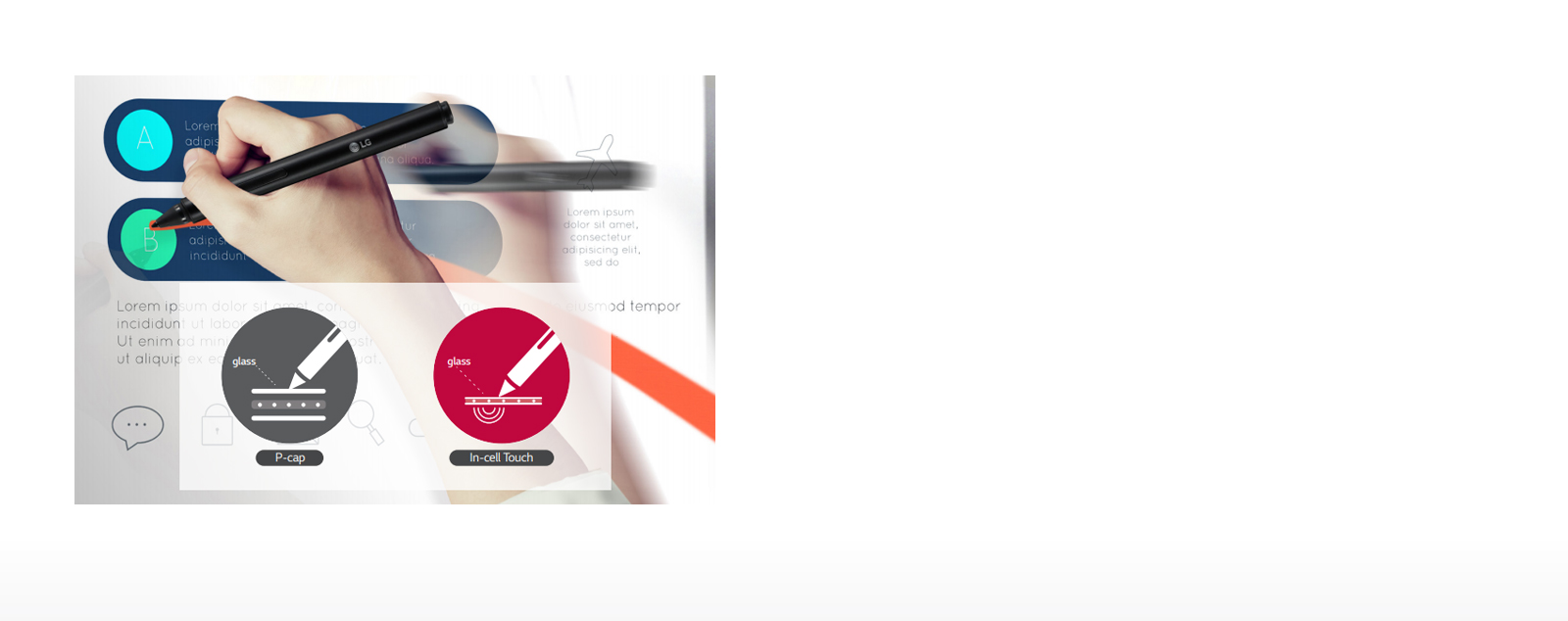

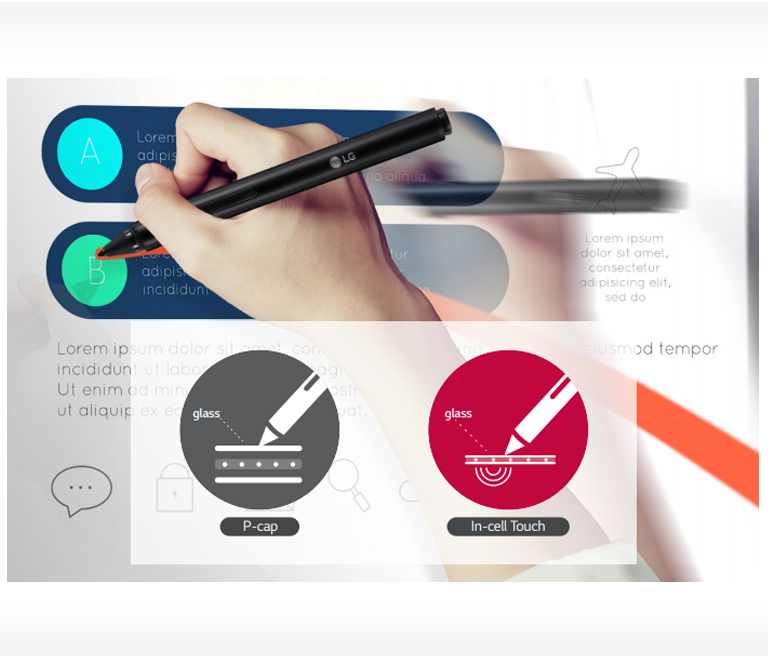

In-Cell Touch

The In-Cell touch technology provides advantages in writing performance, visibility, and design because the LCD panel and protective glass are directly bonded with no air gaps. The In-Cell touch signage delivers a high-quality user experience and boosts your efficiency with its slim design and outstanding writing performance.
Active Pen<br>1 Active Pen<br>2
NATURAL CURSIVE WRITING EXPERIENCE

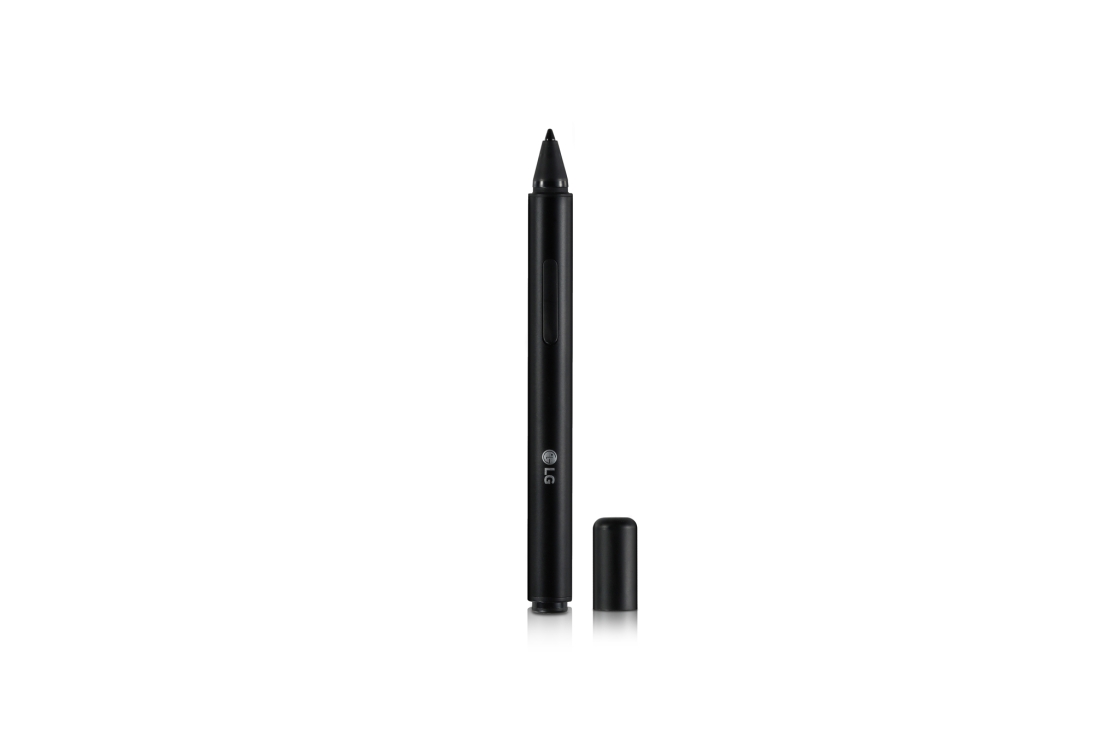

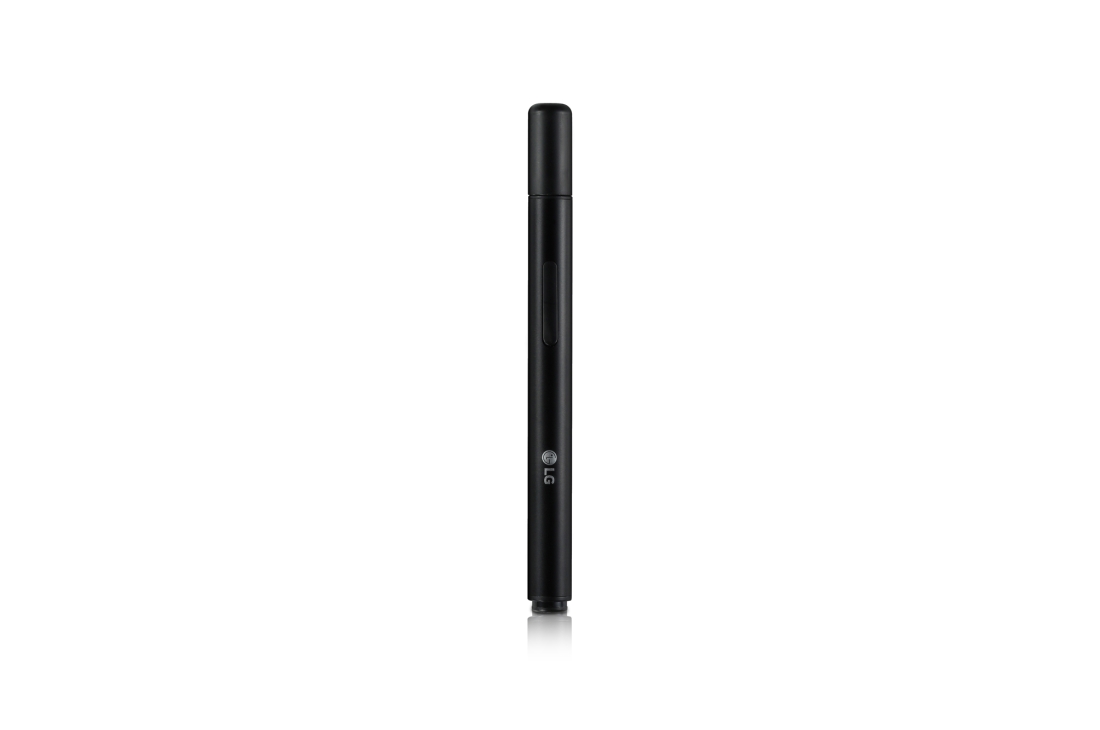

Active Pen

Use TN3F's Active Pen to write in a more natural and detailed way. The Active Pen is pressure sensitive, so strokes can be thick or thin, and the user's handwriting can be perfectly reproduced on the screen.
Data Mirroring<br>1 Data Mirroring<br>2
COLLABORATION & CONNECT

Data Mirroring

TN3F's data mirroring technology enables two-way writing and sharing in real time to remotely share annotations and facilitate collaboration in meetings in any space, anytime and anywhere.
Screen & File Sharing<br>1 Screen & File Sharing<br>2
COLLABORATION & CONNECT

Screen & File Sharing

TN3F's screen sharing provides the content-sharing function with laptops or various mobile devices, enabling more efficient and immersive meetings. Using the IDB DUO App, files can be directly shared between the Interactive Digital Board and the client devices, so you can carry out smarter meetings.
Interactive UX-UI<br>1 Interactive UX-UI<br>2
USER-FRIENDLY EXPERIENCE

Interactive UX-UI

New Interactive Display Application supports intuitive UX/UI that includes a simple launcher menu, easy control center, and seamless tool bar.
All-in one<br>1 All-in one<br>2
USER-FRIENDLY EXPERIENCE

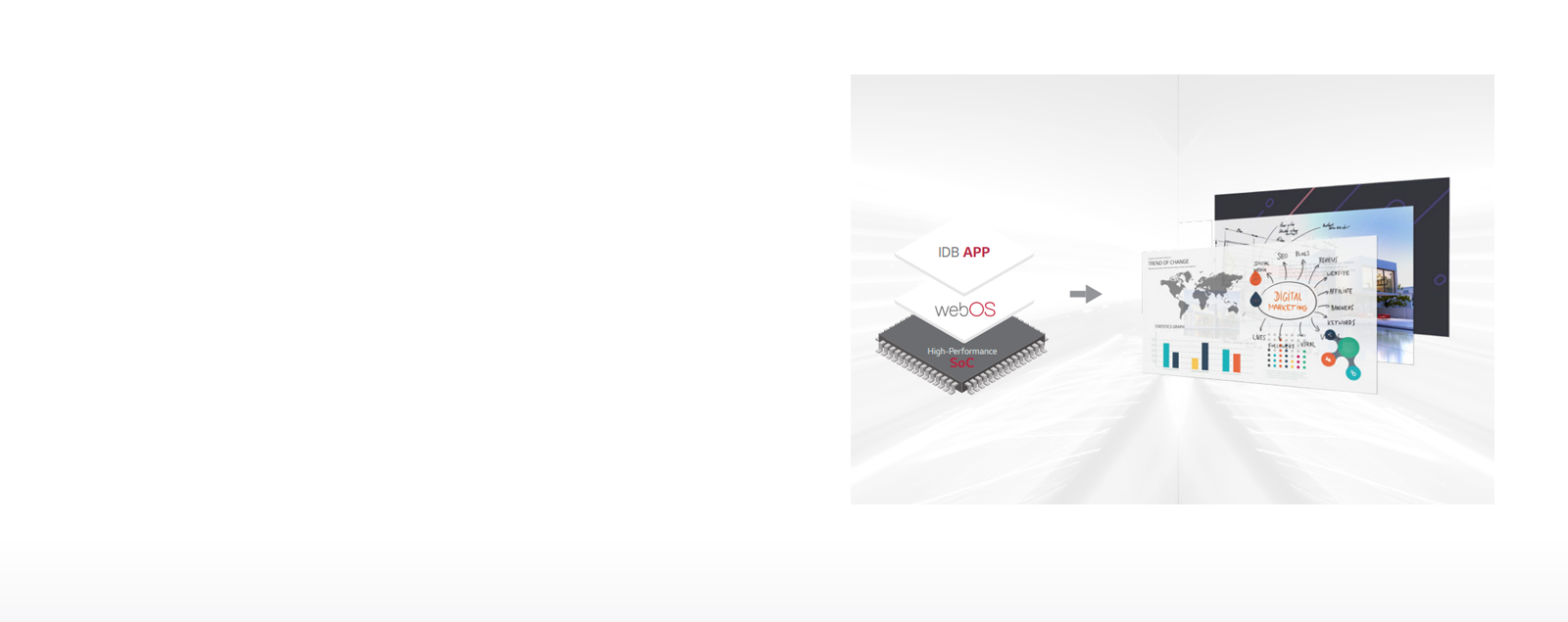

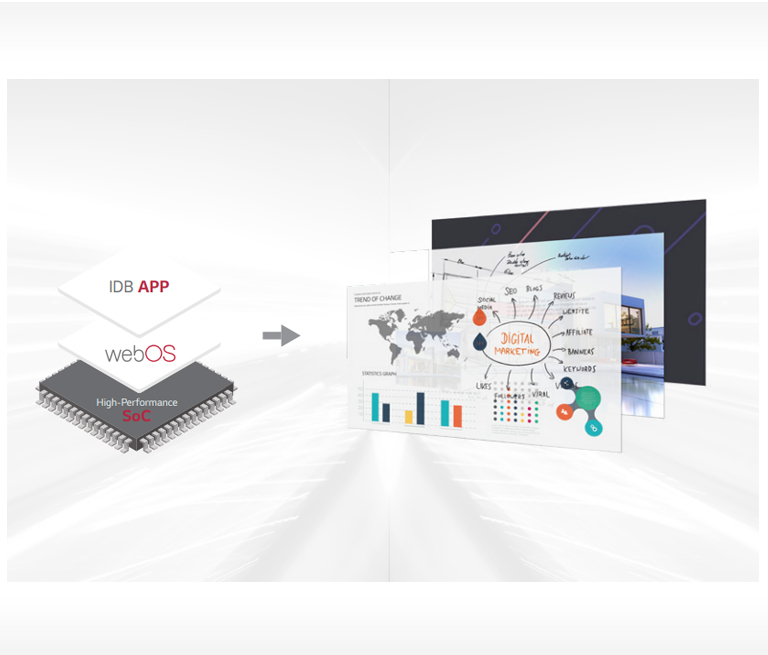

All-in one

The TN3F integrates both webOS and IDB apps into a high performance Soc, without a PC. The IDB mode can be instantly started with just one touch.
USB-C Type Ready<br>1 USB-C Type Ready<br>2
USER-FRIENDLY EXPERIENCE

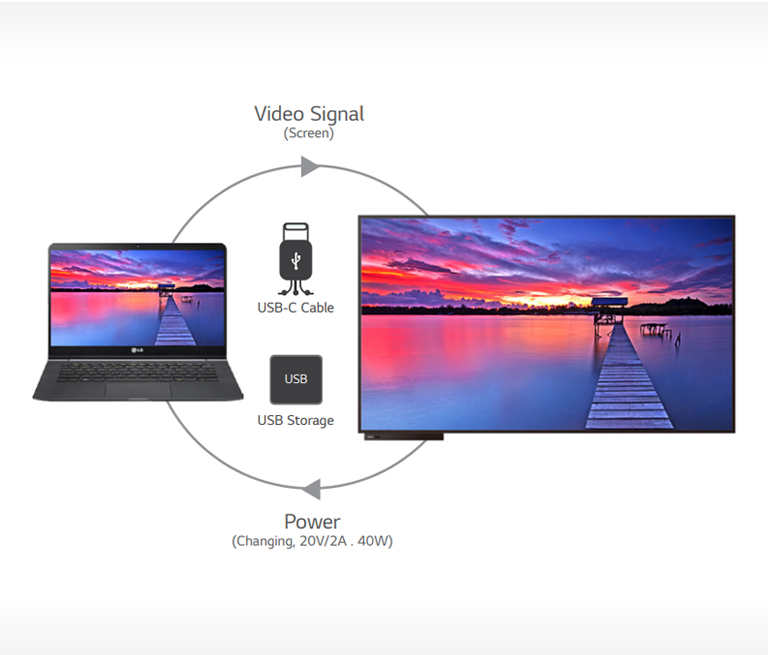

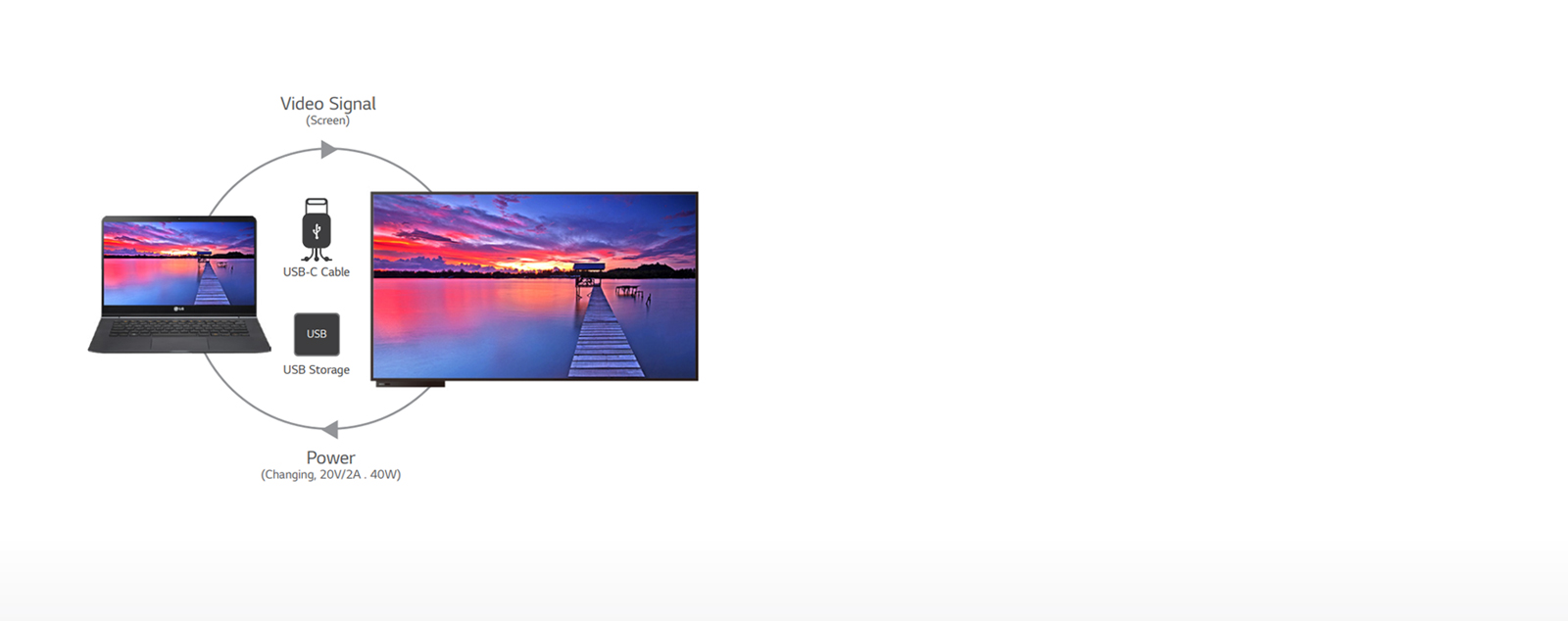

USB-C Type Ready

The TN3F provides video, audio, and power all in one, making it quick and easy to connect to other devices for smarter meetings. It also supports USB-C type cables that can replace other connectors, such as USB-B, USB-A, HDMI.
True Color, Immersive View<br>1 True Color, Immersive View<br>2
SUPERIOR PICTURE QUALITY

True Color, Immersive View

The TN3F is large enough to display content and catch the attention of various meeting participants. The IPS panel clearly conveys content at various angles, regardless of where participants are sitting. Each pixel of the IPS panel reproduces the actual image's color without any distortion.
Vivid Color Details with Ultra HD<br>1 Vivid Color Details with Ultra HD<br>2
SUPERIOR PICTURE QUALITY

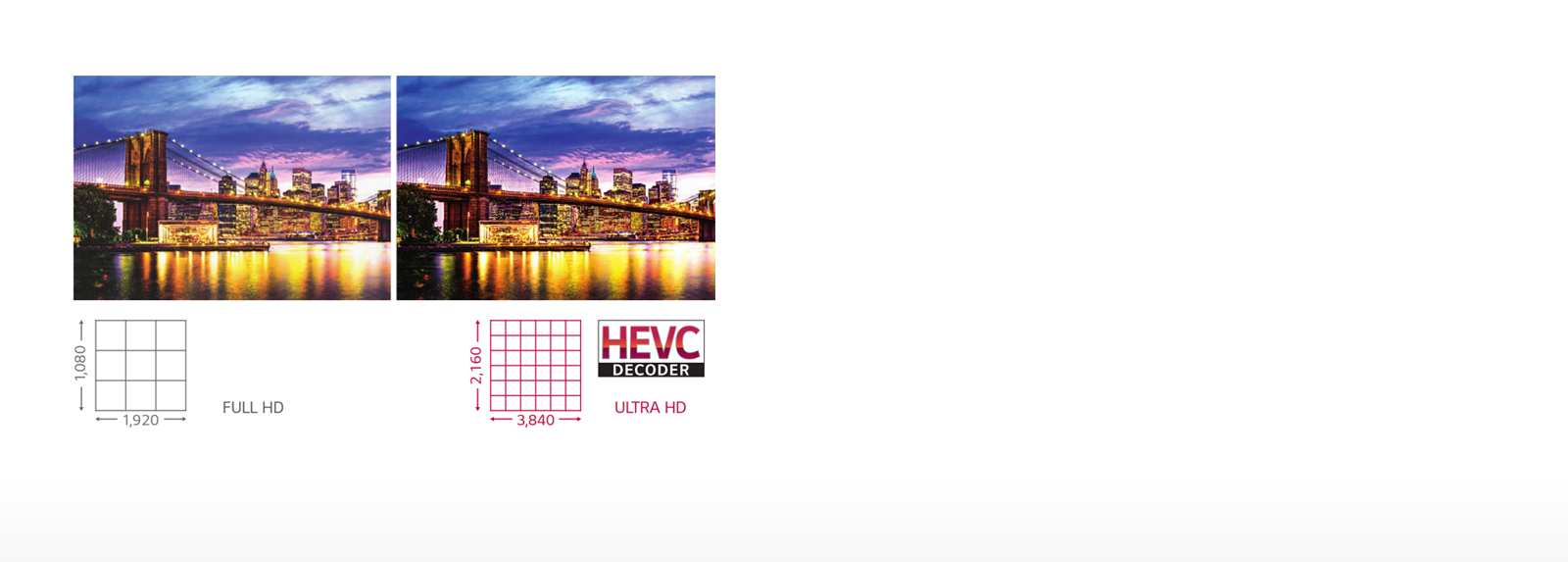

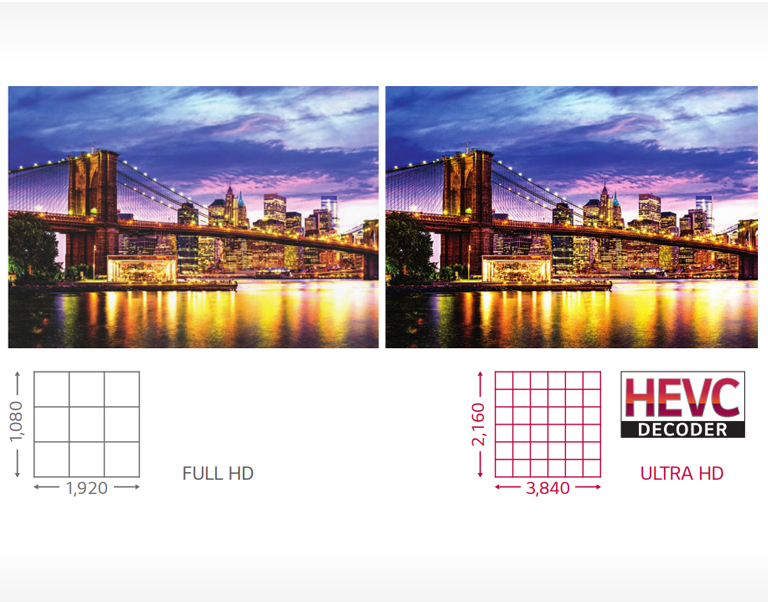

Vivid Color Details with Ultra HD

Using UHD resolution will allow you to view details at a resolution that is four times higher than FHD, even while zoomed in. Various content such as documents, images, and videos are displayed without any distortion of image quality, which is especially important in a complex business environment.
LG C-Display+<br>Customer App<br>1 LG C-Display+<br>Customer App<br>2

LG C-Display+
Customer App

Find the latest production information along with reference case, OLED/LED/Video Wall configurator, manual and sales contact information.
Visit Our Web Application Go to Download App
Close
PANEL
  • Screen Size
    85.6
    Panel Technology
    IPS
  • Back Light Type
    Edge
    Aspect Ratio
    16 : 9
  • Native Resolution
    3,840 x 2,160 (UHD)
    Brightness(Typ., cd/m², w/ Protection Glass)
    350
  • Contrast Ratio
    1,000:1
    Viewing Angle (H x V)
    178 x 178
  • Response Time
    8ms(G to G)
    Life Time (Typ.)
    50,000 Hrs (Typ.)
  • Operation Hours
    16Hr
    Orientation
    Landscape
CONNECTIVITY
  • Video / Audio
    HDMI (3), DP, DVI-D, USB
    External Control
    RS232C In/Out
  • USB
    USB 2.0 (2), USB Type C(USB2.0), Touch Out(USB2.0,B Type)(2)
MECHANICAL SPECIFICATION
  • Bezel Color
    Black
    Bezel Width
    (T/L/R/B) set: 28.8mm
  • Monitor Dimension (W × H × D)
    1952.6 X 1164.1 X 86.4mm
    Weight (Head)
    66.7 kg
  • Carton Dimensions (W × H × D)
    2190 X 1470 X 371mm
    Packed Weight
    96.4kg
  • Handle
    Yes
    VESA™ Standard Mount Interface
    600 x 400
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0 °C to 40 °C
    Operation Humidity
    10 % to 80 %
POWER
  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
  • Power Consumption (Typ. / Max.)
    360W / 420W
SOUND
  • Speaker
    Built in(10W/Ch)
STANDARD(CERTIFICATION)
  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE / KC
MEDIA PLAYER COMPATIBILITY
  • OPS Type Compatible
    Yes
    optional
    (OPS Kit (KT-OPSF))
ACCESSORY
  • Basic
    Remote Controller, Power Cord, QSG, HDMI(3M), Regulation Book, Phone to RS232C Gender, Touch Pen(2ea, include battery 2ea), Pen Tip(12ea), Tip Remover(2ea), USB Type-C Cable, Ferrite Core Filter
SPECIAL FEATURE
  • IDB App
    Yes
TOUCH SPECIFICATIONS
  • Touch type
    In-cell
    Available object size for touch
    Ø5 mm ↑
  • Reponse Time (PC Windows 10)
    70ms↓
    Accuracy
    1.5mm
  • Interface
    USB 2.0
    Protection Glass Thickness
    1.85T (Anti-Glare)
  • Protection Glass Transmission
    88%
    Operating System Support
    Win7 professional, Win8.1, Win10
  • Multi touch point
    Finger : Max 20 Point (Windows), Finger: Max 10Point (webOS), Active Pen : Max 2 Point
