86TR3E-B component-copyModelName
Interactive Digital Board

Key Features

Choose your Size

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (86TR3E-B)
    ৳
    ৳
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (86TR3E-B)
    ৳
    ৳
    LG Members Price
Total
Interactive Digital Board

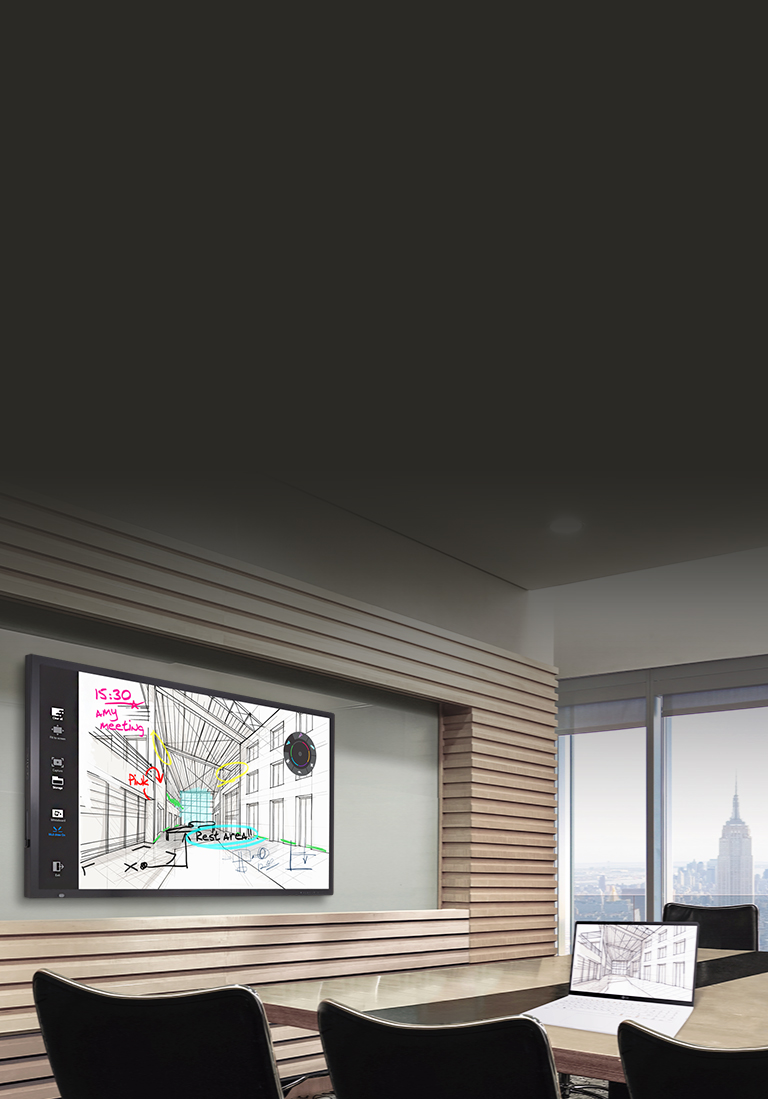

Be Smarter and Simpler with LG IDB1 Be Smarter and Simpler with LG IDB2
Embedded LG IDB App & webOS

Be Smarter and Simpler with LG IDB

IDB app makes it possible to write and collaborate on Interactive Digital Board(IDB) without the need for a PC or additional licenses for writing/collaboration solutions based on the webOS smart platform.

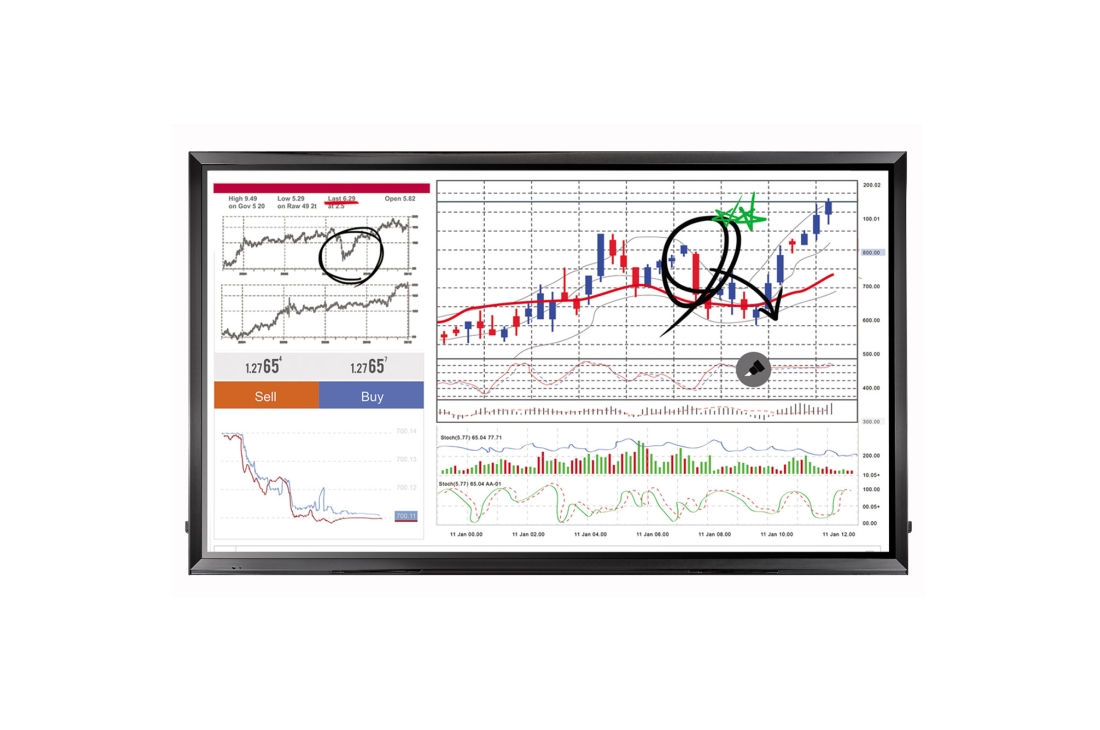

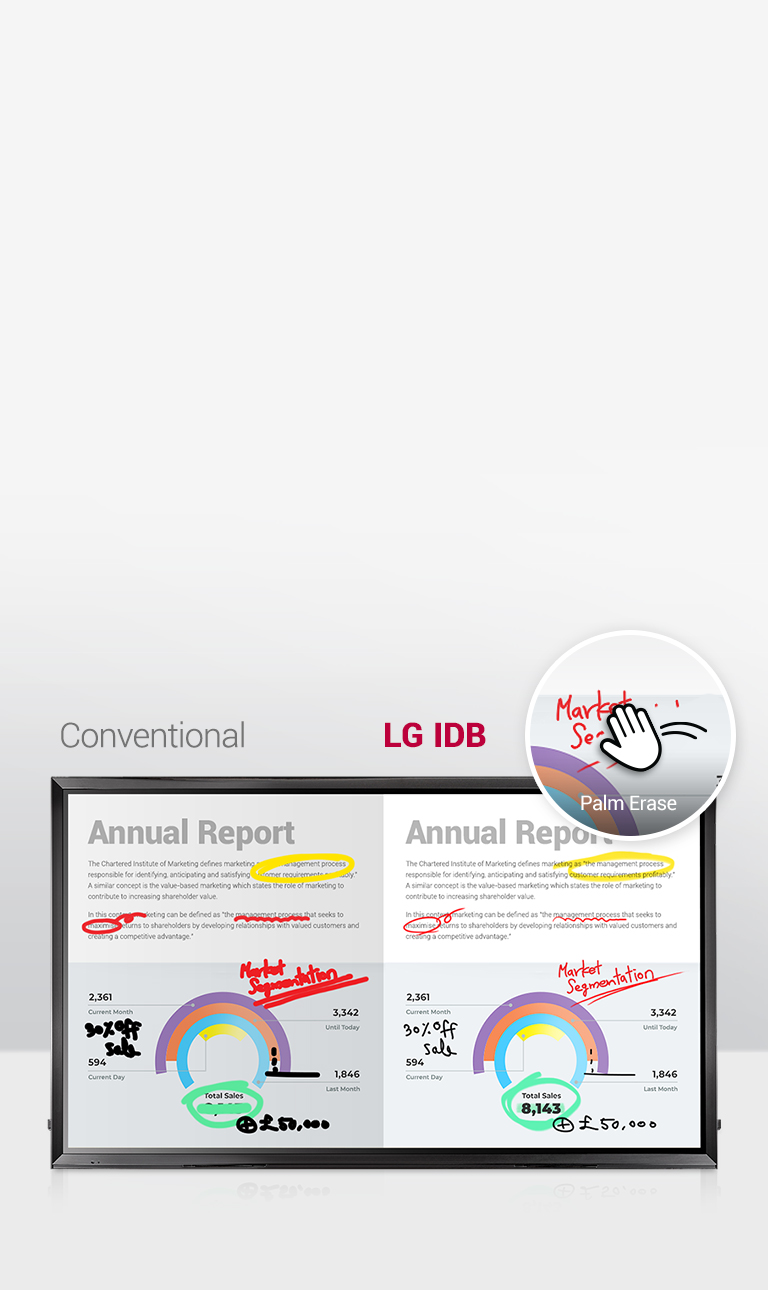

Intuitive Touch and Writing1 Intuitive Touch and Writing2
Outstanding Touch Performance

Intuitive Touch and Writing

The most advanced touch technology, InGlass™, enables precise touch responses and detailed writing like a realistic handwriting. The thickness of the pen is adapted to the writing speed, and max. 20 point multi-touch is supported. All notes on IDB are simply erased with user's palm.
All-in-One Meeting Experience1 All-in-One Meeting Experience2
Efficient Collaboration

All-in-One Meeting Experience

For the effective collaboration, LG IDB combines whole processes which includes sharing screens of participants' laptops via wired/wireless connection simultaneously, writing on the shared screen, and saving annotation.
The Superior Picture Quality1 The Superior Picture Quality2
UHD Resolution

The Superior Picture Quality

With the UHD resolution of LG IDB, users can view the content in fine detail even when zoomig in it on the display. It provides high-quality media experience with 4 times higher definition picture quality than FHD.
True Colors and Wider View1 True Colors and Wider View2
IPS Panel

True Colors and Wider View

The LG IPS panel has a wide viewing angle to deliver clear content regardless of the positions of meeting attendees. Moreover, each pixel of the IPS panel truly reproduces the image colors without distortion.

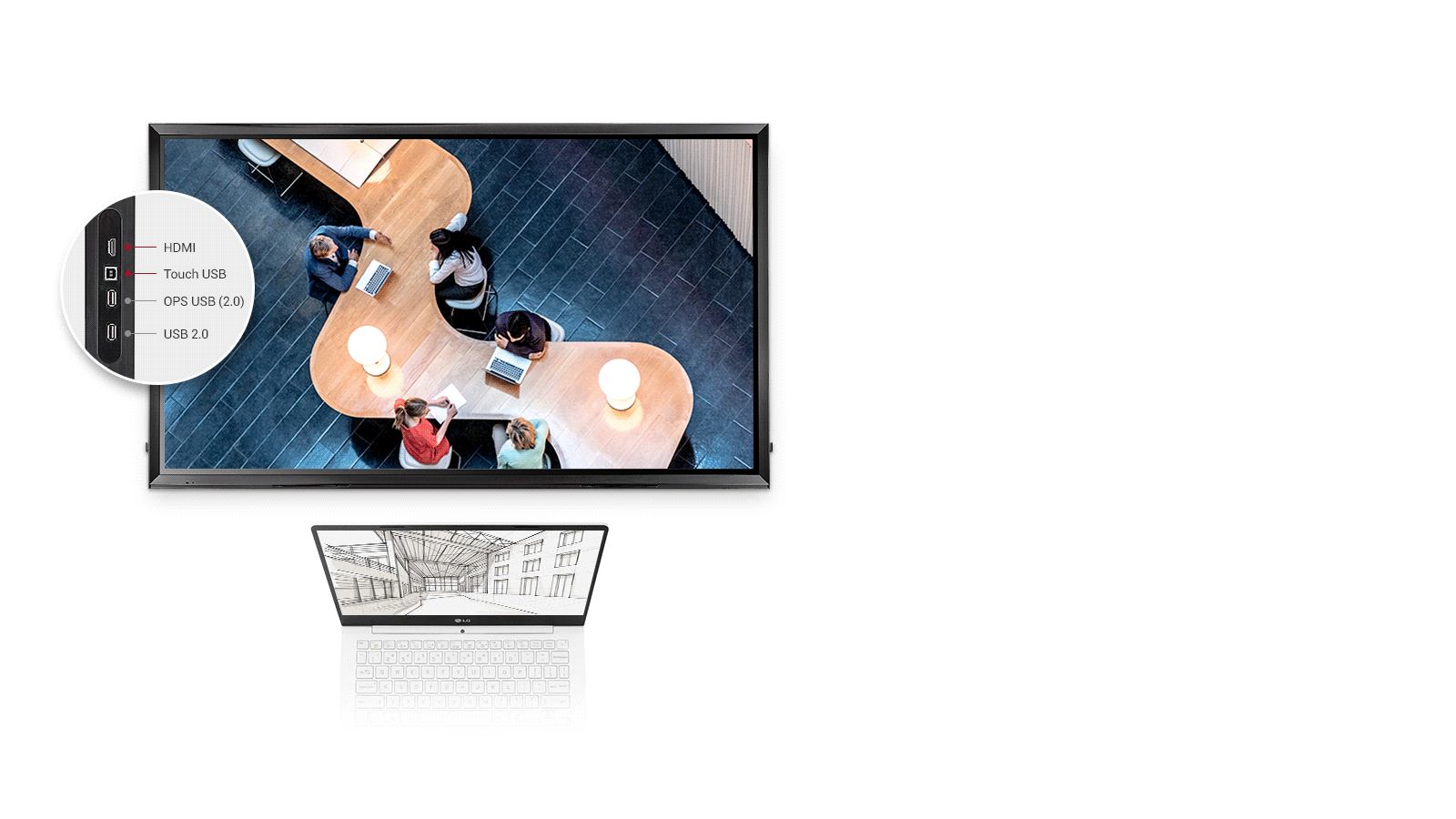

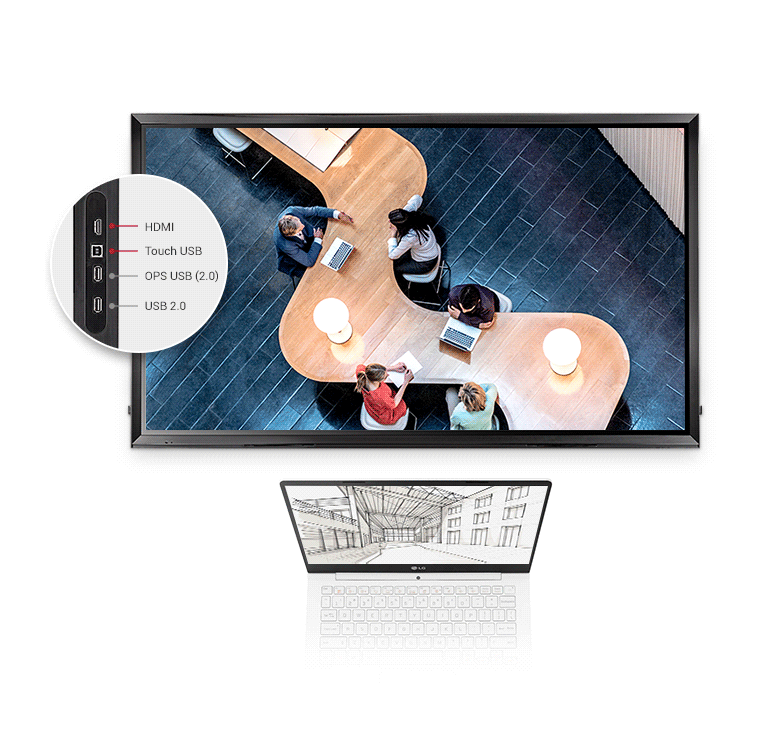

Quick and Easy to Share a Screen1 Quick and Easy to Share a Screen2
Auto Signal/Touch Switching

Quick and Easy to Share a Screen

The display can detect input/touch signals and automatically change the source if the new input has a higher priority than the previous source. It is a time-saving function for users to set-up the signals in conference.

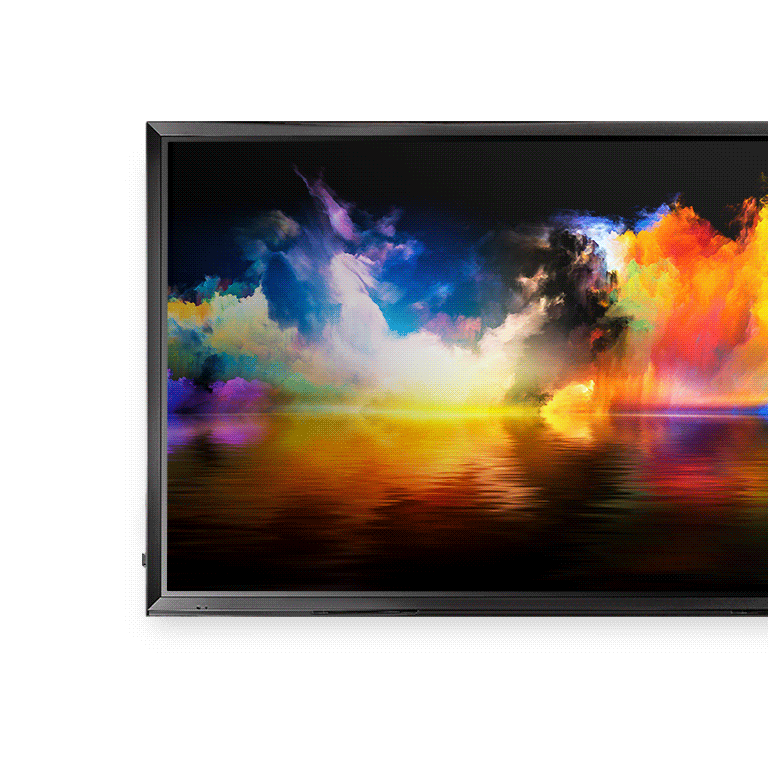

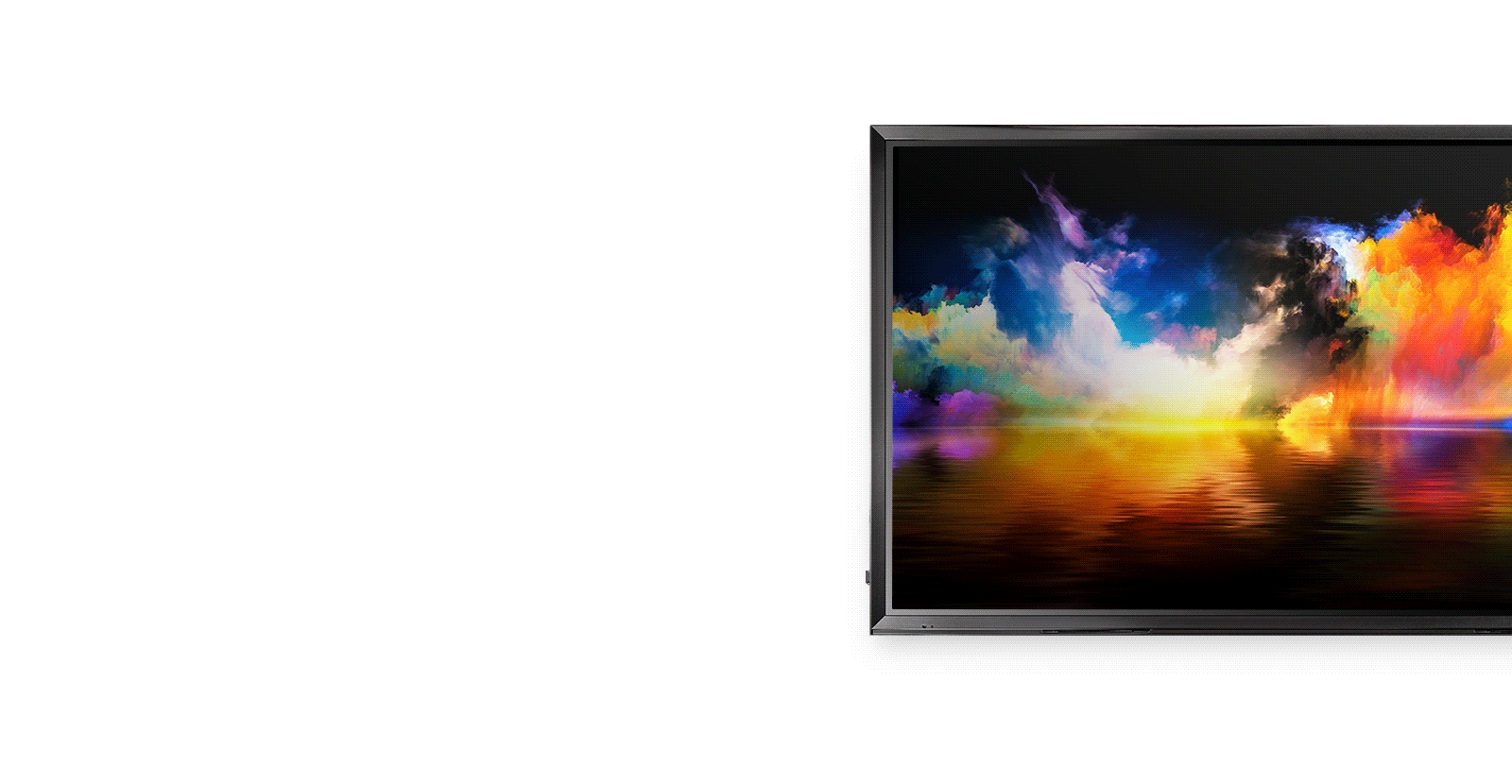

Easy to Call and Control the Menu1 Easy to Call and Control the Menu2
Assistive Touch Menu

Easy to Call and Control the Menu

For improving user-friendliness, LG IDB users can run the desired function or change the setting from anywhere by softly pressing the screen to call up the Touch Menu.
*The menu design(GUI) is subject to change without notice.

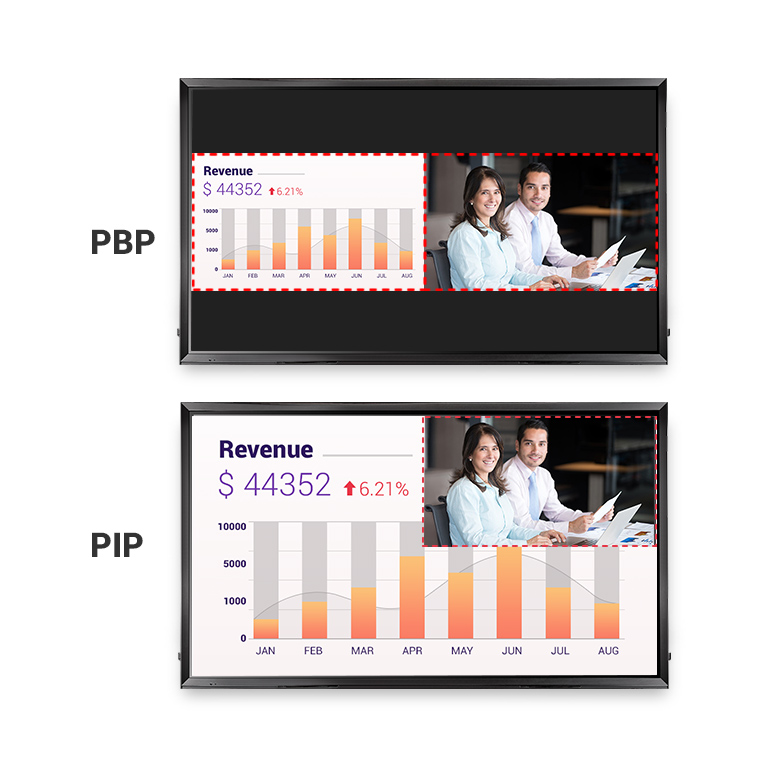

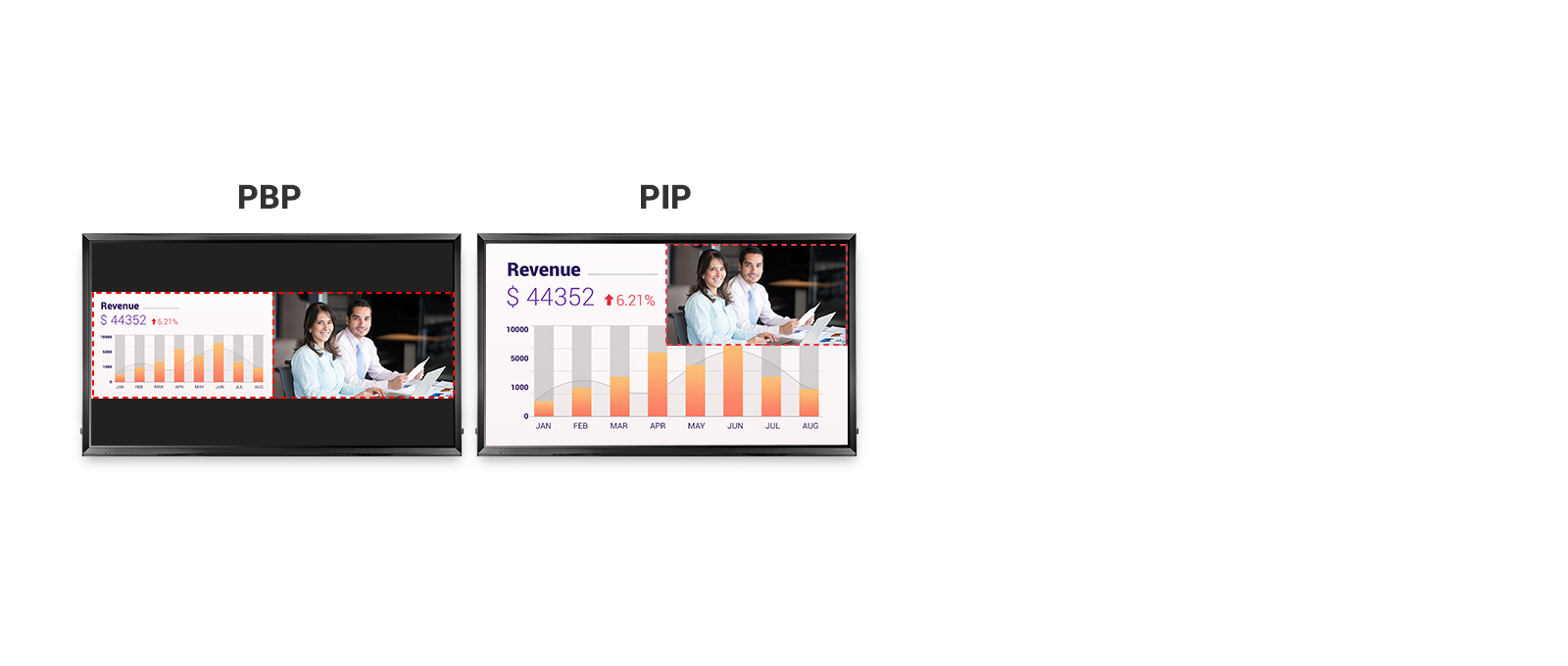

Enjoy Multi Screens1 Enjoy Multi Screens2
PBP/PIP

Enjoy Multi Screens

PBP/PIP enables two different content sources to be displayed in various layout settings including full screen, original ratio, and sub screen modes. This gives great flexibility to users to allocate space for each content source.
Close
PANEL
  • Screen Size
    86"
    Brightness(Module, Typ., cd/m²)
    410
CONNECTIVITY
  • Input
    HDMI (3), DP, DVI-D, RGB, Audio, USB 3.0, USB 2.0, OPS USB 2.0
    Output
    Touch USB 2.0 (2)
PHYSICAL SPECIFICATION
  • Bezel Width
    50.7 mm (T/L/R), 62.2 mm (B)
    Monitor Dimension (W x H x D)
    2,026.9 x 1,180.3 x 79.5 mm (w/o Handle)
  • Weight (Head)
    85.8 kg
    Carton Dimensions (W x H x D)
    2,190 × 1,470 × 371 mm
  • Packed Weight
    114.6 kg
    VESA™ Standard Mount Interface
    600 x 400 mm
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%
SOFTWARE COMPATIBILITY
  • Content Management Software
    SuperSign Premium
    Control and Monitoring Software
    SuperSign Link
ACCESSORY
  • Basic
    Remote Controller (include battery 2ea), Power Cord, QSG, HDMI (3M), Regulation Book, Phone to RS232C Gender, Touch Pen (2ea), Eyebolt (2ea)
    Optional
    OPS Kit (KT-OPSA)
TOUCH
  • Touch type
    InGlass™
    Available Object Size for Touch
    more than Ø 3 mm
  • Accuracy
    2 mm
    Interface
    USB 2.0
  • Protection Glass Thickness
    4T (Anti-Glare)
    Multi Touch Point
    Max 20 Point
