Ultra Stretch Signage

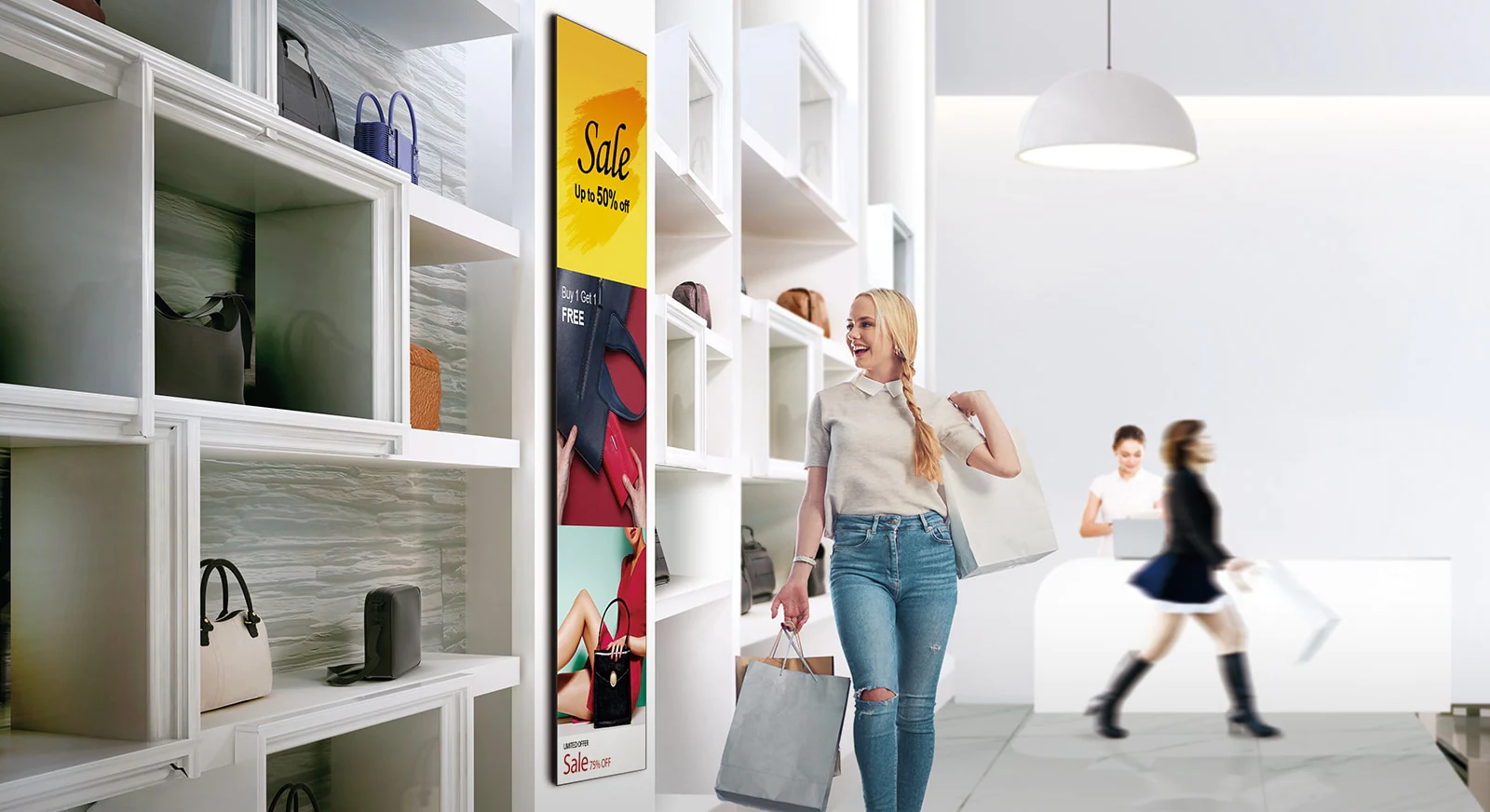

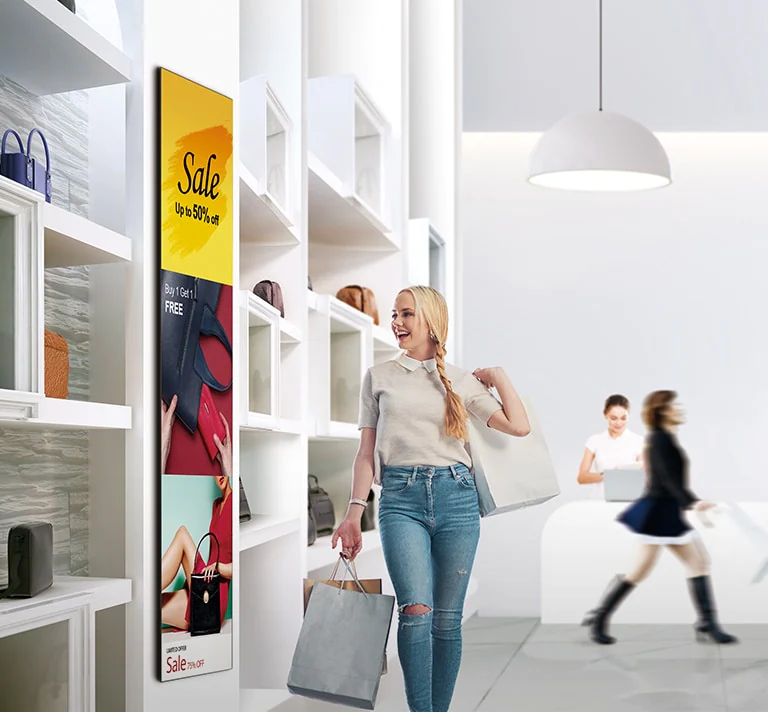

Ultra Stretch Signage, 58:9 Space-Fitting Wide Screen

The 86BH5F is the most suitable display for delivering new forms of advertising and multiplexed information in a 58:9 widescreen format. It can bring unused & leftover space to life by being installed without restriction.
Ultra Stretch Signage, 58:9 Space-Fitting Wide Screen Ultra Stretch Signage, 58:9 Space-Fitting Wide Screen
* All images in this page are for illustrative purposes only.

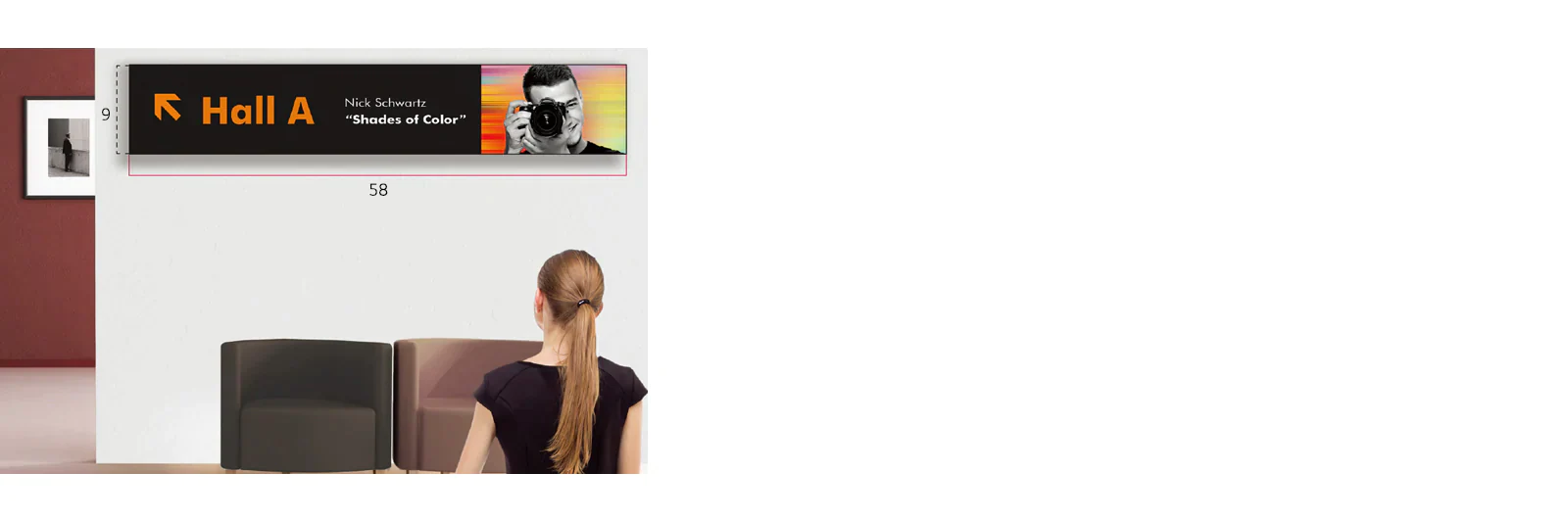

58:9 Extended Wide Format 58:9 Extended Wide Format

58:9 Extended Wide Format

It is a unique wide screen with 58:9 bar type which provides much more flexibility in playing content* than the conventional display of 16:9 ratio.
* Video content only. (Images not supported)

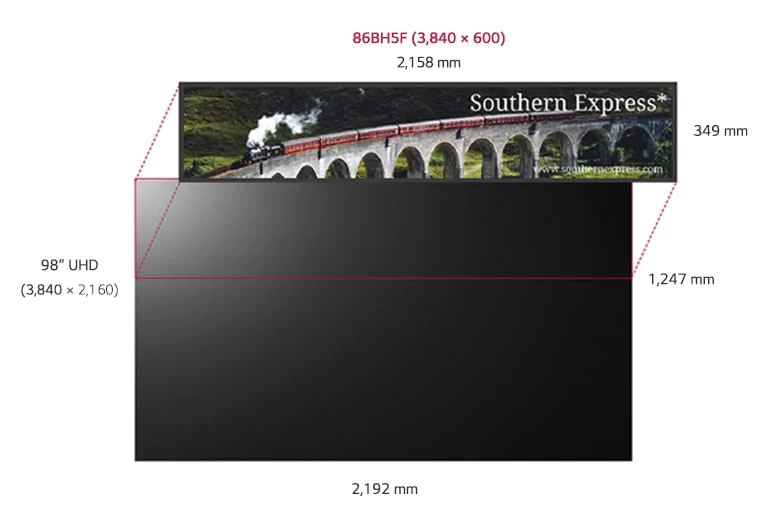

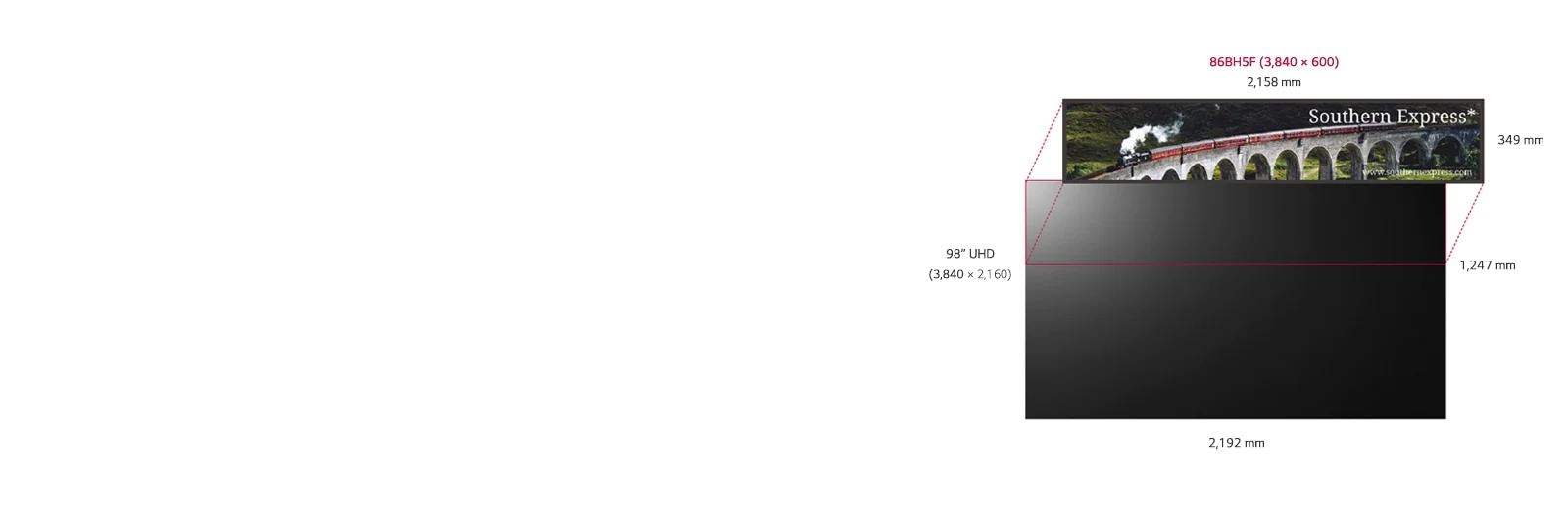

Ultra HD Resolution (3,840 x 600) Ultra HD Resolution (3,840 x 600)

Ultra HD Resolution (3,840 x 600)

Ultra HD resolution delivers an immersive viewing experience with vivid colors and clear images.

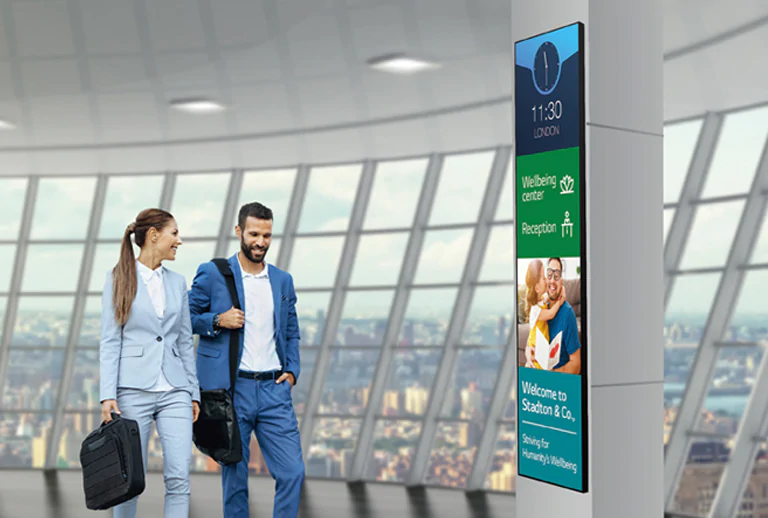

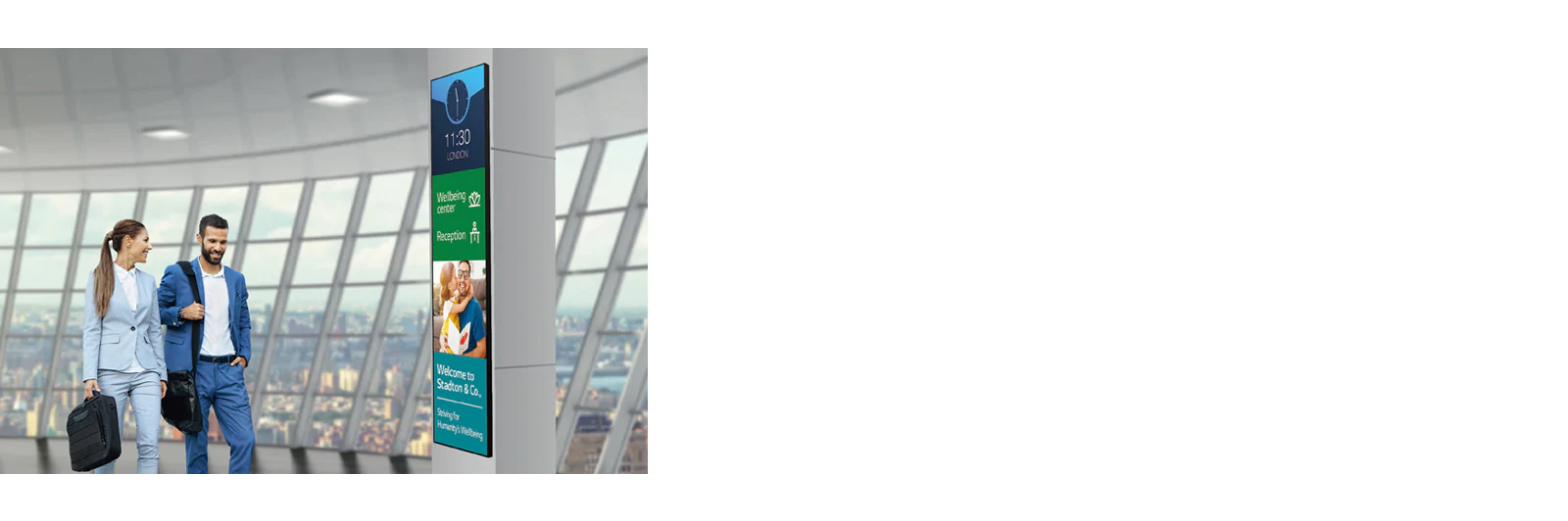

Multi Screen Mode with 4PBP Multi Screen Mode with 4PBP

Multi Screen Mode with 4PBP

The Picture-by-Picture (PBP) feature allows you to show multi content in one single display by up-to four parts. It is very useful and convenient to deliver various advertisements or pieces of information at the same time without calibration.

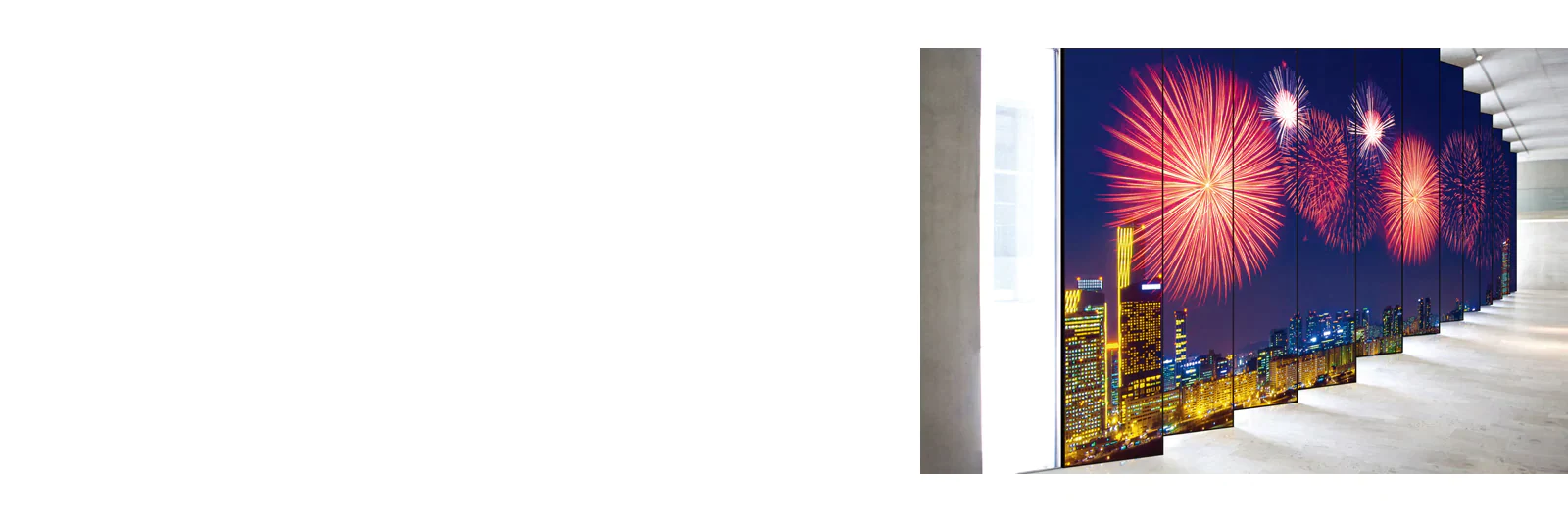

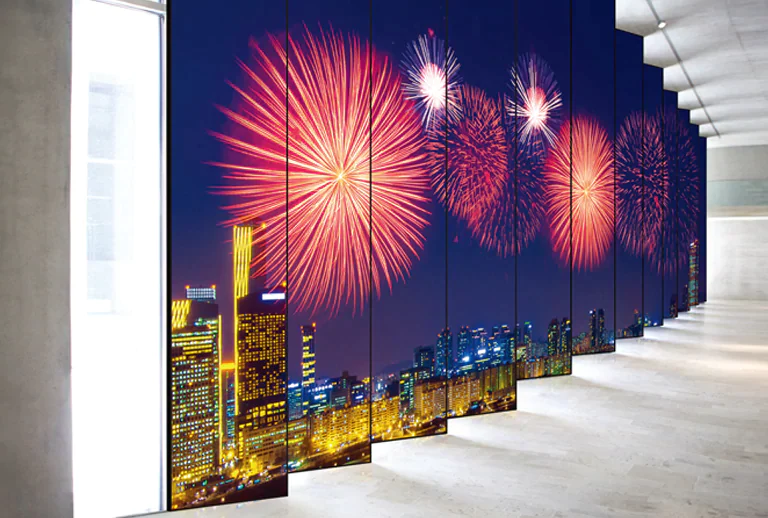

Tiled Scene with Immersive View Tiled Scene with Immersive View

Tiled Scene with Immersive View

The 86BH5F can show a tiled scene by up to 15 × 15 configuration. This will be the best choice if you want to use a large screen, or provide visual impact to your customers in a different way.

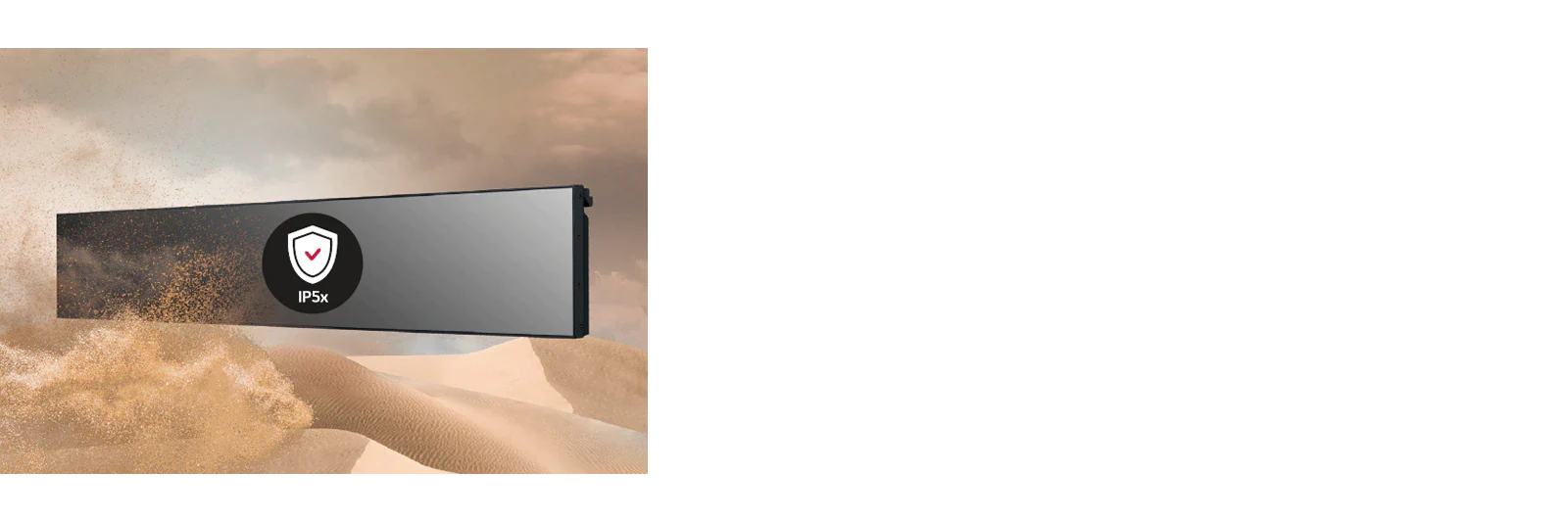

IP5x Certified Design IP5x Certified Design

IP5x Certified Design

The IP5x Dust-Proof Certification ensures that the product is completely protected from dust, eliminating the risk of performance degradation.

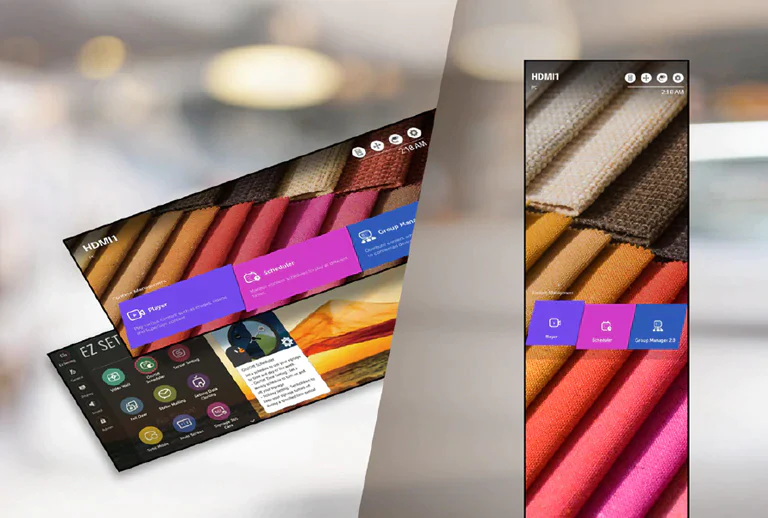

User-Friendly UX User-Friendly UX

User-Friendly UX

The 86BH5F is equipped with a user-friendly UX to simplify approach flows, groups similar functions together, and adopts an intuitive GUI for ease of use. When using the display in portrait mode, OSD* can also be adjusted accordingly.
*OSD : On Screen Display

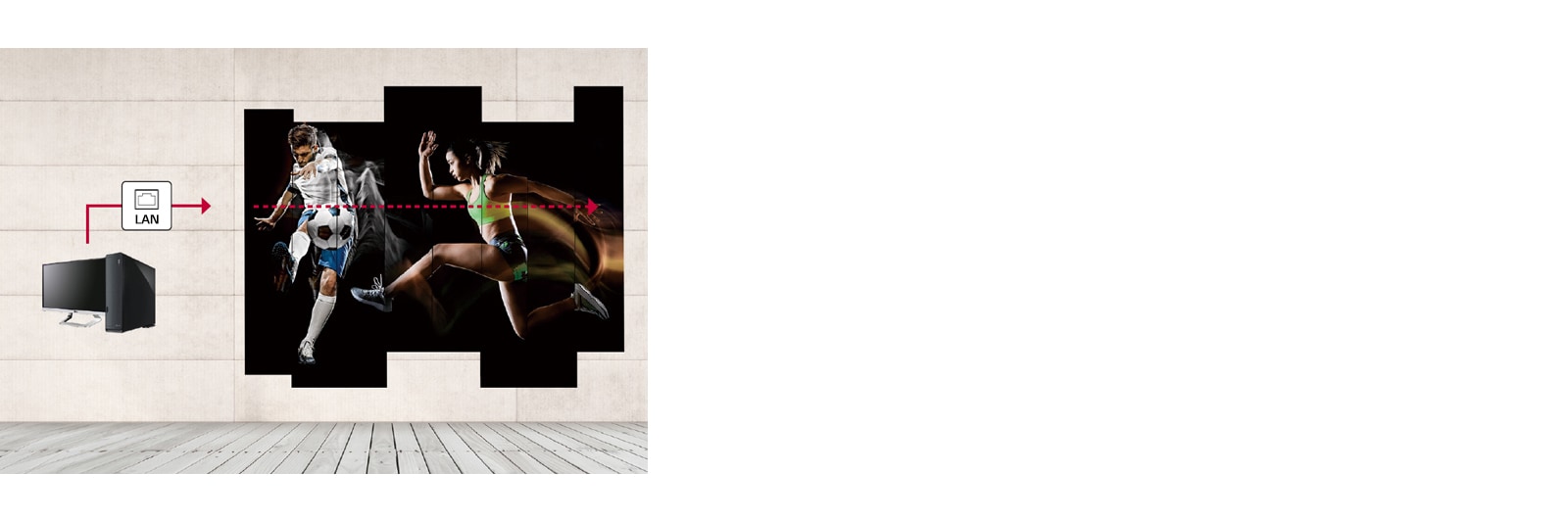

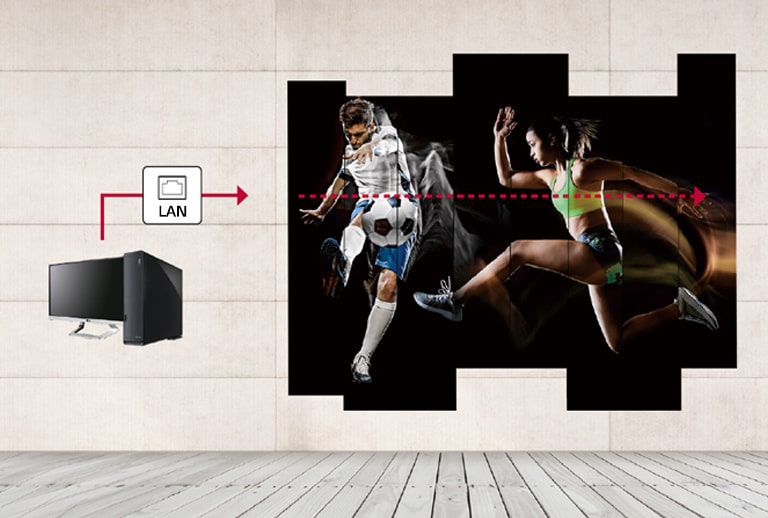

LAN Daisy Chain Management LAN Daisy Chain Management

LAN Daisy Chain Management

By using this daisy-chained network feature, you can execute commands such as controlling, monitoring and even updating firmware.
LAN Daisy Chain Management LAN Daisy Chain Management

Real-Time Monitoring with ConnectedCare

Easier and faster maintenance are available with our optional cloud service solution ConnectedCare*. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of clients' businesses.
* ConnectedCare is the brand name of LG Signage365Care Service. The availability differs by region.
Close
PANEL
  • Screen Size
    86"
    Panel Technology
    IPS
  • Aspect Ratio
    58:9
    Native Resolution
    3,840 x 600
  • Brightness(Typ.,cd/m²)
    500
    Contrast Ratio
    1,100:1
  • Viewing Angle (H x V)
    178 x 178
    Response Time
    8ms (G to G)
  • Surface Treatment (Haze)
    10%
    Lifetime
    50,000 Hrs (Typ.)
  • Operation Hours
    24Hrs / 7Days
    Orientation
    Landscape & Portrait
CONNECTIVITY
  • Input
    HDMI (3), DP, DVI-D, Audio, USB 2.0 (2)
    Output
    DP, Audio
  • External Control
    RS232C In/out, RJ45 (LAN) In/out, IR In
MECHANICAL SPECIFICATION
  • Bezel Color
    Black
    Bezel Width
    4.4 mm (L/R), 5.9 mm (T/B)
  • Monitor Dimension (W × H × D)
    2,158.3 x 348.5 × 81.7 mm
    Weight (Head)
    20.5 kg
  • Carton Dimensions (W × H × D)
    2,290 x 599 x 228 mm
    Packed Weight
    38.2 kg
  • Handle
    Yes
    VESA™ Standard Mount Interface
    600 x 200 mm
ENVIRONMENT CONDITIONS
  • Operation Temperature Range
    0 °C to 40 °C
    Operation Humidity Range
    10 % to 80 %
POWER
  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-in Power
POWER CONSUMPTION
  • Typ. / Max.
    220 W / 240 W
    Smart Energy Saving
    100 W
STANDARD(CERTIFICATION)
  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE / KC
  • ErP / Energy Star
    Yes(EU Only) / No
MEDIA PLAYER COMPATIBILITY
  • OPS type compatible
    Yes (Piggyback)
SOFTWARE COMPATIBILITY
  • Content Management Software
    SuperSign CMS (The SuperSign Editor function is not supported.)
    Control and Monitoring Software
    SuperSign Control/ Control+
  • Signage365Care
    Yes
ACCESSORY
  • Basic
    Remote Controller, Power Cord, DP Cable, RS-232C Cable, IR/Light Sensor Receiver, Manual
    Optional
    OPS Kit (KT-OPSF)
