98UH5F-H component-copyModelName
Non-Glare Ultra HD Series

Key Features

Choose your Size

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (98UH5F-H)
    ৳
    ৳
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (98UH5F-H)
    ৳
    ৳
    LG Members Price
Total

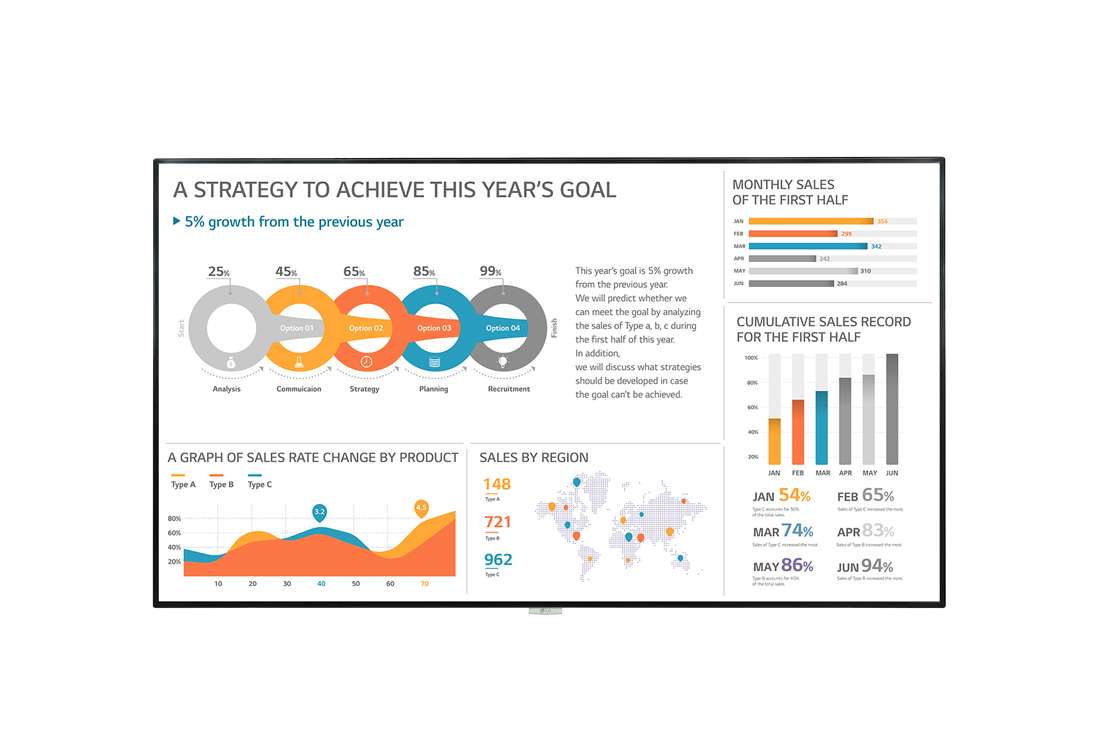

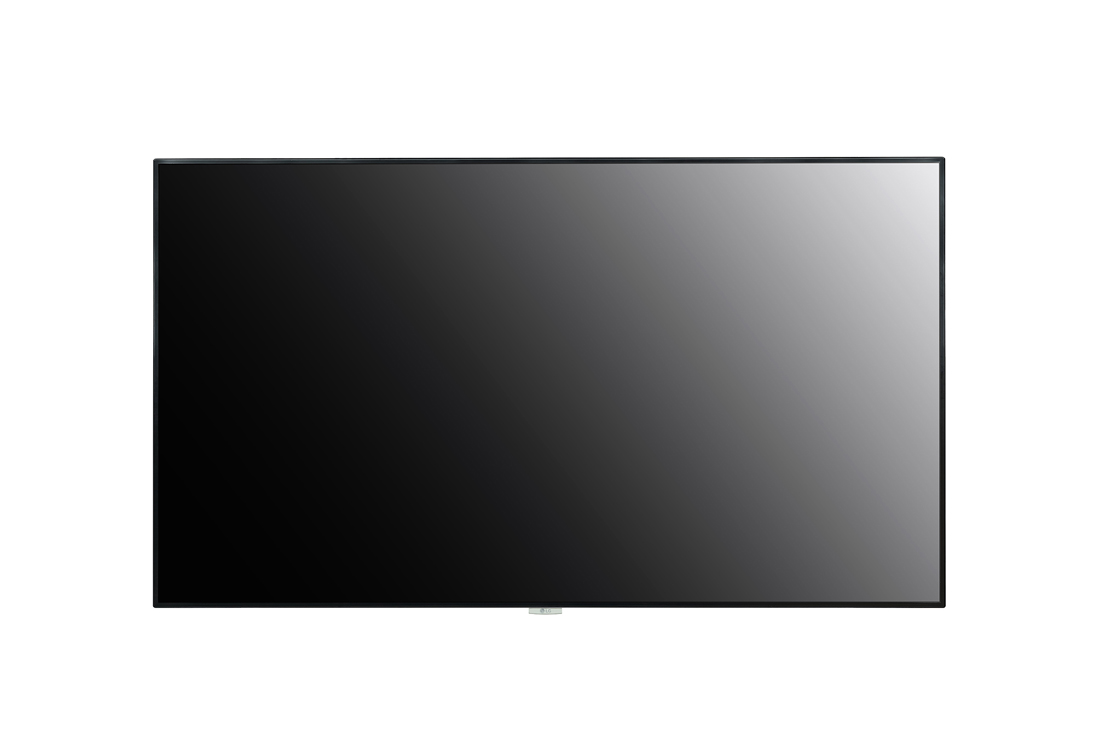

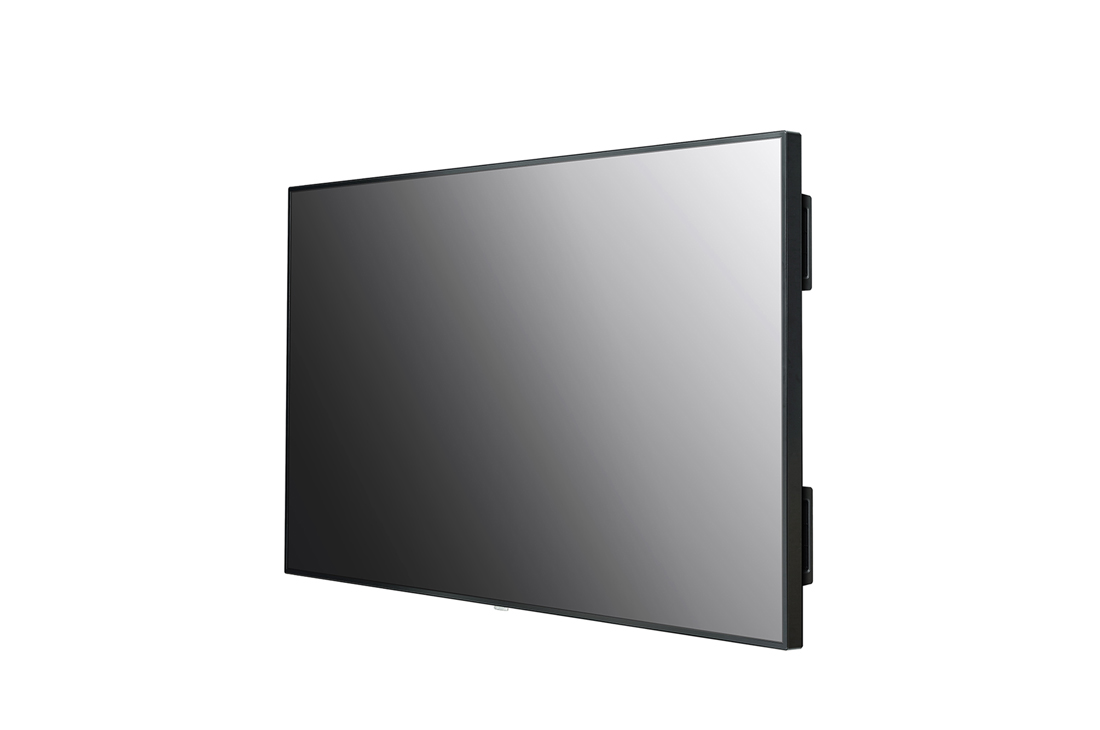

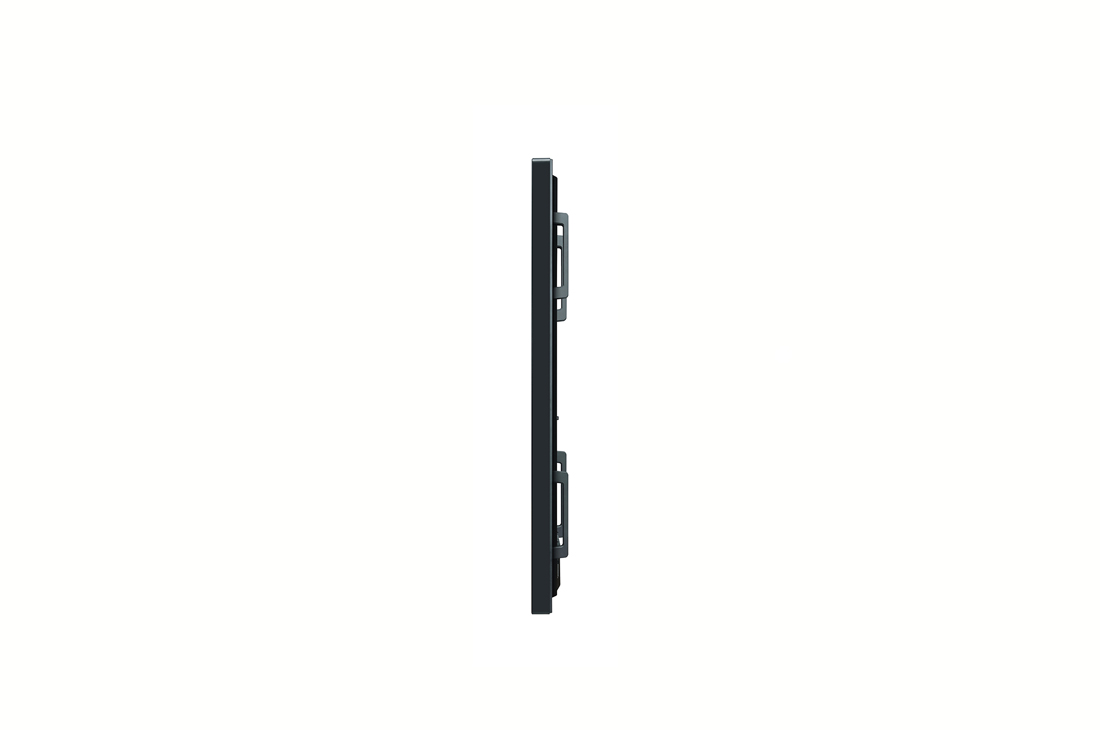

Non-Glare Ultra HD Series

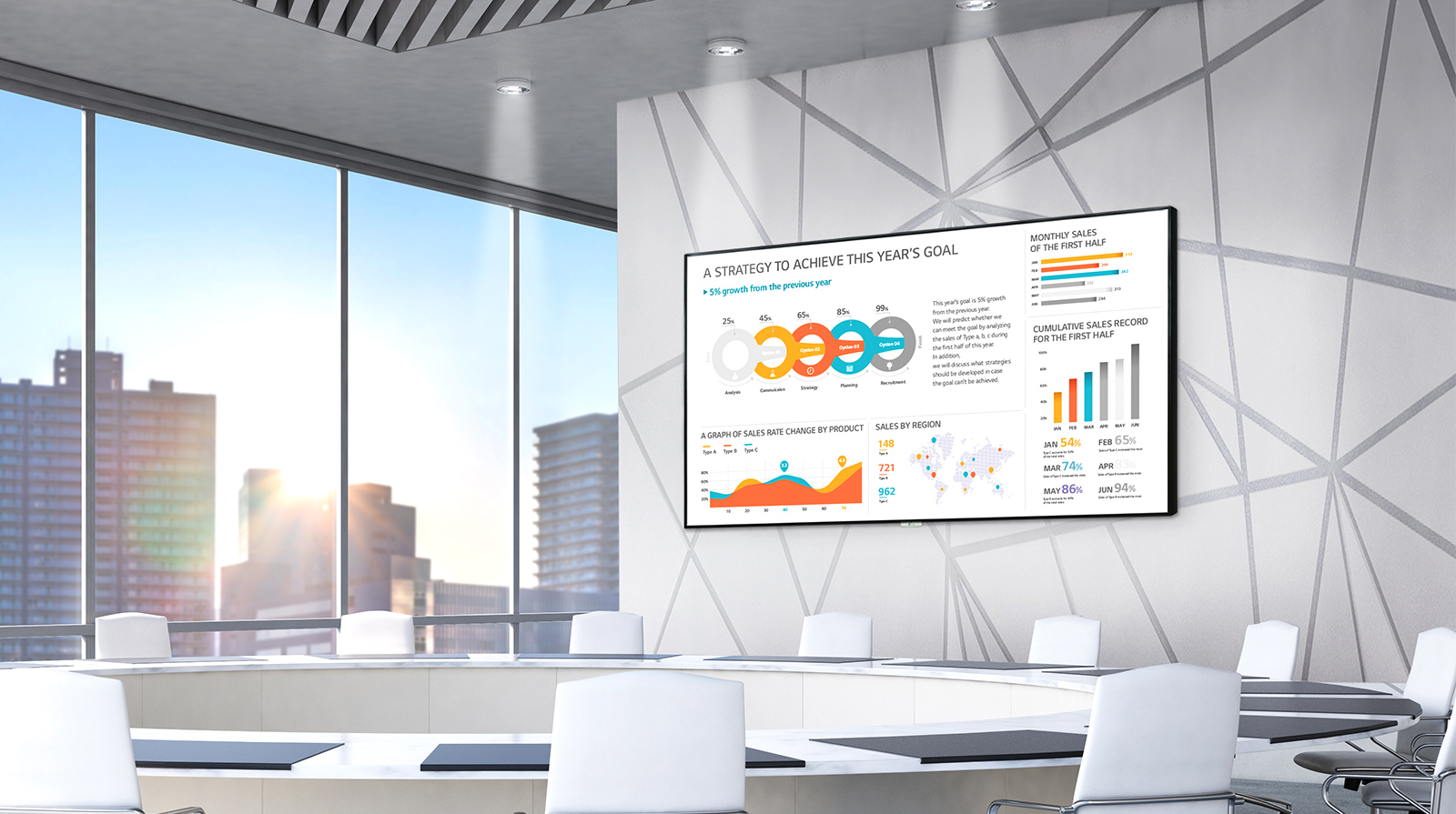

98UH5F-H_Standard_01-LG-UHD-Large-Screen-Signage-Standard-Digital-Signage-ID-D 98UH5F-H_Standard_01-LG-UHD-Large-Screen-Signage-Standard-Digital-Signage-ID-M
SUPERB PICTURE QUALITY

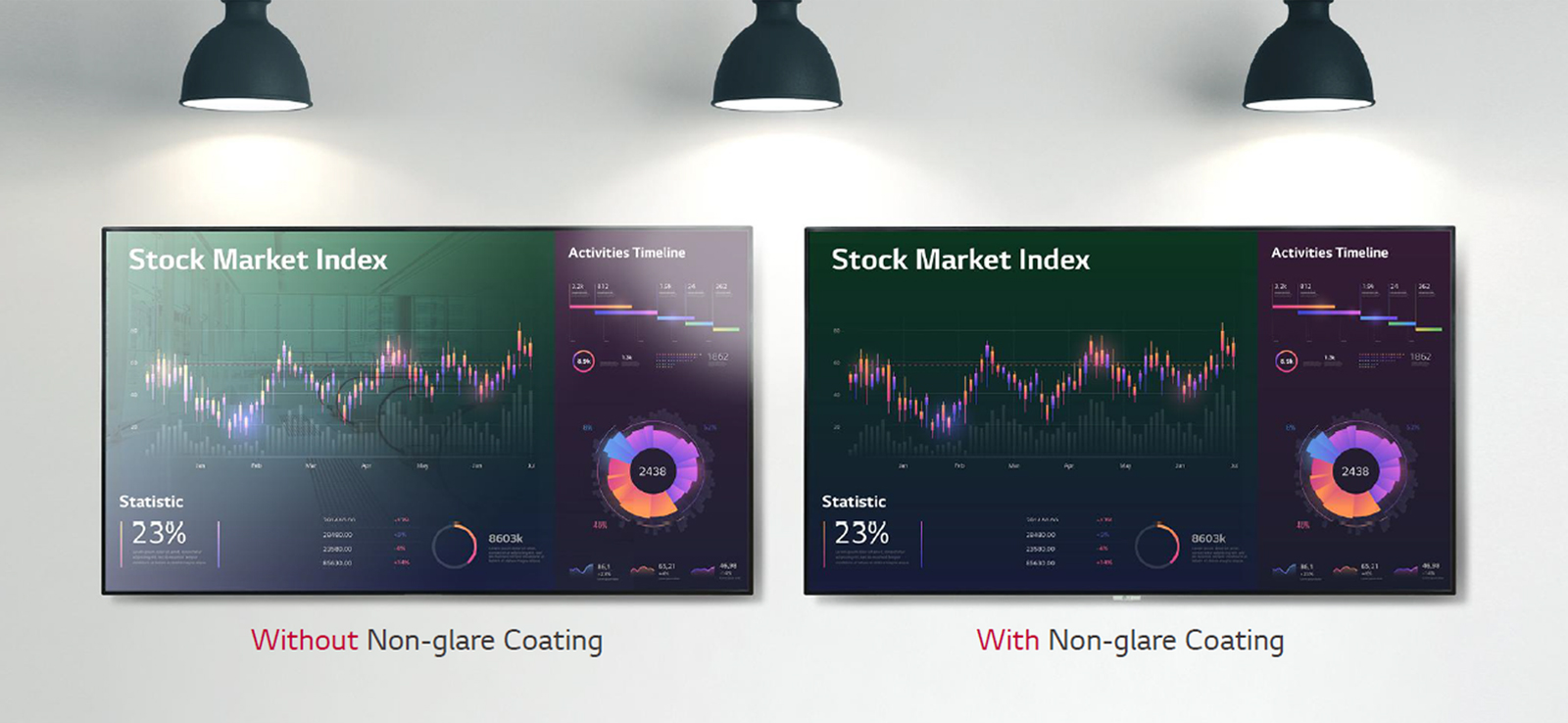

Clear View with Non-glare Coating

Viewers can be annoyed by unnecessary reflections when watching a screen under brightly lit conditions. The UH5F-H series has resolved such inconveniences by increasing the level of haze, which enhances visibility and text readability.
Clear View with Non-glare Coating1 Clear View with Non-glare Coating2
SUPERB PICTURE QUALITY

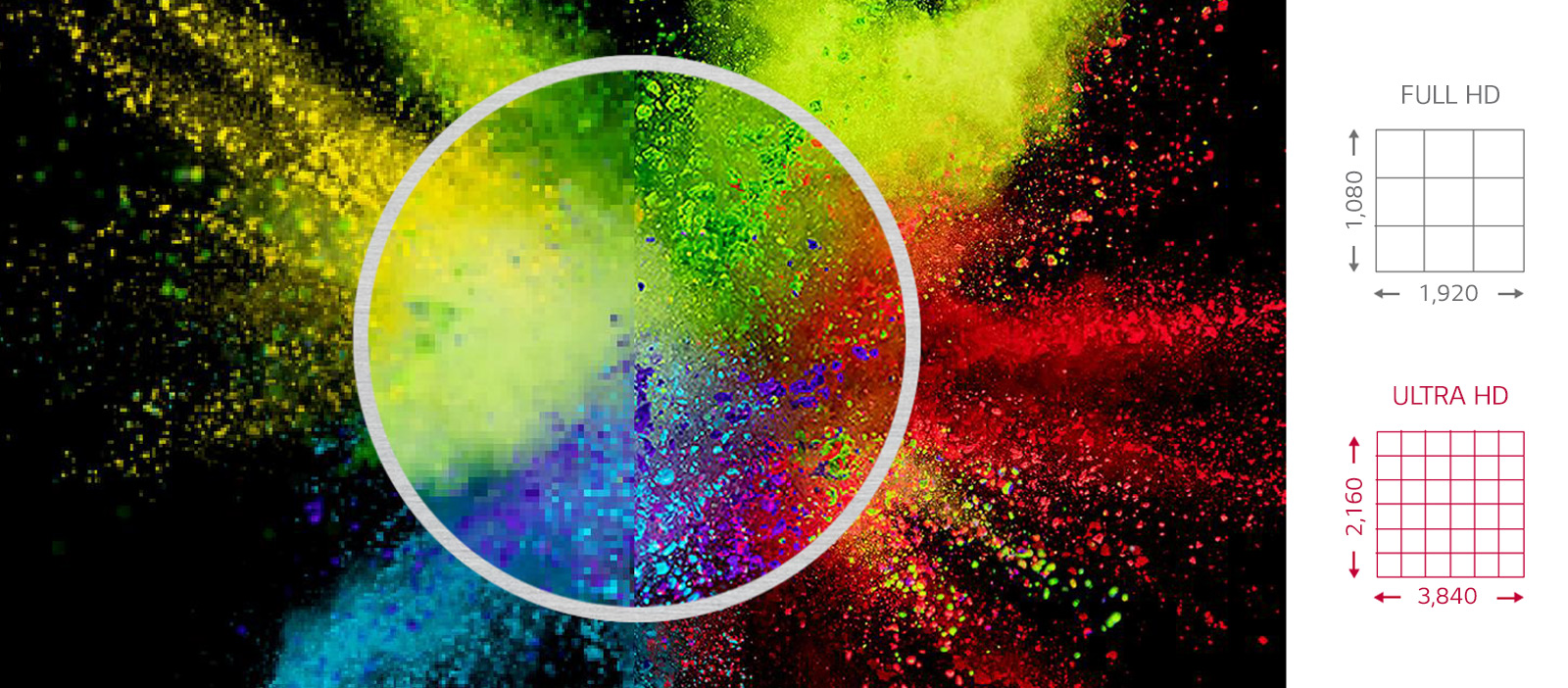

ULTRA HD Resolution

With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents with no distortion.
ULTRA HD Resolution1 ULTRA HD Resolution2
webOS SMART SIGNAGE PLATFORM

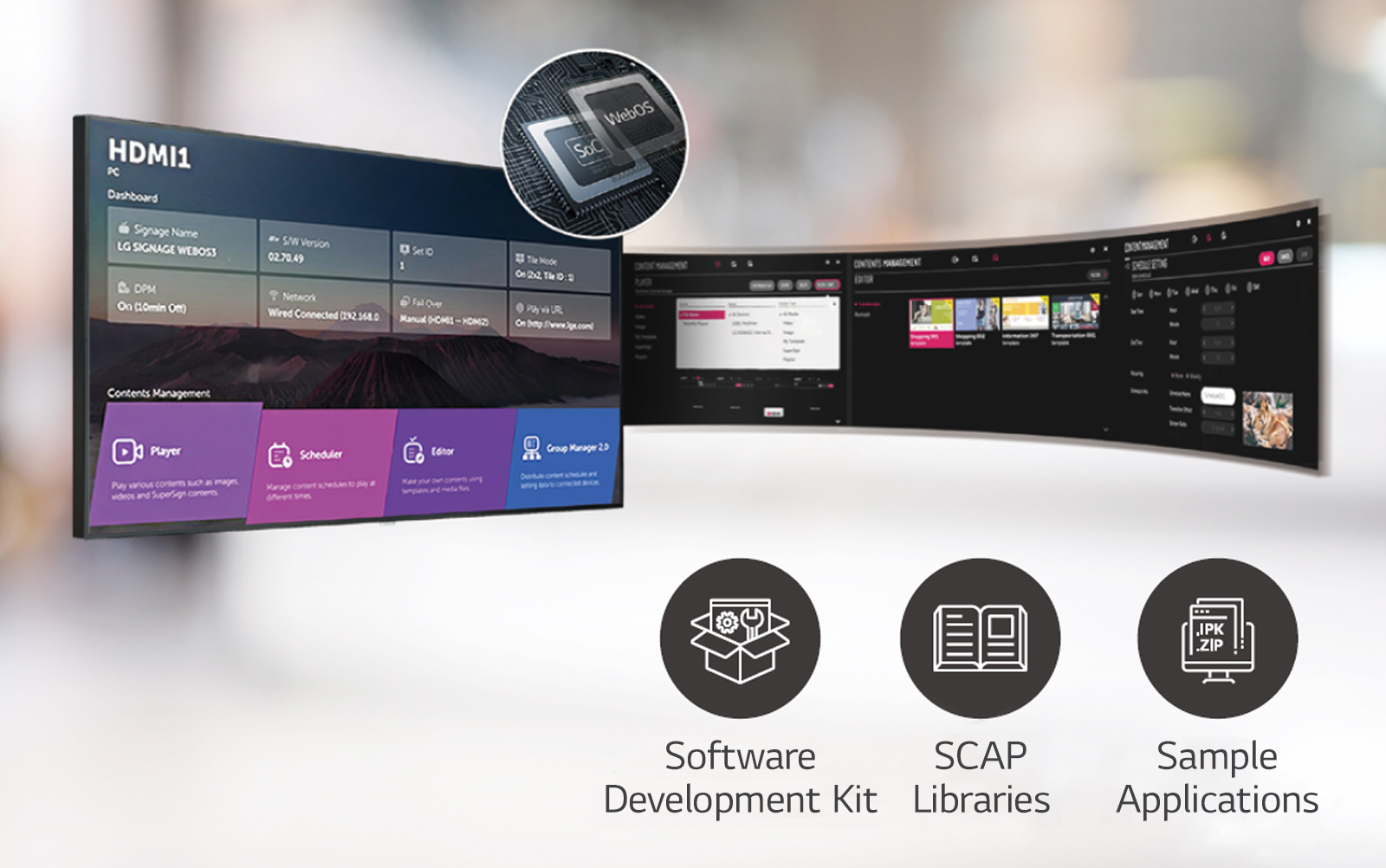

High-Performance with webOS

Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools.
High-Performance with webOS1 High-Performance with webOS2
webOS SMART SIGNAGE PLATFORM

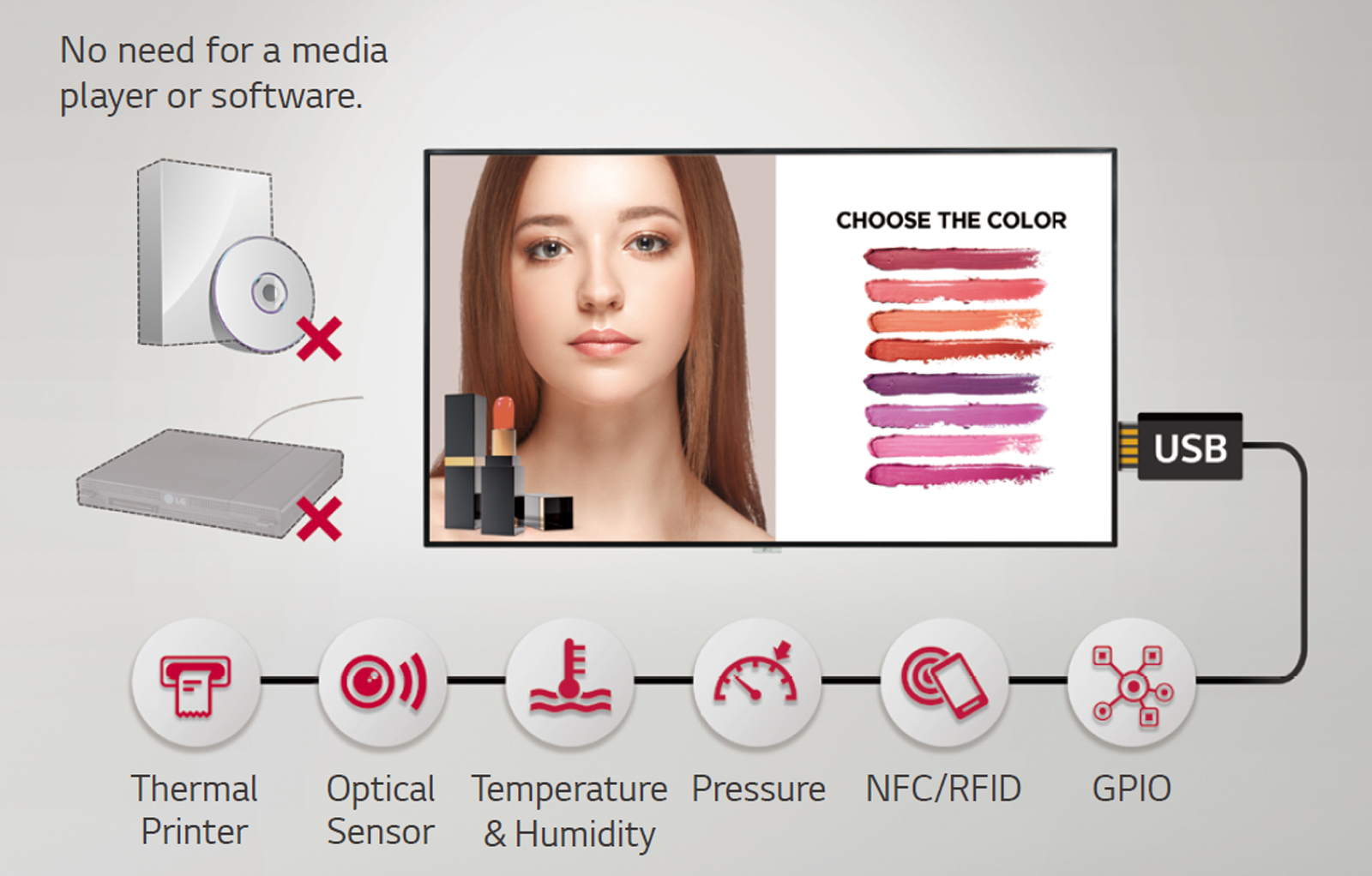

Various Sensor Applications

LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players for creating value-added solutions.
Various Sensor Applications1 Various Sensor Applications2
MEETING ROOM SOLUTION COMPATIBILITY

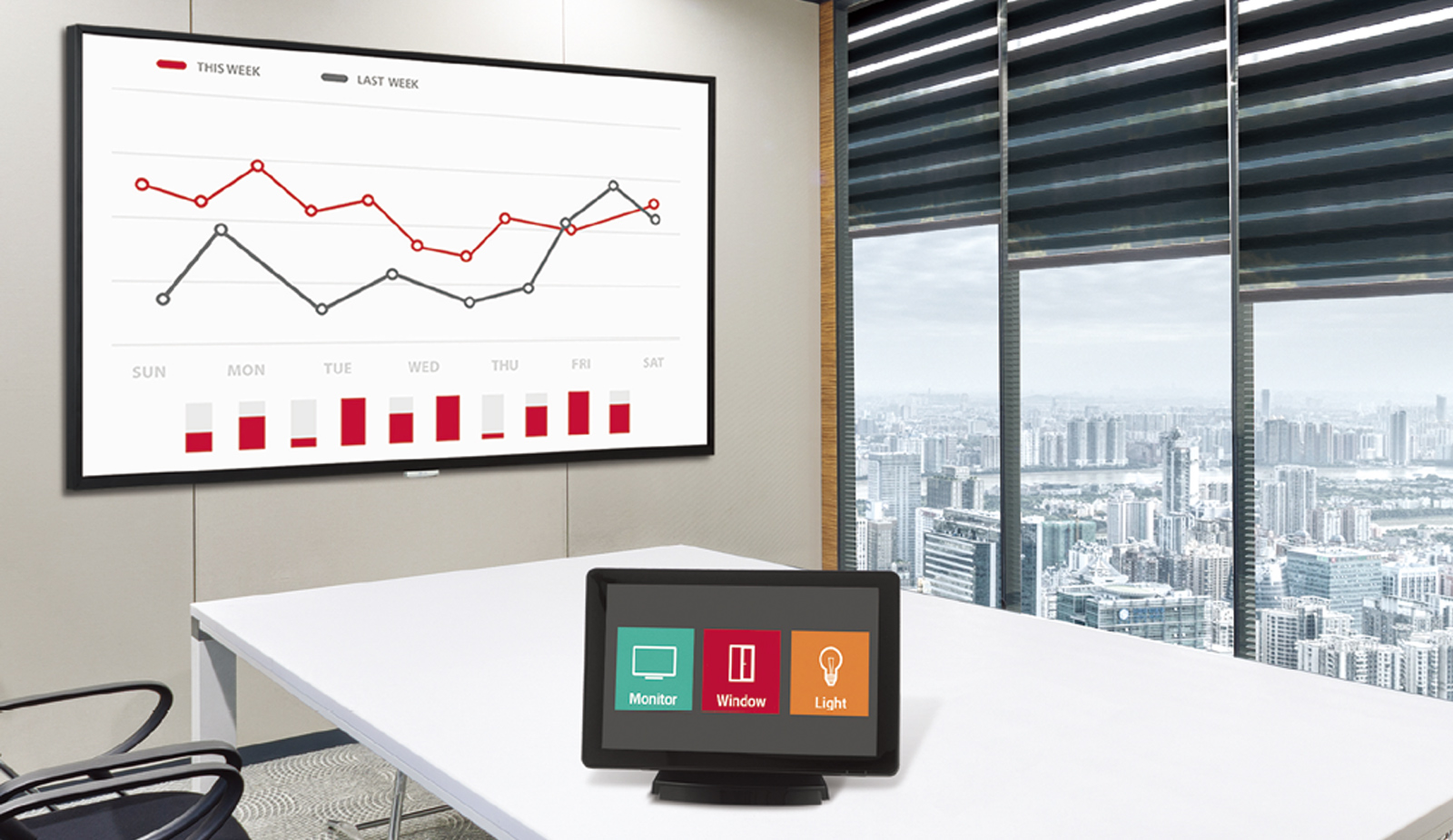

Compatible with AV Control System

The UH5F-H series has been certified Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.
Compatible with AV Control System1 Compatible with AV Control System2
MEETING ROOM SOLUTION COMPATIBILITY

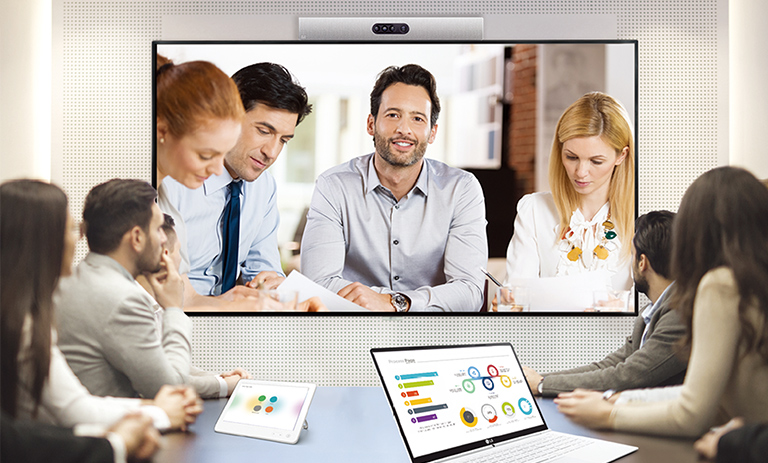

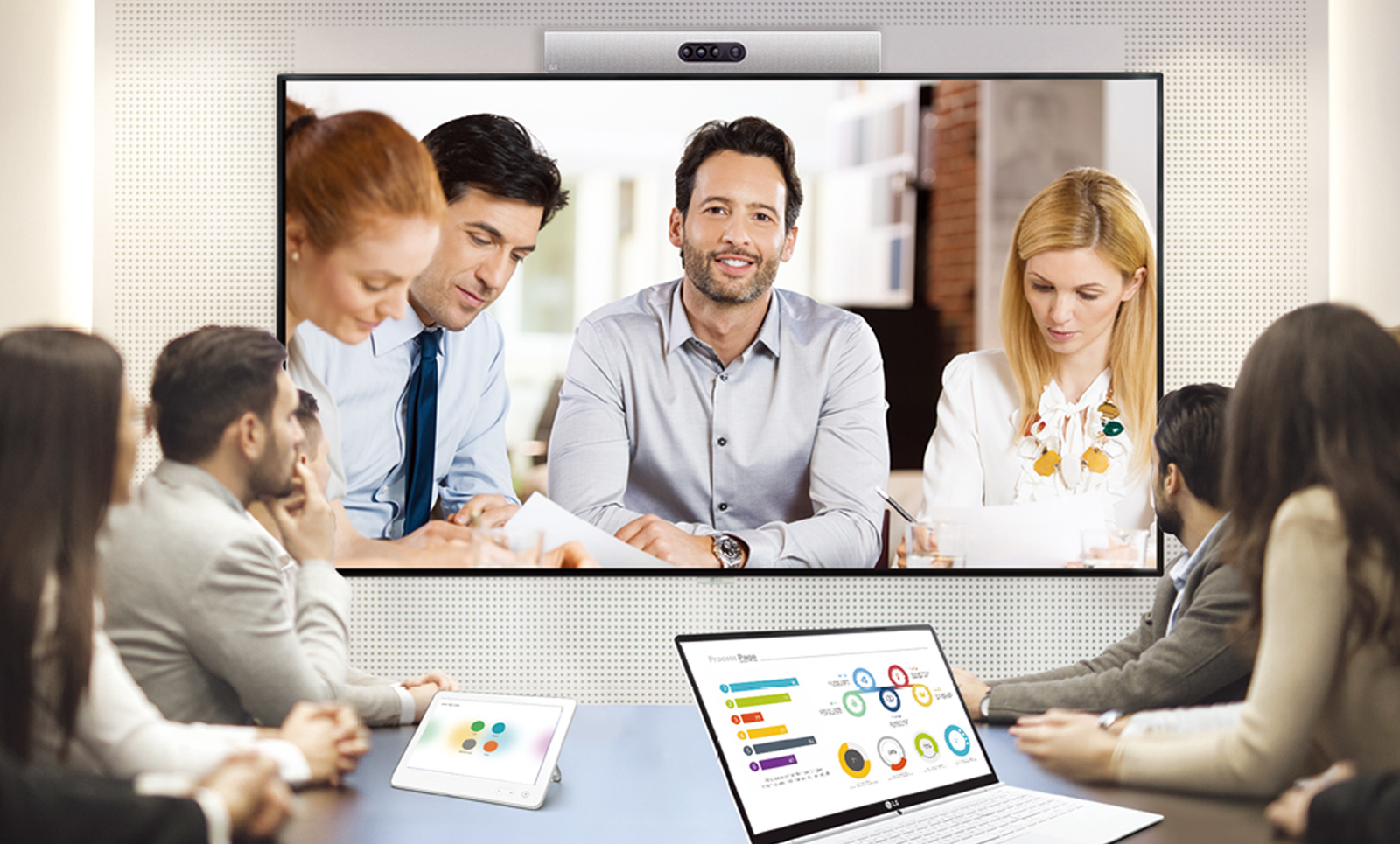

Compatible with Video Conference System

For the optimum visual meeting, the UH5F-H series has certified its compatibility with Cisco System that offers powerful and integrated control* for a smarter video conference, eliminating a waste of time for setting up the picture quality or changing input on incoming calls.
Compatible with Video Conference System1 Compatible with Video Conference System2
* Using an HDMI cable connection
EASY MANAGEMENT

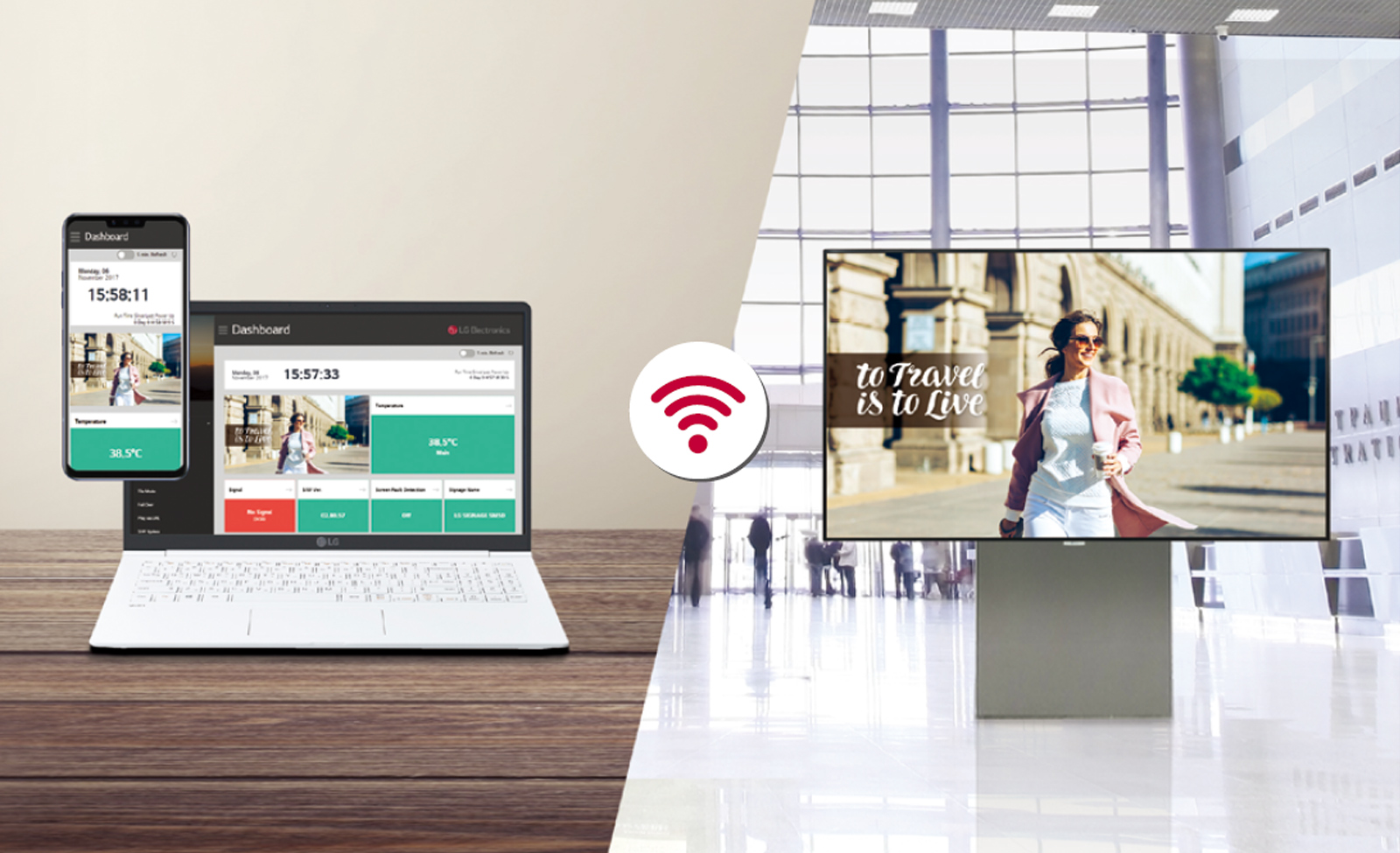

Real-time Monitoring & Control

Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple UH5F-H series displays in different locations in real-time. It is available on internet connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.
Real-time Monitoring & Control1 Real-time Monitoring & Control2
EASY MANAGEMENT

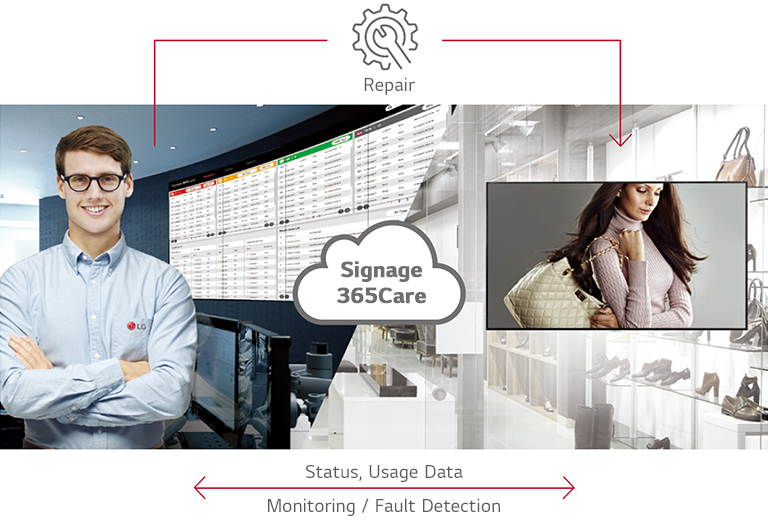

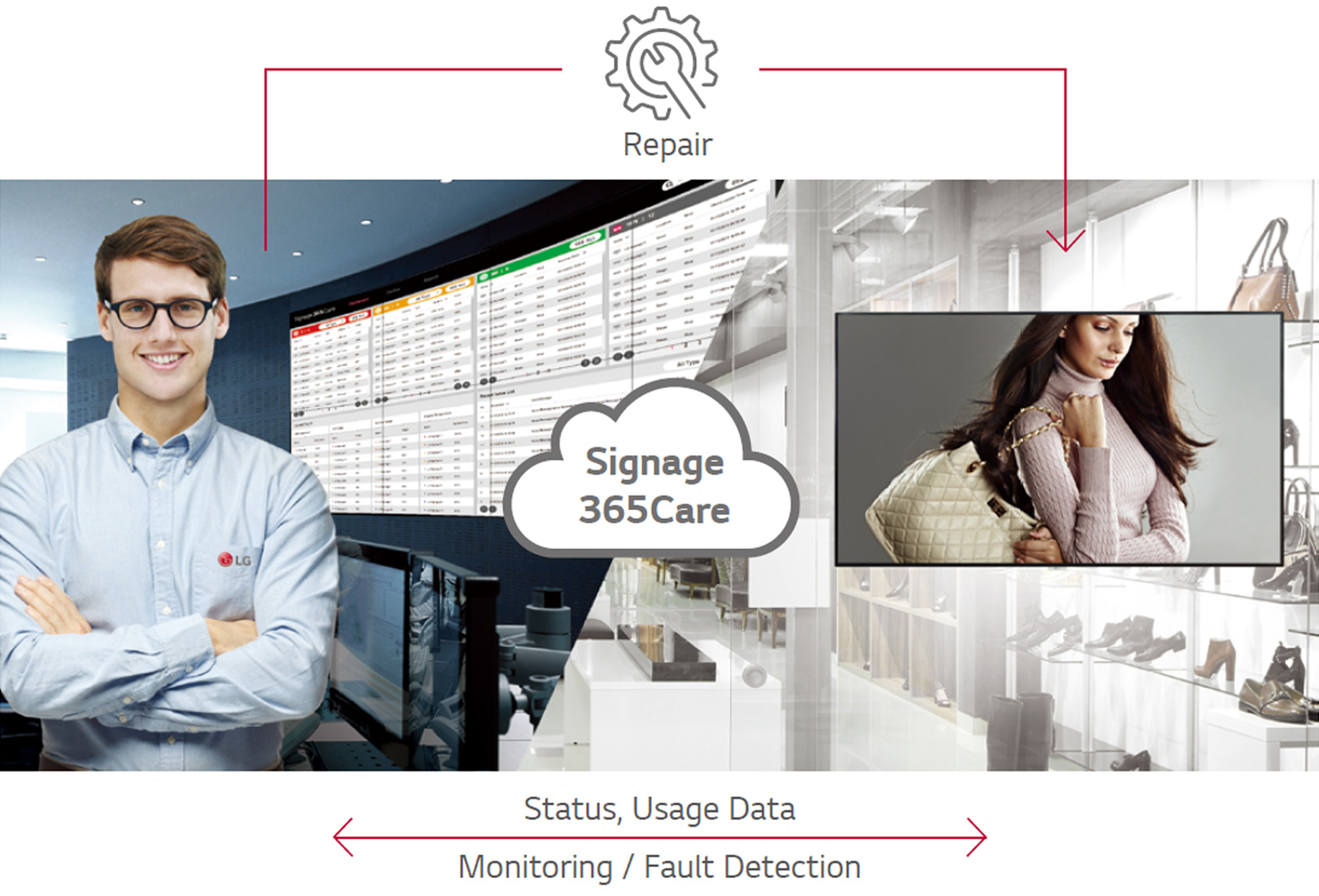

Real-time Cloud Care Service - Signage365care

The maintenance gets easier and faster with an optional service Signage365Care*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client’s business.
Real-time Cloud Care Service - Signage365care1 Real-time Cloud Care Service - Signage365care2
* The availability of “Signage365Care” service can differ by region, so please contact the LG sales representative in your region for further details.
USER CONVENIENCE

Multiscreen Feature with PBP / PIP

PBP(Picture-By-Picture)features multiple screens in a single display with up to 4 input sources while PIP(Picture-In-Picture) supports playing both a main screen and a subscreen at the same time with various layouts. This gives great flexibility to allocate space for each content source.
Multiscreen Feature with PBP / PIP1 Multiscreen Feature with PBP / PIP2
USER CONVENIENCE

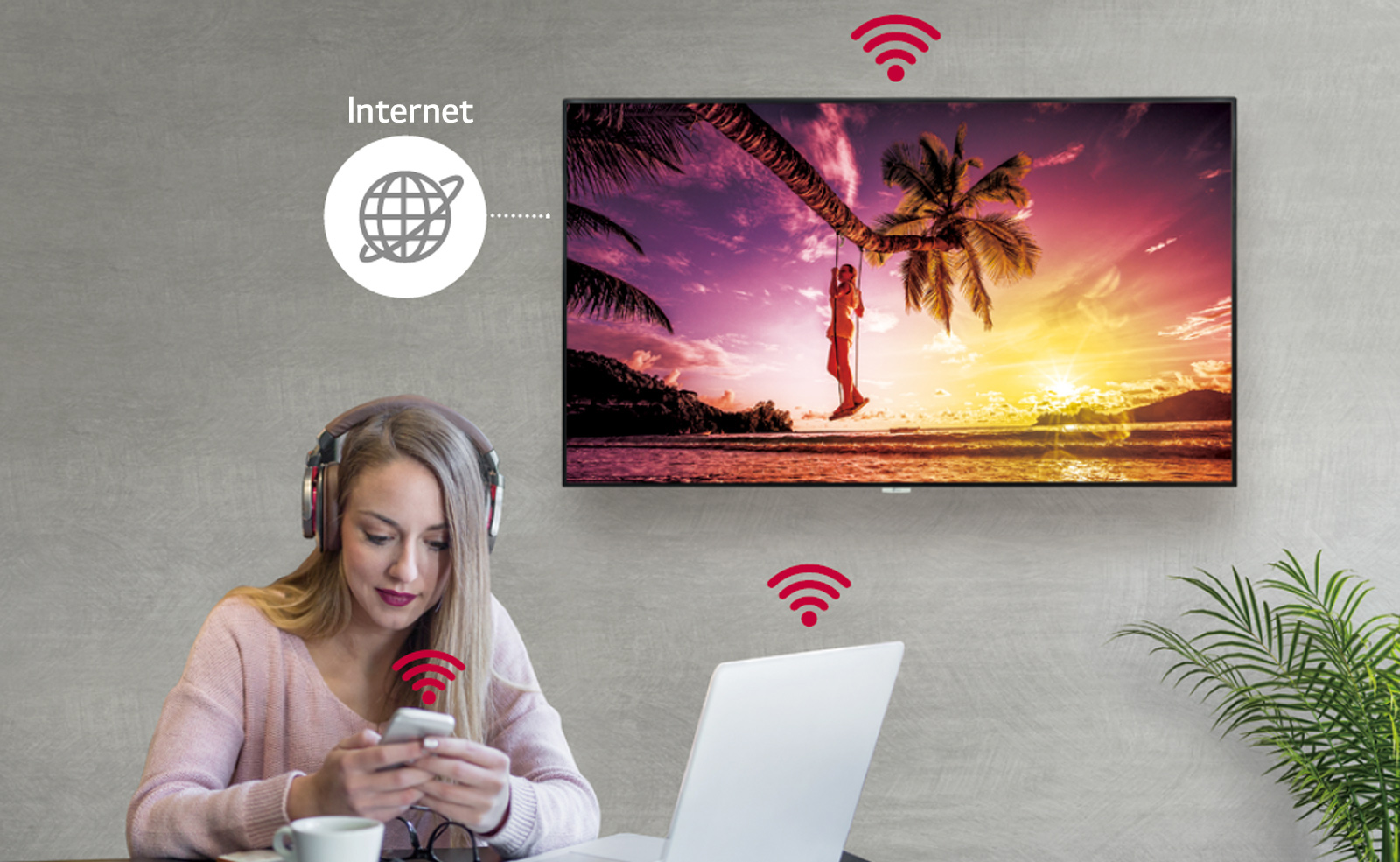

Wireless Access Point

The UH5F-H series operates as a virtual router which can be an wireless access point for mobile devices.
Wireless Access Point1 Wireless Access Point2
ENERGY STAR® Certified1

ENERGY STAR® Certified

Close
PANEL
  • Screen Size
    98"
    Panel Technology
    IPS
  • Native Resolution
    3,840 x 2,160 (UHD)
    Brightness (Typ.)
    500
  • Contrast Ratio
    1,200:1
    Dynamic CR
    1,000,000 : 1 *The luminosity ratio of Full Black / Full White color on video input condition.
  • Color gamut
    NTSC 72%
    Viewing Angle (H x V)
    178 x 178
  • Color Depth
    1.06 Billion Colors (10 bit)
    Response Time
    8ms (G to G)
  • Surface Treatment (Haze)
    Haze 28%
    Operation Hours (Hours / Day)
    24 / 7
  • Portrait / Landscape
    Yes / Yes
CONNECTIVITY
  • Input
    HDMI (2, HDCP 2.2/1.4), HDMI (1, HDCP 1.4), DP (1, HDCP 2.2/1.3), DVI-D (HDCP 1.4), Audio, USB 2.0 Type A (2)
    Output
    DP, Audio
  • External Control
    RS232C (4 Pin Phone Jack) In / Out, RJ45(LAN) In, IR In
MECHANICAL SPECIFICATION
  • Bezel Color
    Black
    Bezel Width
    14.9 mm (Even Bezel)
  • Weight (Head)
    81.1 kg
    Monitor Dimension (W × H × D)
    2,191.8 × 1,246.8 × 83.8 mm
    (Without Handle and LG Logo)
  • Handle
    Yes
    VESA™ Standard Mount Interface
    600 x 400 mm
SPECIAL FEATURE
  • Overlay Touch Compatibility
    No
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%
POWER
  • Power Supply
    AC 100-240 V~, 50 / 60 Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ. / Max.
    420 W / 560 W
    BTU (British Thermal Unit)
    1,433.25 BTU/Hr(Typ.),
    1,911 BTU/Hr(Max)
SOUND
  • Speaker
    Yes
CERTIFICATION
  • Safety
    CB, NRTL
    EMC
    FCC Class "A" / CE / KC
  • ErP
    Yes
OPS COMPATIBILITY
  • OPS Type Compatible
    No
    OPS Power Built In
    No
SOFTWARE COMPATIBILITY
  • SuperSign CMS
    Yes
    SuperSign Control / Control+
    Yes
  • SuperSign WB
    Yes
    SuperSign Media Editor
    Yes
  • Signage365Care
    Yes (The availability can differ by region.)
ACCESSORY
  • Basic
    Remote Controller, Power Cord, QSG, IR / Light Sensor Receiver, DP Cable (1.8 M), Regulation Book, Phone to RS232C Gender, EYE-BOLT
    Optional
    -
GENERAL
  • Region
    ASIA
