THERMA V R32 Silent Monobloc

LG THERMA V R32 Silent Monobloc is an all-in-one unit equipped with an innovative and eco-friendly R1 compressor and R32 refrigerant. It offers tranquility with a low noise level, which also provides installation flexibility.

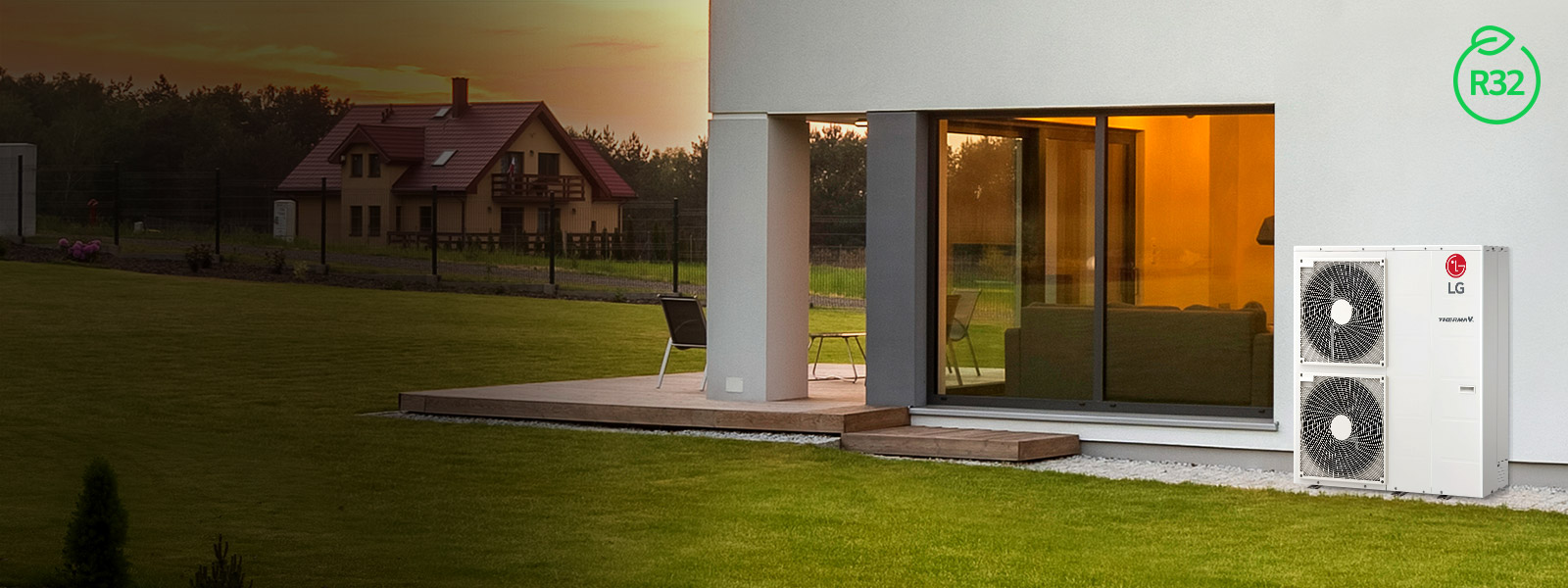

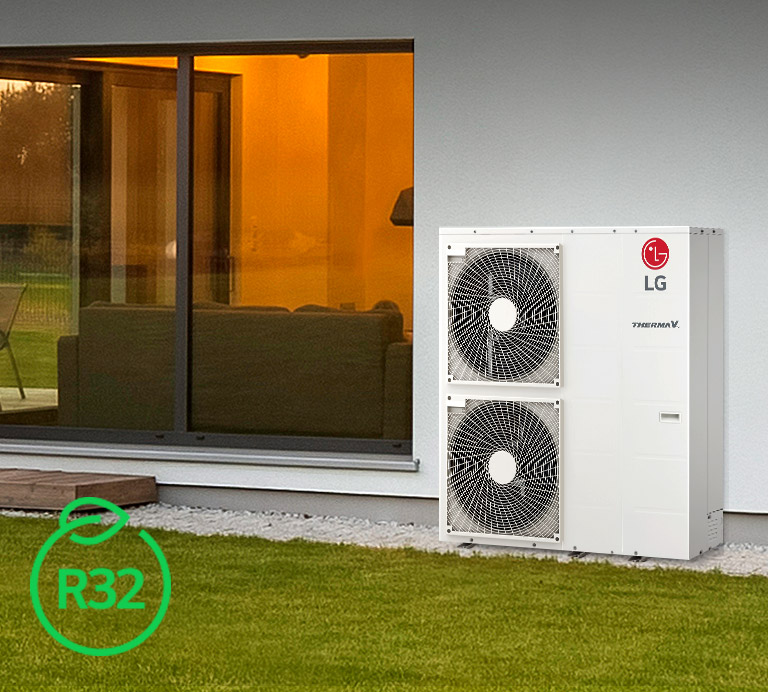

An image of a yard and house with Monobloc installed. An image of a yard and house with Monobloc installed.

THERMA V R32 Silent Monobloc

An all-in-one heating solution with low noise mode provides a tranquil environment and highest heating efficiency with R32 refrigerant.

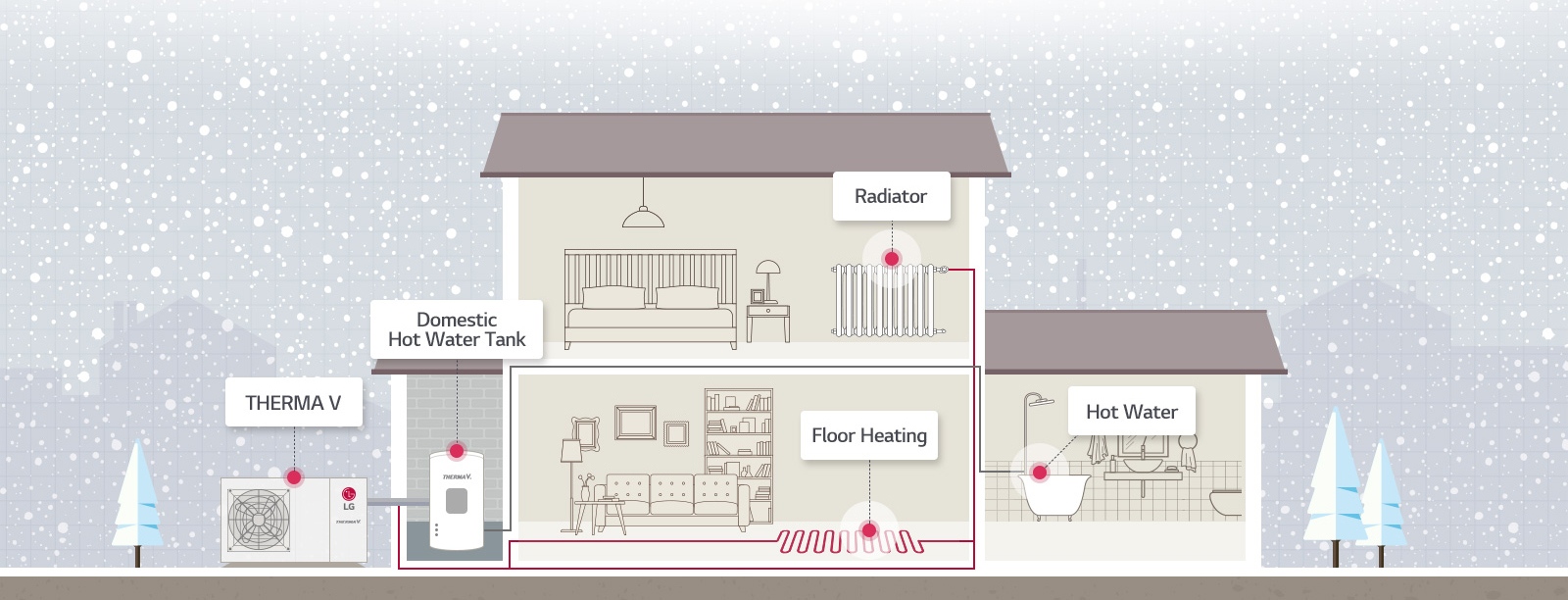

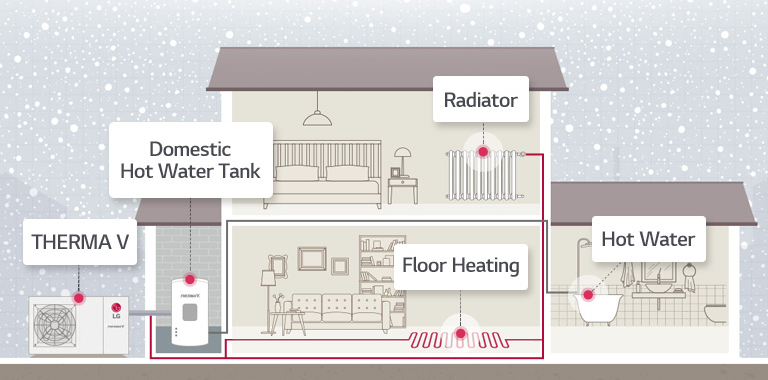

How THERMA V R32 Silent Monobloc Works

Heat generated by the outdoor unit via heat exchange with external air is transferred to the domestic hot water tank to provide heating and hot water.
An Image of the path of heating in the house. An Image of the path of heating in the house.
  • An image of a Monobloc outside a window that a baby is sleeping next to beside an image of a house next to a Monobloc.

    Enhanced sound level

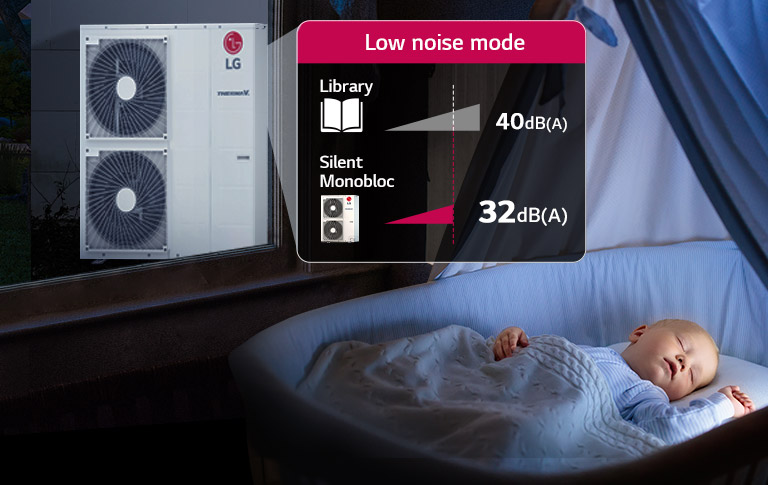

    In low noise mode that offers a 54 dB(A) sound power level and a 32 dB(A) sound pressure level at 5 meters distance, Therma V Silent Monobloc creates less noise than a library.

  • An image of a Monobloc outside a window that a baby is sleeping next to beside an image of a house next to a Monobloc.

    Improved installation flexibility

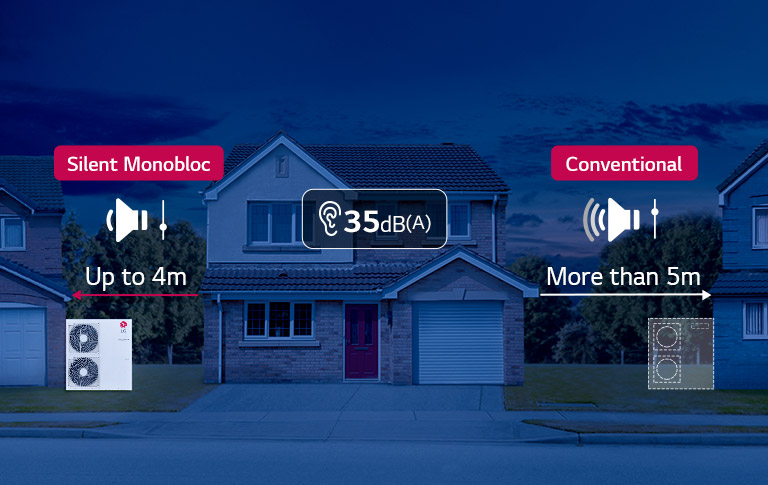

    Therma V Silent Monobloc complies with the government regulation to keep noise level below 35 dB(A) from 10 pm to 6 am. It can be installed as close as 4 meters from neighboring houses.

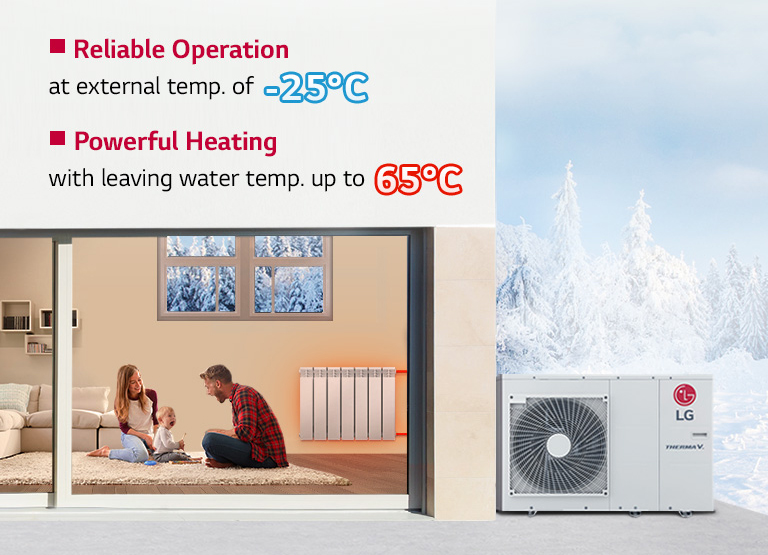

Reliable Heating

THERMA V R32 Silent Monobloc provides reliable and powerful heating for the indoor environment. It can operate even at extremely cold weather like -25°C. Moreover, it can offer leaving water temperature of 65°C at maximum.
An image of a parent and a baby sitting in a warm living room with a radiator. An image of a parent and a baby sitting in a warm living room with a radiator.

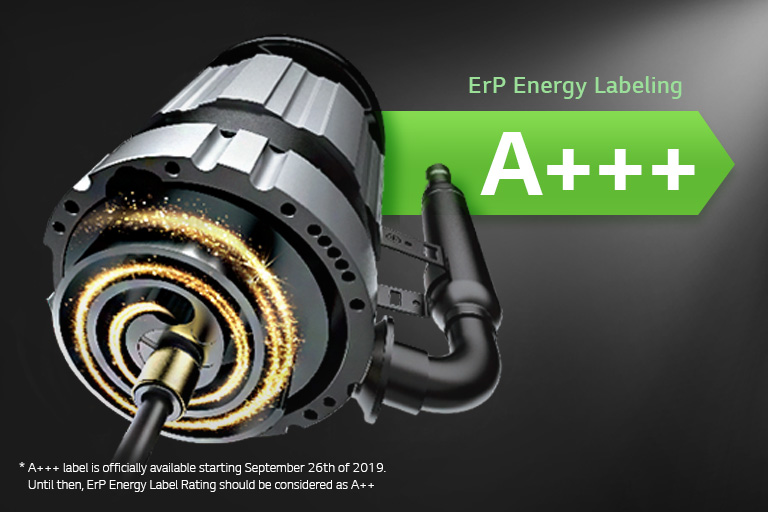

  • Revolutionary R1 Compressor

    THERMA V R32 Silent Monobloc is equipped with the Revolutionary R1 Compressor. This advanced compressor especially improved the tilting motion of scroll, increasing overall efficiency and reliability. Furthermore, compressor operation ranges are improved to perform from 10Hz to 150Hz.

    *The result above was based on space heating at 35℃
    *Space heating at 55°C received an A+ rating.
    An images of the R1 compressor. An images of the R1 compressor.

  • Environmentally Sustainable Refrigerant

    THERMA V R32 Silent Monobloc is equipped with R32 refrigerant, the environmentally sustainable refrigerant which has a Global Warming Potential of 675, 70% lower than that of R410A’s. With R32 refrigerant, THERMA V R32 Monobloc is highly energy efficient as a greener heating solution.




    An images of the Energy label and the grade of Global Warming Potential. An images of the Energy label and the grade of Global Warming Potential.

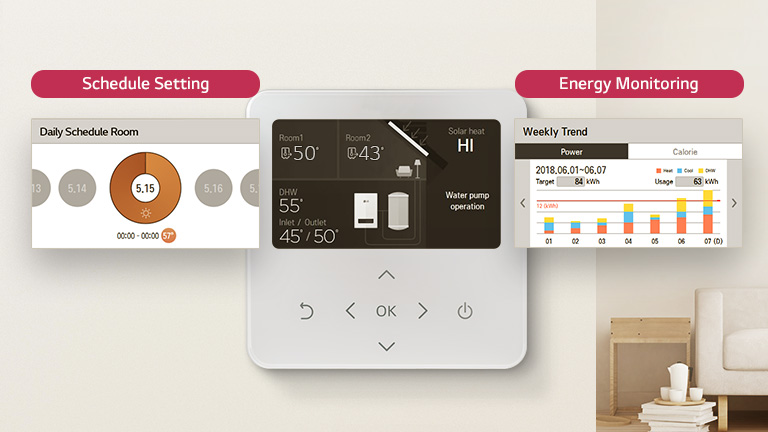

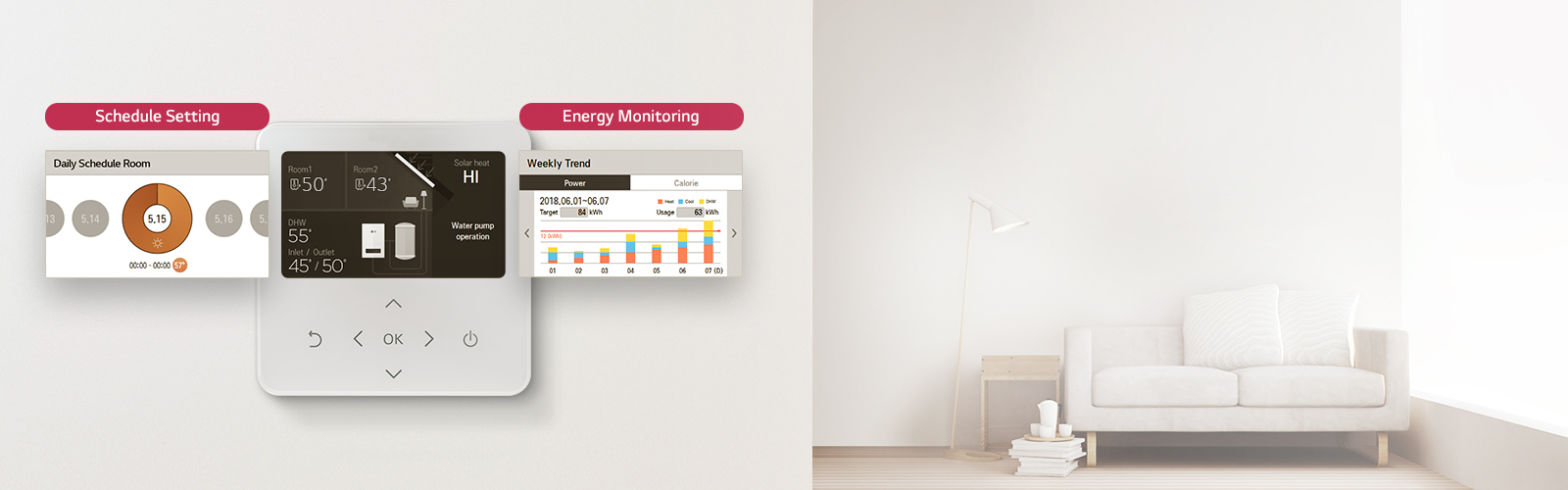

An image of a remote controller. An image of a remote controller.

Smart Heating Control

The intuitive UI allows easy and quick use with a simple touch and users can set schedules based on their lifestyles. Moreover, daily or monthly monitoring of power consumption allows efficient energy management.
* Required Accessory for Energy Monitoring : PENKTH000 (Meter Interface Module) and Watt Meter, Heat Meter, Temp. sensor, etc. Refer to the installation manual.
An image of a person's hand clicking on a smartphone with ThinQ app on. An image of a person's hand clicking on a smartphone with ThinQ app on.

Remotely Control from Anywhere

With LG ThinQ™ app, users can simply control heating system anytime from anywhere. Remote access to heating system allows users the maximized comfort.
*Required Accessories : Google home speaker, PWFMDD200(LG Wi-Fi Modem) and PWYREW000.
**Google and Google Home are trademarks of Google LLC.
***Google home voice is supported in United Kingdom, France, Germany, Spain, Italy, Austria, Ireland and Portugal. ThinQ functions may vary depending on the country.

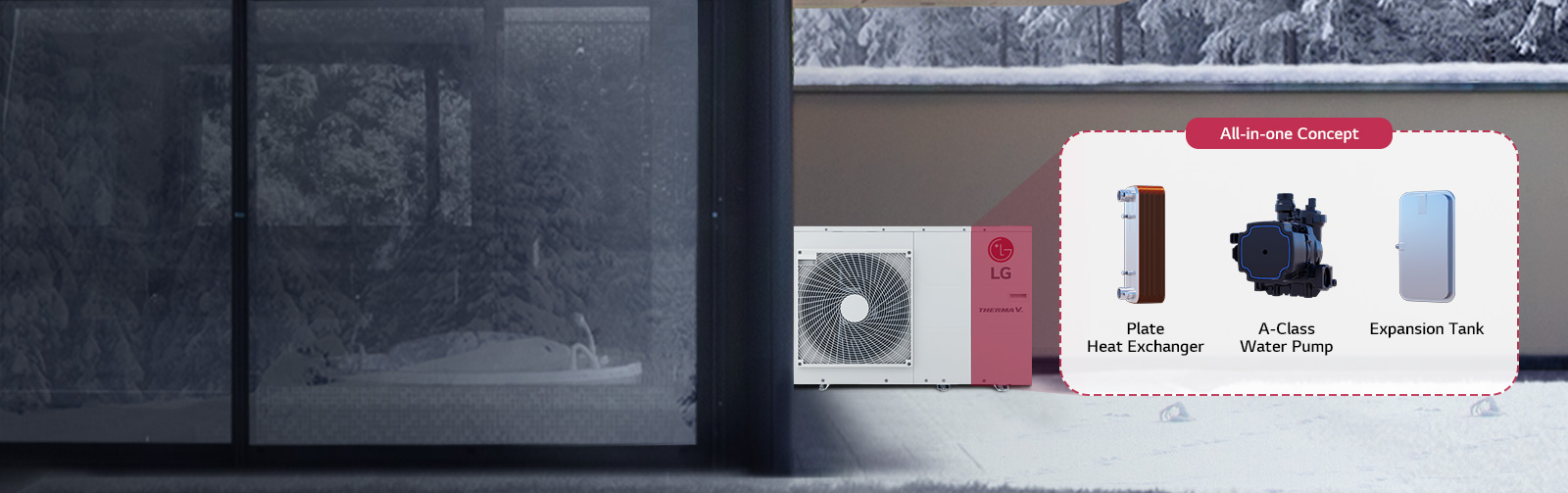

An image of a R32 Silent Monobloc set on the outside. An image of a R32 Silent Monobloc set on the outside.

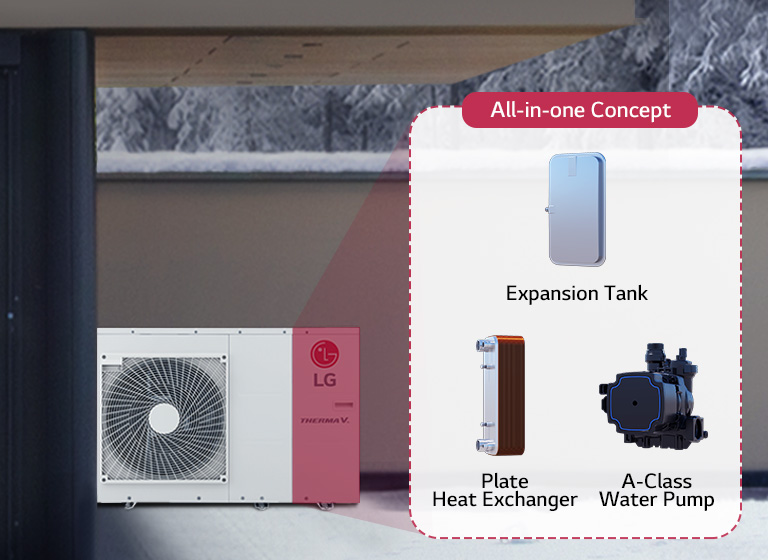

Easy & Quick Installation

As the “All-in-one” heating solution, THERMA V R32 Silent Monobloc outdoor unit consists of 3 main components.

  • Easy to Provide Service

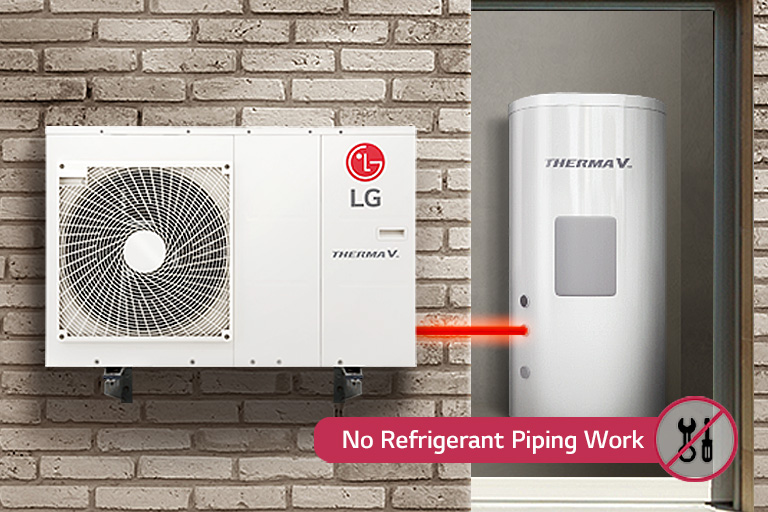

    All-in-one heating solution with built-in main components allows easy installation without additional refrigerant piping work. Installers can easily check and provide service just by removing 3 pieces of screw. Moreover, clip type water strainers are installed for easy maintenance to strainer without the need for extra tools.
    An image of a R32 Silent Monobloc. An image of a R32 Silent Monobloc.

  • Pre-installation Setting

    Based on installation site information, installers can prepare presetting with LG Heating Configurator and save data into memory card from their office. At the site, then, installers can simply insert memory card at the back of remote controller to activate configuration data. This allows easy and quick commissioning for installers.
    An image of a R32 Silent Monobloc and the engineer pre-installing the setting. An image of a R32 Silent Monobloc and the engineer pre-installing the setting.

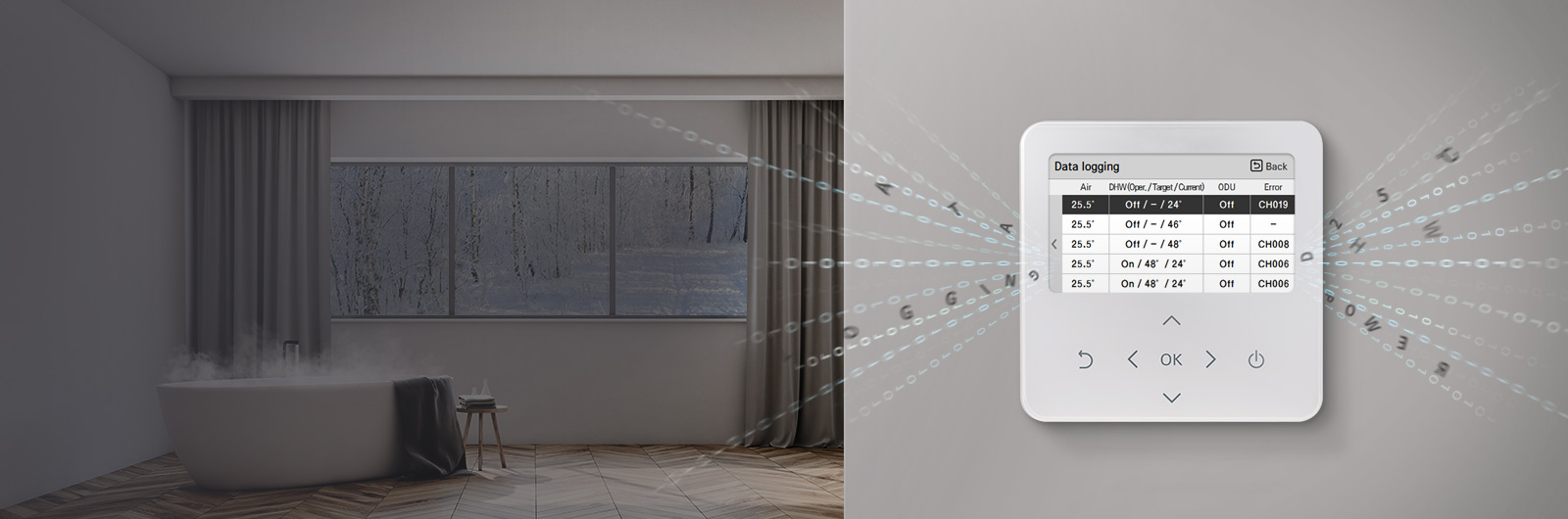

An image of a remote controller. An image of a remote controller.

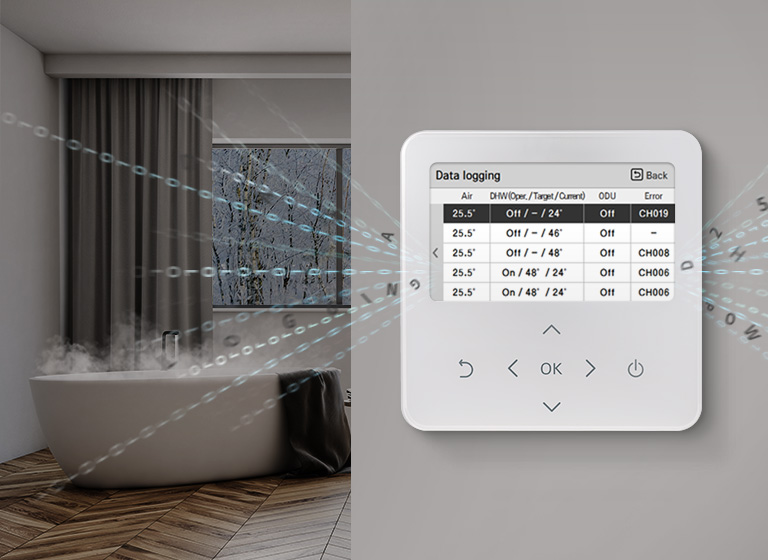

Easy & Quick Maintenance

The remote controller can store up to 50 history items, making it possible to easily identify cause of malfunctioning or faults using the history data and prompt solutions.
An image of a THERMA V Line up. An image of a THERMA V Line up.

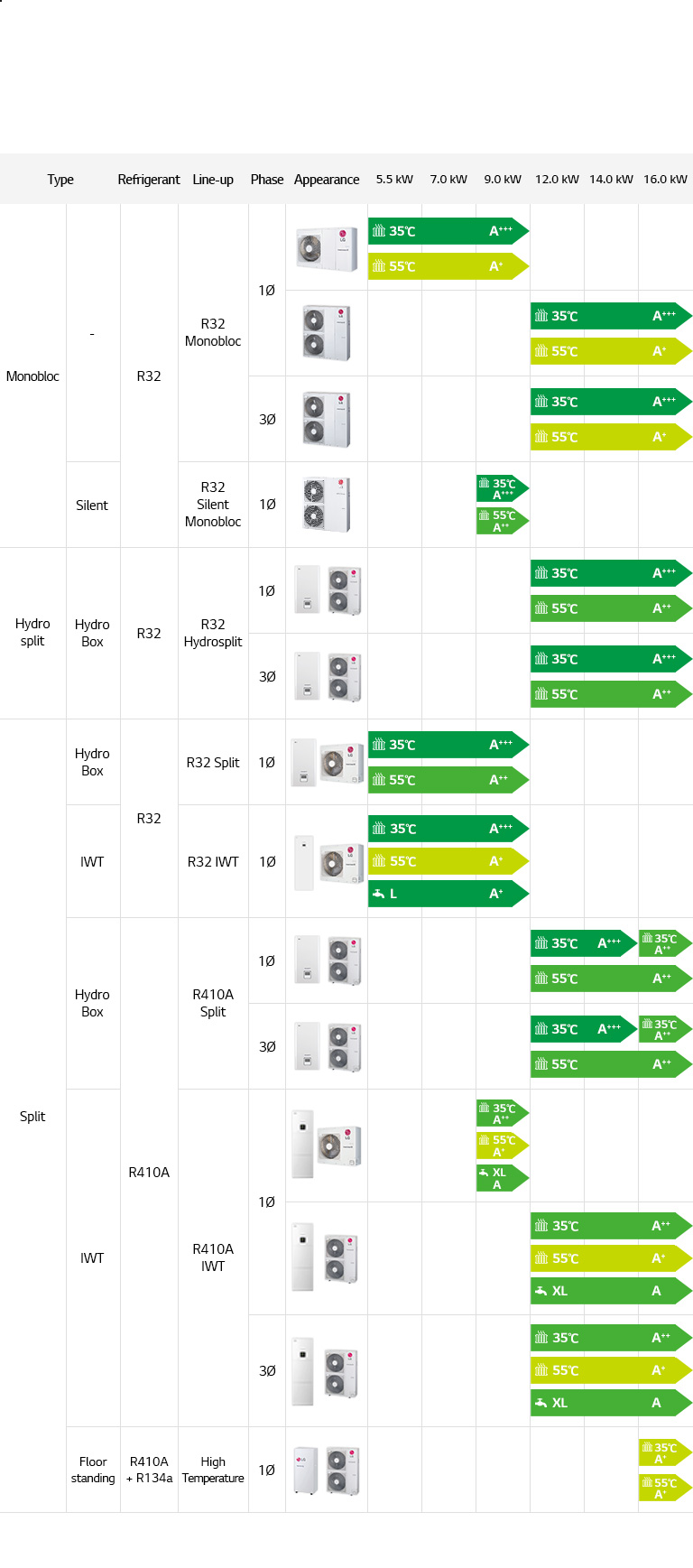

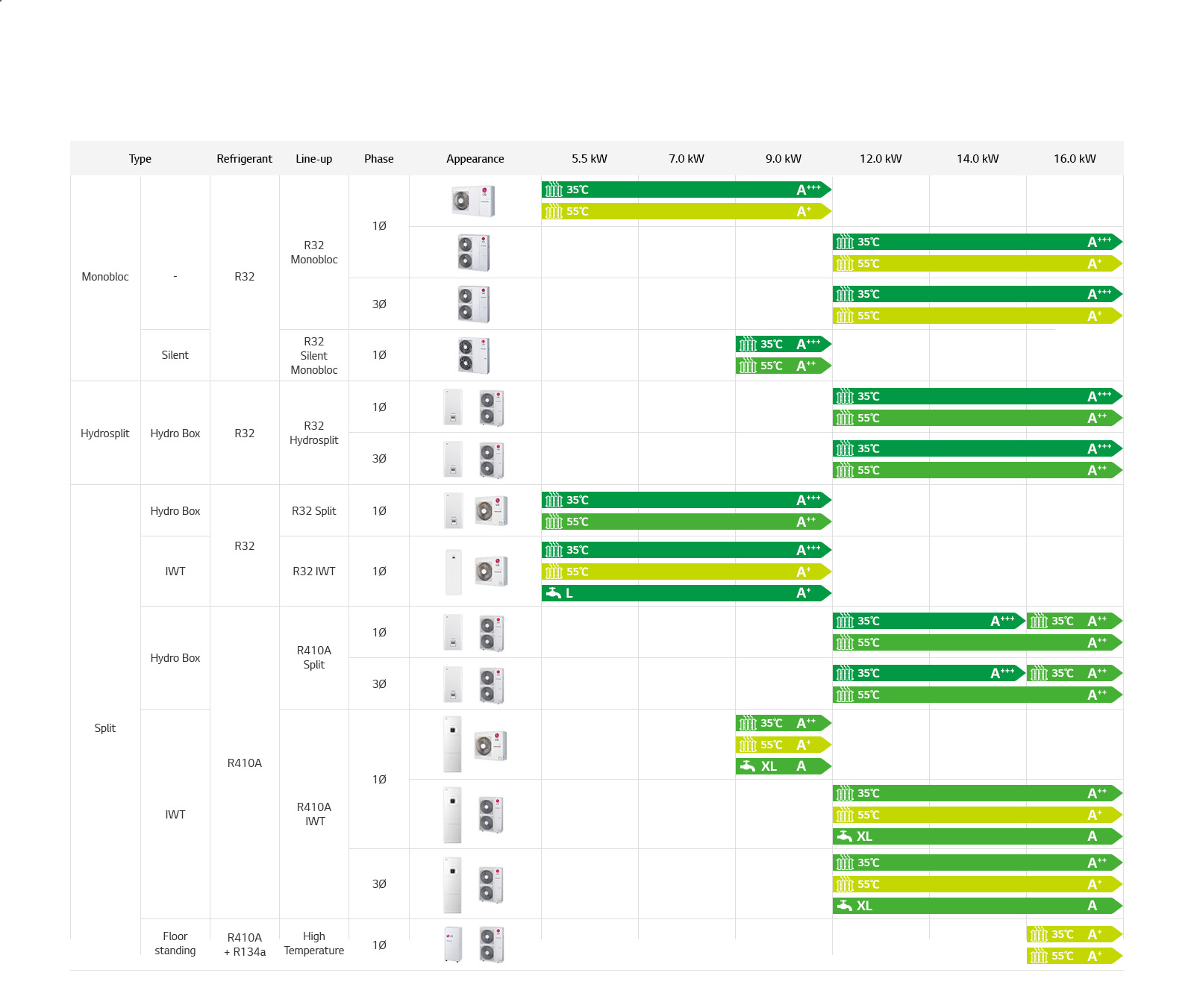

THERMA V Line-up

An image of a man holding a smartphone with LG web page on the screen. An image of a man holding a smartphone with LG web page on the screen.

Inquiry To Buy

Please inquiry to buy for more information on the product and we will get in touch with you soon.
