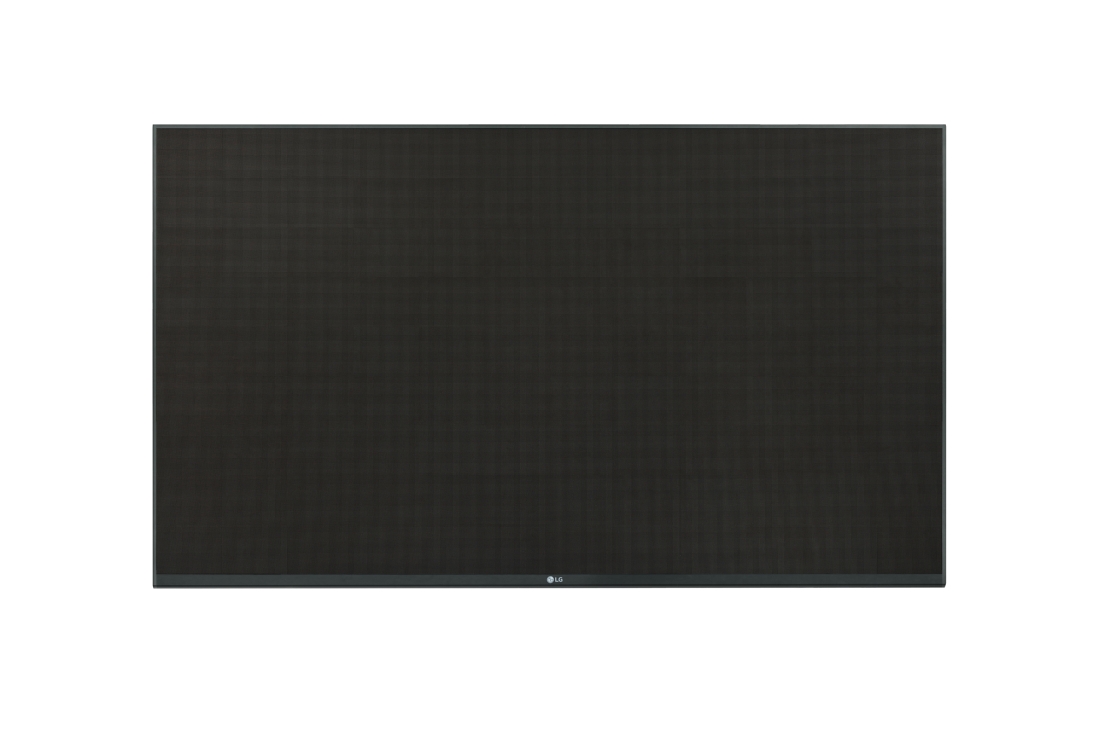

130" All-in-one LED Screen
130" Large Screen with No Bezel<br>1 130" Large Screen with No Bezel<br>2
The Most Effective Audiovisual Effects

130" Large Screen with No Bezel

The greatest advantage of LG's LED screen is the 130-inch large-sized screen with no bezel. Even bigger than four 55-inch conventional LCD displays combined, it displays content without lines or distortions and provides a more immersive visual experience.
Vivid Color Expression Powered by HDR10 Pro<br>1 Vivid Color Expression Powered by HDR10 Pro<br>2
The Most Effective Audiovisual Effects

Vivid Color Expression Powered by HDR10 Pro

With HDR10 Pro support, content becomes more vivid and has greater visual impact. The wider color spectrum and greater contrast ratio allows viewers to fully enjoy content as it appears in real life.
Immersive Surface Sound<br>1 Immersive Surface Sound<br>2
The Most Effective Audiovisual Effects

Immersive Surface Sound

The 130" All-in-one LED Screen doesn't require any additional speakers for its impactful audio effect. Its embedded Surface Sound comes from the entire screen with 162W (4.5W x 36points) and is able to reach all meeting attendees, including people seated far from the screen.

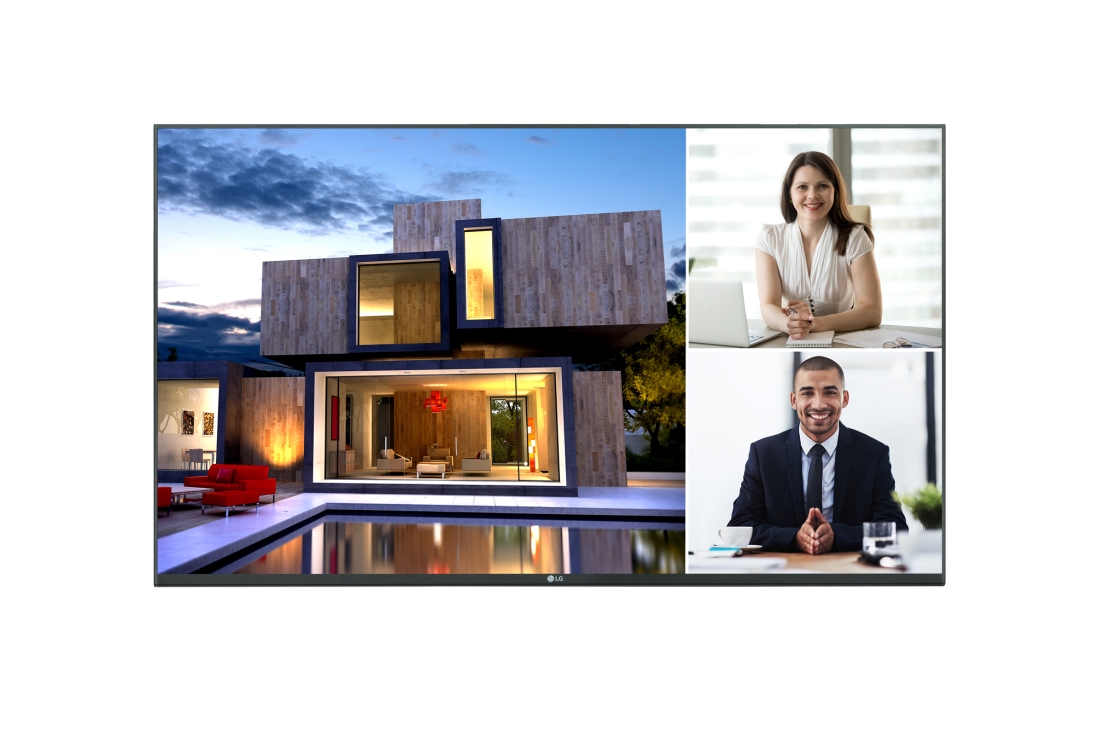

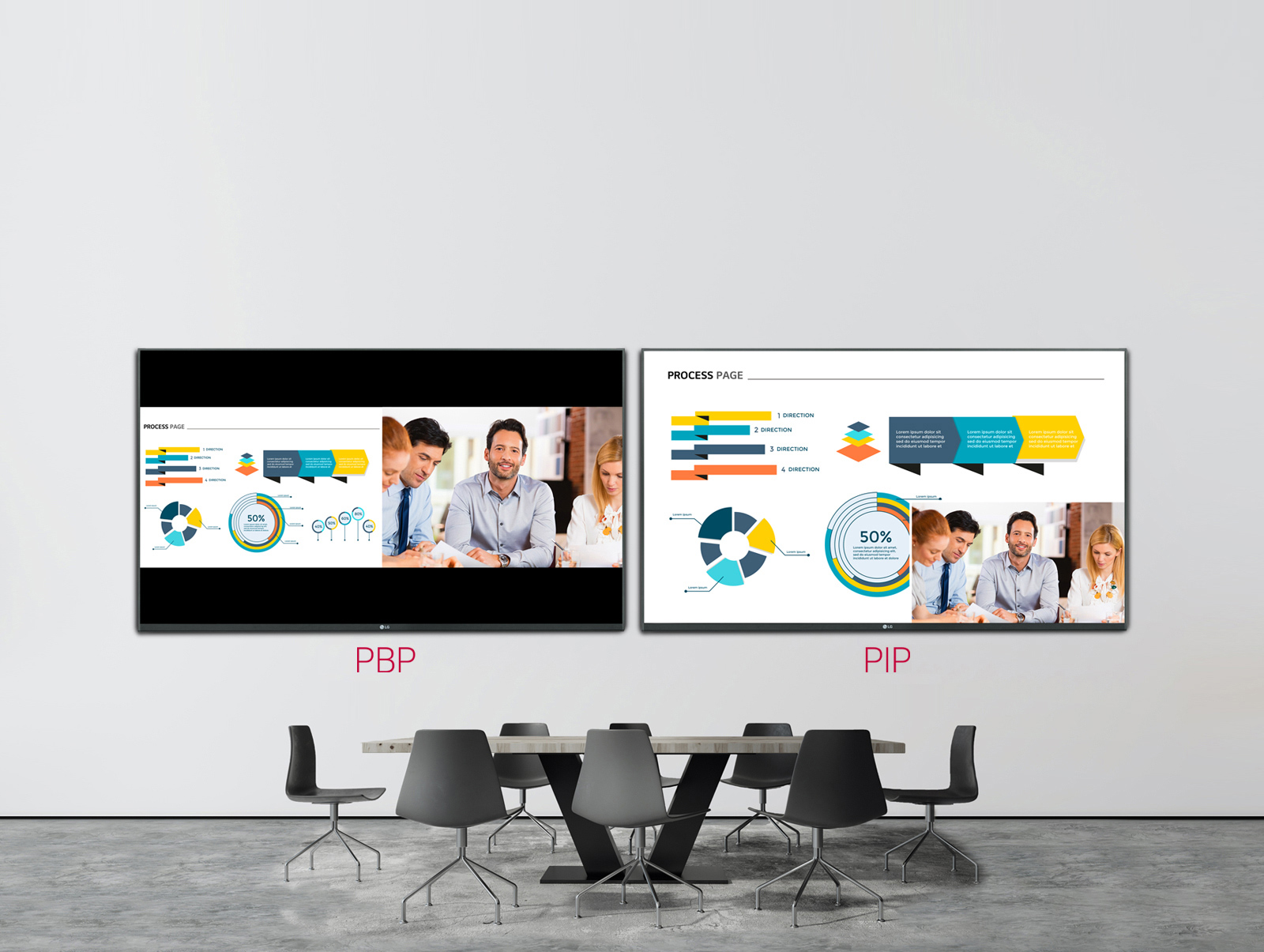

Multi Screen with PBP/PIP<br>1 Multi Screen with PBP/PIP<br>2

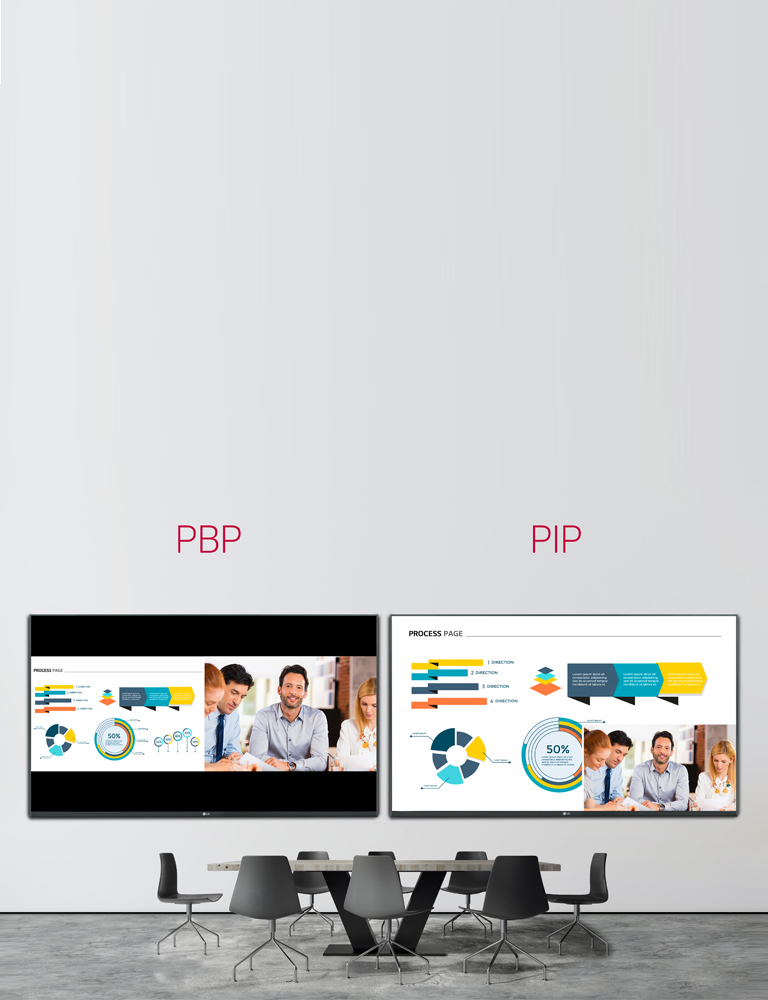

Multi Screen with PBP/PIP

PBP (Picture-By-Picture) features multi screen in a single display with upto 2 input sources while PIP (Picture-In-Picture) supports playing both main screen and sub screen at the same time with various layouts. This gives great flexibility to allocate space for each content source.
Installation Options for<br>Various Environments1 Installation Options for<br>Various Environments2
Easy Installation for User Convenience

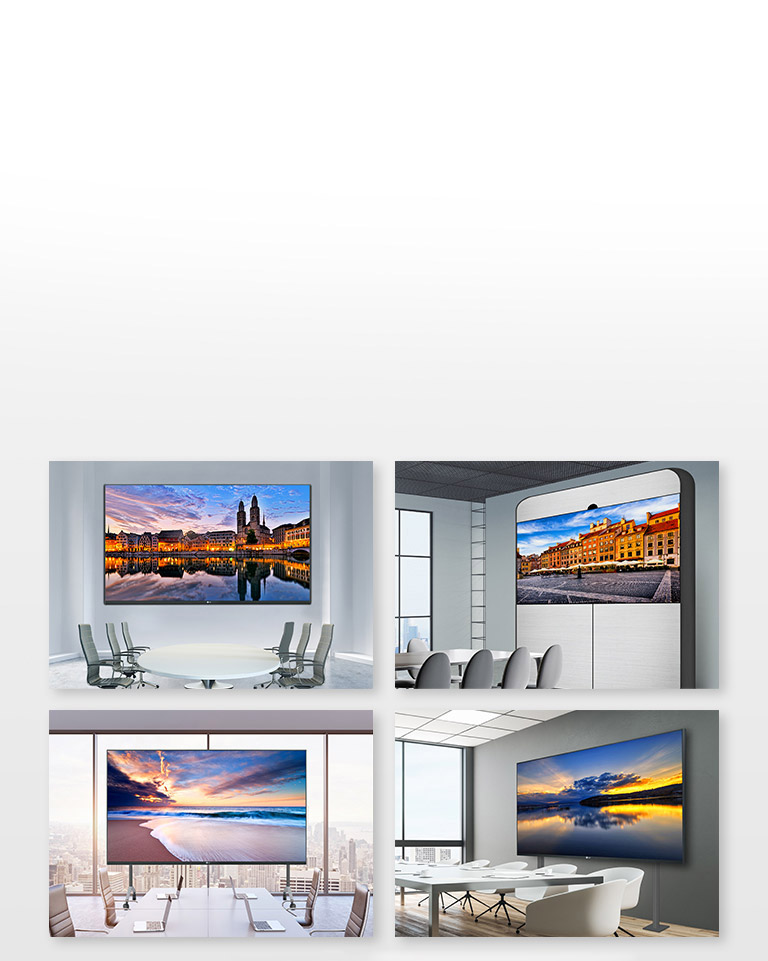

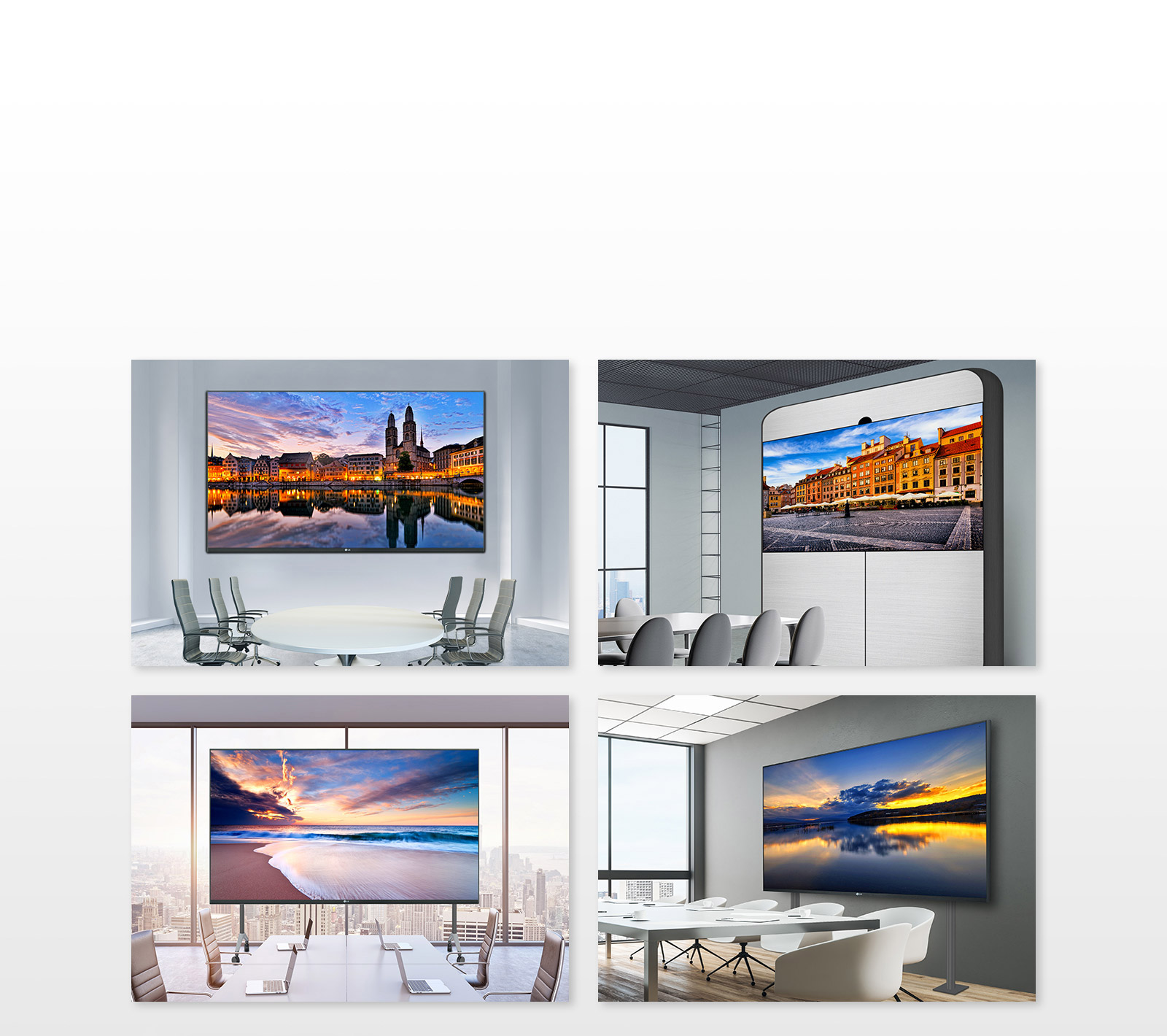

Installation Options for
Various Environments

The 130" All-in-one LED Screen can be installed in various setups, depending on its environment.
*Mounting accessories (wall mount, stand, etc.) are not included with LG products.
Easy Remote Control Support<br>1 Easy Remote Control Support<br>2
Easy Installation for User Convenience

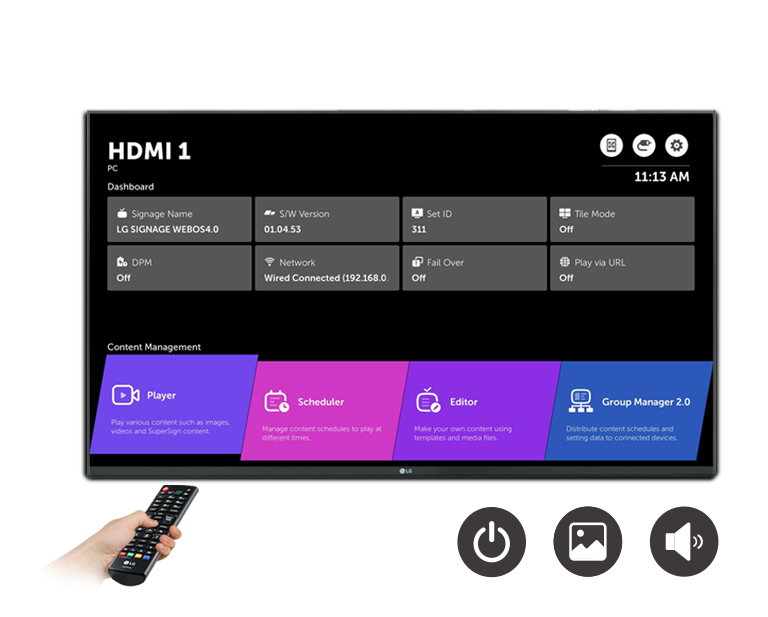

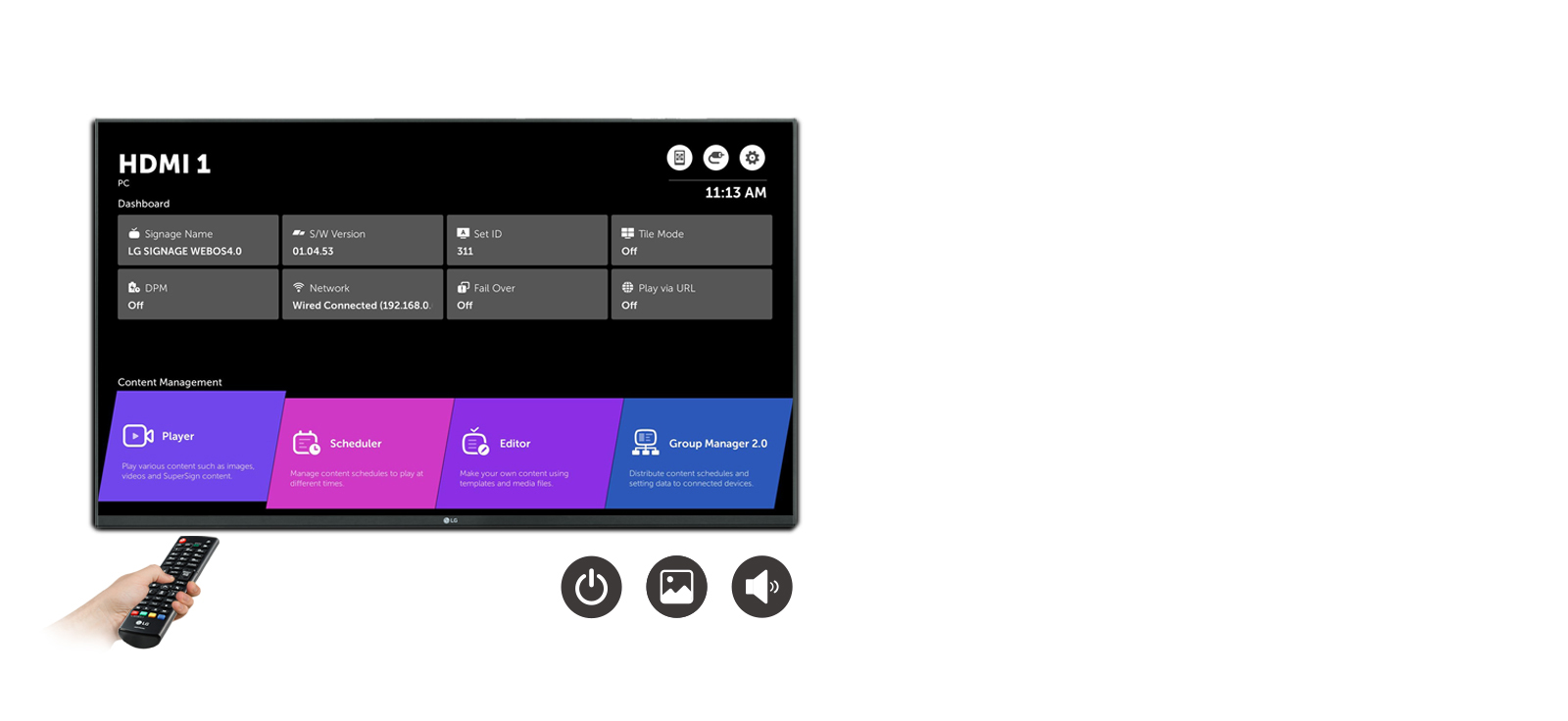

Easy Remote Control Support

The 130" All-in-one LED Screen allows the user to easily access the settings, such as picture mode, volume, etc. using a remote control instead of needing to connect to a PC. It uses the same UI as general LG digital signages, so users can easily learn how to use it.
Front Serviceability<br>1 Front Serviceability<br>2
Easy Installation for User Convenience

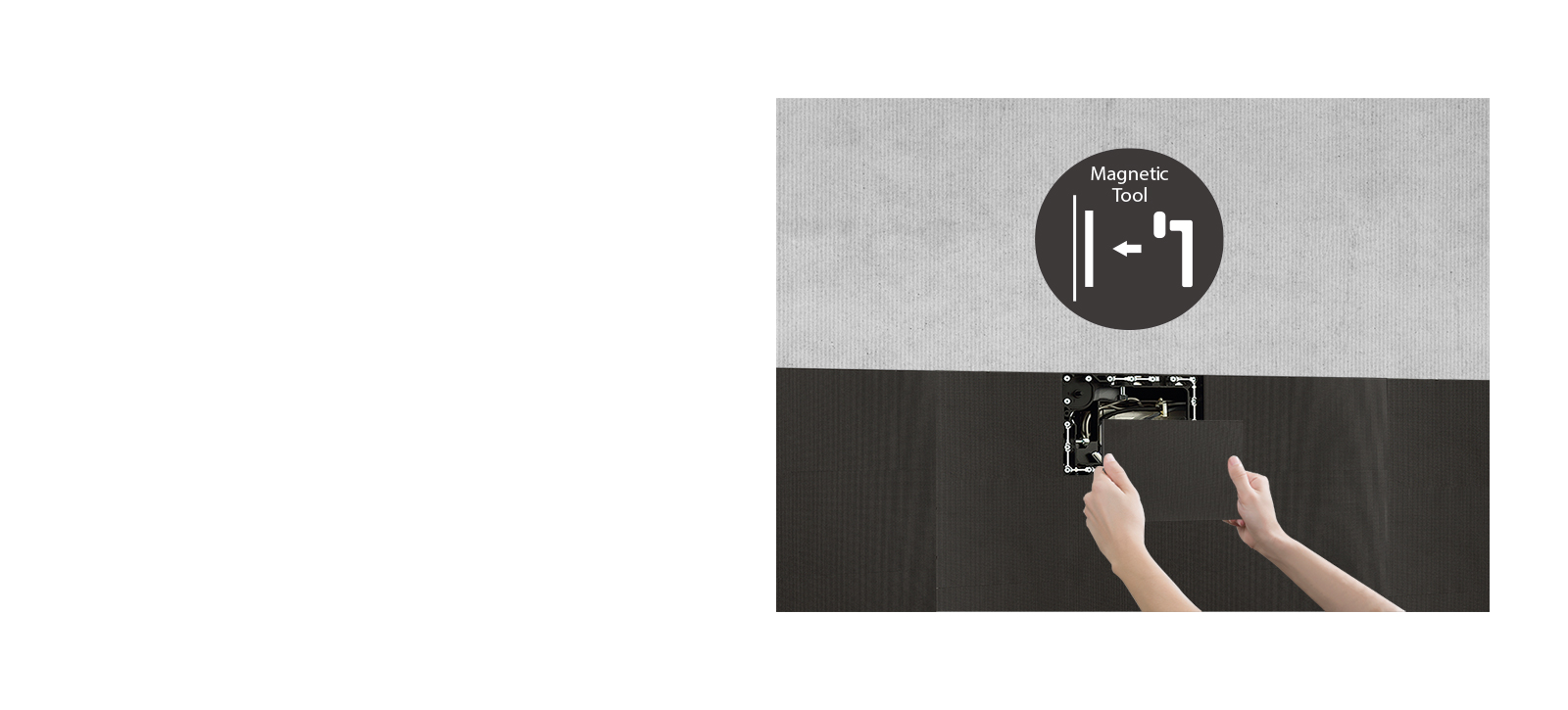

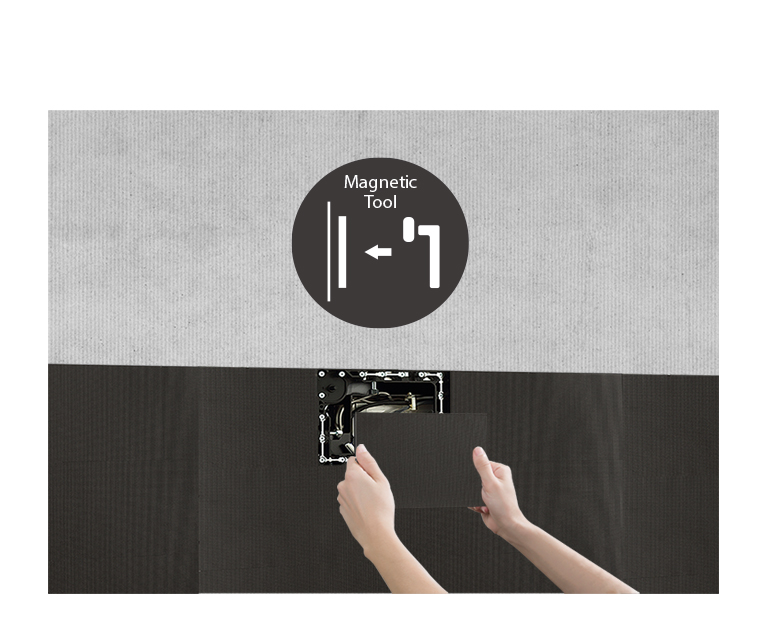

Front Serviceability

The LED screen can be easily installed and managed from the front side for easy operation. Its LED modules can also be simply attached or detached by hand or with a magnetic tool.

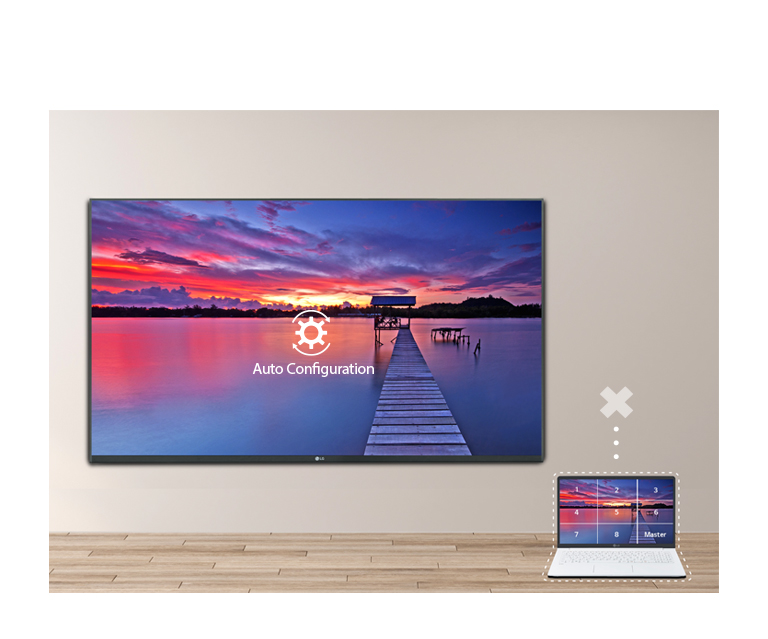

Auto Configuration<br>1 Auto Configuration<br>2
Easy Installation for User Convenience

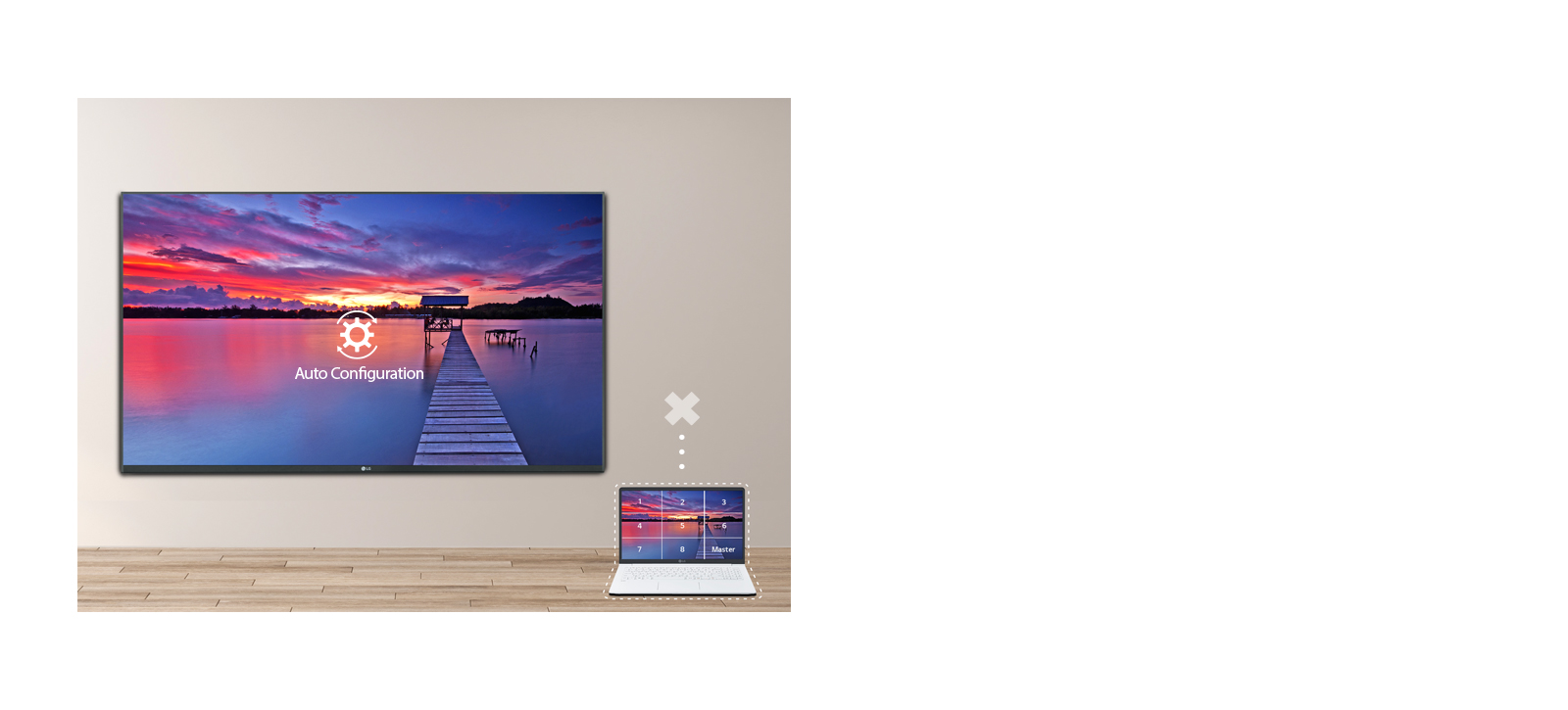

Auto Configuration

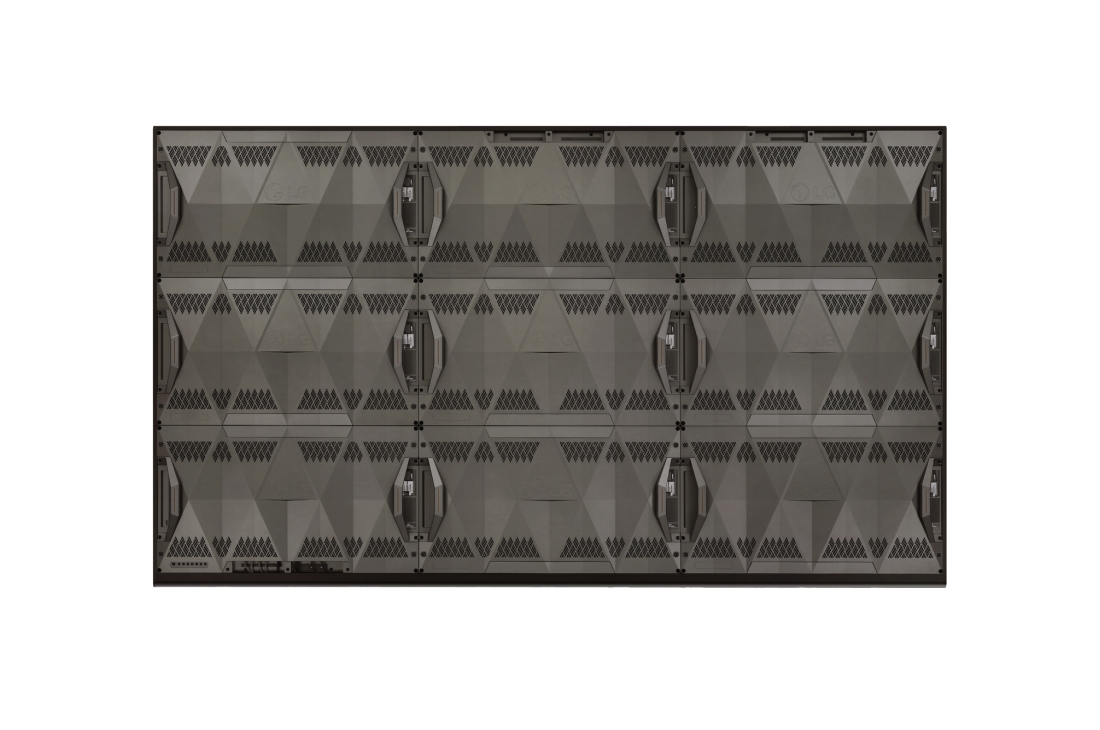

LG's 130" All-in-one LED Screen is composed of one master unit case and eight slave unit cases. Each unit case automatically recognizes its location and setting values, so the screen doesn't require any complicated screen setup process. All you need to do is turn on the screen.
High Performance SoC with webOS<br>1 High Performance SoC with webOS<br>2
Operational Efficiency

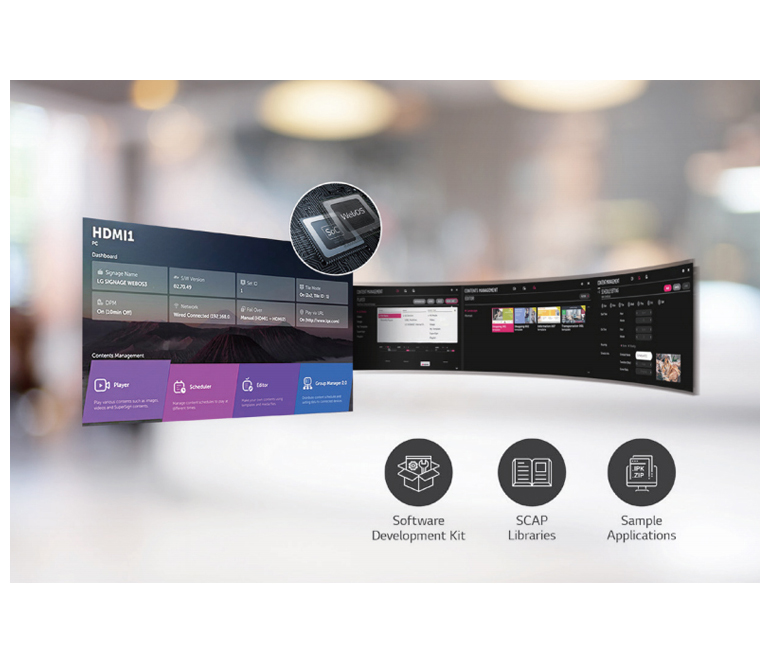

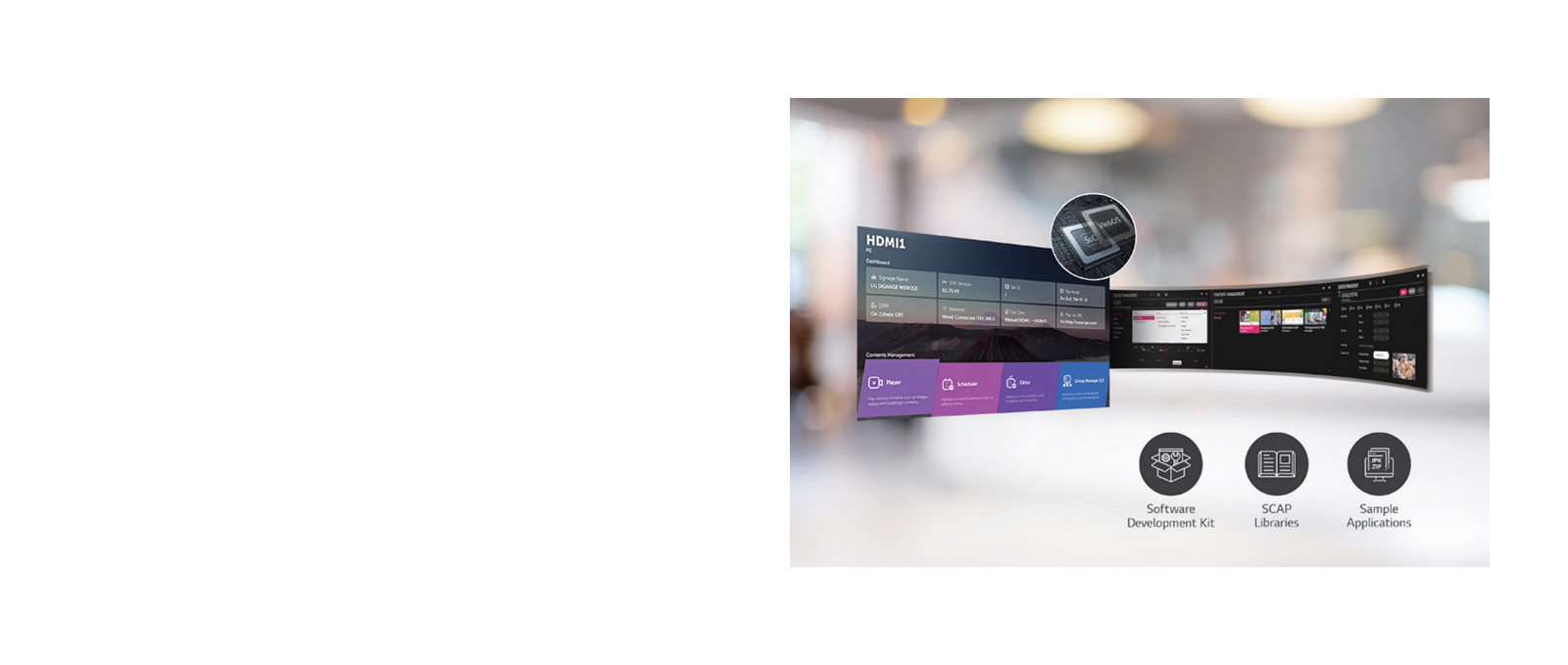

High Performance SoC with webOS

Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.
Compatibility with AV Control Systems<br>1 Compatibility with AV Control Systems<br>2
High Compatibility for Meeting Room

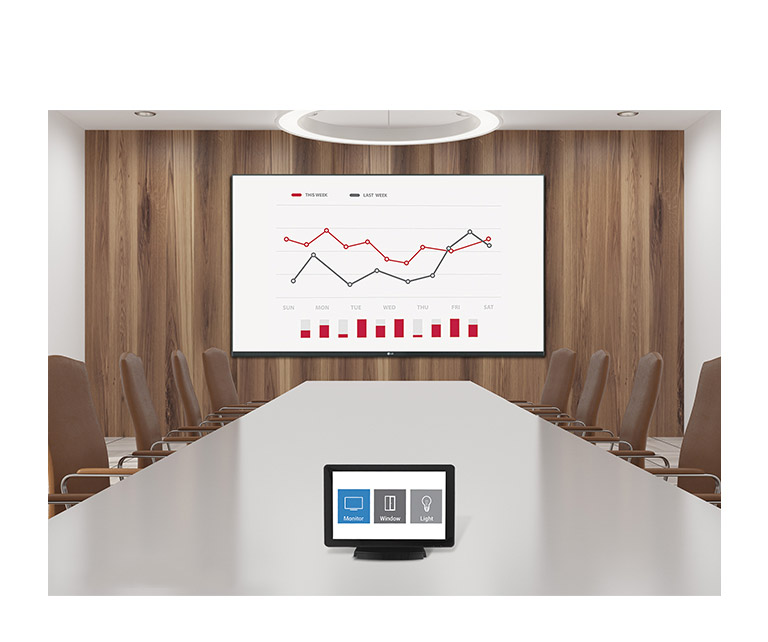

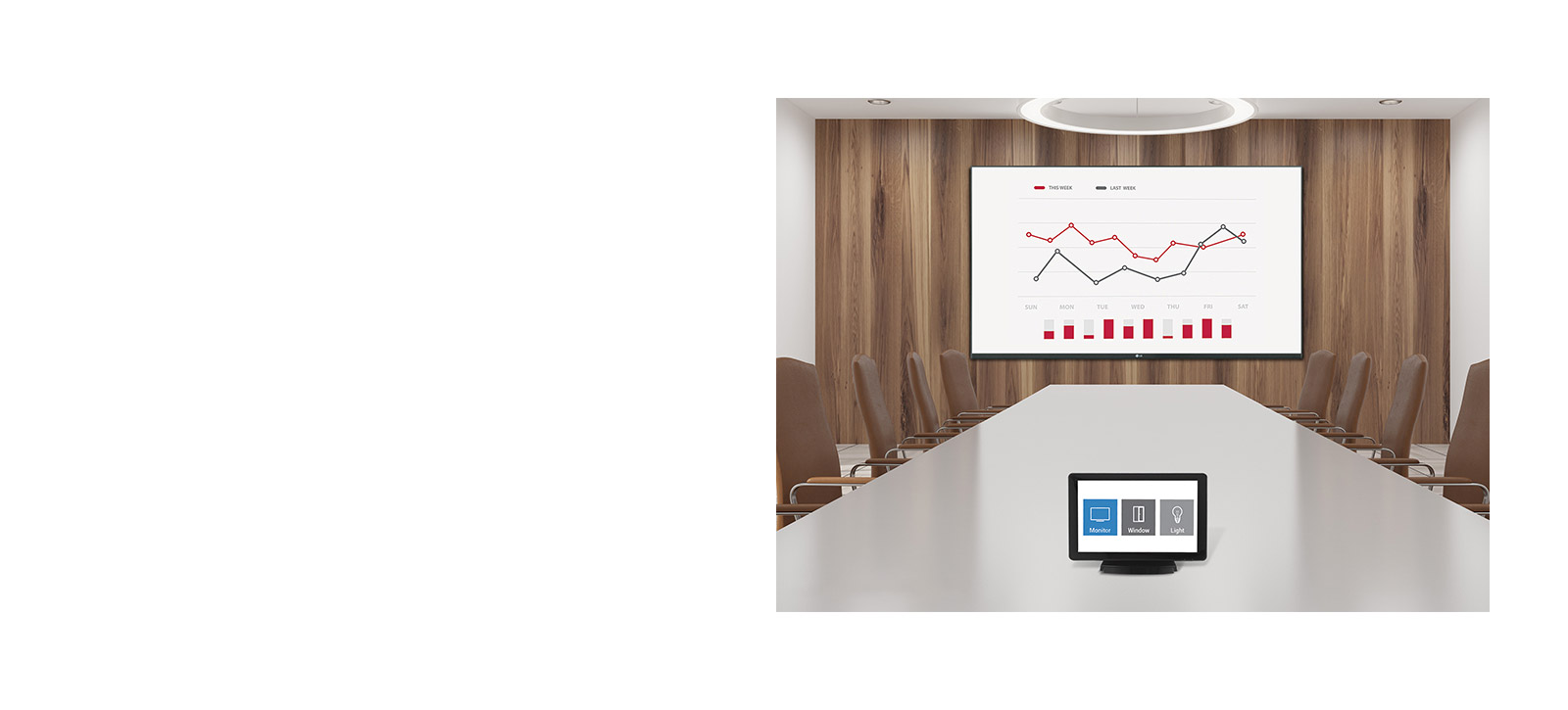

Compatibility with AV Control Systems

The LED screen has been certified Crestron Connected® for a higher level of compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.
*Network-based control
Compatibility with LG Software Solutions<br>1 Compatibility with LG Software Solutions<br>2

Compatibility with LG Software Solutions

  • SuperSign Solution1

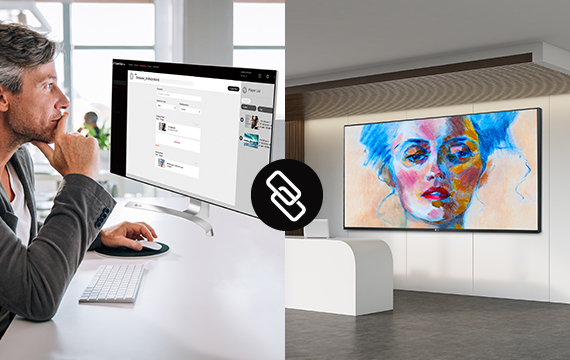

    SuperSign Solution

    The LED screen is compatible with LG SuperSign CMS, which is a comprehensive software solution for integrated content management. This makes content creation and distribution much easier, helping your business save time and operate more effectively across its locations.

  • Signage365Care1

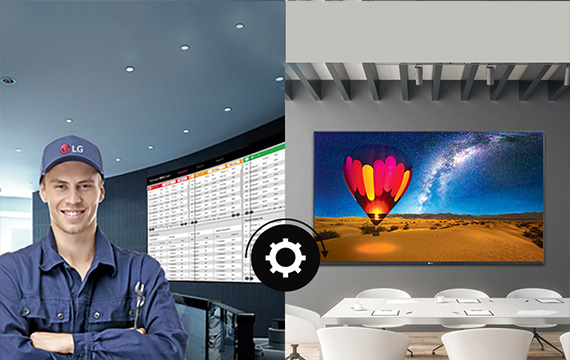

    Signage365Care

    Maintenance is easier and faster with the optional Signage365Care* service, a cloud service solution provided by LG service. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of clients' businesses.

*The availability of the"Signage365 Care" service differs by region, so please contact the LG sales representative in your region for more details.
Close
BASIC ACCESSORY
  • Basic Accessory
    Data Cable, LAN Cable, Power Cord, RS232C Gender (9pin to Phone Jack), Remote Controller, IR Receiver, Manual
CERTIFICATION
  • EMC
    FCC Class A / CE / KC
    Environment
    RoHS
  • Safety
    IEC 60950-1 / EN 60950-1 / UL 60950-1
CONNECTIVITY(EMBEDDED CONTROLLER)
  • Control
    RJ45 In, RS232C In/out
    Special Features
    Temperature Sensor, IR & Ambient Light Sensor, Audio Out, Crestron Connected(Network based control)

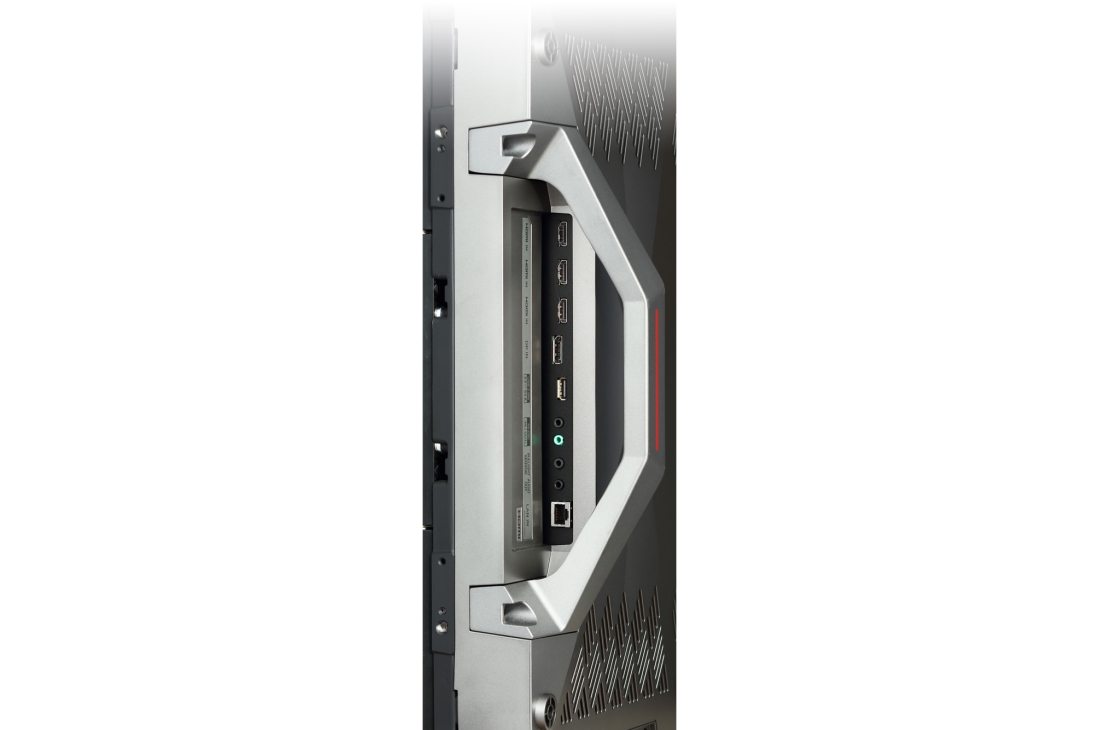

  • Video Inputs
    HDMI In(3), DP In, USB
ELECTRICAL PARAMETER
  • Frame Rate (Hz)
    50 / 60
    Power Consumption (W/m², Max.)
    760
  • Power Consumption (W/Screen, Avg.)
    980
    Power Consumption (W/Screen, Max.)
    2900
  • Power Supply (V)
    100 to 240
    Refresh Rate (Hz)
    3840
  • Sound Output (Max.)
    162W
OPERATION CONDITIONS
  • Lifetime (Half Brightness, hrs)
    100,000 (It is subject to LED package spec.)
    Operating Humidity
    10-80% RH
  • Operating Temperature (°C)
    0°C to 40°C
OPTICAL PARAMETER
  • Brightness Uniformity
    0.95
    Color Temperature
    6,500
  • Color Uniformity
    ±0.015Cx,Cy
    Contrast Ratio
    5,000
  • Min. Brightness (After Calibration)
    500 cd/m²
    Processing Depth (bit)
    16(HDR10, HDR10 Pro)
  • Visual Viewing Angle (Horizontal)
    160
    Visual Viewing Angle (Vertical)
    140
PHYSICAL PARAMETERS
  • Flatness of Unit Case (mm)
    ±0.2
    No. of Modules per Unit Case (W x H)
    4x3
  • Physical Pixel Density (pixels/m²)
    444,444
    Pitch Name
    P1.5
  • Pixel Configuration
    3 in 1 SMD
    Pixel Pitch (mm)
    1.5
  • Screen Dimensions(WxH, mm)
    2,880 x 1,620 x 128.5 (w/o Screen Frame)
    Screen Resolution (WxH)
    1,920x1,080
  • Screen Weight (kg)
    175 (w/o Screen Frame)
    Service Access
    Front and Rear
  • Unit Case Dimensions (W x H x D, mm)
    960x540x128.5
    Unit Case material
    Front : Die Casting Aluminum
    Rear : PC+ABS
  • Unit Case Resolution (W x H)
    640x360
    Unit Case Surface Area (m²)
    0.518
  • Weight per Square Meter (kg/m²)
    37.6
    Weight per Unit Case (kg/unit)
    Master: 20.85
    Slave: 19.24
