LAP010EL2B component-copyModelName
P1.0 1,000 nits LG LED Curve Series for Indoor

Key Features

Choose your Pitch

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (LAP010EL2B)
    ৳
    ৳
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (LAP010EL2B)
    ৳
    ৳
    LG Members Price
Total
P1.0 1,000 nits LG LED Curve Series for Indoor
  • Outstanding Image Quality1

    Outstanding Image Quality



  • Auto Module Protection1

    Auto Module Protection



  • Easy Management1

    Easy Management

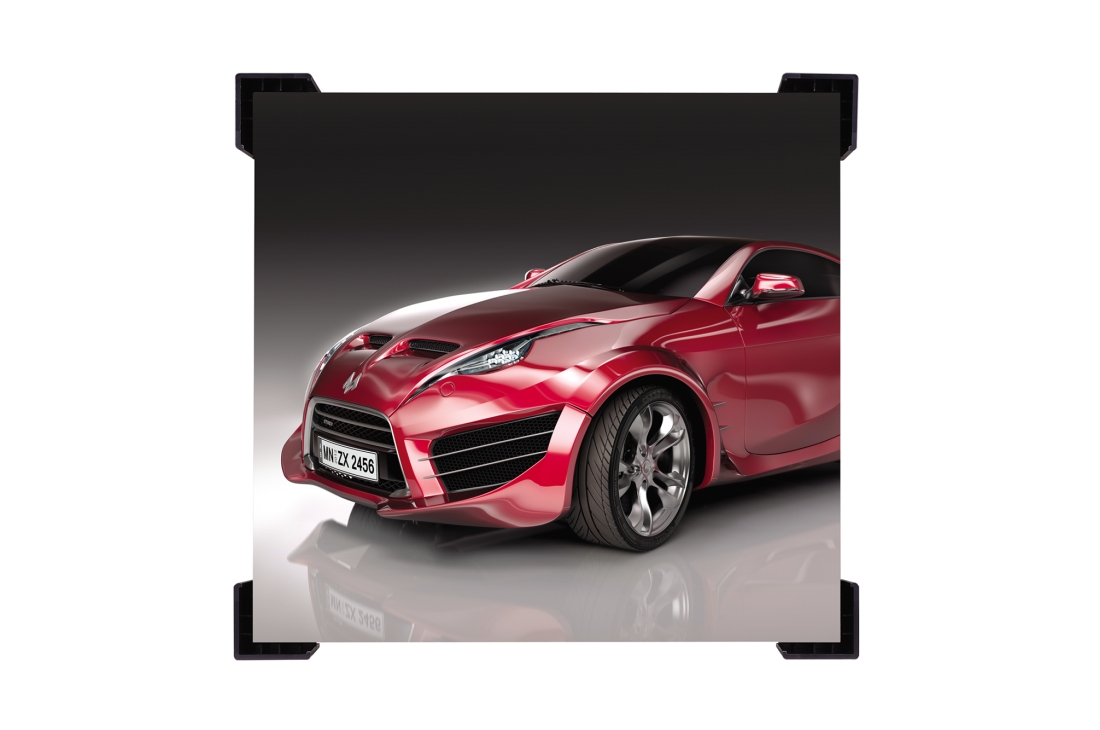

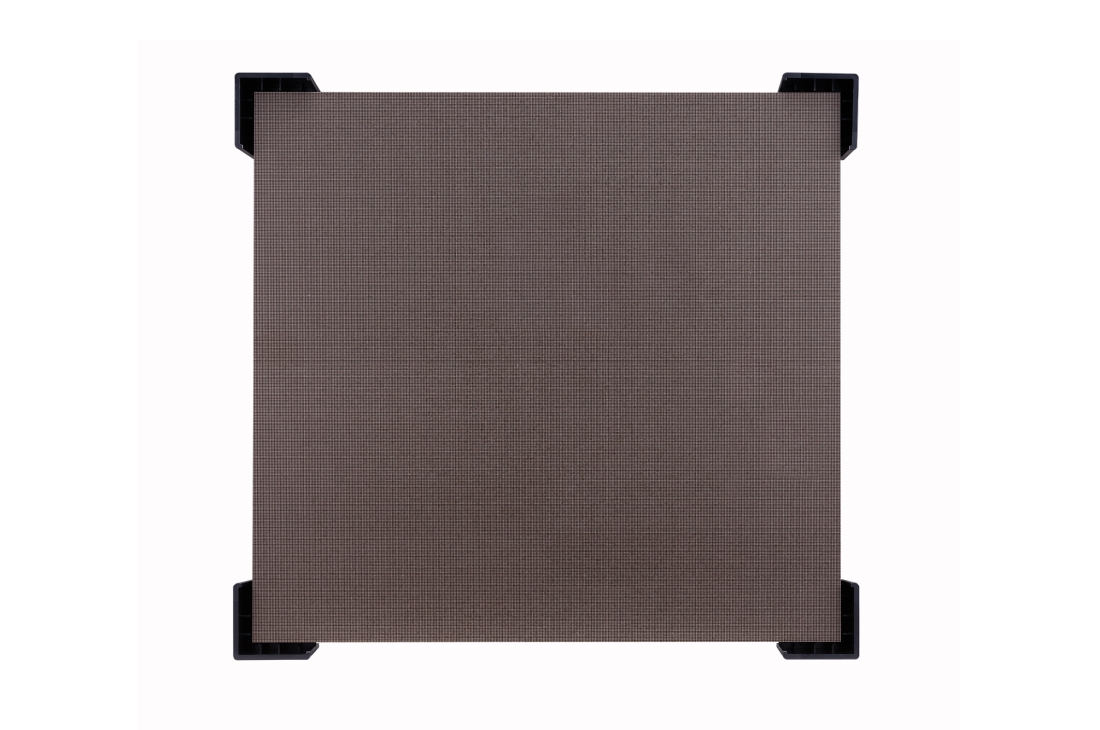

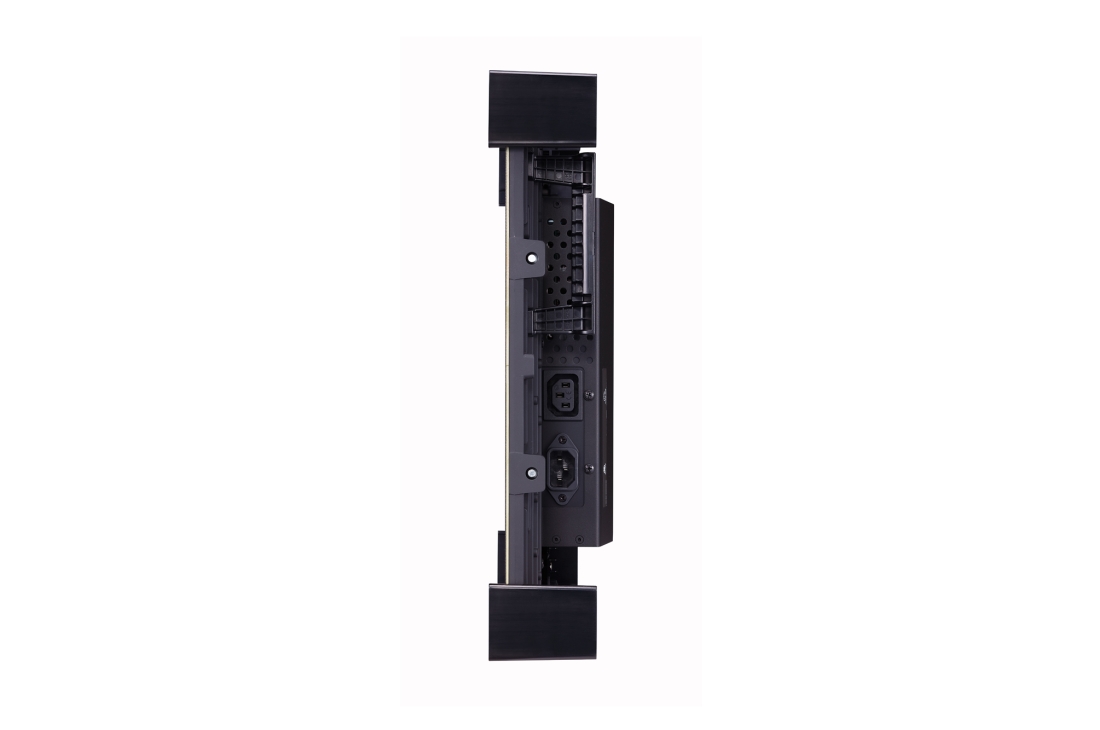

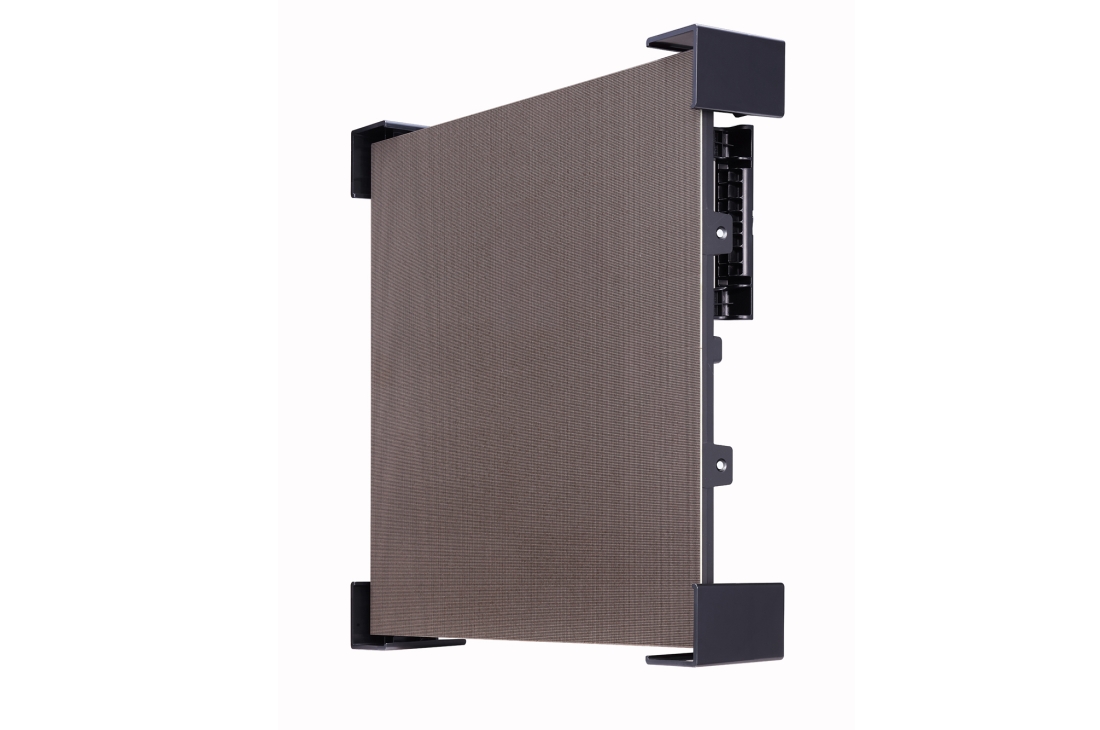

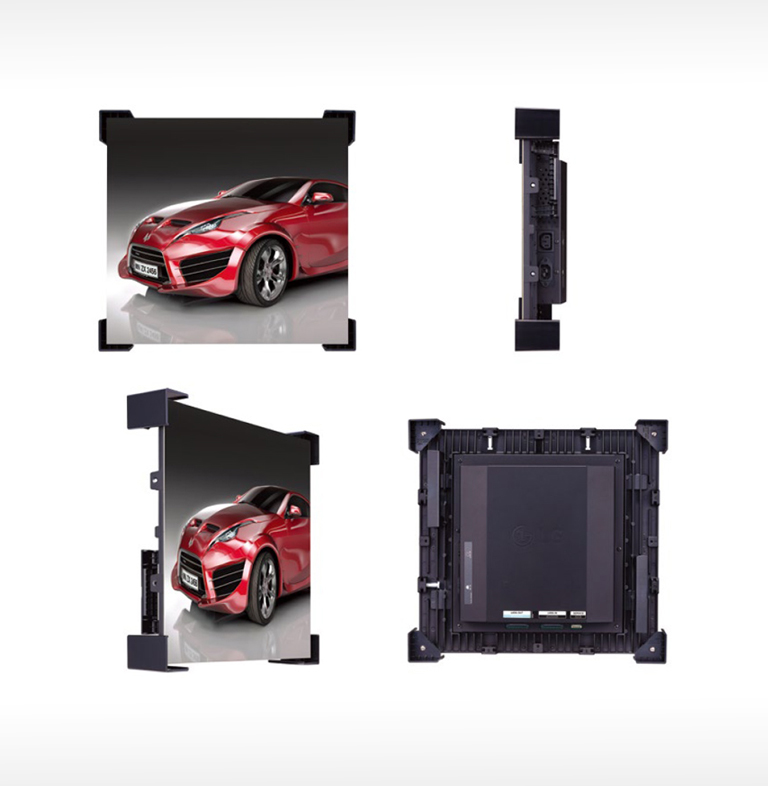

Unit Case 1 Unit Case 2

Unit Case

• Pixel Pitch: 1.0 mm
• Brightness: 1,000nit
• Contrast Ratio: 6,000 : 1
• Refresh Rate: 1,920 Hz
LED Controller1 LED Controller2

LED Controller

(LCLG 001)
• Input: Max UHD@30P
• Output: FHD@60P
• Media Player & Scaler Built-in
• Input / Output Port: HDMI, DP, DVI-D / LVDS
• Control Port: RS232C, RJ45 (LAN)

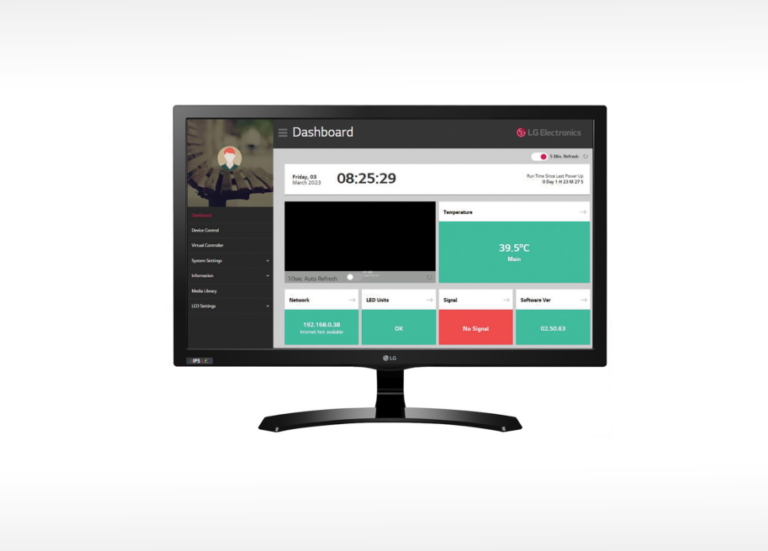

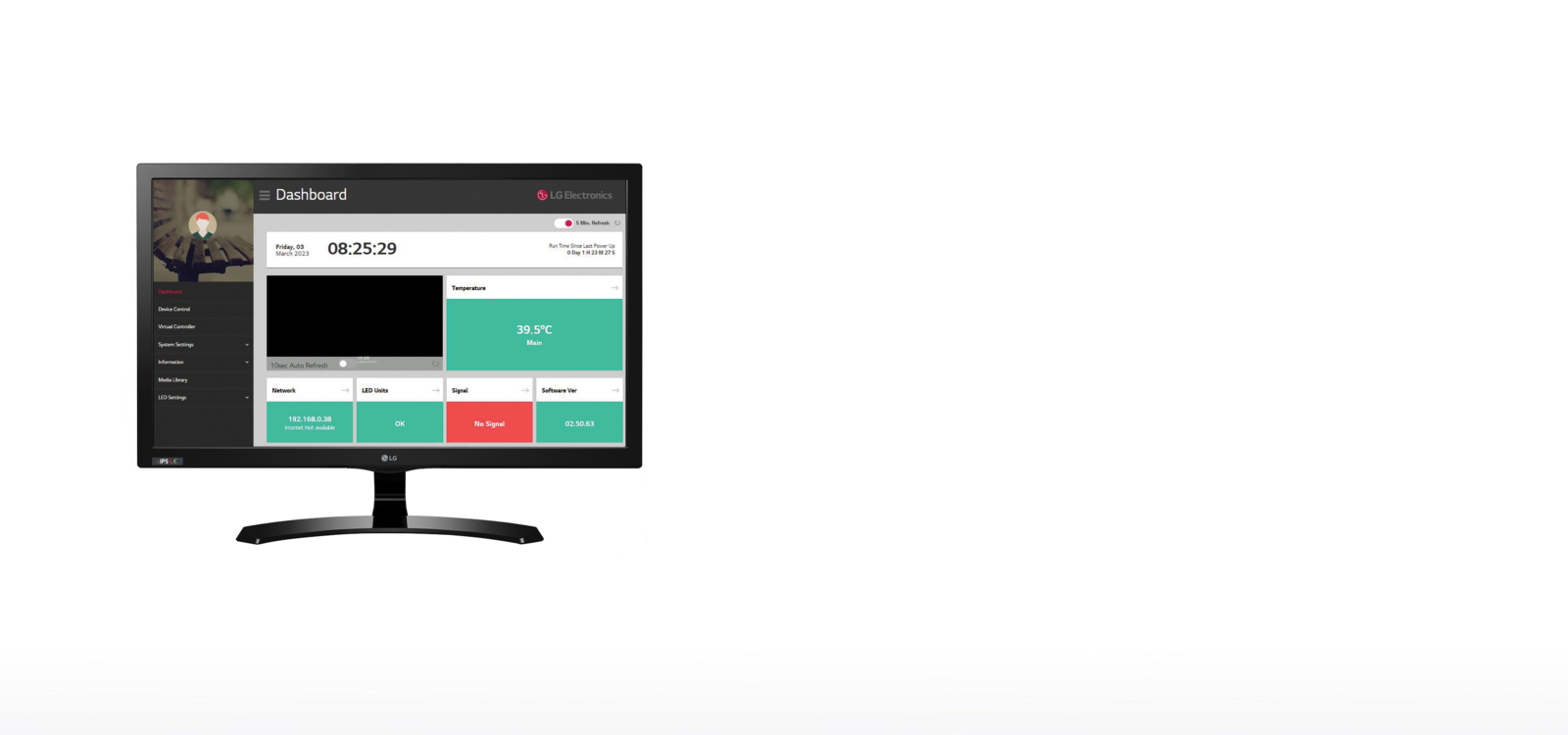

Software <br>(Control Manager)1 Software <br>(Control Manager)2

Software
(Control Manager)

• Web Based S/W (LG webOS 3.0 Platform)
• Control & Monitoring
• Alert Alarm (E-mail)

APPLICATION

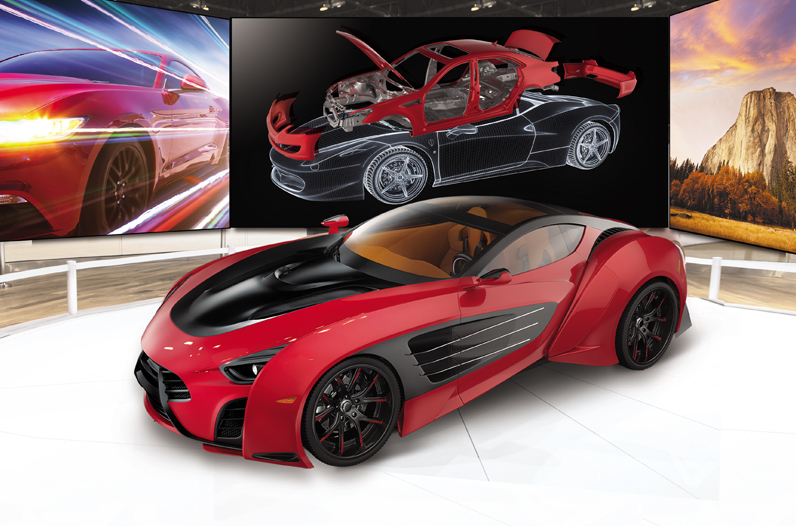

  • Design Room


    Design Room1 Design Room2

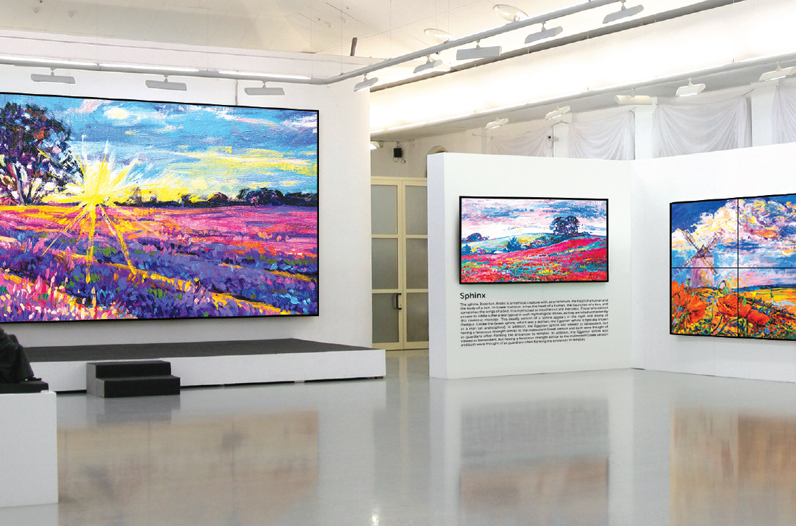

  • Museums / Gallery


    Museums / Gallery1 Museums / Gallery2

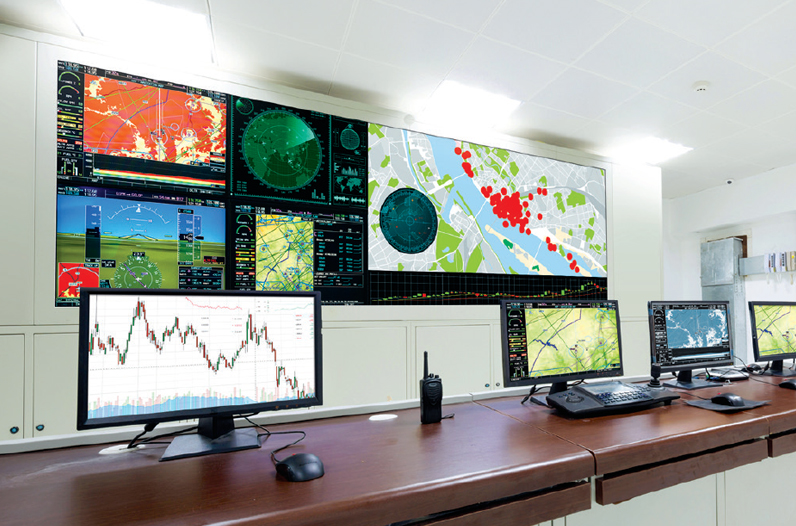

  • Control Room


    Control Room1 Control Room2

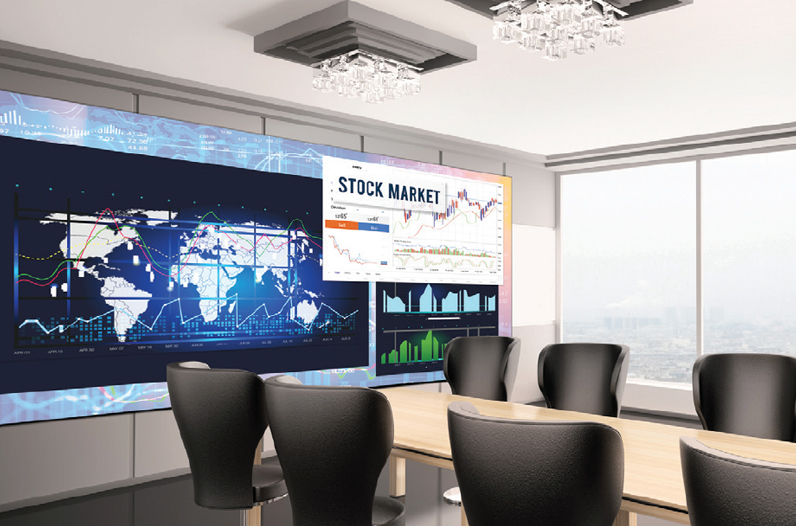

  • Boardrooms


    Boardrooms1 Boardrooms2

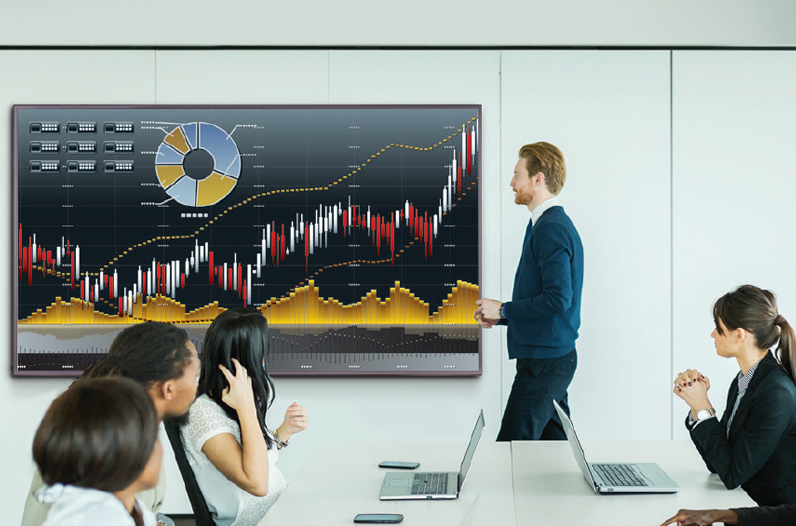

  • Meeting Room


    Meeting Room1 Meeting Room2

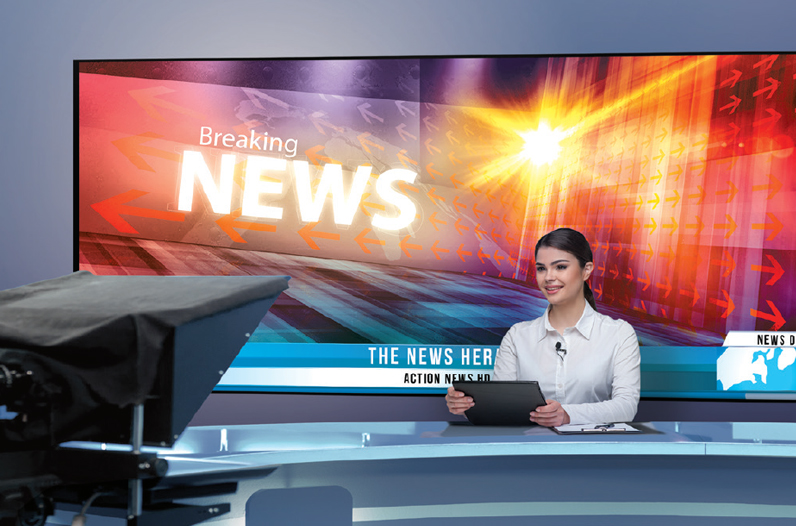

  • Broadcast Studio


    Broadcast Studio1 Broadcast Studio2
Close
PHYSICAL PARAMETERS
  • Pitch Name
    P1.0
    Pixel Configuration
    3 in 1 SMD
  • Pixel Pitch(mm)
    1.00
    Module Resolution (WxH)
    192x180
  • Module Dimensions(WxH,mm)
    192x180
    No. of Modules per Unit Case (WxH)
    2x2
  • Unit Case Resolution (WxH)
    384x360
    Unit Case Dimensions (W x H x D, mm)
    384x360x77
  • Unit Case Surface Area (㎡)
    0.138
    Weight per Unit Case (kg/unit)
    5.0
  • Weight per Square Meter (kg/㎡)
    36.2
    Physical Pixel Density (pixels/㎡)
    1,000,000
  • Flatness of Unit Case (mm)
    ±0.2
    Unit Case material
    Die casting alluminum

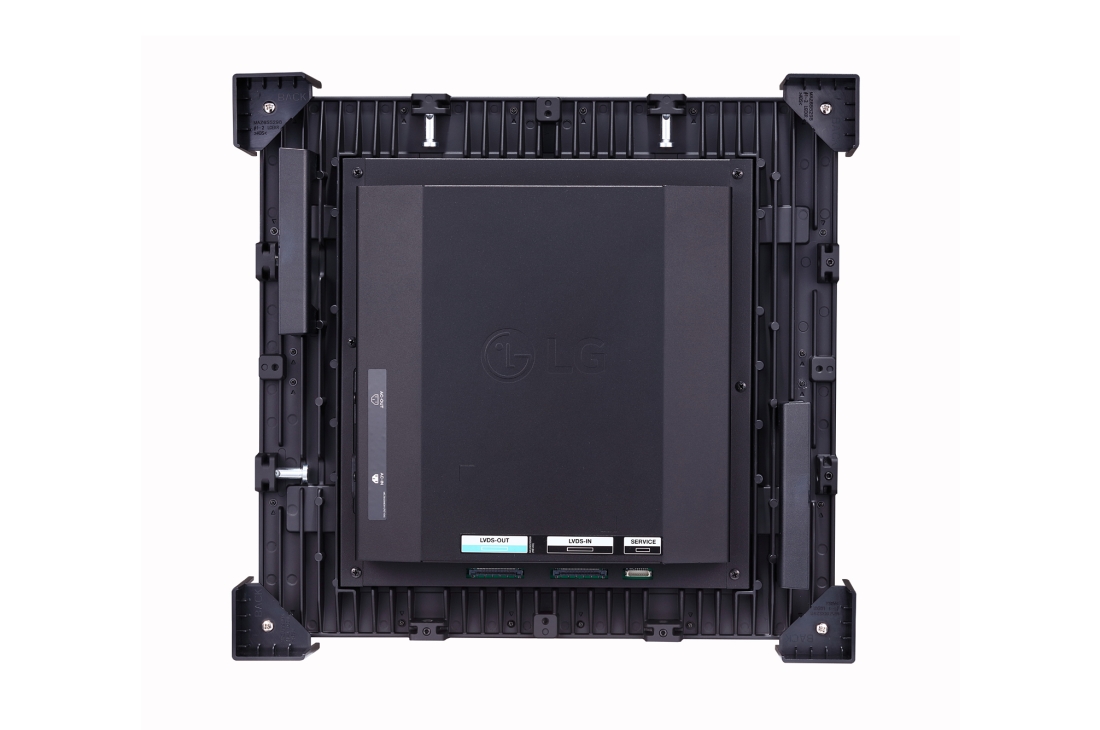

  • Service access
    Rear
OPTICAL SPECIFICATIONS
  • Min. Brightness (After Calibration)
    1,000
    Color Temperature
    3,200 - 9,300
  • Visual Viewing Angle (Horizontal)
    160
    Visual Viewing Angle (Vertical)
    140
  • Brightness Uniformity
    ≥97%
    Color Uniformity
    ±0.015Cx,Cy
  • Contrast Ratio
    6,000
    Processing Depth (bit)
    16
ELECTRICAL SPECIFICATIONS
  • Power Consumption (W/Unit, Avg.)
    85
    Power Consumption (W/Unit, Max.)
    170
  • Power Consumption (W/㎡, Max.)
    1230
    Power Supply (V)
    100 to 240
  • Frame Rate (Hz)
    50 / 60
    Refresh Rate (Hz)
    1,920
OPERATION SPECIFICATIONS
  • Lifetime (Half brightness)* * The Lifetime(Half brightness) spec is subject to LED package spec.
    100,000
    Operating Temperature(℃)
    0∘to +40∘
  • Operating Humidity
    10-80%RH(TBD)
