P2.0 700 nits LG LED Curve Series for Indoor
LG PREMIUM FINE-PITCH<br>LED SIGNAGE1 LG PREMIUM FINE-PITCH<br>LED SIGNAGE2

LG PREMIUM FINE-PITCH
LED SIGNAGE

Boasting detailed color and super contrast, LG's LAPE series brings content to life through freedom of design, giving it outstanding presence as a work of media art.
SELECTABLE TWO PRODUCT TYPES<br>1 SELECTABLE TWO PRODUCT TYPES<br>2

SELECTABLE TWO PRODUCT TYPES

The LAPE Series comes in 2 product types which differ in the way the power is installed. Each has their own distinctive benefits, so customers can choose between two types based on installation environment.
FLEXIBLE LDM<br>1 FLEXIBLE LDM<br>2

FLEXIBLE LDM

With a specially designed flexible LDM(LED Display Module), the LAPE series supports true concave and convex curvature up to 1,000R. This greatly amplifies design flexibility, providing users with the ability to create true curved screens.
*The "Conventional" shown above refers to an LED screen composed of flat LED unit cases.
REALISM THROUGH LIFELIKE COLORS<br>1 REALISM THROUGH LIFELIKE COLORS<br>2

REALISM THROUGH LIFELIKE COLORS

The LAPE series delivers vivid and distinctive picture quality through a wide range of color details with deep contrast thanks to LG's exclusive ‘Dynamic Contrast Algorithm'.
DETAILED EXPRESSION OF COLOR DEPTH<br>1 DETAILED EXPRESSION OF COLOR DEPTH<br>2

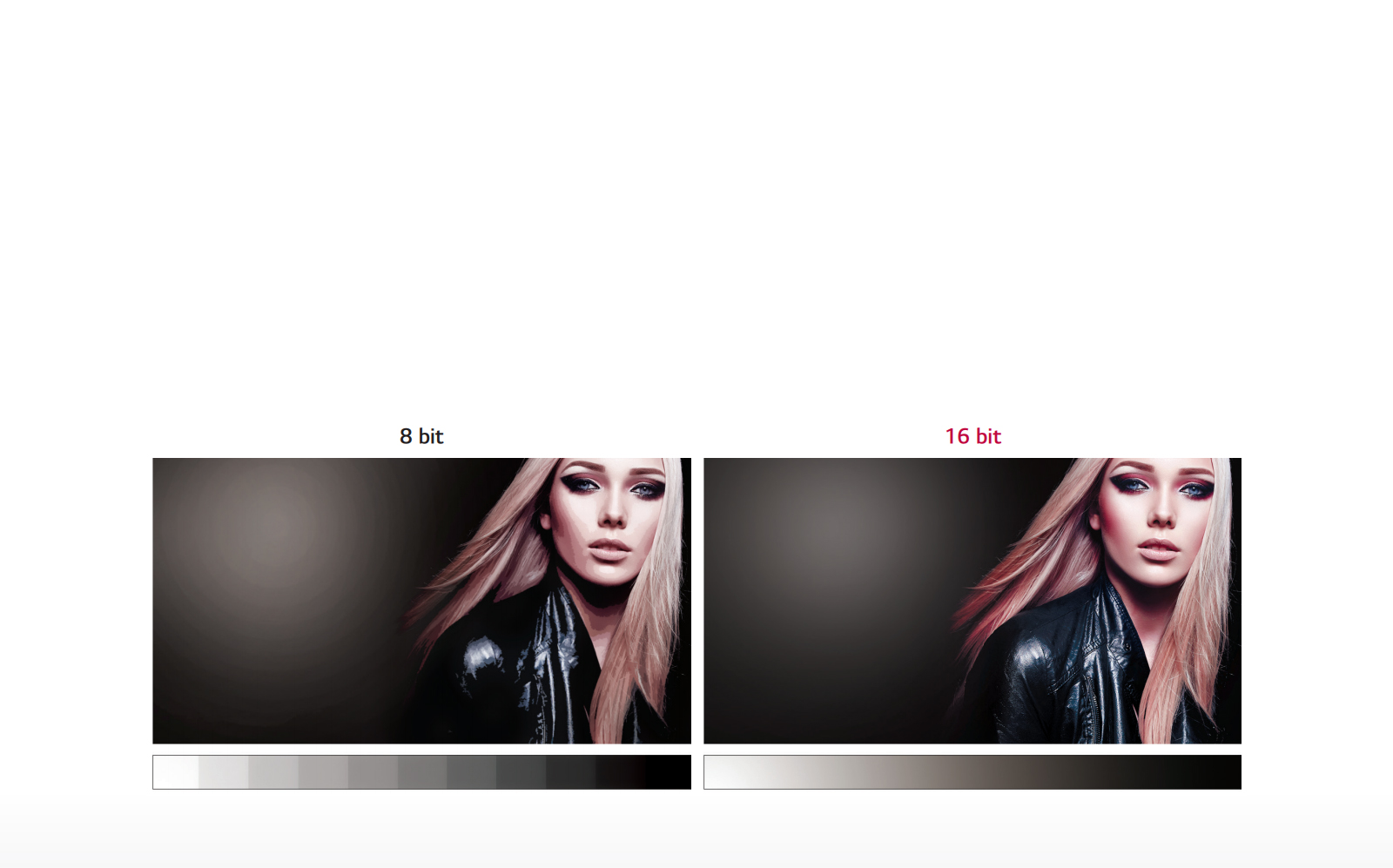

DETAILED EXPRESSION OF COLOR DEPTH

16-bit color processing provides a higher greyscale level, which seamlessly displays different depths and densities of colors without distortion, thereby giving a more realistic and sophisticated content.
SMOOTH PLAYBACK IN DYNAMIC MOTION<br>1 SMOOTH PLAYBACK IN DYNAMIC MOTION<br>2

SMOOTH PLAYBACK IN DYNAMIC MOTION

Powered by LG's display technology, a high refresh rate of 3,840Hz assures the smooth playback of content. The flicker-free image prevents the black bars that occur from video shooting, as well as eye strain and blurred vision in viewers.
POWER/SIGNAL REDUNDANCY SUPPORT<br>1 POWER/SIGNAL REDUNDANCY SUPPORT<br>2

POWER/SIGNAL REDUNDANCY SUPPORT

The LAPE series is designed to support signal redundancy (optional), providing users with peace of mind.
* The "Conventional" shown above refers to LED displays which do not support the power/signal redundancy mode.
PRECISE FHD/UHD SCEEN CONFIGURATION<br>1 PRECISE FHD/UHD SCEEN CONFIGURATION<br>2

PRECISE FHD/UHD SCEEN CONFIGURATION

It has often been difficult to configure a perfect FHD/UHD resolution screen prohibiting native resolution image display. With the LAPE series, this is possible for all model options.

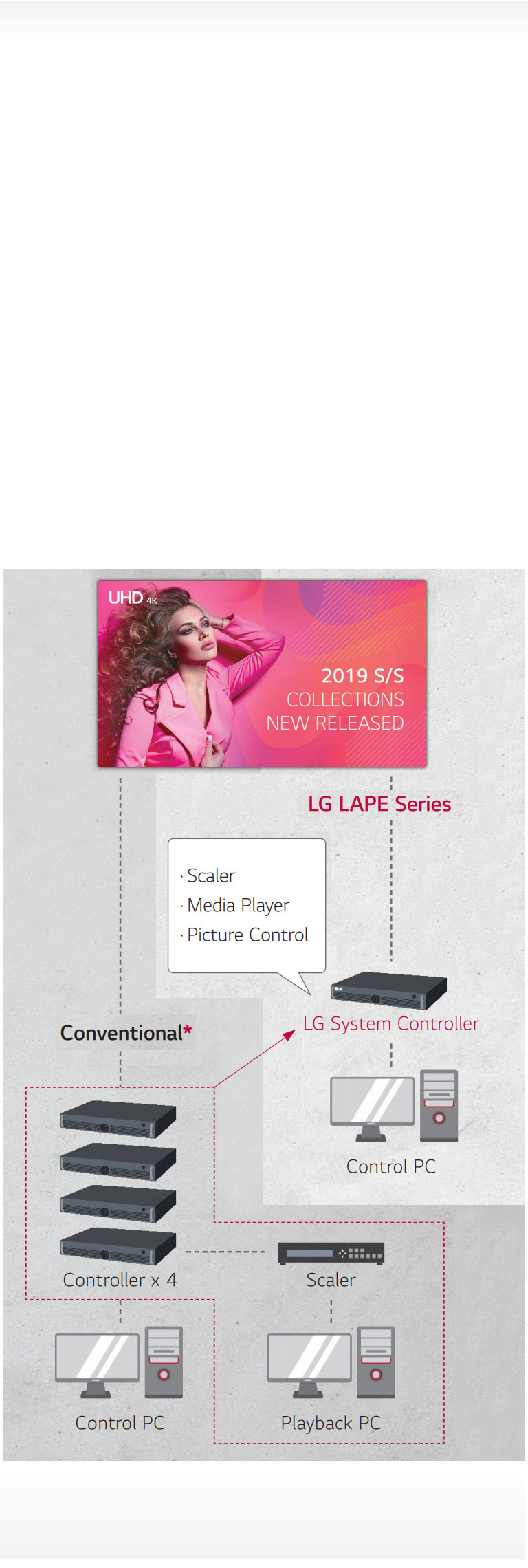

SMART HIGH PERFORMANCE SYSTEM CONTROLLER<br>1 SMART HIGH PERFORMANCE SYSTEM CONTROLLER<br>2

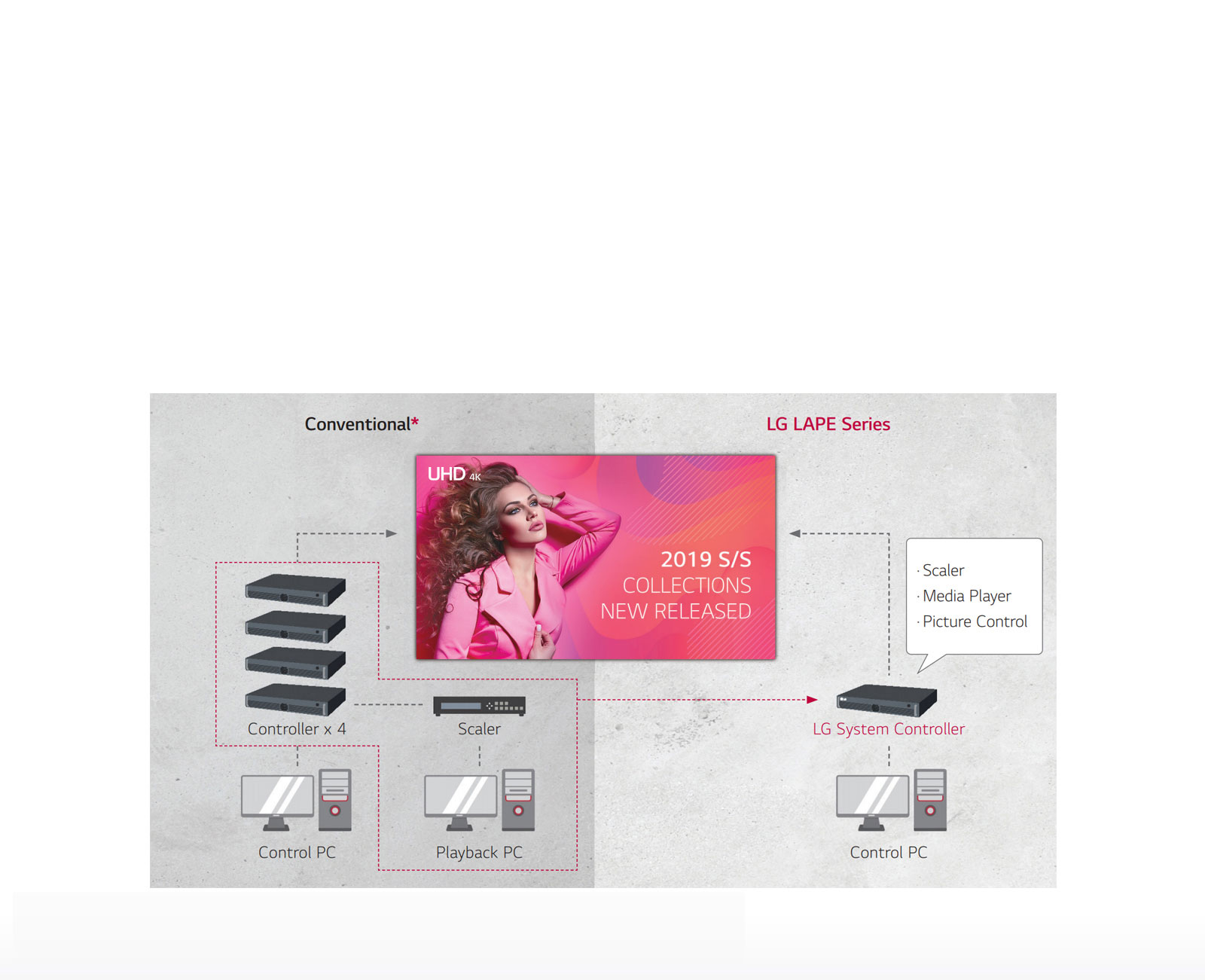

SMART HIGH PERFORMANCE SYSTEM CONTROLLER

The LAPE series comes with a versatile 4K system controller, providing simplified system configuration in a high-resolution canvas platform. The controller also has a built-in high performance media player as well as scaler.
*The "Conventional" shown above refers to LED displays that don't have an all-in-one system controller

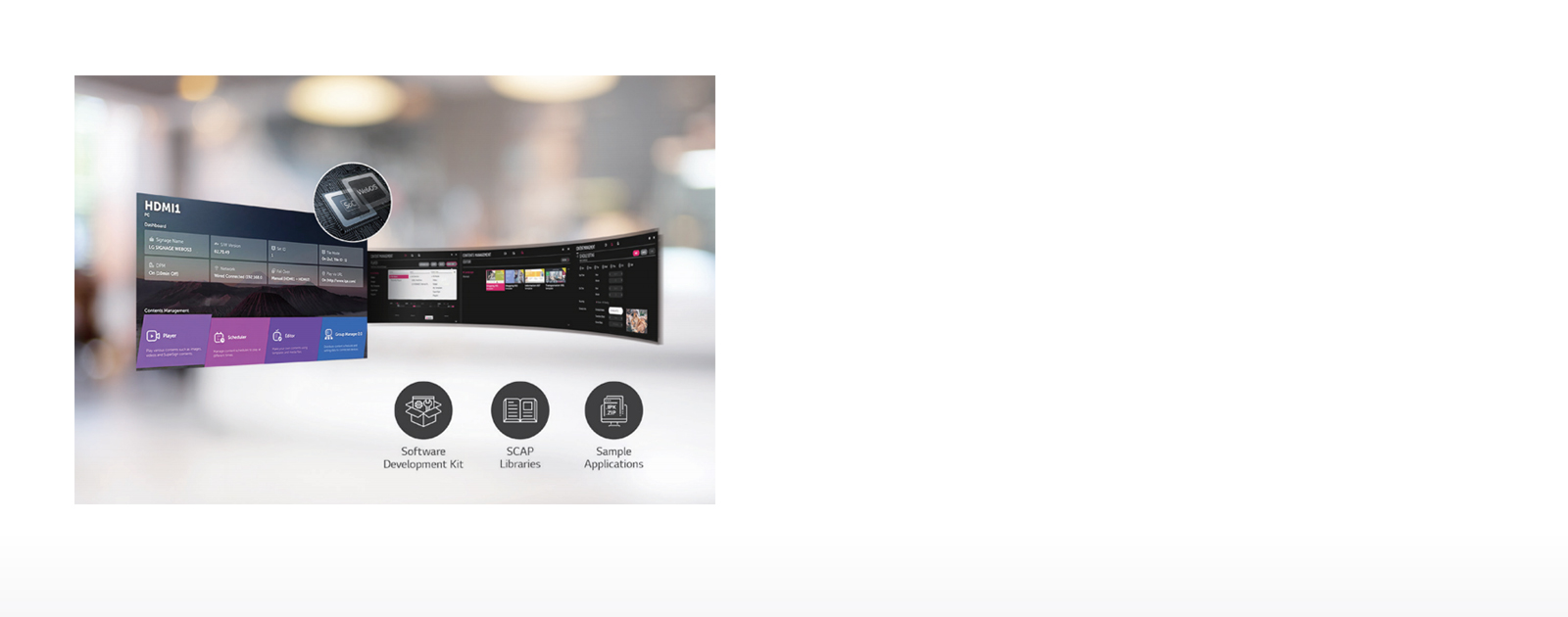

HIGH PERFORMANCE SoC with webOS<br>1 HIGH PERFORMANCE SoC with webOS<br>2

HIGH PERFORMANCE SoC with webOS

Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.

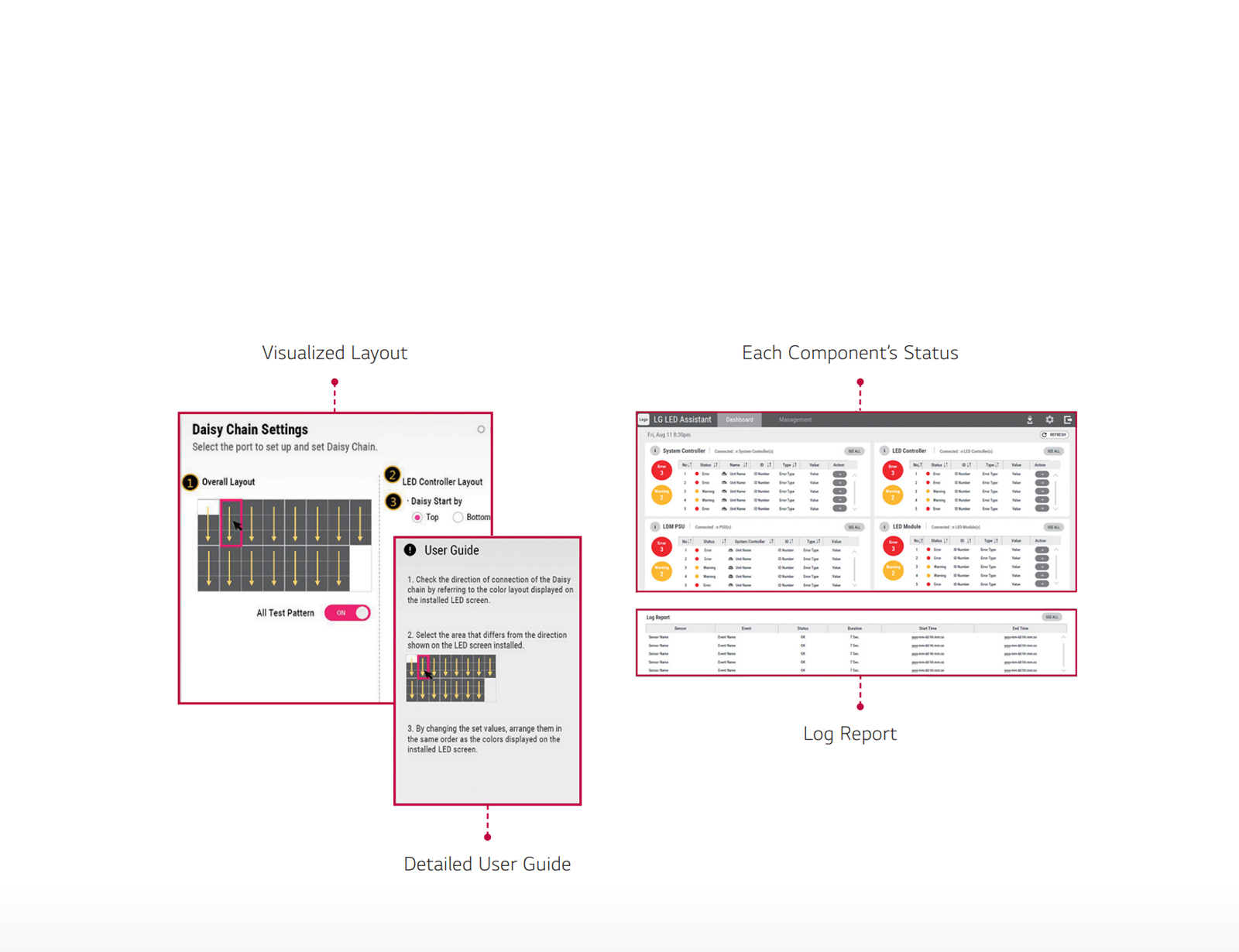

INTUITIVE MANAGEMENT SOFTWARE<br>1 INTUITIVE MANAGEMENT SOFTWARE<br>2

INTUITIVE MANAGEMENT SOFTWARE

LG's new management control software platform ‘LED Assistant' provides easy screen management.
REAL-TIME 365 CARE SERVICE<br>1 REAL-TIME 365 CARE SERVICE<br>2

REAL-TIME 365 CARE SERVICE

The maintenance gets easier and faster with an optional service Signage 365 Care*, a cloud service solution provided by LG service. It remotely manages status of LED displays in client workplaces for fault diagnosis and remote-control services.
* The availability of "Signage 365 Care" service can differ by region, so please contact the LG sales representative in your region for further details.
EASY TO HANDLE & INSTALL<br>1 EASY TO HANDLE & INSTALL<br>2

EASY TO HANDLE & INSTALL

Conventional large-sized and heavy cabinet-based installation often results in LED dot defects during installation. The LAPE series breaks free from conventional norms by introducing much smaller and light weight LDM(LED Display Module)-based installation, providing incomparable ease of handling.
EASY SCREEN ALIGNMENT1 EASY SCREEN ALIGNMENT2

EASY SCREEN ALIGNMENT

The unit frame of the LAPE series has been carefully designed for easy screen flatness alignment. Each LDM has 20 Z-axis alignment points for ultra-fine flatness alignment.
FRONT INSTALLATION & SERVICE<br>1 FRONT INSTALLATION & SERVICE<br>2

FRONT INSTALLATION & SERVICE

The LAPE series comes with front installation and front service access, freeing users from needing rear access space, as well as a sleek screen design for maximum space optimization
Close
PHYSICAL PARAMETERS
  • Pitch Name
    P2.0
    Pixel Configuration
    3 in 1 SMD
  • Pixel Pitch (mm)
    2.00
    Module Resolution (W x H)
    120 x 90
  • Module Dimensions (W x H, mm)
    240 x 180
    Weight per Module (kg)
    0.36
  • No. of Modules per Unit Case (W x H)
    2 x 3
    Unit Case Resolution (W x H)
    240 x 270
  • Unit Case Dimensions (W x H x D, mm)
    480 x 540 x 105
    Unit Case Surface Area (m²)
    0.259
  • Weight per Unit Case (kg/unit)
    10.1
    Weight per Square Meter (kg/m²)
    38.0
  • Physical Pixel Density (pixels/m²)
    250,000
    Flatness of Unit Case (mm)
    ±0.2
  • Unit Case material
    Die Casting Aluminum
    Service Access
    Front and Rear
OPTICAL PARAMETER
  • Min. Brightness (After Calibration)
    700 cd/m²
    Color Temperature
    3,200 ~ 9,300
  • Visual Viewing Angle (Horizontal)
    160
    Visual Viewing Angle (Vertical)
    140
  • Brightness Uniformity
    95%
    Color Uniformity
    ±0.015Cx, Cy
  • Contrast Ratio
    6,000
    Processing Depth (bit)
    16 (HDR10)
ELECTRICAL PARAMETER
  • Power Consumption (W/Unit, Max.)
    187
    Power Consumption (W/Unit, Avg.)
    52
  • Power Consumption (W/m², Max.)
    720
    Power Supply (V)
    100 to 240
  • Frame Rate (Hz)
    50 / 60
    Refresh Rate (Hz)
    3,840
OPERATION CONDITIONS
  • Lifetime (Duration of Half Brightness in Hours)
    100,000
    Operating Temperature (°C)
    0°C to + 40°C
  • Operating Humidity
    10-80% RH
CERTIFICATION
  • EMC
    FCC Class A / CE / KC
    Environment
    RoHS
CONTROLLER
  • Controller
    LCLG005-A
CONNECTIVITY
  • Video Inputs
    HDMI In, DP In, OPS In, USB
    Control
    RJ45 In, RS232C In/out
  • Special Features
    HDR10, Temperature Sensor, Power Detection
OPTIONAL ACCESSORY
  • Optional Accessory
    N/A
