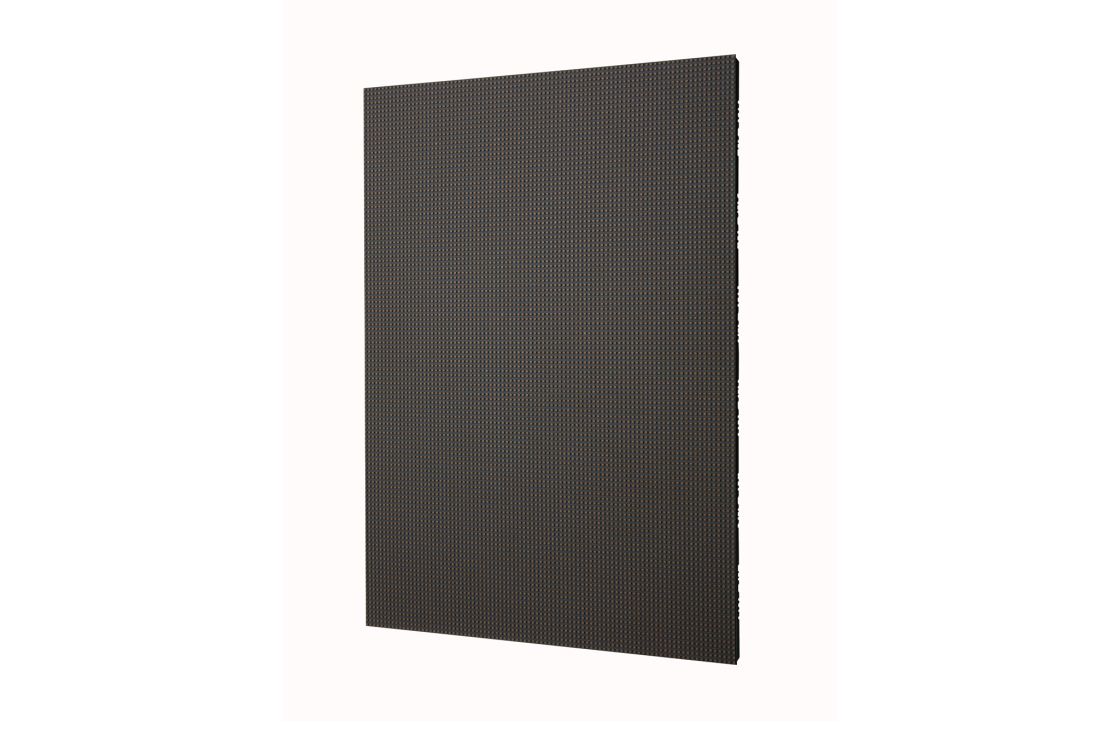

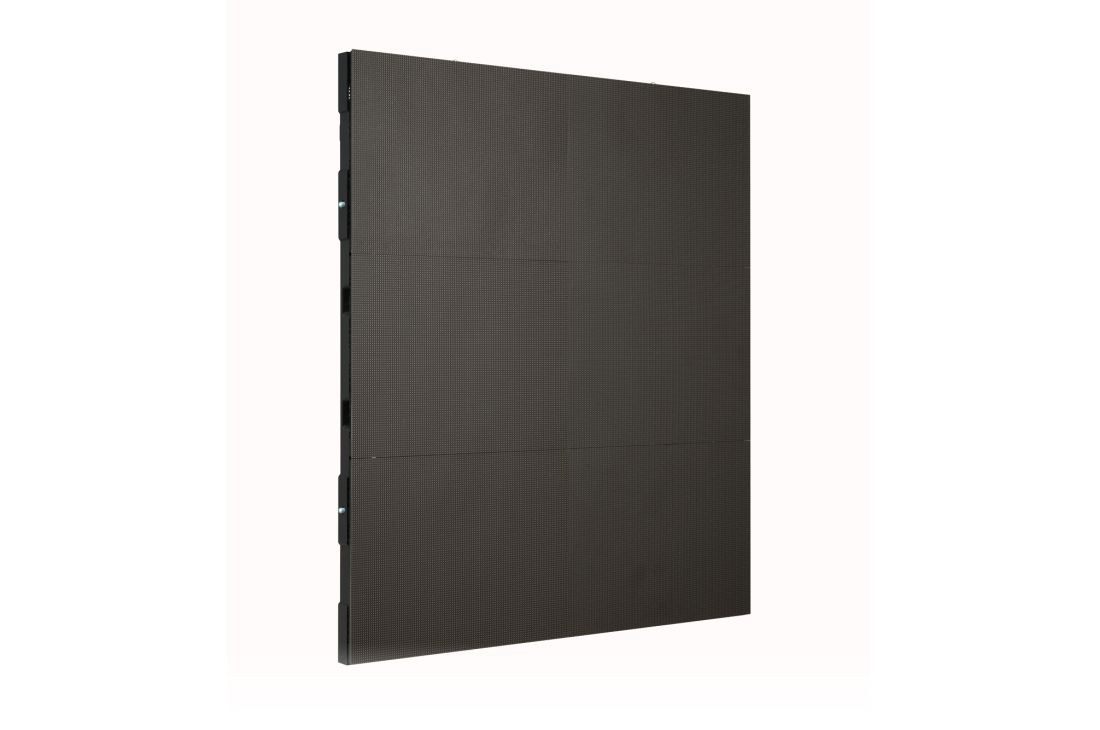

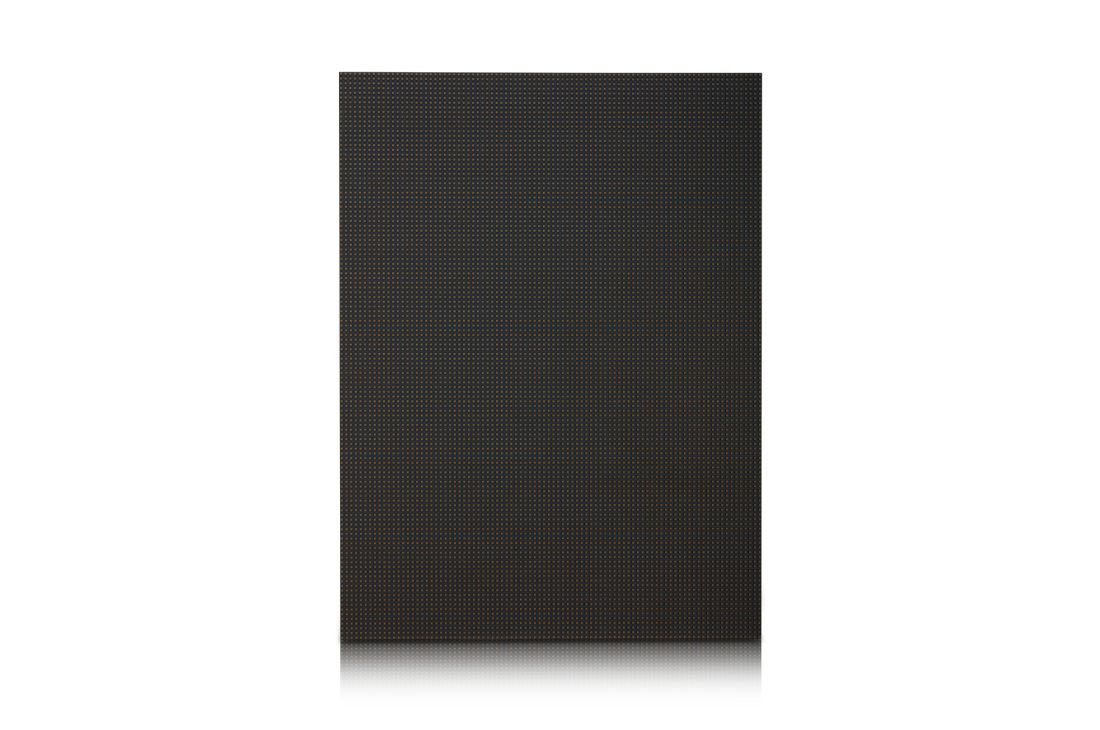

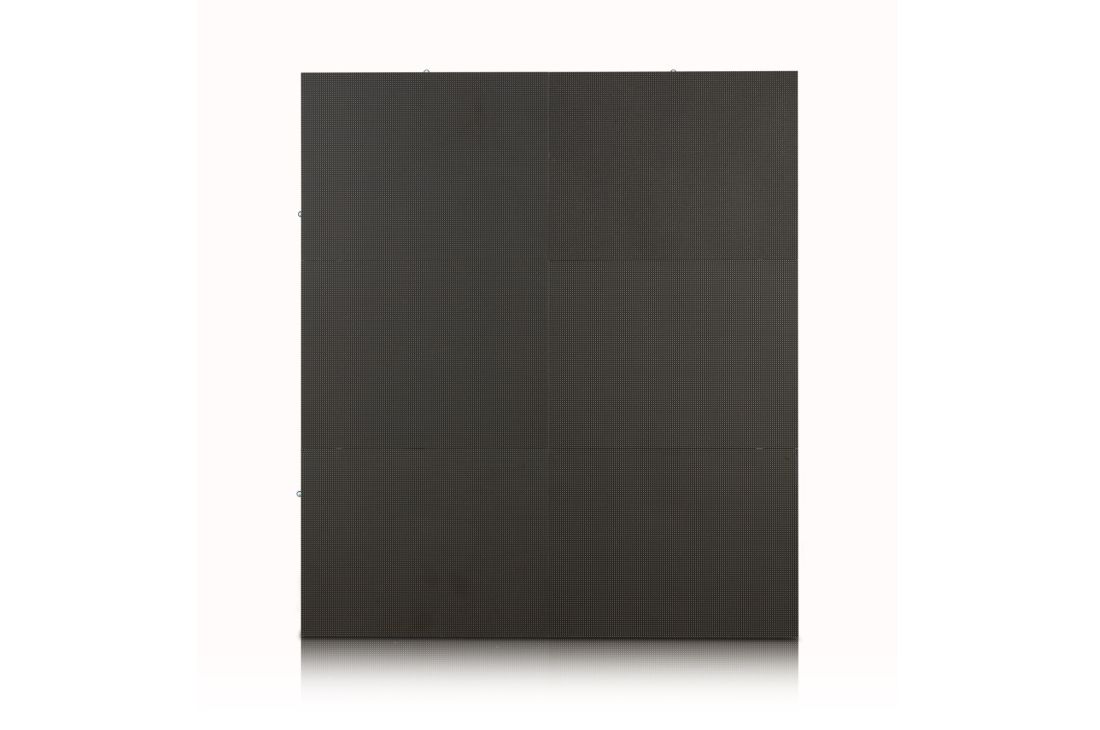

P2.5 700nit LG LED Curve Series for Indoor

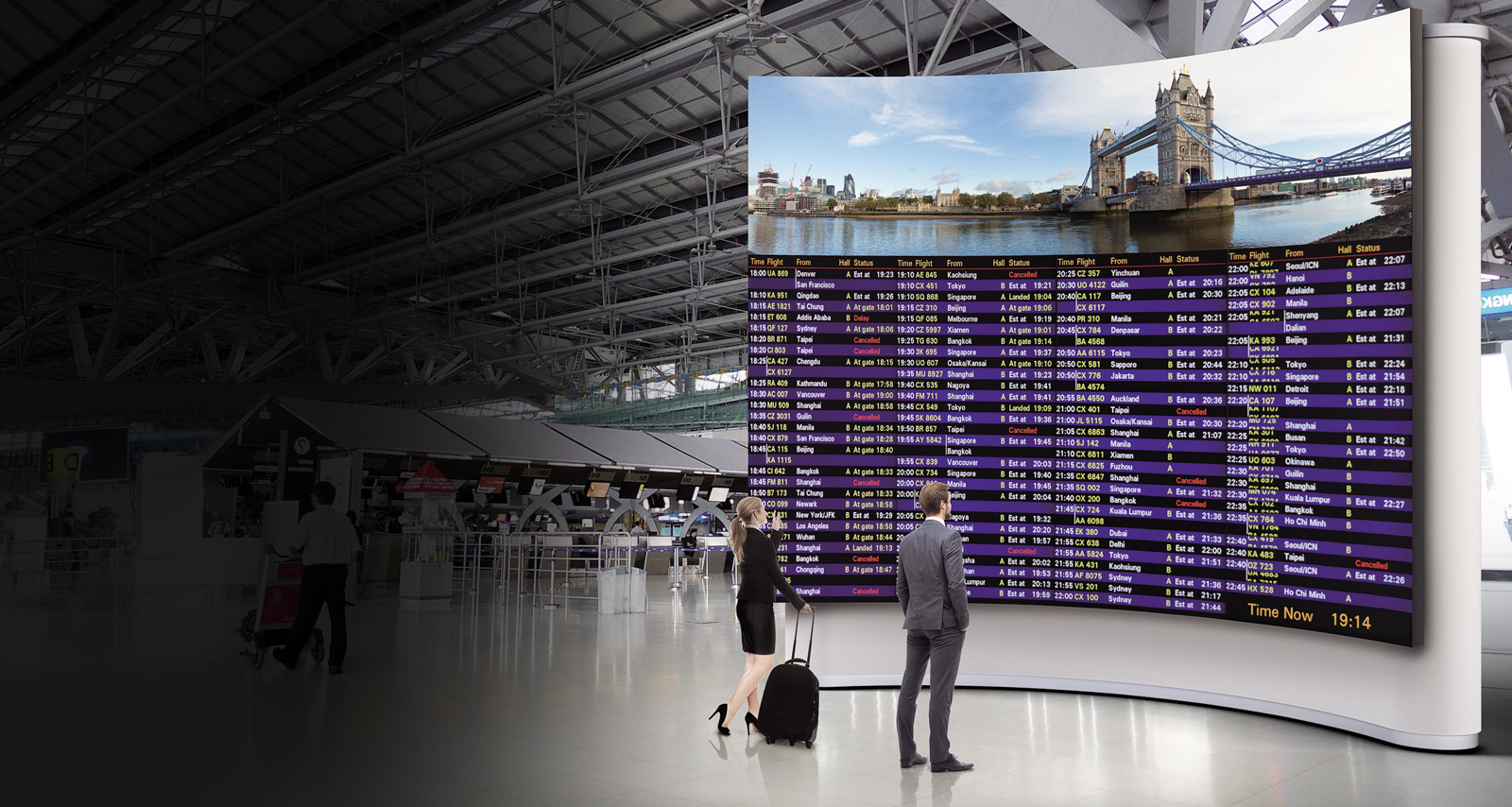

LG PREMIUM FINE-PITCH LED SIGNAGE1 LG PREMIUM FINE-PITCH LED SIGNAGE2

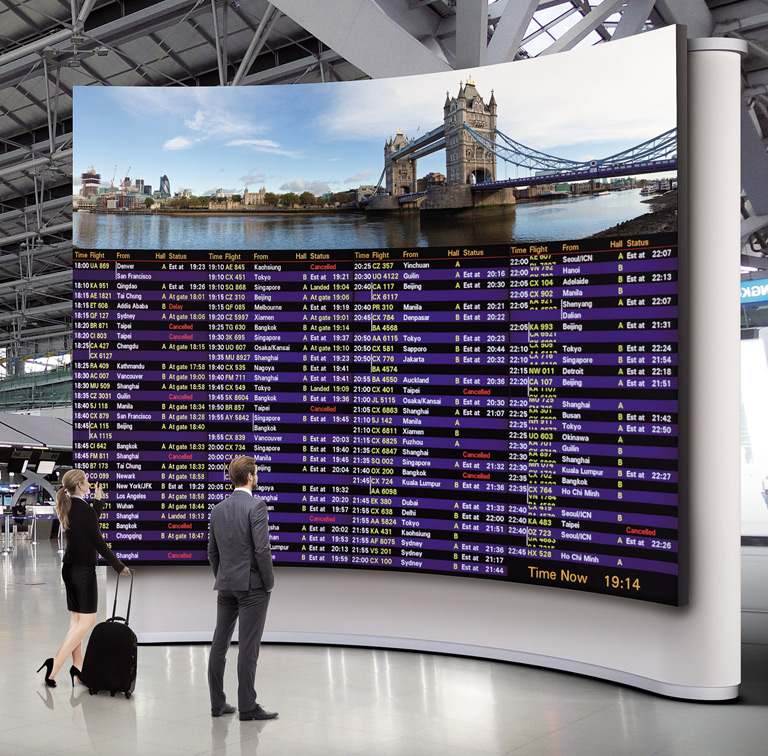

LG PREMIUM FINE-PITCH LED SIGNAGE

Boasting detailed color and super contrast, LG's LAPE series brings content to life through freedom of design, giving it outstanding presence as a work of media art.

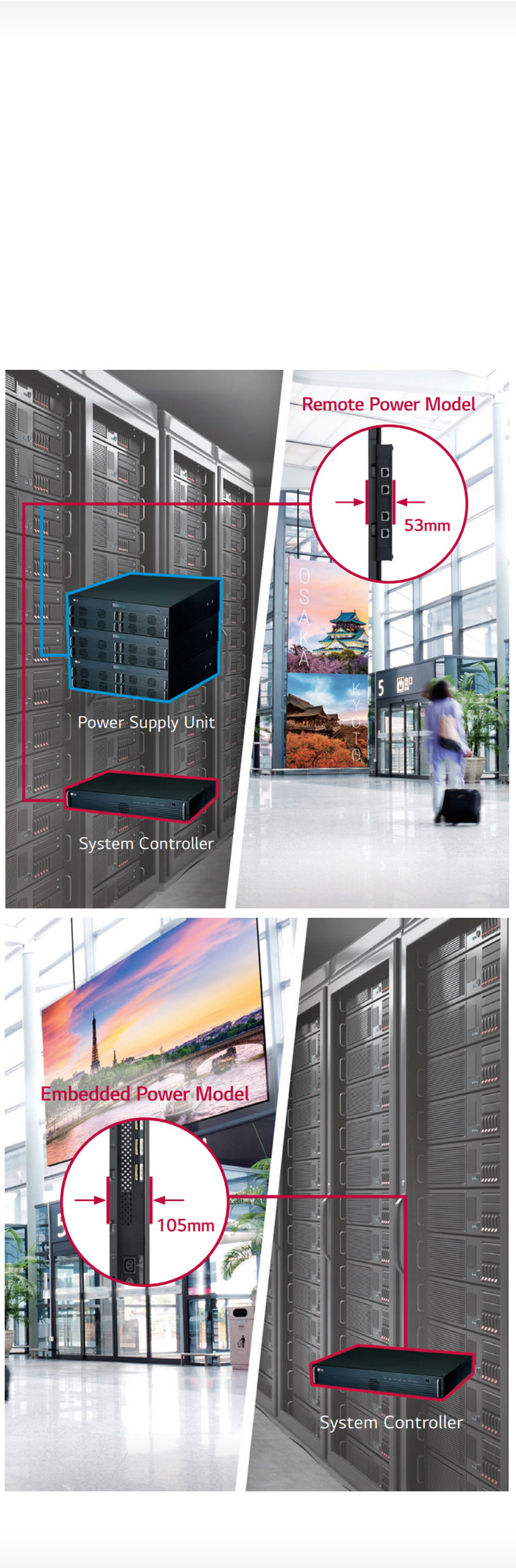

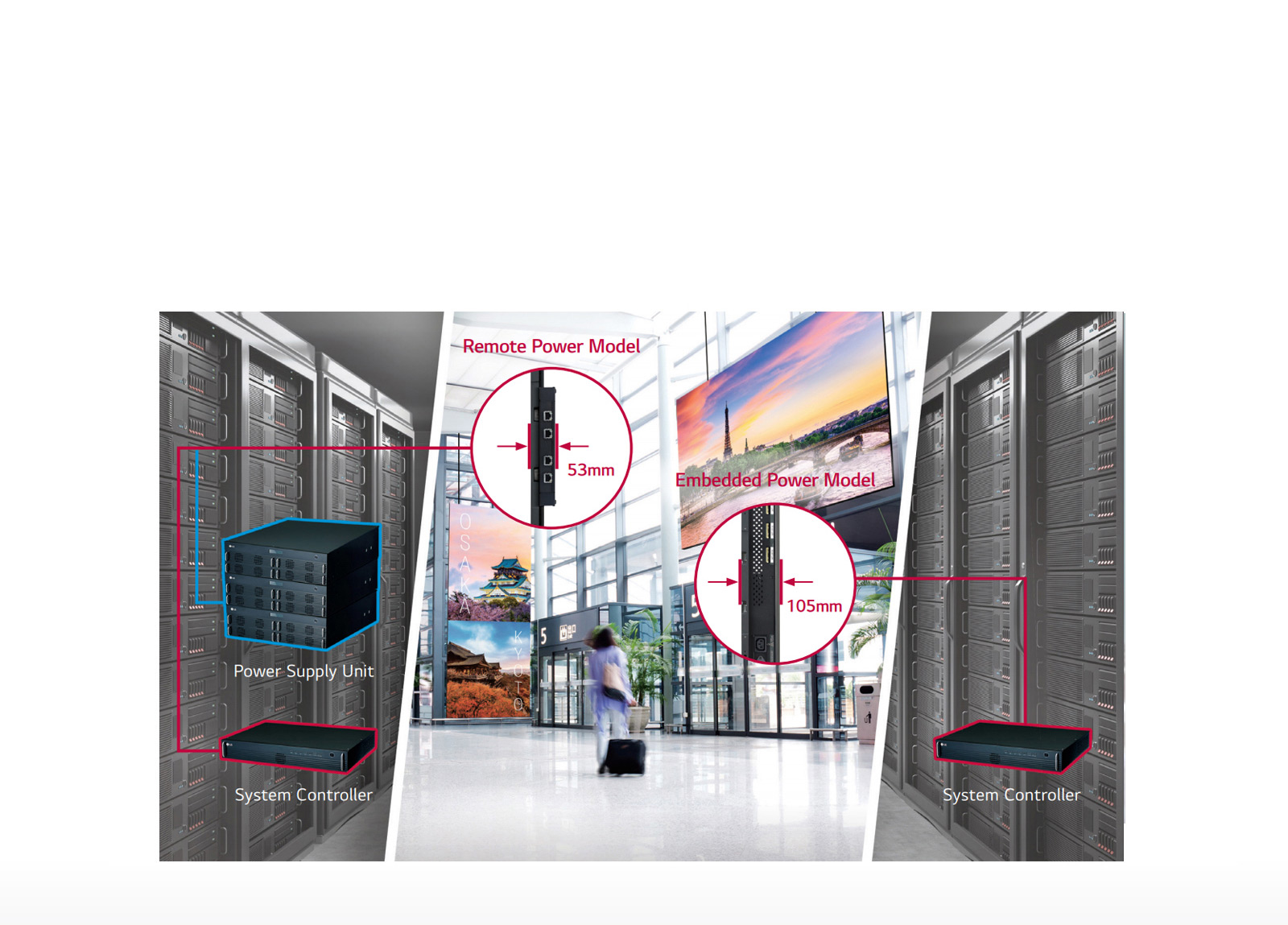

SELECTABLE TWO PRODUCT TYPES1 SELECTABLE TWO PRODUCT TYPES2

SELECTABLE TWO PRODUCT TYPES

The LAPE Series comes in 2 product types which differ in the way the power is installed. Each has their own distinctive benefits, so customers can choose between two types based on installation environment.

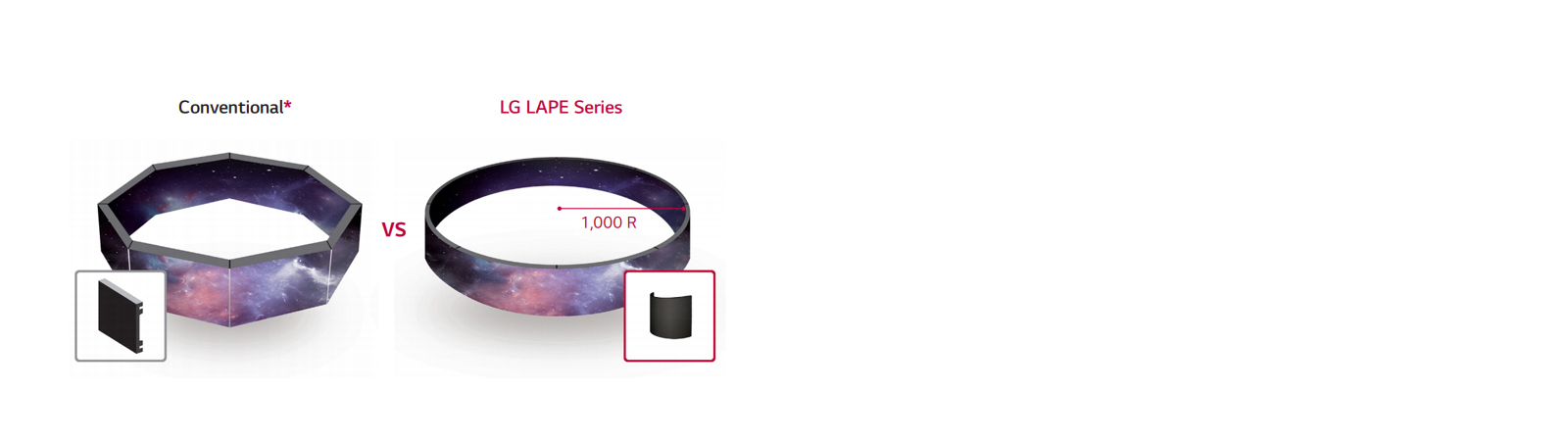

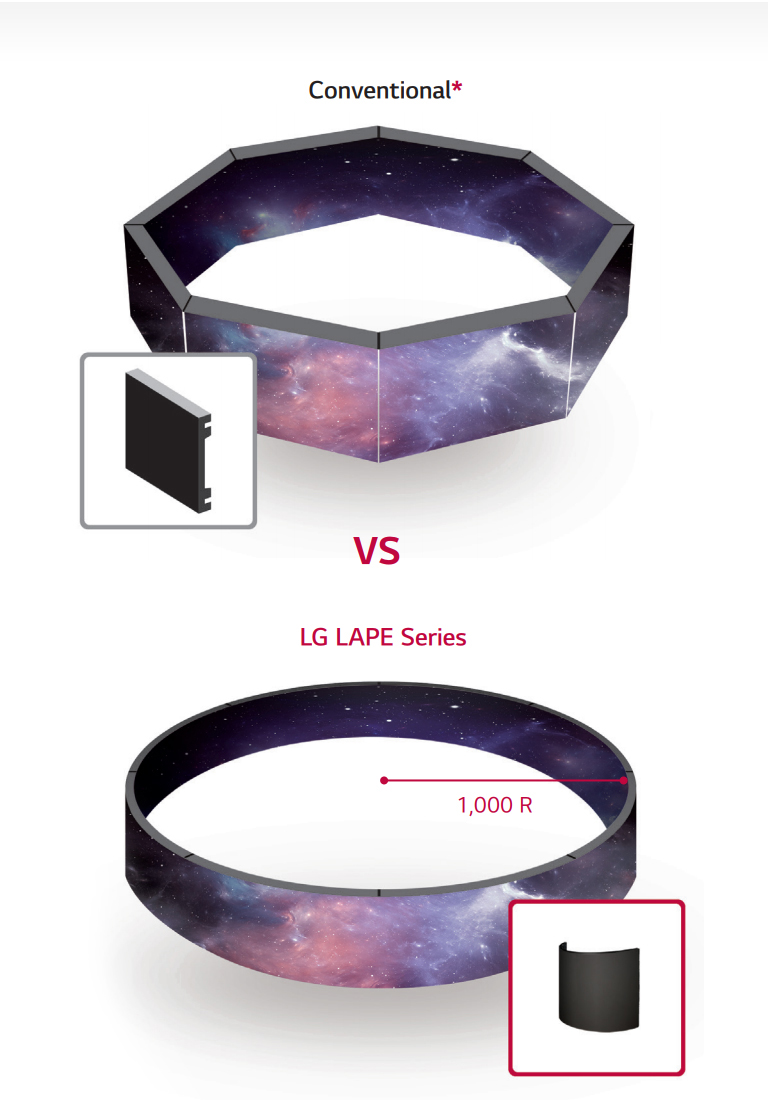

FLEXIBLE LDM1 FLEXIBLE LDM2

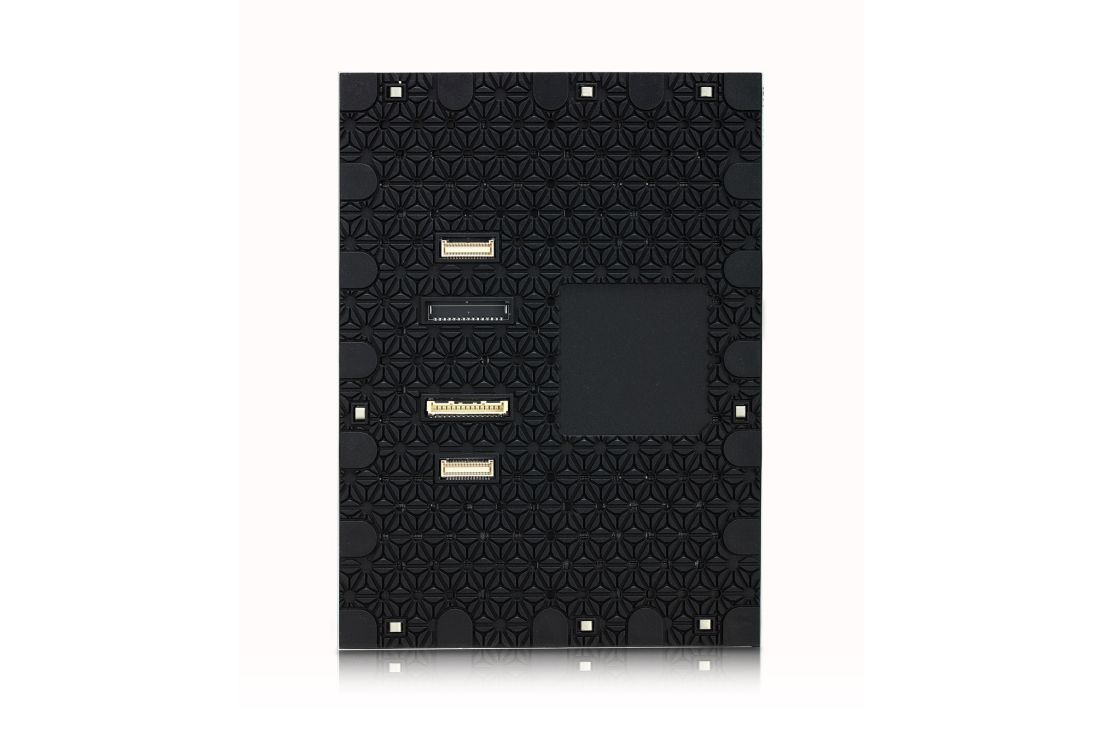

FLEXIBLE LDM

With a specially designed flexible LDM(LED Display Module), the LAPE series supports true concave and convex curvature up to 1,000R. This greatly amplifies design flexibility, providing users with the ability to create true curved screens.
* The "Conventional" shown above refers to an LED screen composed of flat LED unit cases.
REALISM THROUGH LIFELIKE COLORS1 REALISM THROUGH LIFELIKE COLORS2

REALISM THROUGH LIFELIKE COLORS

The LAPE series delivers vivid and distinctive picture quality through a wide range of color details with deep contrast thanks to LG's exclusive ‘Dynamic Contrast Algorithm'.

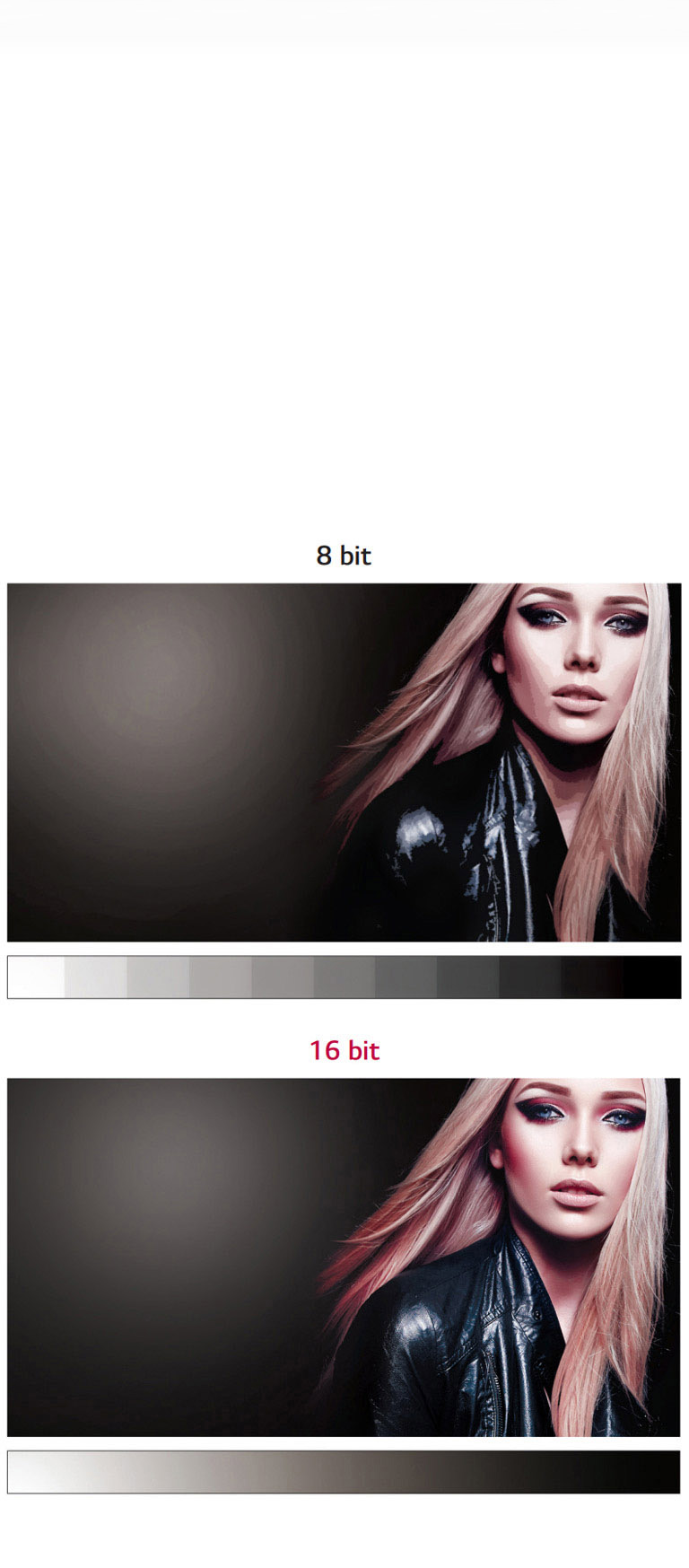

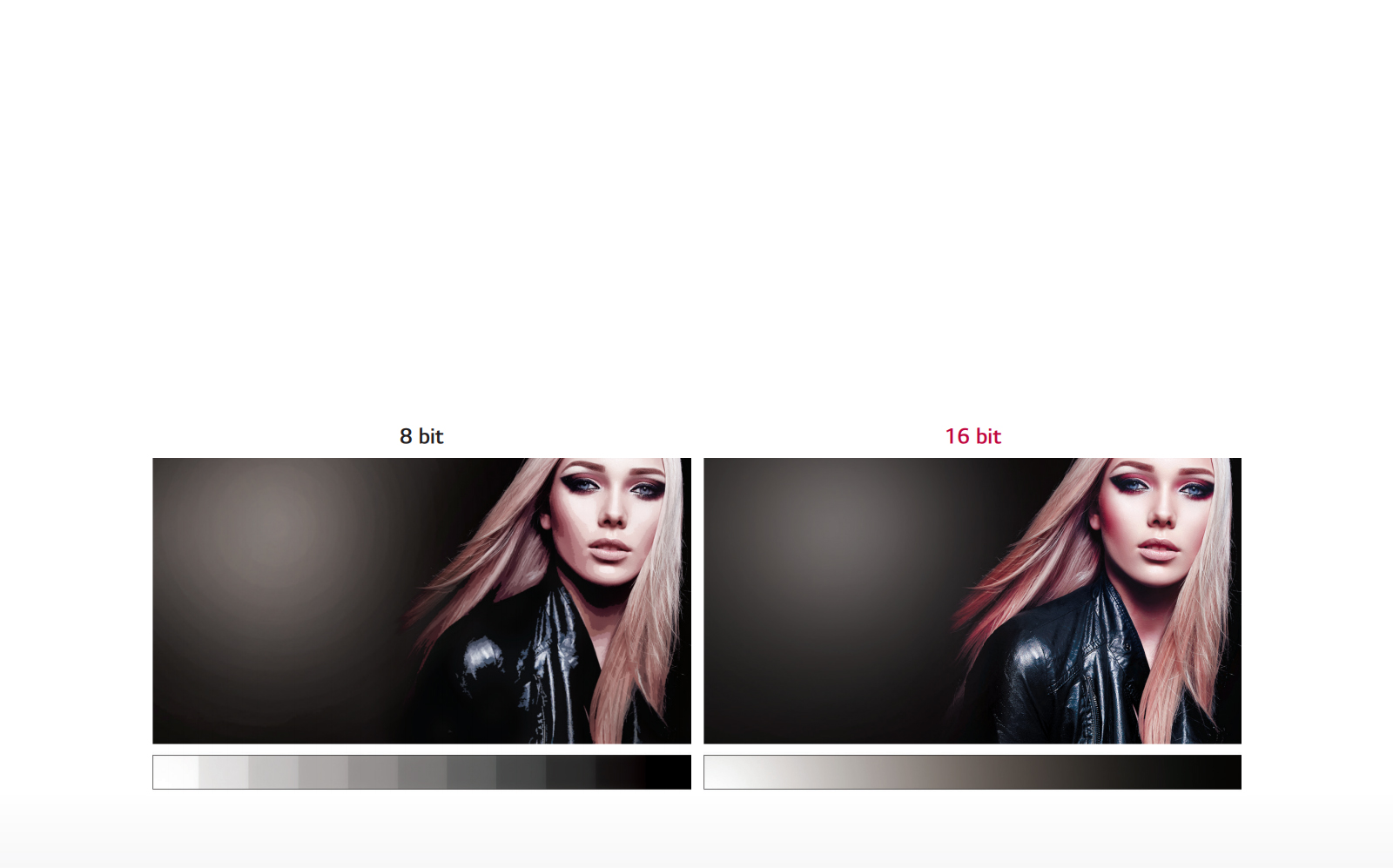

DETAILED EXPRESSION OF COLOR DEPTH1 DETAILED EXPRESSION OF COLOR DEPTH2

DETAILED EXPRESSION OF COLOR DEPTH

16-bit color processing provides a higher greyscale level, which seamlessly displays different depths and densities of colors without distortion, thereby giving a more realistic and sophisticated content.

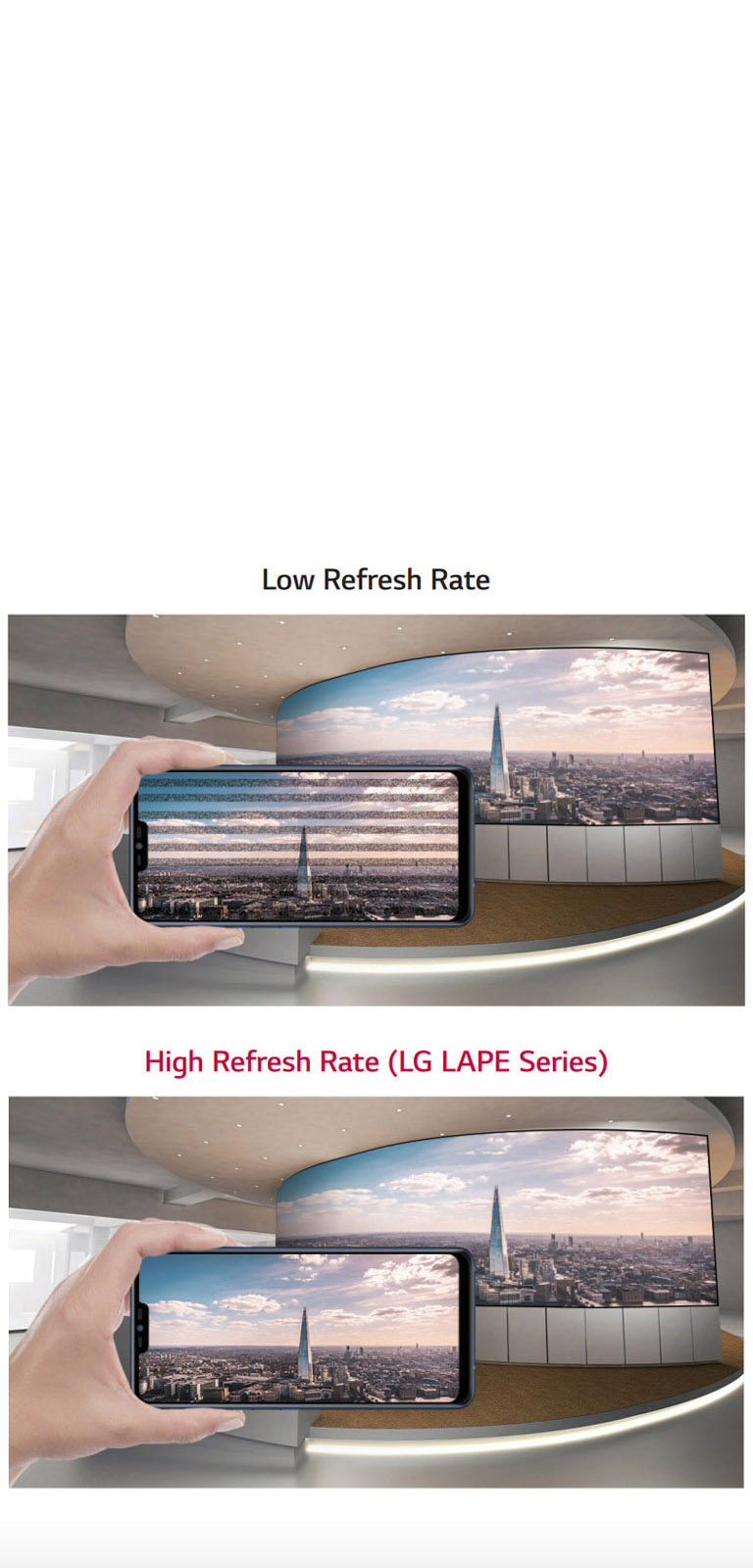

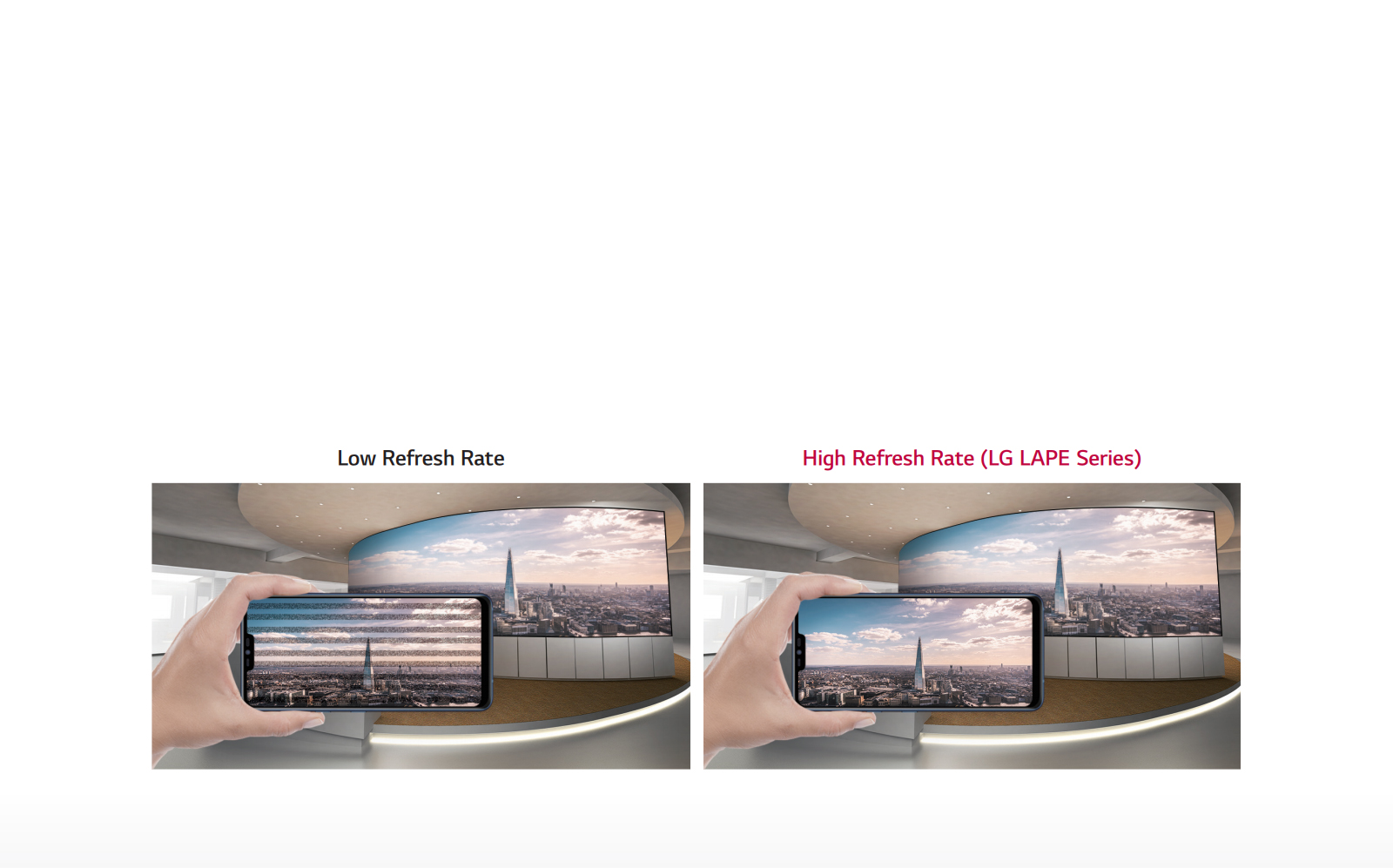

SMOOTH PLAYBACK IN DYNAMIC MOTION1 SMOOTH PLAYBACK IN DYNAMIC MOTION2

SMOOTH PLAYBACK IN DYNAMIC MOTION

Powered by LG's display technology, a high refresh rate of 3,840Hz assures the smooth playback of content. The flicker-free image prevents the black bars that occur from video shooting, as well as eye strain and blurred vision in viewers.

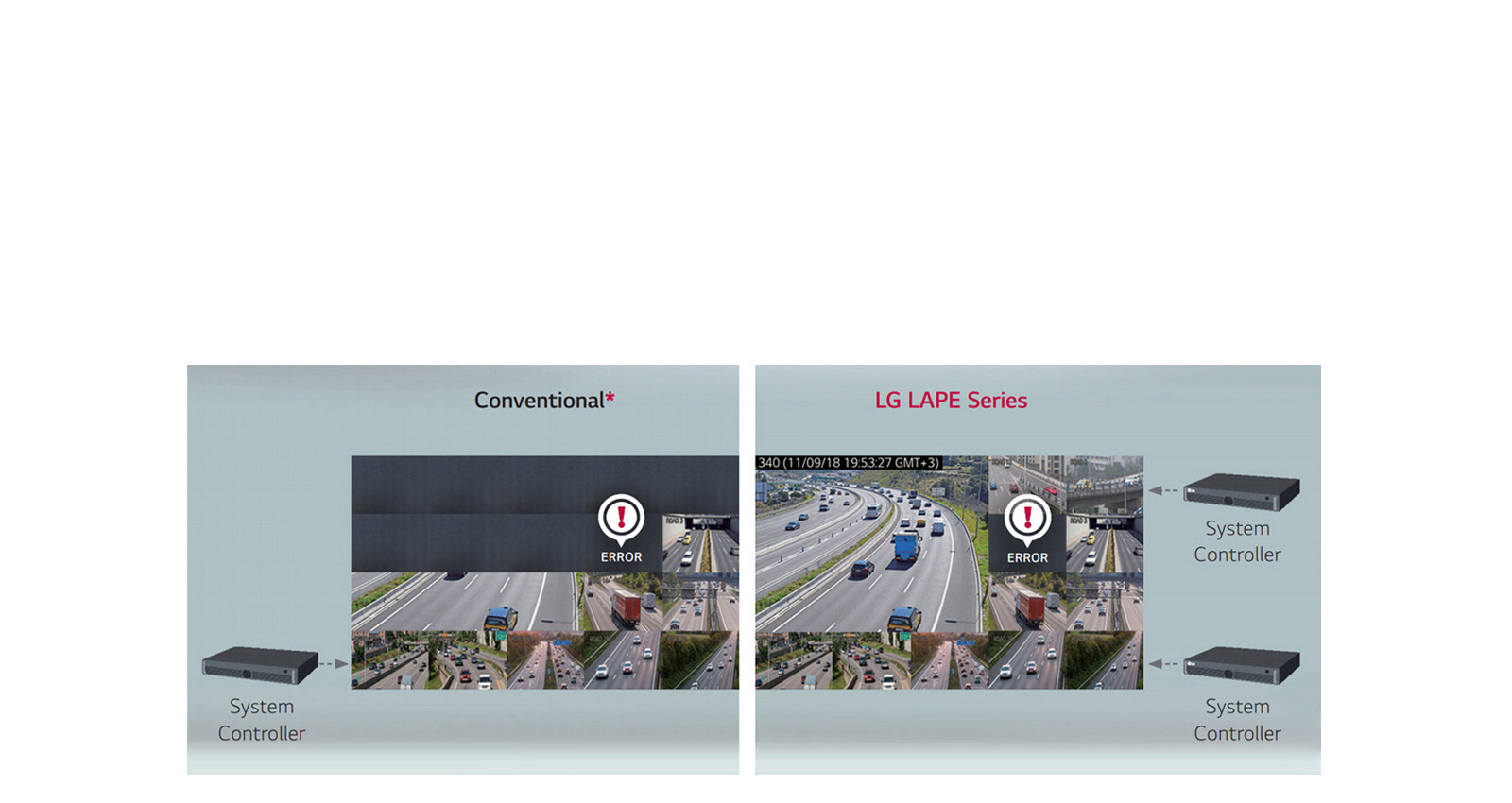

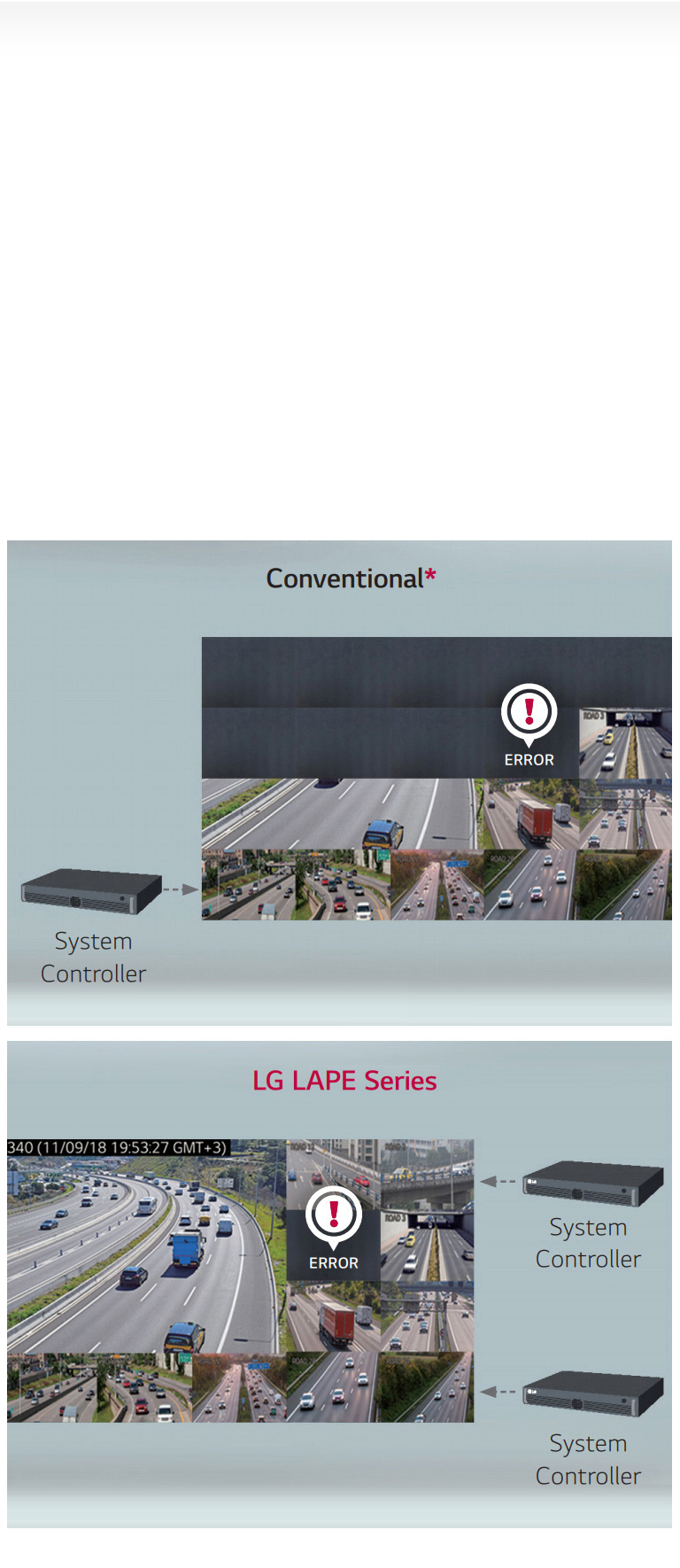

POWER/SIGNAL REDUNDANCY SUPPORT1 POWER/SIGNAL REDUNDANCY SUPPORT2

POWER/SIGNAL REDUNDANCY SUPPORT

The LAPE series is designed to support signal redundancy (optional), providing users with peace of mind.
*The "Conventional" shown above refers to LED displays which do not support the power/signal redundancy mode.
PRECISE FHD/UHD SCEEN CONFIGURATION1 PRECISE FHD/UHD SCEEN CONFIGURATION2

PRECISE FHD/UHD SCEEN CONFIGURATION

It has often been difficult to configure a perfect FHD/UHD resolution screen prohibiting native resolution image display. With the LAPE series, this is possible for all model options.

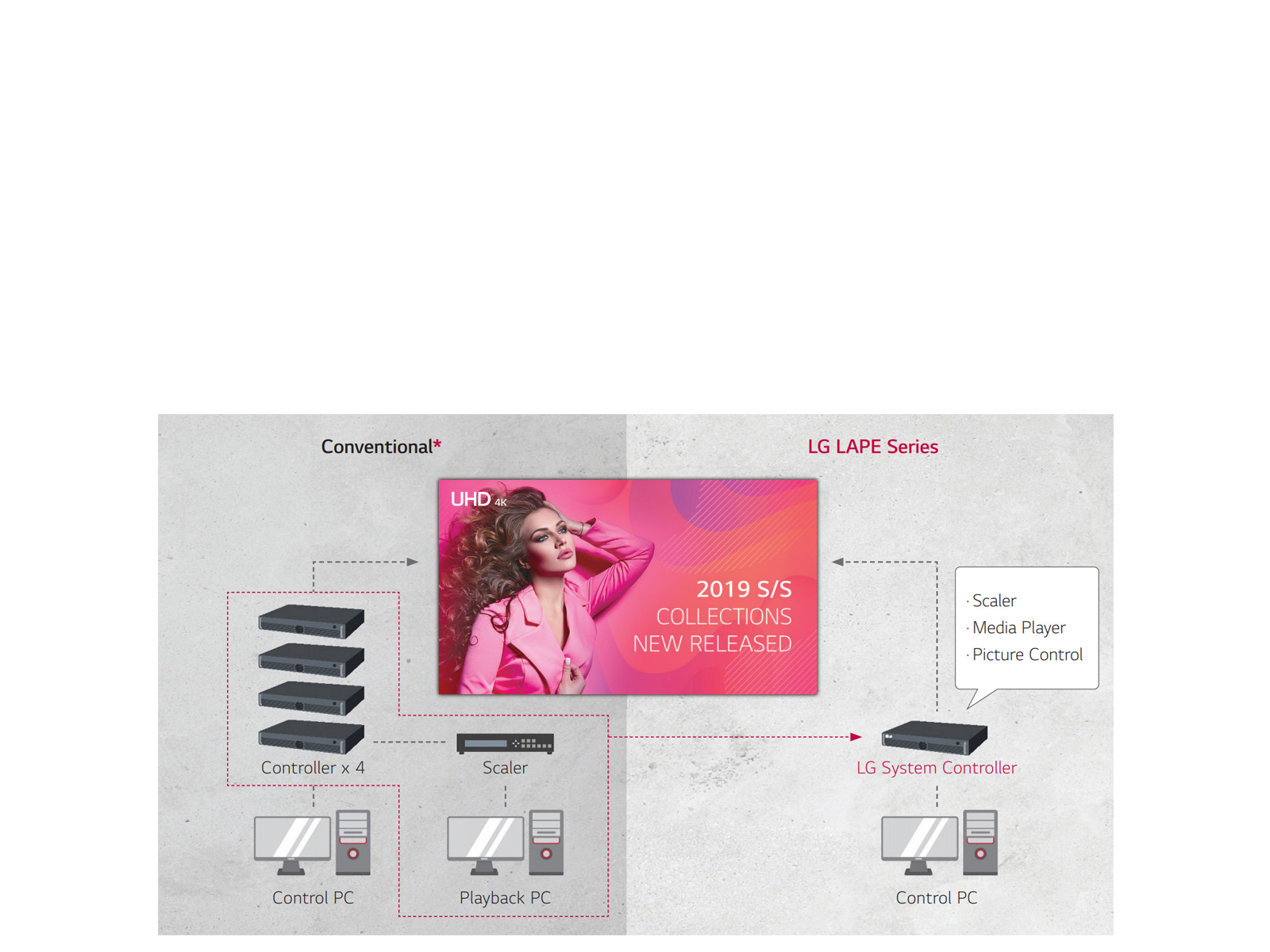

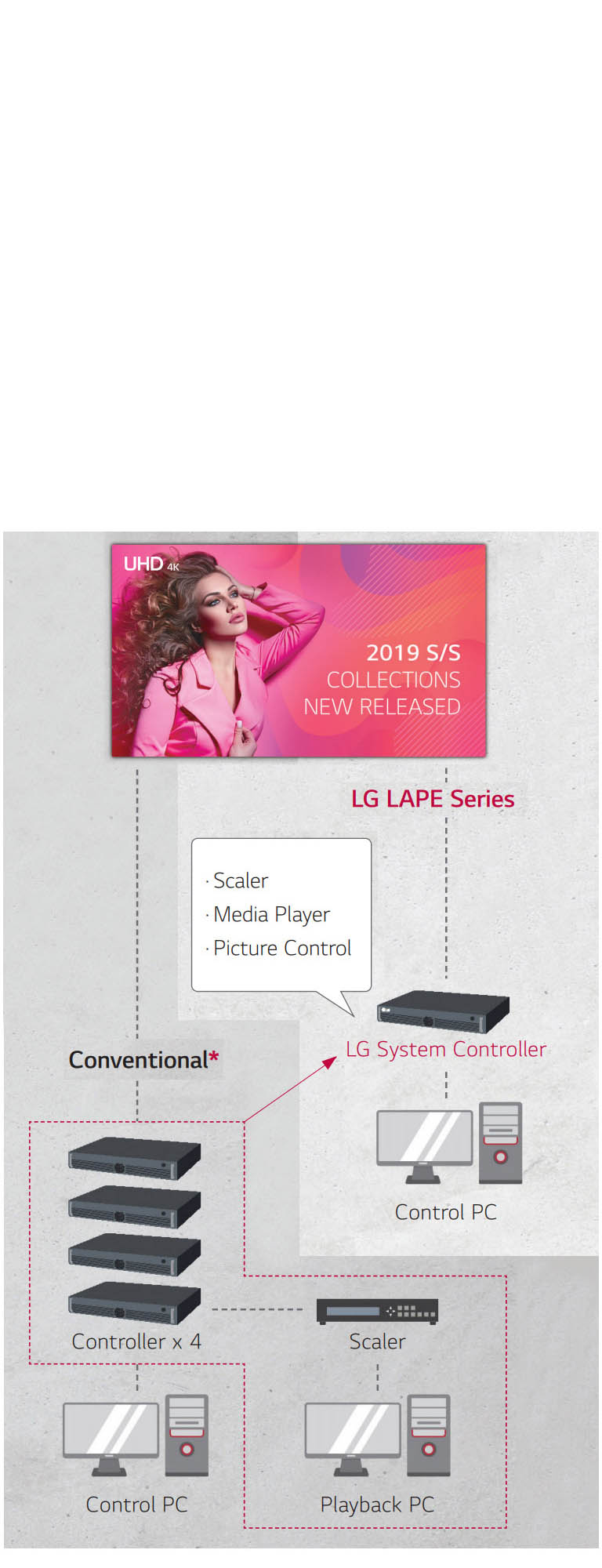

SMART HIGH PERFORMANCE SYSTEM CONTROLLER1 SMART HIGH PERFORMANCE SYSTEM CONTROLLER2

SMART HIGH PERFORMANCE SYSTEM CONTROLLER

The LAPE series comes with a versatile 4K system controller, providing simplified system configuration in a high-resolution canvas platform. The controller also has a built-in high performance media player as well as scaler.
*The "Conventional" shown above refers to LED displays that don't have an all-in-one system controller

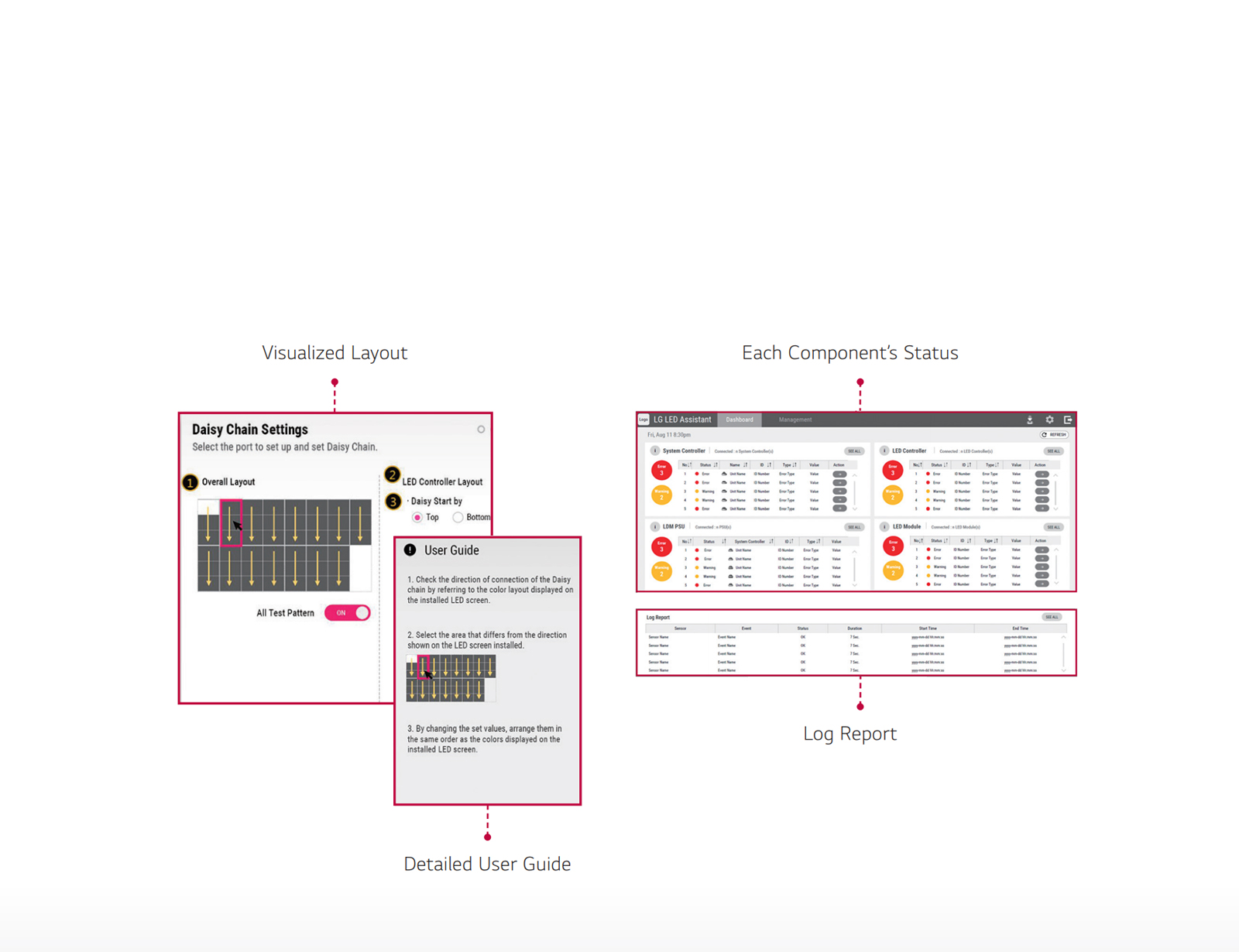

INTUITIVE MANAGEMENT SOFTWARE1 INTUITIVE MANAGEMENT SOFTWARE2

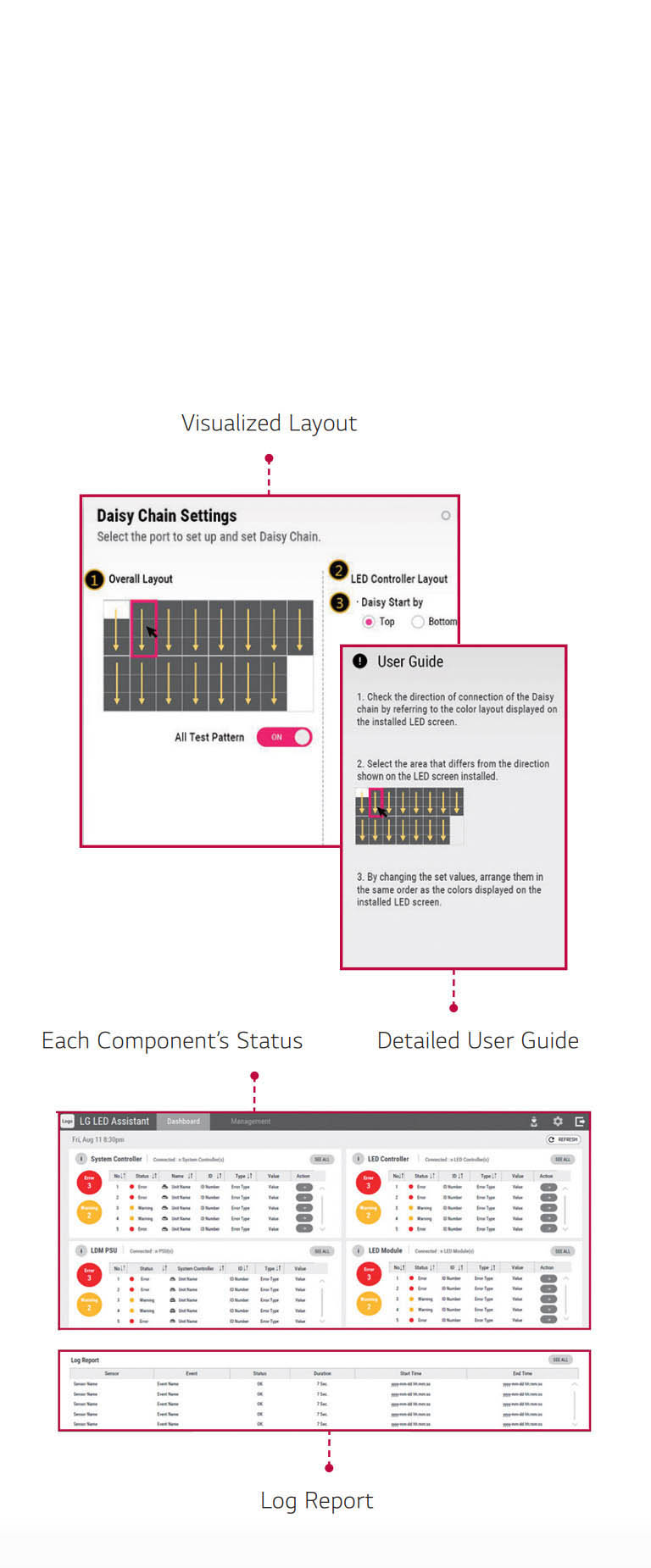

INTUITIVE MANAGEMENT SOFTWARE

LG's new management control software platform ‘LED Assistant' provides easy screen management.

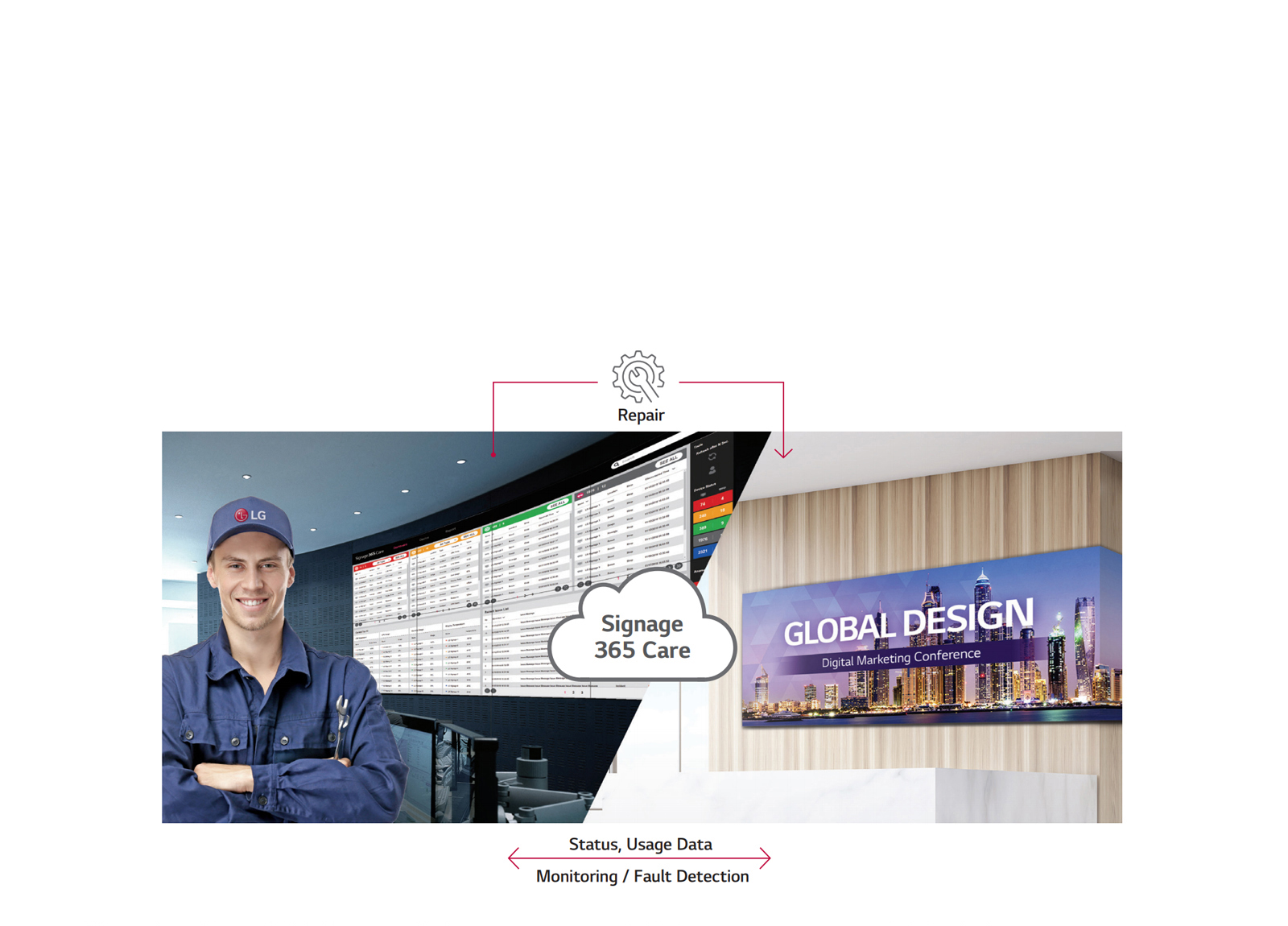

REAL-TIME 365 CARE SERVICE1 REAL-TIME 365 CARE SERVICE2

REAL-TIME 365 CARE SERVICE

The maintenance gets easier and faster with an optional service Signage 365 Care*, a cloud service solution provided by LG service. It remotely manages status of LED displays in client workplaces for fault diagnosis and remote-control services.
*The availability of "Signage 365 Care" service can differ by region, so please contact the LG sales representative in your region for further details.
EASY TO HANDLE & INSTALL1 EASY TO HANDLE & INSTALL2

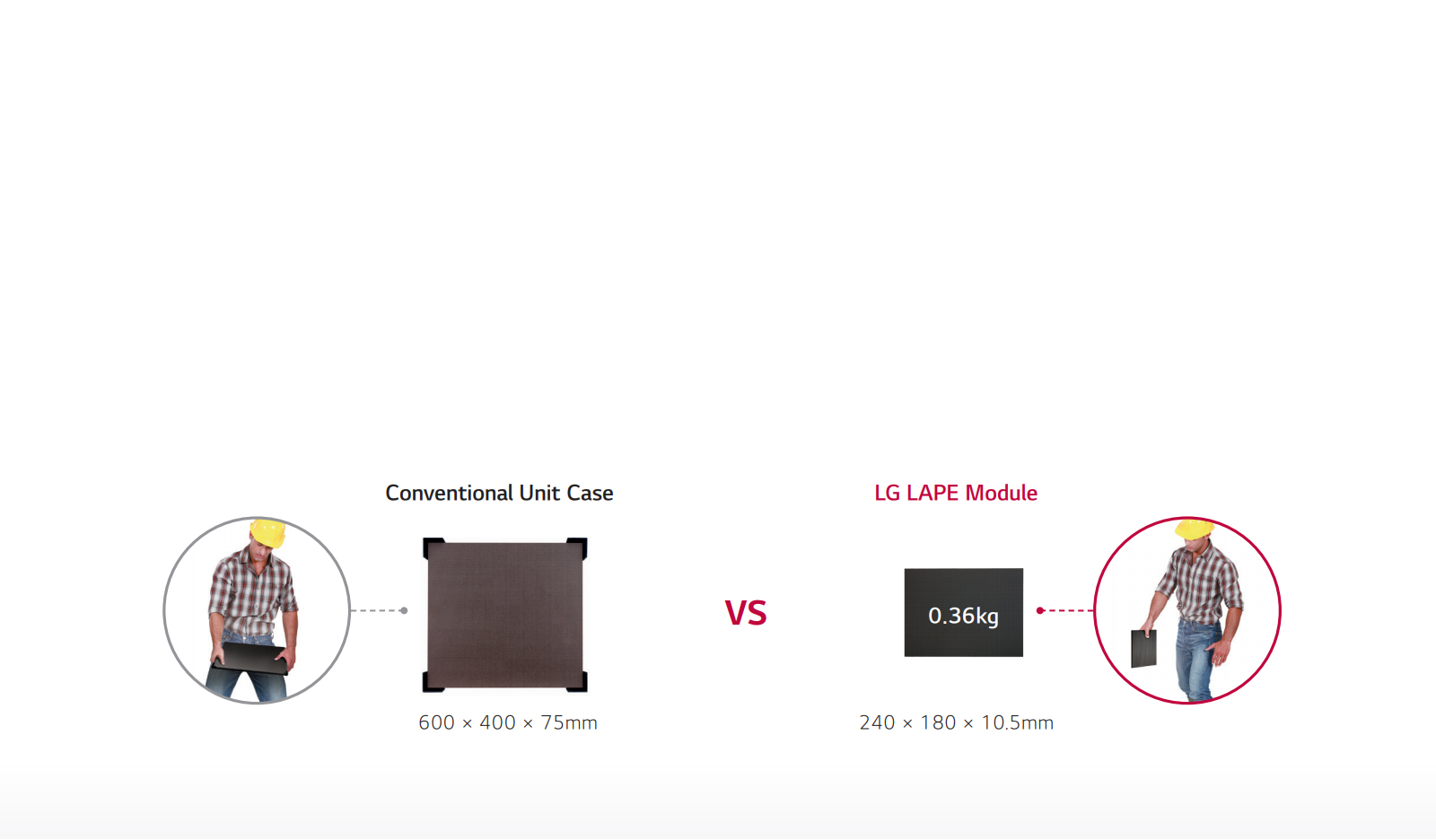

EASY TO HANDLE & INSTALL

Conventional large-sized and heavy cabinet-based installation often results in LED dot defects during installation. The LAPE series breaks free from conventional norms by introducing much smaller and light weight LDM(LED Display Module)-based installation, providing incomparable ease of handling.

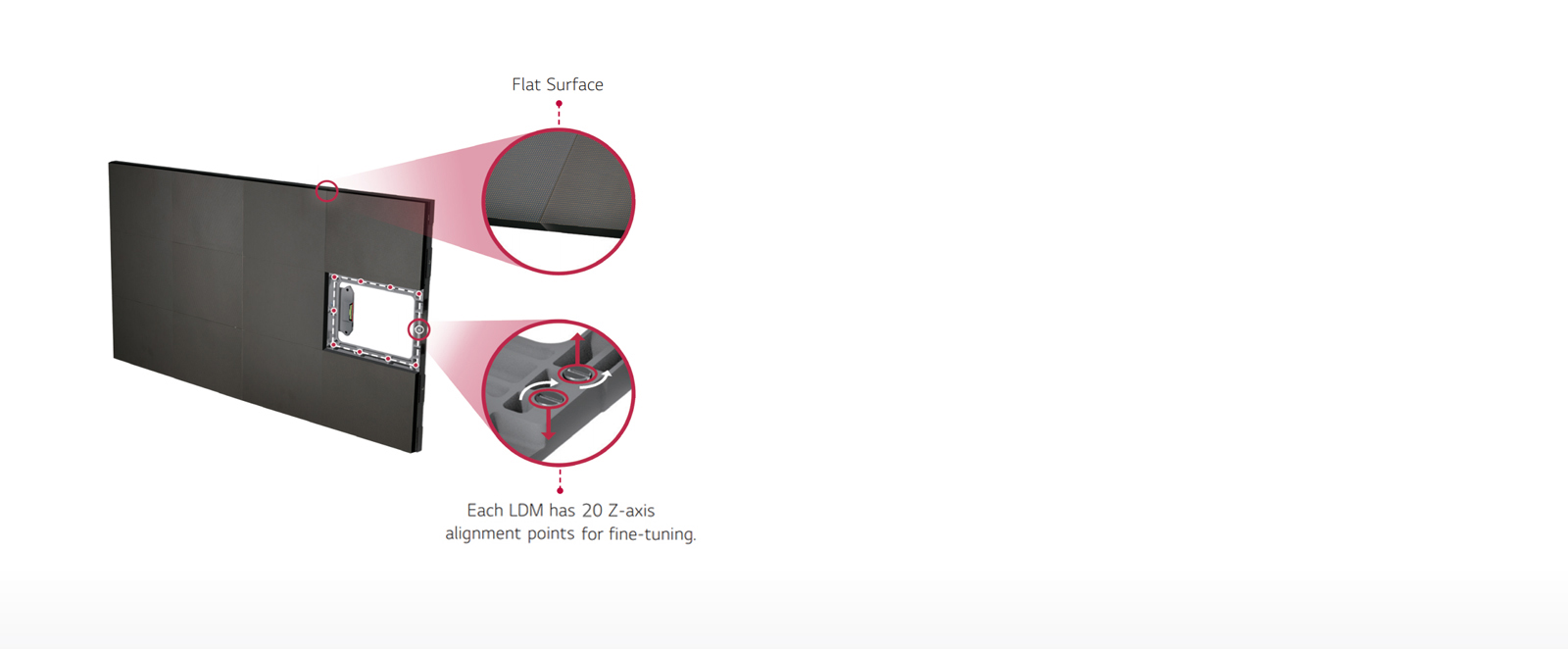

EASY SCREEN ALIGNMENT1 EASY SCREEN ALIGNMENT2

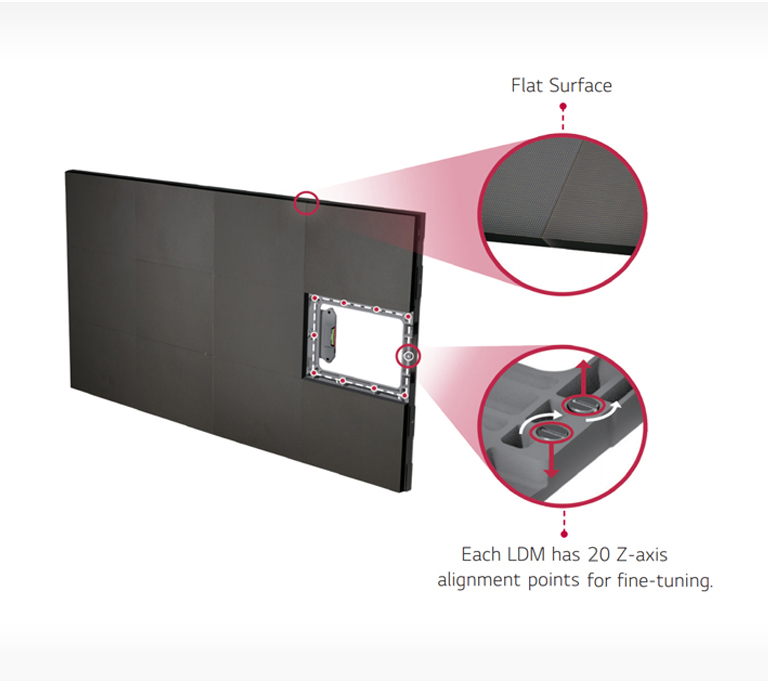

EASY SCREEN ALIGNMENT

The unit frame of the LAPE series has been carefully designed for easy screen flatness alignment. Each LDM has 20 Z-axis alignment points for ultra-fine flatness alignment.

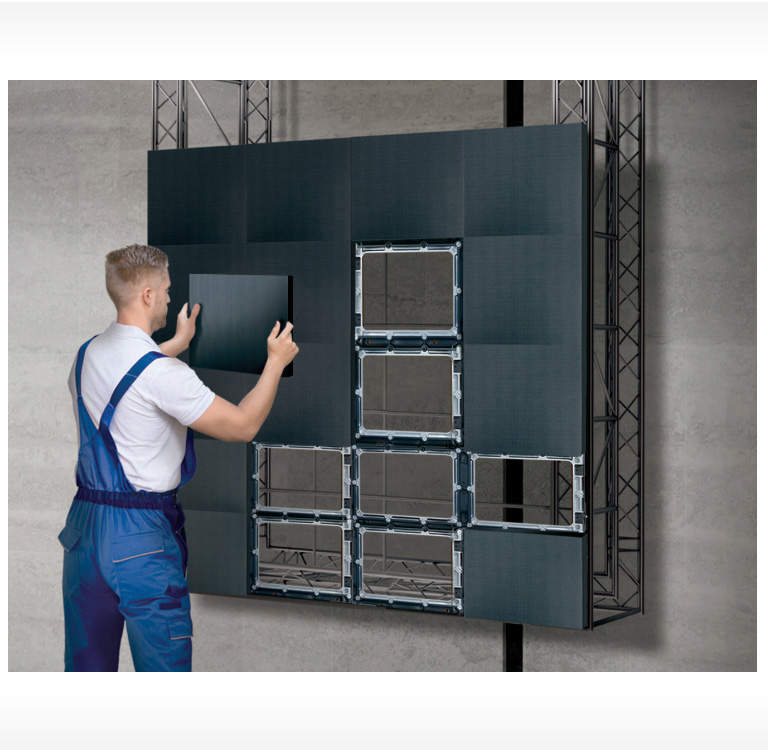

FRONT INSTALLATION & SERVICE1 FRONT INSTALLATION & SERVICE2

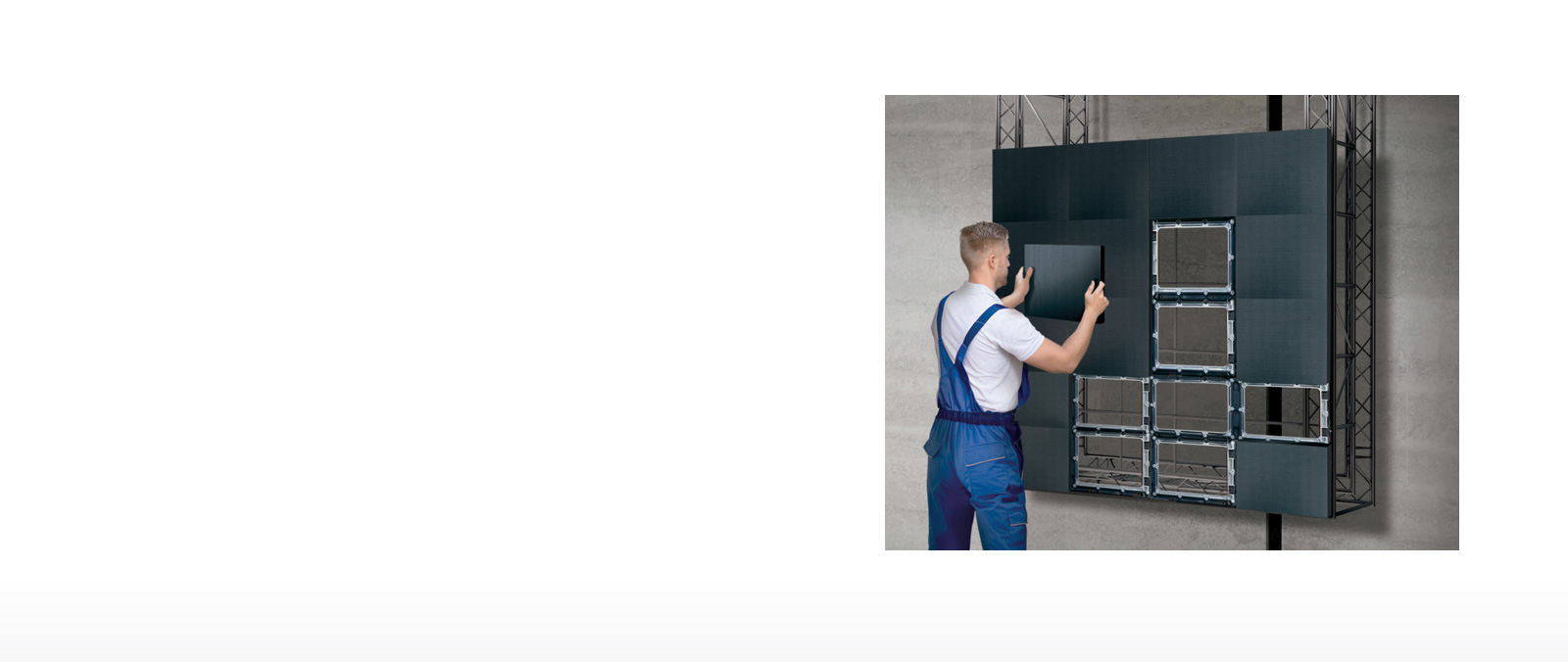

FRONT INSTALLATION & SERVICE

The LAPE series comes with front installation and front service access, freeing users from needing rear access space, as well as a sleek screen design for maximum space optimization
Close
PHYSICAL PARAMETER
  • Pixel Pitch
    2.5mm
    LED Type
    SMD 3-in-1
  • Resolution(WxH, per Unit Frame)
    96 x 72
    Dimensions(WxHxD, per LDM)
    240 x 180 x 10.5 mm
  • Dimensions(WxHxD, per Unit Frame)
    480 x 540 x 105mm2)
    Weight(per Unit Frame)1)
    9.3 kg2)
  • Weight(per SQM)2)
    35.9 kg2)
    IP Rating
    N/A
  • Unit Frame Material
    Die Casting Alluminum
    Unit Frame Color
    Black
  • Curvature
    H : Concave/Convex ±1,000R
    V : Concave/Convex ±6,000R
    Access
    Front and Rear
OPTICAL PARAMETER
  • Brightness(Max)
    700nit
    Contrast Ratio
    6,000:1
  • Viewing Angle(H x V)
    160 x 140
    Bit Depth(Bit Processing per Color)
    16bit
  • Brightness Uniformity
    ≥ 95%
    Color Uniformity
    ±0.015Cx, Cy
  • Color Gamut
    NTSC 100%, BT2020 94%
    Color temperature - Default
    6,500K
  • Color temperature - Adjustable
    3,200 - 9,300K
    Video Frame Rate
    50/60Hz
ELECTRICAL PARAMETER
  • Input Power Range
    100-240V~, 50/60Hz
    Power consumption - Max/Typ(per Unit Frame)
    180/90W
  • Power consumption - Max/Typ(per SQM)
    700/350W
    Refresh rate
    3,840Hz(Max)
  • Redundancy
    Signal
CONNECTIVITY3)
  • Video Inputs
    HDMI In(1), DP In(1), OPS In(1), USB(1)
    Control
    RJ45 In(1), RS232C In(1)/Out(1)
  • Special Features
    Temperature Sensor, Power Detection,
    ADA Compliant4), PSU Hot Swappable4)
OPERATION CONDITIONS
  • Working Temperature/Huminity
    0 °C to 40 °C at 10 % to 80 %
    Storage Temperature/Huminity
    -20° to +60°C at 5 to 85%
  • LED Lifetime
    50,000hrs
CERTIFICATION
  • Safety
    N/A
    EMC
    FCC Class "A" / CE / KC
  • Environment
    RoHS
OPTIONAL ACCESSORY
  • Optional Accessory
    N/A

  • 1)
    Remote Power : LDM + Unit Frame + Power Gender (Except LED Controller, System Controller, PSU)
    2)
    Embedded Power : LDM + Unit Frame + Power Pack (Except LED Controller, System Controller)
  • 3)
    Features from System Controller
    4)
    Remote Power Models Only
