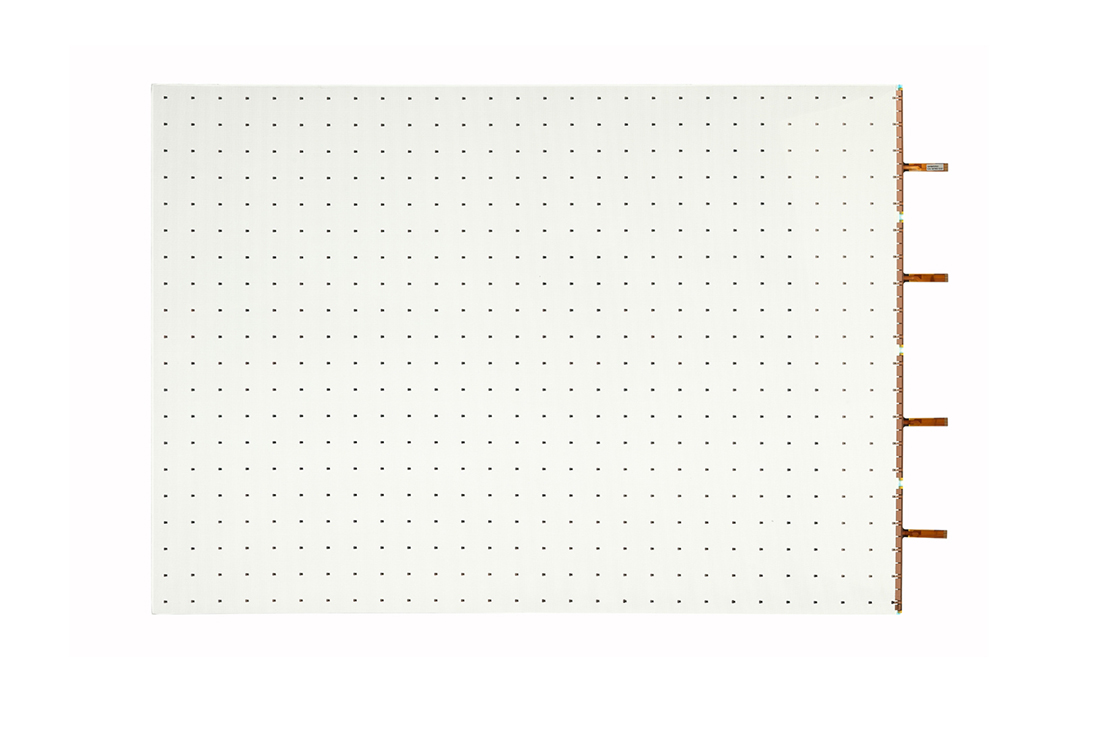

Color Transparent LED Film
High Transparency1 High Transparency2

High Transparency

High transparency*(73%) allows glass to remain visible even after attaching the
film, with no adverse effects on the original design. When the LED is OFF, the film
is unnoticeable, blending into the glass completely.
Full Color Expression1 Full Color Expression2

Full Color Expression

LG Color Transparent LED film delivers a surprisingly wide range of colors using a 24 mm pitch. Applications can be extended to display an entire video or pictures in which various colors combinations are possible.
Self-adhesive Film1 Self-adhesive Film2
Easy Space Innovation

Self-adhesive Film

The transparent LED film is self-adhesive, so it can be easily attached to the surfaces of existing window glass wihout the need for any complicated construction.
Superb Expandability and Flexibility1 Superb Expandability and Flexibility2
Easy Space Innovation

Superb Expandability and Flexibility

The size and layout of the film can be customized to fit in to the installation area. It can be expanded by adding more films in a vertical or horizontal way, or cut in parallel with the bezel to meet size requirements.
*The film must be cut in parallel with the bezel by 1 pixel.
Curved Format Supported1 Curved Format Supported2
Easy Space Innovation

Curved Format Supported

The transparent LED film supports curvatures up to 1,100R Convex and Concave for curved glass or window applications. This allows a wider range of venues to be redesigned as a landmark.
System Connection1 System Connection2

System Connection

*The actual system structure may be subject to change from the above example.
Close
LAT240DT1
  • Pitch
    24±0.2mm
    LED Type
    R, G, B 3in1 Color Package (SMD1818)
  • Resolution
    28 x 20
    Pixels per Panel
    560
  • Pixel Density [point/㎡ ]
    1,736
    Brightness (After Calibration)
    >1,000nit
  • Contrast Ratio
    ≥ 100,000:1
    Luminance Uniformity
    ≥ 70%
  • Chromaticity Uniformity
    Δu’v’≤0.015
    Viewing Angle (H x V)
    120 x 120
  • Lifetime (Duration of Half Brightness in Hours)
    50,000
    Daily Usage
    24h / 7days
  • Warranty
    2 Years
    Operating Temperature
    0℃ ~ 45℃ (Indoor Glass Installation Only)
  • Curved Installation
    1,100 R (Convex and Concave)
    Film Trimming
    Yes (Parallel to the Bezel Side Only)
  • Film Surface Color Distortion
    No
    Color Processing
    130/120/110 Level ( R, G, B)
  • Colors
    1,716,000 Colors
    Color Chromaticity
    Cx: 0.28±0.03, Cy : 0.28±0.03
  • Dimension (W x H x D)
    668 x 480 x 2.0㎜ (with Front & Back Protection Film)
    Weight
    0.73kg
  • Power Consumption
    37W (Transparent panel 1EA + Bezel kit 1EA)
1ST BEZEL KIT
  • Dimension (W x H x D)
    547.3 x 63 x 24㎜
    Weight
    0.45Kg
COMMON BEZEL KIT
  • Dimension (W x H x D)
    479.5 x 28.1 x 24㎜
    Weight
    0.26Kg
UNIT CONTROLLER
  • Resolution
    960x540 (4 Unit Controllers Needed for FHD))
    Interface
    Input : LVDS
    Output : RJ45 x4EA
  • Maximum Transmission Length
    100m
    Dimension (W x H x D)
    293 x 37 x 188.7mm
  • Weight
    1.5Kg
    Temperature Sensor
    Yes
  • Power Consumption
    20 W
SYSTEM CONTROLLER
  • Video (Max. Input Resolution)
    DP: 3,840 x 2,160 @30Hz
    HDMI: 3,840 x 2,160 @30Hz
    DVI-D: 1,920 x 1,080 @60Hz
    Input
    HDMI, DP, DVI-D, RS232C, RJ45 (w/o LED Indicator), IR Receiver (for Installation), USB 3.0
  • Output
    LVDS, DP, RS232C, RJ45 (w/o LED Indicator)
    Dimension (W x H x D)
    293 x 40.1 x 193.3 mm
  • Weight (Head)
    1.6 kg
    Temperature Sensor
    O
  • Light Sensor
    O
    Source Selection
    HDMI, DVI-D, DP
  • TPC (Temporal Peak luminance Control)
    Yes
    Power Consumption
    17W
  • CMS S/W
    Yes
    Accessories
    Power cord, IR+Bright Sensor (1.5m), 4P Phone-to-RS232C Gender, ESG, Regulation book, Warranty Card
