LAT240DT1 component-copyModelName
Color Transparent LED Film

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (LAT240DT1)
    ৳
    ৳
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (LAT240DT1)
    ৳
    ৳
    LG Members Price
Total

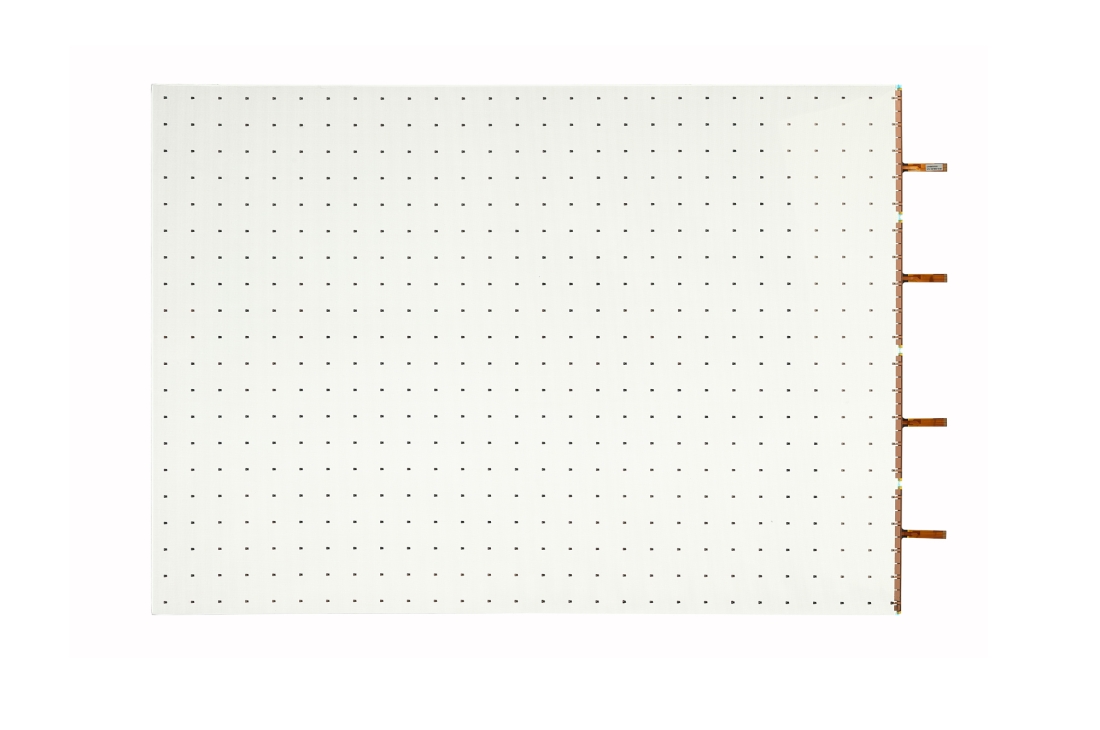

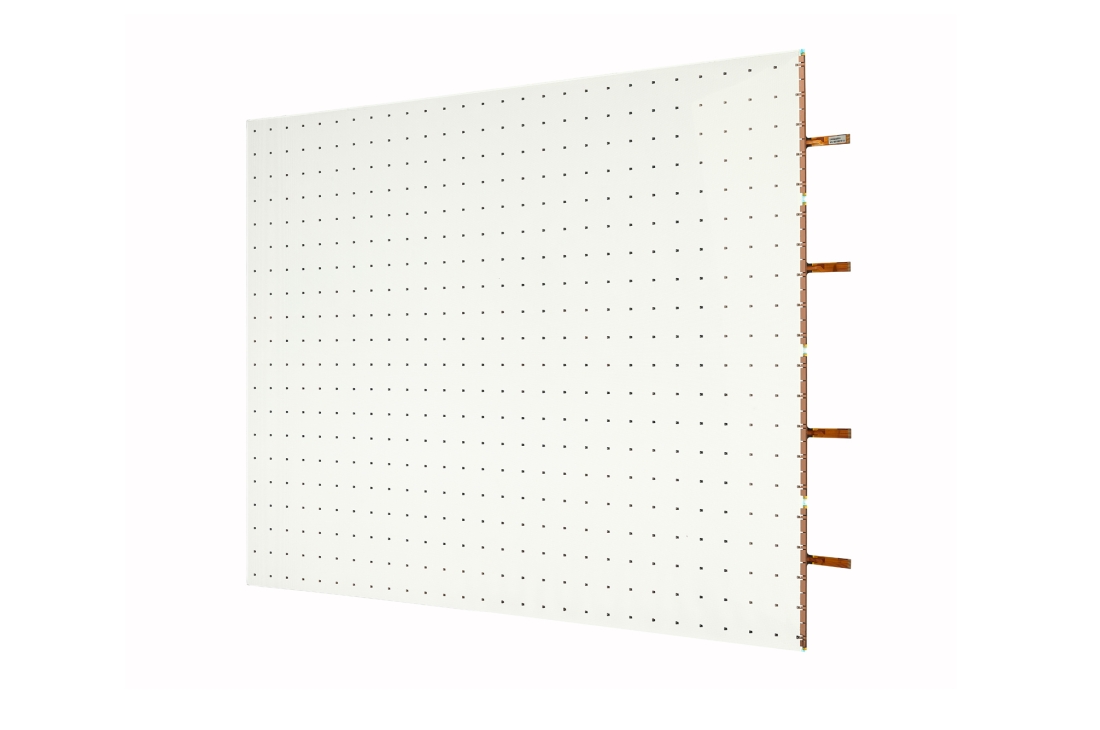

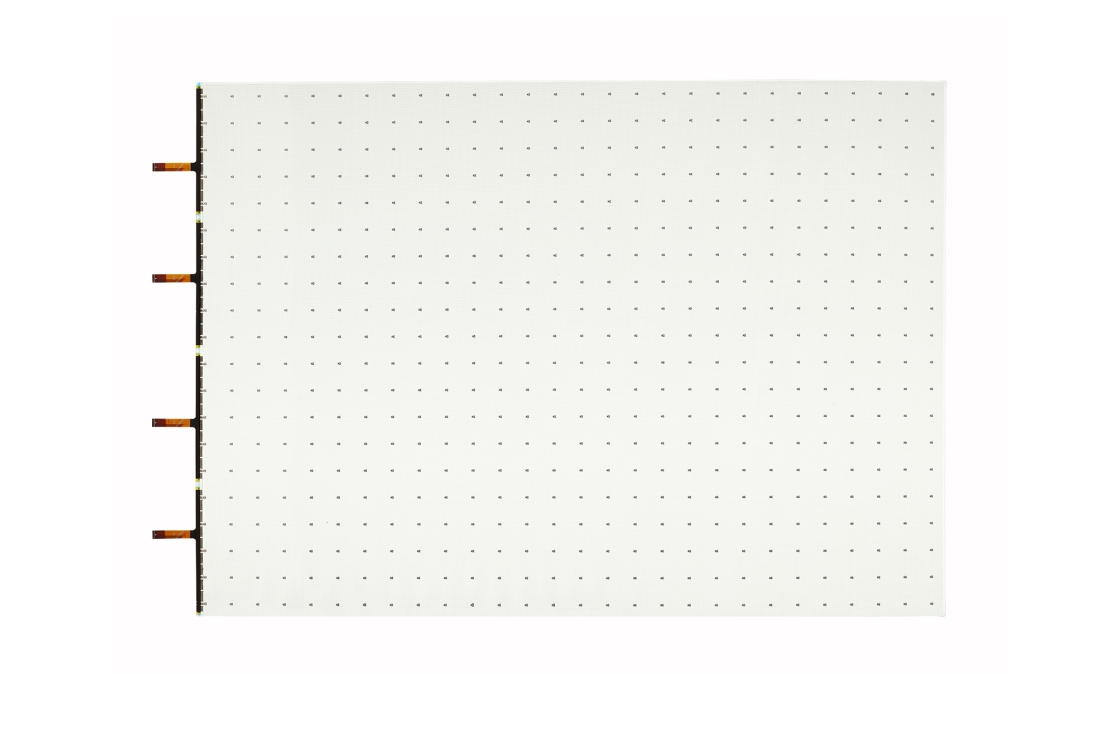

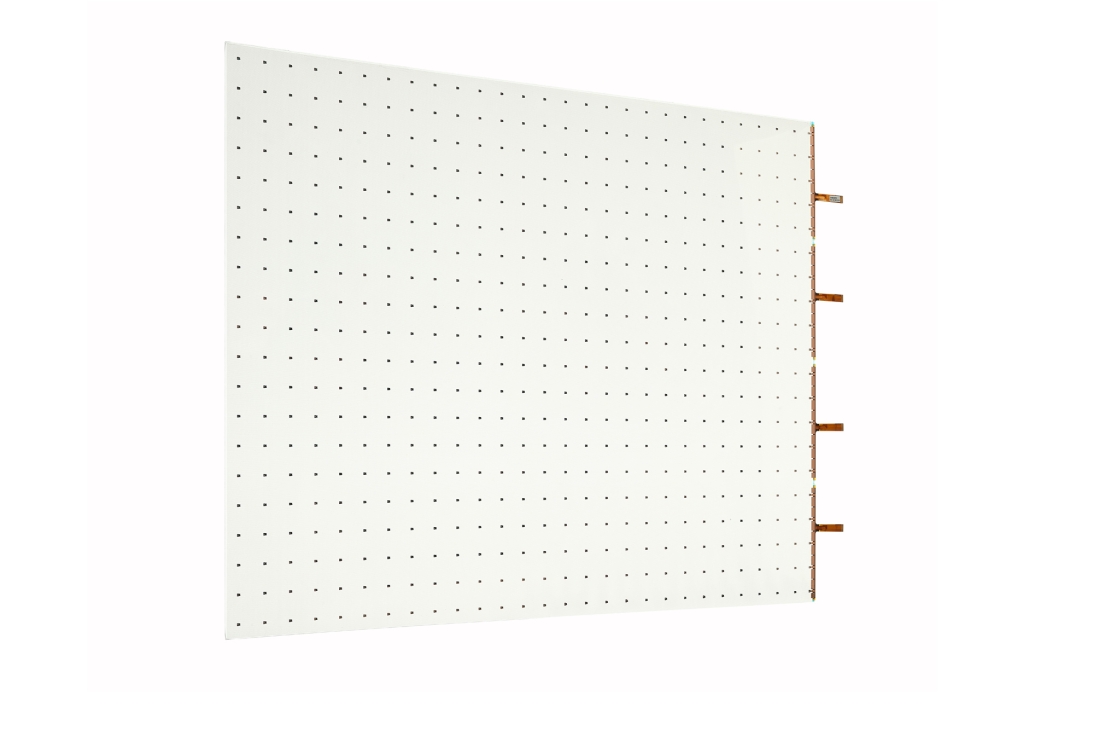

Color Transparent LED Film
High Transparency1 High Transparency2

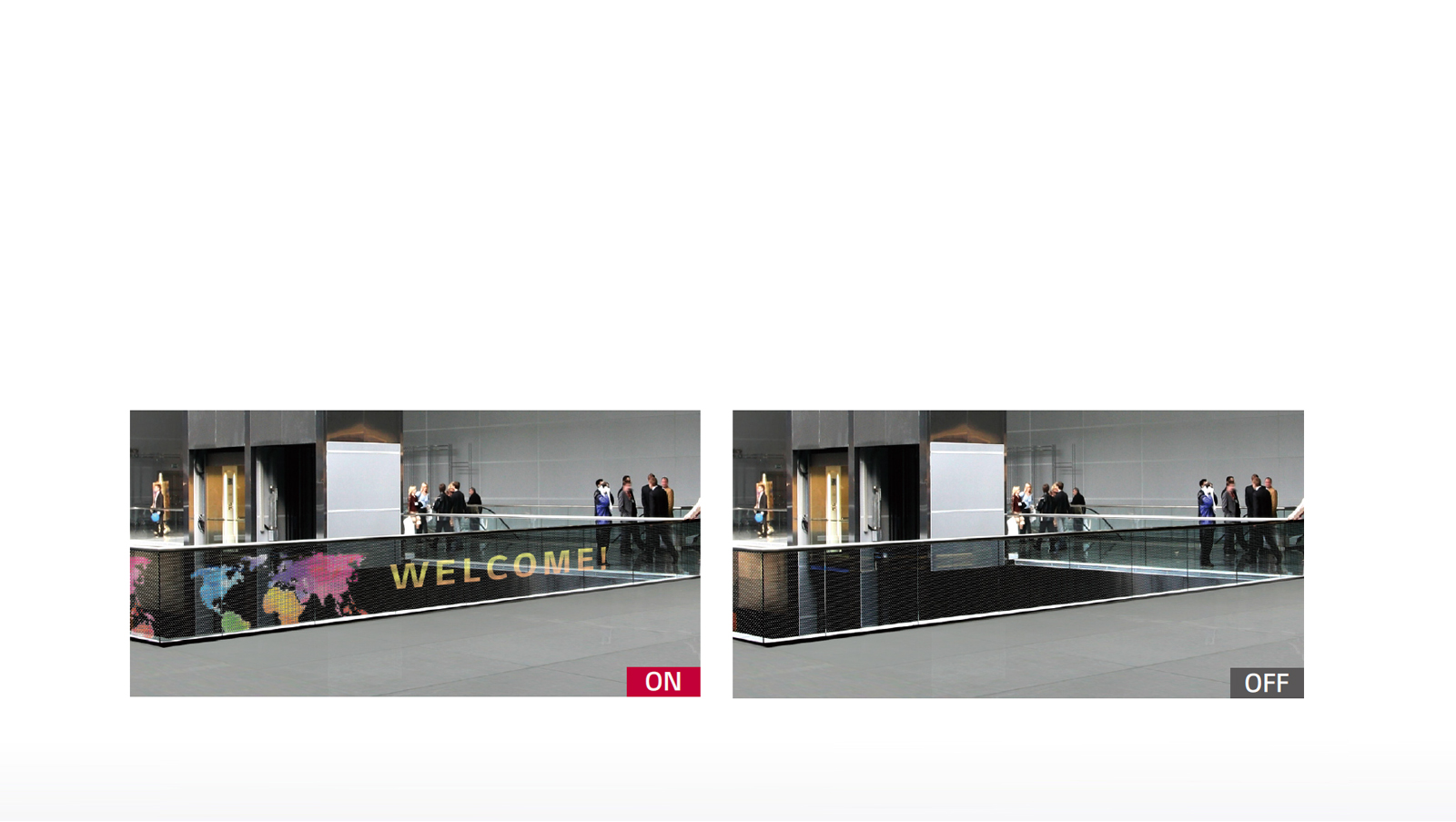

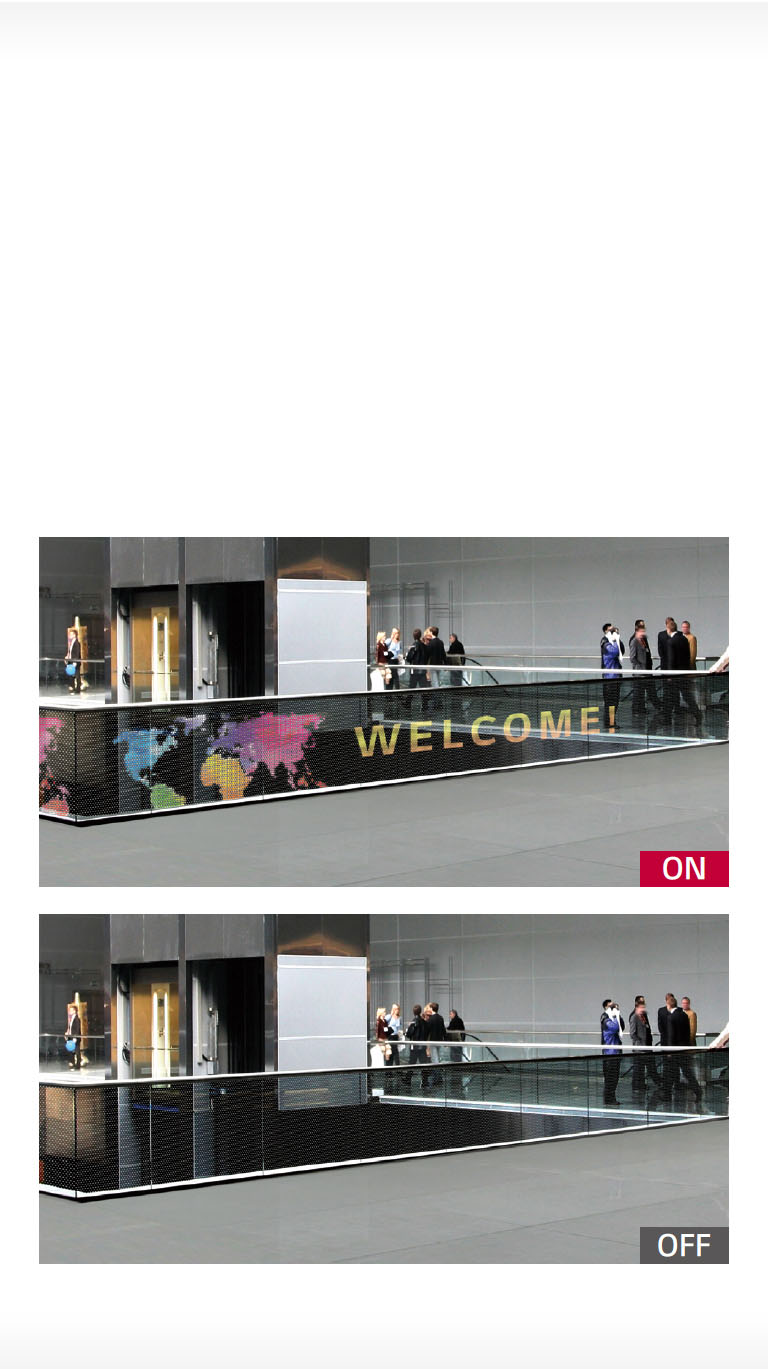

High Transparency

High transparency*(73%) allows glass to remain visible even after attaching the
film, with no adverse effects on the original design. When the LED is OFF, the film
is unnoticeable, blending into the glass completely.
Full Color Expression 1 Full Color Expression 2

Full Color Expression

LG Color Transparent LED film delivers a surprisingly wide range of colors using a 24 mm pitch. Applications can be extended to display an entire video or pictures in which various colors combinations are possible.
Self-adhesive Film1 Self-adhesive Film2
Easy Space Innovation

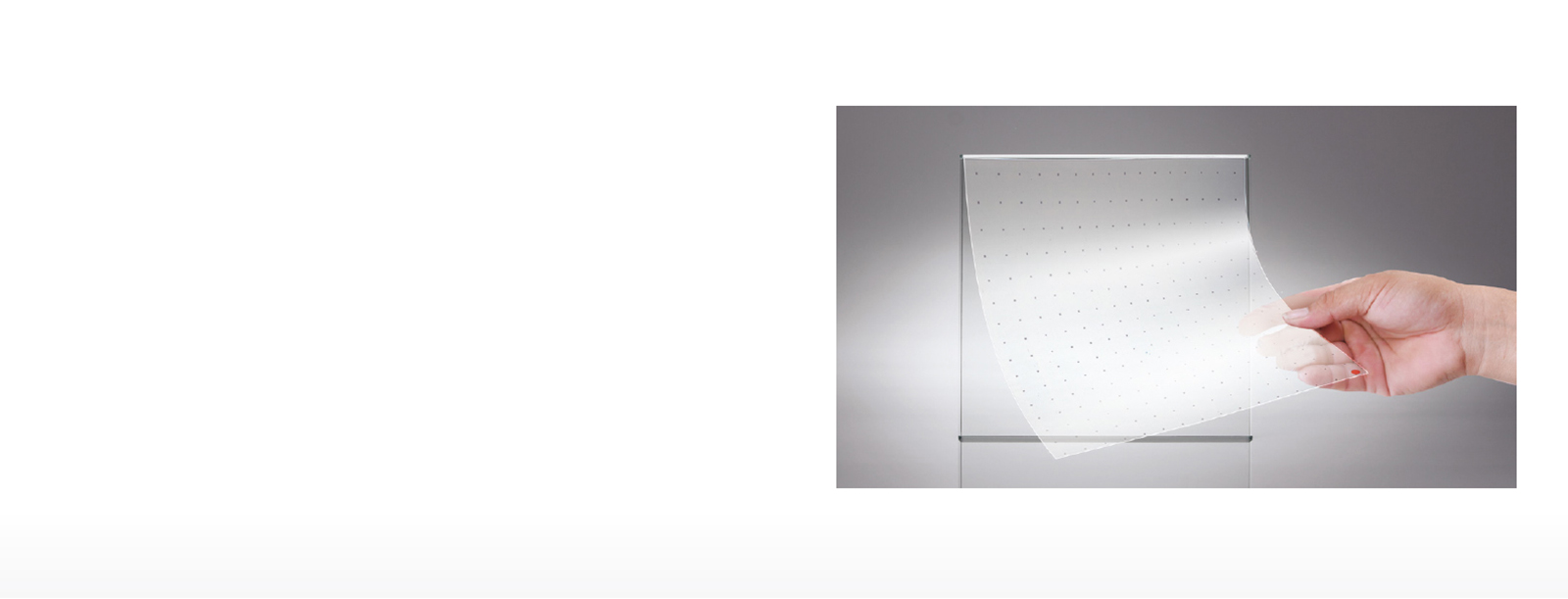

Self-adhesive Film

The transparent LED film is self-adhesive, so it can be easily attached to the surfaces of existing window glass wihout the need for any complicated construction.

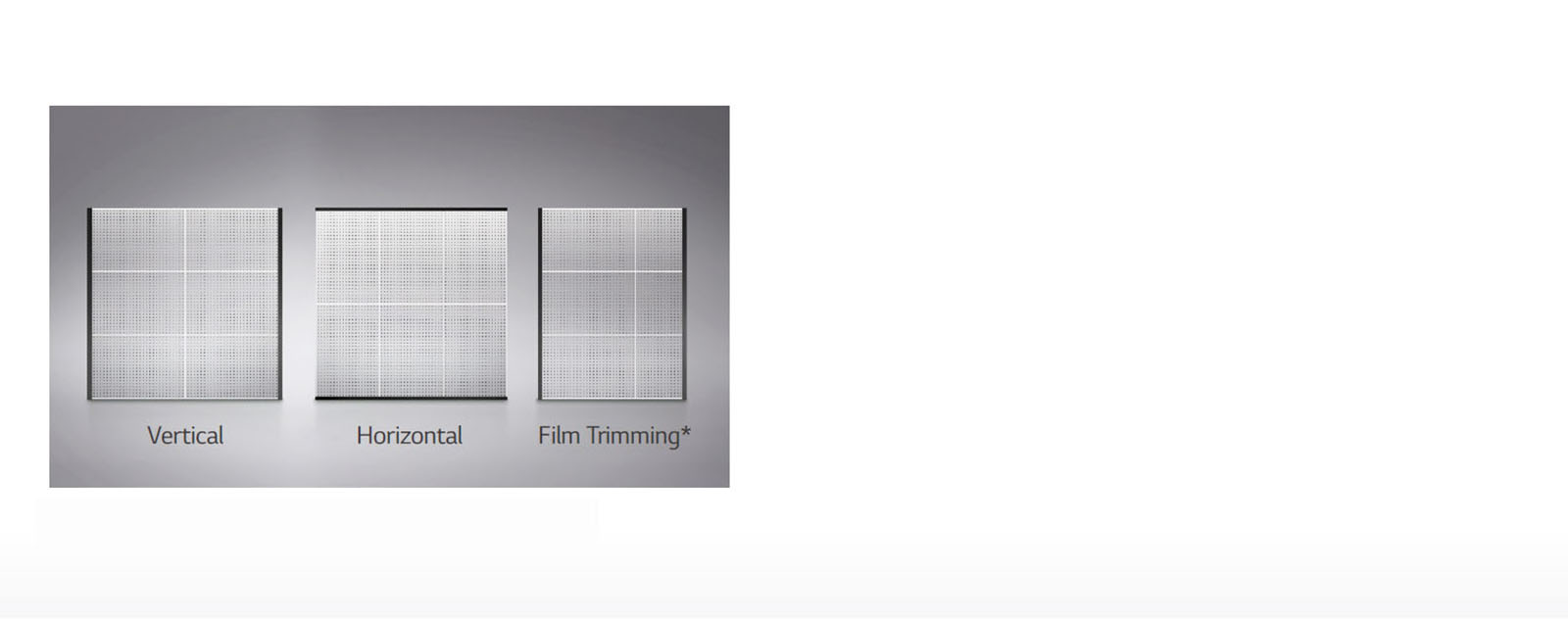

Superb Expandability and Flexibility1 Superb Expandability and Flexibility2
Easy Space Innovation

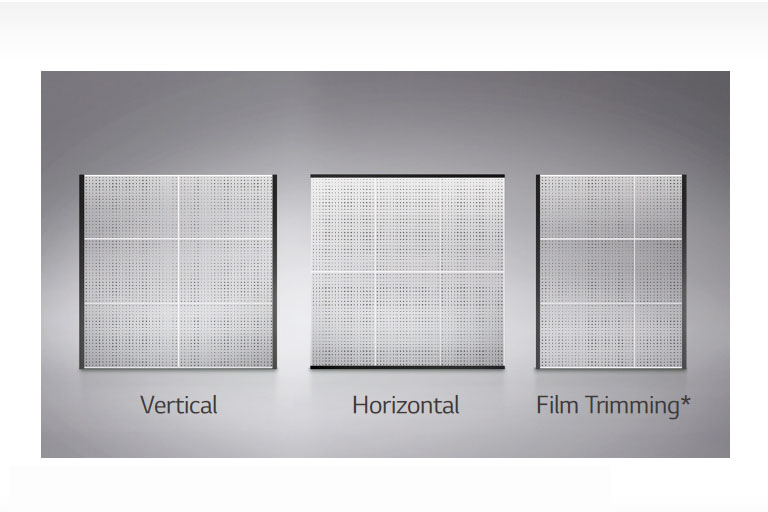

Superb Expandability and Flexibility

The size and layout of the film can be customized to fit in to the installation area. It can be expanded by adding more films in a vertical or horizontal way, or cut in parallel with the bezel to meet size requirements.
*The film must be cut in parallel with the bezel by 1 pixel.
Curved Format Supported1 Curved Format Supported2
Easy Space Innovation

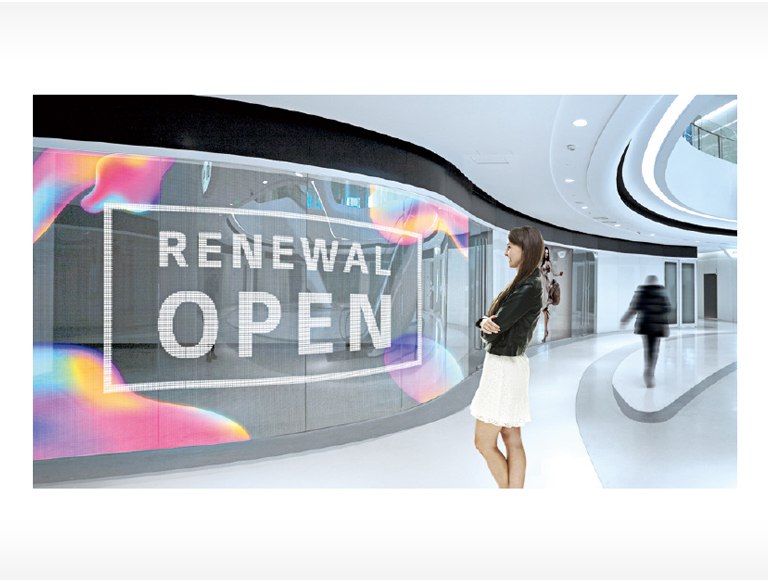

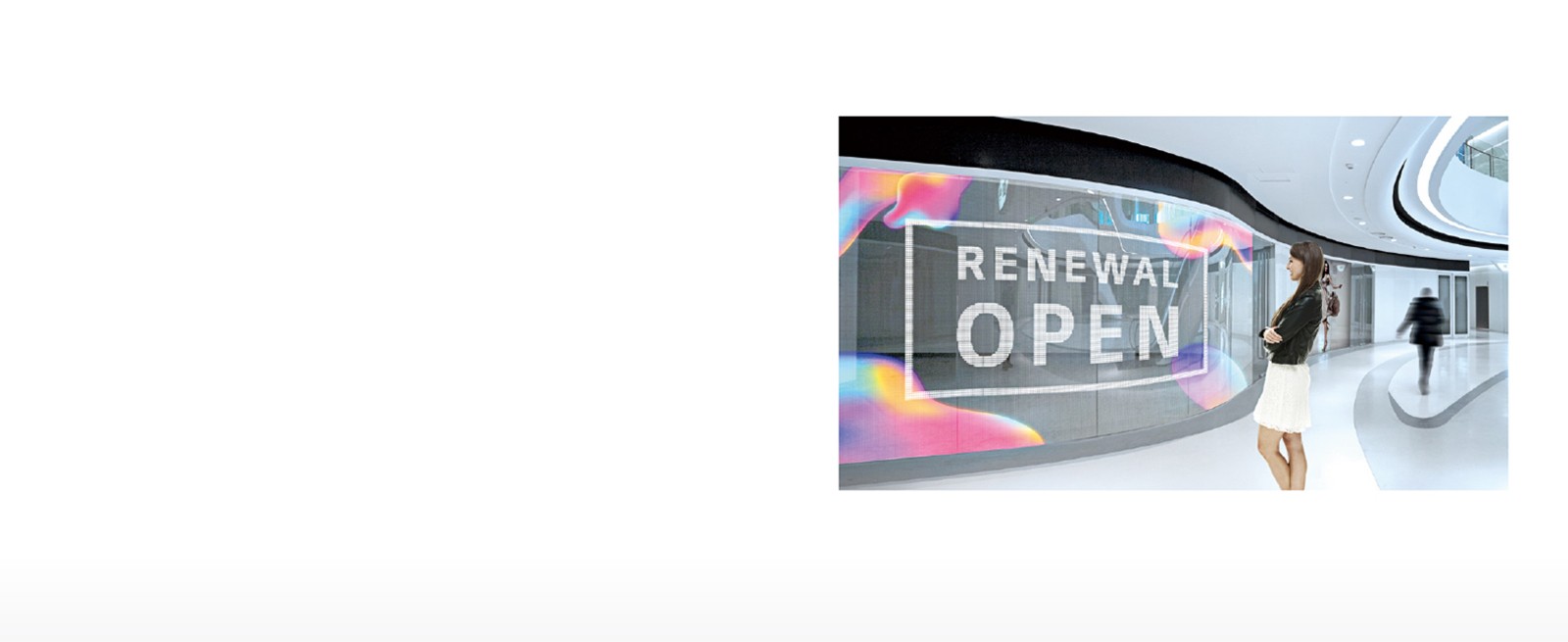

Curved Format Supported

The transparent LED film supports curvatures up to 1,100R Convex and Concave for curved glass or window applications. This allows a wider range of venues to be redesigned as a landmark.

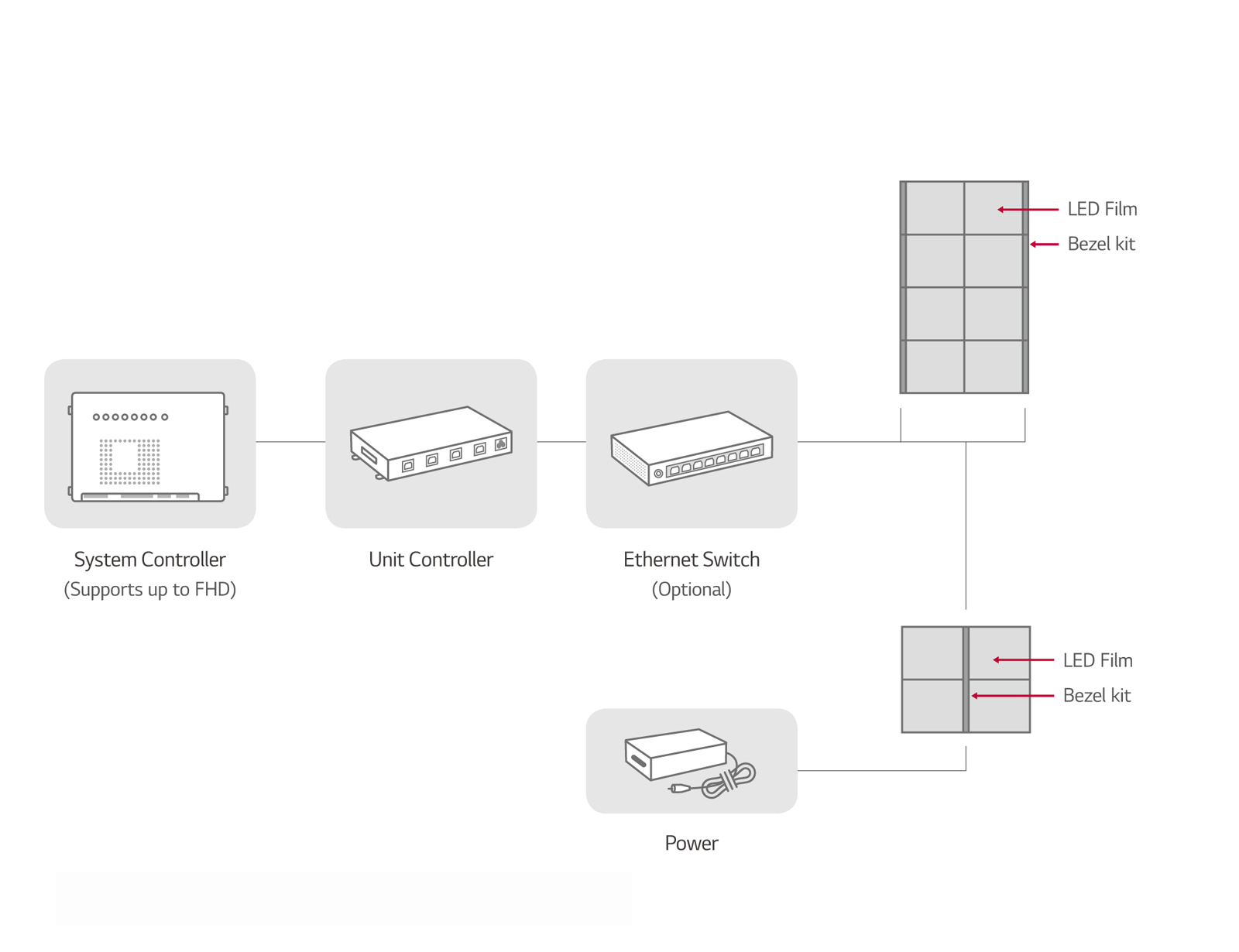

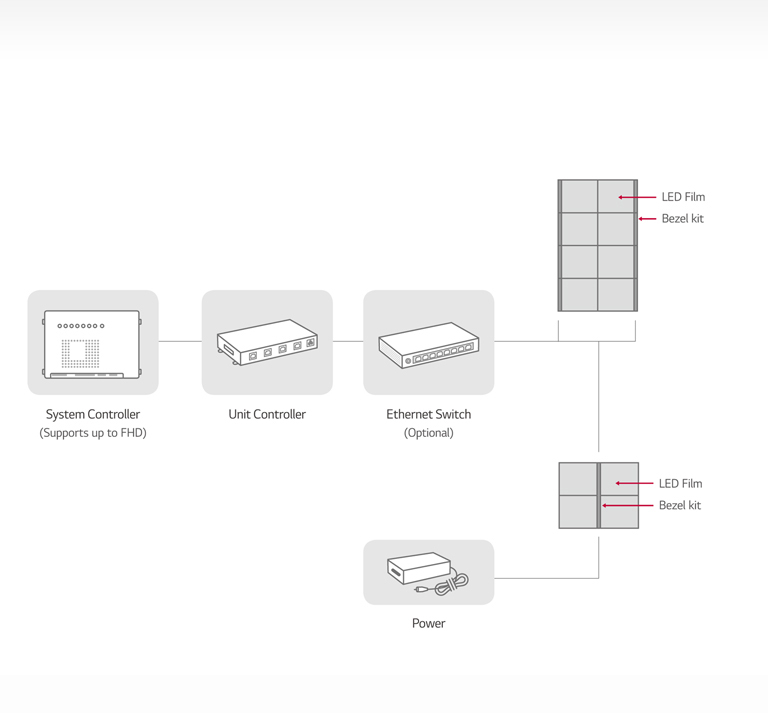

System Connection1 System Connection2

System Connection

*The actual system structure may be subject to change from the above example.
Close

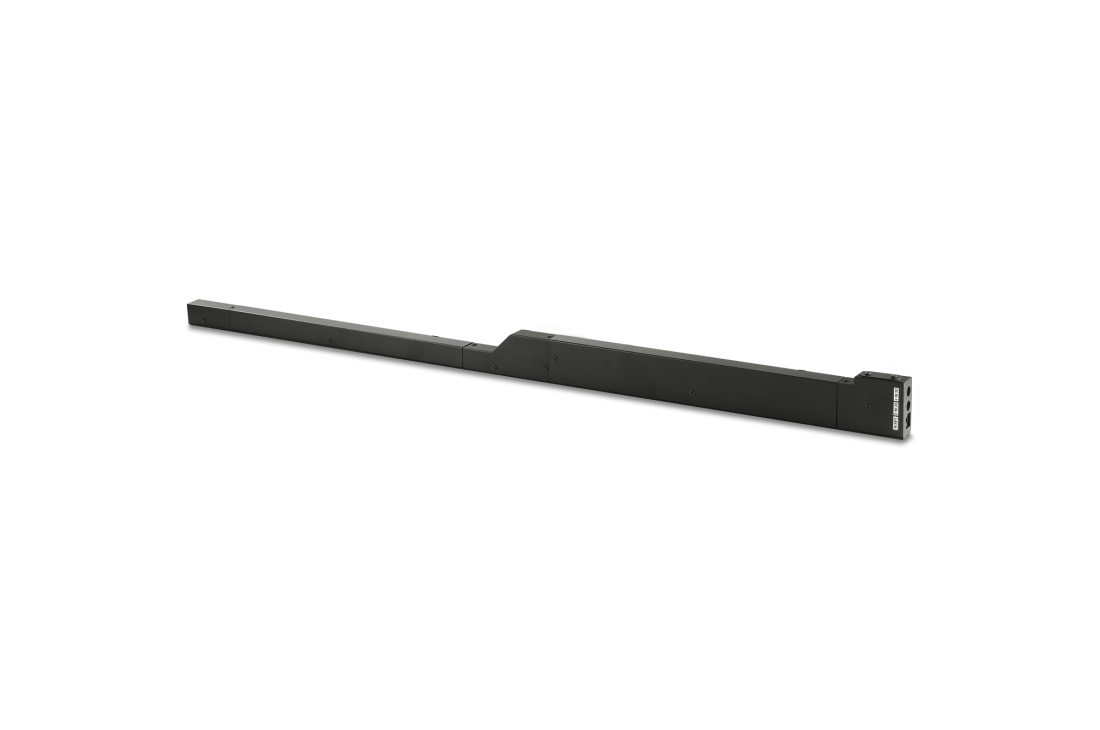

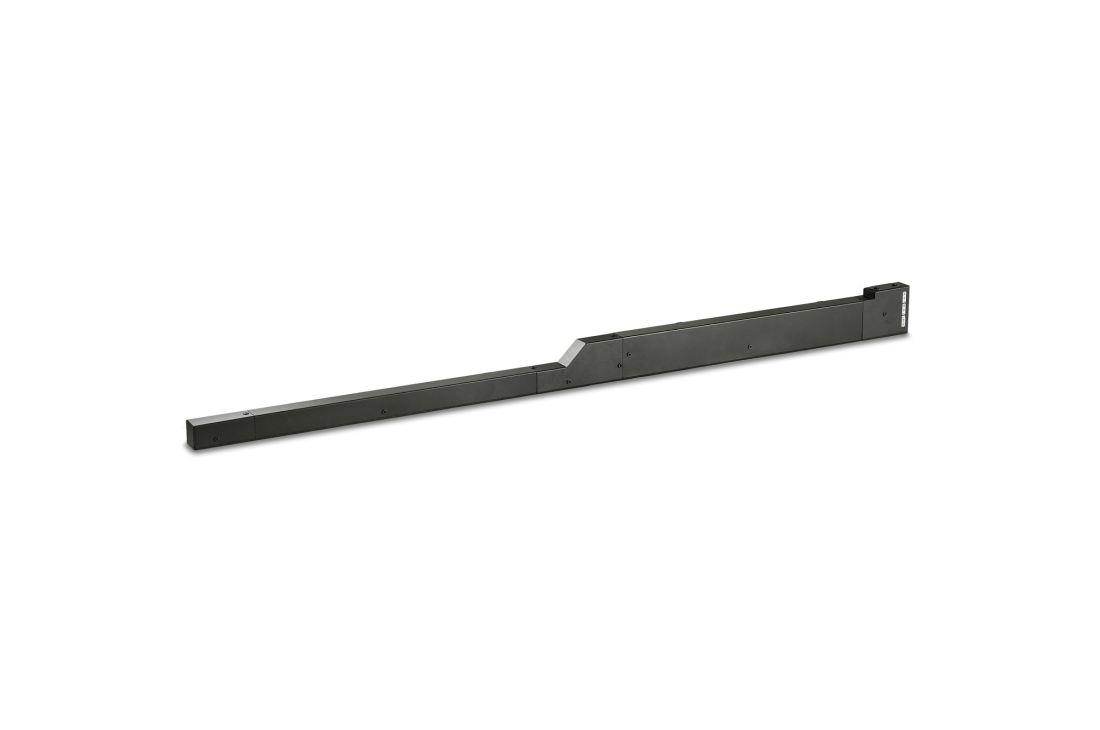

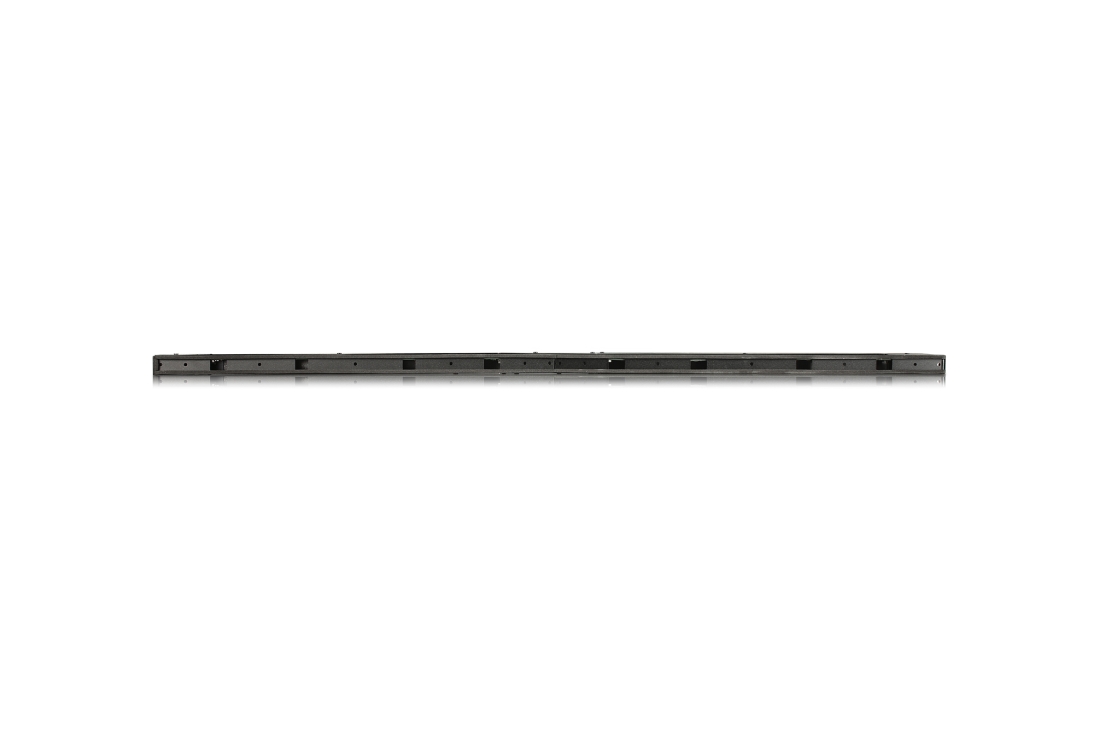

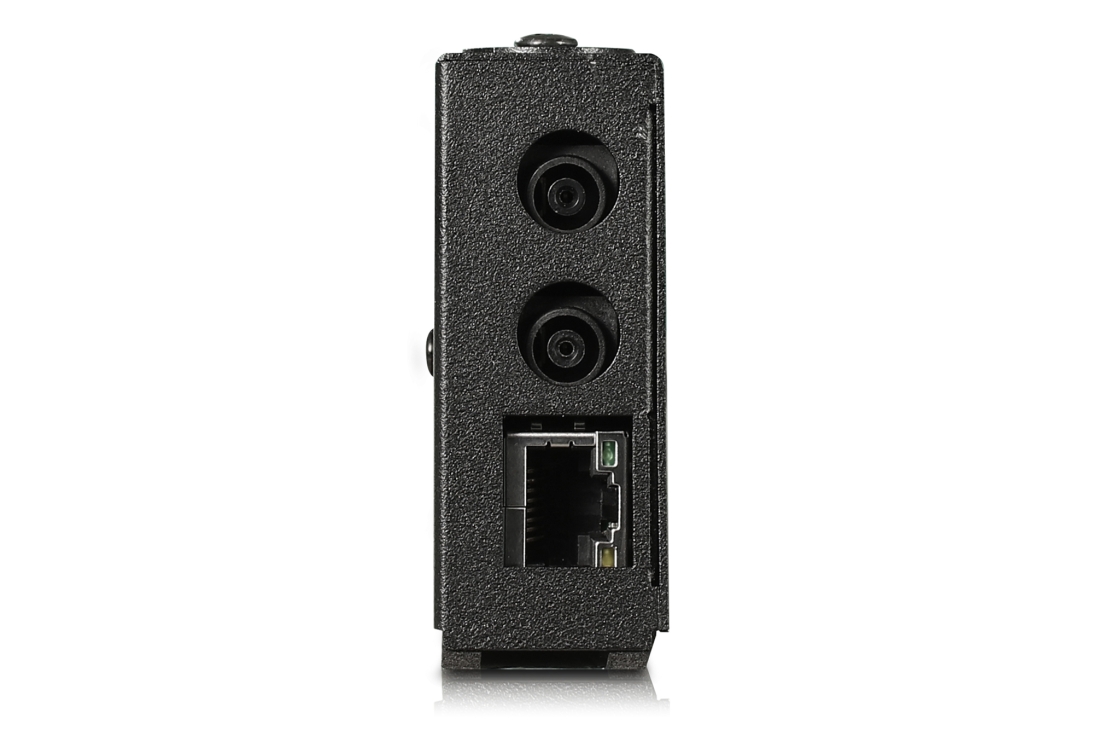

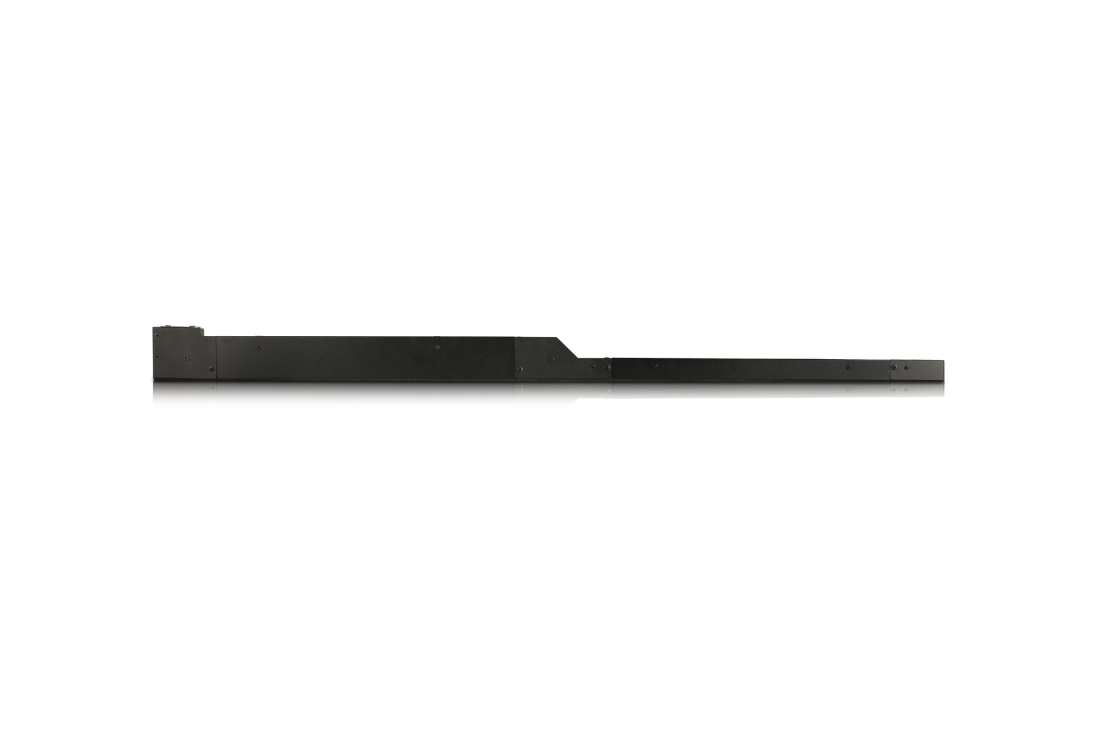

1ST BEZEL KIT
  • Dimension (W x H x D)
    547.3 x 63 x 24㎜
    Weight
    0.45Kg
COMMON BEZEL KIT
  • Dimension (W x H x D)
    479.5 x 28.1 x 24㎜
    Weight
    0.26Kg
LAT240DT1
  • Accessory
    ESG, Regulation book, Warranty Card
    Brightness (After Calibration)
    >1,000nit
  • Chromaticity Uniformity
    Δu’v’≤0.015
    Color Chromaticity
    Cx: 0.28±0.03, Cy : 0.28±0.03
  • Color Processing
    130/120/110 Level ( R, G, B)
    Colors
    1,716,000 Colors
  • Contrast Ratio
    ≥ 100,000:1
    Curved Installation
    1,100 R (Convex and Concave)
  • Daily Usage
    24h / 7days
    Dimension (W x H x D)
    668 x 480 x 2.0㎜ (with Front & Back Protection Film)
  • Film Surface Color Distortion
    No
    Film Trimming
    Yes (Parallel to the Bezel Side Only)
  • LED Type
    R, G, B 3in1 Color Package (SMD1818)
    Life Time (Brightness 50%)
    50,000 Hrs
  • Luminance Uniformity
    ≥ 70%
    Operating Temperature
    0℃ ~ 45℃ (Indoor Glass Installation Only)
  • Pitch
    24±0.2mm
    Pixel Density [point/㎡ ]
    1,736
  • Pixels per Panel
    560
    Power Consumption
    37W (Transparent panel 1EA + Bezel kit 1EA)
  • Resolution
    28 x 20
    Transparency
    73%
  • Viewing Angle (H x V)
    120 x 120
    Warranty
    2 Years
  • Weight
    0.73kg
POWER
  • Color
    White
    DC output cable
    14AWG, 1.5m
  • Dimension (W x H x D)
    183×86×28mm
    Input
    100~240V, 50~60Hz
  • Output
    19.5V/10.8A (210W)
    Type
    L Type
  • Weight
    769g
SYSTEM CONTROLLER
  • Accessory
    Power cord, IR+Bright Sensor (1.5m), 4P Phone-to-RS232C Gender, ESG, Regulation book , Warranty Card
    CMS S/W
    Yes
  • Dimension (W x H x D mm)
    293 x 40.1 x 193.3mm
    Inerface - Comm. Port - IR Receiver (w/ Light Sensor)
    1EA (Phone Jack Type) : Used for installation
  • Inerface - Comm. Port - RJ-45
    Input : 1EA (without LED indicator)
    Output : 1EA (without LED indicator)
    Interface - Comm. Port - RS-232C
    Input : 1EA (Phone Jack Type)
    Output : 1EA (Phone Jack Type)
  • Interface - Digital (w/ HDCP) - DP
    Input : 1EA
    Output : 1EA
    Interface - Digital (w/ HDCP) - DVI-D
    Input : 1EA
  • Interface - Digital (w/ HDCP) - HDMI
    Input : 1EA
    Interface - LVDS
    Output : 1EA
  • Interface - USB3.0
    1EA
    Light Sensor
    O
  • Motion Eye Care
    Yes
    Power Consumption
    17W
  • Source Selection
    HDMI, DVI-D, DP
    Temperature Sensor
    O
  • TPC (Temporal Peak luminance Control)
    Yes
    Video - Max. Input Resolution
    DP : 3840 x 2160@30Hz
    HDMI : 3840x2160@30Hz
    DVI-D : 1920x1080@60Hz
  • Weight (Head, Kg)
    1.6kg
UNIT CONTROLLER
  • Dimension (W x H x D)
    293 x 37 x 188.7mm
    Interface
    Input : LVDS
    Output : RJ45 x4EA
  • Maximum Transmission Length
    100m
    Power Consumption
    20 W
  • Resolution
    960x540 (4 Unit Controllers Needed for FHD))
    Temperature Sensor
    Yes
  • Weight
    1.5Kg
