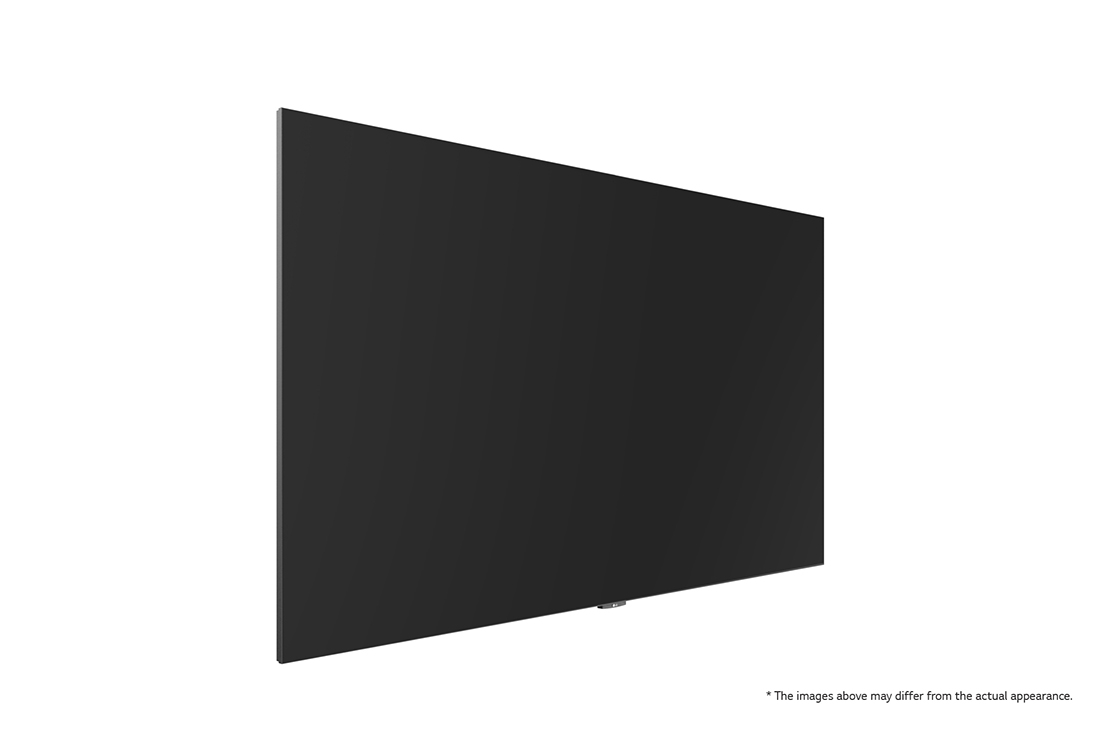

All-in-one Essential Series
All-in-one Essential Series All-in-one Essential Series
* All images in this page are for illustrative purposes only.

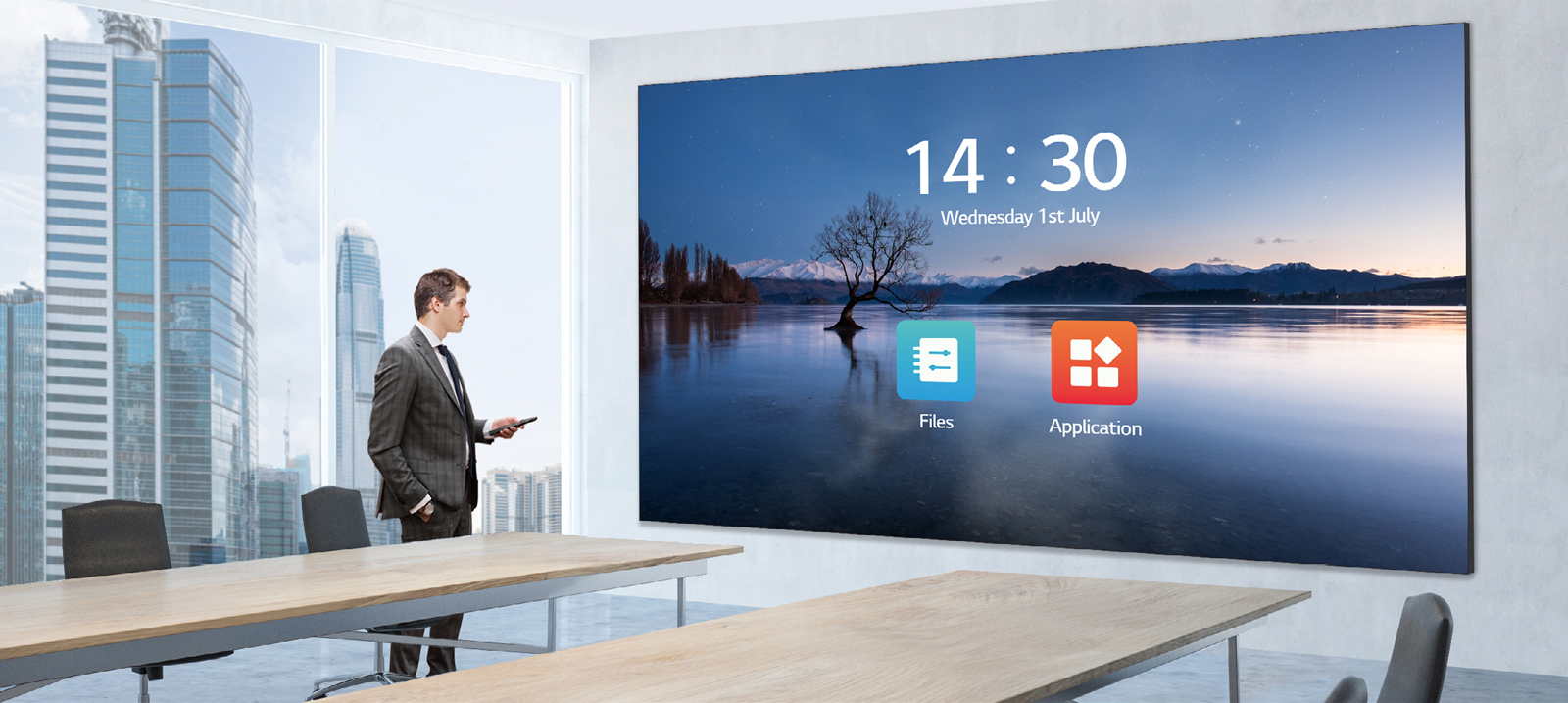

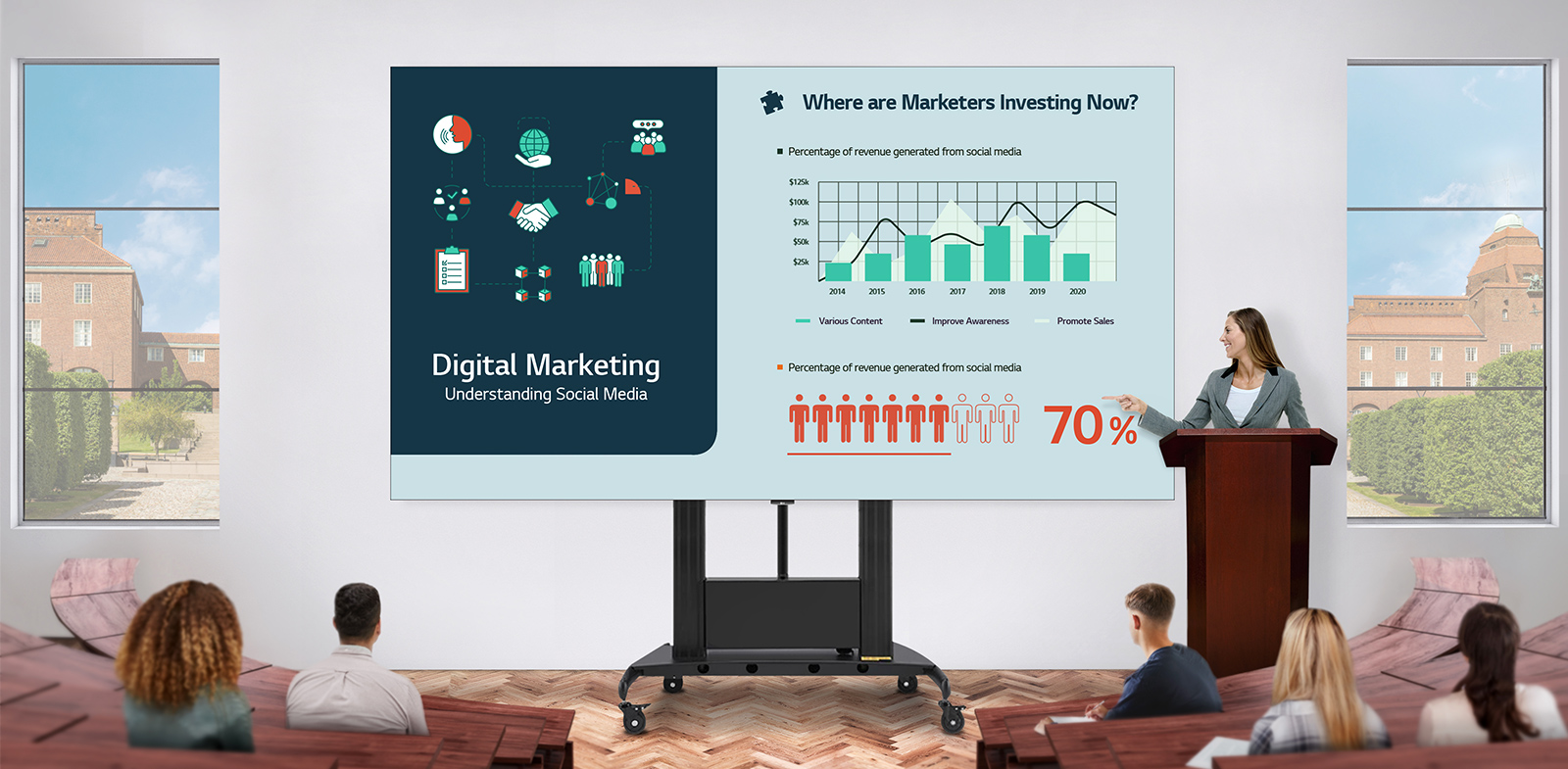

All-in-one LED Screen

LG's All-in-one Essential series is a 136-inch large screen which is offered as an All-in-one package including an embedded controller. Eliminating the prejudice that LED displays are difficult and complex to install, the All-in-one Essential series doesn't require controller connections or module configuration. After a simple installation process, all you need to do is to turn on the screen with a remote control like home TV.
All-in-one LED Screen All-in-one LED Screen

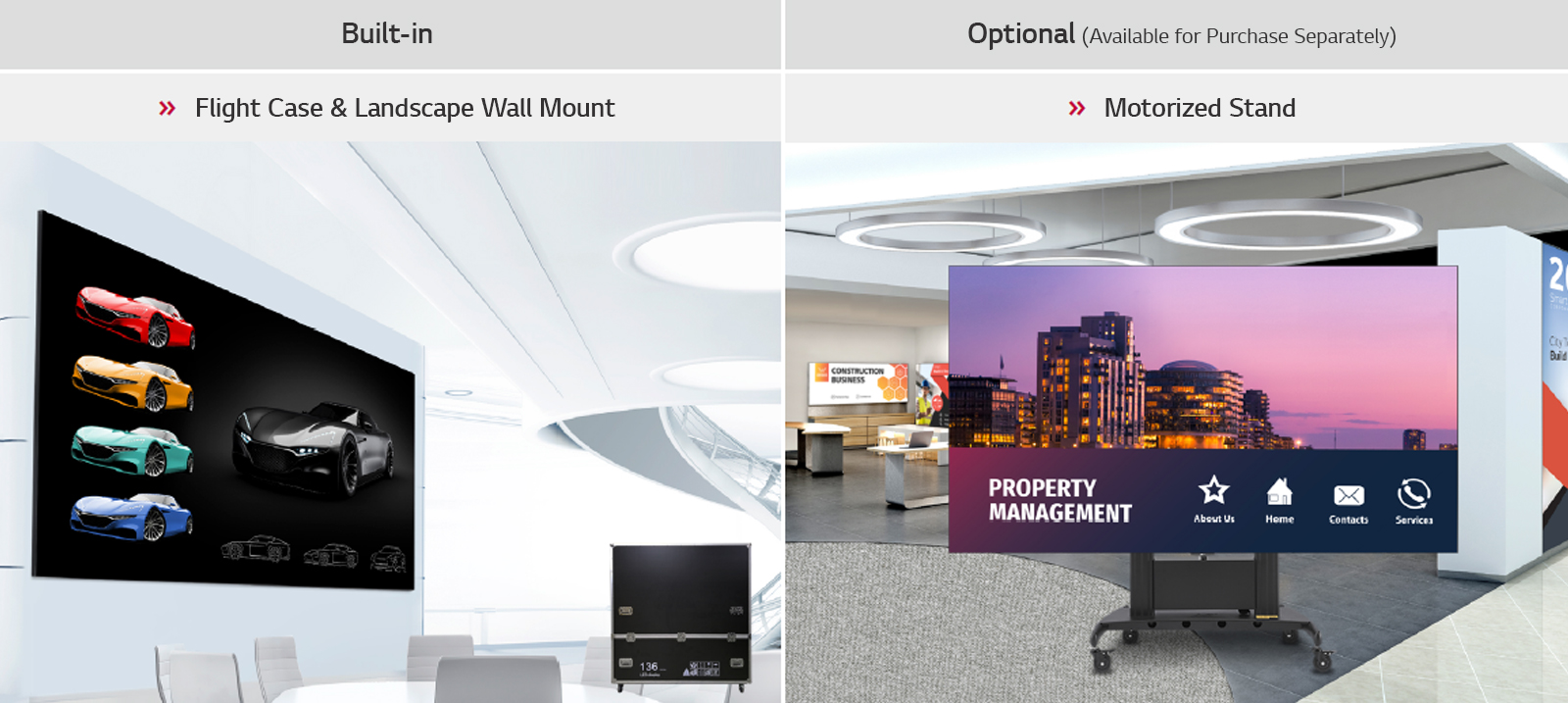

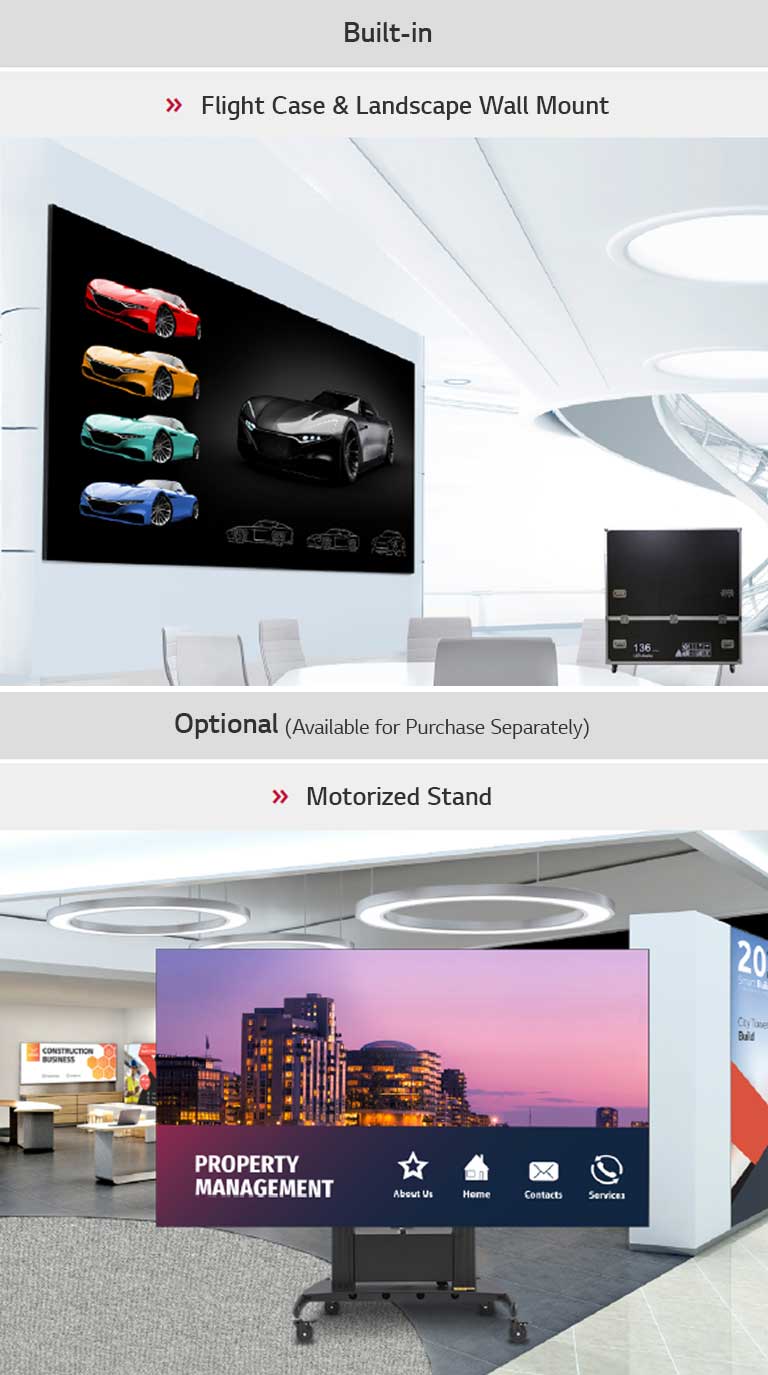

Dedicated Accessory Kits

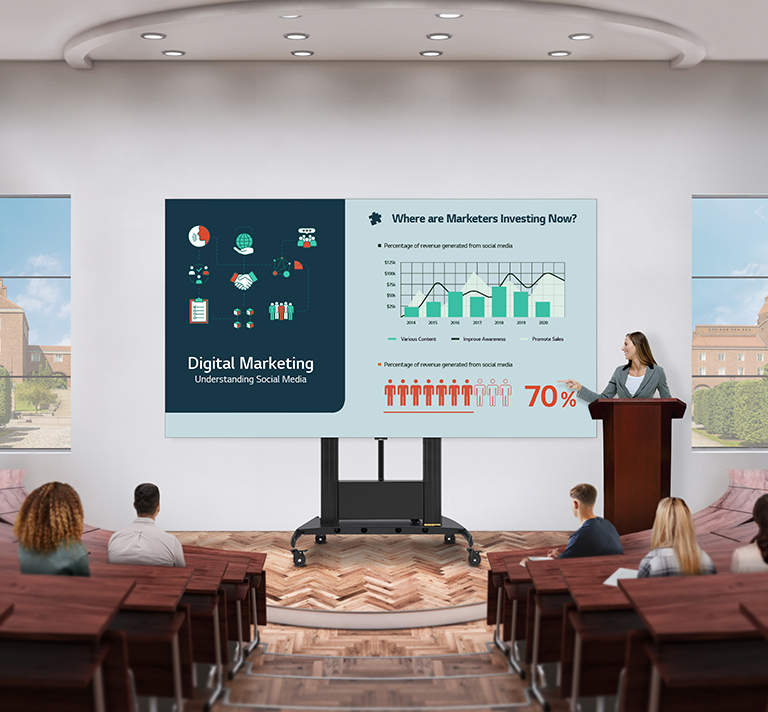

The product is offered with the flight case which includes every necessary component including the landscape wall mount and tools for installation. The motorized stand is provided as an option, so that you can easily place it depending on your installation sites. With this stand, you can adjust a height of the screen including stand from 2.0 m to 2.5 m.
Dedicated Accessory Kits Dedicated Accessory Kits

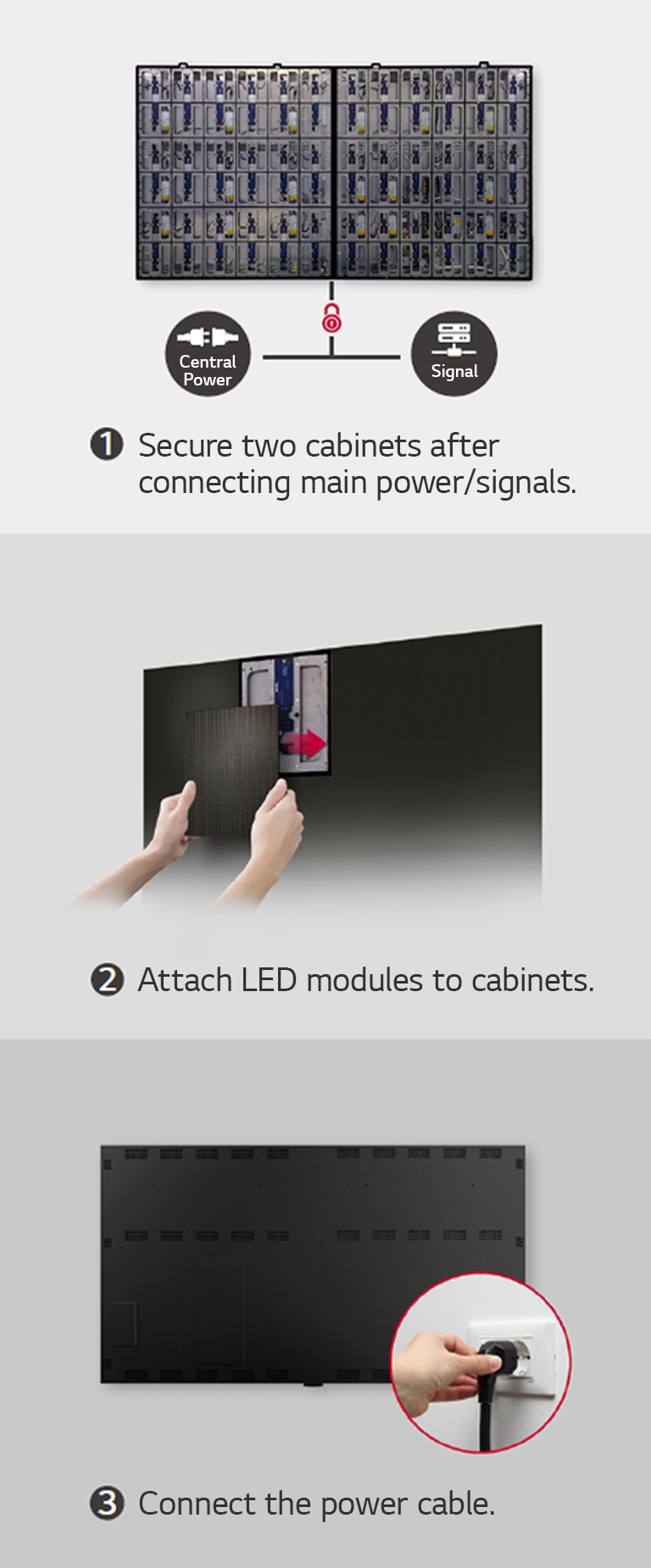

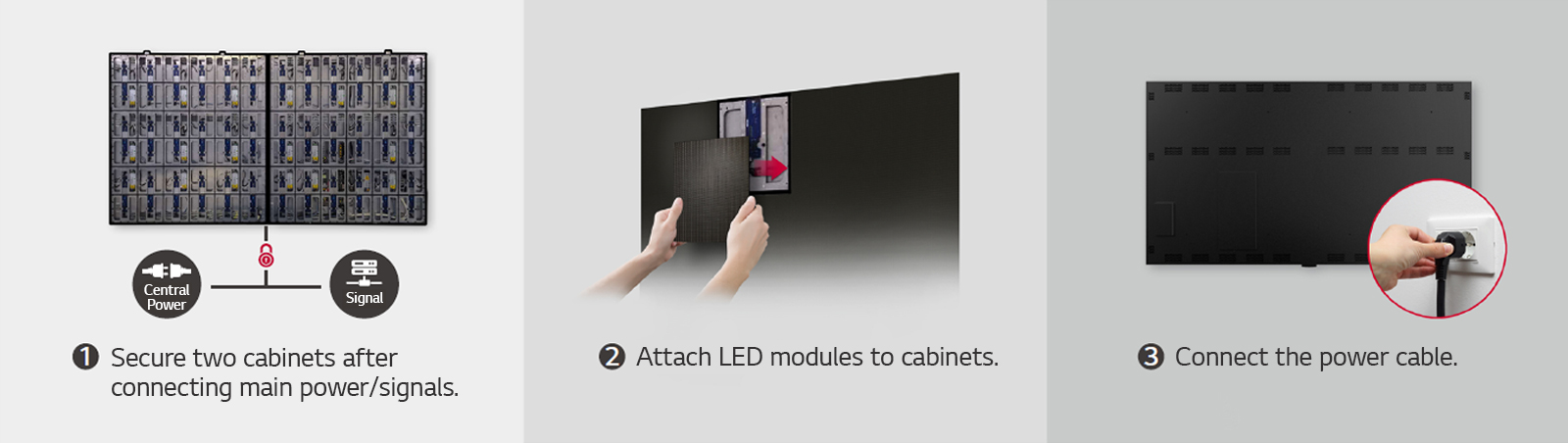

Easy Installation

The installation process of the All-in-one Essential series is very simple. After securing two cabinets which are included in the flight kit, attach each LED display module to them. Lastly, plug in the power cable. This hassle-free installation saves time and labor, thereby making users handle the LED screen with ease.
Easy Installation Easy Installation
* Fixing screws or installing wall mount / accessories is needed additionally.

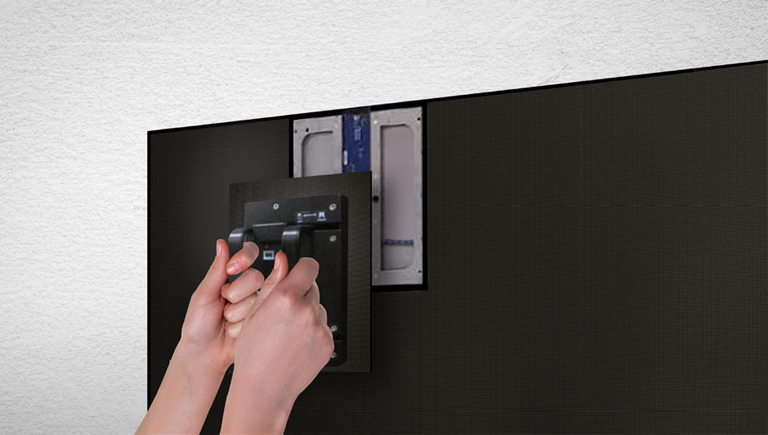

Quick Maintenance Quick Maintenance

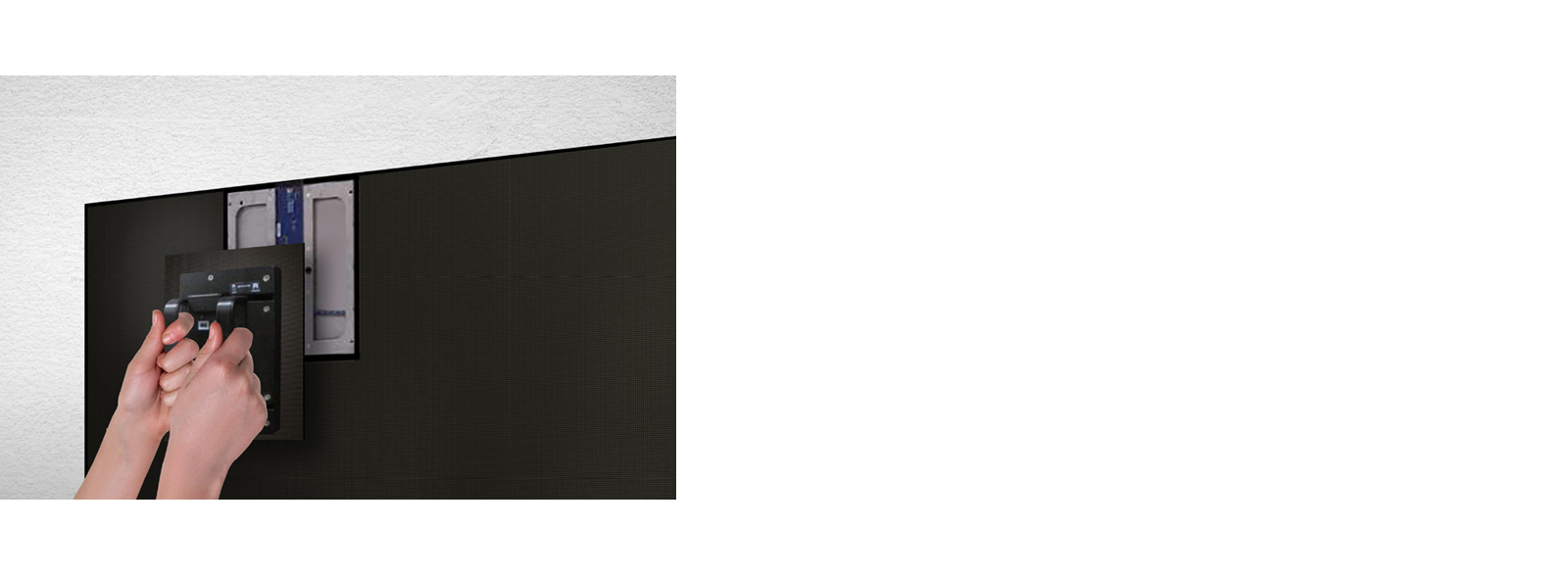

Quick Maintenance

In case of failure related to the LED module or the system board, it can be serviced from the front. The LED module can be simply detached by the provided magnetic tool and replaced quickly without cabling.

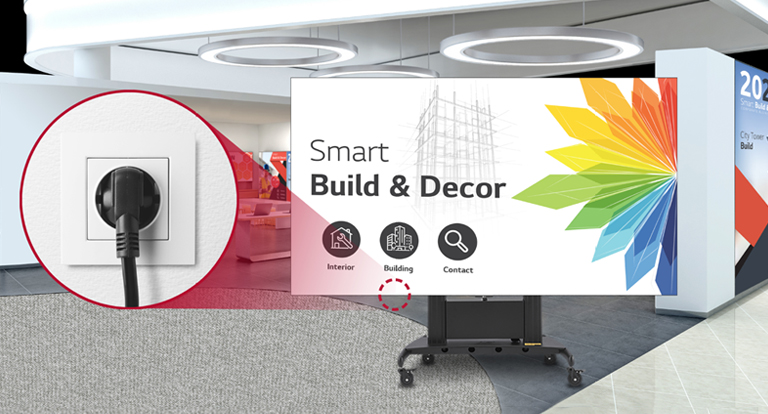

Simple Power Connection Simple Power Connection

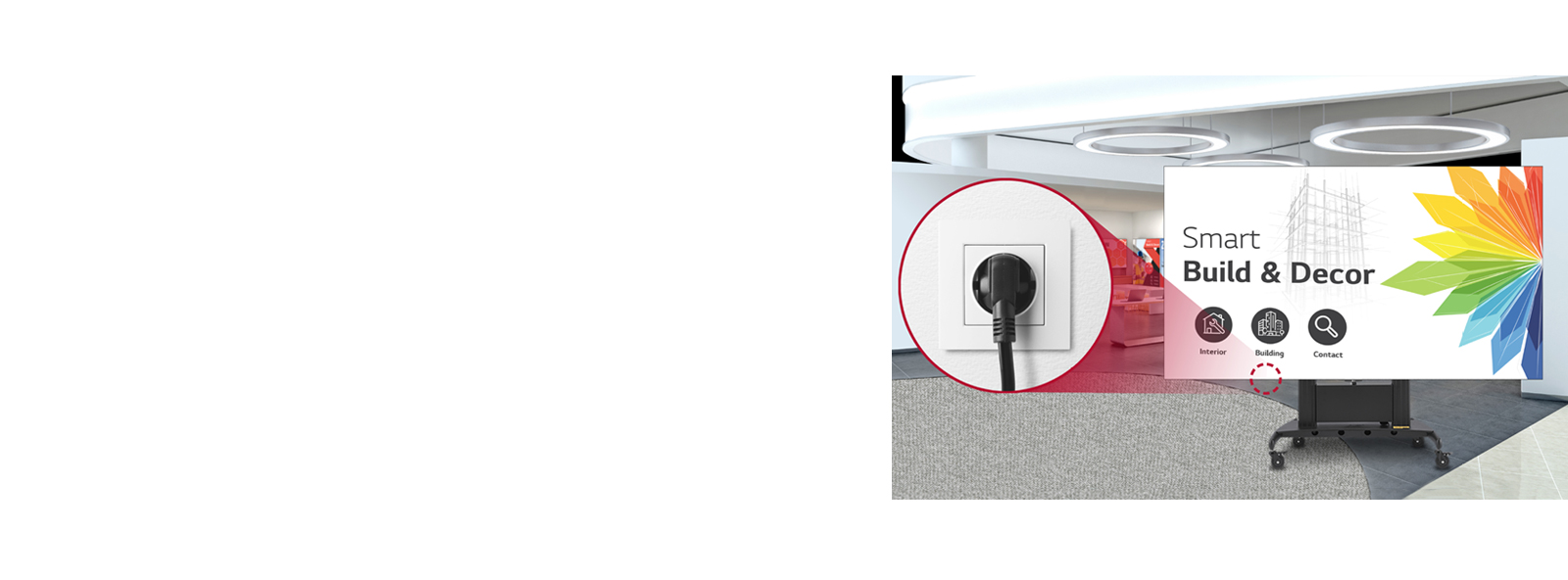

Simple Power Connection

The LAEB series is operated with a single or double AC cable* without the need for a complicated power connection and enables neat installation.

* Two AC cables are needed for 110V AC.
Operating in a Humid Environment Operating in a Humid Environment

Operating in a Humid Environment

The All-in-one Essential series can be operated under 90% RH* environment.

* Without condensation
Power Saving Standby Mode Power Saving Standby Mode

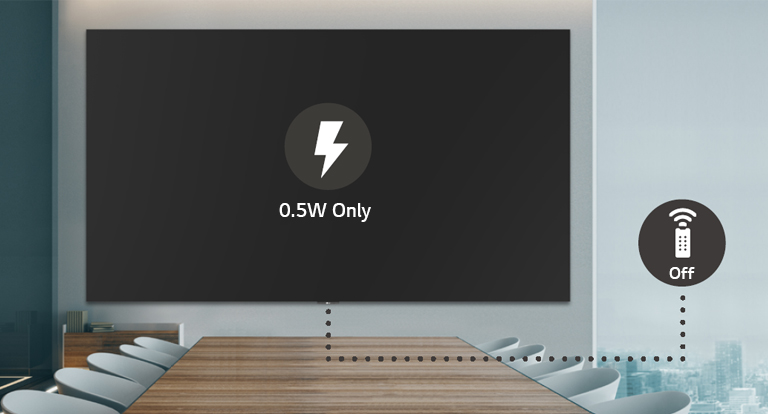

Power Saving Standby Mode

When there is no input with remote control for a period of time, the screen turns off and the main circuit parts inside the LED cabinet go to a standby mode. This leads to saving power consumption.
Close
PHYSICAL PARAMETERS
  • Pitch Name
    P1.56
    Pixel Configuration
    3 in 1 SMD
  • Pixel Pitch (mm)
    1.5625
    Screen Resolution
    1,920x1,080
  • Module Dimensions(WxH,mm)
    250x281.25
    No. of Modules per Screen (WxH)
    12x6 (Total 72)
  • Screen Resolution (WxH)
    1,920x1,080
    Screen Dimensions (W x H x D, mm)
    3,000x1687.5x35.5
  • Screen Surface Area (㎡)
    5.1
    Weight of the screen
    131
  • Physical Pixel Density (pixels/m²)
    409,600
    Flatness of Unit Case (mm)
    ±0.2
  • Unit Case material
    Aluminum
    Service Access
    Front
OPTICAL SPECIFICATIONS
  • Min. Brightness (After Calibration)
    800
    Color Temperature
    6,500
  • Visual Viewing Angle (Horizontal)
    160
    Visual Viewing Angle (Vertical)
    160
  • Brightness Uniformity
    98%
    Color Uniformity
    ±0.015Cx,Cy
  • Contrast Ratio
    3,000
    Processing Depth (bit)
    16
ELECTRICAL SPECIFICATIONS
  • Power Consumption (W/Unit, Max.)
    3,000
    Power Consumption (W/Unit, Avg.)
    1,000
  • Power Consumption (W/㎡, Max.)
    600
    Power Consumption (BTU/Unit, Max.)
    10239
  • Power Consumption (BTU/Unit, Avg.)
    3413
    Power Consumption (BTU/㎡, Max.)
    2033
  • Power Supply (V)
    100 to 240
    Frame Rate (Hz)
    50 / 60
  • Refresh Rate (Hz)
    2,880
OPERATION SPECIFICATIONS
  • Lifetime (Half brightness)
    100,000
    Operating Temperature(℃)
    0℃ to +40℃
  • Operating Humidity
    <90%RH(without condensation)
    IP rating Front
    IP40
  • IP Rating Rear
    IP20
CERTIFICATION
  • Certification
    CE
Environment
  • Environment
    RoHS
CONTROLLER
  • Controller
    Embedded
