All-in-one Smart Series

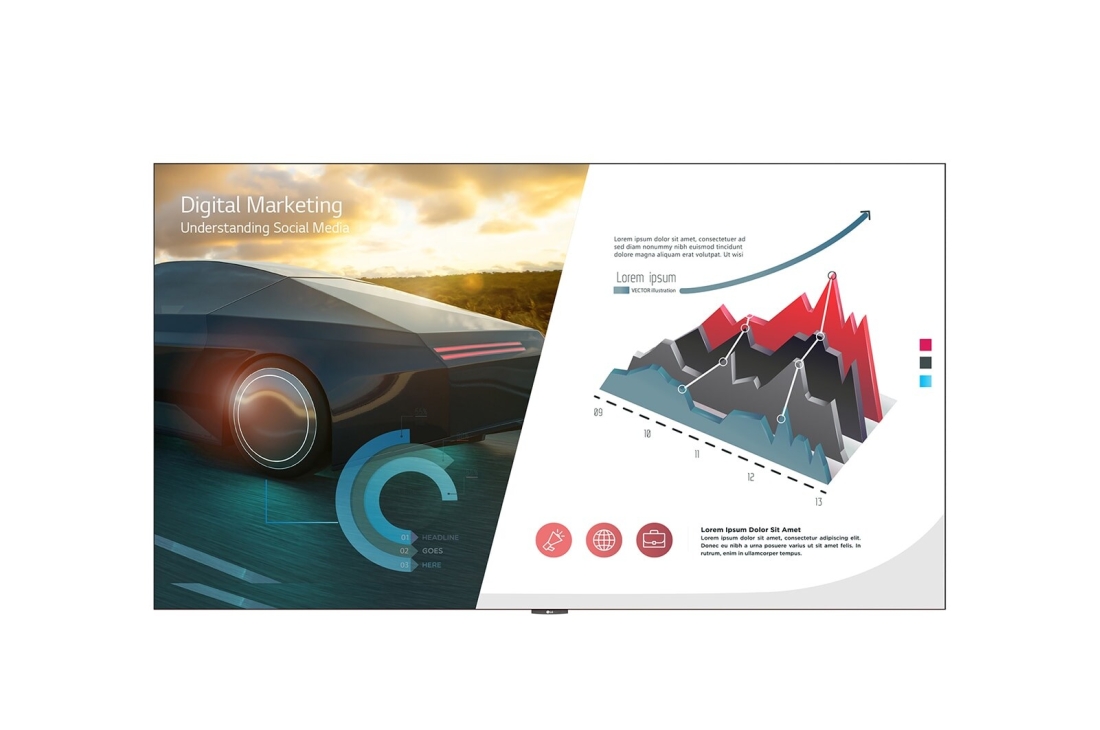

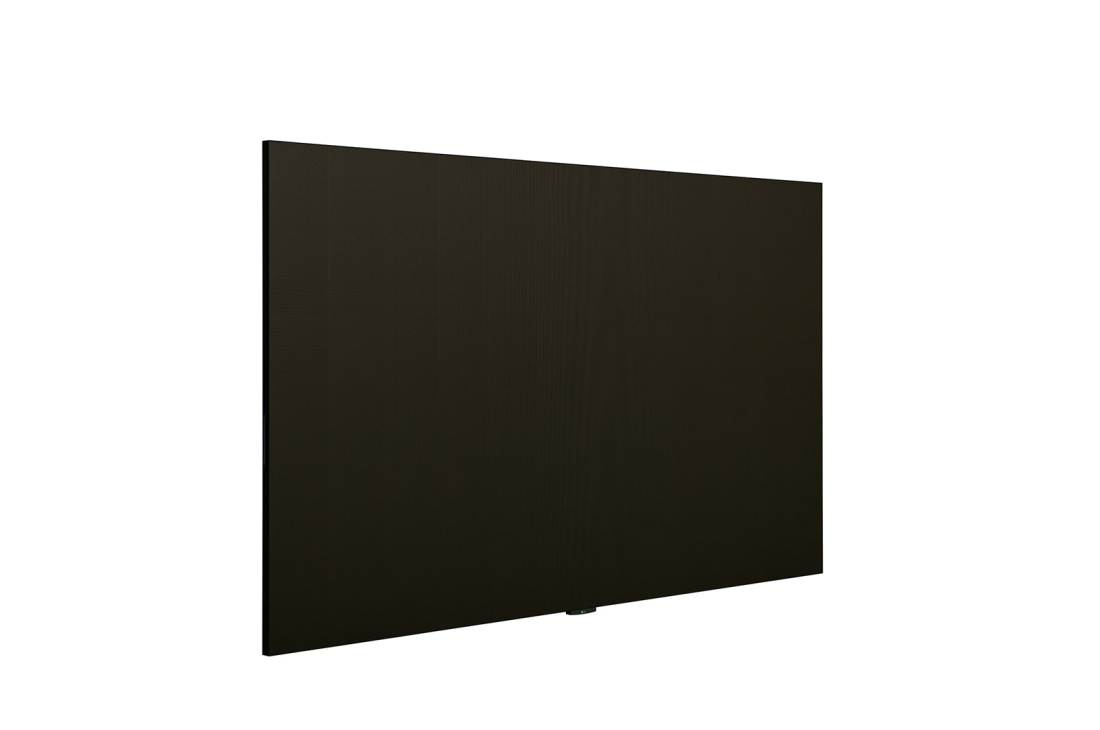

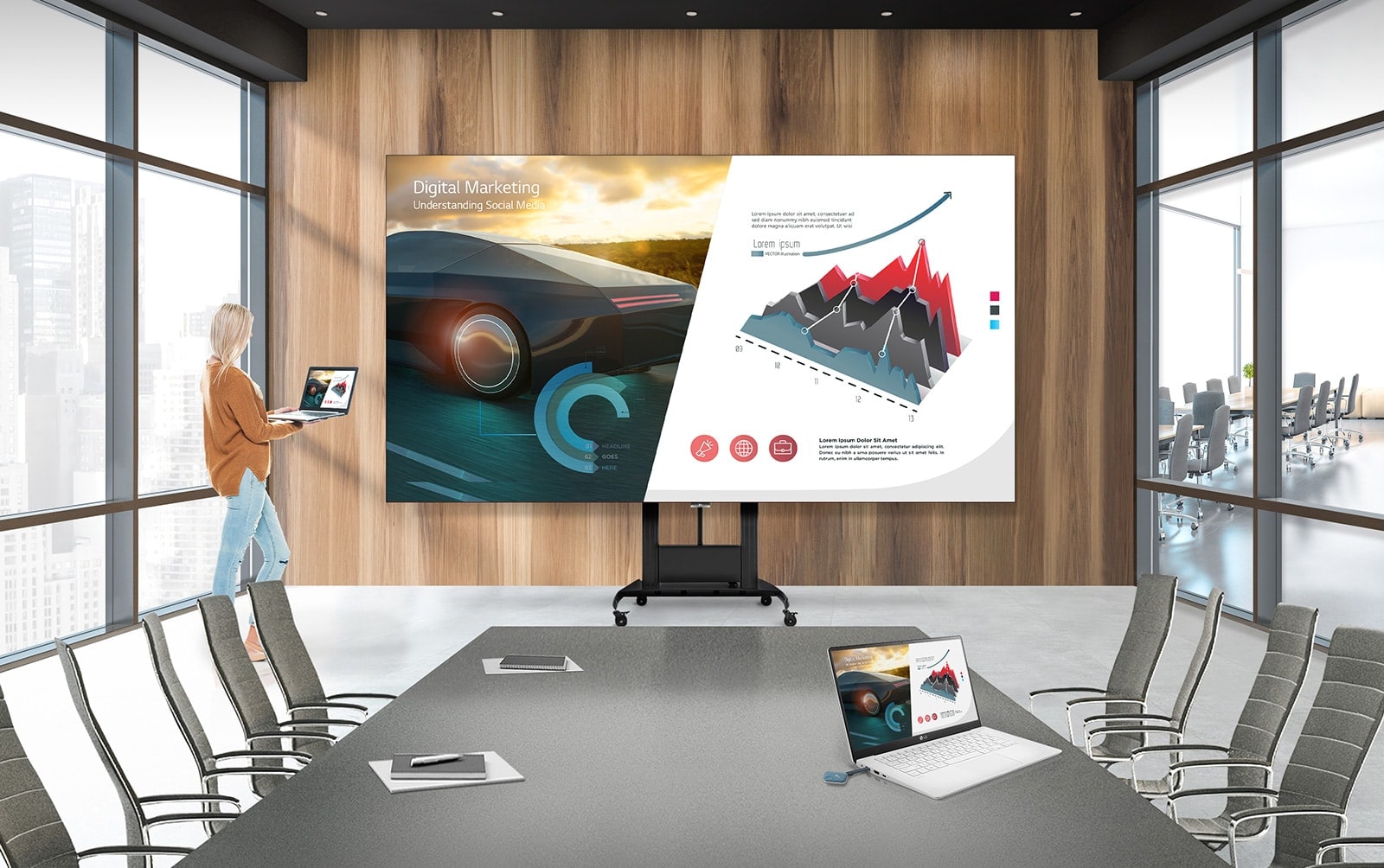

LG LED All-in-One Smart Series

LG LED All-in-One Smart Series1 LG LED All-in-One Smart Series2
* All images in this web page are for illustrative purposes only and may differ from the actual product.
All-in-One LED<br> Screen with<br> Built-in Speaker1 All-in-One LED<br> Screen with<br> Built-in Speaker2

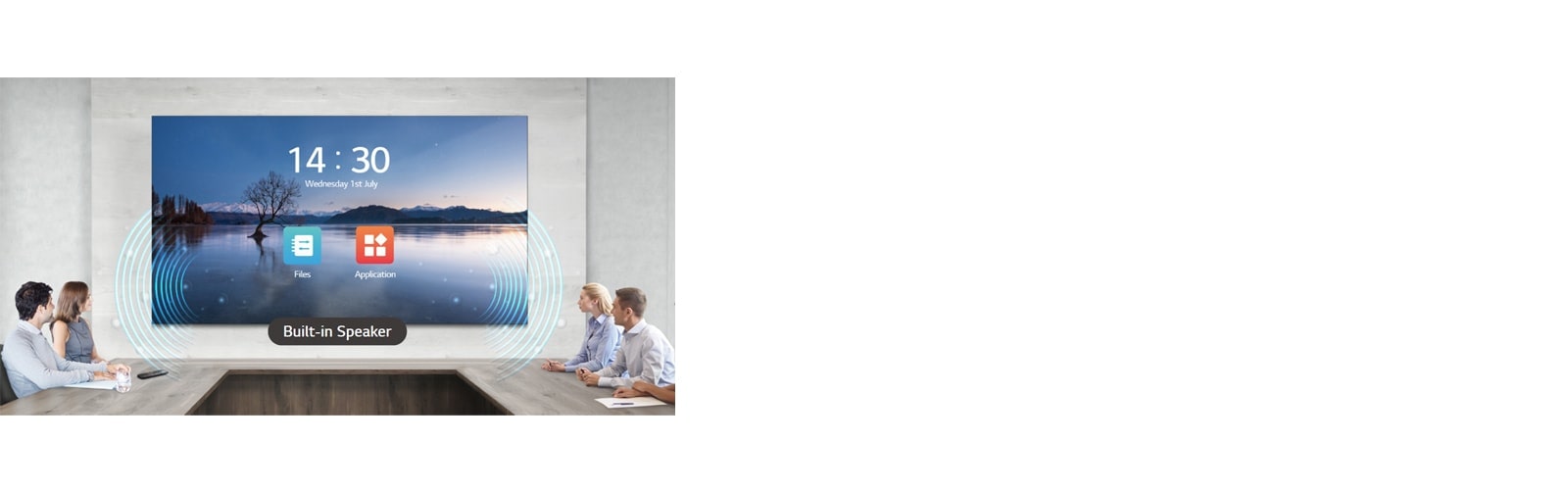

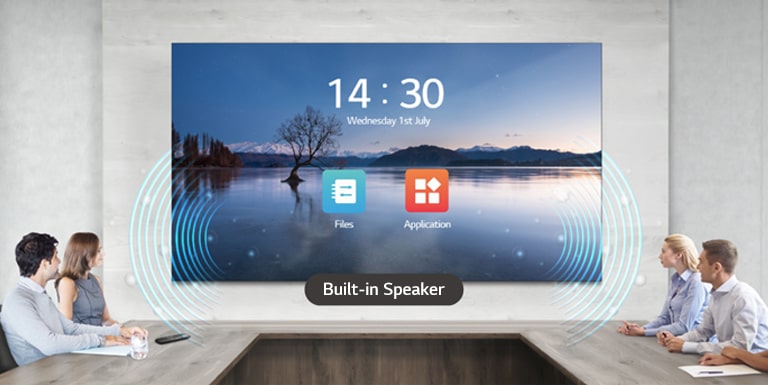

All-in-One LED
Screen with
Built-in Speaker

The LAEC series is a 136-inch large screen which is offered as an all-in-one package including an embedded controller and built-in speaker. Eliminating the prejudice that LED displays are difficult and complex to install, it doesn't require controller connections or module configuration. After a simple installation process, all you need to do is to turn on the screen with a remote control like home TV.
High Performance with webOS1 High Performance with webOS2

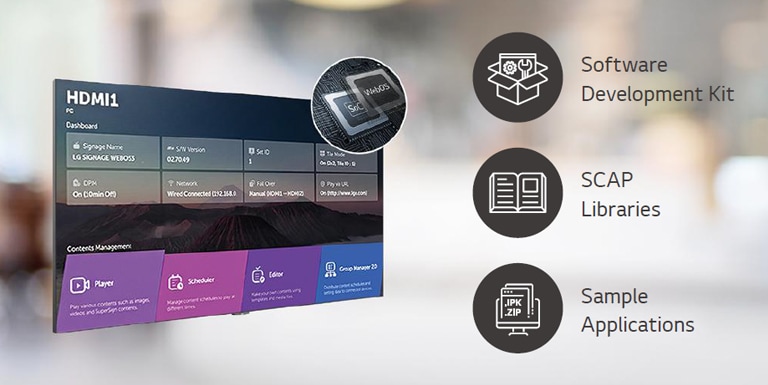

High Performance with webOS

Built-in Quad Core SoC (System on Chip) can execute several tasks at once for providing smooth content playback. Also, LG webOS Smart Platform enhances user convenience with intuitive GUI and provides to SI or/and developers simple app development tools* such as SDK (Software Development Kit), SCAP, sample applications.
* The webOS Signage Developer site (https://webossignage.developer.lge.com) provides SDK tools and documentation for creating apps on LG Digital Signage. This is only open to partners.

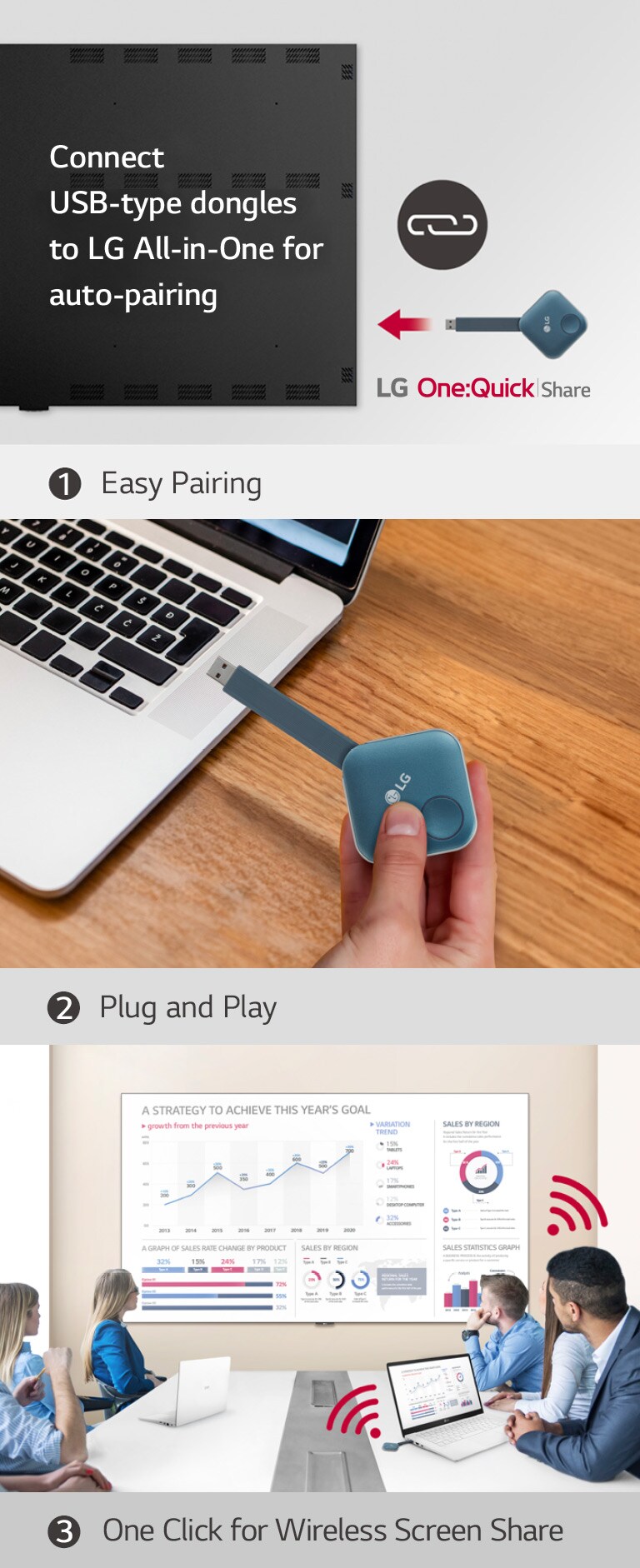

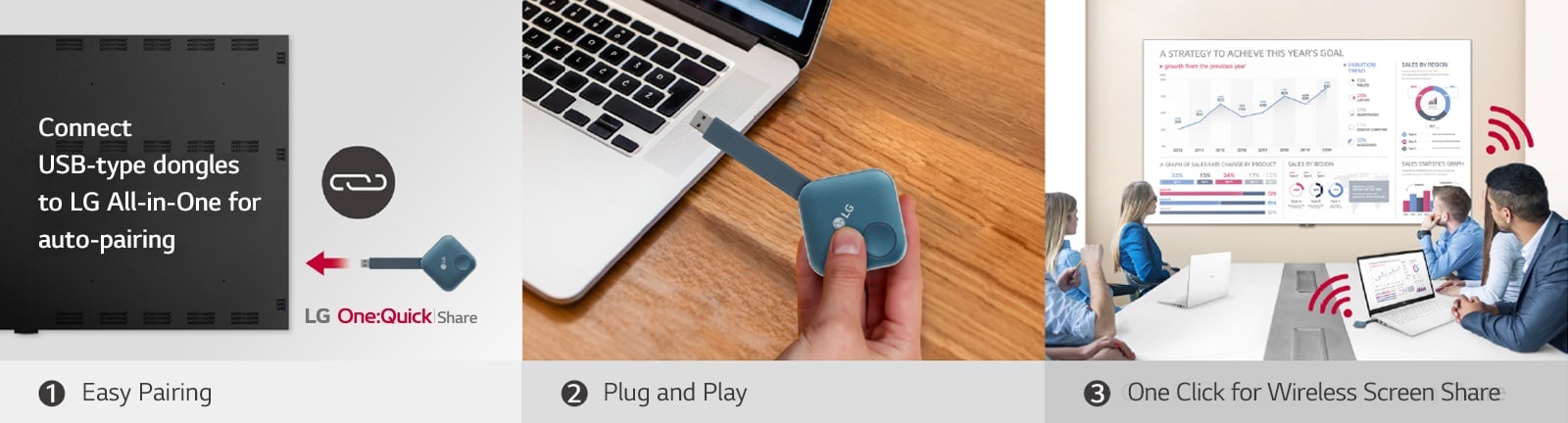

LG’s Wireless Screen Sharing
Solution, LG One:Quick Share

LG One:Quick Share is a wireless screen sharing solution available through the LAEC series, USB transmission unit, and its app. You can simply share personal PC screen to the display with it's USB dongle button and embedded Wi-Fi*, and can adjust the basic setting values (volume, picture mode, auto bright, etc.) of the connected display without a remote control. Also, the Office Meeting Mode** helps you to display the agenda, note before the meeting starts.
LG’s Wireless Screen Sharing <br>Solution, LG One:Quick Share1 LG’s Wireless Screen Sharing <br>Solution, LG One:Quick Share2
* Users need to set up Soft AP enabled at Network Menu of the Signage.
** Users can enable Office Meeting Mode at EZ Setting Menu of the Signage.
*** LG One:Quick Share needs to be purchased separately.

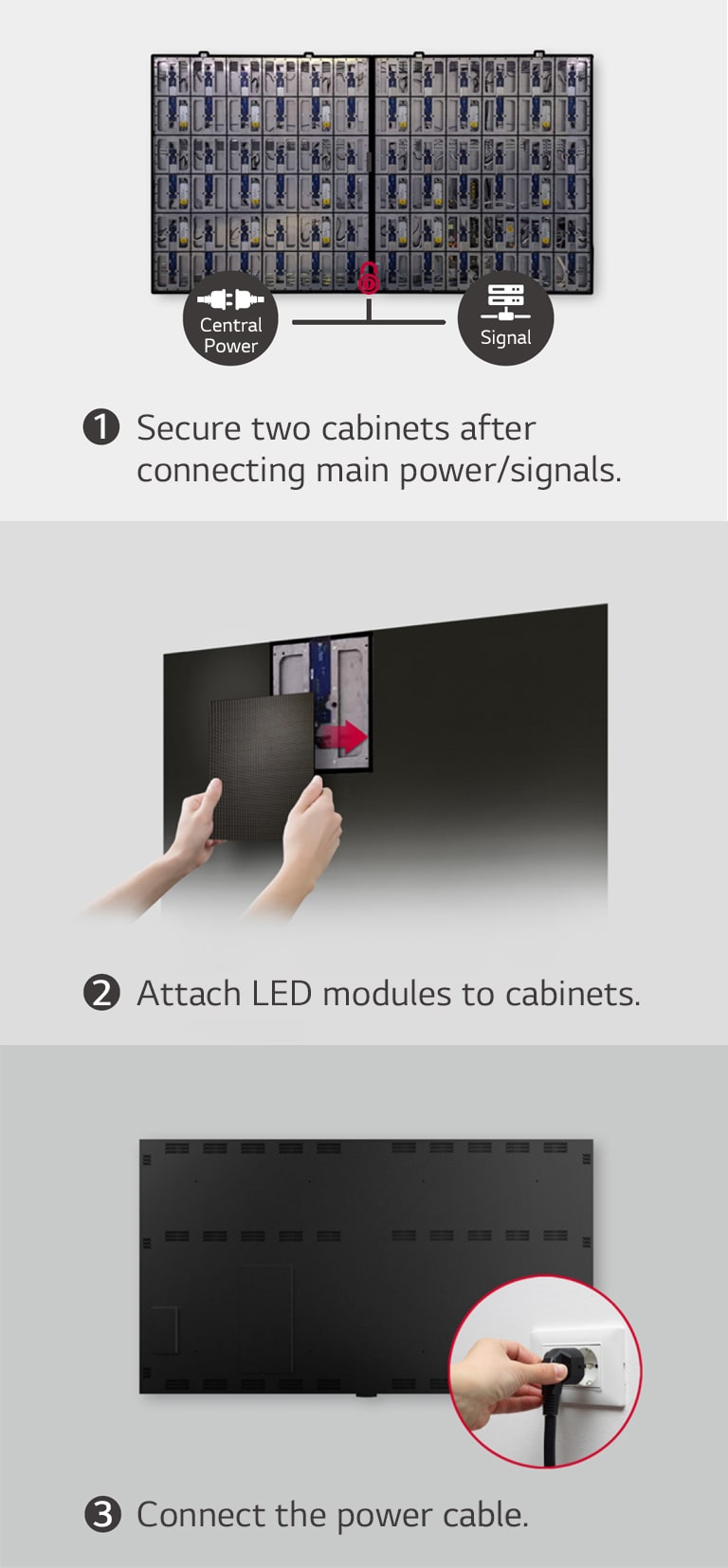

Easy Installation

The installation process of the All-in-One Smart series is very simple. After securing two cabinets which are included in the flight kit, attach each LED display module to them. Lastly, plug in the power cable. This simple installation saves time and labor, thereby making users handle the LED screen with ease.
Easy Installation1 Easy Installation2
* Fixing screws or installing wall mount / accessories is needed additionally.
Quick Maintenance1 Quick Maintenance2

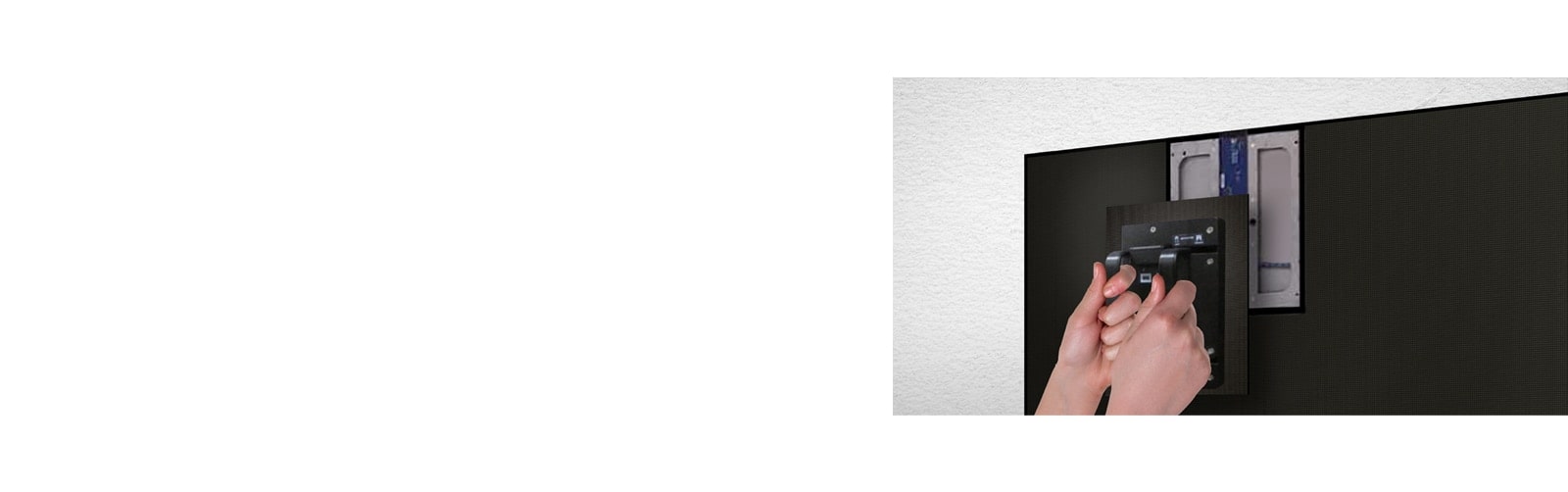

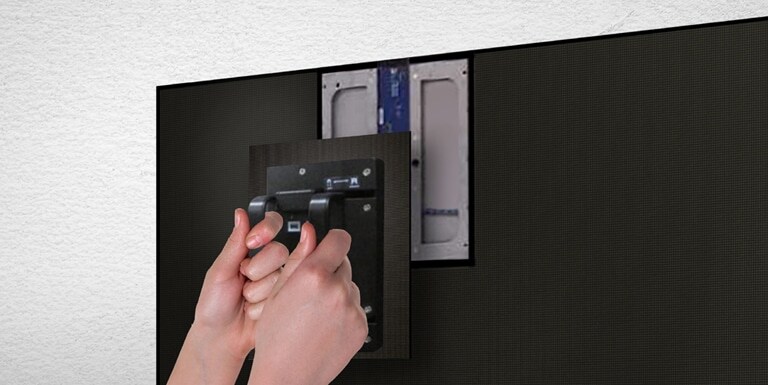

Quick Maintenance

In case of failure related to the LED module or the system board, it can be serviced from the front. The LED module can be simply detached by the provided magnetic tool and replaced quickly without cabling.

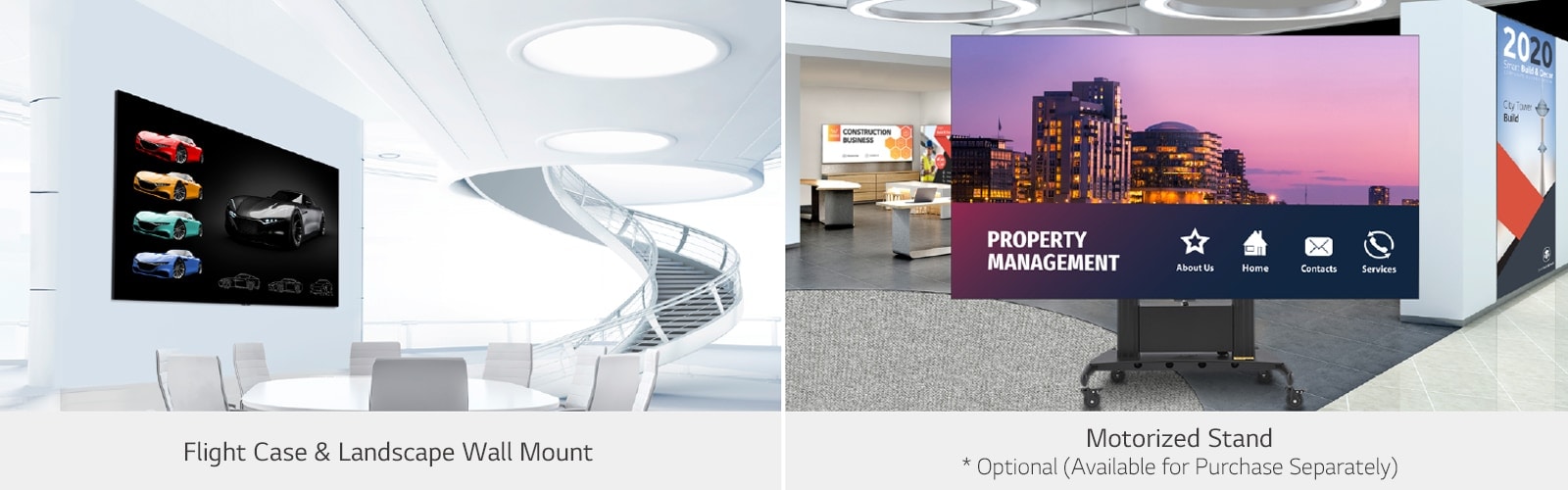

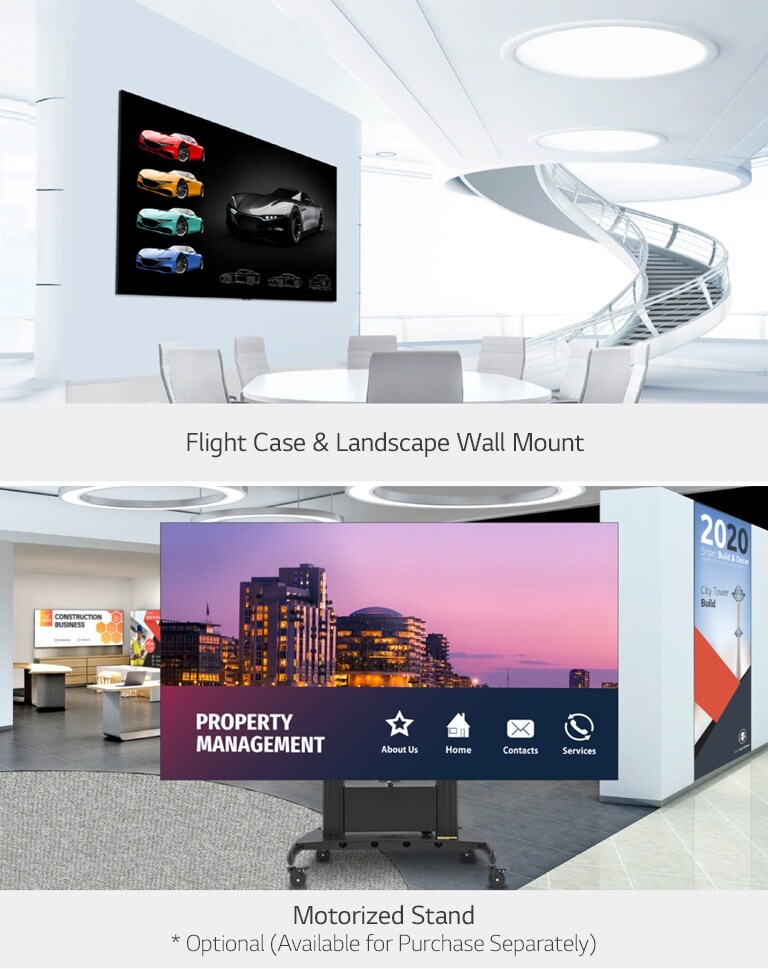

Dedicated Installation Accessories

The product is offered with the flight case which includes every necessary component including the landscape wall mount and tools for installation. The motorized stand is provided as an option, so that you can easily place it depending on your installation sites. With this stand, you can adjust a height of the screen including stand from 2.0 m to 2.5 m.
Dedicated Installation Accessories1 Dedicated Installation Accessories2
Compatible with AV Control Systems1 Compatible with AV Control Systems2

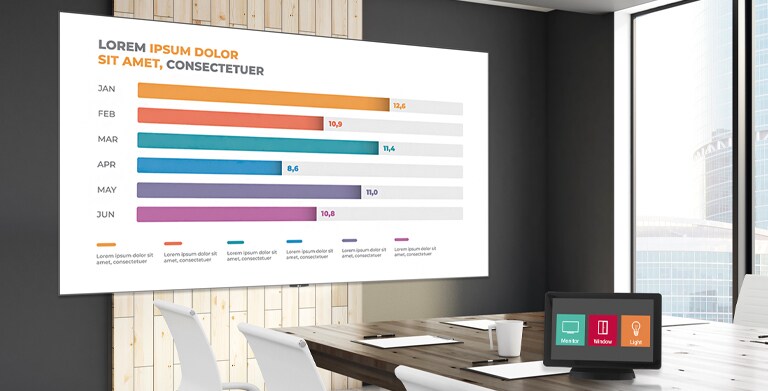

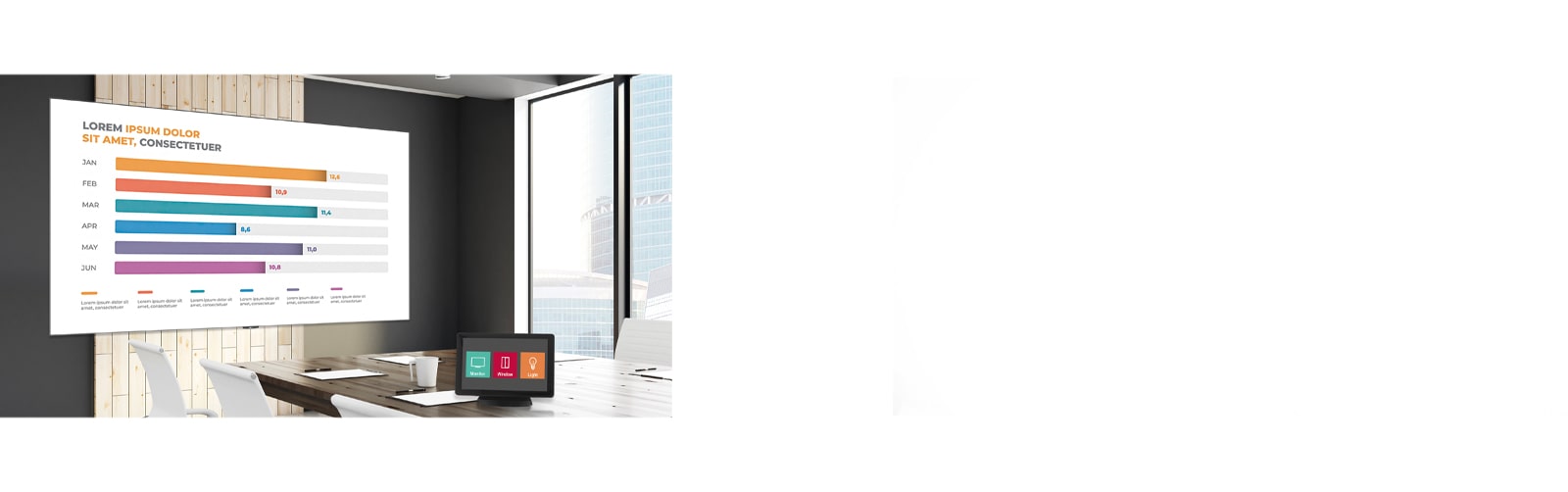

Compatible with AV Control Systems

The LAEC series supports Crestron Connected®* for high compatibility with professional AV controls to achieve seamless integration and automated control**, boosting business management efficiency.
* Initial setting from display is required for Crestron Connected® compatibility.
** Network based control
Real-Time LG<br>ConnectedCare1 Real-Time LG<br>ConnectedCare2

Real-Time LG
ConnectedCare

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.
* The availability of LG ConnectedCare differs by region.

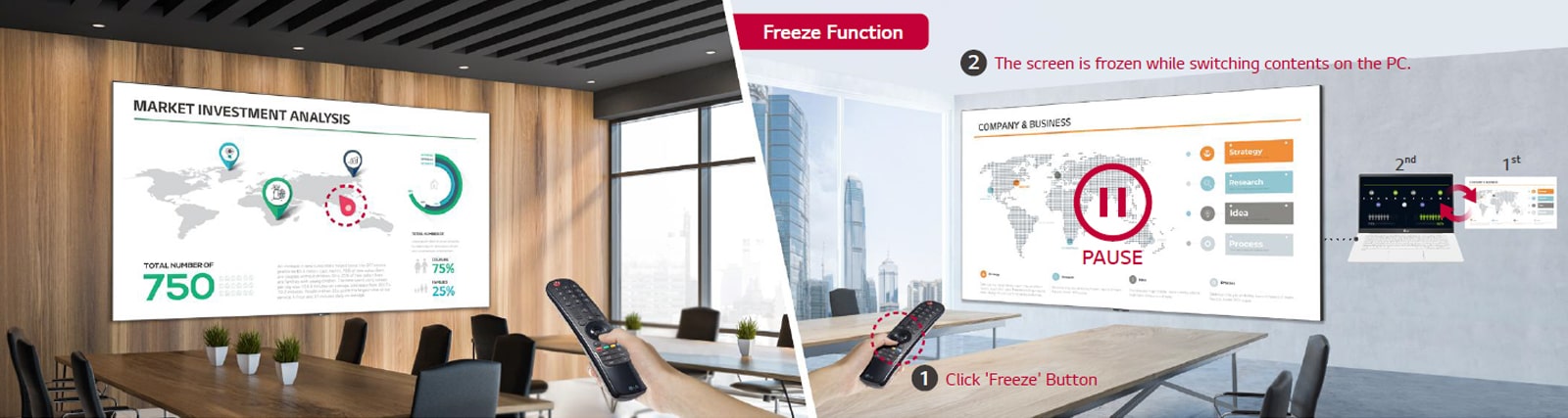

Magic Remote for Easy of Use

With the LG Magic Remote, you can select and run the menu of the signage just like using a mouse and its cursor can be used as a laser pointer. In addition, through the newly added 'FREEZE' button on the remote control, users can temporarily freeze the screen while switching contents on the PC, so that users are able to have uninterrupted meetings without exposing its switching process.
Magic Remote for Easy of Use1 Magic Remote for Easy of Use2
* LG Magic Remote needs to be purchased separately.
** The FREEZE function is only available when the LAEC is connected to an external input signal.
Close
PHYSICAL PARAMETERS
  • Pixel Configuration
    3 in 1 SMD
    Pixel Pitch (mm)
    1.5625
  • Screen Resolution (W × H)
    1,920 × 1,080
    Module Dimensions (W × H, mm)
    250 × 281.25
  • No. of Modules per Screen (W × H)
    12 × 6 (Total 72)
    Screen Dimensions (W × H × D, mm)
    3,004.6 × 1,692.1 × 36.5 (Thickest 70)
  • Screen Surface Area (m²)
    5.06
    Screen Weight (kg)
    129
  • Physical Pixel Density (pixels/m²)
    409,600
    Flatness of Cabinet (mm)
    ±0.2
  • Cabinet Material
    Aluminum
    Service Access
    Front
OPTICAL SPECIFICATIONS
  • Brightness
    500 nit
    Color Temperature (K)
    3,200 - 9,300
  • Visual Viewing Angle (Horizontal)
    160
    Visual Viewing Angle (Vertical)
    160
  • Brightness Uniformity
    98%
    Color Uniformity
    ±0.015Cx,Cy
  • Contrast Ratio
    3,000 : 1
    Processing Depth (bit)
    16
ELECTRICAL SPECIFICATIONS
  • Power Consumption (W/screen, Max.)
    2,000
    Power Consumption (W/screen, Avg.)
    800
  • Power Consumption (W/m², Max.)
    395
    Power Consumption (BTU/h/Screen, Max.)
    6,824
  • Power Consumption (BTU/h/Screen, Avg.)
    2,730
    Power Consumption (BTU/h/m², Max.)
    1,348
  • Power Supply (V)
    100 to 240
    Frame Rate (Hz)
    50 / 60
  • Refresh Rate (Hz)
    ≥2,880
OPERATION SPECIFICATIONS
  • Lifetime (Hours to Half Brightness)
    100,000
    Operating Temperature (°C)
    0 to +40
  • Operating Humidity
    <90% RH (without Condensation)
    IP Rating (Front / Rear)
    IP30 / IP20
SPEAKER
  • SPEAKER
    Built-in (9W + 9W)
CERTIFICATION
  • Certification
    CE, FCC, ETL, CB
Environment
  • Environment
    RoHS, REACH
CONTROLLER
  • Controller
    Embedded
