LSAA Optimum Cable-less LED Series

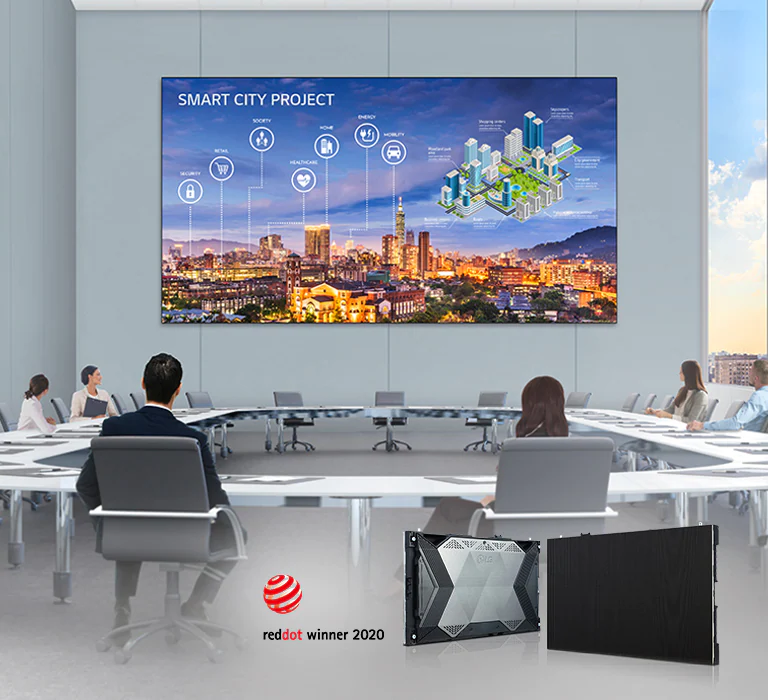

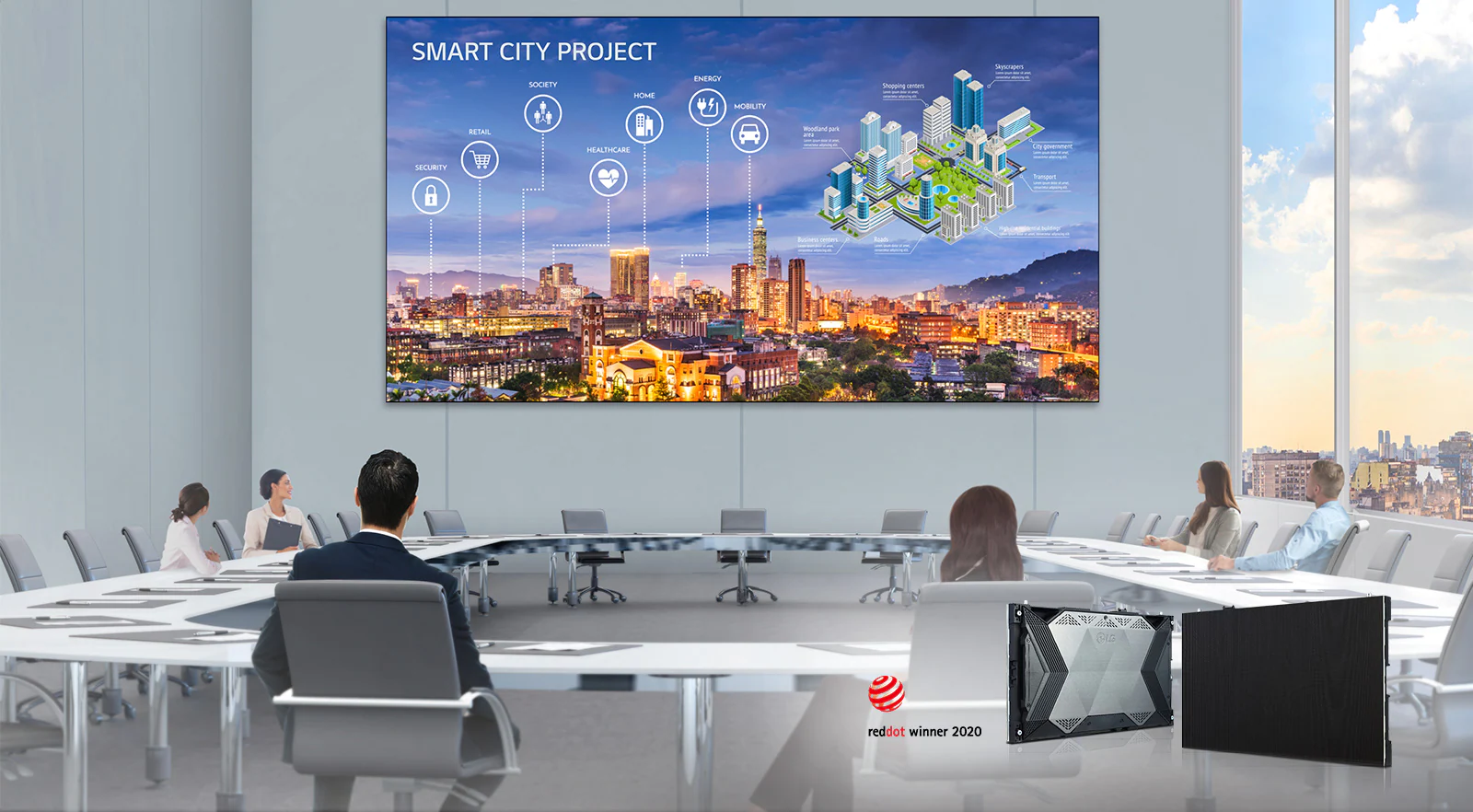

True Innovation Behind Simplicity

With unrivaled picture quality and optimum cable-less design,
Expand the Possibilities of Business Space Itself.
True Innovation Behind Simplicity True Innovation Behind Simplicity

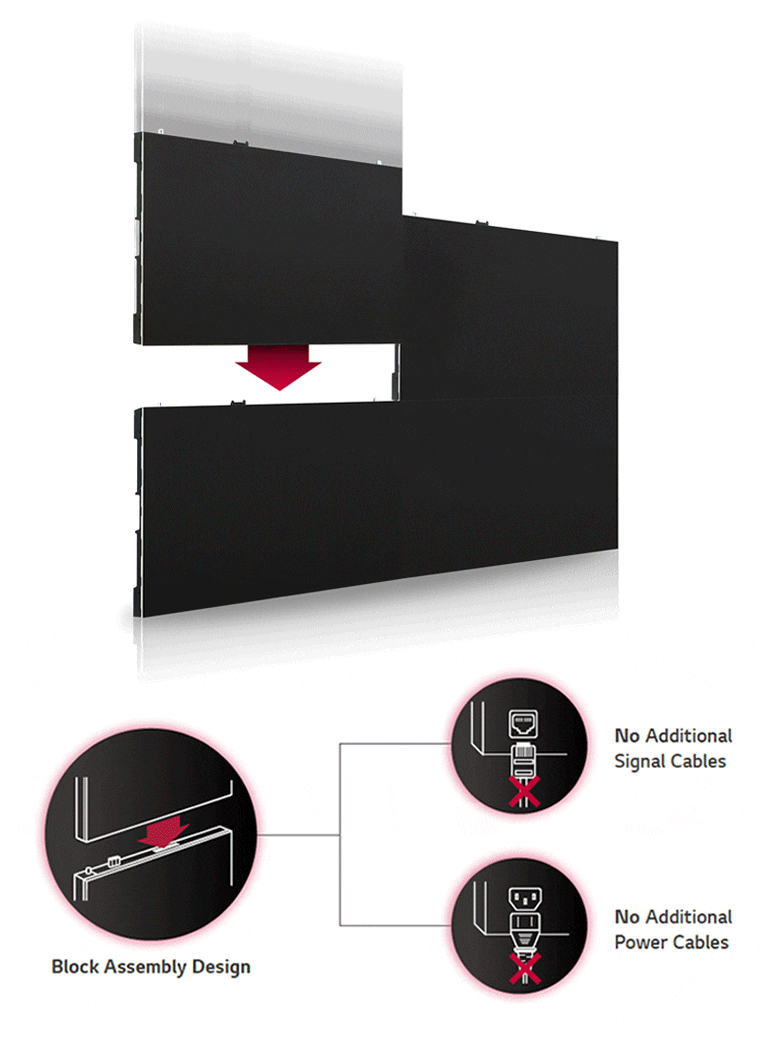

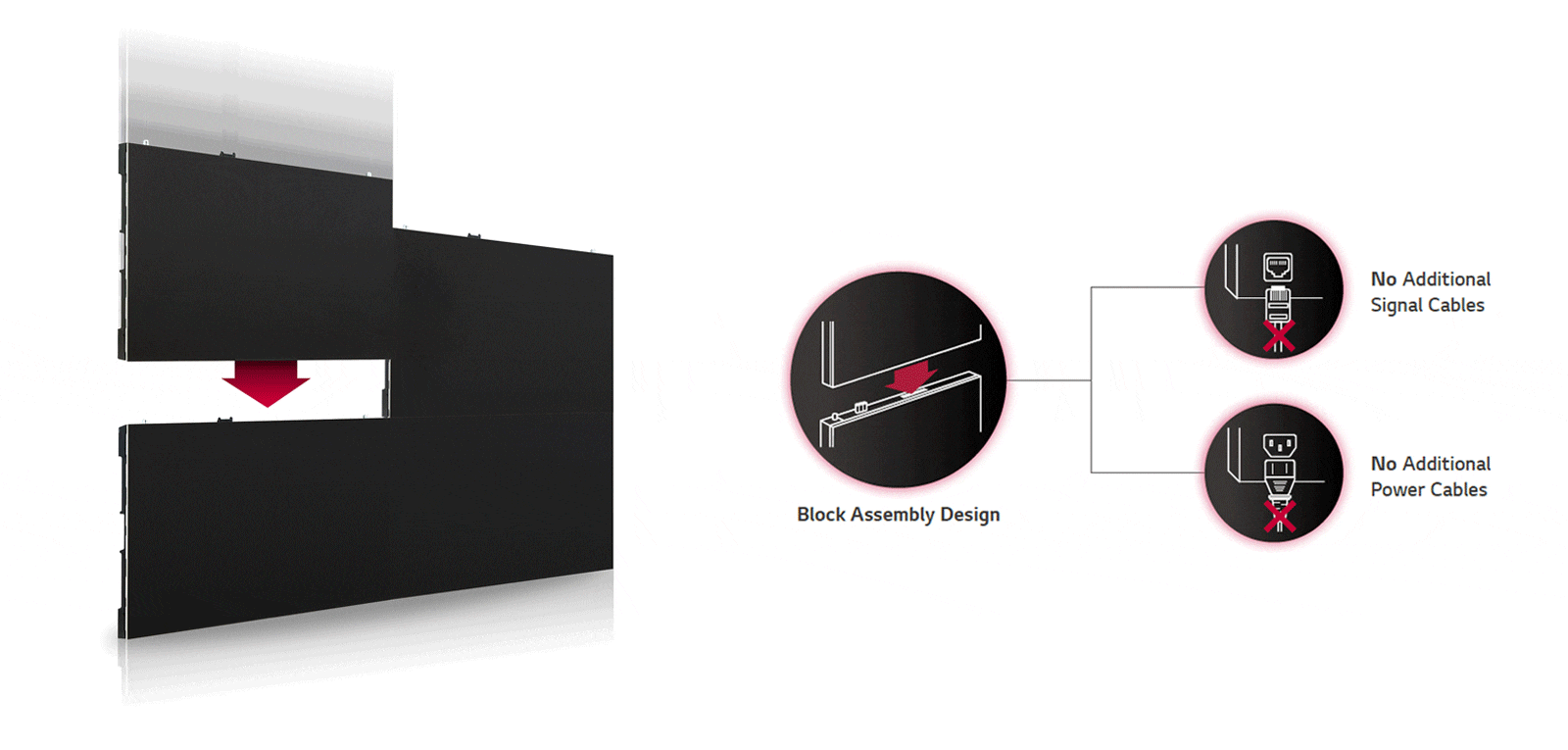

Why “Optimum Cable-less” LED

The LSAA series is the innovative LED signage applying the wireless transmission technology.
For up to UHD resolution with the 16:9 ratio,
it does not require a cable connection between the cabinets to supply signal & power.
Its block assembly design makes the LSAA series easier to be installed than ever before.
Why “Optimum Cable-less” LED Why “Optimum Cable-less” LED

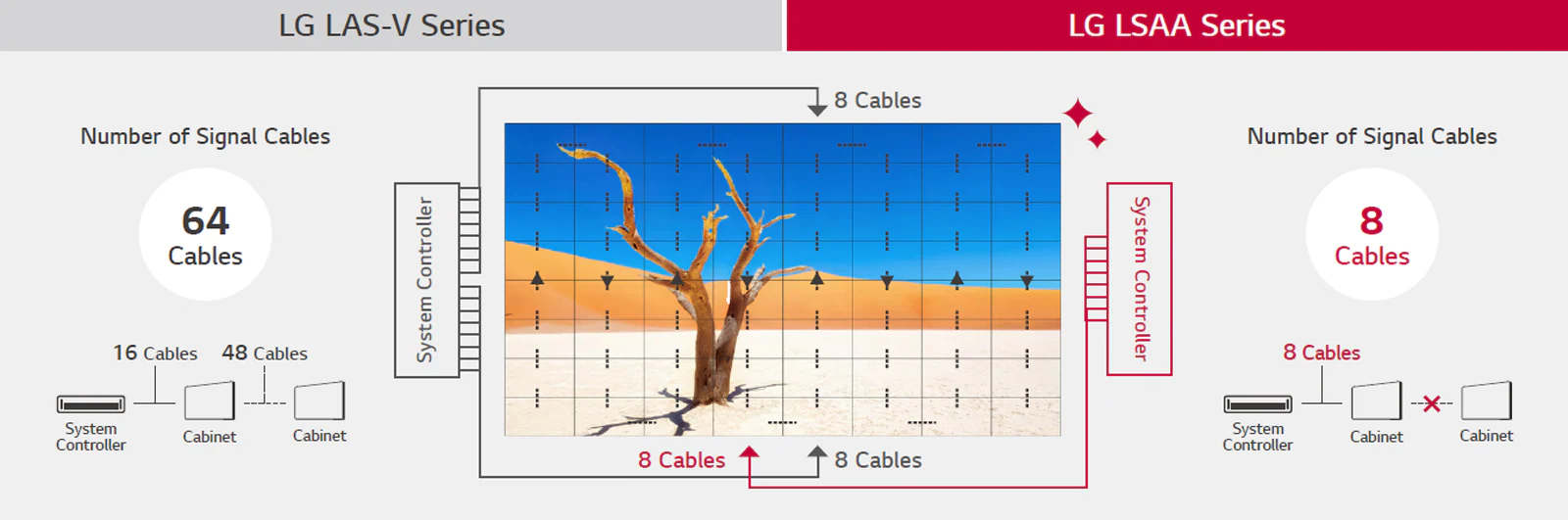

Optimum cable-less design for simple installation Optimum cable-less design for simple installation
* Based on P1.2, 16:9, UHD Resolution (8 x 8 Cabinets)

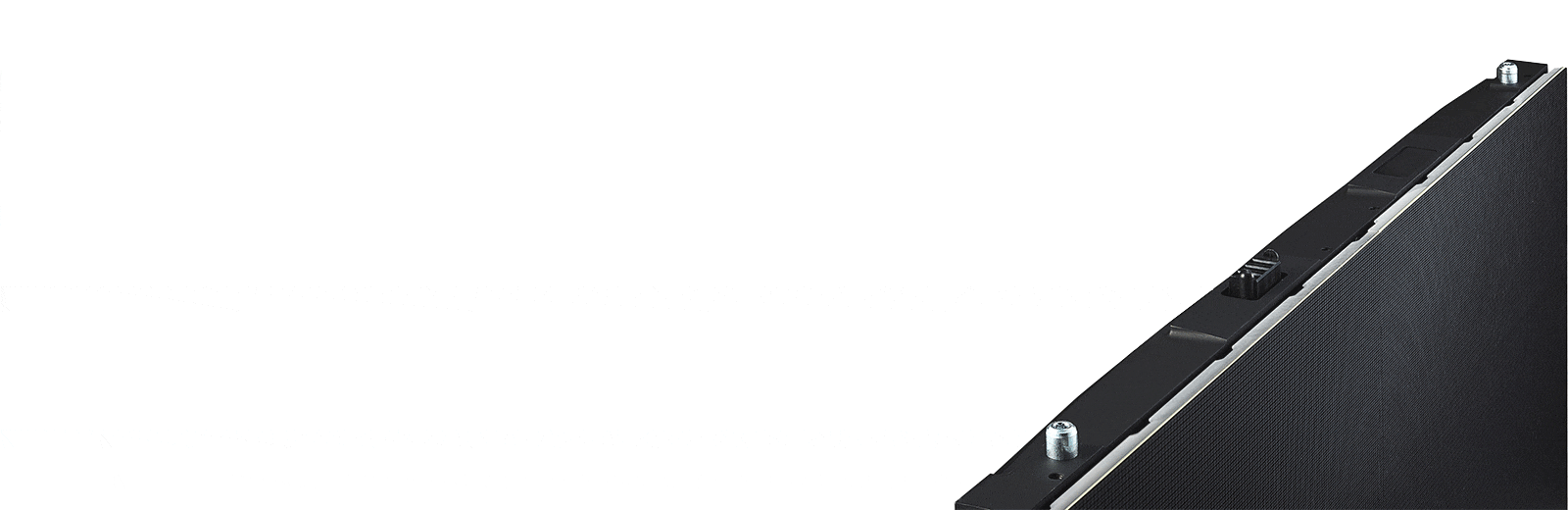

Wireless Data Transfer & Cable-less Power Docking Wireless Data Transfer & Cable-less Power Docking

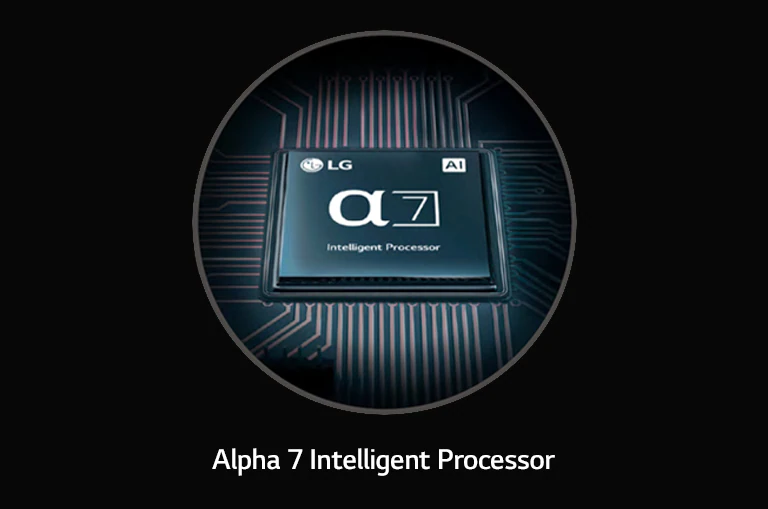

Optimized Image Quality with AI-powered Image Processor Optimized Image Quality with AI-powered Image Processor

Optimized Image Quality with AI-powered Image Processor

The "Alpha 7 Intelligent Processor" applied to the LSAA series recognizes and analyzes the original content, optimizing the clarity and sharpness of the content for itself.

* The above functions are created by using deep learning AI technology to improve the picture quality.

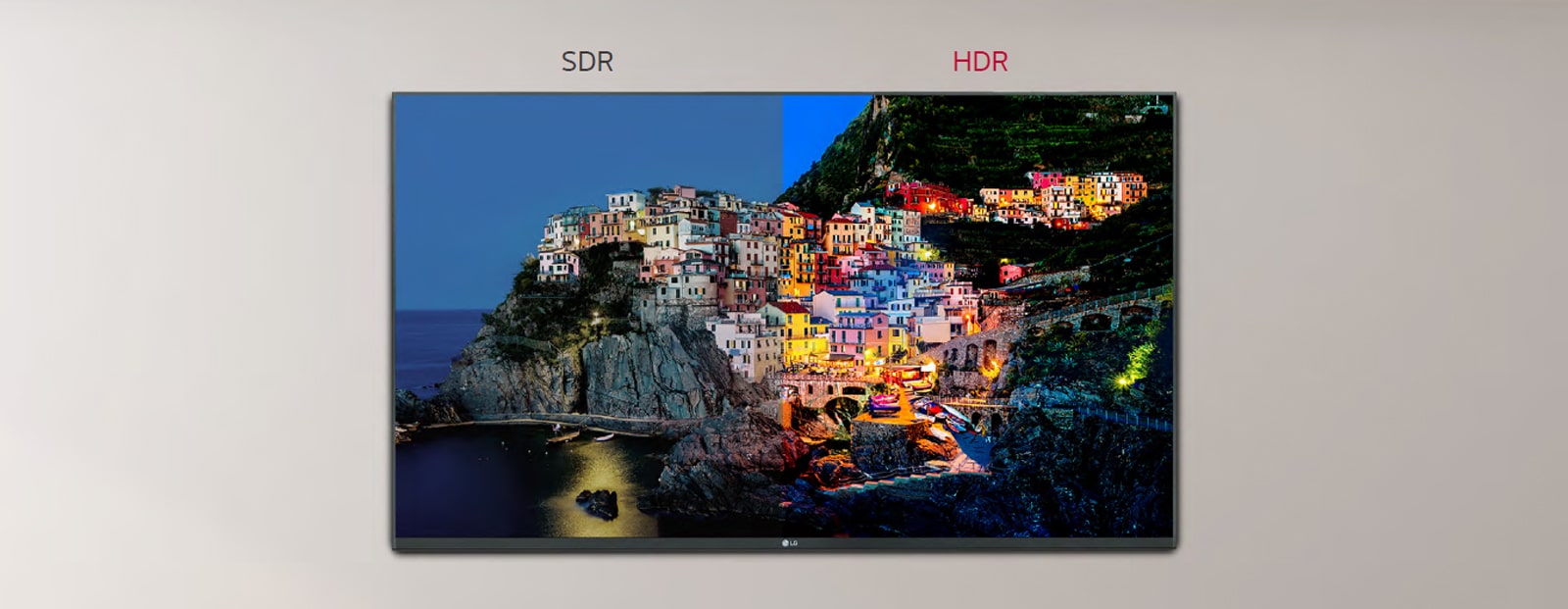

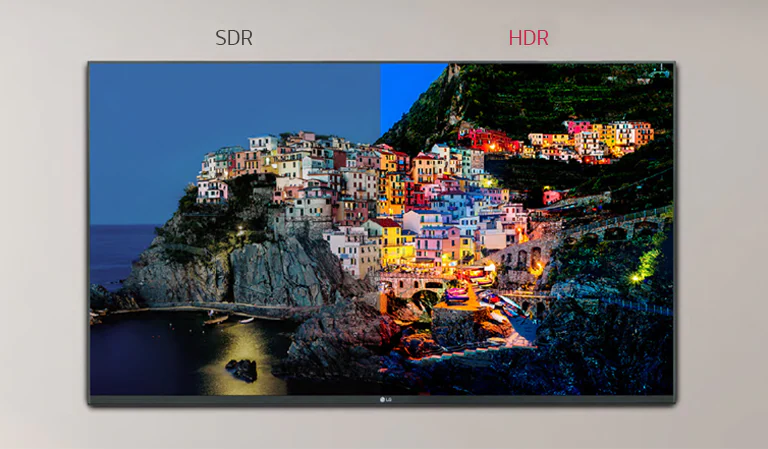

Vivid Color Expression Powered by HDR

With HDR (HDR10, HDR10 Pro*) support, content becomes vivid with great visual impact.
The wider color spectrum and greater contrast ratio allow viewers to fully enjoy lively content.
Vivid Color Expression Powered by HDR Vivid Color Expression Powered by HDR
* HDR10 Pro is LG's own HDR solution for processing HDR signal by using enhanced dynamic tone mapping.

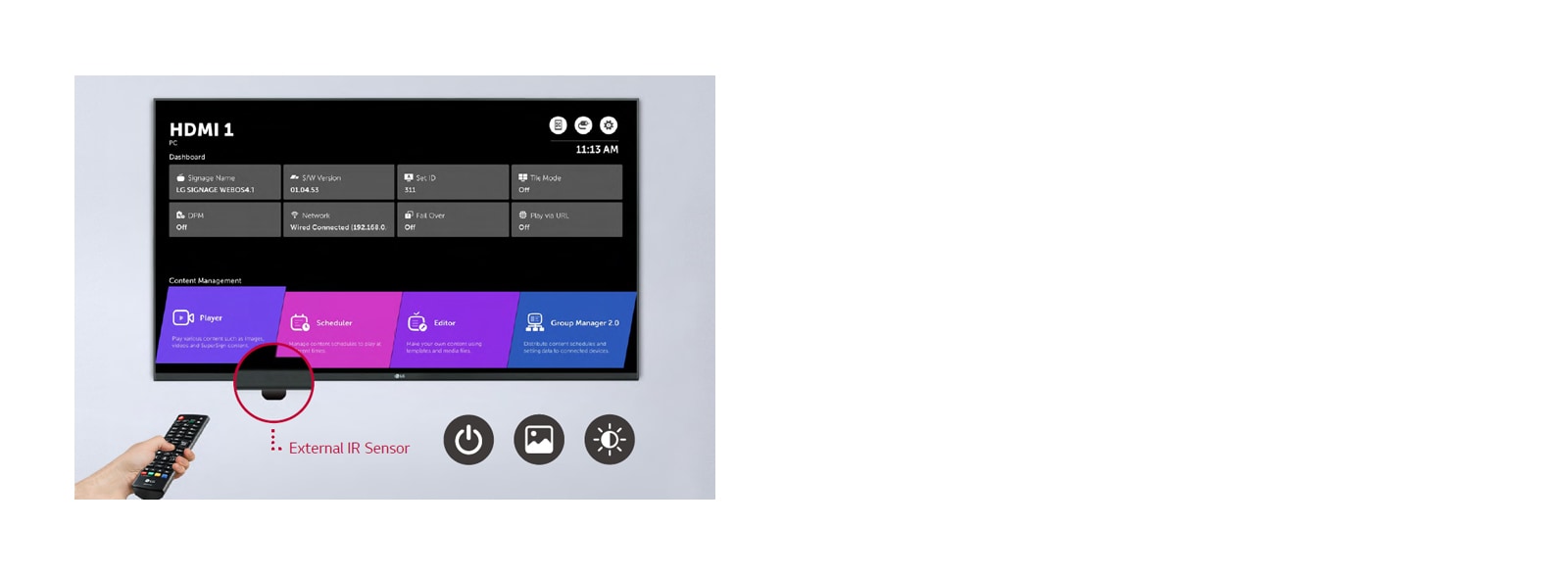

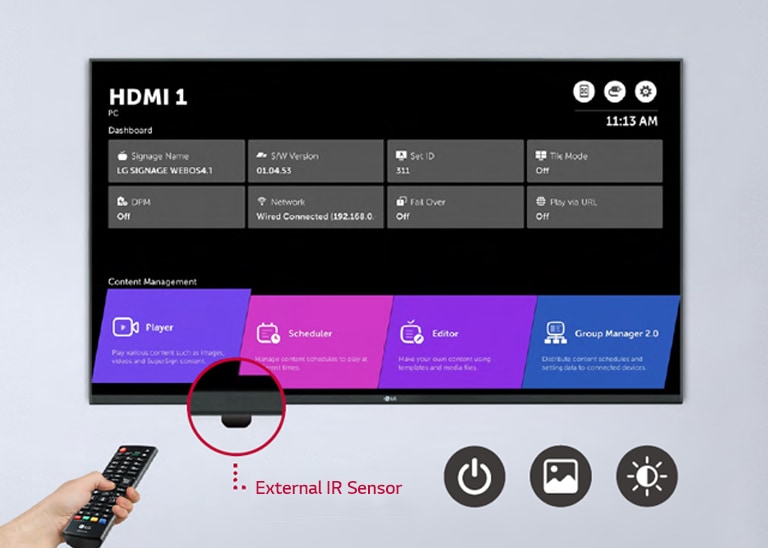

Easy Remote Control Support Easy Remote Control Support

Easy Remote Control Support

The LSAA series allows users to easily access the settings, such as Picture Mode, volume, etc. by using a remote control instead of connecting to a PC. It uses the same UI as general LG digital signage, so users can easily adapt to it.

* The easy-viewing UI menu is available for over 1,280 × 720 resolution screens.

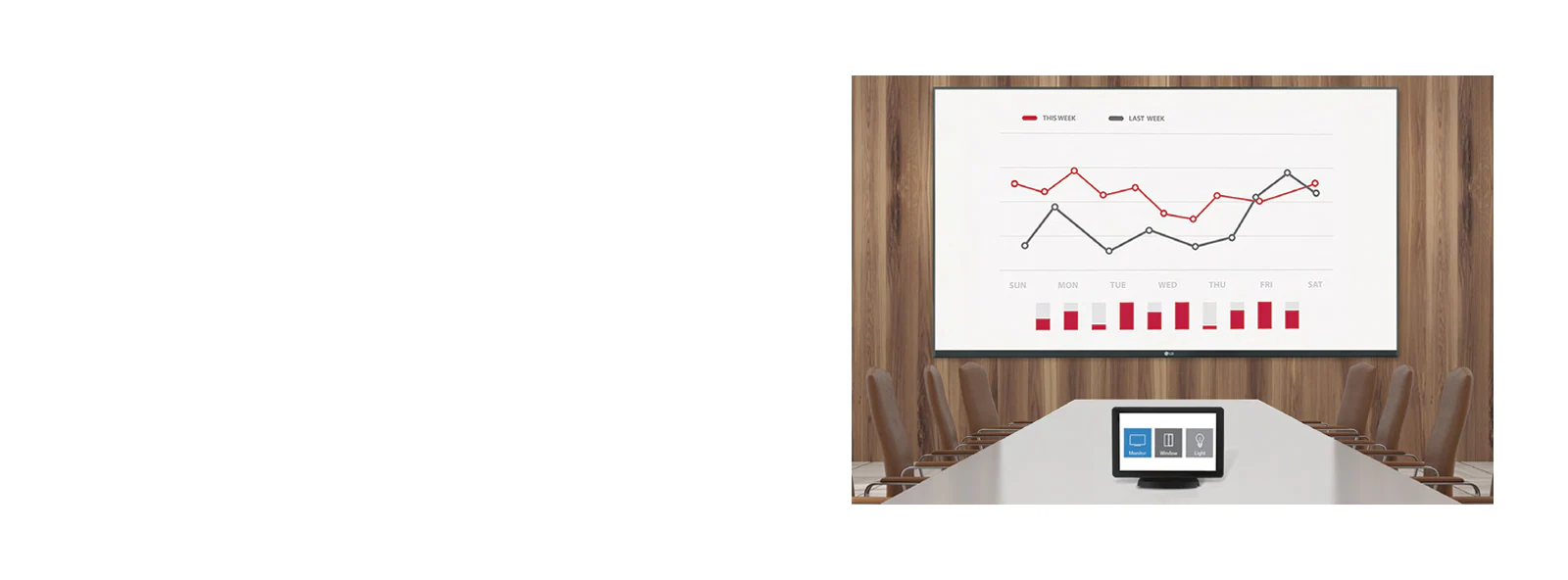

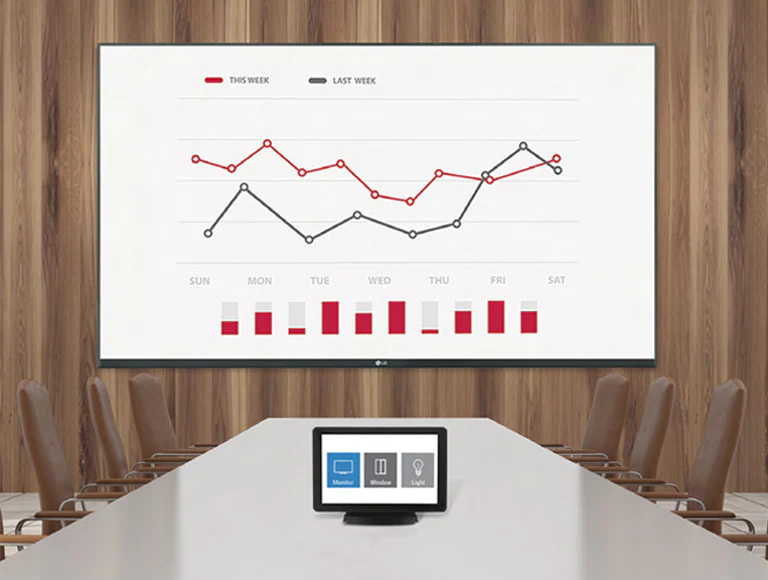

Compatibility with AV Conference Systems Compatibility with AV Conference Systems

Compatibility with AV Conference Systems

The LSAA series has been certified Crestron Connected® for a high level of compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

* Network-based control

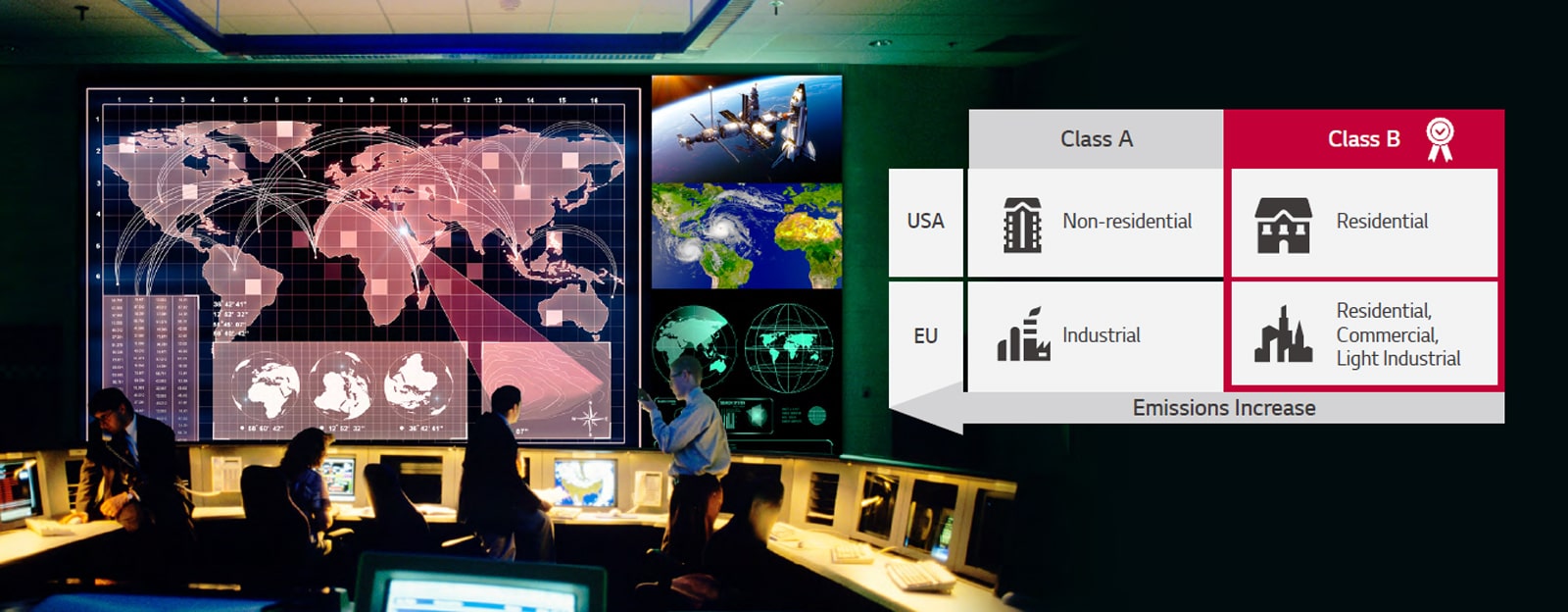

EMC Class B Certified

The LG LSAA Series is certified as EMC Class B, which requires electronic equipment made for use in residential environments as well as commercial, industrial, or business environments.
Therefore, it is suitable for up-close uses such as corporate meeting rooms, board rooms, etc.
EMC Class B Certified EMC Class B Certified

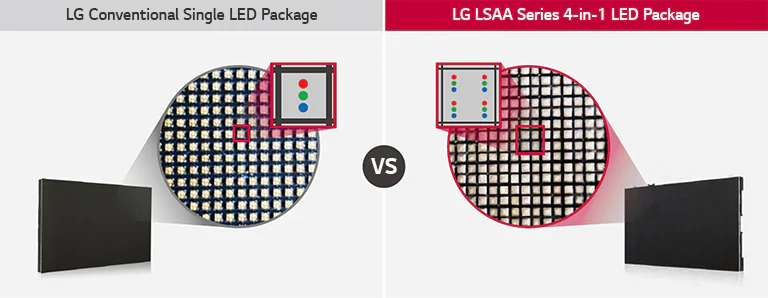

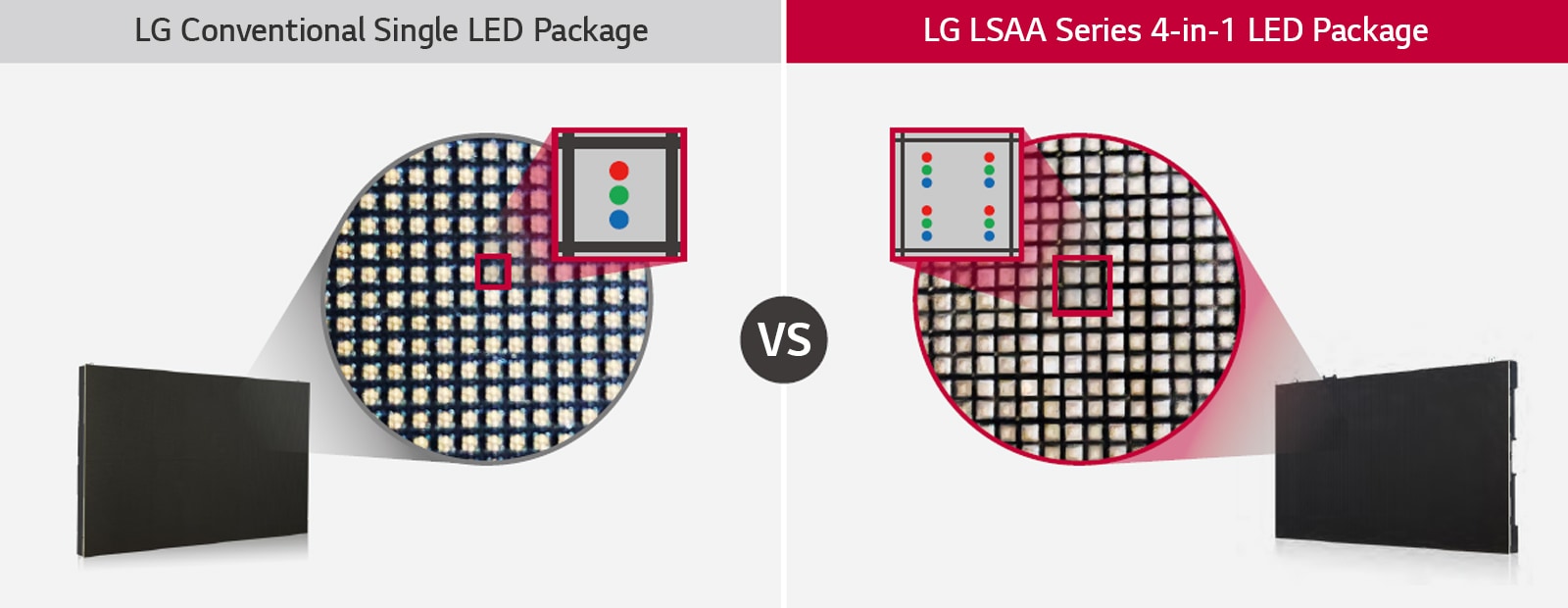

4-in-1 LED Package

Unlike LG's conventional LED signage in which one light source constitutes one small LED package, the LSAA series has applied four light sources at once to its wider LED package. So the attached area of 4-in-1 LED package can be wider than the conventional single LED package, making the LED signage surface smoother and suitable for up-close uses such as corporate meeting rooms etc.
4-in-1 LED Package 4-in-1 LED Package

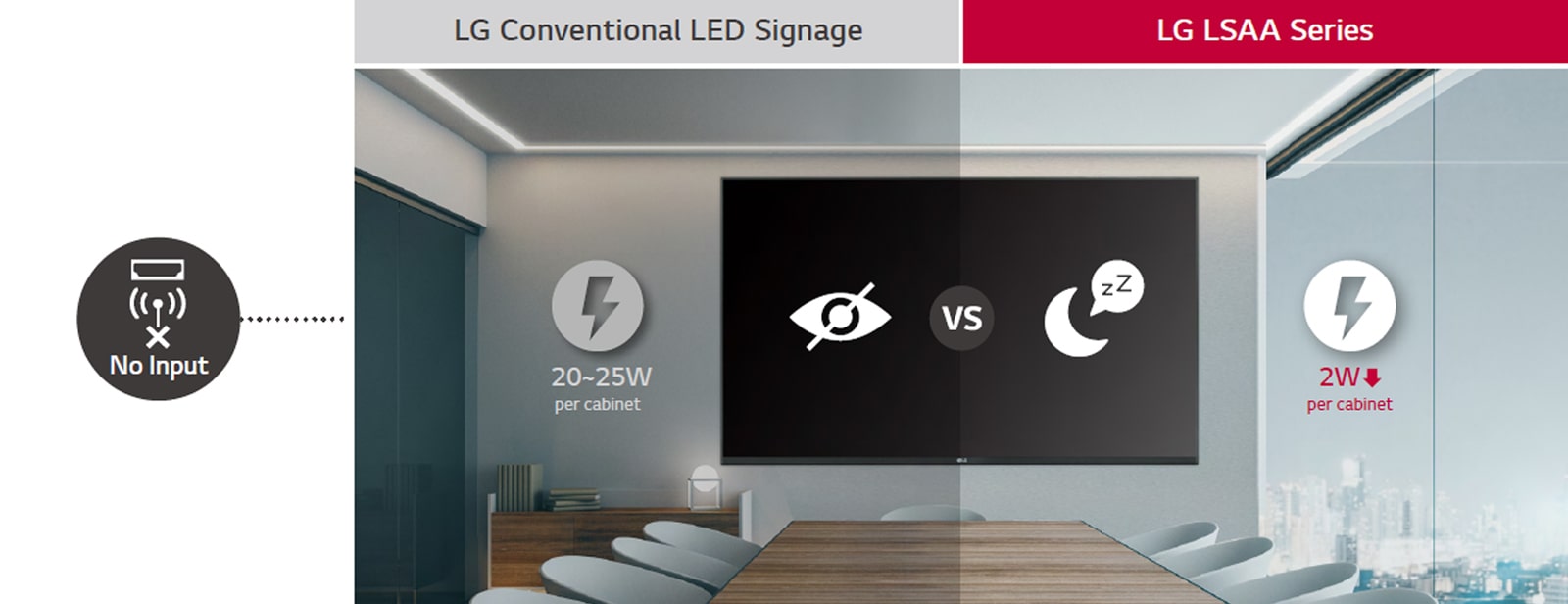

Standby Mode

When there is no input signal for a period of time, the screen turns off and the main circuit parts inside the LED cabinet go to a standby mode. This saves additional power consumption and enables the product to be reactivated simply by using a remote control.
Standby Mode Standby Mode

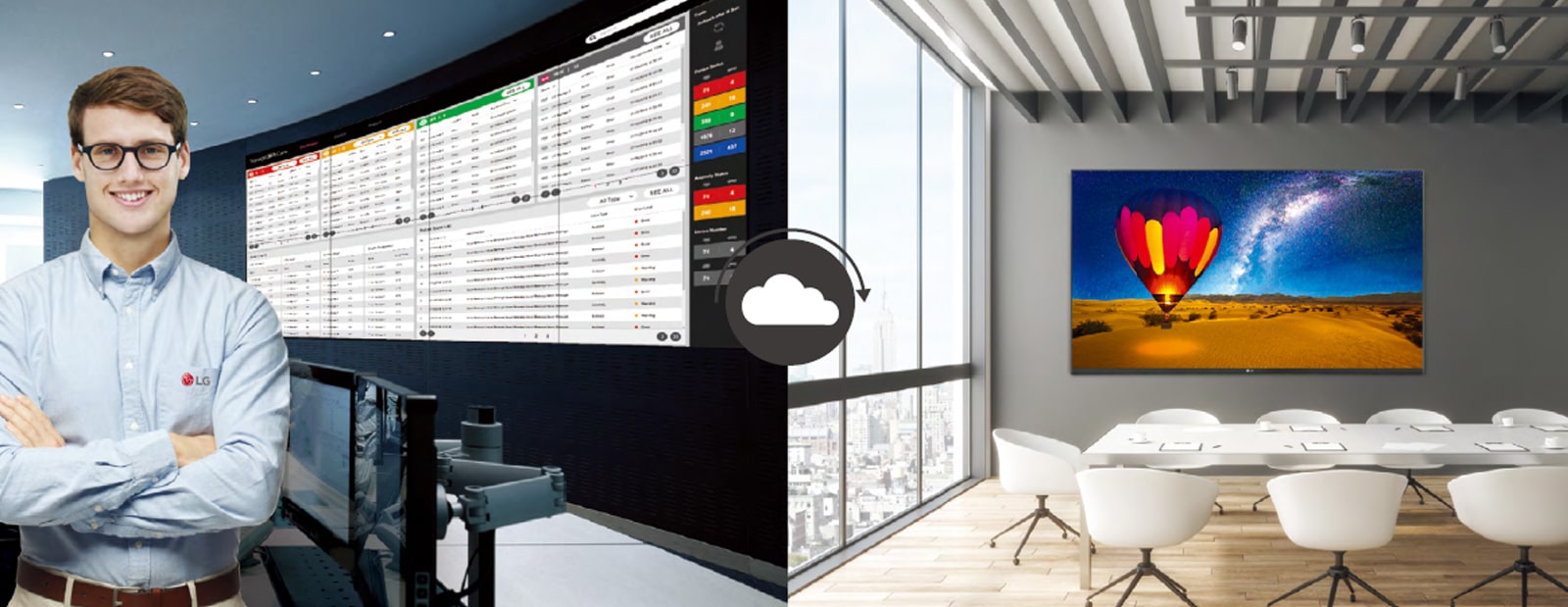

Real-time 365 Care Service

Maintenance is easier and faster with the optional Signage365Care* service, a cloud service solution provided by LG service. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.
Real-time 365 Care Service Real-time 365 Care Service
* The availability of the "Signage365Care" service differs by region, so please contact the LG sales representative in your region for more details.

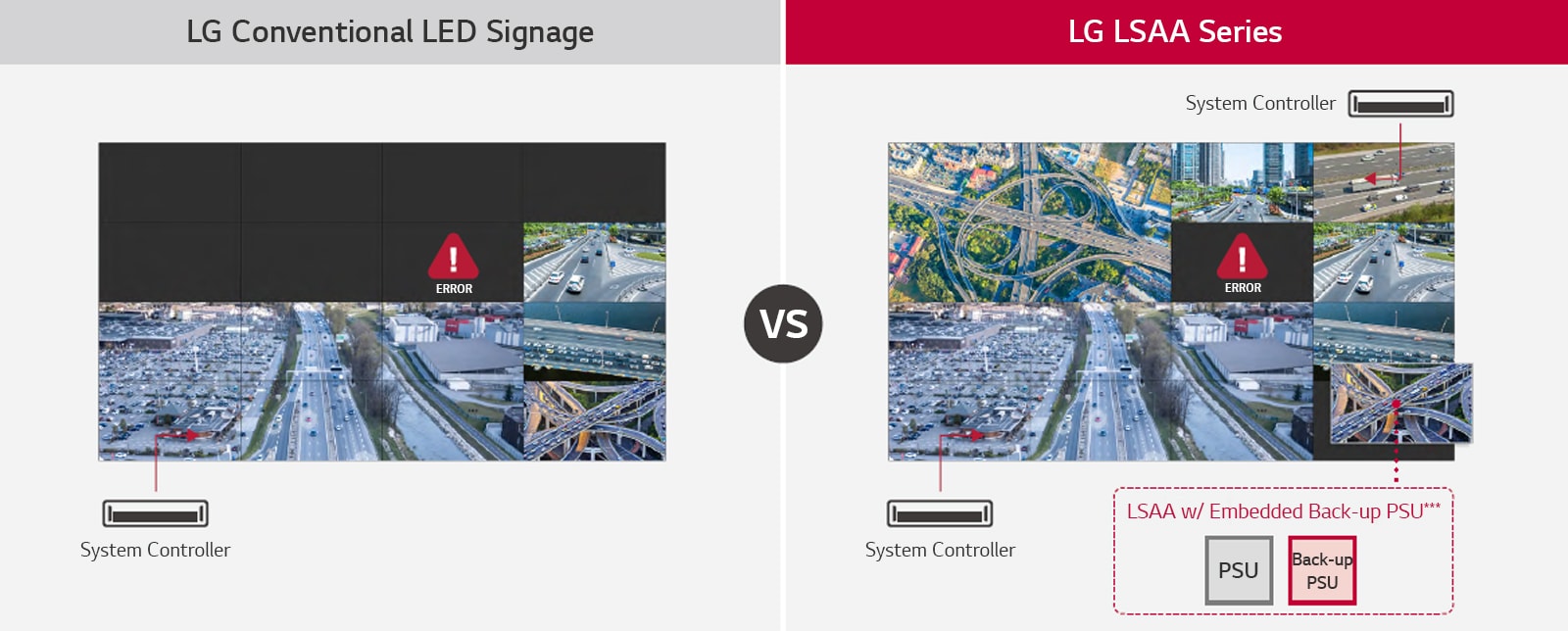

Power / Signal Redundancy Support

The LSAA series is designed to support redundancy of signal and power, providing users with comfort. With an optional embedded back-up power supply unit, customers can assure the continuous operation of the screen without power failure, while the dual controllers minimize screen failure with a bi-directional signal input.
Power / Signal Redundancy Support Power / Signal Redundancy Support
* The "Conventional" shown above refers to LED displays which do not support the power/signal redundancy mode.
** The power/signal redundancy features are available from the third quarter of 2020.
*** The embedded back-up PSU model is optional.
Close

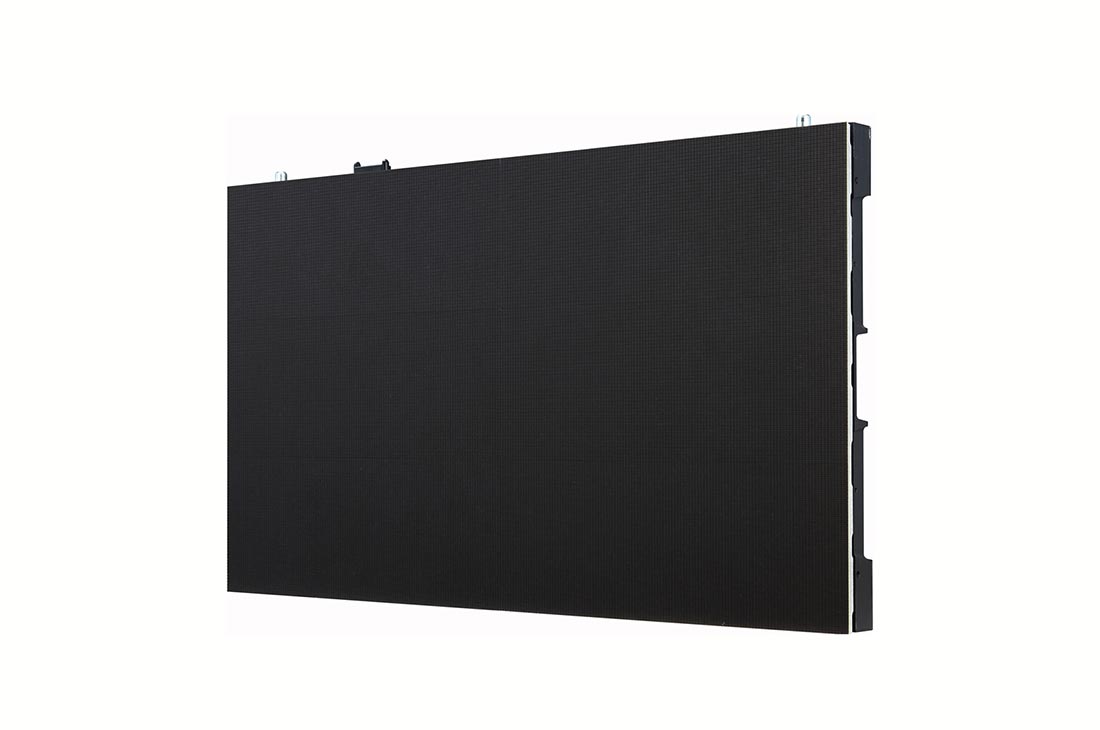

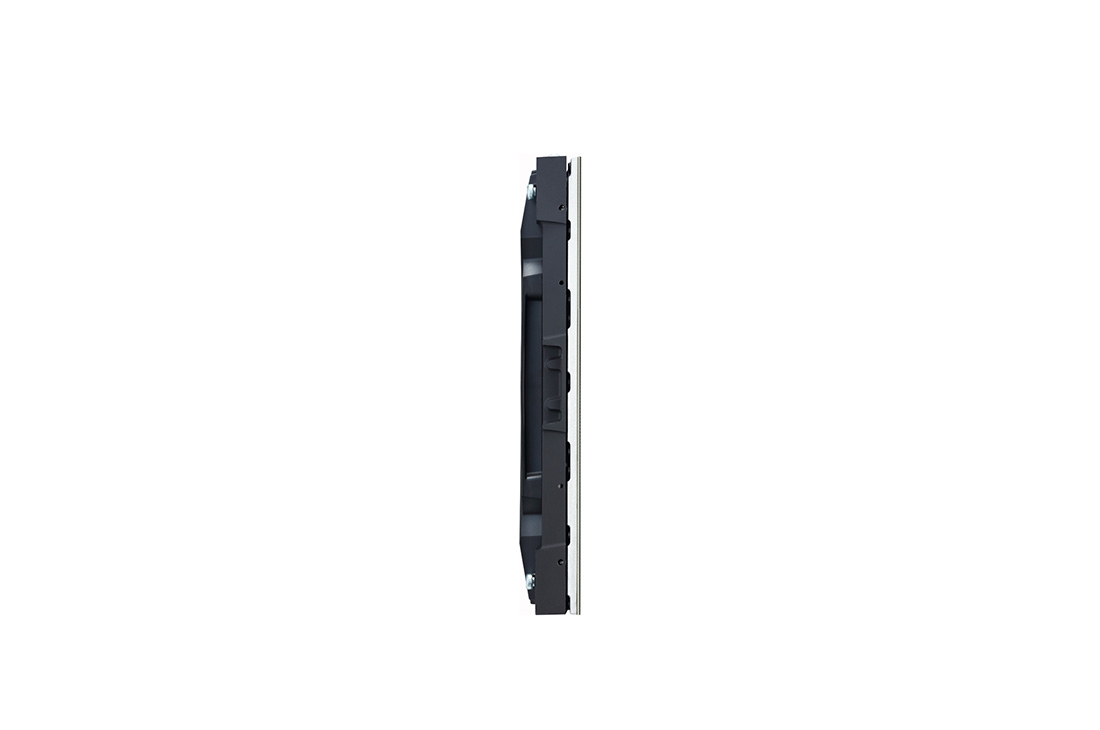

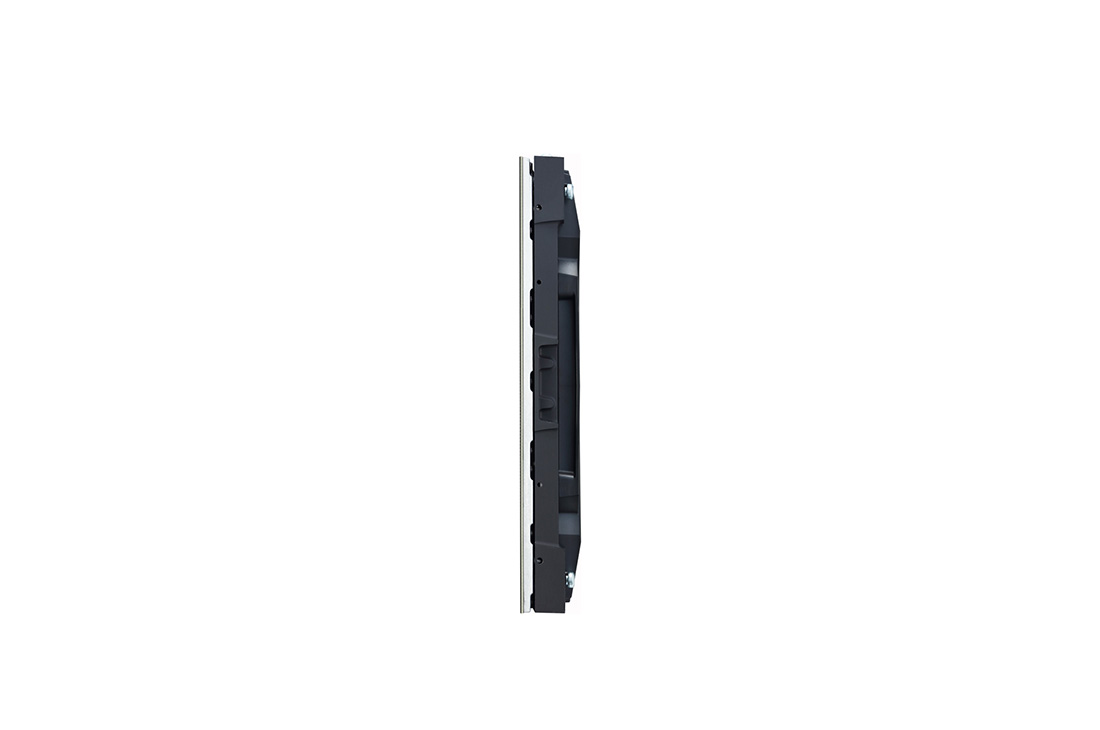

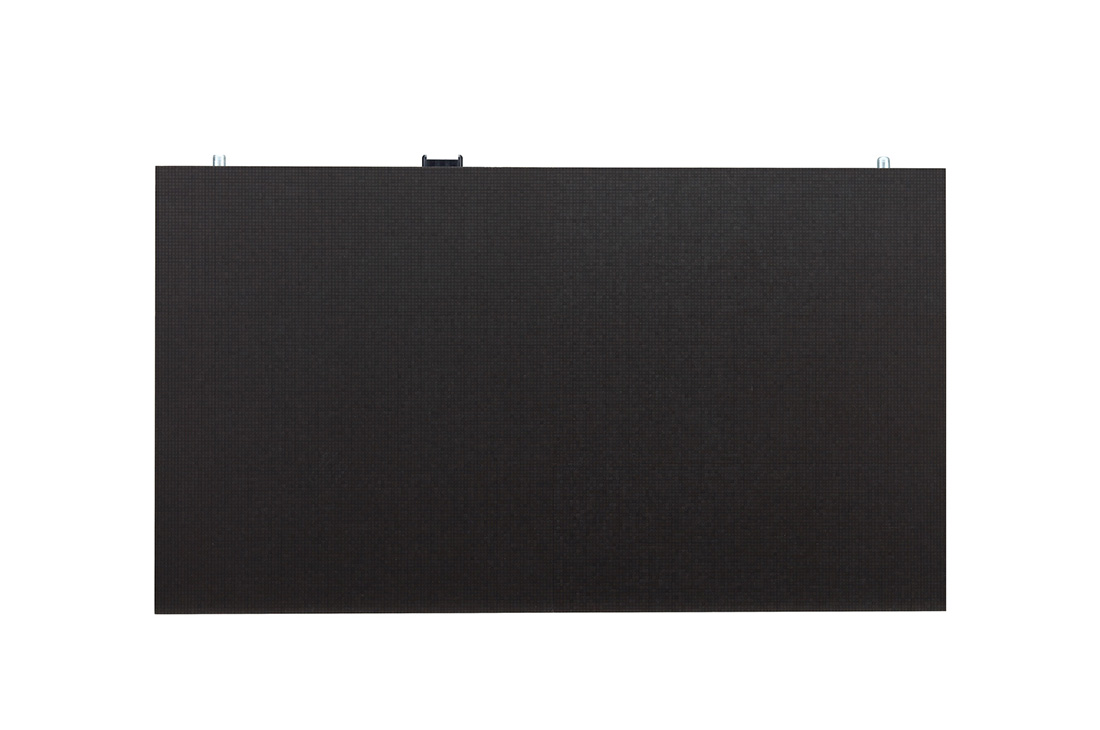

Cabinet
  • Pixel Configuration
    SMD, 4 Pixels in 1 PKG
    Pixel Pitch (mm)
    1.25
  • No. of Modules per Cabinet (W×H)
    2 × 3
    Cabinet Resolution (W×H)
    480 × 270
  • Cabinet Dimensions (W×H×D, mm)
    600 × 337.5 × 44.9
    Brightness
    600 nit (Typ.), 1,200 nit (Peak)
  • Contrast Ratio
    5,000 : 1 (Typ.), 9,000 : 1 (Peak)

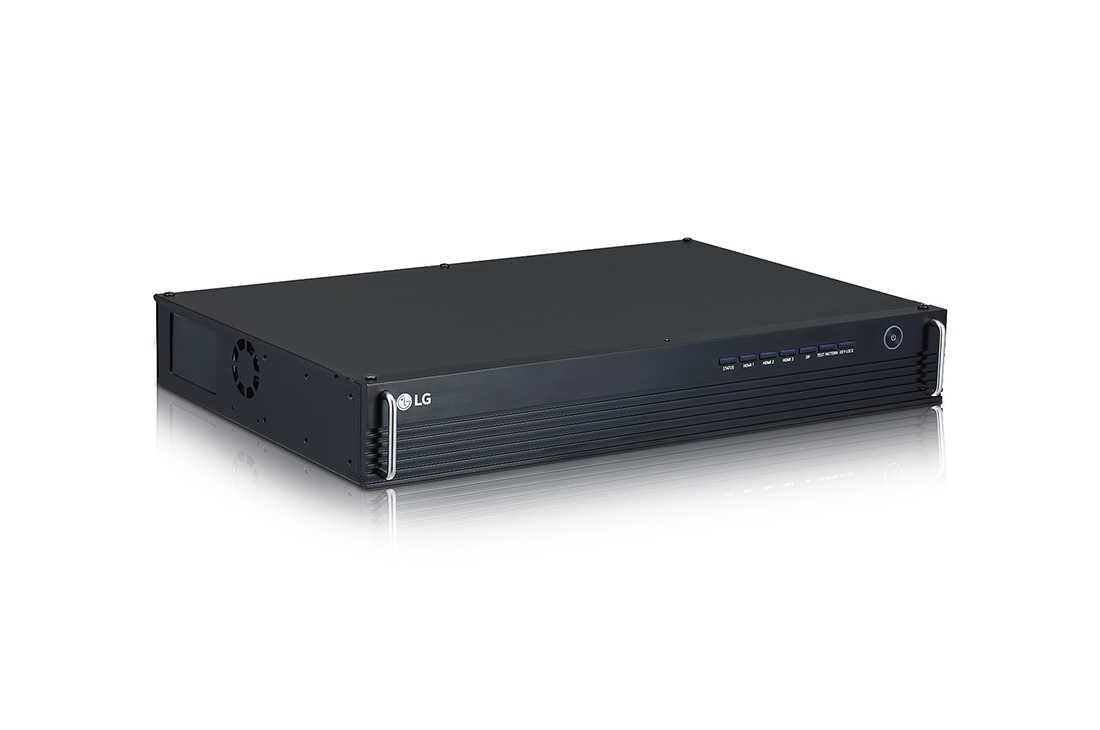

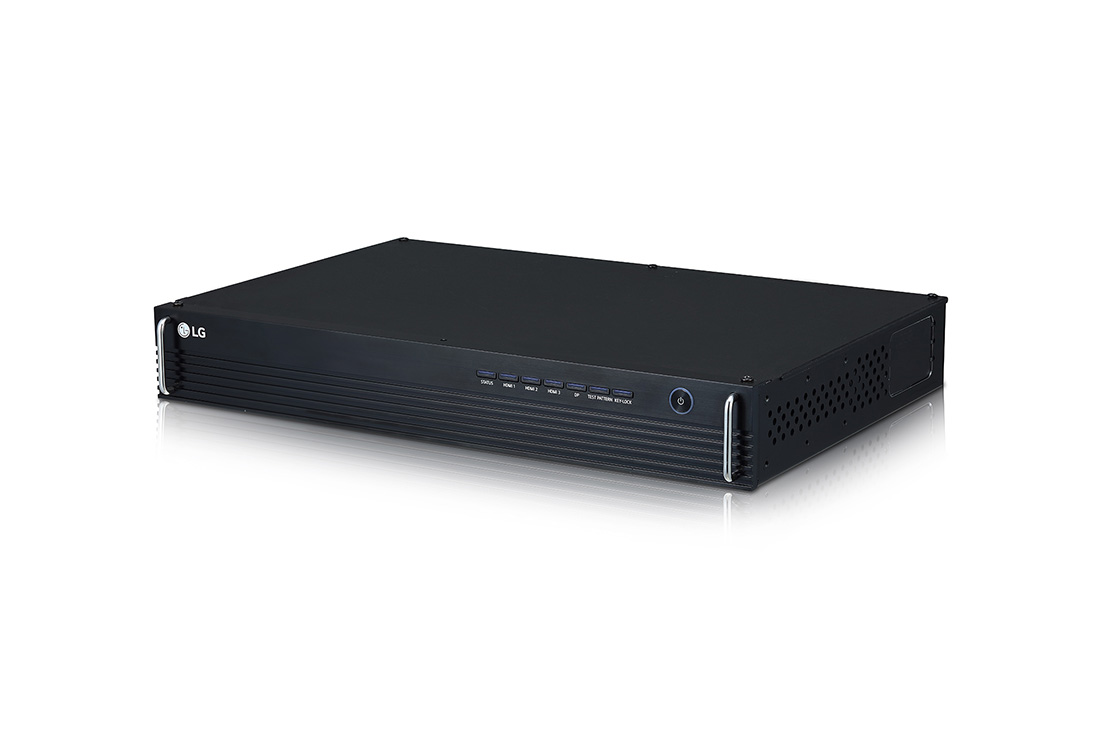

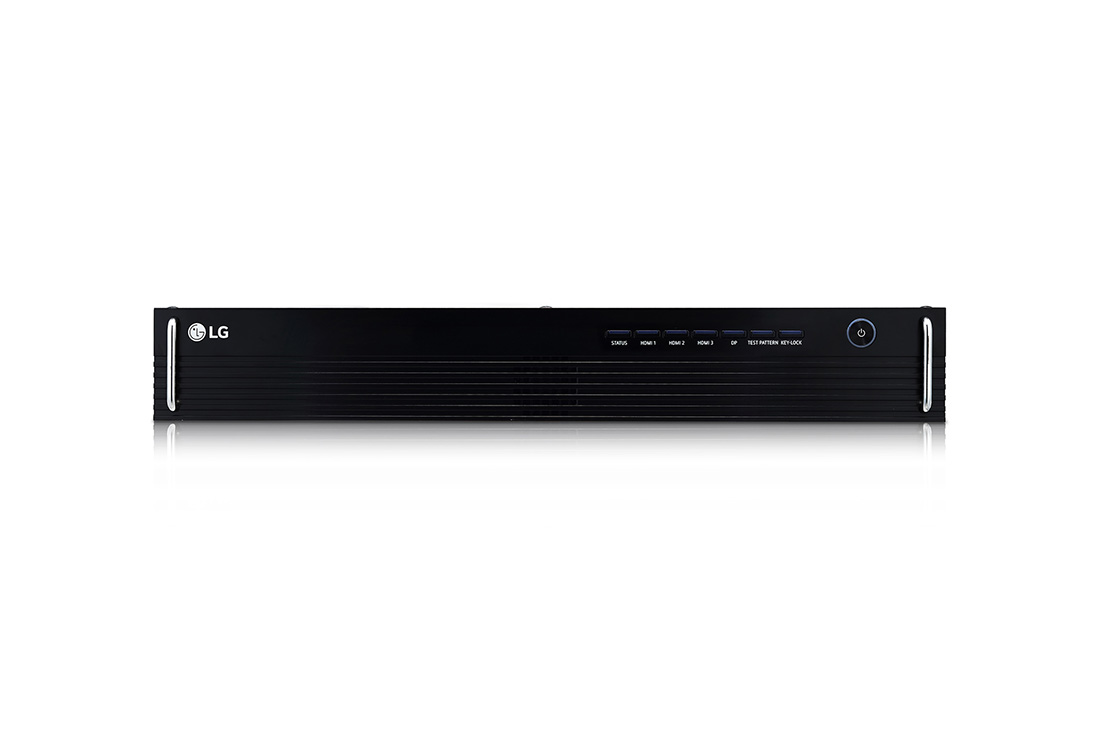

SYSTEM CONTROLLER
  • Resolution
    UHD (3,840 × 2,160)
    Input Signal
    HDMI (3), DP
  • Output Signal
    Ethernet (5 GB × 8 ea), SPDIF (Audio)
    Control
    IR, RS232C In / Out , Ethernet , USB
  • HDR Compatibility
    HDR10, HDR10 Pro
    Built-in Wi-Fi
    Yes
  • Storage
    16 GB
    Image Enhancement
    HDR10 / HDR10 Pro, 3D Color Gamut Mapping, Low Latency,
    Auto Brightness Control (w/ External Brightness Sensor)
  • Dimension (W×H×D, mm)
    443 × 63 × 298
OPTICAL PARAMETER
  • Brightness
    600nit (Typ.) 1,200nit (Peak)
    Color Temperature (Default/Adjustable)
    6,500K / 2,800~10,000K
    * Adjustable via LED Assistant on PC
  • Visual Viewing Angle (Horizontal)
    170
    Visual Viewing Angle (Vertical)
    170
  • Brightness Uniformity
    98%
    Color Uniformity
    ±0.015Cx,Cy
  • Contrast Ratio
    Peak. 8,000:1 Typ. 4,000:1
    Processing Depth (bit)
    20
  • HDR Compatibility
    HDR10, HDR10 Pro
    * LG's own HDR solution to process HDR signal by using enhanced dynamic tone mapping
ELECTRICAL PARAMETER
  • Power Consumption (W/cabinet, Max.)
    112
    Power Consumption (W/cabinet, Avg.)
    67
  • Power Consumption (W/m², Max.)
    555
    Power Consumption (BTU/h/cabinet, Max.)
    383
  • Power Consumption (BTU/h/cabinet, Avg.)
    230
    Power Consumption (BTU/h/m², Max.)
    1,894
  • Power Supply (V)
    100 to 240
    Frame Rate (Hz)
    50 / 60
  • Refresh Rate (Hz)
    3,840
OPERATION CONDITIONS
  • Lifetime (Hours to Half Brightness)
    100,000
    Operating Temperature (°C)
    0°C to 40°C
  • Operating Humidity
    10-80% RH
    IP rating Front / Rear
    IP20 / IP20
