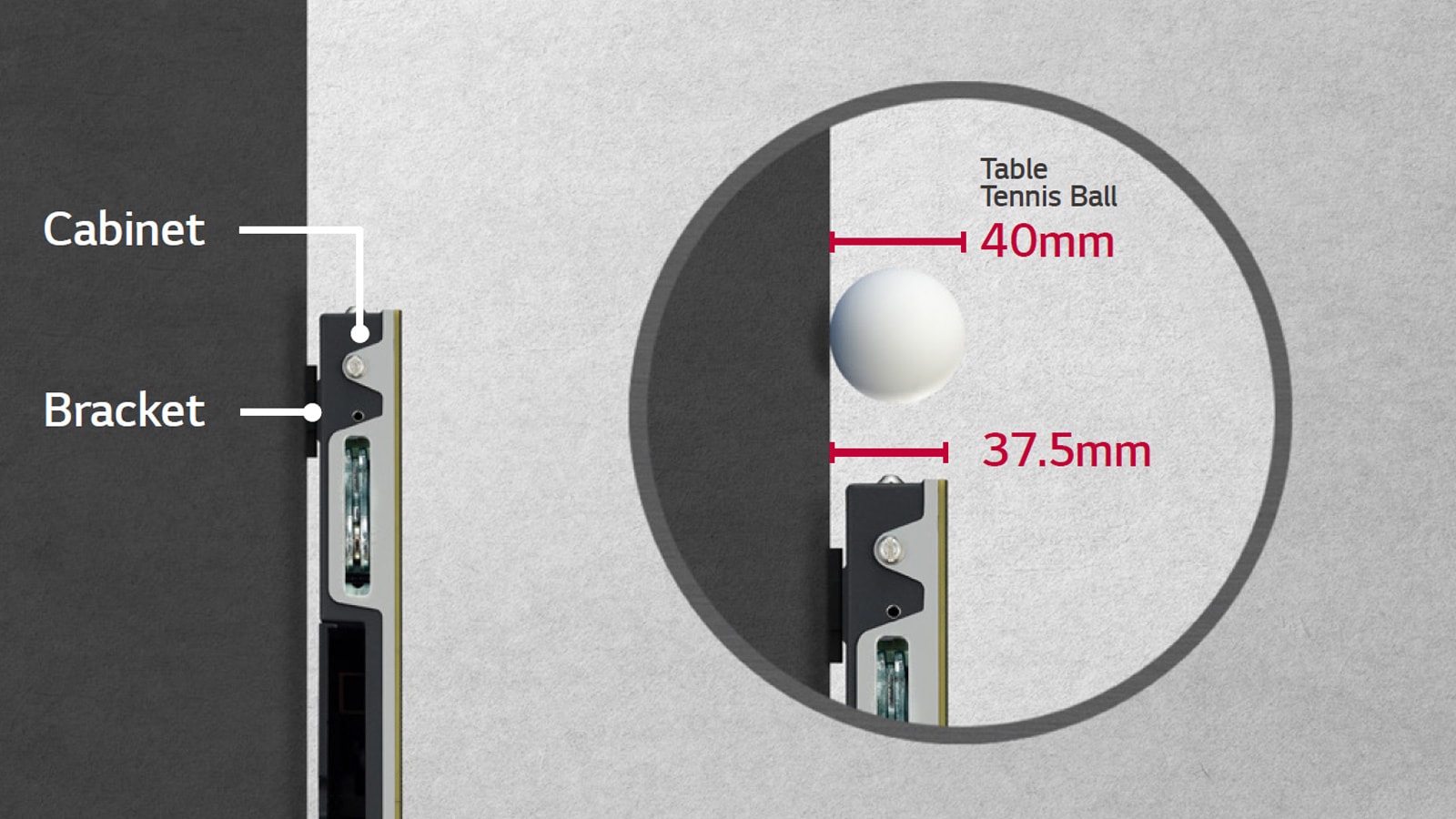

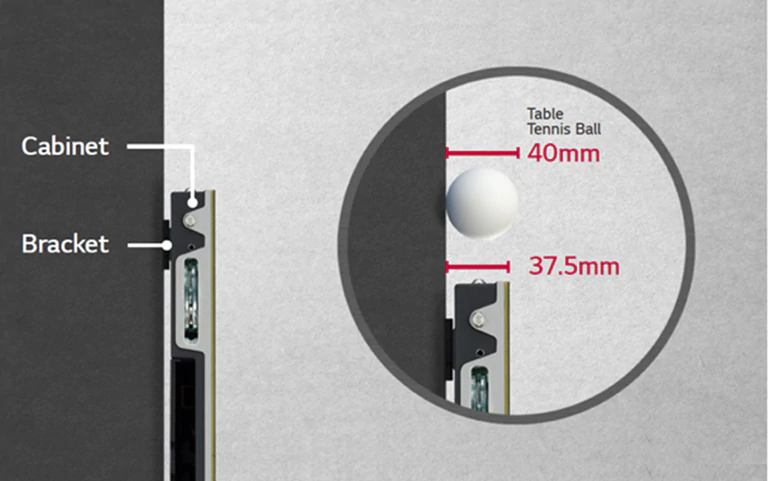

Ultra Slim Depth
Its ultra-slim design with 37.5 mm edge thickness is the biggest advantage of the product. This feature enables the LSCB series to be installed and utilized in any type of venues without restriction.

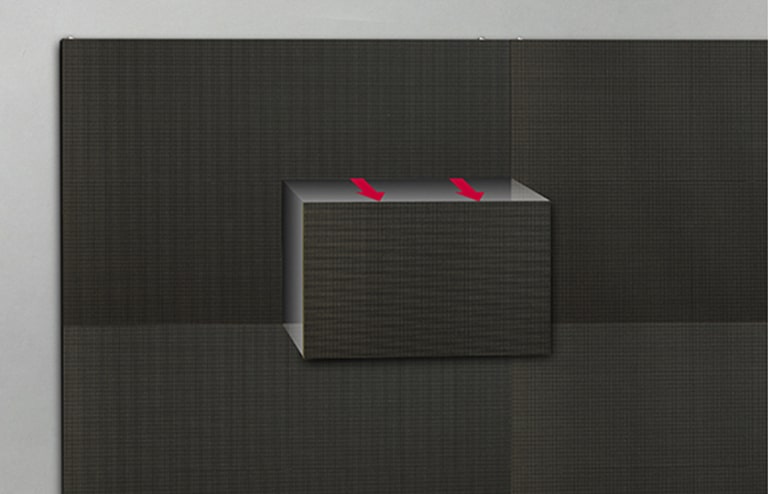

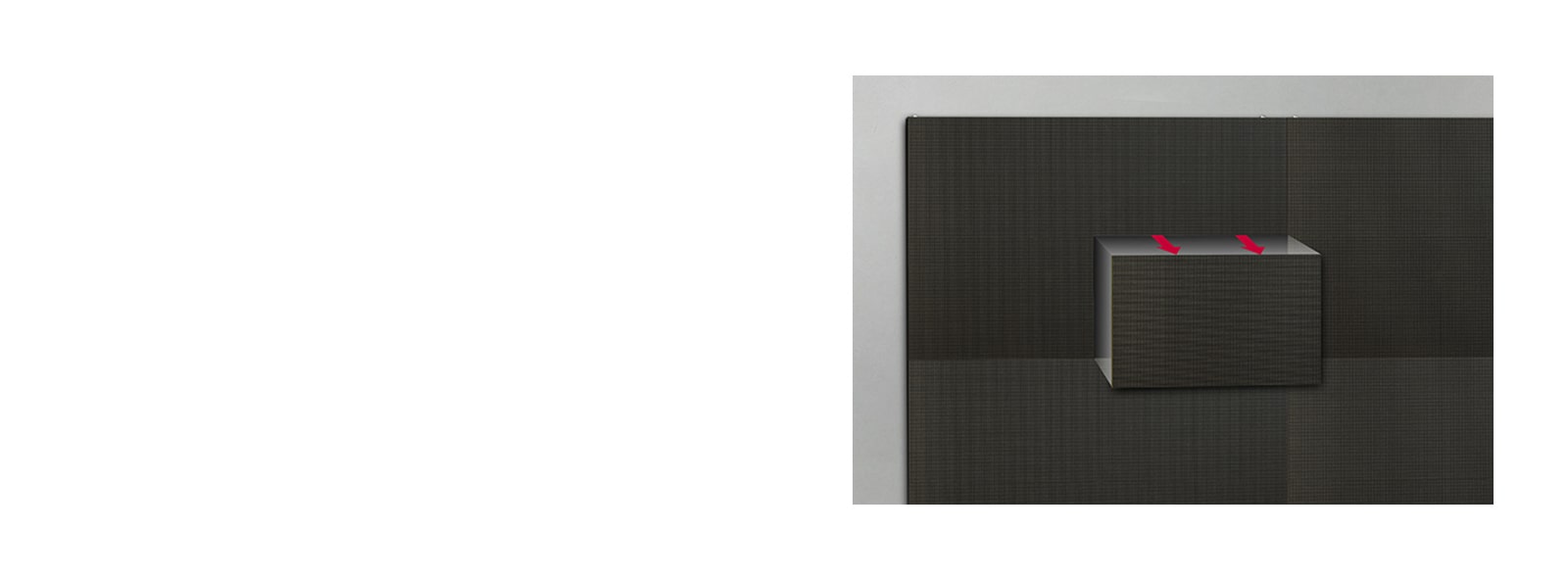

Easy & Seamless Installation
The LSCB series can be easily installed and managed from the front side for easy operation. Thanks to this feature, no additional space for maintenance behind the product is required. Its LED modules can also be simply attached or detached with a magnetic tool.

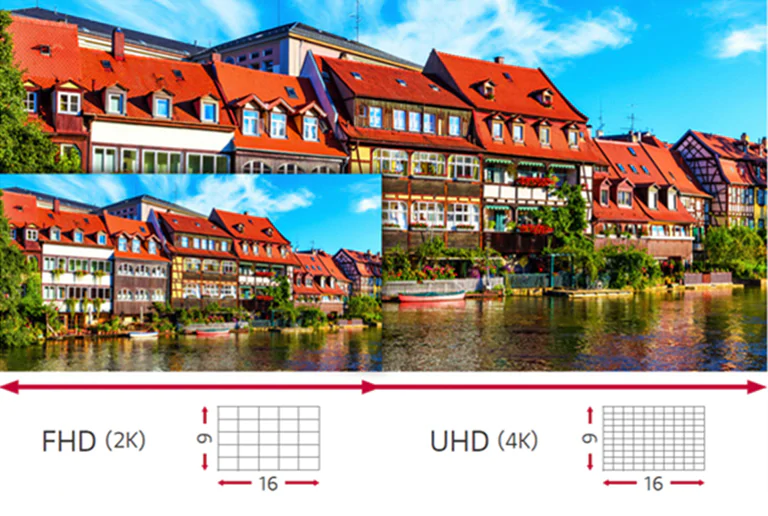

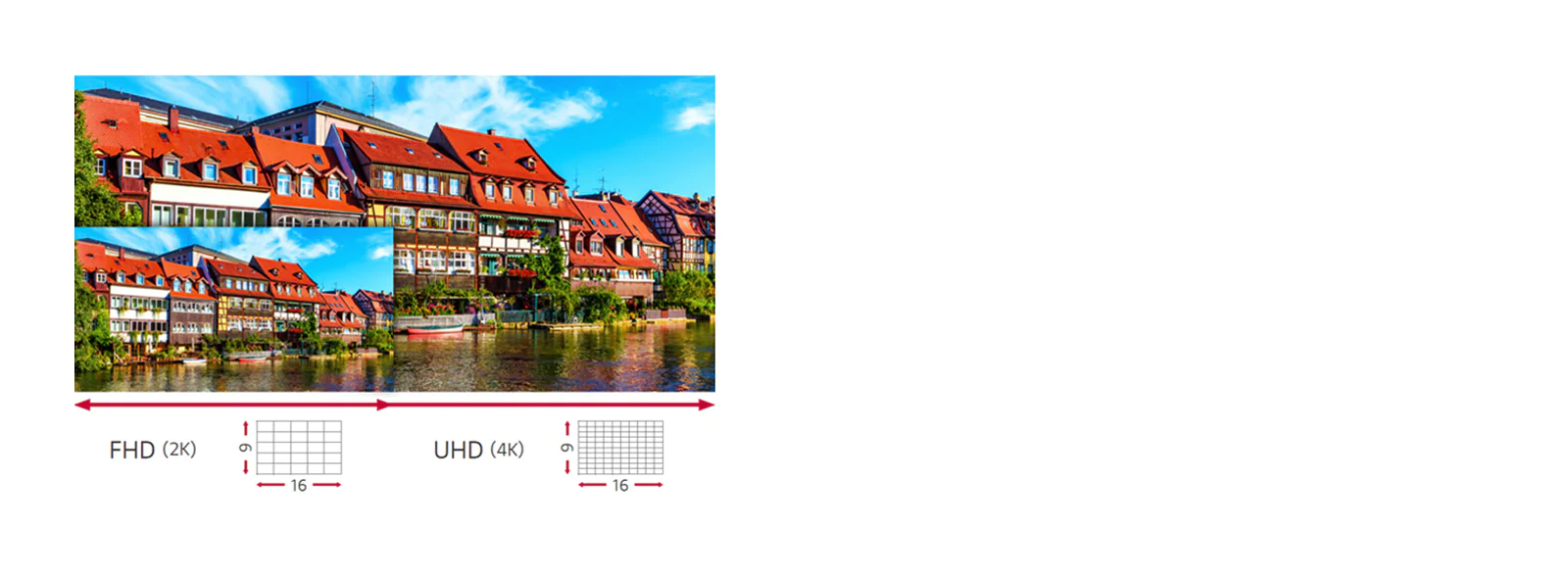

16:9 FHD/UHD Configuration
Each cabinet uses a 16:9 aspect ratio, the same most commonly used in displays for FHD and UHD content.
This allows you to keep using existing content without additional cost and time for editing.
This allows you to keep using existing content without additional cost and time for editing.

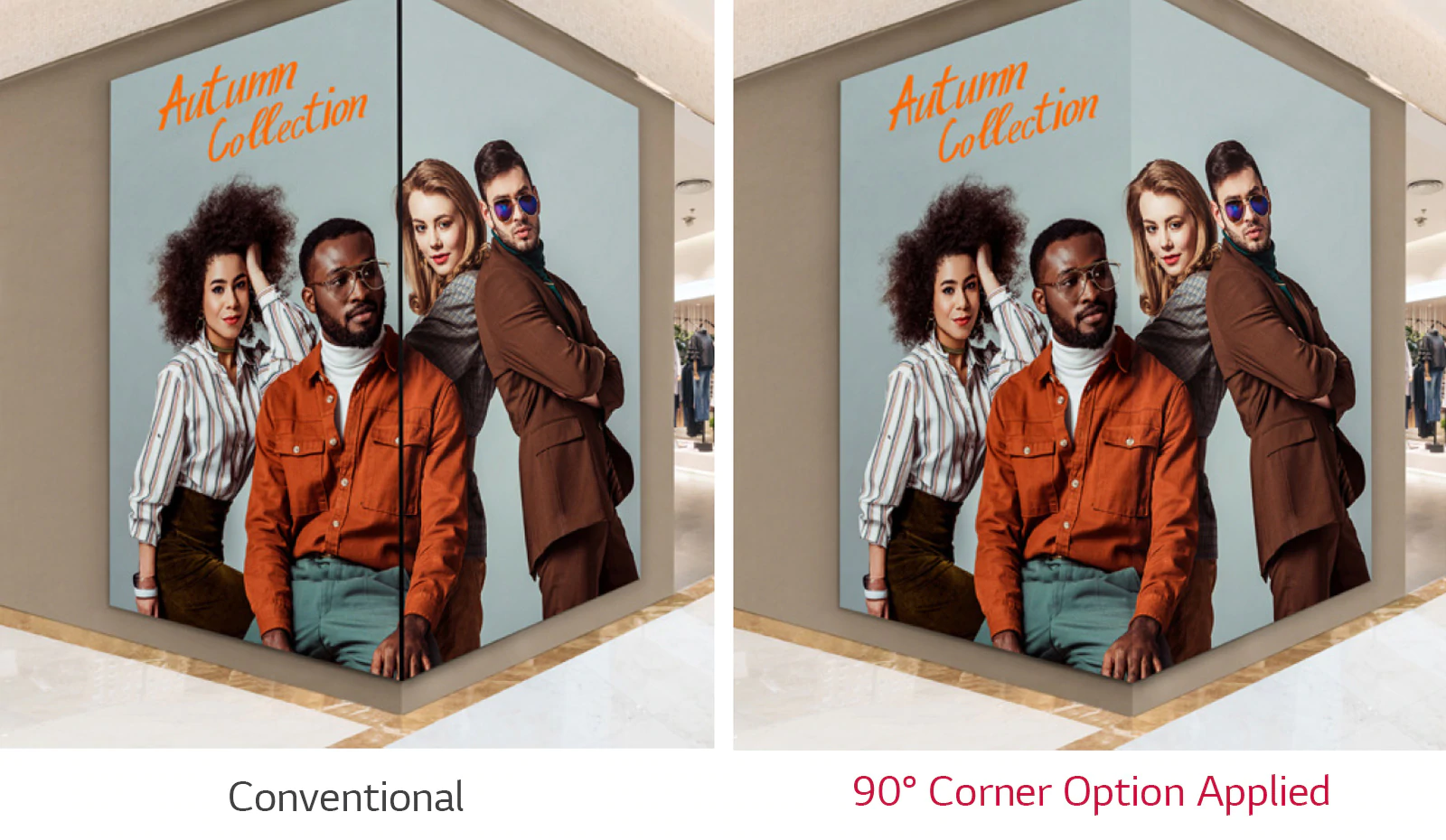

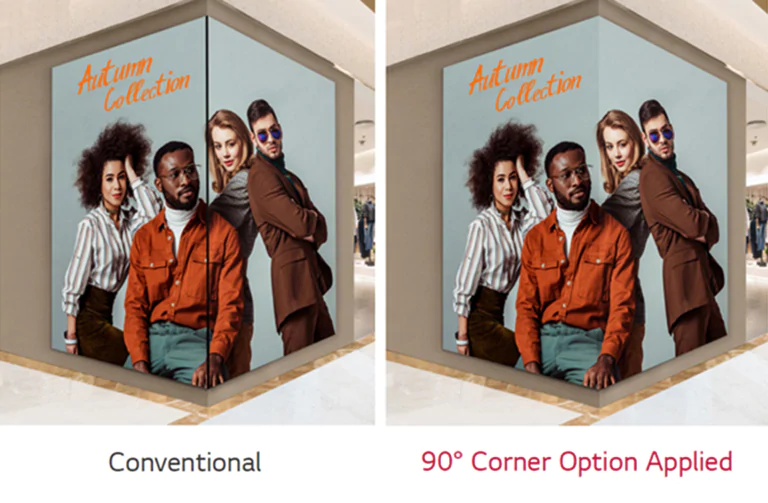

90° Corner Design Available
If you add 90°corner option, the LSCB series fits naturally into the space and delivers smooth & flawless content to customers.
EMC Class B Certified & Fire Resistant Design
The LSCB series is safe from electromagnetic waves, which are harmful to the environment and human body, with EMC Class B certification and is designed with fire protection certification to prevent the fast spread of flames even if it catches on fire.

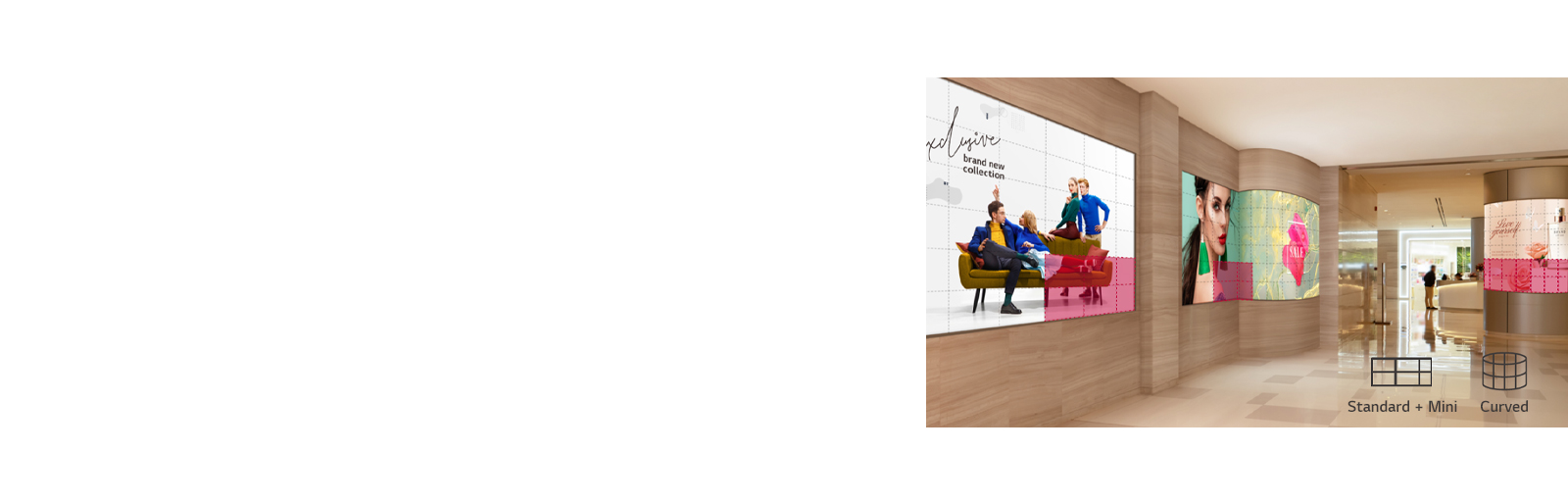

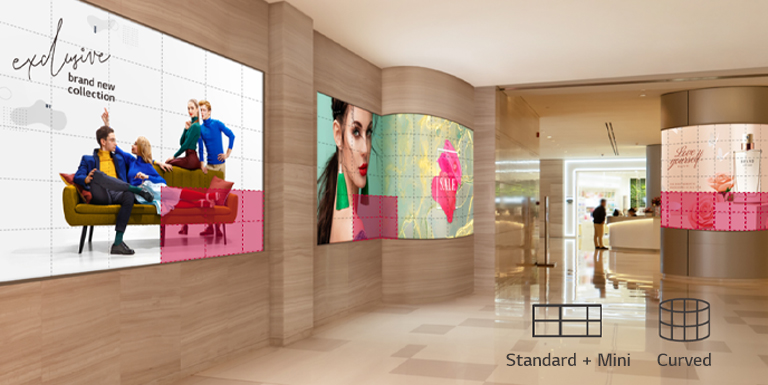

User-specific Customization
LSCB series provides a mini and curved cabinet to implement various types of screens required by users such as customized curvature, concave, and convex.
* Left & right side cutting
* Depending on the radius, the unit case dimension size changes.
* Depending on the radius, the unit case dimension size changes.

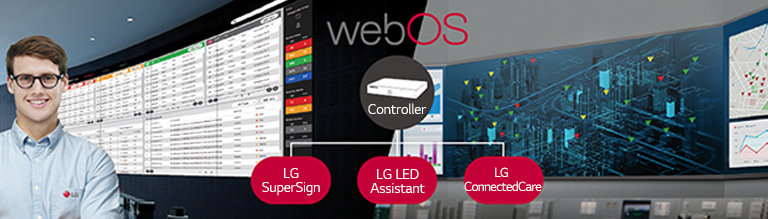

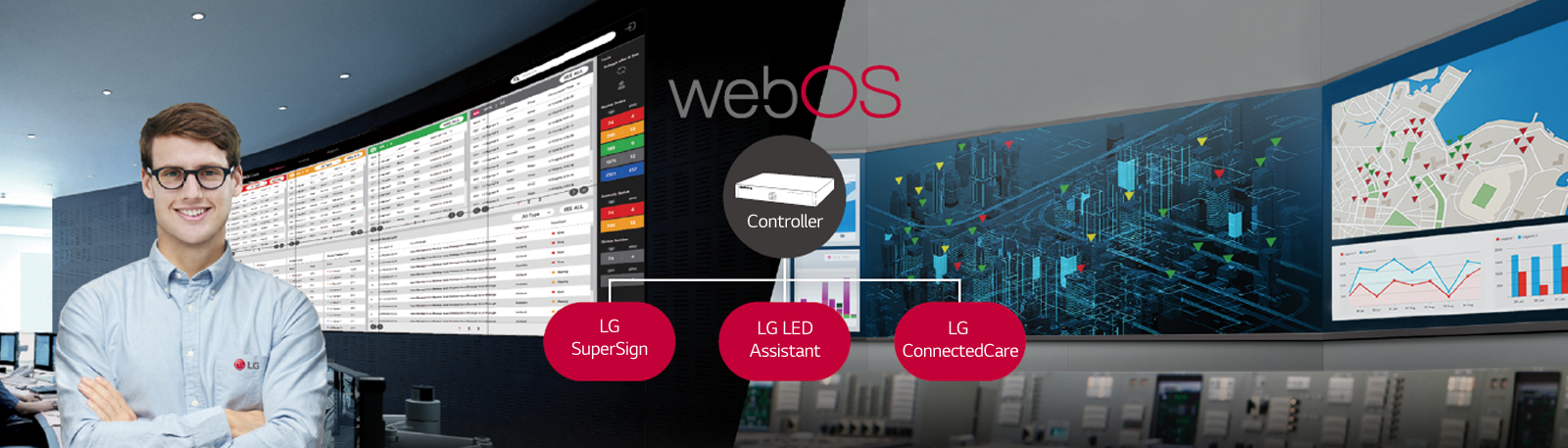

Compatibility with
LG Software Solution
Powered by LG’s high performance system controller, the LSCB series is compatible with LG software solutions including SuperSignCMS, LED Assistant, and ConnectedCare, which help customers operate their own business flawlessly.
* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare: Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
* The items that can be monitored by LG ConnectedCare: Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
PHYSICAL PARAMETER
-
- Pitch Name
- 3 in 1 SMD
- Pixel Pitch (mm)
- 2.50
-
- Module Resolution (W x H)
- 120 × 135
- Module Dimensions (W x H, mm)
- 300 × 337.5
-
- Weight per Module (kg)
- 0.90
- No. of Modules per Cabinet (W × H)
- 2 × 1
-
- Cabinet Resolution (W × H)
- 240 × 135
- Cabinet Dimensions (W × H × D)
- 600 × 337.5 × 35 mm
-
- Cabinet Surface Area (m²)
- 0.203
- Weight per Cabinet (kg/cabinet)
- 5.2
-
- Weight per Square Meter (kg/m²)
- 25.7
- Physical Pixel Density (pixels/m²)
- 160,000
-
- Flatness of Cabinet
- ± 0.1 mm
- Cabinet Material
- Die-casting Aluminum
-
- Service Access
- Front
OPTICAL PARAMETER
-
- Min. Brightness (After Calibration)
- 800 nit
- Color Temperature
- 3,500 ~ 9,000
-
- Visual Viewing Angle (Horizontal)
- 160
- Visual Viewing Angle (Vertical)
- 160
-
- Brightness Uniformity
- 97%
- Color Uniformity
- ± 0.003 Cx,Cy
-
- Contrast Ratio
- 5,000
- Processing Depth (bit)
- 14
ELECTRICAL PARAMETER
-
- Power Consumption (W/cabinet, Max.)
- 150
- Power Consumption (W/cabinet, Avg.)
- 50
-
- Power Consumption (W/m², Max.)
- 740
- Power Consumption (BTU/h/cabinet, Max.)
- 512
-
- Power Consumption (BTU/h/cabinet, Avg.)
- 171
- Power Consumption (BTU/h/m², Max.)
- 2,525
-
- Power Supply (V)
- 100 to 240
- Frame Rate (Hz)
- 50 / 60
-
- Refresh Rate (Hz)
- 3,840
OPERATION CONDITIONS
-
- Lifetime (Hours to Half Brightness)
- 100,000
- Operating Temperature (°C)
- -10 °C to +45 °C
-
- Operating Humidity
- 0 - 80 % RH
- IP rating Front / Rear
- IP30 / IP30
CERTIFICATION
-
- Certification
- CE, FCC, ETL, EMC Class-B Fire Protection
Environment
-
- Environment
- RoHS, REACH in progress
CONTROLLER
-
- Controller
- CVCA, LCIN006
