Processor

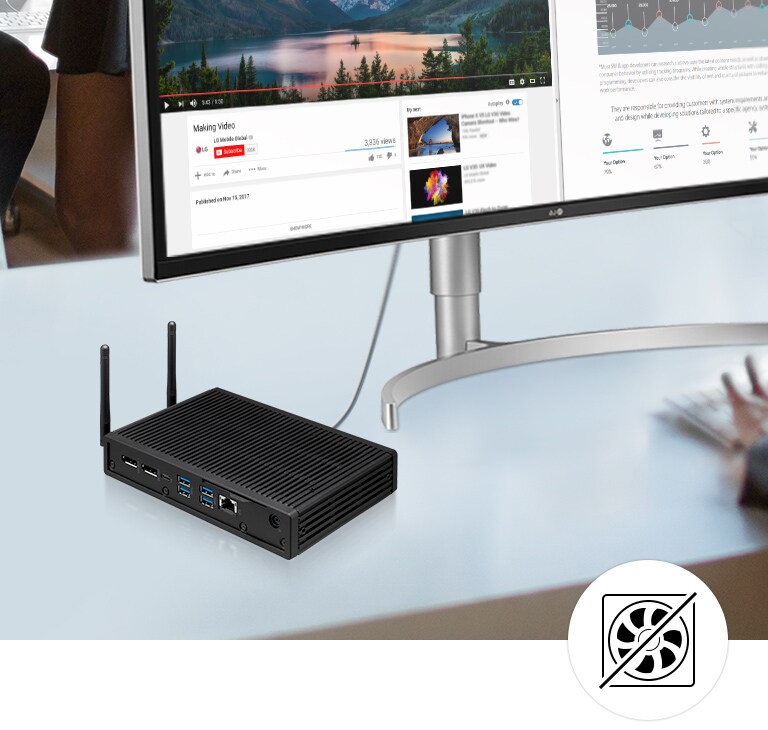

Intel® Celeron J4105 (Quad Core 1.5GHz, up to 2.5GHz burst), Fanless
Operation System
Windows 10 IoT Enterprise LTSB
Management Console support
Yes (LG Cloud Device Manager)
System Memory
8GB (2x4GB) DDR4, 2666MHz, 2 SODIMM slots
Graphics
Integrated Graphics
Storage
128GB, M.2 SSD
Display Support

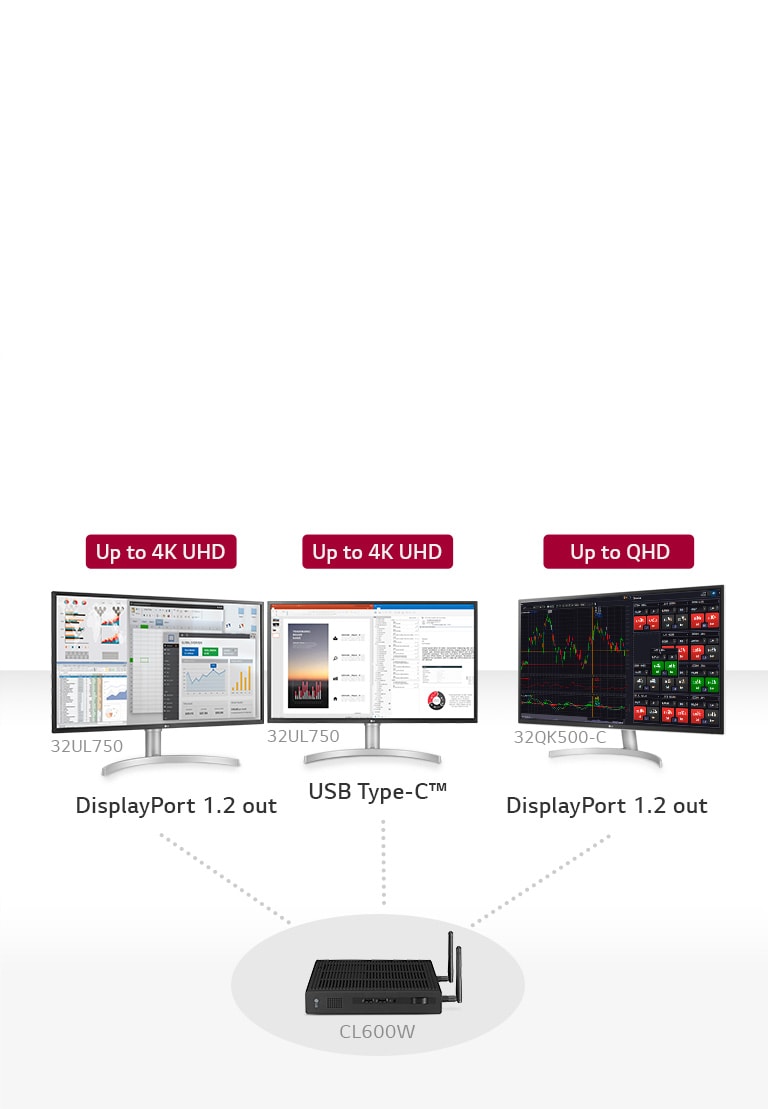

Up to 3 displays :
2560x1600@60Hz (via 1st DisplayPort 1.2 out)
3840x2160@60Hz (via 2nd DisplayPort 1.2 out)
3840x2160@60Hz (via USB Type-C)
TPM (Trust Platform Module)
Hardware TPM 2.0
Expansion Slot
M.2 Slots x 2 (Slot 1 : 128GB SSD, Slot 2 : WiFi + Bluetooth card) * Note: Slot 1 should be capable of supporting SATA SO-DIMM x 2 (Slot 1 : 4GB DDR4, Slot 2 : 4GB DDR4)
VDI Support
Vmware View, Citrix Receiver, MS RDP
Certifications (Based on US ratings)
Citrix, Microsoft RDP, VMware, PCoIP SW Ready
Networking - Wireless
Dual Band 802.11a/b/g/n/ac 2x2 (BT 5.0 Combo, External Antenna)
Networking - BT
BT5.0
Networking - LAN
1 x RJ45 : 10/100/1000 Base-T Gigabit Ethernet (Wake on LAN)
Signal Input - DC-in
Yes
Signal Input - [ Jack Location ]
Horizontal
Signal Output - DisplayPort Out
2 x DisplayPort 1.2 out
Audio Input - Mic In
1 x 3.5mm audio-mic combo jack (CTIA Type)
Audio Input - [ Jack Location ]
Horizontal (Front)
Audio Output - Headphone Out
1 x 3.5mm audio-mic combo jack (CTIA Type)
Audio Output - [ Jack Location ]
Horizontal (Front)
DC-In
Yes
Type
mono speaker
Audio output (watt)
1.2W
Type
Adapter
Input
100~240V (50/60Hz)
Output
65 Watt
Sleep Mode(Max)
1.2Watt (In DV Stage)
DC Off (Max)
1.0Watt (In DV Stage)
Long Idle (Display OFF)
6.0Watt (In DV Stage)
Short Idle (Display ON)
6.0Watt (In DV Stage)
TEC (kWh)
27.0kWh (In DV Stage)

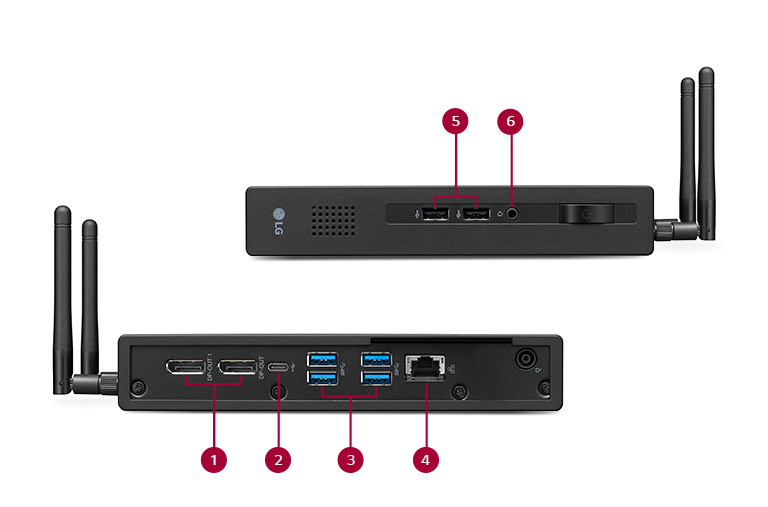

USB
2 x USB 2.0 Type-A (Front)
4 x USB 3.1 gen1 (5Gb/s) Type-A (Rear)

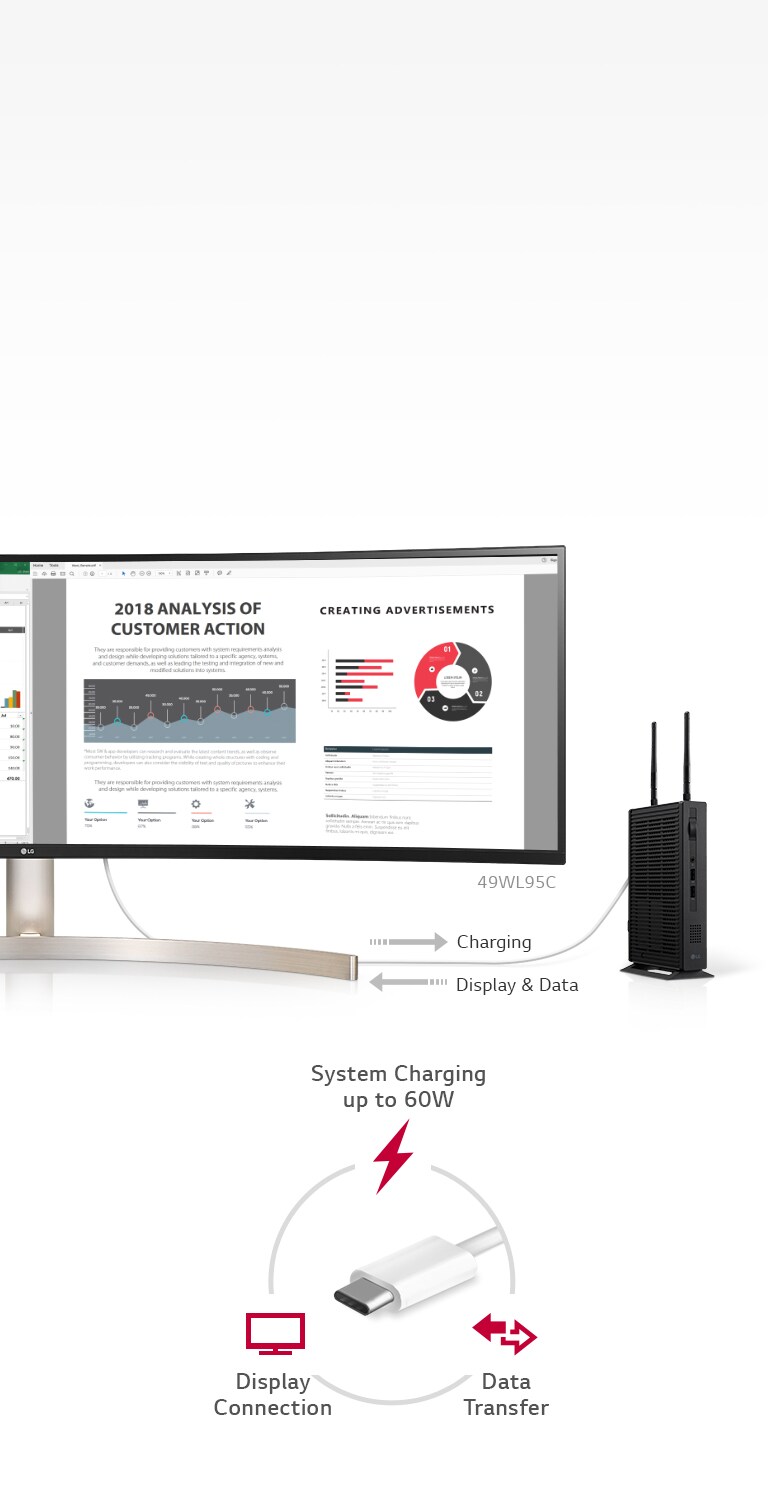

1x USB 3.1 gen1 (5Gb/s) Type-C with DP1.2 (Rear)
Key Number
1
Key Description
Power
Key Type
Tact
LED Colour (On mode)
White (PC Power/HDD)
LED Colour (Power save mode)
LED OFF
Key Location
Front
Front
Matt Black (Texture)
Back Cover
Matt Black (Texture)
Stand
Matt Black (Texture)
Kenshinton Lock Slot
Yes
Dimension (WxDxH) - Set (without Stand, mm)
199mm x 35mm x 137mm
Dimension (WxDxH) - Box (mm)
260mm x 101mm x 164mm
Dimension (WxDxH) - VESA / Wall Mount (mm)
100 x 100, 75 x 75 (wall mount)
Weight - Set (with Stand, Kg)
0.82kg
Weight - Set (without Stand, Kg)
0.8kg
Weight - Box (Kg)
1.685kg
Stuffing - Pallet(20ft/40ft/40ft HC)
3,000/6,300/7,560
Packing Material
A-Flute
Stacking Type
Vertical
Box Printing Type
Flexo
UL(cUL)
Yes
TUV-GS
Yes
TUV-Ergo
Yes
TUV-type
Yes
CB
Yes
FCC-B
Yes
CE
Yes
EPA
Yes (7.0)
EPEAT
Yes (Bronze, US/DG)
ROHS, REACH
ROHS, REACH
Power Adapter
Yes
Power Cord
Yes
CD (Manual / Software)
Yes (Paper Manual)
VESA Bracket
Horizontal/Vertical feet and
VESA/wall mounting
External Antenna (Wi-Fi)
Yes
Temperature Range
Operating : 10°C ~ 40°C, Storage : -20°C ~ 60°C
Humidity Range
Operating : 20%~80%, Storage : 10%~90%
