55” UT570H Series UHD TV for Hospitality & Healthcare with Pro:Centric Direct, Pro:Idoim, EZ-Manager & USB Data Cloning

Features

Gallery

Specs

Support

Resource

Find a Dealer
Contact Us

55” UT570H Series UHD TV for Hospitality & Healthcare with Pro:Centric Direct, Pro:Idoim, EZ-Manager & USB Data Cloning

Share This Content.

You Can Share The Items You Like With Your Friends

55UT570H9UA

55” UT570H Series UHD TV for Hospitality & Healthcare with Pro:Centric Direct, Pro:Idoim, EZ-Manager & USB Data Cloning

(3)

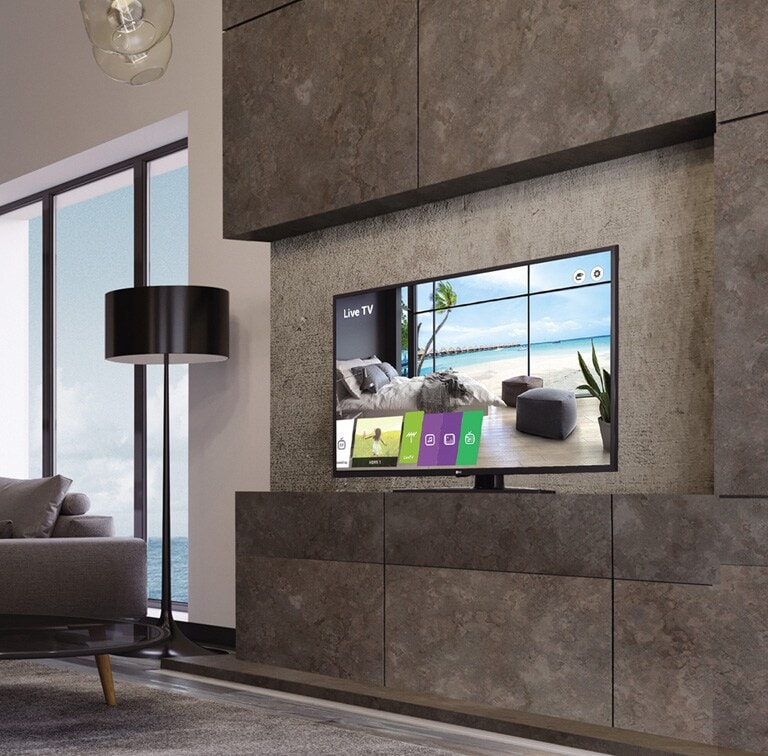

Pro:Centric Enhanced Hospitality UHD TV with b-LAN

Pro:Centric Enhanced Hospitality UHD TV with b-LAN

The UT570H Series features UHD resolution that creates vivid details and a virtually flawless picture. The UT570H features Pro:Centric and Pro:Idiom technologies that allows for easy management, configuration and updates to guest room TVs via a centralized management system.

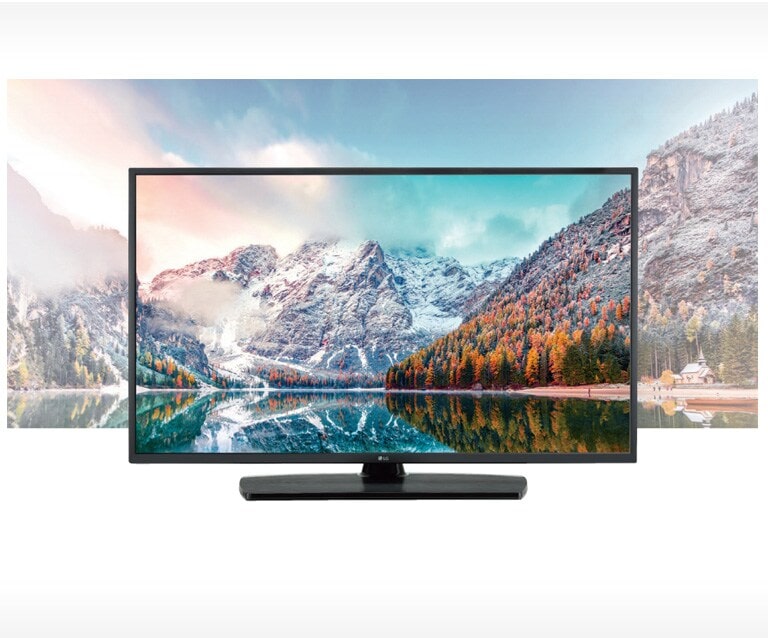

4K Resolution
PICTURE QUALITY

4K Resolution

UHD is the future of digital pictures, delivering a higher resolution four times than that of full HD. The stunning 8.3 million pixels offers a flawless picture quality and incredibly vivid detail.

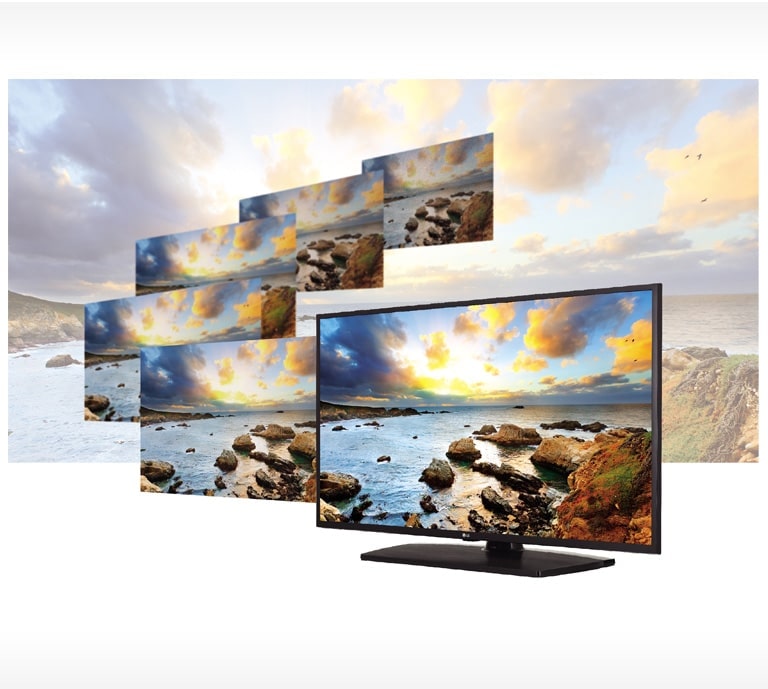

4K Upscaler
PICTURE QUALITY

4K Upscaler

Enjoy Full HD content in 4K UHD quality. The 4K Upscaler automatically upgrades Full HD content to UHD through a simple six-step upscaling processes.
Pro:Centric Direct Solution

Pro:Centric Direct Solution

Pro:Centric Direct is a hotel content management system that supports simple editing tools and provides various solutions such as 1-click service and IP-network-based remote management. With the solution, users can easily edit the user interface, provide customized service and manage all TVs efficiently.

* Actual Ul may differ
* When PCS400R and PCD 2.0 are used, it is able to have PCD feature even in RF infrastructure.

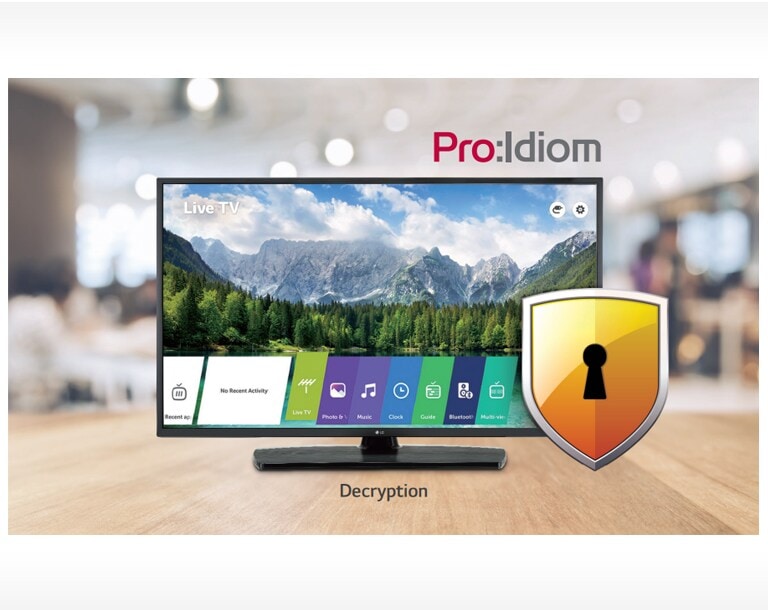

Pro:Idiom

Pro:Idiom

DRM (Digital Right Management) technology unlocks access to premium content to help assure rapid and broad deployment of HDTV and other high value digital contents.
Multi languages
Pro:Centric V HOTEL MANAGEMENT SOLUTION

Multi languages

39 languages including Hebrew, Arabic and Farsi, and language alignment are supported, making your guest's stay a more comfortable one.
Basic
Pro:Centric V HOTEL MANAGEMENT SOLUTION

Basic & Easy Templates

Pro:Centric Application (PCA) provides one Basic & Easy Template. making a total of three templates, that customers can select according to their preference.
Customizable Template
Pro:Centric V HOTEL MANAGEMENT SOLUTION

Customizable Template & Page

Choose an alternative look & feel template based on your preference, and edit multiple sections with 40 pages of billboards by yourself with the web based tool. (Max. 15 pages / section Available)
Multi Channel Spooling
Pro:Centric V HOTEL MANAGEMENT SOLUTION

Multi Channel Spooling

Operation of up to 8 hotel channels (22 sub-channels) can offer various information and added services.
Commercial Swivel Stand
VALUE ADDED FEATURES

Commercial Swivel Stand

Expand the range of comfort for the guests with a commercial grade stand by allowing them to watch a TV from any angle.
EZ-Manager
VALUE ADDED FEATURES

EZ-Manager

EzManager provides a convenient installation function to automatically set settings for the Pro:Centric TV without any extra configuration. Auto-installation requires 1~3 minutes, while manual installation requires 3~5 minutes.
Instant On
VALUE ADDED FEATURES

Instant On

The high speed loading system enables users to enjoy content immediately after turning on the TV.
USB Data Cloning
VALUE ADDED FEATURES

USB Data Cloning

USB data cloning makes managing multiple displays more efficient for optimal operation. No need to set up each display one by one, data can be copied to a USB in one display, data will be distributed to other displays through a USB plug-in.

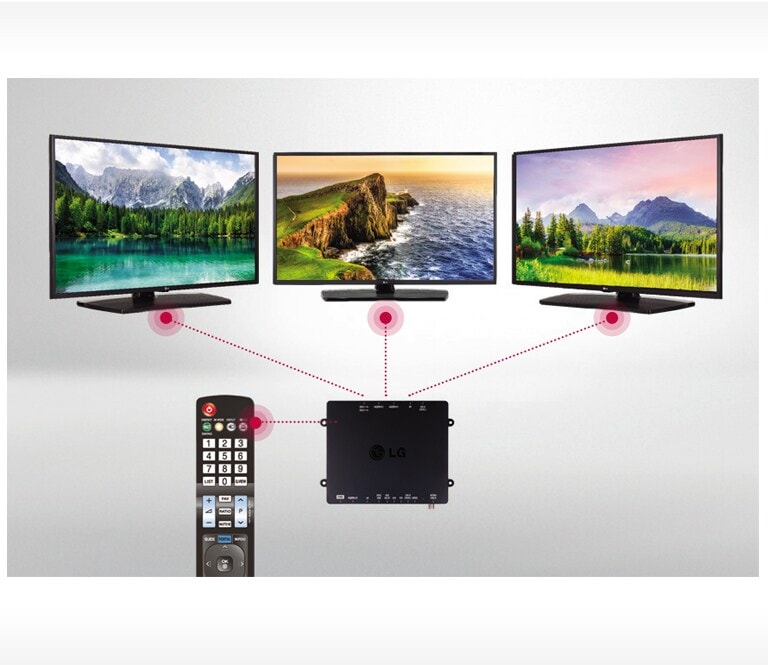

IR Out
VALUE ADDED FEATURES

IR Out

Using the interactive set-top-box, all LG TVs can be controlled with a single remote.
RS-232C
VALUE ADDED FEATURES

RS-232C

Via the TV's RS-232C port, remotely control power and volume settings at the same time.

Key Feature

  • Pro:Centric Hotel Management Solution(Direct, V)
  • Commercial Swivel Stand
  • EzManager
  • Pro:Idiom(SW Type, Mobile Media)
Print

All Spec

POWER SPEC.

  • Power Consumption(Typ)

    144W

  • Power Consumption(Max)

    172W

  • Power Supply (Voltage, Hz)

    AC 120V, 50/60Hz

  • Standby Power Consumption

    Under 0.5W

ACCESSORIES

  • Power Cable

    YES (1.8M / Angle Type)

  • Remote type

    S-Con

AUDIO (SOUND)

  • Speaker (Audio Output)

    20W

BROADCASTING SYSTEM

  • Analog (NTSC / SECAM / PAL)

    NTSC

  • Digital

    ATSC / Clear QAM

CONNECTIVITIES

  • Audio Line Out(3.5mm Phone jack)

    YES

  • AV In

    YES

  • Digital Audio Out (Optical)

    YES

  • HDMI In

    YES (3ea)

  • LG SVC only (Phone jack type)

    YES

  • MPI Port (RJ12 jack)

    YES

  • RF In

    YES (1ea)

  • RJ45 (Usage Purpose)

    2 ( RJP Interface, Pro:Centric)

  • RS-232C (D-Sub 9pin / Phone jack)

    YES (D-Sub 9pin)

  • TV link Configuration (Phone jack type)

    YES

  • USB (Ver.)

    YES (1ea / 2.0)

DESIGN

  • Front Color

    Ceramic Black

  • Stand Type

    1 Pole (Swivel)

  • Tool Name

    UM73

DIMENSIONS/WEIGHT

  • Bezel Width (L/R/U/B, Off Bezel)

    15.5/15.5/15.5/22.3mm

  • Bezel Width (L/R/U/B, On Bezel)

    17.0/17.0/17.0/23.8mm

  • Dimension in Shipping (W x H x D)

    1410 x 860 x 207mm

  • Dimension without Stand (W x H x D)

    1244 x 726 x 87.1mm

  • Dimension with Stand (W x H x D)

    1244 x 780 x 303mm

  • Weight in Shipping

    23.2kg

  • Weight without Stand

    14.3kg

  • Weight with Stand

    17.5kg

DISPLAY

  • Brightness (Typ.)

    400 nit

  • Resolution

    4K Ultra HD (3,840 x 2,160)

  • Size (Inch)

    55

HOSPITALITY FEATURE

  • Diagnostics

    YES (Self Diagnostics(USB))

  • b-LAN

    YES

  • External Speaker Out / Line Out

    YES (Line Out)

  • EzManager

    YES

  • Hotel Mode / PDM / Installer Menu

    YES

  • HTNG-CEC (Version)

    YES (1.4)

  • Insert Image

    YES

  • Instant ON

    YES

  • IR Out

    YES (RS-232C, MPI)

  • Multi IR Code

    YES

  • One Channel Map

    YES (LCM)

  • RJP (Remote Jack Pack) Compatibility

    YES

  • Simplink(HDMI-CEC) (Version)

    YES (1.4)

  • SNMP

    YES

  • USB Cloning

    YES

  • Wake on RF

    YES

  • Welcome Screen (Splash Image)

    YES

HOSPITALITY SOLUTION

  • Pro:Centric Direct

    YES

  • Pro:Centric Server

    YES

  • Pro:Centric Smart

    YES

  • Pro:Centric V

    YES

  • Pro:Idiom (DRM)

    YES

  • Pro:Idiom Media (DRM)

    YES

INFO

  • Category

    Pro:Centric V

MECHANICAL

  • Kensington Lock

    YES

  • Credenza/Security Screw Hole

    YES (Need Stand)

  • Lock Down Plate (for easy installing)

    YES (Need Stand)

  • VESA Compatible

    300 x 300mm

SMART FUNCTION

  • HDMI-ARC

    YES (HDMI2)

  • webOS version

    webOS 4.5

STANDARD

  • EMC

    FCC

  • Safety

    UL

VERTICAL FUNCTION (CORPORATE/RETAIL)

  • NTP sync timer

    YES

  • Video Tag

    YES (2 Video)

VIDEO

  • HDR_HDR 10 Pro

    YES

  • HDR_HLG (Hybrid Log Gamma)

    YES
