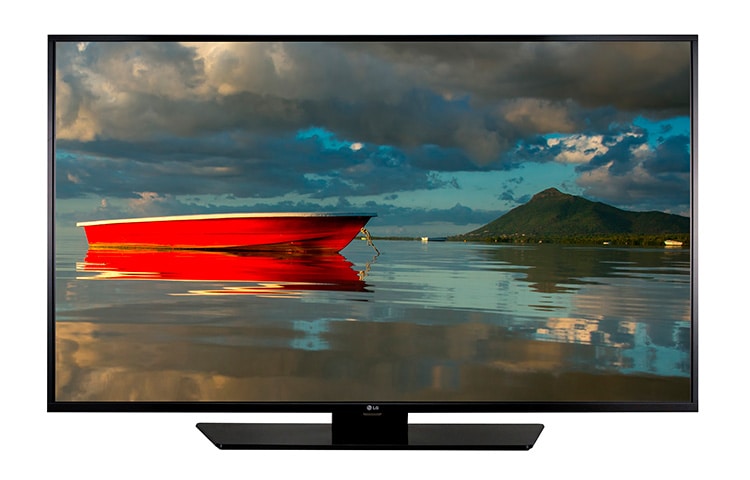

49" class Edge LED Commercial Lite Integrated HDTV (48.5" diagonal)

Specs

Support

Resource

49" class Edge LED Commercial Lite Integrated HDTV (48.5" diagonal)

Share This Content.

You Can Share The Items You Like With Your Friends

49" class Edge LED Commercial Lite Integrated HDTV (48.5" diagonal)

49LX341C
()
  • LG 49" class Edge LED Commercial Lite Integrated HDTV (48.5" diagonal) , 49LX341C
LG 49" class Edge LED Commercial Lite Integrated HDTV (48.5" diagonal) , 49LX341C

Key Features

  • USB Cloning
  • Welcome Screen
  • Multi IR
  • RS232C Control
More
Print

All Spec

PANEL SPECIFICATION

  • Panel Size

    49" Class

  • Backlight Type

    Edge lit

  • Resolution

    1920 x 1080 (FHD)

  • Panel Brightness (cd/m2l, Typ)

    300

  • Dynamic Contrast Ratio (Dynamic MCI (Hz))

    1,000,000:1

  • Static (Panel) Contrast Ratio

    1,200:1

  • Viewing Angle Degree

    178°/178°

  • Response Time(G to G)

    9

  • Frame Rate

    60Hz

  • Life span

    30,000hrs

BROADCASTING SYSTEM

  • Analog

    Yes (NTSC)

  • Digital

    Yes (ATSC/QAM/VSB)

VIDEO

  • Triple XD Engine

    Yes

  • Dynamic Color Enhancer

    Yes

  • Real Cinema 24p (3:3 pull down)

    Yes

  • Aspect Ratio

    Yes, 6 modes ( 16:9, Just scan,Set by program, 4:3,Zoom,Cinema zoom1)

  • Tru 4K Upsacaler

    -

AUDIO

  • Audio Output

    10W + 10W

  • Speaker System

    2.0 ch

  • Sound Mode

    6 modes (Standard, News, Music, Cinema, Sport, Game)

  • Optical Sound Sync

    Yes

  • Sound Optimizer

    3 modes (Normal, Wall-Mount Type, Stand Type)

  • Clear Voice

    Yes

FEATURES

  • Remote Diagnosis

    Yes (Self Diagnosis(USB))

  • HDMI-CEC

    Yes (Without ARC)

  • HTNG-CEC

    Yes

  • Hotel Mode / PDM / Installer Menu

    Yes

  • Lock mode

    Yes

  • External Speaker Out

    Yes (Ext Variable/Fixed, 3.5mm, Stereo, Single ended Type(GND,L+,R+), 1W with 8Ω)

  • RJP Interface

    Yes (RS232C, HDMI CEC)

  • RJP Compatibility

    Yes, LG/Teleadapt (RS232C), Teleadapt/Guestlink (HDMI CEC)

  • USB

    Yes (USB 2.0)

  • USB Auto Play back

    Yes

  • Moving Picture Playback (SD/HD/Plus HD)

    Divx HD

  • Picture

    JPEG

  • Audio Codec

    MP3, AC3, MPEG, AAC,HEAAC, CDDA, LPCM

  • USB Cloning

    Yes

  • Multi IR Code

    Yes

  • Welcome Screen (Splash Image)

    Yes

  • Auto Off / Auto Sleep

    Yes

  • Motion eye care

    Yes

INTERFACE

  • HDMI In

    1 (2.0)

  • USB (2.0)

    1

  • RF In

    1

  • AV In

    1 (Sharing with Component in)

  • Component in (Y,Pb,Pr) + Audio

    1

  • Digital Audio Out (Coaxial / Optical)

    1 (Optical)

  • HDMI/HDCP Input

    1 (2.0)

  • RGB In (D-sub 15pin) - PC

    1

  • PC Audio Input

    1(Sharing with Component Audio)

  • RS-232C(D-Sub 9pin)

    1

  • External Speaker Out(3.5mm phone jack)

    1 (Variable/Fixed/Line Out, 3.5mm, Stereo, Single ended Type(GND,L+,R+), 1W with 8Ω

ACCESSORY

  • Remote type

    L-Con

  • Cable

    Power cord (1.55m, Angle Type)

  • Manual / ESG

    Simple Manual

POWER

  • Voltage, Hz

    110 ~ 240V, 50/60Hz

  • Stand-by

    0.5W↓

REQUIRED LISTING(CERTIFICATION)

  • Safety

    UL

  • EMC

    FCC

CABINET

  • Bezel Width(L/R, U, B) - on bezel

    14.9, 12.5, 17.6

  • Bezel Width(L/R, U, B) - Off bezel

    12.6, 10.2, 15.3

  • Weight (W/O Stand,kg)

    14.4

  • Weight (with stand, kg)

    17.6

  • Weight (Packing)

    21

  • WxHxD (w/o stand, mm)

    1106x647x55.1

  • WxHxD (with stand, mm)

    1106x697x220

  • WxHxD (Packing, mm)

    1197x760x142

  • VESA Compatible

    300x300

UPC CODE

  • UPC Code

    719192 198081

WARRANTY

  • Warranty

    2 Year Limited Warranty (Parts/Labor/Backlight)

White Paper

extension : pdf
Quest for Genius.pdf
Download

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
