49” Class (48.5" diagonal) Single Tuner with Integrated Pro:Idiom®

Specs

Support

Resource

49” Class (48.5" diagonal) Single Tuner with Integrated Pro:Idiom®

Share This Content.

You Can Share The Items You Like With Your Friends

49” Class (48.5" diagonal) Single Tuner with Integrated Pro:Idiom®

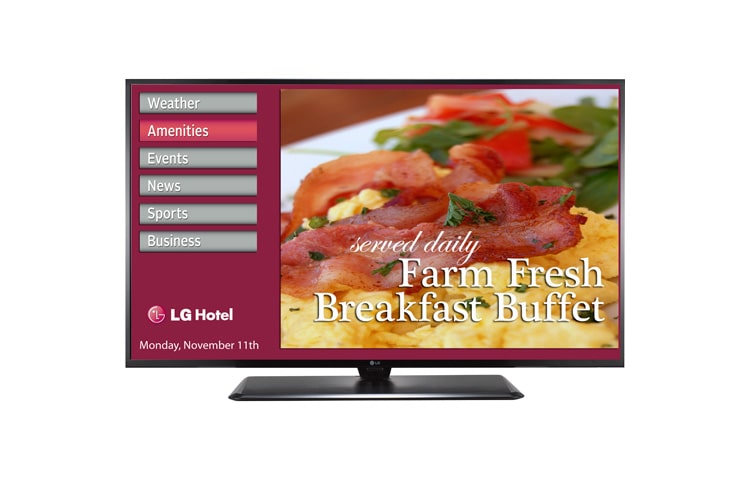

49LX570H
()
  • LG 49” Class (48.5" diagonal) Single Tuner with Integrated Pro:Idiom®, 49LX570H
LG 49” Class (48.5" diagonal) Single Tuner with Integrated Pro:Idiom®, 49LX570H

Key Features

  • SMART CUSTOMIZATION
  • FREE INTERACTIVE ELECTRONIC PROGRAM GUIDE SERVICE
  • FREE-TO-GUEST COST EFFECTIVE SOLUTION
Print

All Spec

PANEL

  • Panel Size

    49" Class (48.5" diagonal)

  • Backlight Type

    Edge

  • Native Resolution

    1920 x 1080 (FHD)

  • Frame Rate

    60Hz

  • Brightness (cd/m2)

    214

  • Viewing Angle (HxV)

    178° x 178°

  • Contrast Ratio Static (Typ)

    1,200:1

  • Dynamic Contrast Ratio

    1,000,000:1

  • Response Time

    9ms

  • Life Span

    30,000 Hrs

BROADCASTING SYSTEM

  • Analog

    Yes (NTSC)

  • Digital

    Yes (ATSC)

INTERFACE(SIDE)

  • HDMI In

    2

  • USB (2.0)

    1

INTERFACE(REAR)

  • RF In

    1

  • AV In

    1

  • Digital Audio Out (Coaxial / Optical)

    1 (Optical)

  • HDMI/HDCP Input

    1

  • RGB In (D-sub 15pin) - PC

    1

  • PC Audio Input

    1 (Sharing with AV In)

  • RS-232C(D-Sub 9pin)

    1(SVC, 3.5mm phone jack)

  • LAN Port

    1

  • RJ45(RJP interface)

    1

  • TV link Configuration(phone jack type)

    1

  • PTC Configuration (phone jack type)

    1(Sharing with RS232C)

  • MPI Jack (RJ-12)

    1

CABINET

  • Bezel Width (L/R/U/B) on (mm)

    15.1, 12.7, 17.8

  • Bezel Width (L/R/U/B) off (mm)

    12.6, 10.2, 15.3

  • Weight (W/O Stand, kg)

    14.4

  • Weight (with stand) (kg)

    17.8

  • Weight (Packing)

    21

  • Swivel

    ±20 (Optional ±45/90)

  • WxHxD (w/o stand, mm)

    1106x647x55.1

  • WxHxD (with Stand)

    1106x701x325

  • WxHxD (Packing, mm)

    1197x760x162

  • VESA Compatible

    300mm x 300mm

SPECIAL FEATURES

  • Auto Configuration

    Yes (EzManager)

  • HDMI-CEC

    Yes (Without ARC)

  • HTNG-CEC

    Yes

  • Remote Diagnosis

    Yes (Self Diagnosis(RF/USB))

  • Welcome Screen (Splash Image)

    Yes

  • Commercial Grade Stand

    Yes (65 except)

  • Lock Mode

    Yes

  • Audio Codec

    AC3(Dolby Digital), EAC3, AAC, Mpeg, MP3, PCM

  • Multicast/Unicast ready

    Yes (P:C Server)

  • Hybrid Streaming (IP & RF) ※ MultiCast/HTTP Data Carousel

    Yes

  • RF(1/2Tuner)

    Yes (1 Tuner)

  • Pro:Centric Application

    Yes (PCA 3.0)

  • HCAP (GEM/FLASH/HTML)

    GEM / Flash

  • Pro:Centric

    Yes (V)

  • Pro:Idiom

    Yes

  • SI Compatible (TVLink Protocol)

    Yes (MPI protocol)

  • RJP Compatibility

    LG,Teleadapt (RJ45, HDMI CEC), G-Link(HDMI-CEC)

  • Kensington Lock

    Yes (32/40/43/49/55/65 : Stand)

  • External Speaker Out

    Yes (Variable/Fixed/Line Out, 3.5mm, Stereo, Single ended Type(GRD,L+,R+), 1W with 8Ω)

  • USB

    Yes (USB 2.0)

  • USB Cloning

    Yes

  • Moving Picture Playback (SD/HD/Plus HD)

    Divx HD

  • Picture

    JPEG

  • Instant ON

    Yes

  • One Channel Map / Logical Channel Map

    Yes(LCM)

  • Smart Energy Saving

    Yes

  • Credenza/Security Screw Hole

    Yes (65 except)

  • IR Out

    Yes (MPI Jack)

  • Intelligent Sensor

    Yes

VIDEO

  • Dynamic Colour Enhancer

    Yes

  • Triple XD Engine

    Yes

  • Real Cinema 24p (3:3 pull down)

    Yes

  • Aspect Ratio

    Yes (5 Modes: 16:9, Just scan, Set by program, 4:3, Zoom)

ACCESSORIES

  • Remote type

    S-Con

  • Cable

    Power cable(1.8M,Angle Type)

  • Manual / ESG

    Simple Manual

POWER

  • Voltage, Hz

    110 ~ 240V, 50/60Hz

  • Typical (Watts) (Based on Energy Star 7.0)

    38

  • Stand-by

    0.5W↓

REQUIRED LISTINGS(CERTIFIACTION)

  • Safety

    UL

  • EMC

    FCC

  • ETC.

    RoHS, cUL, NOM, Energy Star 7.0

WARRANTY

  • Warranty

    2 Year Limited Warranty (Parts/Labor/Backlight)

UPC CODE

  • UPC Code

    719192 197930

White Paper

extension : pdf
Quest for Genius.pdf
Download

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
