*The menu design(GUI) is subject to change without notice.
Key Feature
-
Brightness: 450 cd/㎡
-
Touch Type: P-Cap(Ag Metal Mesh)
-
Touch Point: Max. 40 points
-
Interface: HDMI (3), DP, DVI, RGB, RS232C, RJ45, USB (2), OPS USB, Touch USB (2), Wi-Fi Built-in

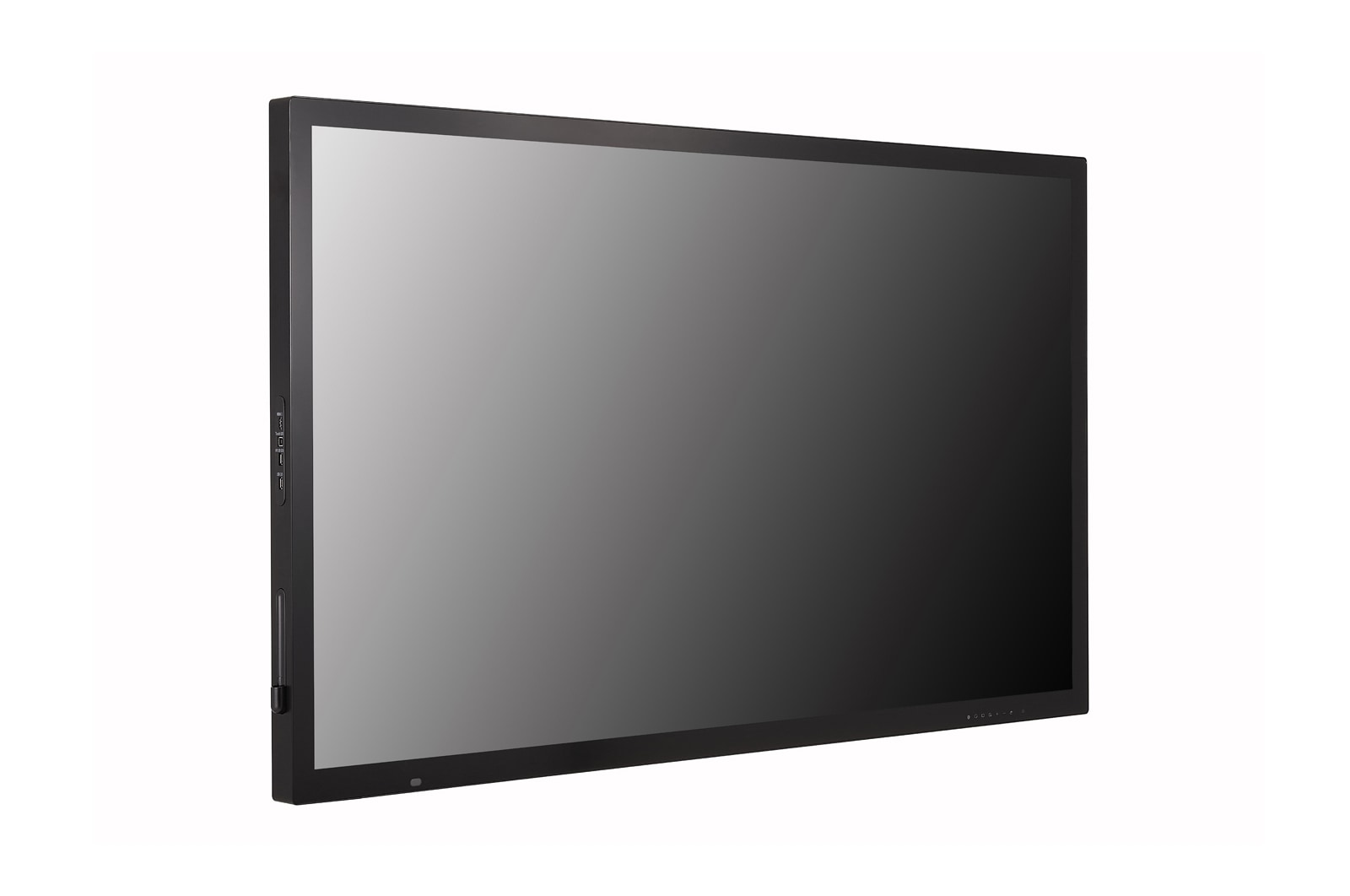

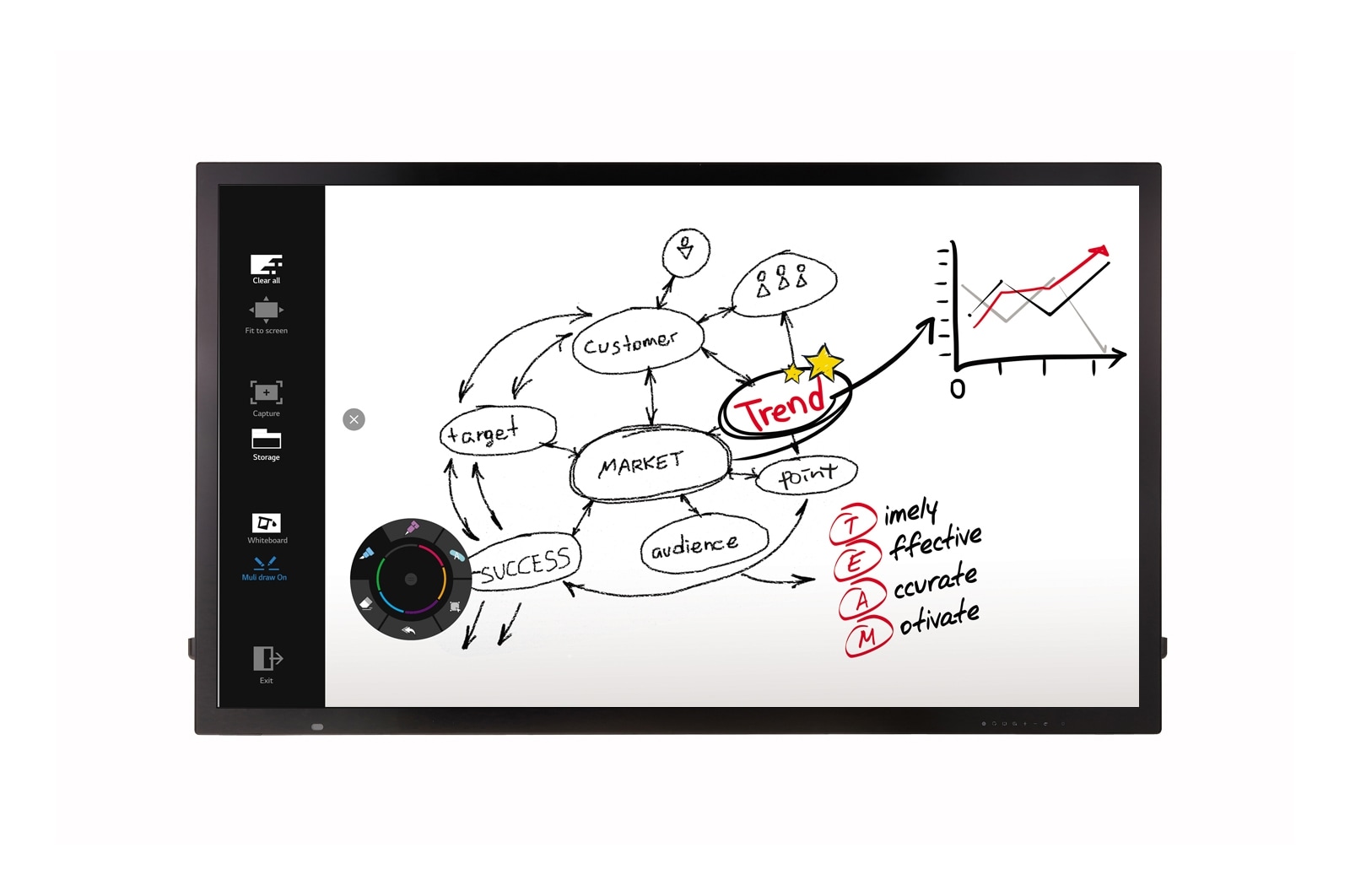

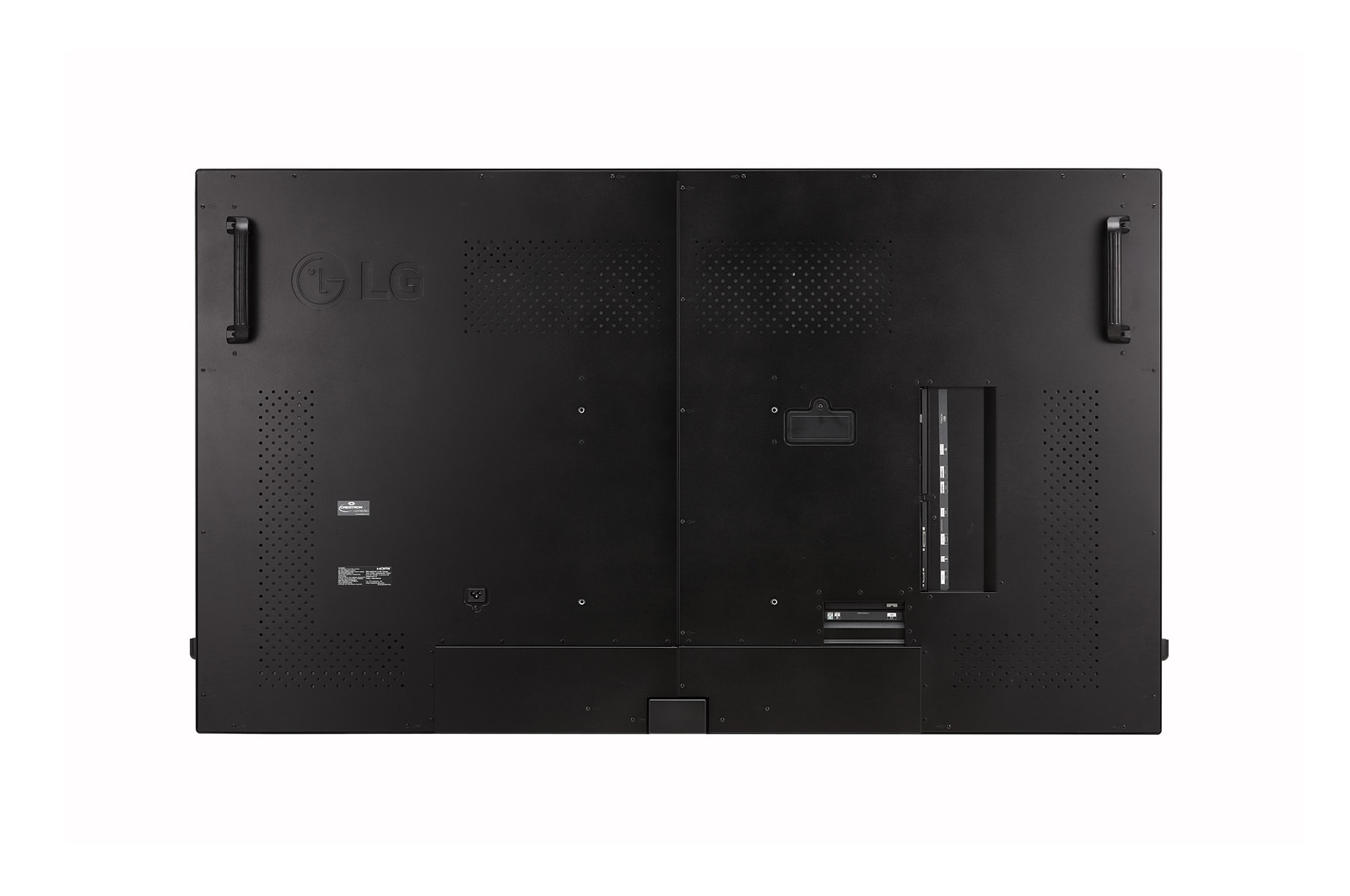

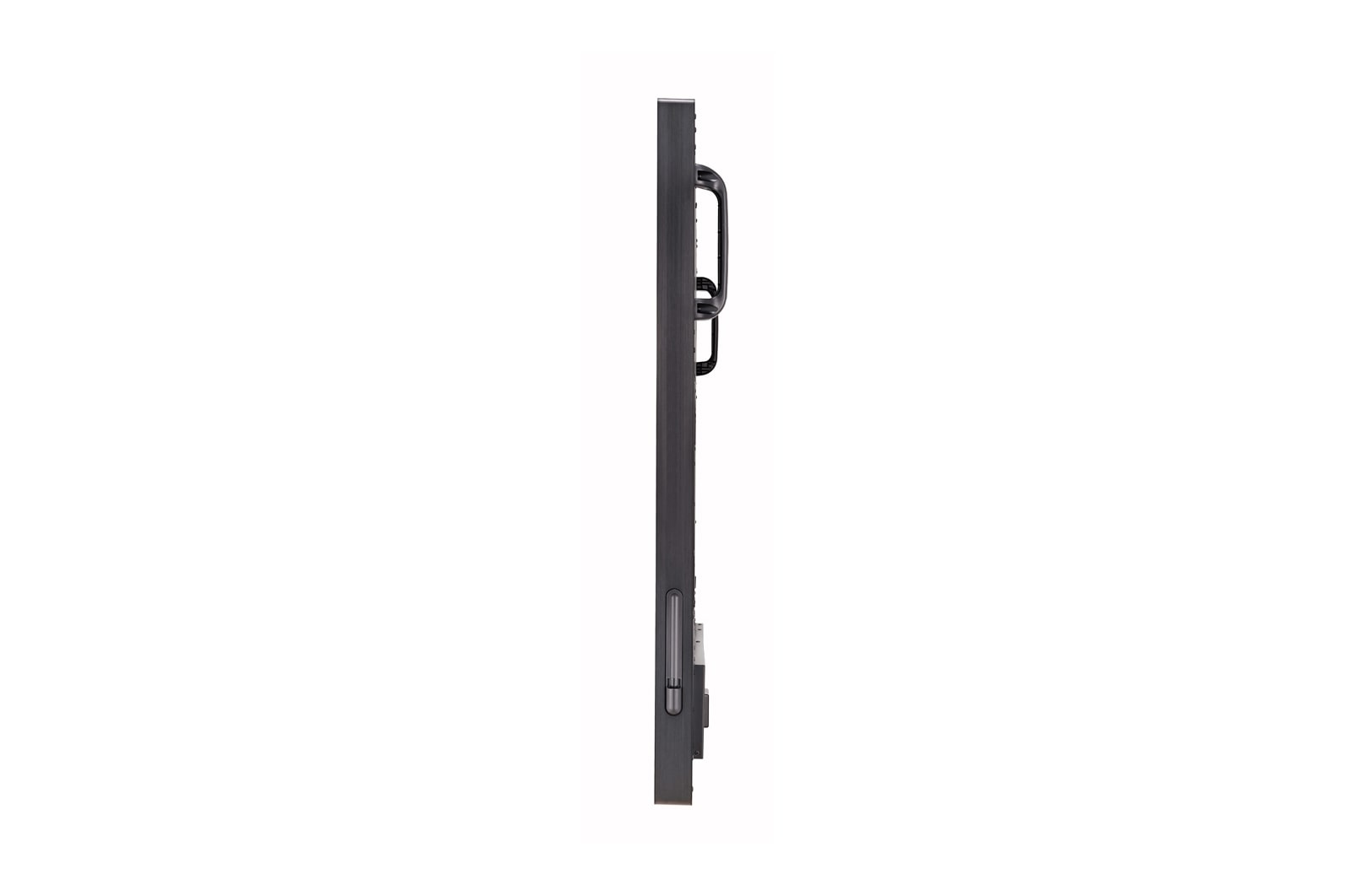

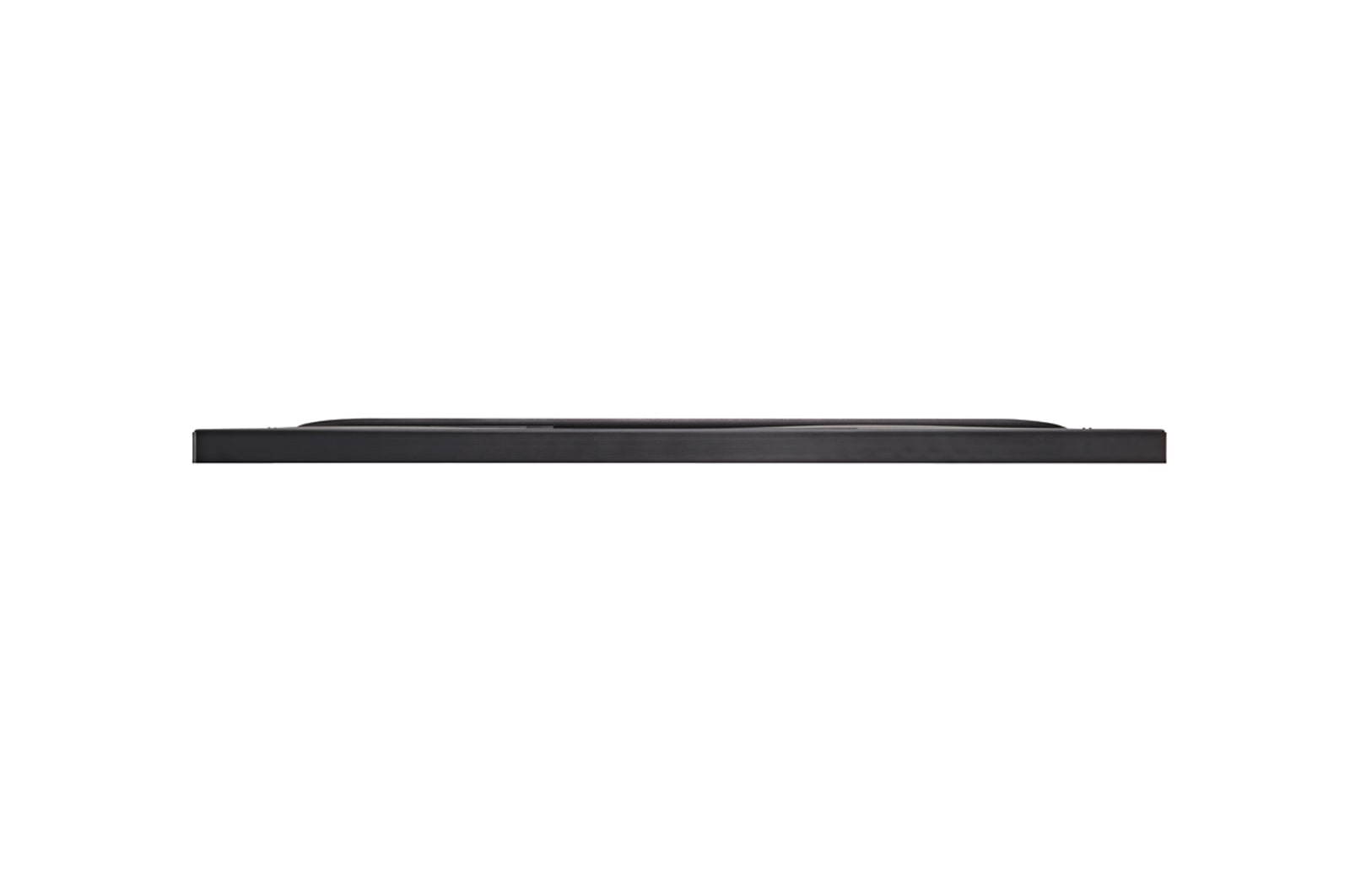

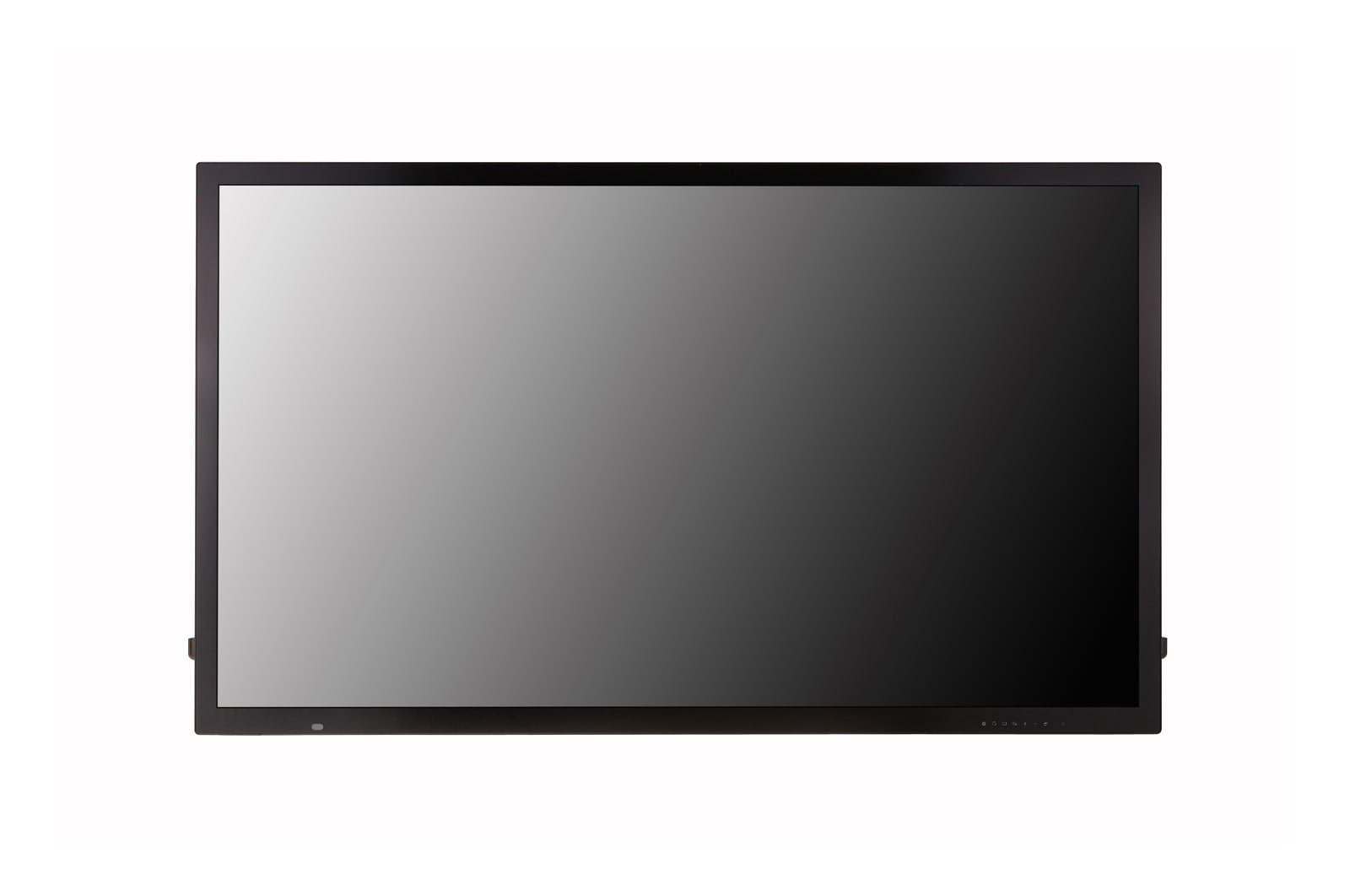

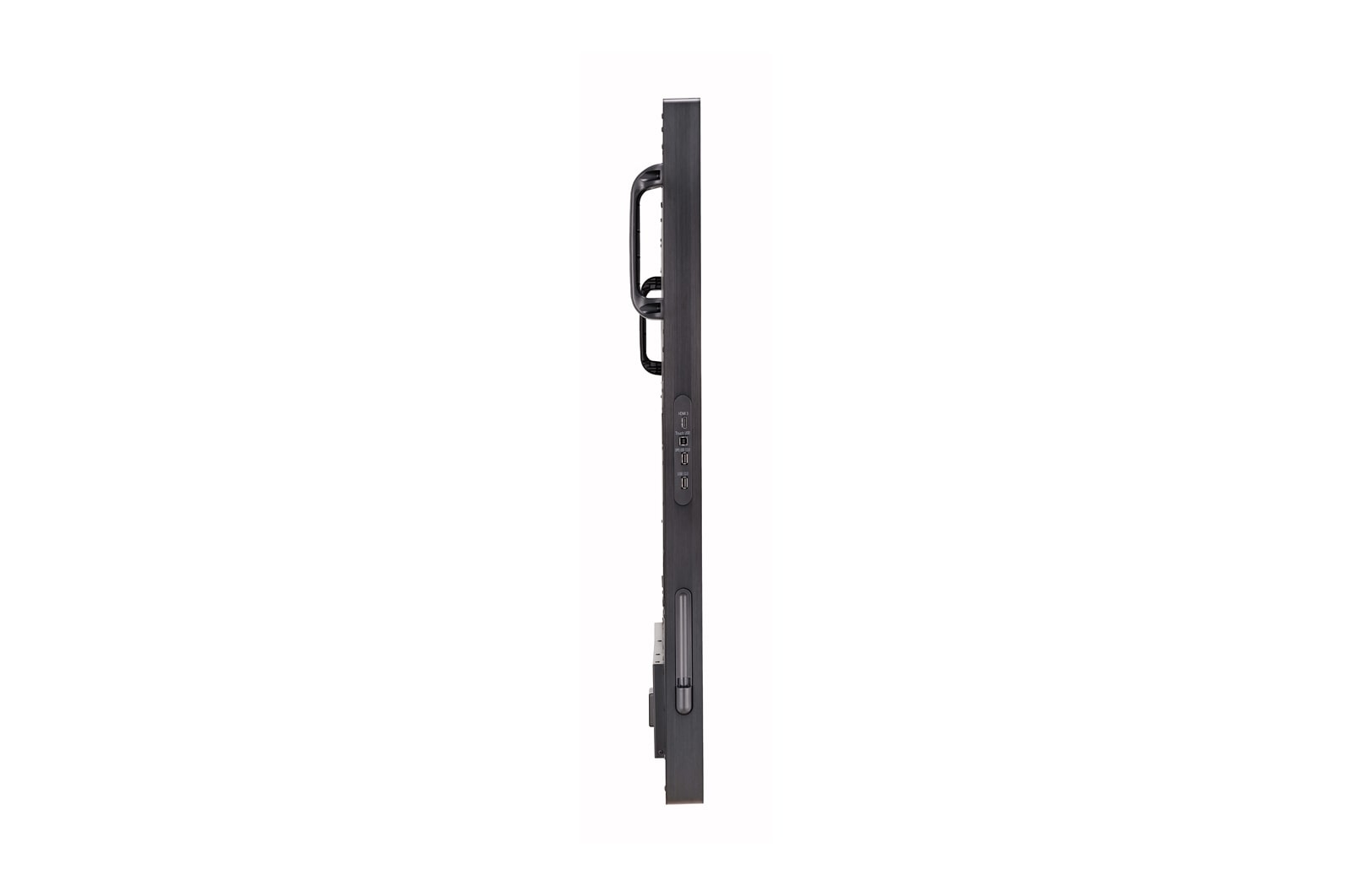

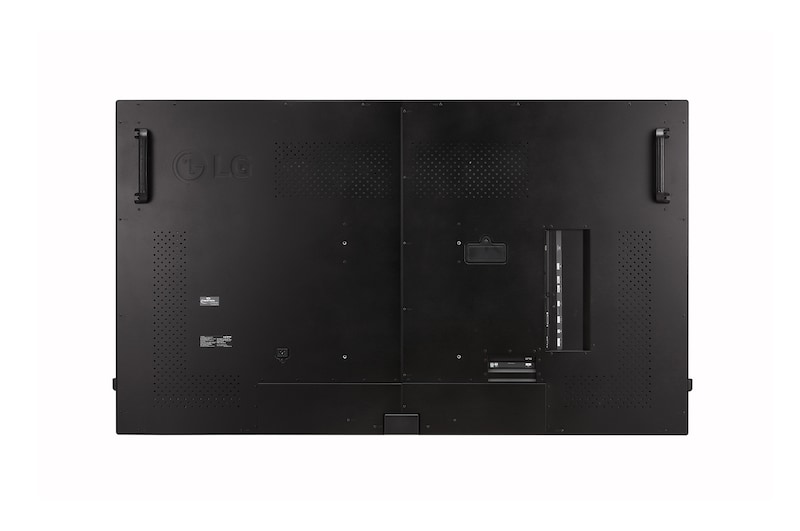

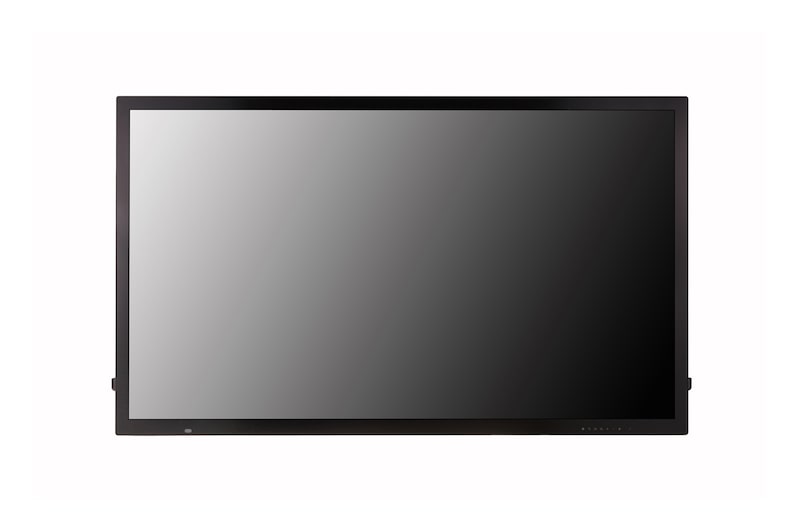

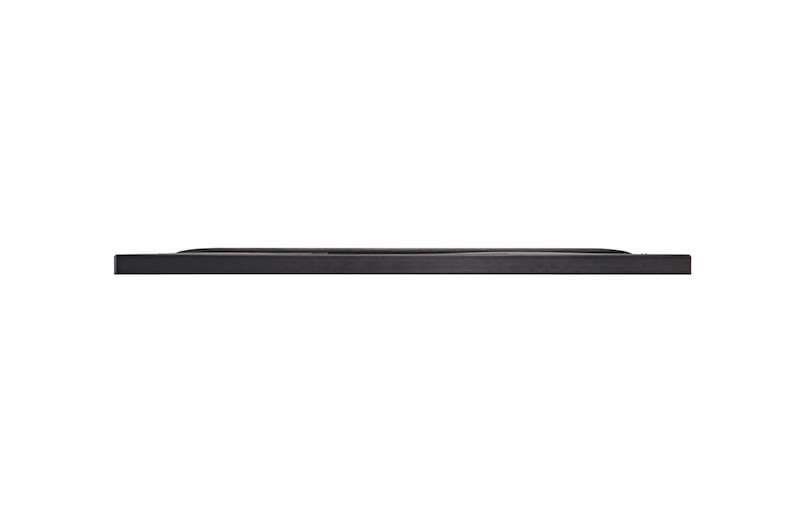

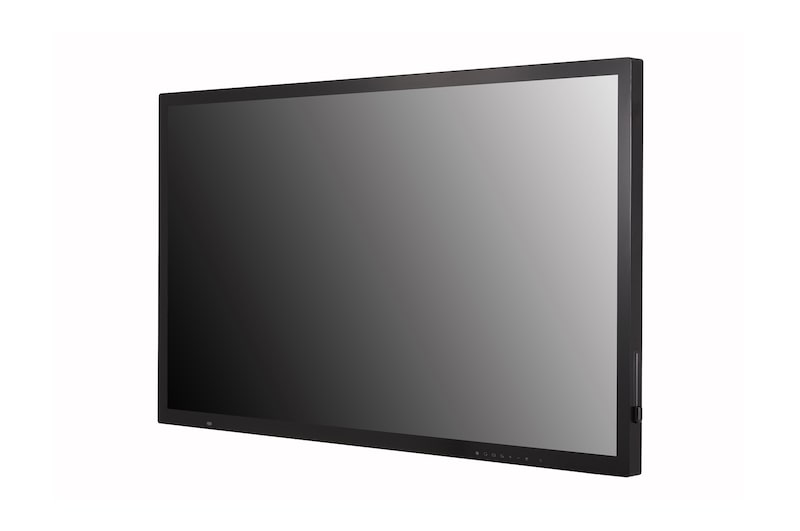

Gallery
All Spec
PANEL
-
Screen Size
65
-
Panel Technology
IPS
-
Aspect Ratio
16 : 9
-
Native Resolution
1920 x 1080 (FHD)
-
Pixels(H x V x 3)
6,220,800
-
Brightness
450cd/m2(Module), 370cd/m2(w/Protection Glass)
-
Contrast Ratio
1,300:1
-
Dynamic CR
4,000,000:1
-
Color Gamut
68%
-
Viewing Angle(H x V)
178 x 178
-
Color Depth
1.06 Billion
-
Response Time
10ms(G to G BW)
-
Surface Treatment
Hard coating(3H), Anti-glare treatment of the front polarizer (Haze 1%(Typ.))
-
Life time(Typ.)
50,000 Hrs (Typ.)
-
Operation Hours
24Hr
-
Orientation
Portrait & Landscape
CONNECTIVITY
-
Input
HDMI(3), DP, DVI-D, RGB, Audio In, RS232C IN, RJ45, USB3.0, USB2.0(2), USB2.0,B Type(2), HDTV Formats(HDMI : 720p, 1080i, 1080p)
-
Output
RS232C OUT
PHYSICAL SPECIFICATION
-
Bezel Color
Black
-
Bezel Width
36.1mm/36.1mm/36.1mm/42.2mm(T/L/R/B)
-
Monitor Dimension(W x H x D)
1,530.8 x 883.8 x 71.7 (w/o Handle)
-
Weight(Head)
51Kg
-
Carton Dimensions(W x H x D)
1,650 x 1,035 x 228
-
Packed Weight
59Kg
-
Handle
Yes
-
VESA™ Standard Mount Interface
300 x 300
SPECIAL FEATURES
-
Temperature Sensor
Yes
-
Auto Brightness Sensor
Yes
-
Cooling FAN
No
-
Tile mode
No
-
Natural Mode @Tile Mode
No
-
Source Selection
HDMI1, HDMI2/HDMI3/DVI, OPS, DP, RGB, USB
-
Brightness/Contrast/Backlight
Yes
-
Position/Size
Yes
-
Auto Config/Phase (RGB)
Yes
-
Language (OSD)
English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic
-
Language (USB Playback)
English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic
-
Language (Manual)
English, French, Italian, German, Spanish, Portugues, Hungarian, Greek, Russian, Ukrainian, Polish, Arabic, Indonesian, Korean, Turkish, Czech, Slovak, Taiwanese, Danish, Norwegian, Swedish, Finnish, Uzbekistan,Arabic
-
Language (ESG)
English, French, Spanish, Portugues, Italian, Polish, German, Greek, Czech, Slovak, Ukrainian, Russian, Uzbekistan, Taiwanese, Japanese, Portugues(Brazil) ,Arabic
-
ISM Method
Normal, White Wash, Color Wash, User image, User Video, Orbiter, Inversion, Washing Bar
* Scheduling is supported additionally -
Advanced
Dynamic Contrast, Dynamic Color, Color Gamut, Skin Color, Sky Color, Grass color, Gamma
-
Time
Clock, On/Off Timer, Auto Off, Automatic Standby
-
Input Label
Yes(PC/DTV)
-
Power on Status
Standby, PWR, LST
-
Key operation
IR operation, Local key operation, Touch Operation
-
DPM Select
Yes (off/1/3/5/10min)
-
Energy Saving
Yes(Auto, Minimum, Medium, Maxium, Screen off)
-
Power Indicatior On/Off
No
-
File Play with USB
Yes
-
PIP/PBP
Yes(2)
-
Internal Memory
64GB(System 8GB + Available 56GB)
-
Wi-Fi
802.11n combo built-in
-
USB Cloning
Logo image download, Sent to USB, Receive from USB
-
Brightness control
Yes (Off, Auto, Minimum, Medium, Maxium)
-
Contents Scheduling
USB, Internal memory
-
Calibration mode
Yes
-
Off/On Scheduler
Yes
-
Sync mode
Time sync, Content sync, Network sync
-
PM mode
Power Off, Sustain Aspect Ratio, Screen Off, Screen Off Always, Screen off & Backlight
-
Holiday schedule
Yes
-
Firamware update (LAN)
Yes
-
Local time auto setting
Yes
-
Reader Mode - Low Blue Right
Yes
-
Crestron SDK.
Yes
-
HDMI-CEC 2.0 (Partially Supported)
Yes
-
IDB App.
Yes (IDB App v1.0)
-
Power on Default
Yes
-
Wake on LAN
Yes
-
Digital Audio input
Yes
-
Power on Delay
0 ~ 250
-
Content Rotation
Yes
-
OSD Portrait Mode
Yes
-
Passward change
Yes
-
SetID Setup
Manual, Auto
-
Lock Mode
Home Dashboard, USB, OSD, IR Operation, Local Key Operation, Wi-Fi, Scheen Share
-
Fail over
USB, RGB, DP, OPS, DVI, HDMI, Internal Memory
-
SuperSign Server Setup
SIgnage name, Server IP setting, Server IP Status
-
No Signal image (Up to 5MB)
Yes
-
Media share
SoftAP, Screen Share
-
Beacon
On/Off
-
OPS PC power Control
Yes
ENVIRONMENT CONDITIONS
-
Operation Temperature
0 °C to 40 °C
-
Operation Humidity
10 % to 80 %
POWER
-
Power Supply
100-240V~, 50/60Hz
-
Power Type
Built-In Power
-
Power Switch
No
POWER CONSUMPTION
-
Typ.
120W↓
-
Smart Enegy Saving
85W↓
-
DPM
0.5W↓
-
Power off
0.5W↓
AUDIO
-
Balance
Yes
-
Audio Power
20W(10W x 2)
-
Equalizer
Yes
-
Sound mode
Standard, Cinema, Clear Voice III, Sports, Music, Game
STANDARD(CERTIFICATION)
-
Safety
UL / cUL / CB / TUV / KC
-
EMC
FCC Class "A" / CE / KCC
-
ErP / Energy Star
No / No
MEDIA PLAYER COMPATIBILITY
-
OPS type compatible
Yes
-
External Media player Attatchable
No
SOFTWARE COMPATIBILITY
-
SuperSign-Premium/W/lite
Yes (SuperSign Premium1.5)
-
SuperSign-Link/C
Yes (SuperSign Link 1.5)
ACCESSORY
-
Basic
Remote Controller(include battery 2ea), Power Cord, QSG, HDMI(3M), Regulation Book, Phone to RS232C Gender, Touch Pen(2ea), Touch Pen Tip(1ea)
-
Optional
OPS Kit(KT-OPSA)
TOUCH
-
Touch type
P-Cap(Ag Metal Mesh)
-
Available object size for touch
Ø6 mm ↑
-
Reporting Rate
10 ms ↓
-
Accuracy
2mm
-
Interface
USB 2.0
-
Protection Glass Thickness
3.2T (Anti-Glare)
-
Surface Treatment
AG Coating (6H)
-
Protection Glass Transmission
83% (Typ)
-
Operating System Support
Win 7 Pro, Win 8.x, Win 10
-
Multi touch point (webOS)
Max 10 Points
-
Multi touch point (Windows OS)
Max 40 Points (Need to support by windows applications.)
-
