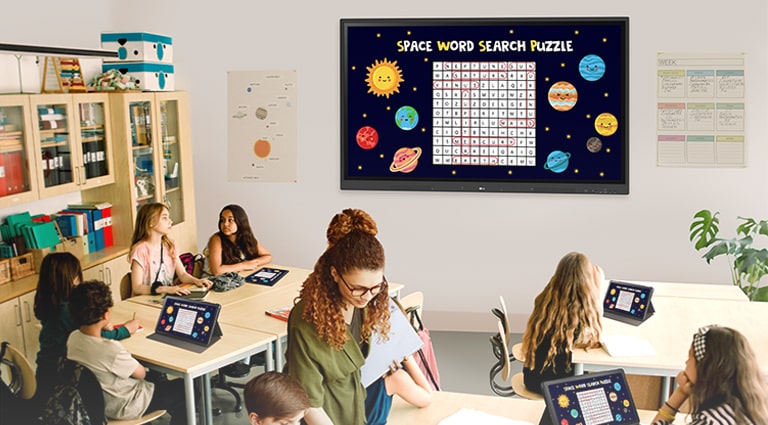

Class is being conducted in the classroom, and the class material screen which is displayed on the classroom wall's LG CreateBoard is being shared on the students' tablets.
*All images in this page are for illustrative purposes only.
Students are solving problems using various ruler models on the LG CreateBoard menu.
"In the classroom, several students are simultaneously writing on the LG CreateBoard screen. "
*A max of 32 points are recognized in the Android environment, and a max of 40 points are detected in the Windows environment.
*Up to 10 points can be recognized in the writing app.
Materials used to conduct class can be shared through the LG CreateBoard's import and export function after class.
The LG CreateBoard can easily share screens with multiple devices in real time via app and website.
*LG CreateBoard also supports app-less sharing for PC (via website) and mobile devices within the same network.
*For a more stable connection, we recommend the installation of a dedicated app (LG CreateBoard Share).
an_it_manager_is_managing/controlling the status of the LG CreateBoard through LG ConnectedCare DMS.
*'LGConnectedCare DMS' needs to be purchased separately.
*The availability of the 'LG ConnectedCare DMS' service differs by region, so please contact the LG sales representative in your region for more details.
*LG ConnectedCare DMS supports the TR3DJ/TR3PJ/TR3DK Series as of now(plus more to come) under a cloud environment.
Frequently used controls such as the power on/off, scheduling, brightness, and screen lock functions can be applied using a remote control.

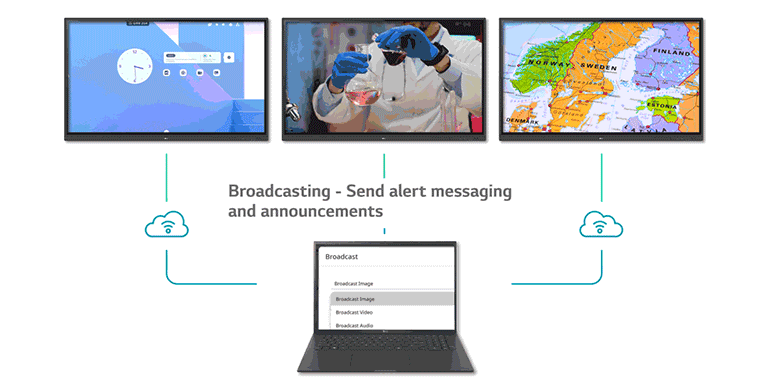

Messages and a range of other content can be sent from the main system to individual classroom devices connected to LG ConnectedCare DMS. In case of urgent occasions such as a fire or a natural disaster, alert messages can be distributed manually across the system, which help teachers and students promptly take safety action.
The user can set a threshold for receiving an warning/error signal for eight categories: display temperature, CPU usage, etc. The current status of the issue is easily indicated in categories, enabling for quick real-time responses. Issues can be managed remotely with an LG ConnectedCare DMS solution.
Users can set thresholds in eight categories including display temperature, memory usage, or signal, and can receive warning or error notifications based on their threshold settings.
An engineer can check the status in real-time and diagnose problems remotely. Also, the current status of issues can be categorized, allowing for easy viewing and quick responses.
The LG CreateBoard can wirelessly connect to devices such as keyboards, mice, and speakers via Bluetooth.

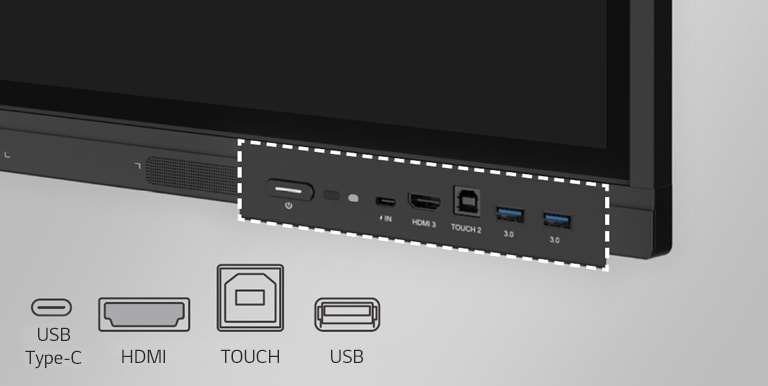

The LG CreateBoard easily transmits data via USB-C connectivity and can charge up to 65W.
*USB Type-C cables are sold separately.
Teachers can lock the screen using the Screen Lock function, and unlock it by entering a password. Users can set the Screen Lock in the Settings menu to protect the device from unidentified users.
LG CreateBoard supports Secure Mode that disables the LG CreateBoard Share function to prevent unauthorized content from being shown on various devices.
Users can set LG CreateBoard to delete files regularly for enhanced security.
Basic
Power Cord 3M*1, USB Cable (Type A-Type B) 5M*1, HDMI Cable 3M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Controller(include battery 2ea), Wifi module
Optional
Wall Mount(WM-L000S), Floor Stand(ST-000F, ST-860F)
EMC
FCC Class "A" / CE
ERP / Energy Star
YES / NO
Safety
CB / NRTL
Audio In
YES
Audio Out
YES
DP In
NO
DP Out
NO
DVI-D In
NO
External Speaker Out
NO
HDMI In
YES (3ea)
HDMI In (HDCP Ver.)
2.2
HDMI Out
YES
IR In
NO
RGB In
YES
RJ45(LAN) In
YES (1ea)
RJ45(LAN) Out
YES
RS232C In
YES
RS232C Out
NO
Touch USB
USB2.0 Type B (2ea)
USB In
USB3.0 Type A (4ea), USB2.0 Type A (1ea), USB Type C (1ea)
Bluetooth
Bluetooth 5.0
CPU
Quad core A55
GPU
Mail G52 Multicore 2
LAN
Gigabit LAN
Memory(RAM)
4GB
OS ver. (Android)
Android 11
Storage
32GB
Wi-Fi
802.11a/b/g/n/ac/ax (WiFi 6)
Accuracy (Typ.)
±1mm
Available Object Size for Touch
Ø2mm ↑
Interface
USB2.0
Multi Touch Point
Max. 40 Points(Windows), Max. 32 Points(Android)
Operating System Support
Windows 7/8/10/Linux/Mac/Android (Linux/Mac Support one point touch)
Protection Glass Thickness
3mm (Anti-Glare)
Protection Glass Transmission
0.88
Response Time ('Paint' app on Windows 10 PC)
5ms ↓
Operation Humidity
10 % to 90 %
Operation Temperature
0 °C to 40 °C
Auto Brightness Sensor
YES
Internal Memory (eMMC)
32GB
Local Key Operation
NO
Power Indicator
YES
Temperature Sensor
NO
Wi-Fi/BT (Built-in)
YES
Booting Logo Image
YES
Crestron Connected
NO
HDMI-CEC
NO
Network Ready
NO
PBP
YES (2PBP)
PIP
YES
PM mode
NO
Screen Share
YES
Setting Data Cloning
NO

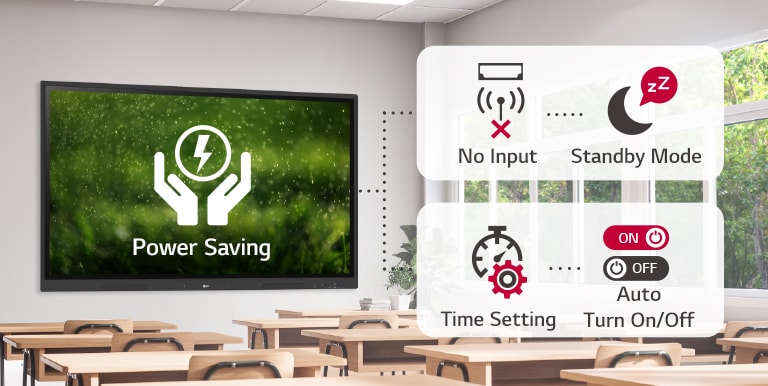

Smart Energy Saving
YES
Wake on LAN
YES
OSD
English, Denmark, Finnish, German, Korean, Norwegian, Polski, Portugues(Europe), Portugues(Brazil), Romanian, Spanish, Swedish, Hungarian, Thai
Bezel Color
Black
Bezel Width
T/R/L/B : 15/15/15/44mm
Carton Dimensions (W x H x D)
1863 × 1140 × 225mm
Handle
NO
Monitor Dimensions (W x H x D)
1709 × 1020 × 88mm
Packed Weight
60.6Kg
VESA Standard Mount Interface
800 x 400mm
Weight (Head)
47.3Kg

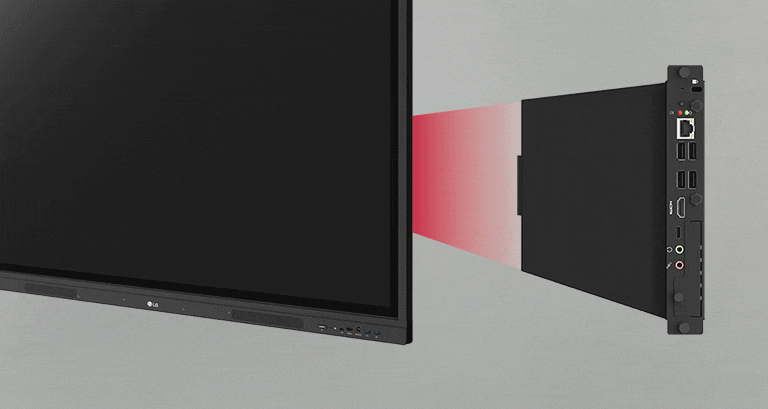

OPS Power Built-in
YES
OPS Type compatible
YES (Slot)
Aspect Ratio
16:9
Back Light Type
Direct
Brightness
390nit (Typ., without Glass)
Color Depth (Number of Colors)
16.7 Million colors
Color Gamut
NTSC 72%
Contrast Ratio
1,200:1
Dynamic CR
5,000:1
Life time
50,000Hrs (L30)
Native Resolution
3840 x 2160 (UHD)
Operation Hours (Hours/Day)
16/7
Panel Technology
IPS
Portait / Landscape
NO / YES
Refresh Rate
60Hz
Response Time
8ms (G to G)
Screen Size (Inch)
75
Surface Treatment (Haze)
Haze 25%
Viewing Angle (H x V)
178º x 178º
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-in Power
BTU (British Thermal Unit)
768 BTU/Hr(Typ.), 1467 BTU/Hr(Max.)
DPM
0.5W
Max.
430W
Power off
0.5W
Typ.
225W
Connected Care
YES
Speaker (Built-in)
YES (15W x 2)
Conformal Coating (Power Board)
YES
