Window Facing Display

Find a Dealer

Window Facing Display

55XS4P-B

()

Key Features

UL Verified Display Anti-discoloration Characteristics
Resolution : 1,920 × 1,080 (FHD)
Brightness : 4,000 nit (Typ.), 3,200 nit (Min.)
Portrait / Landscape
Space Efficiency

UL Solutions

Display Anti-Discoloration Characterstics verified

Attract Passing Customers with a Bright Display Presented Through a Window

A large LED display is installed on the window inside the convenience store, vividly and brightly showcasing advertisements through the glass.

*All images are for illustrative purposes only.

*Please follow the installation guide to get warranty.

*UV-Film is recommended depending on installation site.

World’s First UL Verification for Display Anti-Discoloration Characteristics

By focusing on the pain points of our customers, we obtained the world’s first UL Verification for Display Anti-Discoloration Characteristics. Our new technology helps prevent ‘screen-yellowing’, while safeguarding display quality and performance stability.

The left side of the screen has yellowing, degrading its quality, but with XS4P, which acquired the UL Verification for Display Anti-Discoloration Features, the screen is clear, safeguarding display quality.

*For more details about UL Verification, please visit https://verify.ul.com/verifications/1382.

*World's first UL Verification in the manufacturing industry.

Window-facing Display

LG offers advanced technical solutions for cost-effective operations. The XS4P can maintain an astonishing brightness of 4,000 nits, yet has lower power consumption compared to RGB panels at the same brightness level.

Three different sizes of XS4P are installed on the window inside the cafe. The content plays clearly and vividly through the glass, even in the bright atmosphere.

Brightness Beyond the Window

A window-facing display requires higher nits, as it is exposed to direct sunlight through a window. The XS4P is designed especially for window-facing environments, providing brilliant brightness. Vibrant and dynamic content displayed through the window will attract customers to your business, despite the viewers wearing polarized sunglasses.

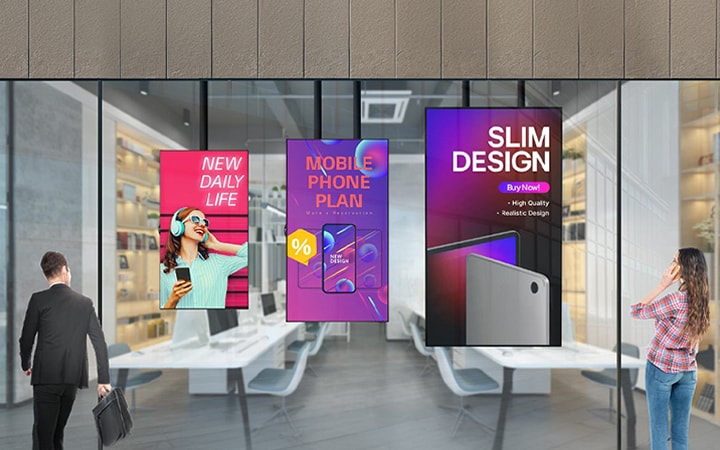

Three different sizes of XS4P are installed on the window inside the phone store. The content plays vividly through the glass, allowing passersby to see it clearly, even in the bright atmosphere.

High-performance with
webOS 6.0

Quad Core SoC (System-on-Chip) can execute several tasks at the same time without a separate media player. In addition, webOS 6.0 platform enhances not only user convenience with intuitive UI but also web-app integration with updated Node JS / Chromium version.

It has improved user convenience by utilizing the SoC and webOS.

Remotely Managed, Real-time Mastery (Content Manager)

A significant advantage of window-facing displays over temporary displays is their ability to effortlessly manage frequently changing promotional content and pricing information. LG’s web-based content solution is intuitive and user-friendly, providing users with complete access to current and historical data anytime, anywhere, through their mobile devices. This allows users to monitor, adjust, and control the unit remotely in real-time.

Users can monitor and control their displays through a mobile phone and a laptop.

*Feature accessible through wired LAN connectivity.

Wide Range of Operating Temperature

The XS4P can be used under a wide range of operating temperature from 0℃ to 40℃.

A display is working well in an environment of 0~40°C.

*Confirmed by LG internal testing, Operating temperature: 0℃~40℃ (without direct sunlight; with direct sunlight in cooling system), 0℃~30℃ (with direct sunlight).

Conformal Coating

The conformal coating with dust protection shields the circuit and power boards from dust, metal particles, moisture, and other contaminants, providing solid durability and long-term reliability.

*Confirmed by LG internal testing.

Upgraded Quite Mode

The XS4P addresses concerns about display noise. It features an Upgraded Quiet Mode that operates at 2,500 nits with minimal fan noise.

The real estate office has two displays installed inside the window. The XS4P model's low fan noise enables smooth communication and conversation even when sitting close to the display.

Professional Content Partners

Pairing the XS4P Series with LG SW solutions would enhance its utilization.

* Sold separately.

Partner content is being utilized to compose the content intended for playback on the signage.

Convenient Installation with Calculated Precision

The XS4P is equipped with a Leveler Tool that shows users the tilt of the device, allowing for precise display installation. Additionally, the Horizontal Sensor Tool assists users in verifying the correct installation direction. The XS4P even provides warning messages for proper installation if it is installed incorrectly.

"A display is installed without tilting using the Leveler Tool. With the equipped Horizontal Sensor Tool, the display can be reinstalled in the correct direction if it is incorrectly installed."

*The rotation direction differs for 49/55 and 75.

UL Verified Display Anti-discoloration Characteristics
Resolution : 1,920 × 1,080 (FHD)
Brightness : 4,000 nit (Typ.), 3,200 nit (Min.)
Portrait / Landscape
Space Efficiency

All Spec

PANEL

Aspect Ratio

16:9
Back Light Type

Direct
Brightness

4,000nit (Typ), 3,200nit(Min)
Color Depth (Number of Colors)

8bit, 16.7Million colors
Color Gamut

NTSC 72%
Contrast Ratio

1,000:1
Dynamic CR

500,000:1
Life time

50,000 Hrs (Typ)
Native Resolution

1920x1080 (FHD)
Operation Hours (Hours/Day)

24/7
Panel Technology

IPS, M+
Portait / Landscape

Yes/Yes
QWP (Quarter Wave Plate)

Yes
Refresh Rate

60Hz
Response Time

9ms (G to G)
Screen Size (Inch)

55"
Surface Treatment (Haze)

3%
Viewing Angle (H x V)

178 x 178

ACCESSORY

Basic

Remote Controller(including battery 2ea), Power Cord, HDMI Cable,Manual (EIG, IG), IR Receiver(w/ Ambient Light Sensor), RS-232C Gender
Optional

WM-L640V(Landscape wall mount),
WM-P640V(Portrait wall mount)
** Stand is not available

CERTIFICATION

EMC

FCC Class "B" / CE / KC / VCCI
ERP / Energy Star

Yes/ No
Safety

CB / NRTL

CONNECTIVITY

DP In

Yes(1), HDCP1.3
DP Out

Yes(1), Input DP/HDMI
External Speaker Out

O(1, L/R, 10W+10W) , (4pin phone jack)
HDMI In

Yes(2), HDCP1.4
IR In

Yes(1)
IR Out

Sharing RS232C Out
RJ45(LAN) In

Yes(1)
RS232C In

Yes(1) (4pin phone jack)
RS232C Out

Yes(1)
USB In

USB2.0 Type A (1)

ENVIRONMENT CONDITIONS

Operation Humidity

10 % to 80 %
Operation Temperature

0 °C to 40°C (w/o Direct Sunlight)
0 °C to 30°C (Direct Sunlight)

FEATURE - HARDWARE

Acceleration(Gyro) Sensor

Yes
Auto Brightness Sensor

Yes
FAN (Built-in)

Yes
Internal Memory (eMMC)

16GB
Local Key Operation

Yes
Temperature Sensor

Yes
Wi-Fi/BT (Built-in)

Yes

FEATURE - SOFTWARE

Auto Set ID

Yes
Backlight Sync

Yes
Beacon

Yes
Booting Logo Image

Yes
Control Manager

Yes
External Input Rotation

Yes
Fail over

Yes
Gapless Playback

Yes
Group Manager

Yes
HDMI-CEC

Yes
ISM Method

Yes
Local Contents Scheduling

Yes
Local Network Sync

Yes
Network Ready

Yes
No Signal Image

Yes
OS Ver. (webOS)

webOS6.0
PBP

Yes(2)
PIP

Yes
Play via URL

Yes
PM mode

Yes
Pro:Idiom

Yes
RS232C Sync

Yes
Screen Rotation

Yes
Setting Data Cloning

Yes
SI Server Setting

Yes
Smart Energy Saving

Yes
SNMP

Yes
Status Mailing

Yes
Tile Mode Setting

Yes(Max. 15x15)
USB Plug & Play

Yes
Video Tag

Yes(4 | Ext. Source (x2), Video (x4))
Wake on LAN

Yes
webRTC

Yes

LANGUAGE

OSD

English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arab, Türkçe, polski (Polska)
