LG UHD Signage for Live TV & Promotion
Two displays are installed in the luxurious wine bar. One shows a baseball game scene, and the other displays two images in one screen showing both a red wine commercial advertisement and a baseball game scene.
* All images in this web page are for illustrative purposes only.

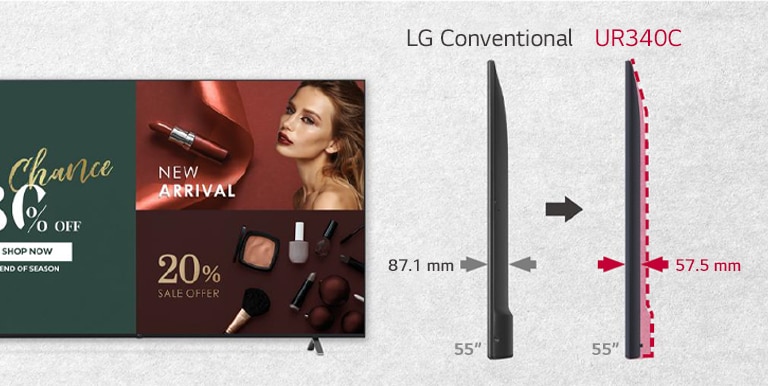

* LG Conventional' refers to LG US340C series.
* USB is not provided by LG. FAT32 or NTFS formatting is recommended.
* Network based control.

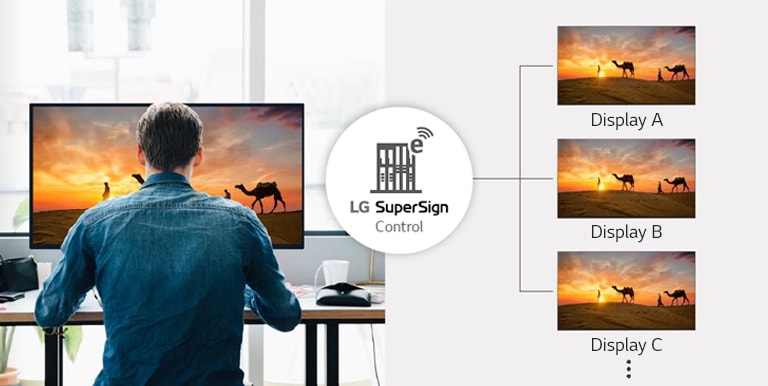

* LG SuperSign Control needs to be purchased separately.
Key Feature
-

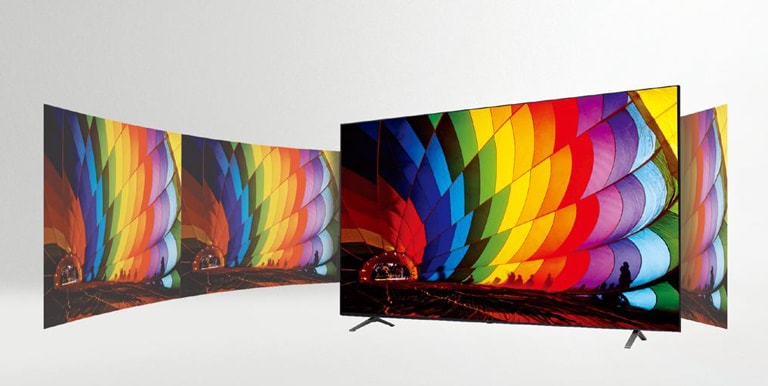

4K Ultra HD Resolution
-
Slim Depth
-
Business Oriented
-
Easy Management

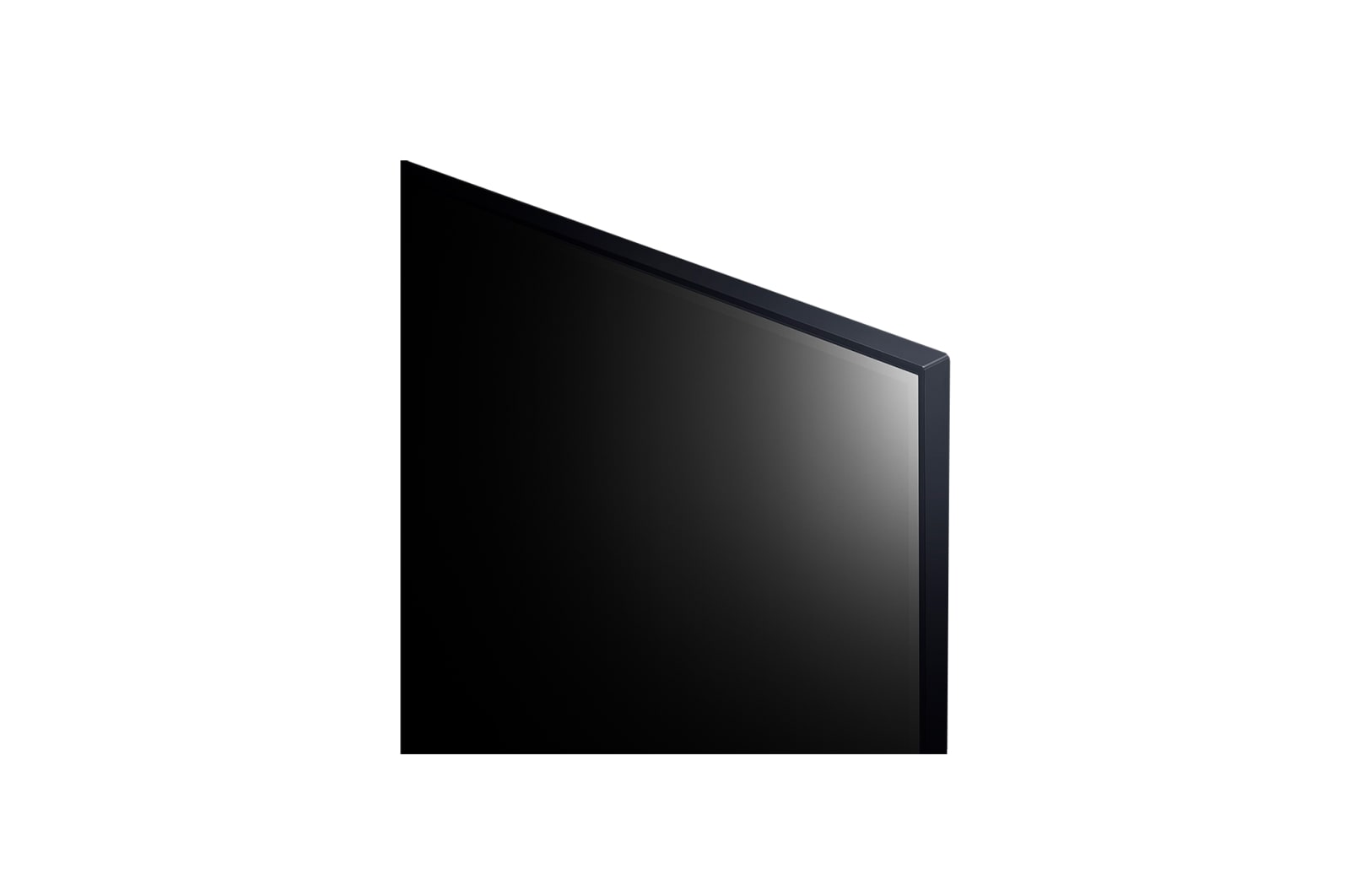

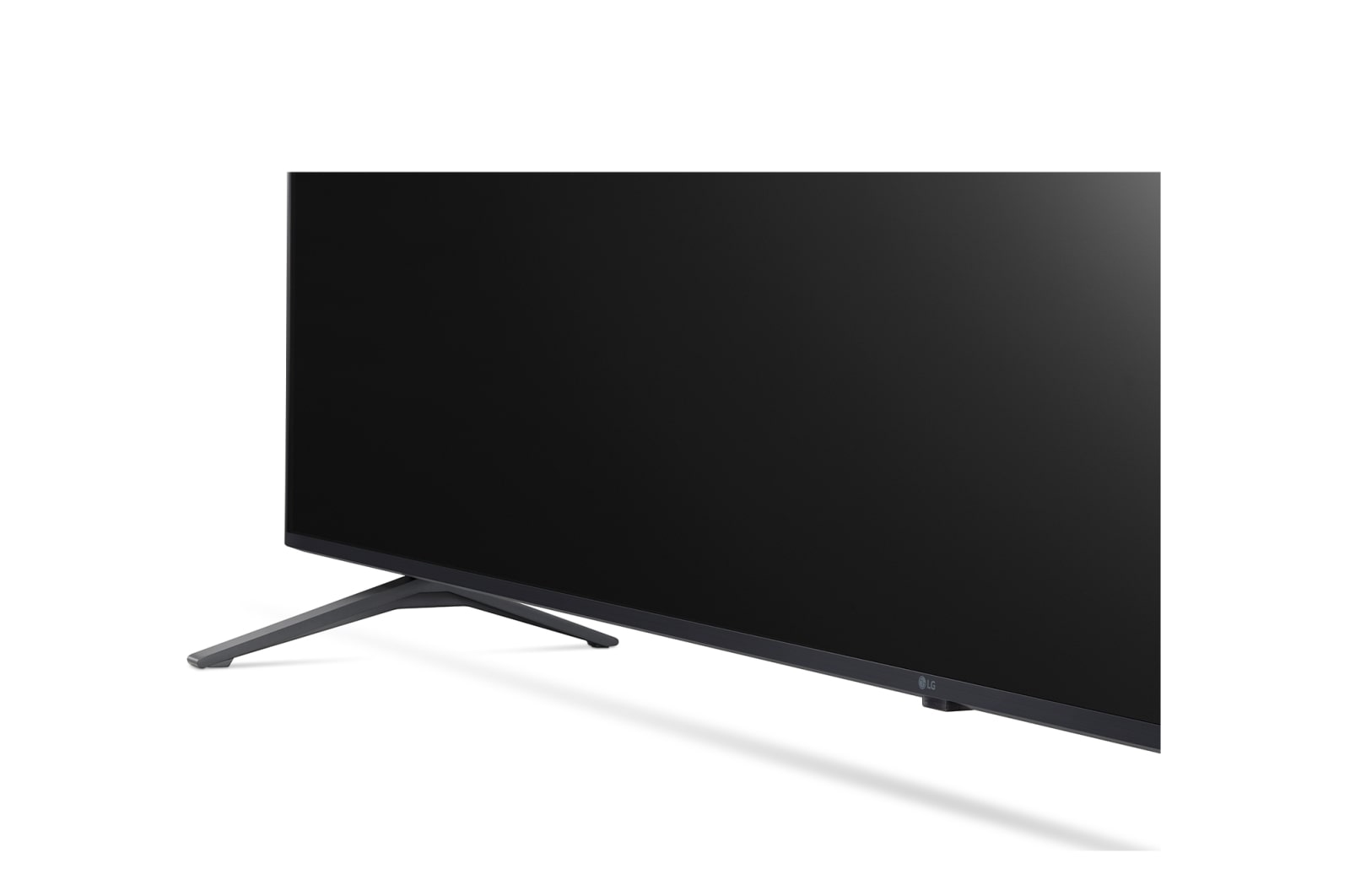

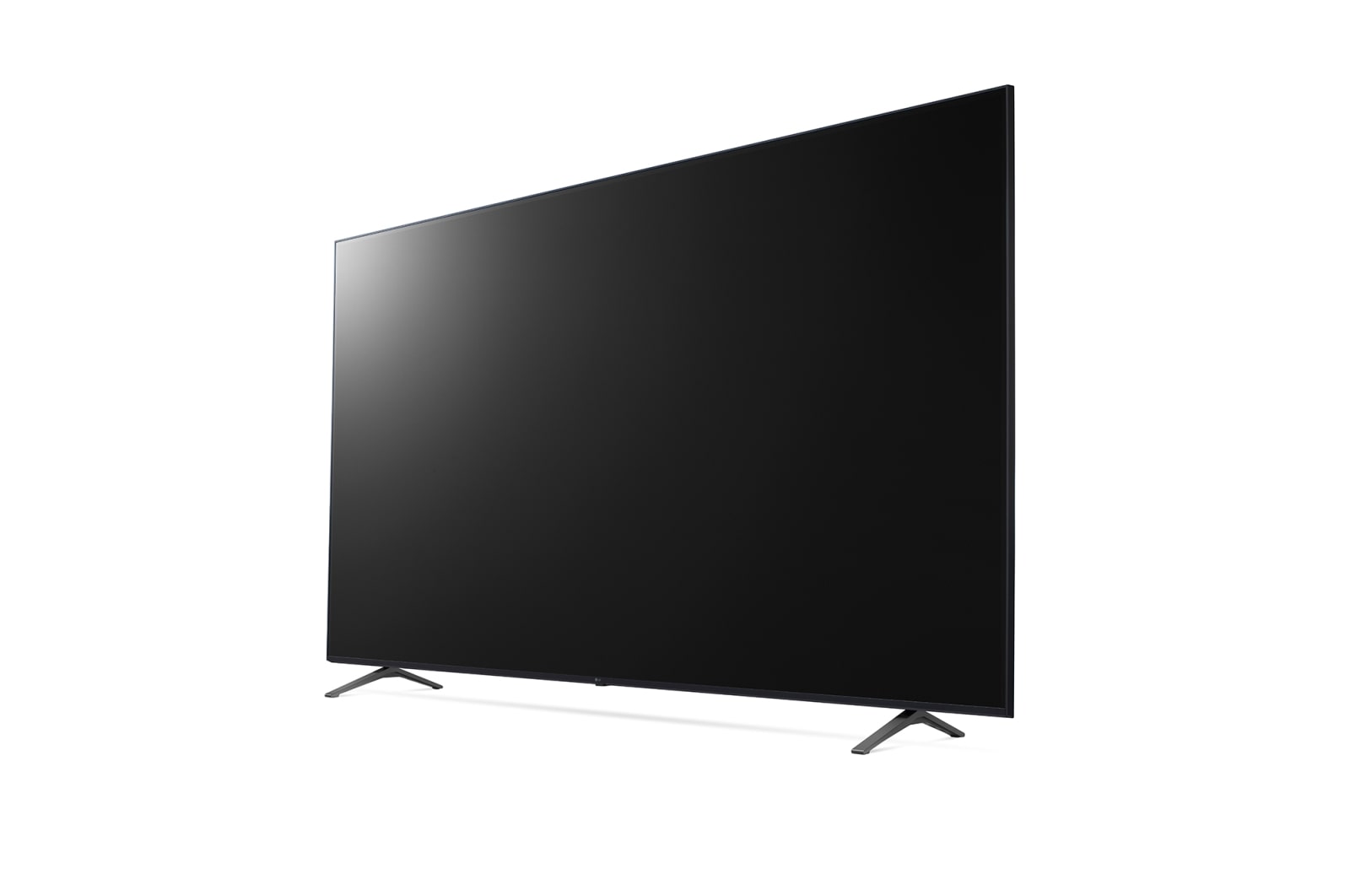

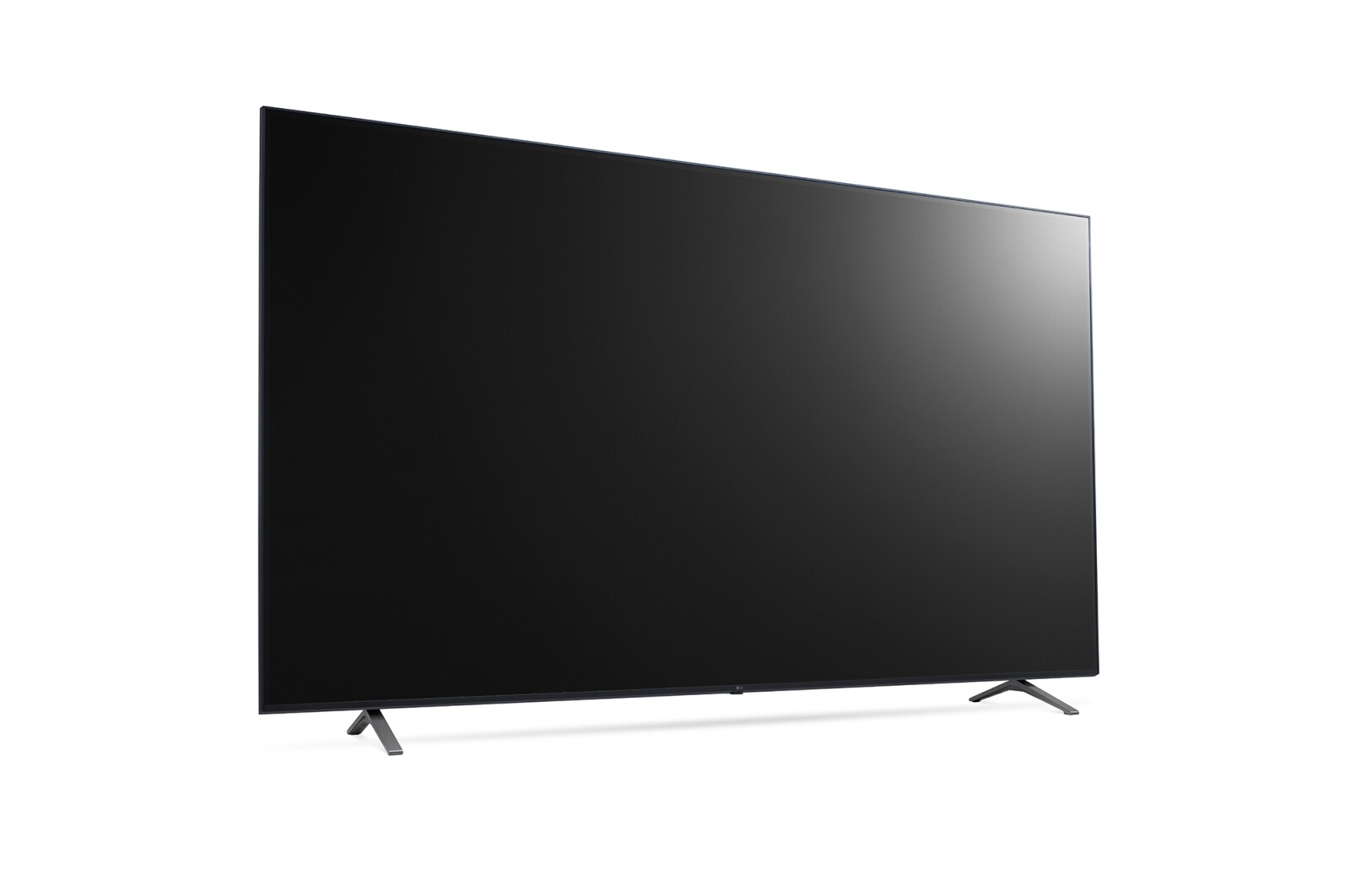

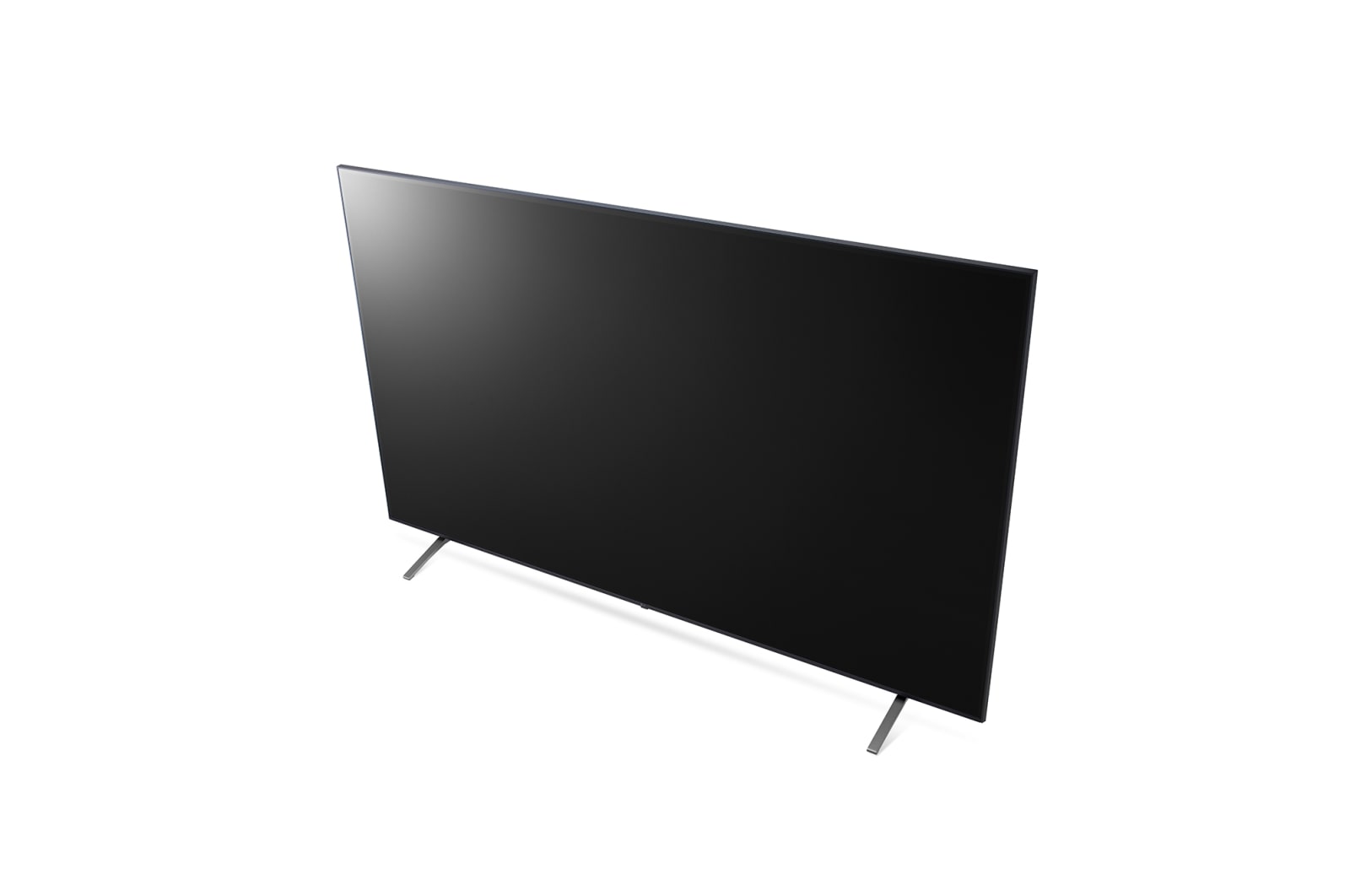

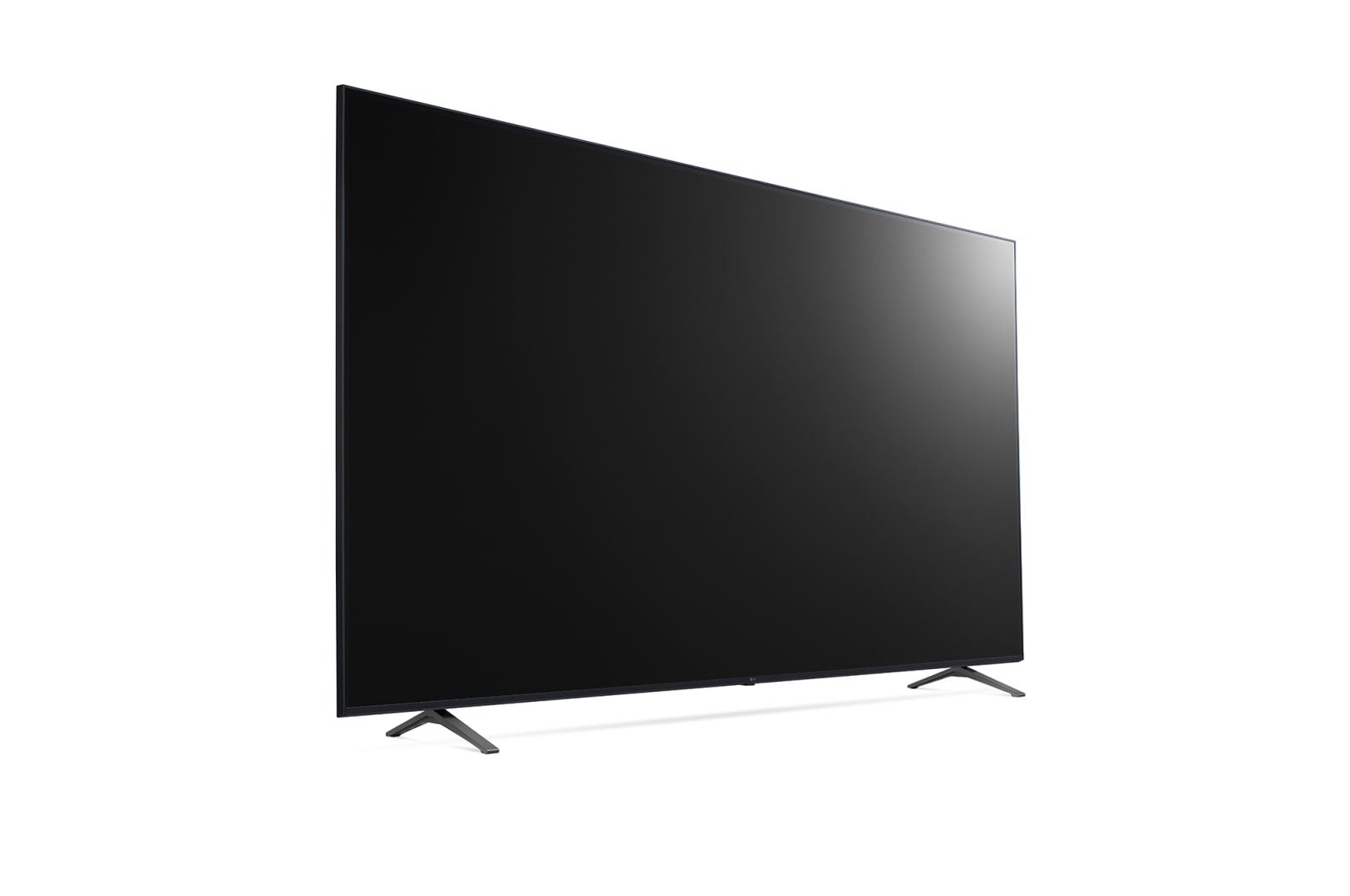

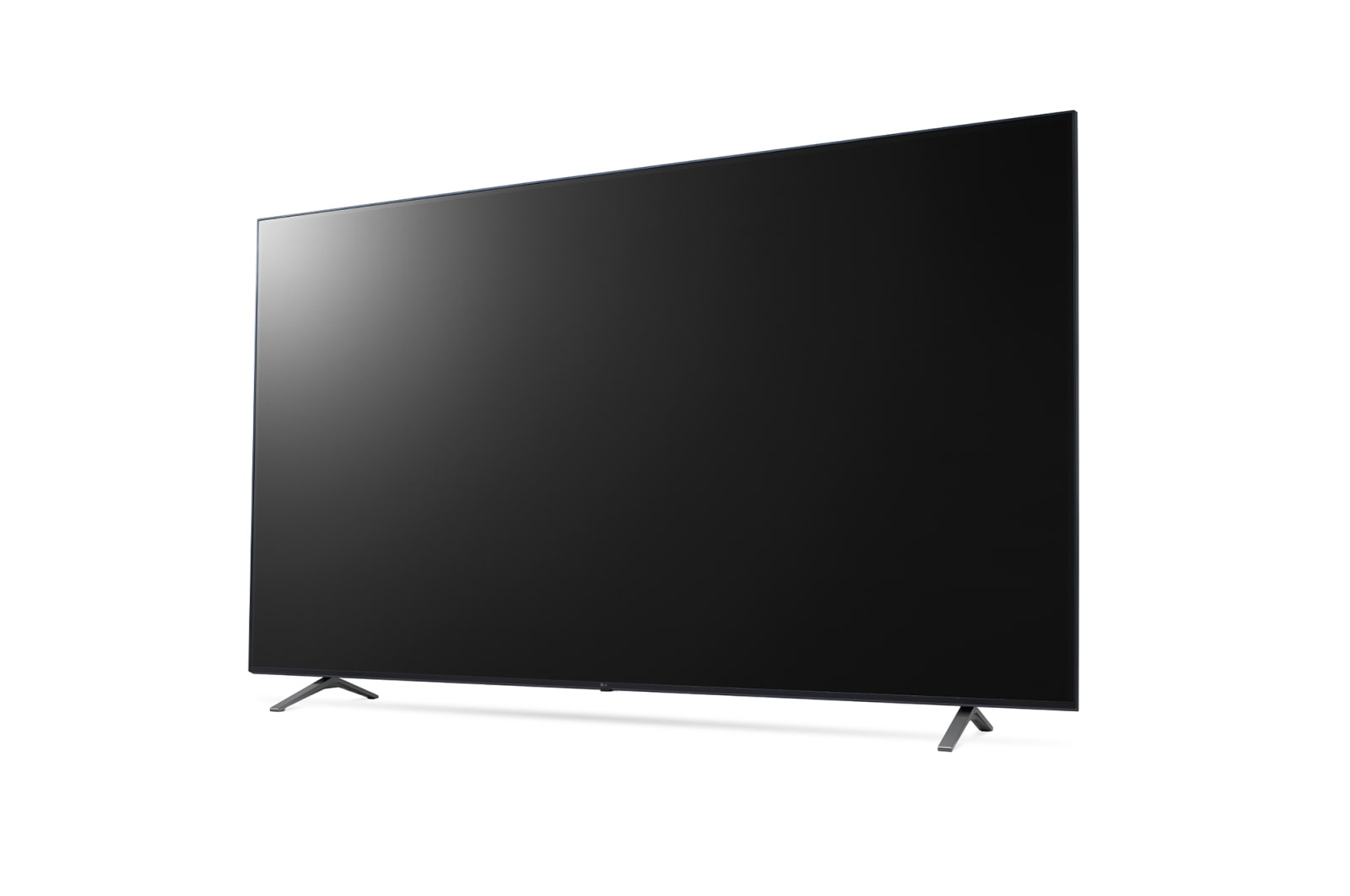

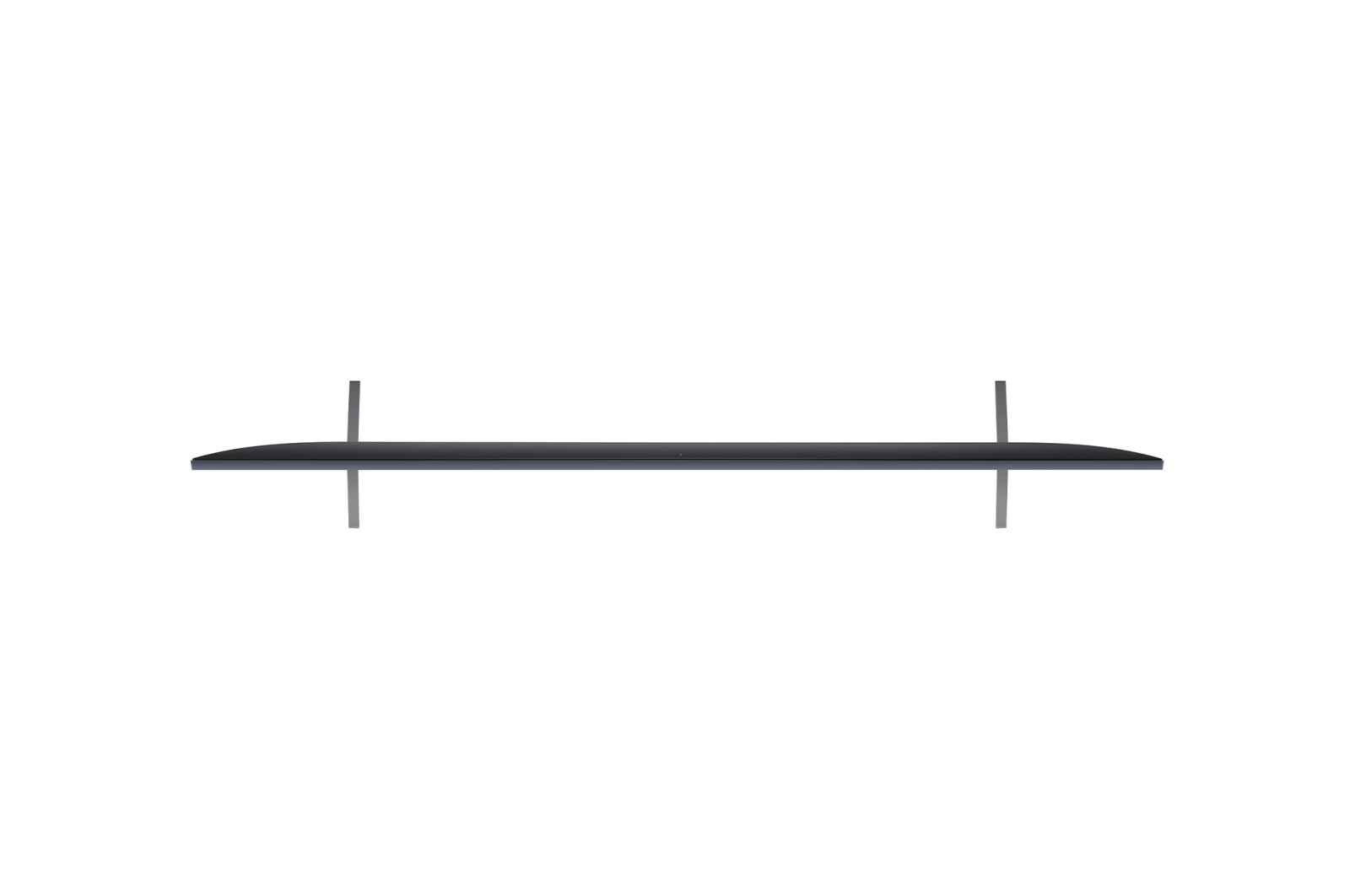

Gallery
All Spec
ACCESSORIES
-
Power Cable
N/A (Attached)
-
Remote type
L-Con
AUDIO (SOUND)
-
Speaker (Audio Output)
20W
BROADCASTING SYSTEM
-
Analog (NTSC / SECAM / PAL)
NTSC
-
Digital
ATSC, Clear QAM
CONNECTIVITIES
-
Digital Audio Out (Optical)
YES
-
HDMI In
YES (3ea)
-
LG SVC only (Phone jack type)
YES
-
RF In
YES (1ea)
-
RJ45 (Usage Purpose)
YES (LAN)
-
RS-232C (D-Sub 9pin / Phone jack)
YES (Phone jack)
-
USB (Ver.)
YES (1ea / 2.0)
DESIGN
-
Front Color
Ashed Blue
-
Stand Type
2 Pole
-
Tool Name
UP8000
DIMENSIONS/WEIGHT
-
Bezel Width (L/R/U/B, Off Bezel)
7.9/7.9/7.9/18.4mm
-
Bezel Width (L/R/U/B, On Bezel)
13.9/13.9/13.9/19.9mm
-
Dimension in Shipping (W x H x D)
1880 x 1115 x 200mm
-
Dimension without Stand (W x H x D)
1678 x 964 x 59.9mm
-
Dimension with Stand (W x H x D)
1678 x 1027 x 362mm
-
Weight in Shipping
41.5kg
-
Weight without Stand
31.4kg
-
Weight with Stand
32.1kg
DISPLAY
-
Brightness (Typ.)
330 nit
-
Resolution
4K Ultra HD (3,840 x 2,160)
-
Size (Inch)
75
HOSPITALITY FEATURE
-
Diagnostics
YES (Self Diagnostics(USB))
-
Energy Saving mode
YES
-
Hotel Mode / PDM / Installer Menu
YES
-
HTNG-CEC (Version)
YES
-
Insert Image
YES
-
Lock mode
YES (Limited)
-
Multi IR Code
YES
-
RJP (Remote Jack Pack) Compatibility
YES
-
Simplink(HDMI-CEC) (Version)
YES (1.4)
-
SNMP
YES
-
USB Auto playback / playback+
YES (USB Auto playback)
-
USB Cloning
YES
-

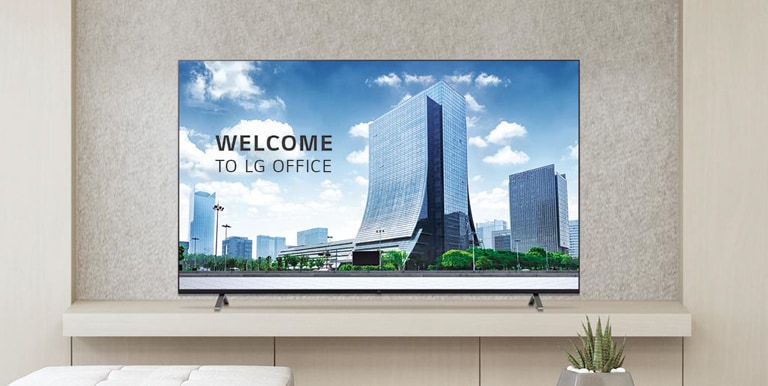

Welcome Screen (Splash Image)
YES
-
Welcome Video
YES
-
WOL
YES
INFO
-
Category
Commercial lite
MECHANICAL
-
Kensington Lock
YES
-
VESA Compatible
400 x 400mm
POWER SPEC.
-
Power Consumption(Max)
228W
-
Power Consumption(Typ)
202W
-
Power Supply (Voltage, Hz)
AC 120V, 50/60Hz
-
Standby Power Consumption
Under 0.5W
SMART FUNCTION
-
webOS version
webOS 6.0
-
HDMI-ARC
YES (HDMI2)
STANDARD
-
EMC
FCC
-
Others
EPEAT, ISTA6
-
Safety
UL
SUPERSIGN SW COMPATIBILITY
-
Control / Control Plus
YES / -
VERTICAL FUNCTION (CORPORATE/RETAIL)
-

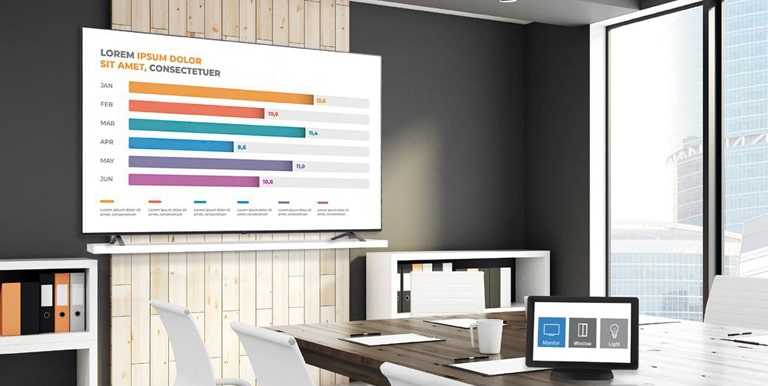

Crestron Certi. Compatibility
YES
-

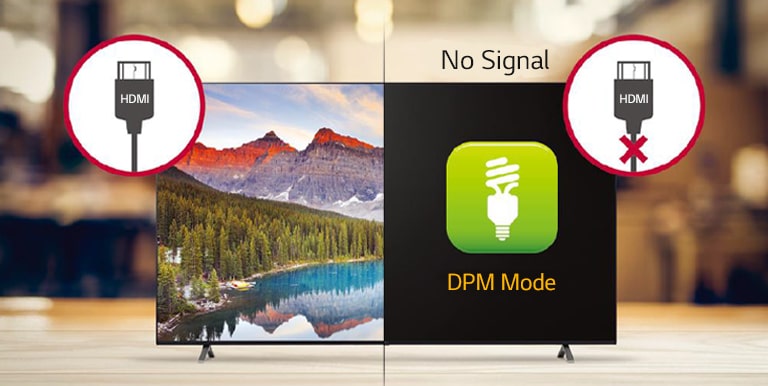

DPM (Digital Power Management)
YES
-
NTP sync timer
YES
-
Time scheduler
YES
VIDEO
-
HDR_HDR 10 Pro
YES
-
HDR_HLG (Hybrid Log Gamma)
YES
-
