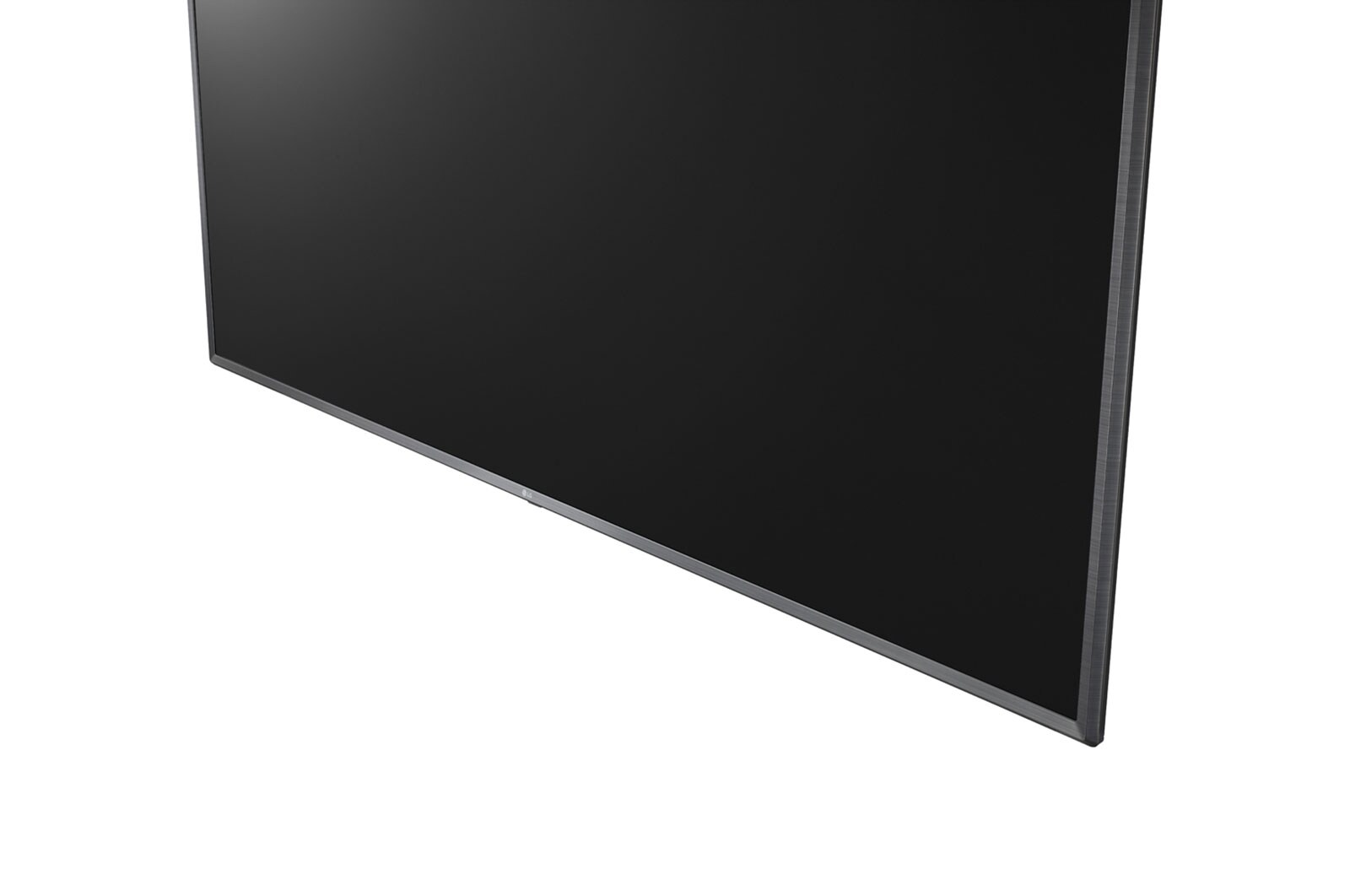

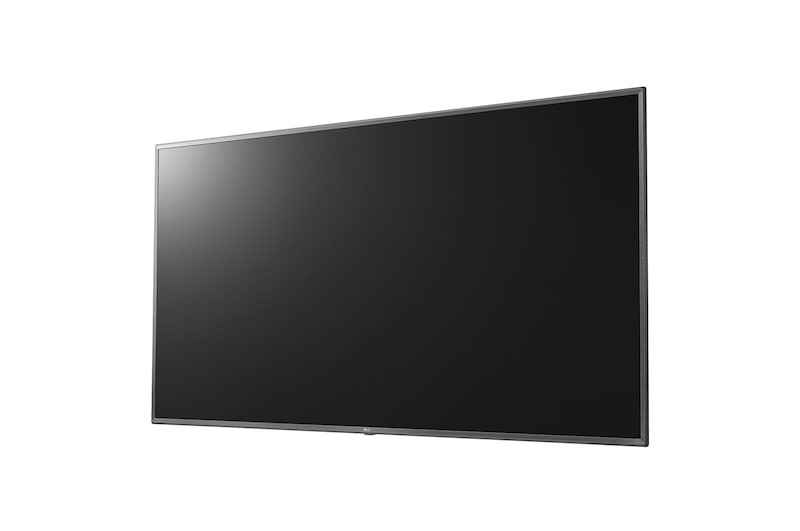

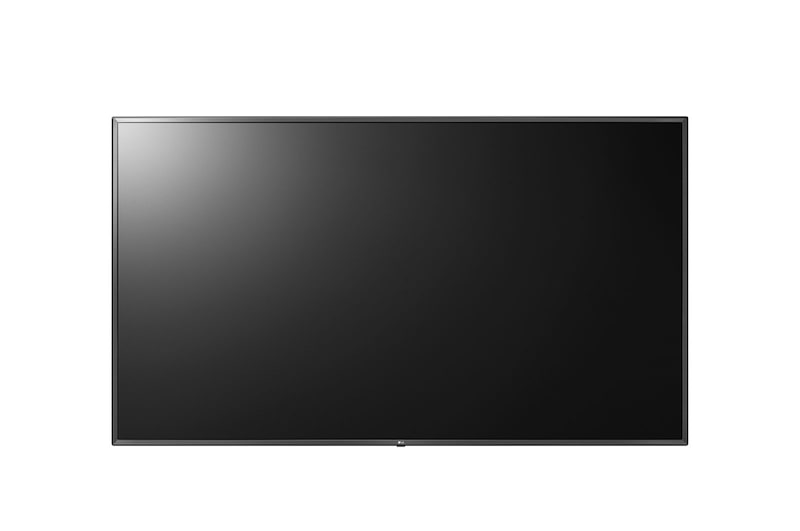

US340C Series

(6)

Key Features

Brightness(Typ.) : 350 cd/m²
WOL (Wake on LAN)
Welcome Screen
Crestron Connected® (Network-based)
USB Cloning & Auto Playback

High Efficient TV Signage for Business Use

High Picture Quality

With the ultra HD resolution, the US340C series makes the colour and details more vivid and realistic. The 4K Upscaler automatically upgrades FHD content to UHD quality through the upscaling process. Moreover, the US340C series can deliver more intense colours and deep black by supporting HDR10.

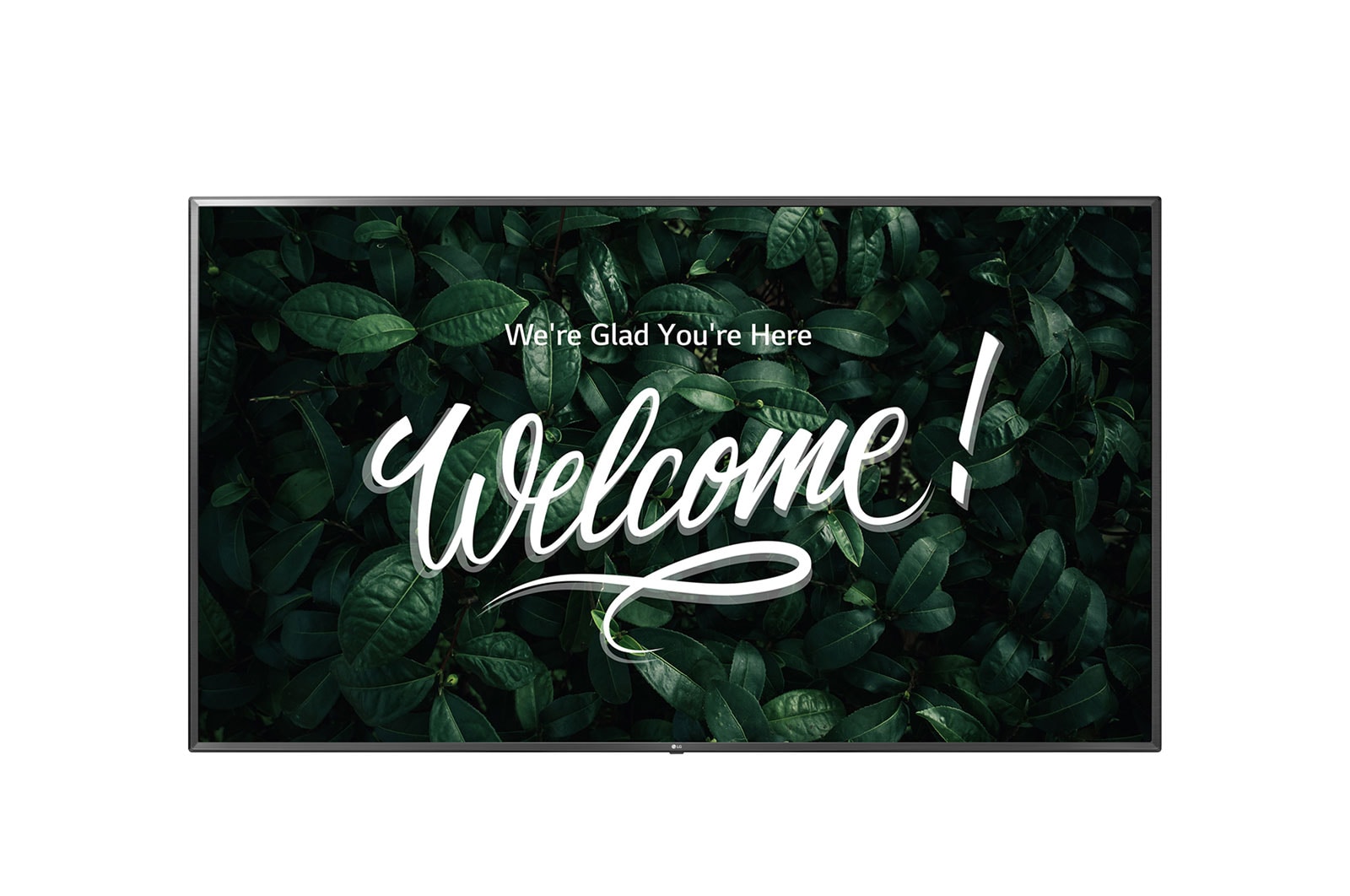

Customizable Screen

The US340C series allows for a greater variation of greeting messages to make customers feel more welcome and cared for. Also, if there is no input signal, it is possible to show the content preset by the user instead of the conventional No Signal message.

Compatibility with AV Control Systems

The US340C series has been certified Crestron Connected®, proving that it has a higher level of compatibility with professional AV controls. This results in seamless integration and automated control*, boosting business management efficiency.

*Network based control.

USB Auto Playback

USB data cloning makes managing multiple displays more efficient for optimal operation. Instead of setting up each display one by one, data can be copied to a USB for one display, and then that data will be sent to the other displays through a USB plug-in.

DPM
(Display Power Management)

Display Power Management (DPM) can be configured to be On only when there is a TV signal present to manage power more efficiently.

Time Scheduler

Create your own time scheduler of your TV. Once you set opening / closing hours and holidays, the TV will turn on / off according to work schedule.

Brightness(Typ.) : 350 cd/m²
WOL (Wake on LAN)
Welcome Screen
Crestron Connected® (Network-based)
USB Cloning & Auto Playback

All Spec

DESIGN

Stand Type

2 pole (No-Stand Available)
front colour

Dark Meteo Titan

DISPLAY

Inch

75"
Resolution

3,840 x 2,160 (UHD)
Brightness

350 nit
Dynamic Contrast Ratio (Dynamic MCI (Hz))

1,000,000 : 1
Static (Panel) Contrast Ratio

1,400 : 1
Response Time

8 ms (G to G)

VIDEO

HDR_HDR 10 Pro

Yes
HDR_HLG

Yes

AUDIO

Speaker (sound output)

10W + 10W
Speaker System

2.0 ch

BROADCASTING SYSTEM

Digital TV Reception (Terrestrial,Cable,Satellite)

ATSC, Clear QAM, Analog NTSC

SIGNAGE FEATURE

Crestron Certi. Compatibility

Yes
DPM (Digital Power management)

Yes
Time scheduler

Yes
NTP sync timer

Yes

HOSPITALITY FEATURE

Hotel Mode / PDM / Installer Menu

Yes
Lock mode

Yes (Limited)
Welcome Screen (Splash Image)

Yes
Insert Image

Yes
External Speaker Out

Yes (Int / Fixed, 3.5mm, Stereo, Single ended Type(GND,L+,R+), 1W with 8Ω)
RJP (remote jack pack) Compatibility

Yes
Teleadapt/Guestlink (HDMI CEC)
USB Auto playback / USB Auto playback+ (playlist)

Yes/Yes
Moving Picture Playback (SD/HD/Plus HD)

Yes
Auto Off / Sleep Timer

Yes/Yes
Smart Energy Saving

Yes
Motion Eye Care

Yes

MAINTENANCE FEATURE

USB Cloning

Yes
WOL / WOWL

Yes (WOL)
SNMP

Yes
Diagnostics

Yes (Self Diagnostics (USB))
Simplink(HDMI-CEC)

Yes (1.4)
IR Out

Yes (RS-232C)
Multi IR Code

Yes

SUPERSIGN COMPATIBILITY

Control / Control+

Yes (Control)

JACK INTERFACE

Set Side - HDMI In

2 (2.0)
Set Side - USB

1 (2.0)
Set Rear - HDMI In (HDCP)

1 (1.4)
Set Rear - RF In

1 (tuner)
Set Rear - AV In

1 (Phone Jack Type)
Set Rear - Digital Audio Out (Coaxial / Optical)

1 (Optical)
Set Rear - RS-232C(D-Sub 9pin)

1 (Control & Service)
Set Rear - RJ45 (Usage Purpose)

1
Set Rear - External Speaker Out(3.5mm phone jack)

1 (Spk-out fixed 0.01W~1.00W)
Set Rear - Debug (Phone Jack Type)

1
Set Rear - VESA Compatible

600 × 400

MECHANIC

Weight (without Stand / with Stand)

34.6 kg / 35.4 kg
Weight (Shipping)

45.7 kg
Dimensions (without Stand / with Stand)

1,693 X 978 x 88.8 mm / 1,693 X1,048 x 345 mm
Dimensions (Shipping)

1,823 x 1,116 x 231 mm
