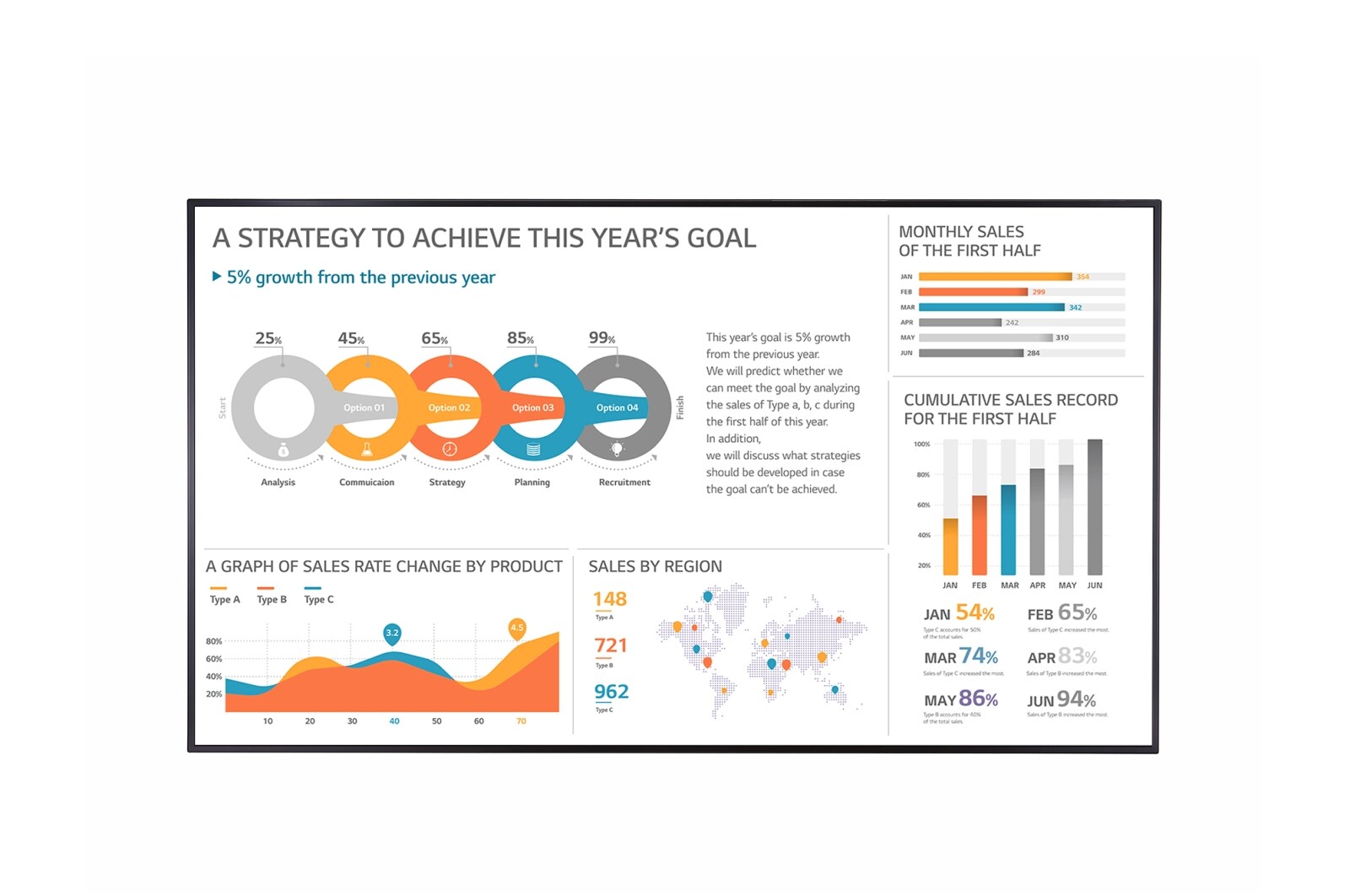

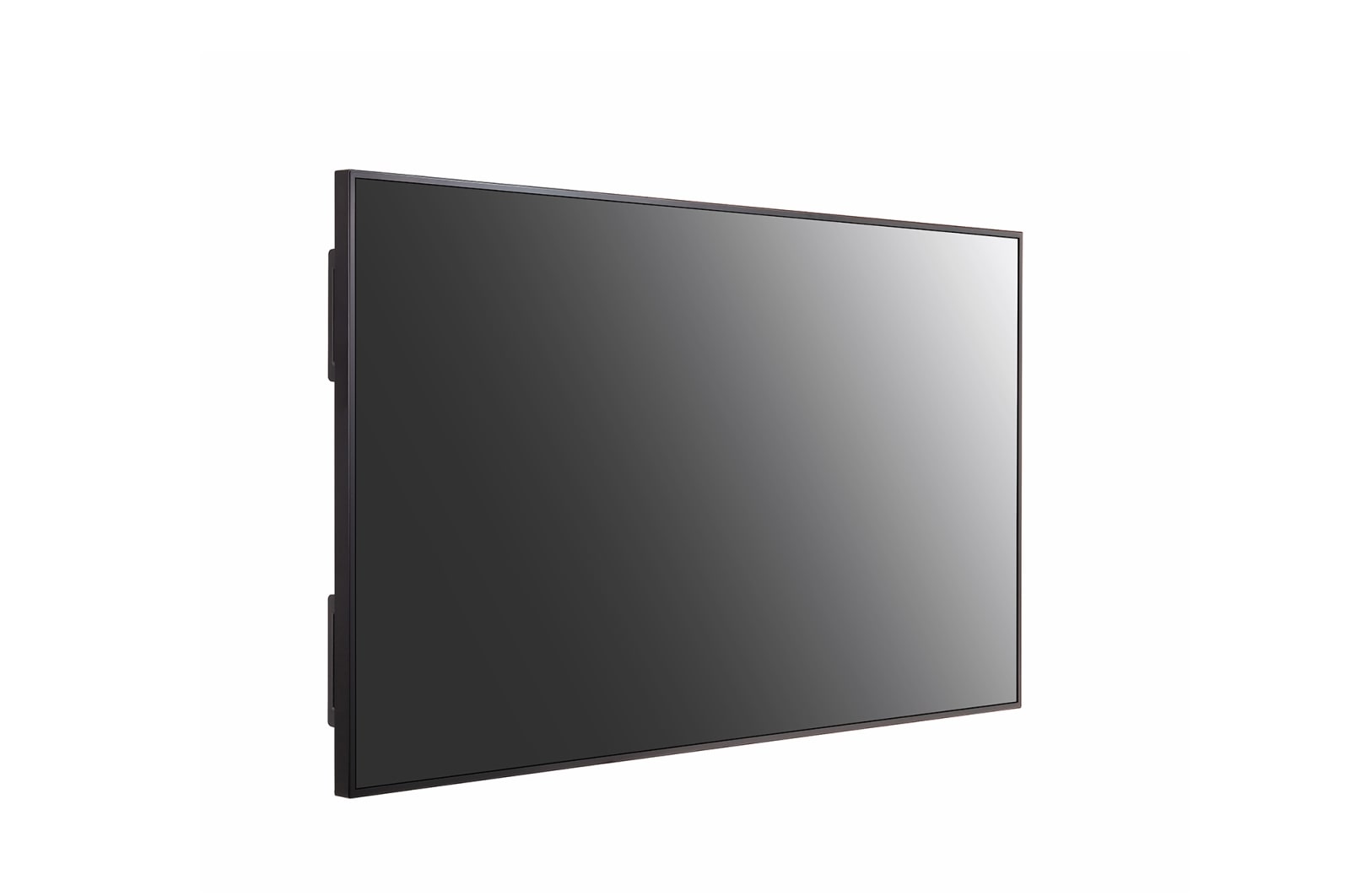

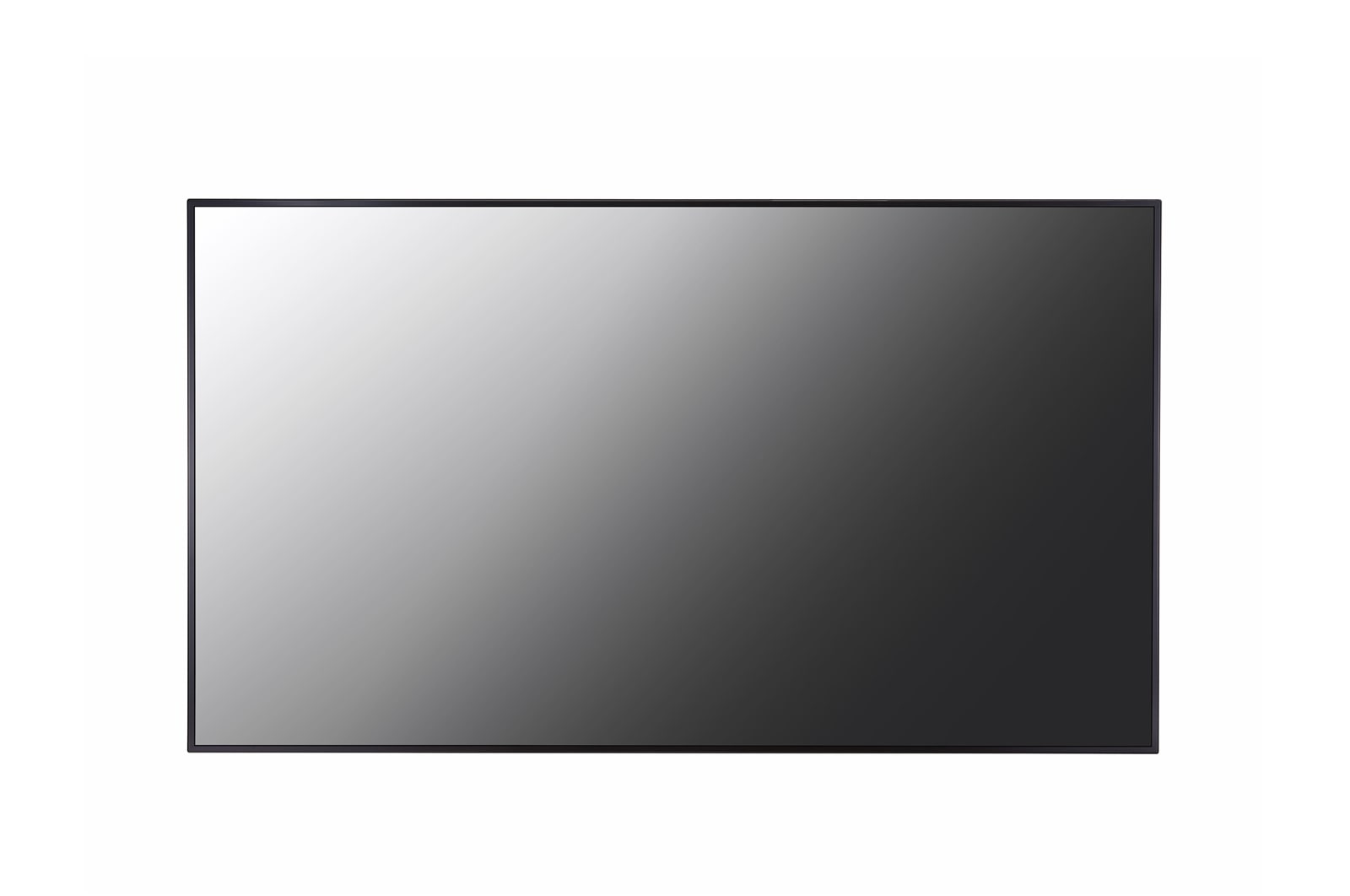

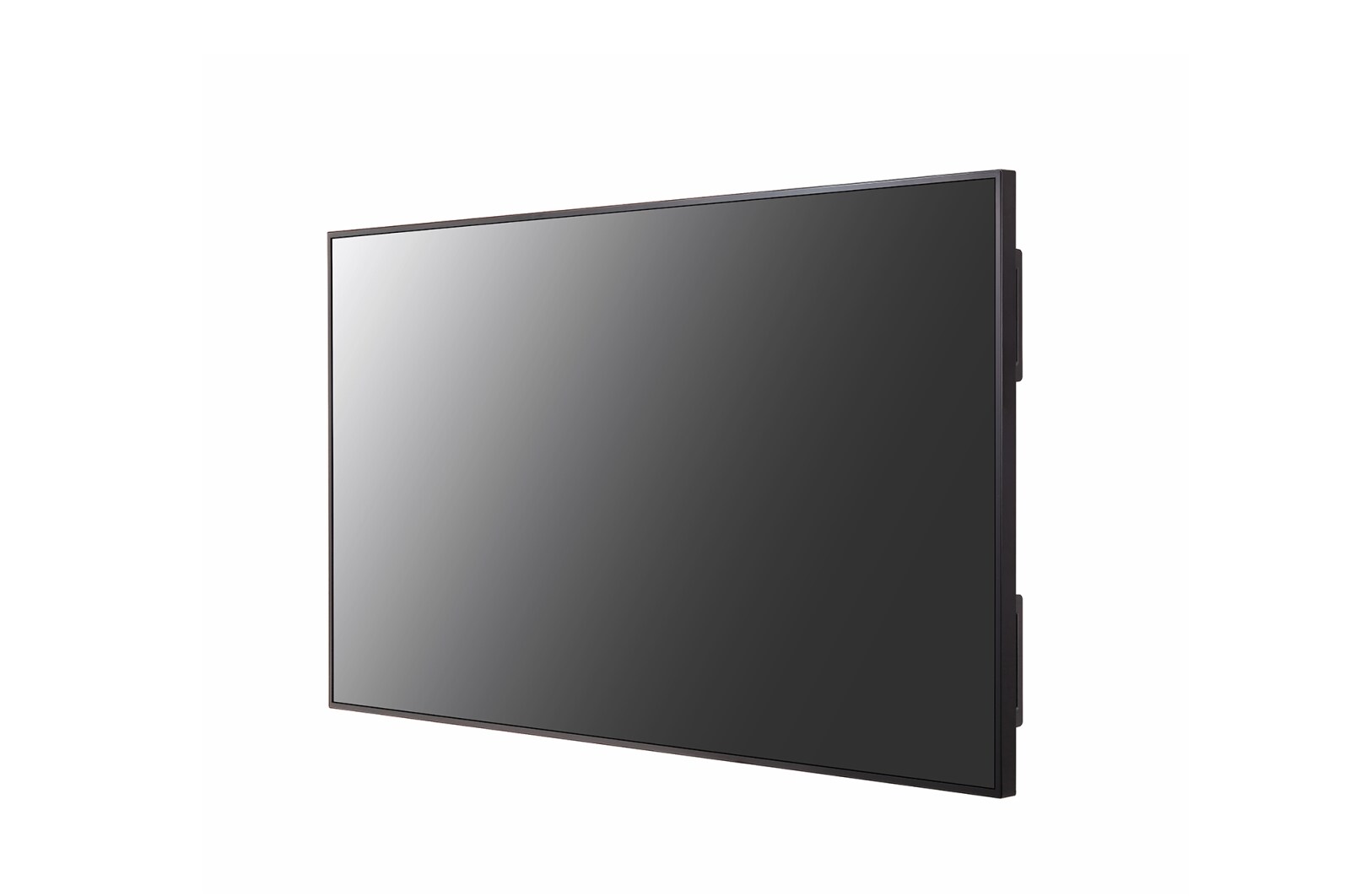

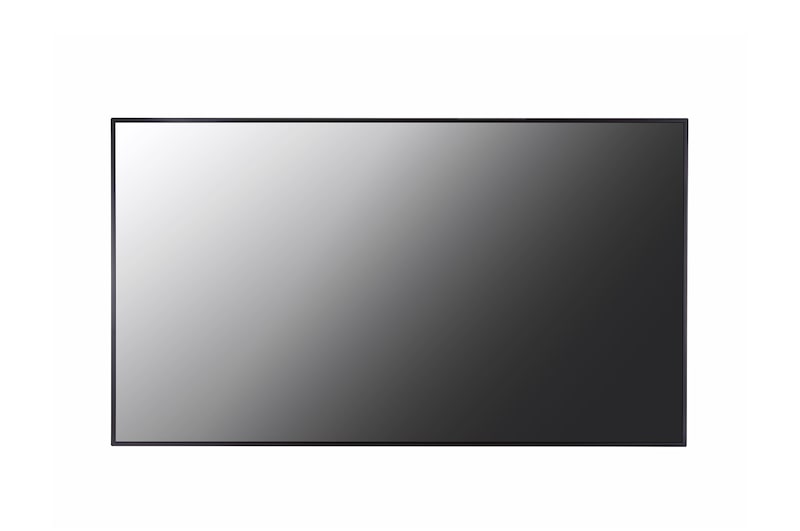

86" 500 nits UHD Signage

(5)

Key Features

Brightness(Typ.) : 500 cd/m²
Surface Treatment (Haze) : 28%
Bezel : 14.3 mm (Even)

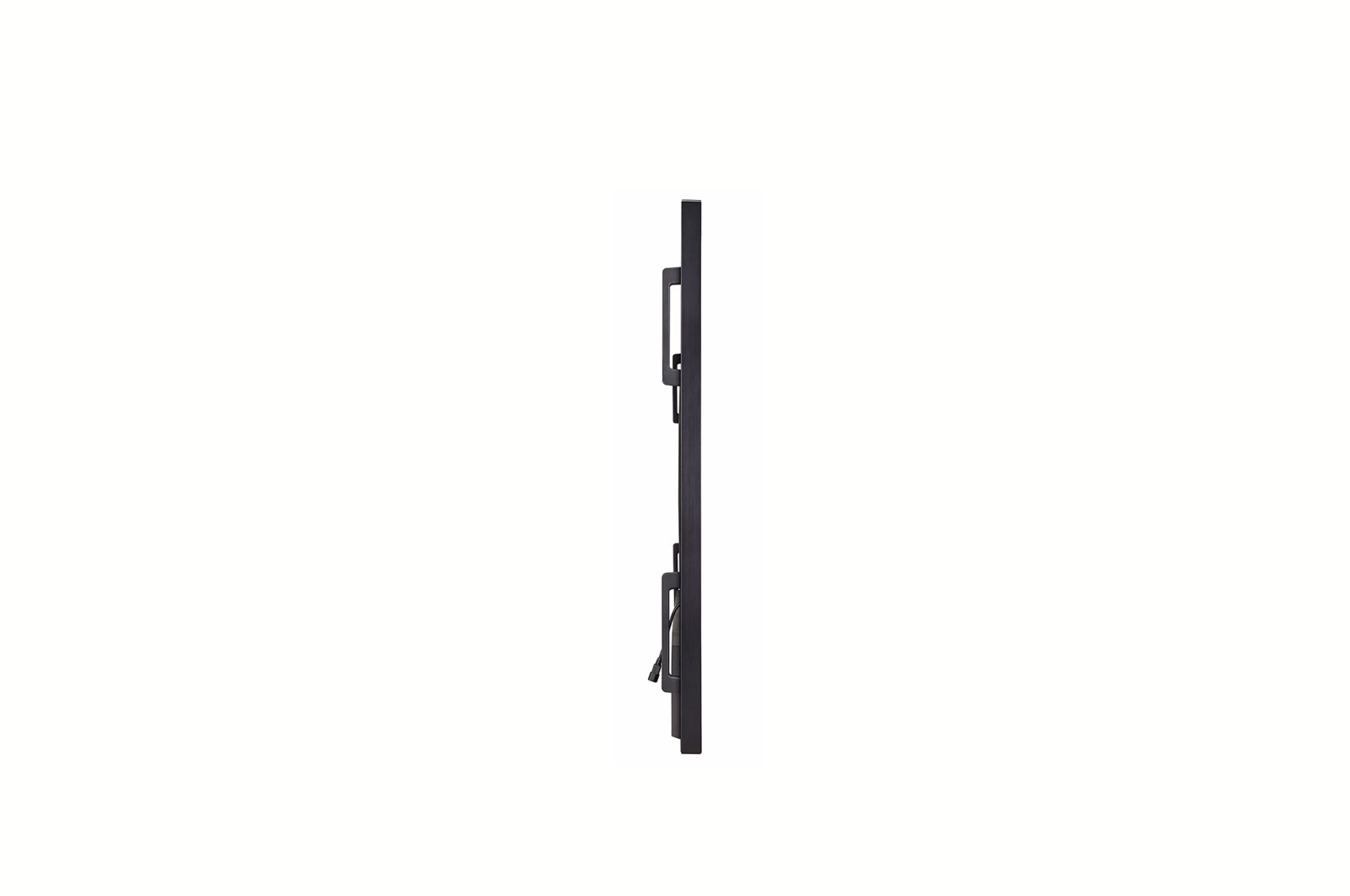

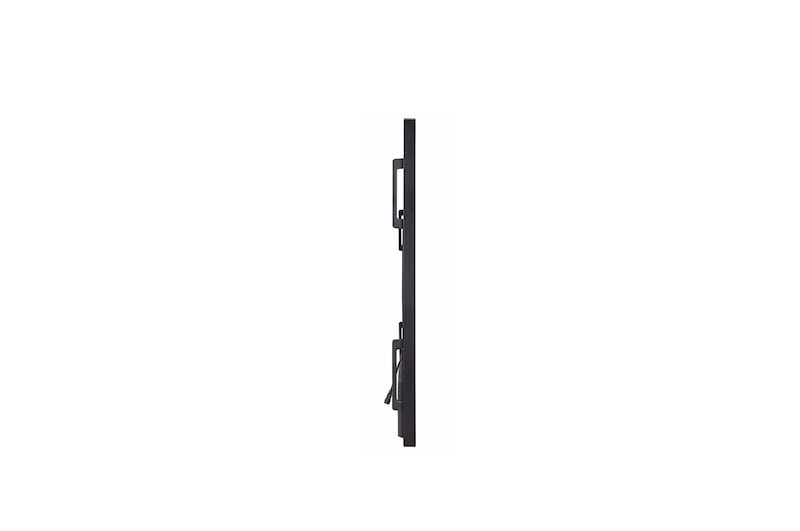

Depth : 60.6 mm (without Handle)
Interface : HDMI(3)/ DP/ DVI-D/ USB 2.0(2)/ RS232C/ RJ45/ Audio/ IR
Built-in Speaker and Detachable Logo

SUPERB PICTURE QUALITY

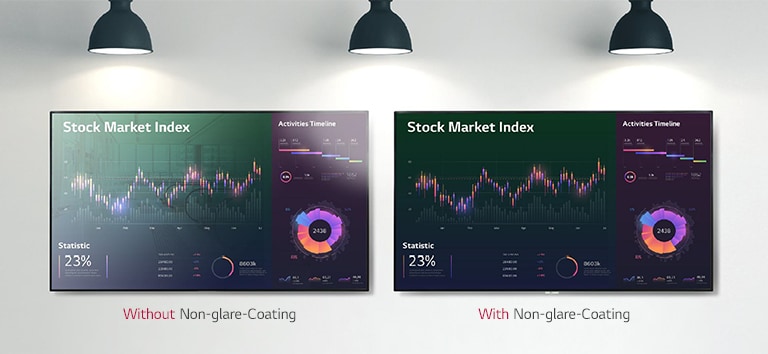

Clear View with Non-glare Coating

Viewers can be annoyed by unnecessary reflections when watching a screen under brightly lit conditions. The UH5F-H series has resolved such inconveniences by increasing the level of haze, which enhances visibility and text readability.

SUPERB PICTURE QUALITY

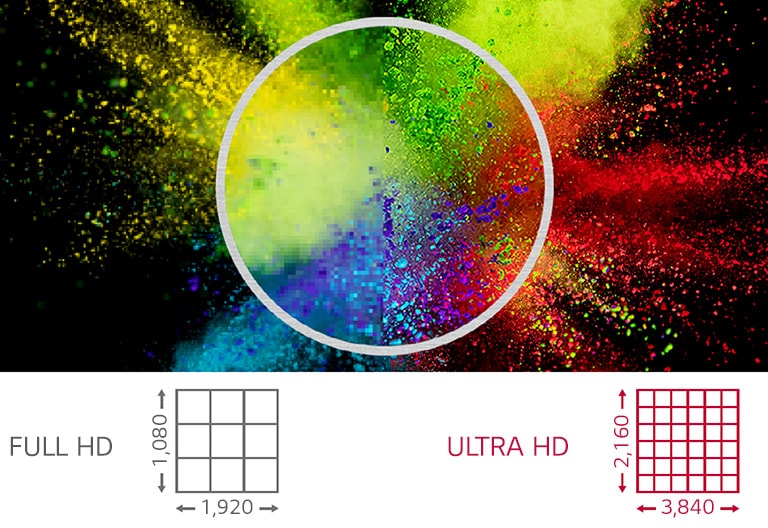

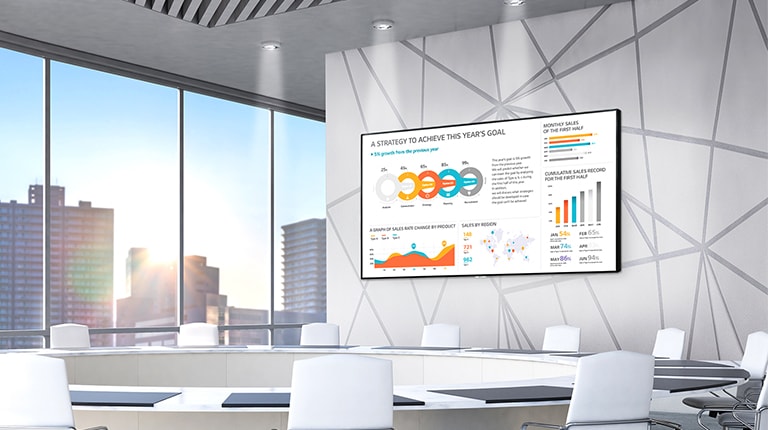

ULTRA HD Resolution

With the resolution that is 4 times higher than FHD, it makes the colour and details of the contents more vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents with no distortion.

webOS SMART SIGNAGE PLATFORM

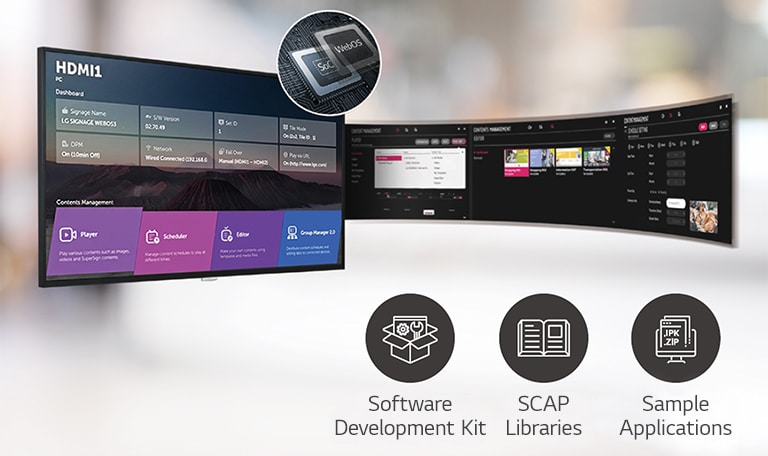

High-Performance with webOS

Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.

webOS SMART SIGNAGE PLATFORM

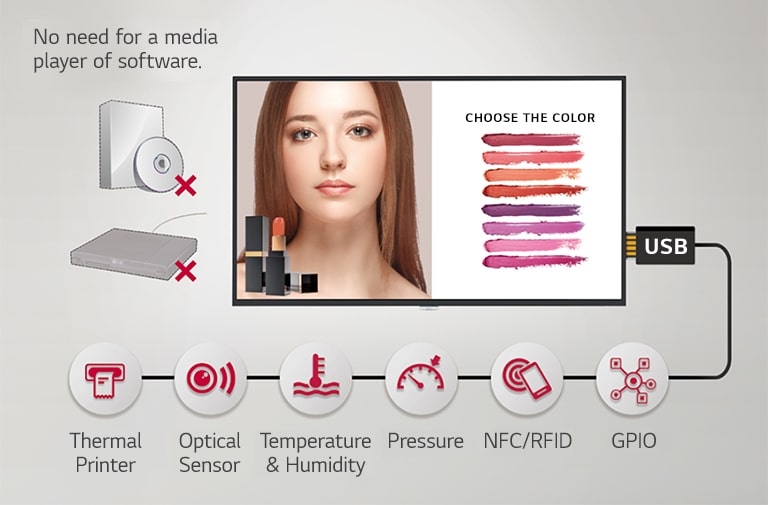

Various Sensor Applications

LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players for creating value-added solutions.

MEETING ROOM SOLUTION COMPATIBILITY

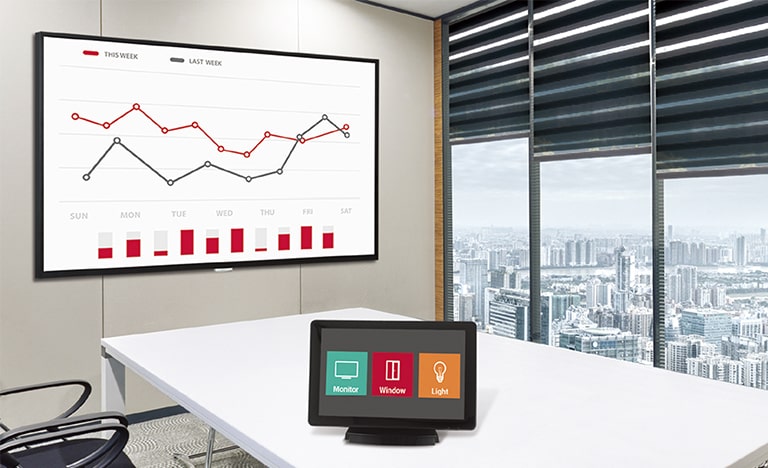

Compatible with AV Control System

The UH5F-H series has been certified Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

* Network based control

MEETING ROOM SOLUTION COMPATIBILITY

Compatible with Video Conference System

For the optimum visual meeting, the UH5F-H series has certified its compatibility with Cisco System that offers powerful and integrated control* for a smarter video conference, eliminating a waste of time for setting up the picture quality or changing input on incoming calls.

* Using an HDMI cable connection

EASY MANAGEMENT

Real-time Monitoring & Control

Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple UH5F-H series displays in different locations in real-time. It is available on internet connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.

EASY MANAGEMENT

Real-time Cloud Care Service - Signage365care

The maintenance gets easier and faster with an optional service Signage365Care*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client’s business.

* The availability of “Signage365Care” service can differ by region, so please contact the LG sales representative in your region for further details.

USER CONVENIENCE

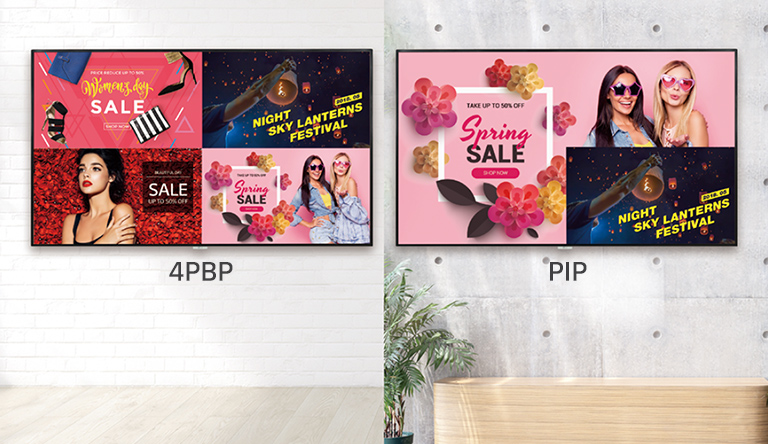

Multiscreen Feature with PBP / PIP

PBP ^{(Picture-By-Picture)}features multiple screens in a single display with up to 4 input sources while PIP ^{(Picture-In-Picture)} supports playing both a main screen and a subscreen at the same time with various layouts. This gives great flexibility to allocate space for each content source.

USER CONVENIENCE

Wireless Access Point

The UH5F-H series operates as a virtual router which can be an wireless access point for mobile devices.

Brightness(Typ.) : 500 cd/m²
Surface Treatment (Haze) : 28%
Bezel : 14.3 mm (Even)

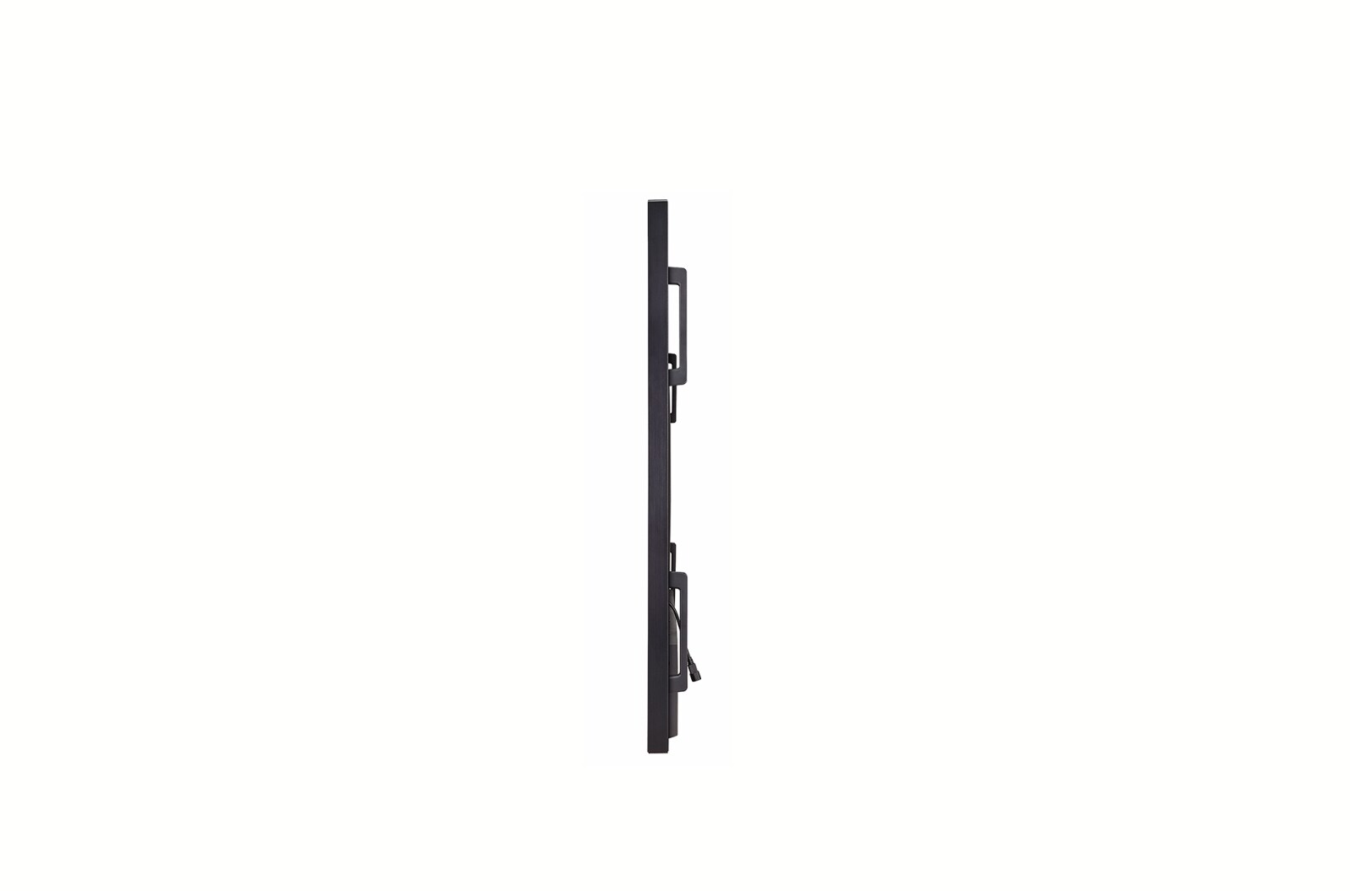

Depth : 60.6 mm (without Handle)
Interface : HDMI(3)/ DP/ DVI-D/ USB 2.0(2)/ RS232C/ RJ45/ Audio/ IR
Built-in Speaker and Detachable Logo

All Spec

ACCESSORY

Basic

Remote Controller(include battery 2ea), Power Cord, QSG, DP Cable(1.8M), Regulation Book, Phone to RS232C Gender
Optional

OPS Kit(KT-OPSF), LSW640A/B(Wall Mount)

CERTIFICATION

EMC

FCC Class "A" / CE / KC
ePEAT(US only)

NO
ERP / Energy Star

YES(Old ErP for Jordan) / NO
Safety

CB / NRTL

CONNECTIVITY

Audio In

YES
Audio Out

YES
Daisy Chain

NO
DP In

YES (HDCP 2.2/1.3)
DP Out

YES
DVI-D In

YES (HDCP 1.4)
External Speaker Out

NO
HDMI In

YES (3ea)
HDMI In (HDCP Ver.)

2.2/1.4
HDMI Out

NO
IR In

YES
IR Out

NO
RGB In

NO
RJ45(LAN) In

YES (1ea)
RJ45(LAN) Out

NO
RS232C In

YES
RS232C Out

YES
Touch USB

NO
USB In

USB2.0 Type A (2ea)

ENVIRONMENT CONDITIONS

Operation Humidity

10 % to 80 %
Operation Temperature

0 °C to 40 °C

FEATURE - HARDWARE

Acceleration(Gyro) Sensor

NO
Auto Brightness Sensor

YES
BLU Sensor

NO
Current Sensor

NO
FAN (Built-in)

NO
Humidity Sensor

NO
Internal Memory (eMMC)

8GB
Local Key Operation

YES
Pixel Sensor

NO
Power Indicator

NO
Proximity Sensor

NO
Temperature Sensor

YES
Wi-Fi/BT (Built-in)

YES

FEATURE - SOFTWARE

Auto Set ID

YES
Backlight Sync

NO
Beacon

YES
Booting Logo Image

YES
Brightness Compensation

NO
Cisco Certification

YES
Control Manager

YES
Crestron Connected

YES
External Input Rotation

YES
Fail over

YES
Gapless Playback

YES
Group Manager

YES
HDMI-CEC

YES
ISM Method

YES
Local Contents Scheduling

YES
Local Network Sync

YES
Network Ready

NO
No Signal Image

YES
OS Ver. (webOS)

webOS 4.0
PBP

YES (4PBP)
PIP

YES
Play via URL

YES
PM mode

YES
Pro:Idiom

YES
RS232C Sync

YES
Scan Inversion

NO
Screen Rotation

YES
Screen Share

YES
Setting Data Cloning

YES
SI Server Setting

YES
Smart Energy Saving

YES
SNMP

YES
Status Mailing

YES
Tile Mode Setting

YES
USB Plug & Play

YES
Video Tag

YES (4 Video Tag)
Wake on LAN

YES
webRTC

YES
W/B Setting by Grey scale

NO

LANGUAGE

OSD

English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic

MECHANICAL SPECIFICATION

Bezel Color

Black
Bezel Width

Even bezel : 14.3mm
Carton Dimensions (W x H x D)

2073 x 1250 x 285mm
Handle

YES
Monitor Dimensions (W x H x D)

1926.2 x 1097.2 x 60.6mm (without Handle and LG Logo)
Monitor Dimension with Stand (W x H x D)

N/A
Packed Weight

72.5Kg (With Pallet)
VESA Standard Mount Interface

600 x 400mm
Weight (Head)

49.0Kg
Weight (Head+Stand)

N/A
