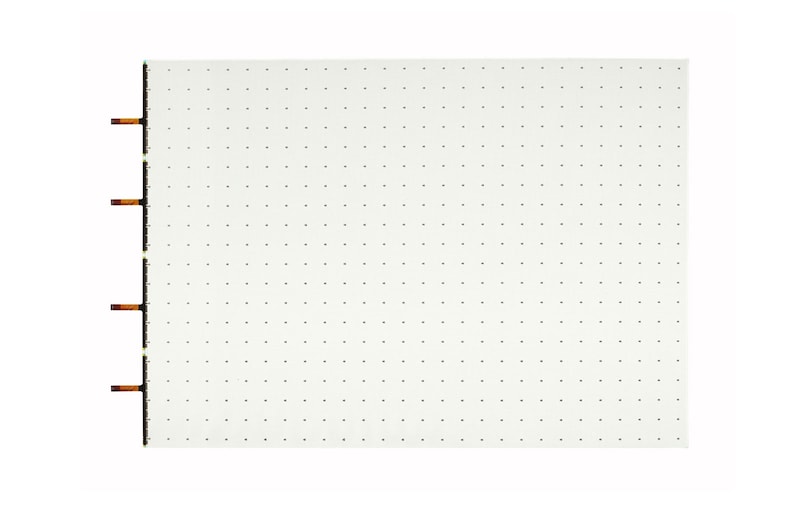

LAT240DT1

Colour Transparent LED Film

Seamlessly Color your Space and Brand

Seamlessly Colour your Space and Brand

Renovate your ordinary store or building with this revolutionary material that interacts seamlessly with the surrounding environment.
High Transparency

High Transparency

High transparency*(73%) allows glass to remain visible even after attaching the
film, with no adverse effects on the original design. When the LED is OFF, the film
is unnoticeable, blending into the glass completely.
LAT240DT1_Full-Color-1819-D

Full Colour Expression

LG Colour Transparent LED film delivers a surprisingly wide range of colours using a 24 mm pitch. Applications can be extended to display an entire video or pictures in which various colours combinations are possible.
LAT240DT1_Self-adhesive-1819-D
Easy Space Innovation

Self-adhesive Film

The transparent LED film is self-adhesive, so it can be easily attached to the surfaces of existing window glass without the need for any complicated construction.
LAT240DT1_superb-1819-D
Easy Space Innovation

Superb Expandability and Flexibility

The size and layout of the film can be customized to fit in to the installation area. It can be expanded by adding more films in a vertical or horizontal way, or cut in parallel with the bezel to meet size requirements.

*The film must be cut in parallel with the bezel by 1 pixel.

Curved Format Supported
Easy Space Innovation

Curved Format Supported

The transparent LED film supports curvatures up to 1,100R Convex and Concave for curved glass or window applications. This allows a wider range of venues to be redesigned as a landmark.

System Connection

*The actual system structure may be subject to change from the above example.

Key Feature

  • Pitch: 24mm
  • LED Type: R,G,B 3in1 Colour Package
  • Transmittance: 73%
  • Curvature (Convex and Concave): 1,100R
  • Self-adhesive Film

All Spec

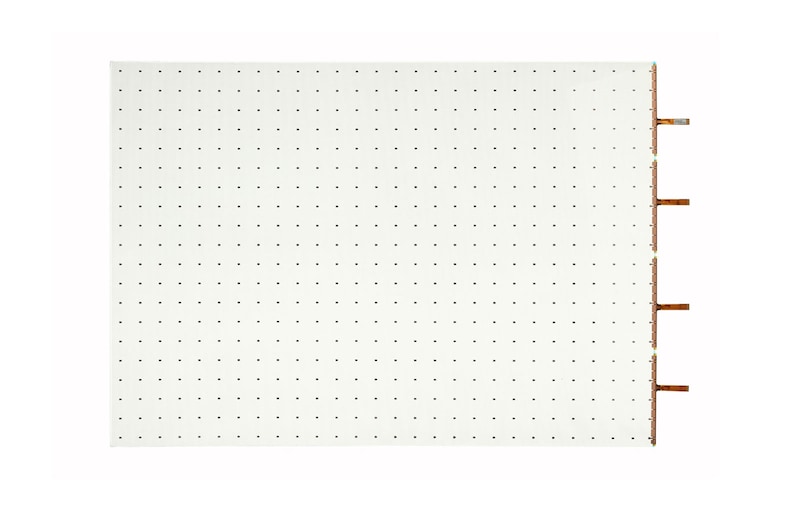

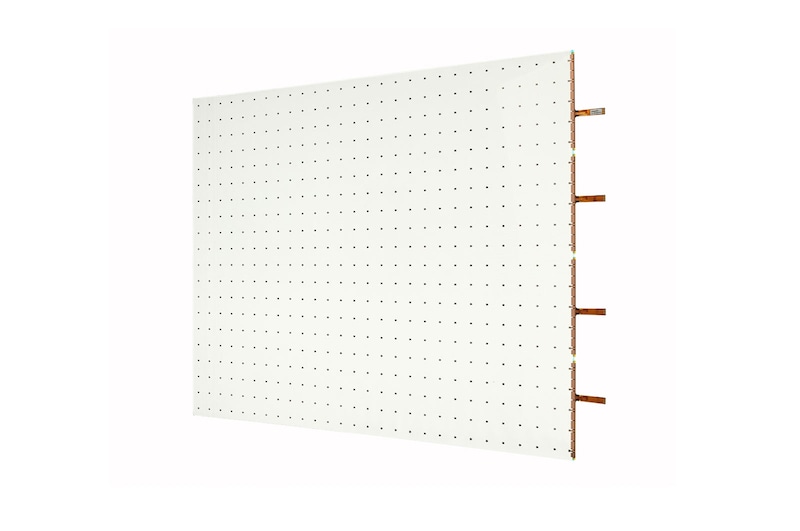

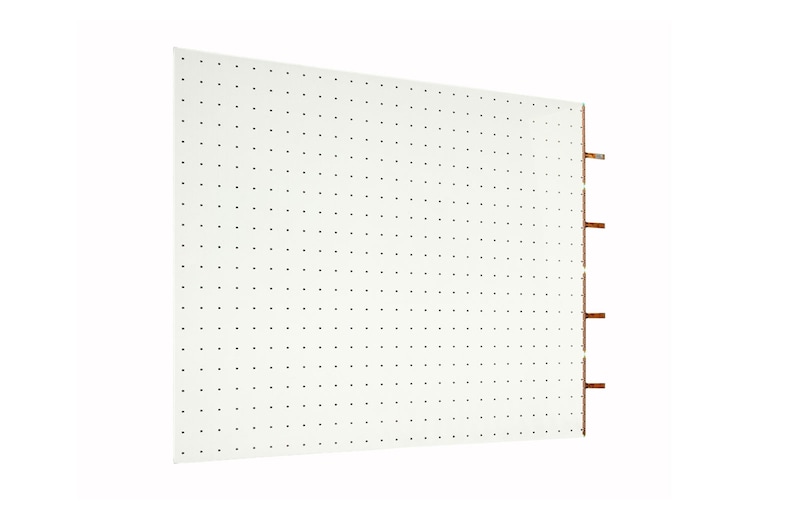

LED FILM: LAT240DT1

  • Pitch

    24mm

  • LED Type

    R, G, B 3in1 Colour Package (SMD1818)

  • Resolution

    28 x 20

  • Pixels per Panel

    560

  • Pixel Density [point/m²]

    1,736

  • Brightness

    >1,000 cd/m²

  • Contrast Ratio

    ≥ 100,000:1

  • Luminance Uniformity

    ≥ 70%

  • Viewing Angle (H x V)

    120 x 120

  • Life Time (Brightness 50%)

    50,000Hrs

  • Daily Usage

    24Hrs/7 Days

  • Adhesion (After Installation)

    50,000Hrs

  • Transmittance

    73%

  • Operating Temperature

    0℃ ~ 45℃ (Indoor Glass Installation Only)

  • Curved Installation

    1,100R (Convex and Concave)

  • Film Trimming

    Yes (Parallel to the Bezel Side Only)

  • Colour Processing

    130/120/110 Level (R, G, B)

  • Colours

    1,716,000 Colours

  • Colour Chromaticity

    Cx: 0.28±0.03, Cy: 0.28±0.03

  • Dimension (W x H x D)

    668 x 480 x 2.0 mm (with Front & Back Protection Film)

  • Weight

    0.73kg

  • Power Consumption

    37W (Transparent Panel 1ea, Bezel Kit 1ea)

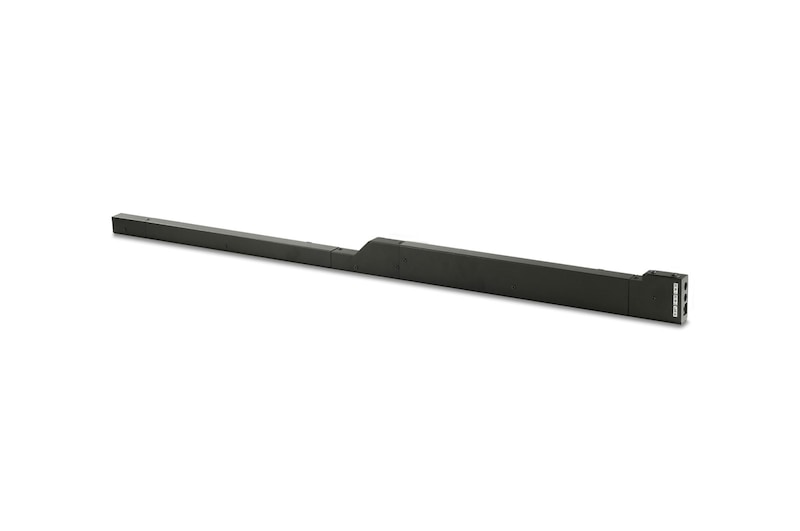

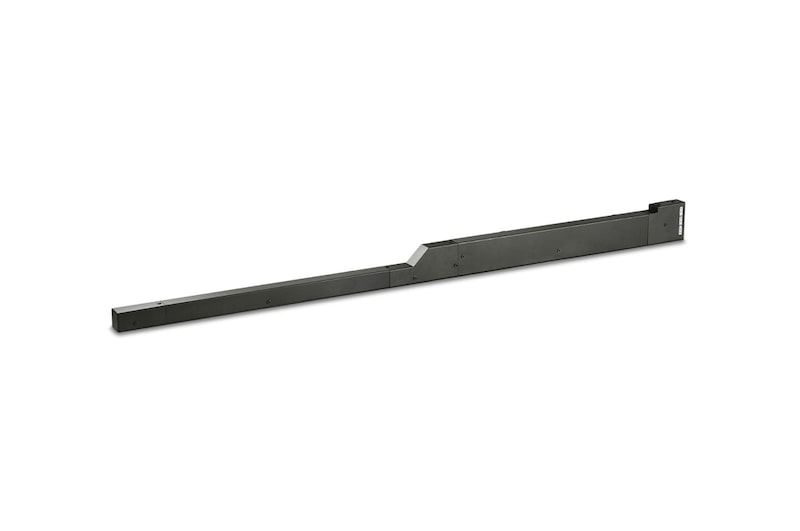

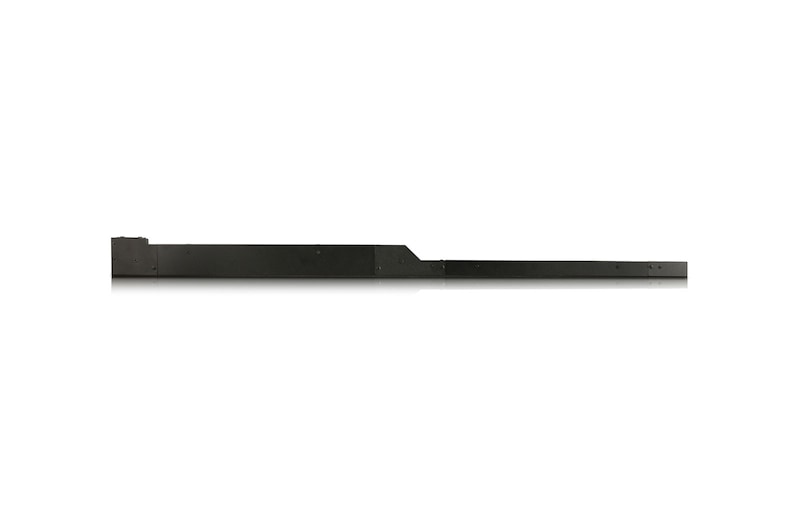

1ST BEZEL KIT: ACC-LATB2

  • Dimension (W x H x D)

    547.3 x 63 x 24 mm

  • Weight

    0.45kg

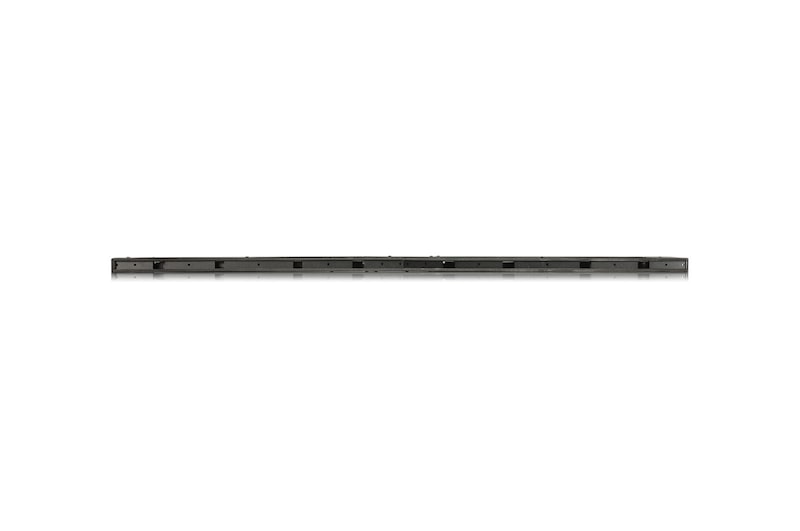

COMMON BEZEL KIT: ACC-LATB3

  • Dimension (W x H x D)

    479.5 x 28.1 x 24 mm

  • Weight

    0.26kg

POWER (BEZEL KIT & LED FILM): ACC-LATP1

  • Dimension (W x H x D)

    183 × 86 × 28 mm

  • Weight

    0.769kg

  • Input

    100~240V, 50~60Hz

  • Output

    19.5V/10.8A (210W)

  • Colour

    White

  • DC Output Cable

    14AWG, 1.5m

UNIT CONTROLLER: LCLG012U

  • Resolution

    960 x 540 (4 Unit Controllers Needed for FHD)

  • Interface

    LVDS In, RJ45 (4ea) Out

  • Maximum Transmission Length

    100m

  • Dimension (W x H x D)

    273 × 186.8 × 37 mm

  • Weight

    1.5kg

  • Power Consumption

    20W

  • Accessories

    Power Cord, LVDS MCX Cable, ESG, Regulation Book, Warranty Card

SYSTEM CONTROLLER: LCLG002

  • Video

    DP: 3,840 x 2,160 @30Hz
    HDMI: 3,840 x 2,160 @30Hz
    DVI-D: 1,920 x 1,080 @60Hz

  • Input

    HDMI, DP, DVI-D, RS232C, RJ45 (w/o LED Indicator), IR Receiver (for Installation), USB 3.0

  • Output

    LVDS, DP, RS232C, RJ45 (w/o LED Indicator)

  • Dimension (W x H x D)

    293 x 40.1 x 193.3 mm

  • Weight (Head)

    1.6kg

  • Temperature Sensor

    Yes

  • Light Sensor

    Yes

  • Source Selection

    HDMI, DVI-D, DP

  • TPC

    Yes

  • Power Consumption

    17W

  • CMS S/W

    Yes

  • Accessories

    Power Cord, IR & Bright Sensor, 4P Phone-to-RS232C Gender, ESG, Regulation Book, Warranty Card
