LED Cinema
![](/content/dam/channel/wcms/ca_en/images/business/led-signage/lad033fb7b0_aus_enci_ca_en_b/LAD033FB7B0_AUS_ENCI_CA_EN_B-450x450.jpg)
Real Black, Infinite Darkness
Real Black, Infinite Darkness.
Lifelike Colors
Lifelike Colors.
High Uniformity
High Uniformity.

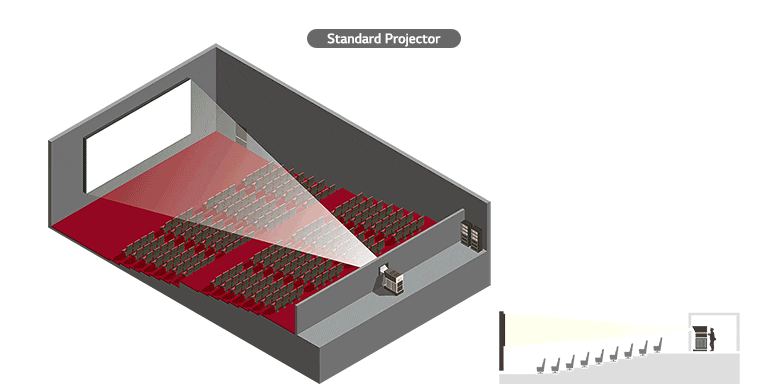

The Optimal Space Utilization
The Optimal Space Utilization.

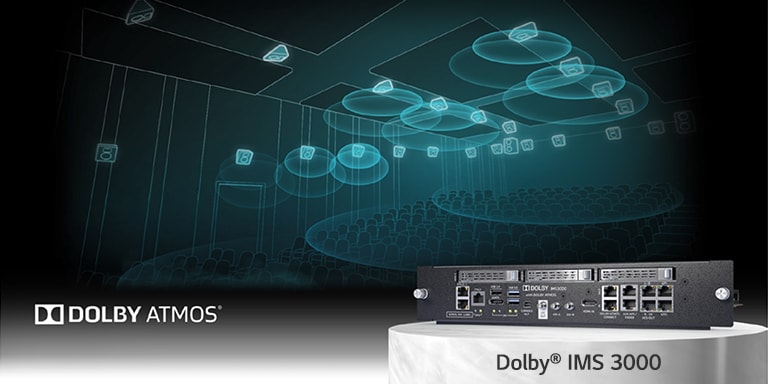

Compatibility with Dolby
Compatibility with Dolby.
Key Feature
-
Pixel Pitch: 3.3 mm
-
Screen Ratio: 4,096 x 2,160 (DCI-compliant)
-
Brightness: 48 cd/m² (DCI-compliant / Minimum)
-
Contrast Ratio: 4,000 : 1 (Minimum)

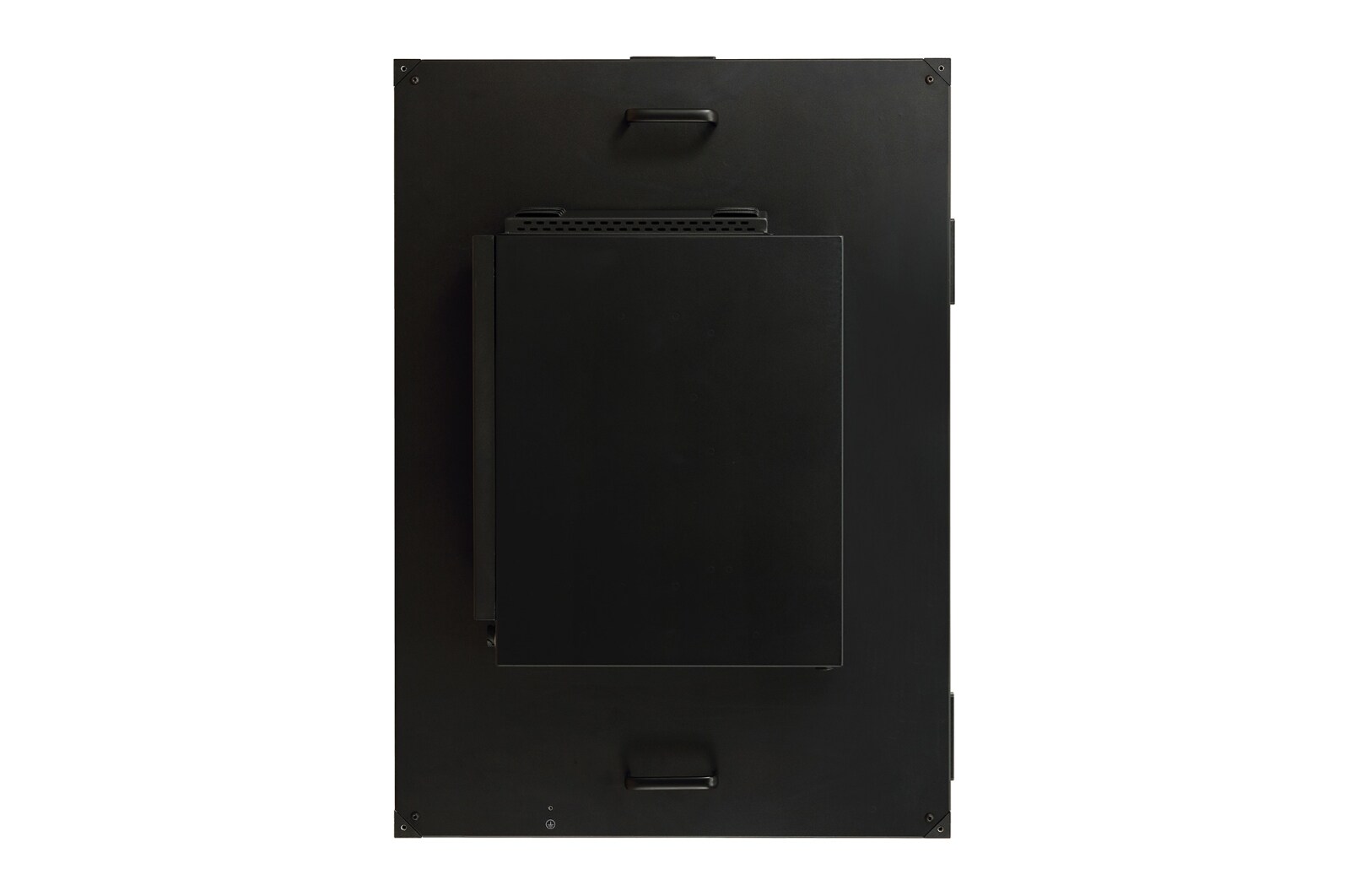

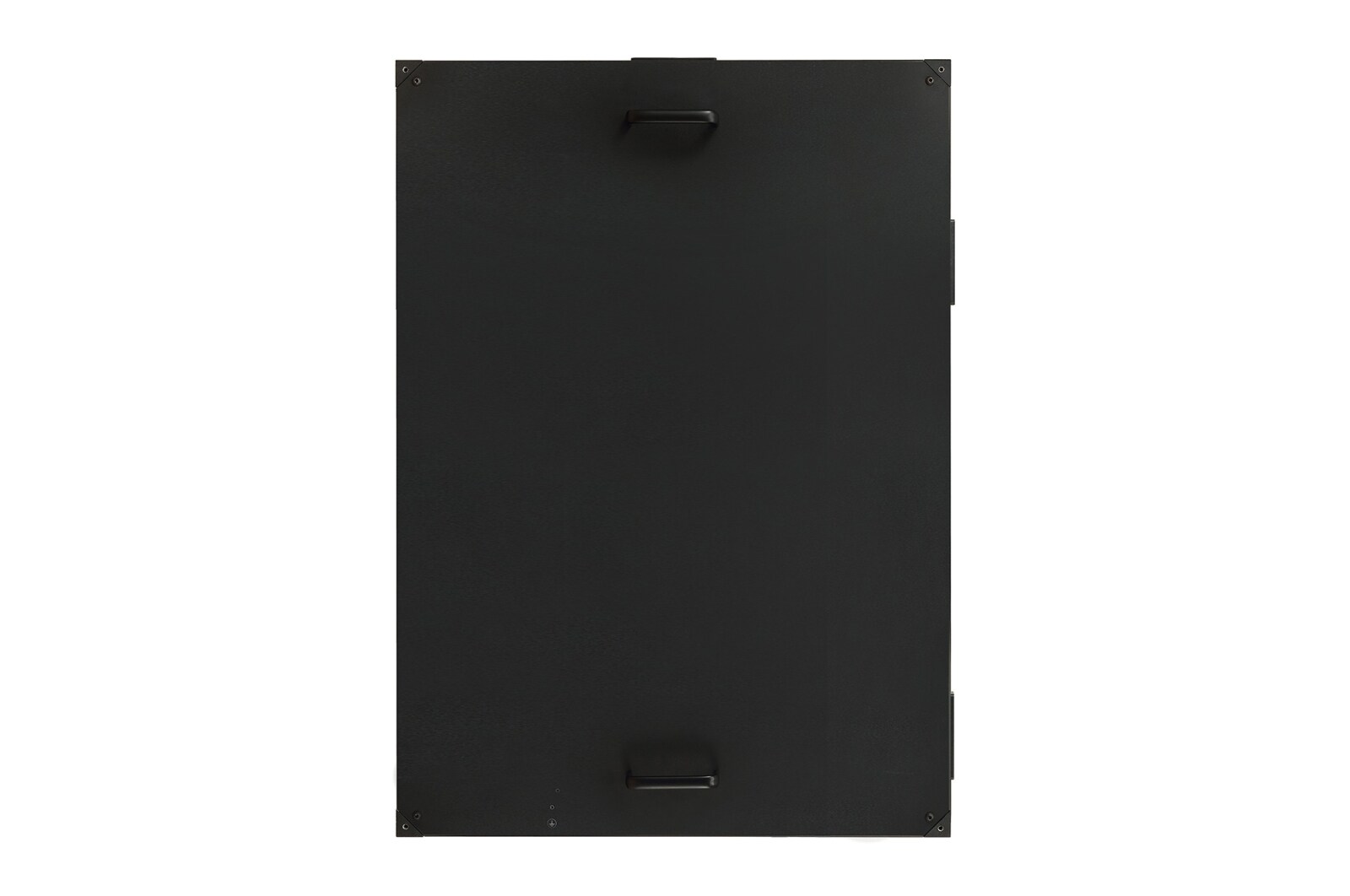

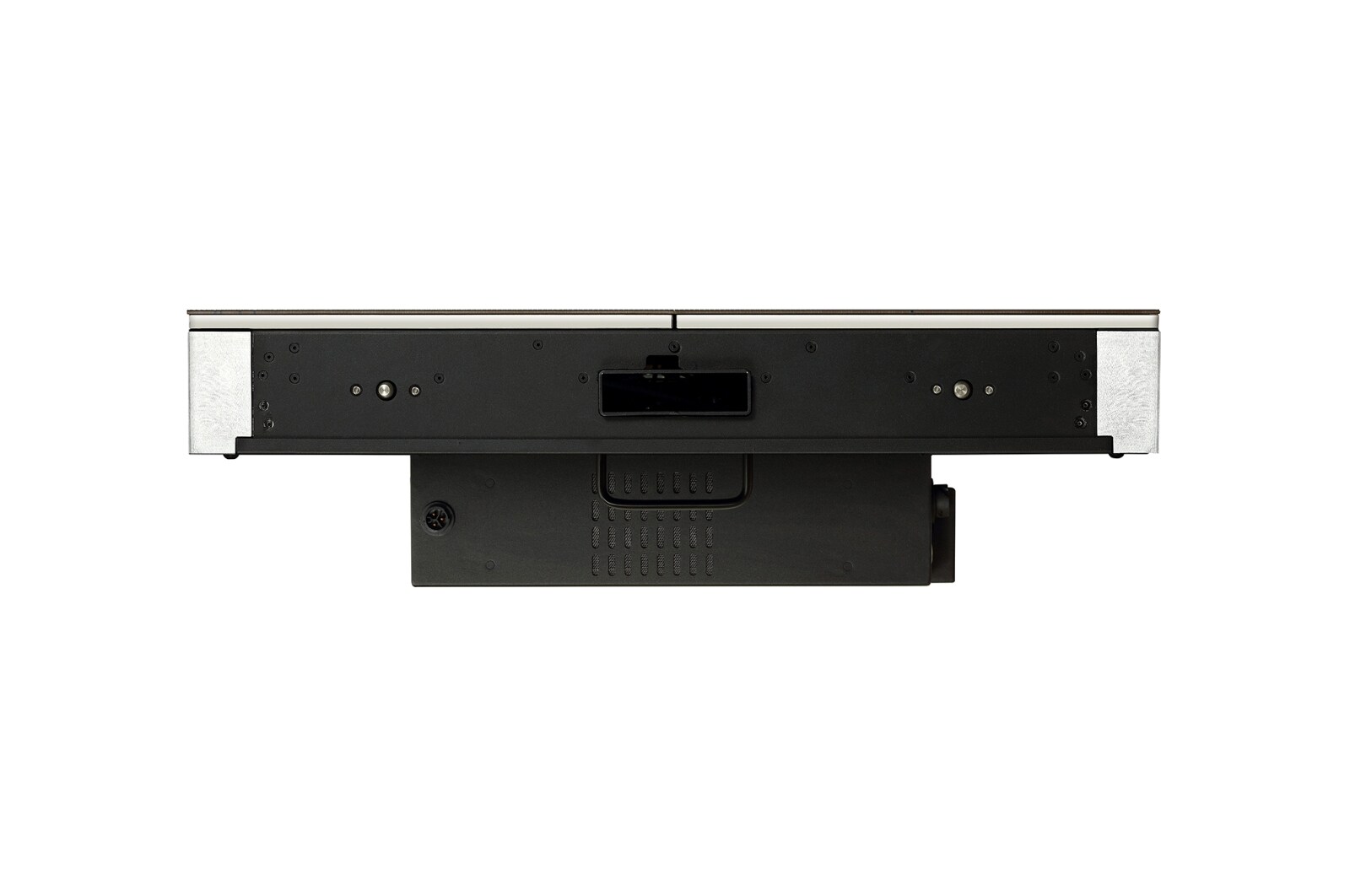

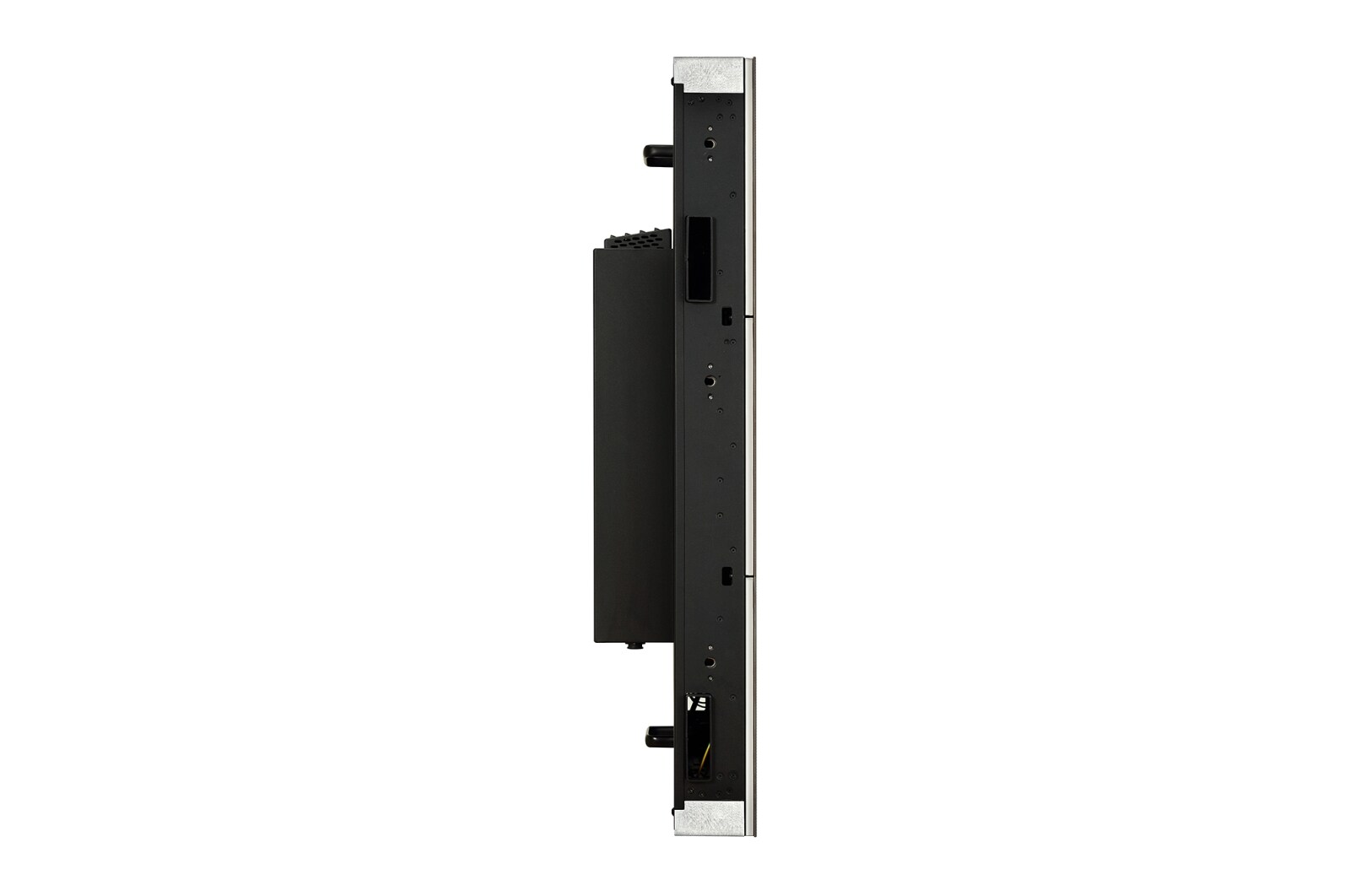

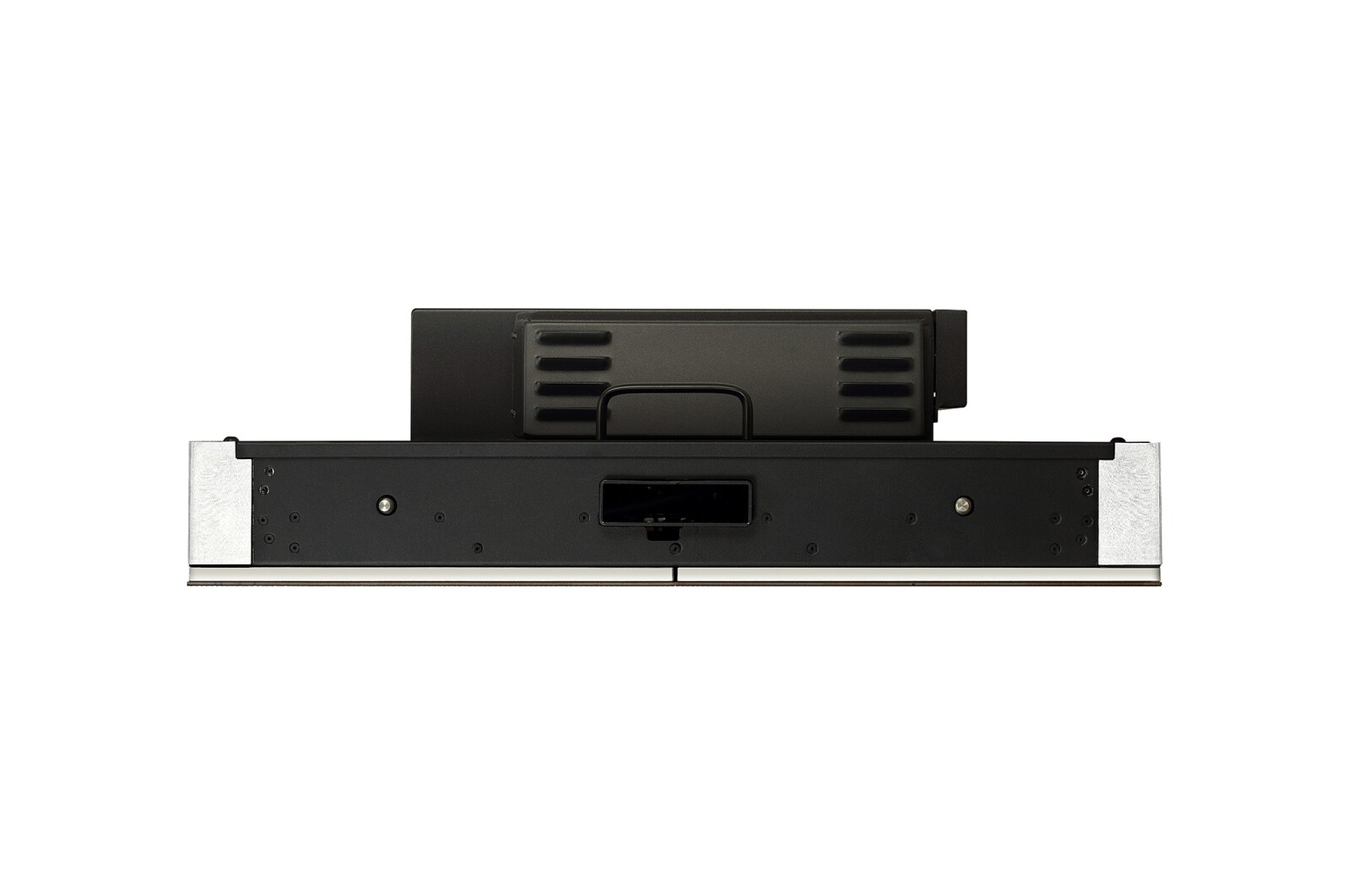

Gallery

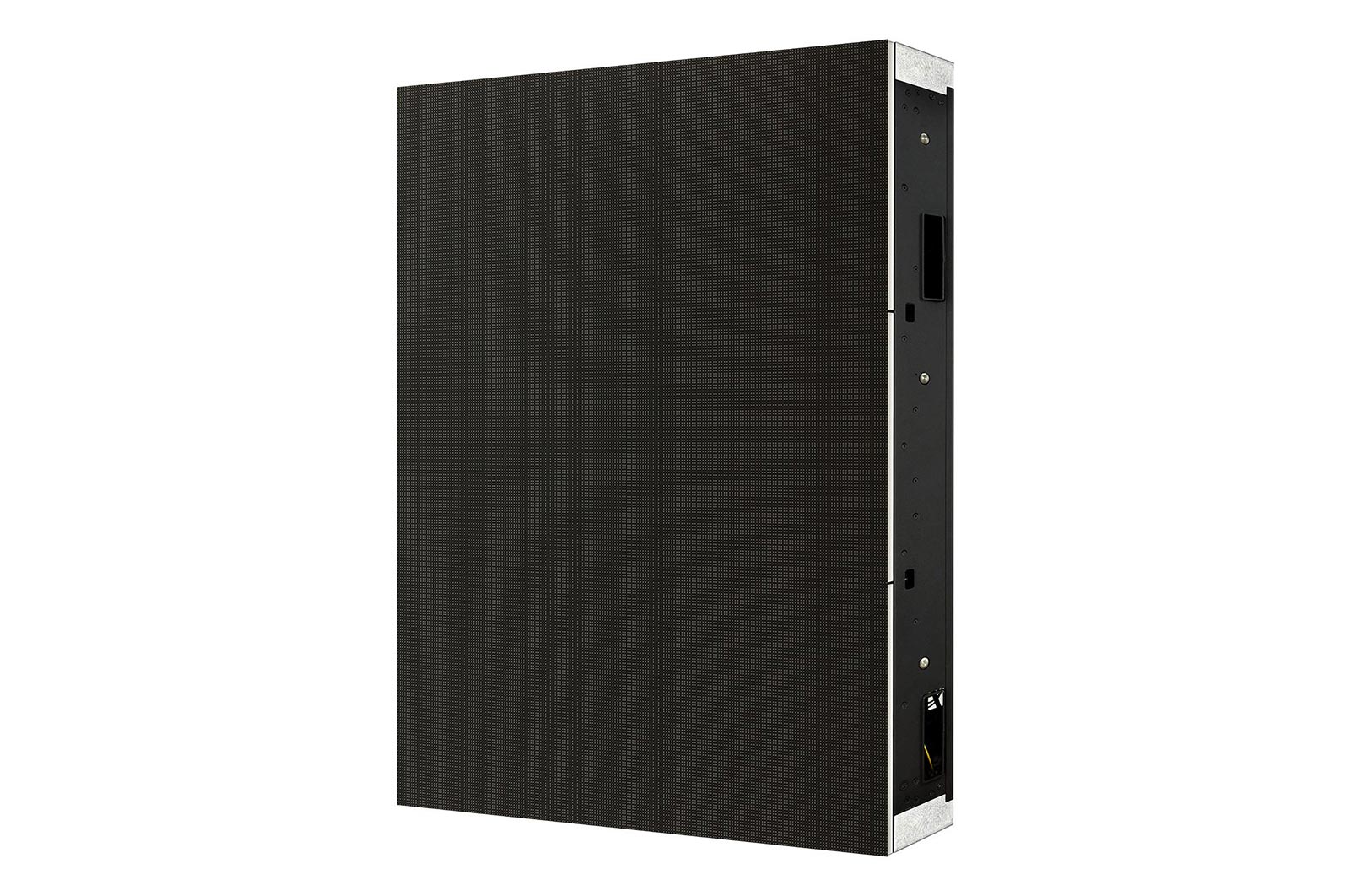

All Spec
OPTICAL PARAMETERS
-
Pitch
3.3 mm
-
LED Type
SMD
-
Pixels per LED Module
8,640
-
Aspect Ratio (per Cabinet)
64 : 90
-
Resolution (per Cabinet)
192 × 270
-
Pixels (per Cabinet)
51,840
-
Pixel Density (per SQM)
90,000
-
Frame (Video) Rate
24 Hz, 25 Hz, 30 Hz, 48 Hz, 50 Hz, 60 Hz
-
Brightness (After Calibration)
48 nit (DCI-compliant)
-
Contrast Ratio
4000 : 1 (Minimum)
-
Color Space (Gamut)
DCI - P3 (DCI-compliant)
-
Viewing Angle (Horizontal, Vertical)
120º, 120º
-
Color Depth
12 Bit (DCI-compliant)
-
Chromaticity Uniformity
In case of White : Within ±0.015 x, ±0.015 y
-
Color Temperature (White)
(x. y) = (0.314, 0.351) / DCI-P3 Theater
-
Color Temperature (R, G, B)
DCI-P3 theater R: (x. y) = (0.68, 0.32)
G: (x. y) = (0.265, 0.690)
B: (x. y) = (0.15, 0.06) -
Lifetime
100,000 Hours (LED to Half Brightness)
-
Operation Hours
16 Hours per Day / 7 Days per Week
PHYSICAL/ELECTRICAL PARAMETERS
-
Modules (per Cabinet)
6 (2 × 3)
-
Dimension (LDM)
320 mm × 300 mm
-
Dimension (per Cabinet)
640 mm × 900 mm × 124 mm (Including Handle)
-
Dimension (4K, Total)
14,080 mm × 7,200 mm (101 sqm)
-
Dimension (4K, Active Area)
13,653 mm × 7,200 mm (98 sqm)
-
Weight (per Cabinet)
15 kg
-
Weight (4K, Total)
2,640 kg
-
Material of Cabinet Body
Aluminum
-
Heat Generation (per Cabinet)
221 BTU (Max.) / 73 BTU (Typ.)
-
Serviceability
Rear only
-
Power Supply
AC100-240 V ~, 50/60 Hz
-
Power Type
Built-in Power
-
Power Consumption (Max, per Cabinet)
90 watt (Main) / 52 watt (Secondary)
-
Power Consumption (Max, 4K)
9,260 W
-
Certification
DCI, CB, CE-LVD/EMC, FCC, ETL/UL, RoHS, REACH
-
Supported Media Server
Dolby® IMS3000
-
Interface
RJ45
-
Operation Temperature
0°C to 40°C
-
Operation Humidity
10% to 80%
-
Storage Temperature
-20°C to 60°C (-4°F to 140°F)
-
Storage Humidity
5% to 85%
-
