LG 8MP Diagnostic Monitor
Contact Us

LG 8MP Diagnostic Monitor

Share This Content.

You Can Share The Items You Like With Your Friends

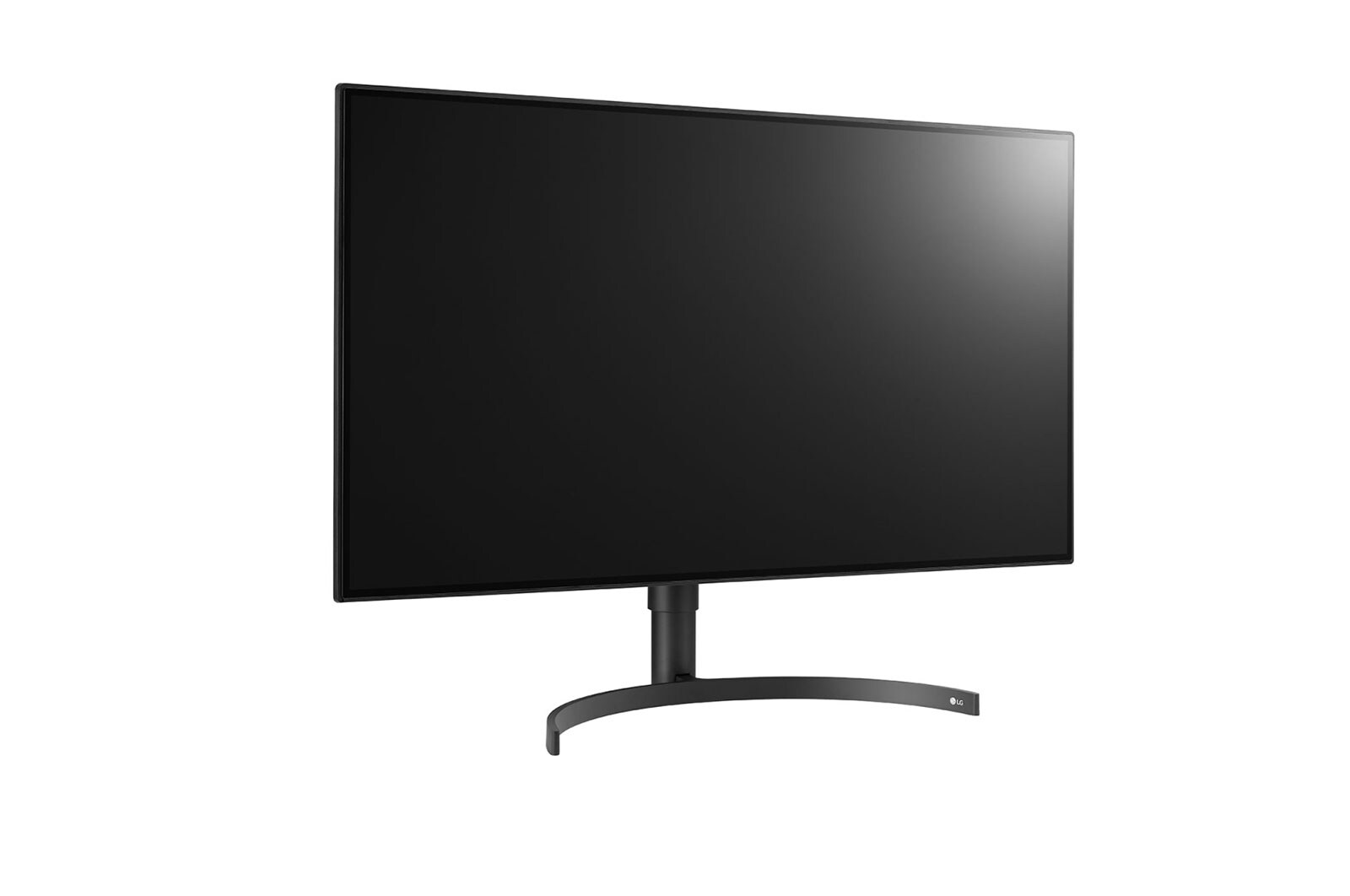

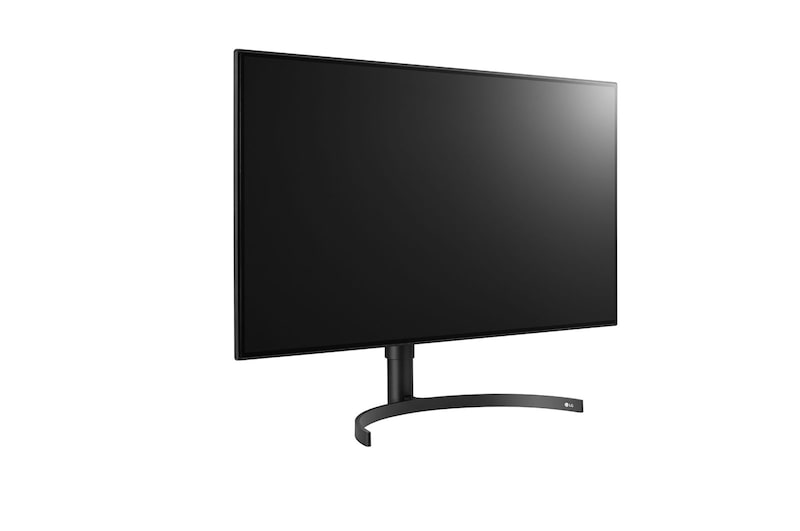

LG 8MP Diagnostic Monitor

32HL512D-B
LG 8MP Diagnostic Monitor, 32HL512D-B
LG 8MP Diagnostic Monitor, 32HL512D-B
LG 8MP Diagnostic Monitor, 32HL512D-B
LG 8MP Diagnostic Monitor, 32HL512D-B
LG 8MP Diagnostic Monitor, 32HL512D-B
LG 8MP Diagnostic Monitor, 32HL512D-B
LG 8MP Diagnostic Monitor, 32HL512D-B
LG 8MP Diagnostic Monitor, 32HL512D-B
LG 8MP Diagnostic Monitor, 32HL512D-B
LG 8MP Diagnostic Monitor, 32HL512D-B
LG 8MP Diagnostic Monitor, 32HL512D-B
LG 8MP Diagnostic Monitor, 32HL512D-B
LG 8MP Diagnostic Monitor, 32HL512D-B
LG 8MP Diagnostic Monitor, 32HL512D-B
LG 8MP Diagnostic Monitor, 32HL512D-B
LG 8MP Diagnostic Monitor, 32HL512D-B
LG 8MP Diagnostic Monitor, 32HL512D-B
LG 8MP Diagnostic Monitor, 32HL512D-B

Key Features

  • 31.5" 8MP IPS Display
  • Multi Resolution Mode
  • PBP / Dual Controller
  • Auto Luminance Calibration
  • Clinical Pathology Mode
  • Ergonomic Design
More

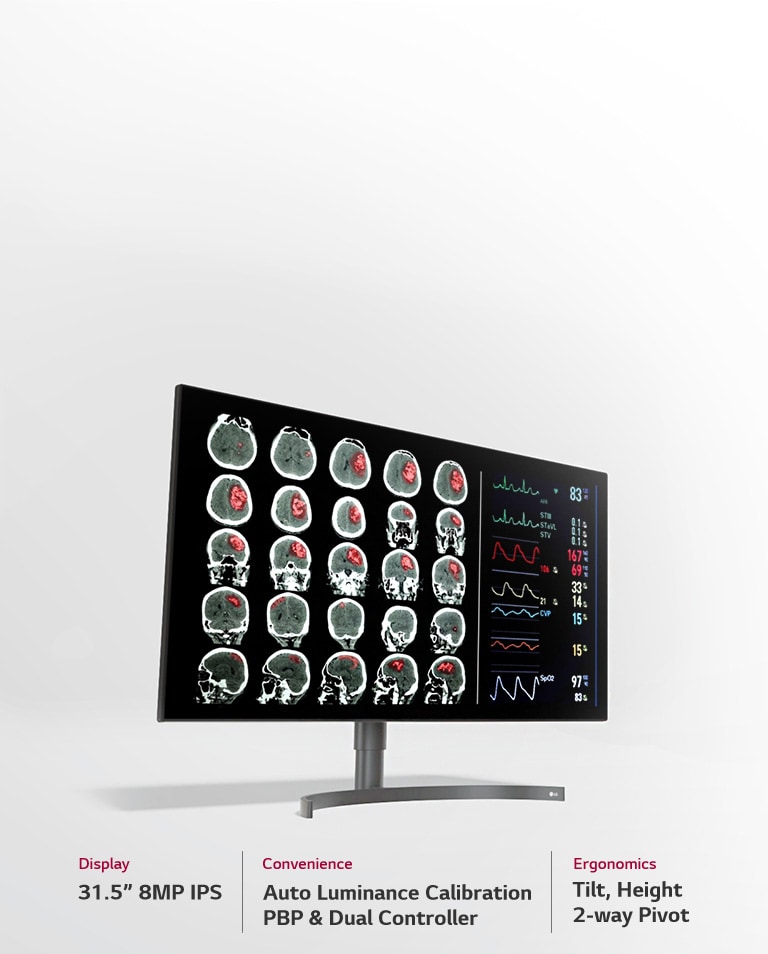

31.5" 8MP Diagnostic Monitor3
LG Medical Display

31.5" 8MP Diagnostic Monitor

Optimized Image Quality for
Diagnostic Review

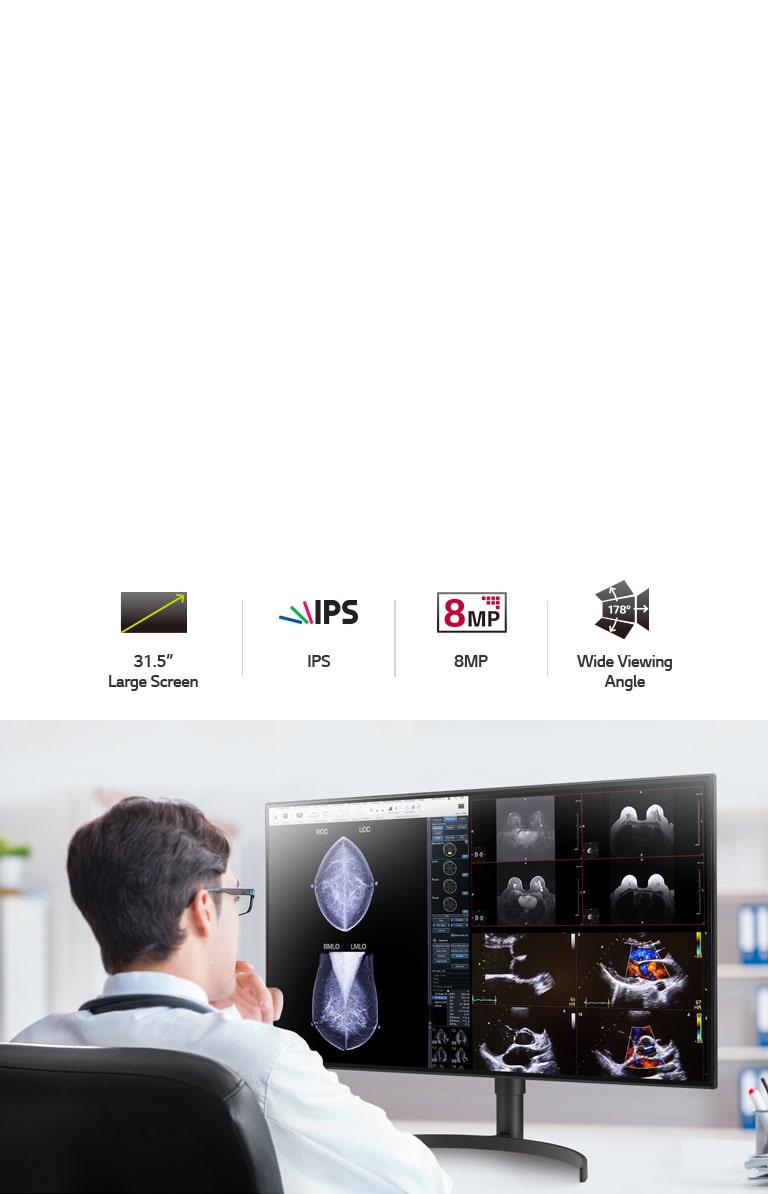

31.5" 8MP IPS Display

Accurate Image from Any Angle

The 31.5-inch 8MP IPS display facilitates precise diagnoses of medical images. The 178° wide viewing angle lets patients and doctors to see accurately reproduced images with minimal distortion.
Multi Resolution Mode

Compatible with Every Device

The connection to the various types of devices is essential for the diagnostic monitor. Thanks to 32HL512D’s multi resolution mode, you can adjust the resolution of monitor to optimize to the connected device.

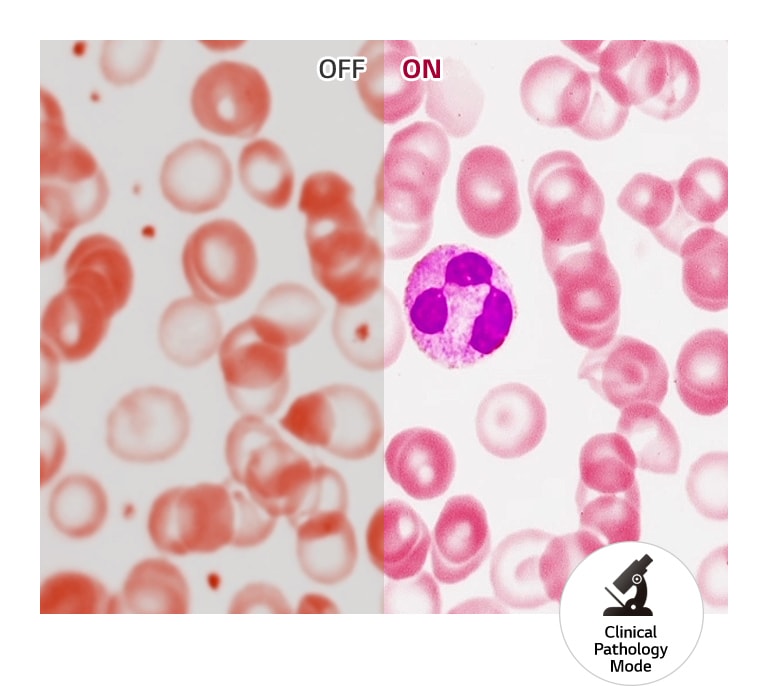

Clinical Pathology Mode

Realistic Colour Reproduction

As LG 32HL512D monitor adopts the clinical pathology mode with improved colour reproduction, can deliver images from the microscope vividly without colour distortion.

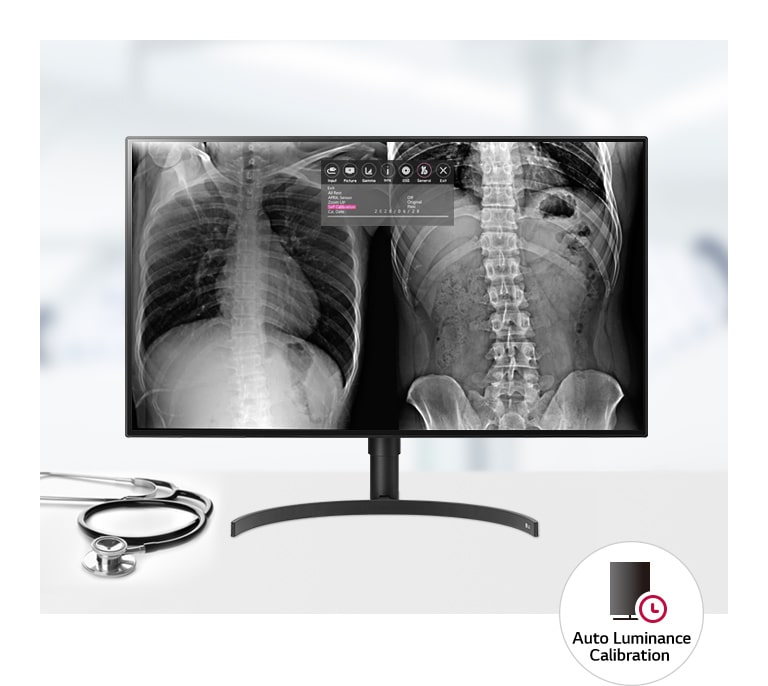

Auto Luminance Calibration

Sustained Picture Quality

Built-in Auto Luminance Calibration helps to increase productivity and efficiency. It converts automatically the medical images to more suitable images to make a exact diagnosis.

To Increase Efficiency &
Convenience

PBP & Dual Controller

Multiple Signals on One Screen

PBP (Picture By Picture) with Dual controller, control multi devices connected to one screen with one keyboard or mouse, helps to increase convenience in review. You can review multiple information in parallel on one screen.

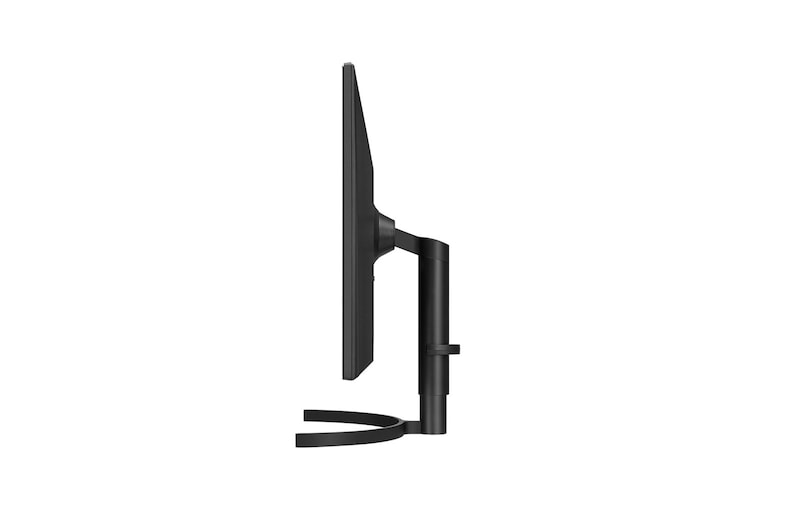

Ergonomics Design

Designed for Comfort & Immersion

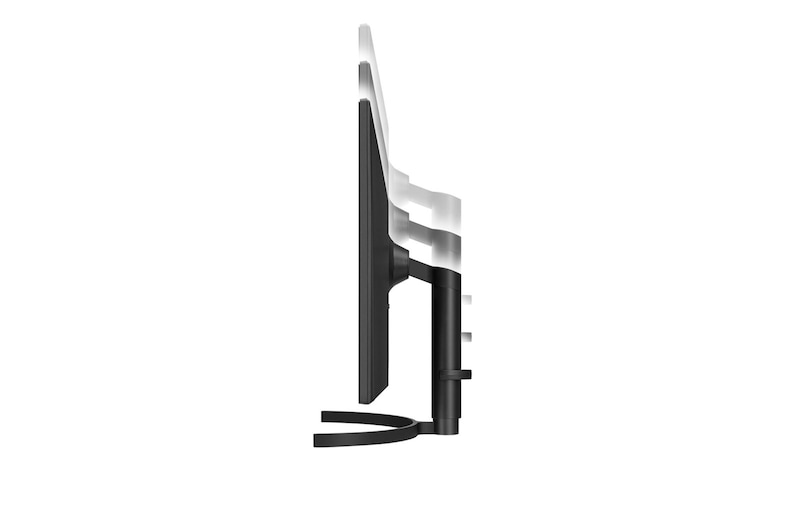

Its ergonomic stand, two-way pivot adjustment and narrow bezel can realize an optimized diagnostic workspace. Rotate two monitors in portrait and use side-by-side for the ultimate reading experience.

Key Feature

  • 31.5" 8MP IPS Display
  • Multi Resolution Mode
  • PBP / Dual Controller
  • Auto Luminance Calibration
  • Clinical Pathology Mode
  • Ergonomic Design
Print

All Spec

POWER

  • AC Input

    100~240V (50/60Hz)

  • DC Output

    19V, 3.42A

  • Power Consumption (DC Off)

    Less than 0.3W

  • Power Consumption (Max.)

    65W

  • Type

    External Power(Adapter)

SW APPLICATION

  • Dual Controller

    YES

  • LG Calibration Studio (True Color Pro)

    NO

  • Qubyx

    YES

MECHANICAL

  • Borderless Design

    4-Side Virtually Borderless Design

  • Display Position Adjustments

    Tilt/Height/Pivot

  • Machanical Power Switch

    NO

  • OneClick Stand

    YES

  • Wall Mountable [mm]

    100 x 100

DIMENSIONS/WEIGHTS

  • Weight in Shipping [kg]

    11.4

  • Weight without Stand [kg]

    5.6

  • Weight with Stand [kg]

    7

DISPLAY

  • Aspect Ratio

    16:9

  • Brightness (Typ.) [cd/m²]

    450

  • Color Bit

    10bit (8bit+FRC)

  • Color Gamut (Typ.)

    DCI-P3 98% (CIE1976)

  • Contrast Ratio (Typ.)

    1300:1

  • Pixel Pitch [mm]

    0.18159 x 0.18159

  • Resolution

    3840 x 2160

  • Response Time

    5ms (GtG at Faster)

  • Size [Inch]

    31.5

  • Surface Treatment

    Anti-Glare

  • Viewing Angle (CR≥10)

    178º(R/L), 178º(U/D)

ACCESSORY

  • Adapter

    YES

  • Calibration Report (Paper)

    YES

  • Display Port

    YES

  • DVI-D (Color/Length)

    NO

  • D-Sub

    NO

  • HDMI (Color/Length)

    YES

  • Power Cord

    YES

  • USB3.0 Upstream Cable

    NO

STANDARD

  • CE

    YES

  • EN (EN 60601-1 / EN 60601-1-2)

    YES

  • EN (EN 60950-1 / EN 55032, 55024)

    YES

  • FDA

    Class II

  • GMP

    YES

  • IEC (IEC 60601-1 / IEC 60601-1-2)

    YES

  • IEC (IEC 60950-1 / IEC 55032, 55024)

    YES

  • IP(Front/Except for front)

    NO

  • ISO13485

    YES

  • KC (for Rep. of Korea)

    NO

  • KGMP

    YES

  • MFDS

    YES

  • REACH

    YES

  • RoHS

    YES

  • UL (cUL)

    YES

  • Vandal-proof

    NO

  • WEEE

    YES

CONNECTIVITY

  • 12G-SDI

    NO

  • 3G-SDI

    NO

  • Component (Resolution)

    NO

  • Composite (Resolution)

    NO

  • Daisy Chain

    NO

  • DisplayPort

    YES(2ea)

  • DVI-D

    NO

  • D-Sub

    NO

  • HDMI

    YES(1ea)

  • Headphone out

    NO

  • RS-232

    NO

  • S-Video

    NO

  • Thunderbolt

    NO

  • USB Downstream Port

    YES(2ea/ver2.0)

  • USB Upstream Port

    YES(1ea/ver2.0)

FEATURES

  • Auto Luminance Sensor

    NO

  • Black Stabilizer

    YES

  • Brightness stabilization

    YES

  • Color Temperature

    6500K/7500K/9300K/Manual(5000K~10000K)

  • DICOM Compliant

    YES

  • Failover Input Switch

    NO

  • Flicker Safe

    YES

  • Focus View

    YES

  • Front Sensor

    NO

  • HDR 10

    NO

  • HDR Effect

    NO

  • Hot Key

    NO

  • HW Calibration

    HW Calibration Ready

  • Lighting

    NO

  • Light Box Mode

    NO

  • Pathology Mode

    YES

  • PBP

    2PBP

  • PIP

    NO

  • Presence Sensor

    NO

  • Reader Mode

    YES

  • Rotation & Mirror Mode

    NO

  • Smart Energy Saving

    YES

  • Super Resolution+

    YES
