UltraFine Display OLED Pro

()

LG UltraFine Display OLED Pro

Versatile OLED with Accurate Colour, Customized to Suit Your Needs

Enhance your workplace with LG’s 65EP5G OLED professional monitor that has been developed to meet a variety of use cases and workflows in content production, post-production and distribution. 65EP5G builds upon the capabilities of LG’s OLED displays recognized by a Technology and Engineering Emmy® award and incorporates additional features and functionality to meet the needs of professionals.

A man is working on video editing using two 65EP5Gs installed on walls and desks at his workplace.

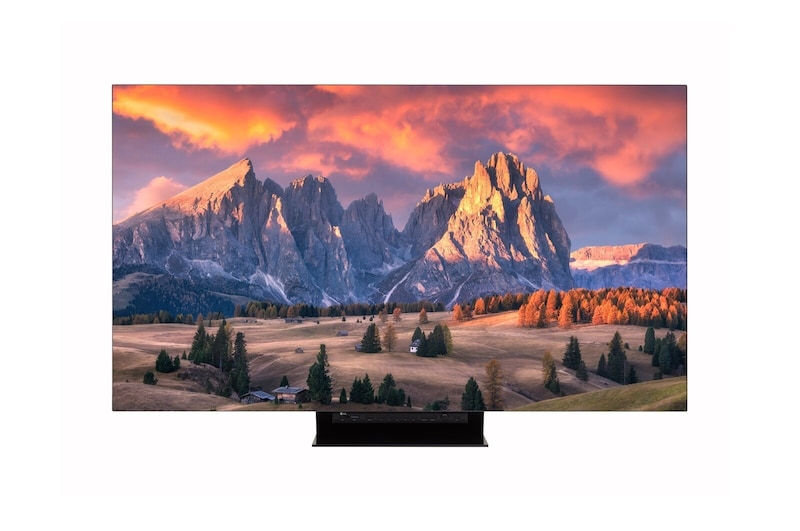

*65 Inch (65EP5G)
*All images are for illustrative purposes only.

Accurate Colour
with a Wide OLED Screen

Advanced Calibration functionality allows display to achieve reference performance for picture quality-enabled by LG’s proprietary software (SuperSign for White Balance). It supports programmable hardware 1D & 3D LUTs and multiple Colour-accurate profiles for rapid transitioning between calibrated modes.

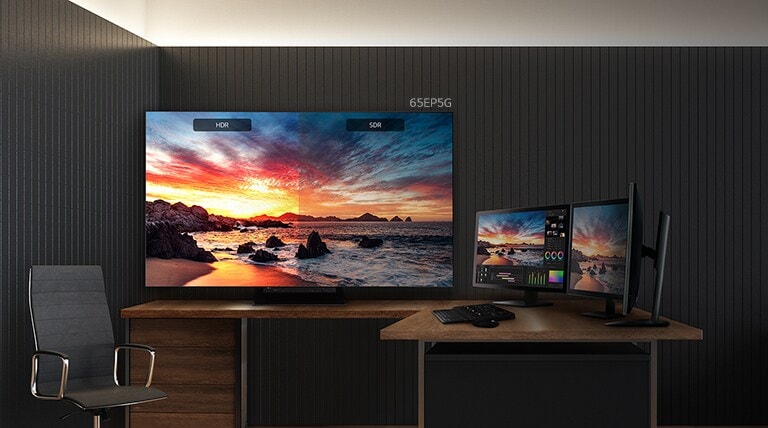

65EP5G can compare and monitor colors of SDR and HDR on one screen at the same time.

* All images are for illustrative purposes only.

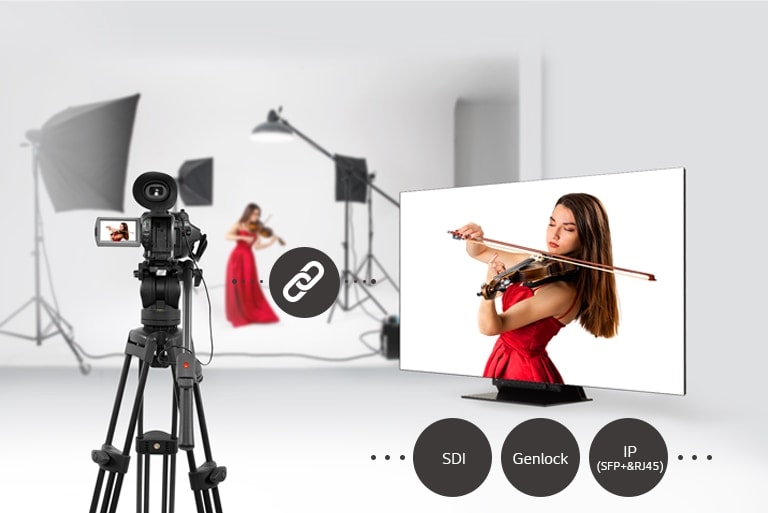

Equipped with jack interfaces such as SDI, Genlock, and IP(SFP

Diverse I/O Interfaces

A variety of input interfaces are provided including HDMI, quad loop-thru SDI (BNC), IP (SFP+ & RJ45). Supported IP formats include ST-2110 and ST-2022-6. Also included interface is a Genlock input for use in broadcast and virtual production applications.

*All images are for illustrative purposes only.

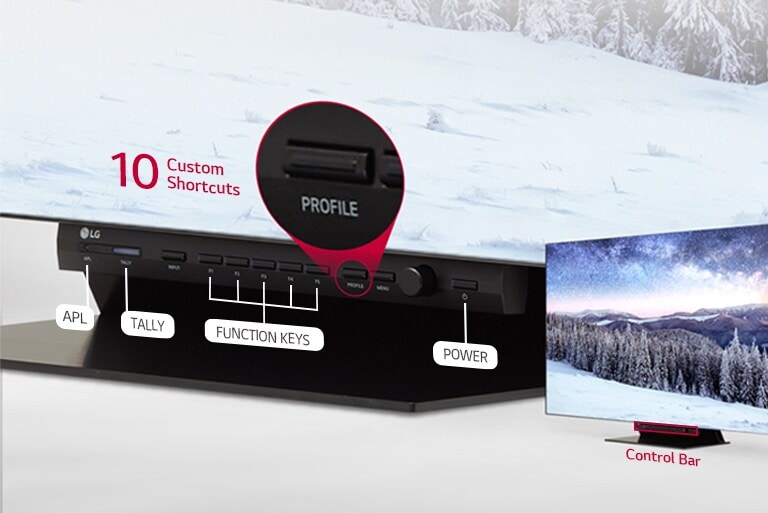

Convenience and Functionality

The control panel provides shortcuts to frequently used functions and profiles featuring different monitor settings and picture quality options. Also, a variety of user selectable on-screen features are available such as Markers, Zoom, Audio Level Meters, and Waveform & Vector Scopes.

*All images are for illustrative purposes only.

Accurate Colour with a Wide OLED Screen
Jack Interfaces for Professional (SDI, SFP+, etc.)
Smart Calibration
Brightness(Typ.) : 770 / 430 / 180 nit @D65 (APL 10% / 25% / 100%)

All Spec

ACCESSORY

Basic

Remote Controller(include battery 2ea), IG(Installation Guide), Regulation Book
Optional

NO

CERTIFICATION

EMC

FCC Class "A" / CE / KC
ePEAT(US only)

NO
ERP / Energy Star

YES / NO
Safety

CB / NRTL

CONNECTIVITY

Audio In

NO
Audio Out

YES
Daisy Chain

NO
DP In

NO
DP Out

NO
DVI-D In

NO
External Speaker Out

NO
HDMI In

YES (2ea)
HDMI In (HDCP Ver.)

2.2/1.4
HDMI Out

NO
IR In

NO
IR Out

NO
RGB In

NO
RJ45(LAN) In

YES (1ea)
RJ45(LAN) Out

NO
RS232C In

YES
RS232C Out

NO
Touch USB

NO
USB In

USB2.0 Type A (1ea)

CONNECTIVITY (OLED PRO DEDICATED)

REF(Gen-Lock) In

YES
RJ45(GPI Remote) In

YES
RJ45(GPI Remote) Out

YES
SDI In

YES (4ea)
SDI Out

YES (4ea)
SFP+ In

YES

DEDICATED FEATURE - OLED PRO

Genlock

YES
3rd Party Cal. SW Compatibility

CalMAN - including Uniformity Compensation, 9p/13p/25p, EBU Grade1
AFD (Active Format Description)

NO
Aspect Ratio

Auto, Original, Full Wide, 4:3, 14:9, 13:9, 1.85:1, 2.35:1, 1:1
Audio - Dolby Atmos

YES
Audio - Level Meter

YES
Audio - Sound Mode

NO
Audio - Source Selection

YES
Calibration SW

SuperSign WB - including Uniformity Compensation, 9p/13p/25p, EBU Grade1
Caption

YES
Color Adjustment

OLED Light, Brightness, Contrast, Chroma, Sharpness, Tint, White Balance Control
Color Temp.

VAR Temp/9300K/6500K/5400K/3200K/D65(6504K)/C(6774K)/D-Cinema(6302K)
Custom 3D LUT file Import (through USB)

NO
DeltaE < 2

YES
EOTF(Electro-Optical Transfer Function)

Auto/User/1.9/2.2/2.4/2.6/SDR(Calibration)/ST.2084 PQ/BT.2100 HLG/HDR(Calibration)
Eyesafe Certification

YES
False Color

NO
Function Key

YES
Gamut

HDR Gamut / SDR Gamut
GPI Control (General Purpose Interface)

YES
HDR/SDR monitoring

YES
Internal Signal Pattern

YES
LG Connect

YES
Marker

YES
Marker - Center Marker

YES
Marker - Safety Area

YES
Mastering Peak

YES
Mono/Blue Only

YES
OLED Panel Setting (for image sticking prevention)

TPC Auto-dimming (Temporal Peak Luminance Control), Pixel Refresher, Screen Shift, Logo Luminance Adjustment, GSR Auto dimming (Global Sticky Reduction), CPC (Convex Power Control)
Over scan

Zero Scan, Over Scan, Under Scan
Peaking Filter (Camera Focus Assist)

NO
Profile Load / Save

YES
R/G/B Gain

-768~255
SDI Color Format

Auto, RGB444, YCbCr444, YCbCr422
Support Web API

YES
Tally

YES
Time Code

YES
Transfer Matrix

YES
UMD (Under Monitor Display)

YES
Video Analysis - Vector Scope

YES
Video Analysis - Waveform

YES
Video Range

NO
VPID

YES
Zoom

x2~x5

ENVIRONMENT CONDITIONS

Operation Humidity

10 % to 80 %
Operation Temperature

0 °C to 40 °C

FEATURE - HARDWARE

Acceleration(Gyro) Sensor

NO
Auto Brightness Sensor

NO
BLU Sensor

NO
Current Sensor

NO
FAN (Built-in)

NO
Humidity Sensor

NO
Internal Memory (eMMC)

8GB
Local Key Operation

YES
Pixel Sensor

NO
Power Indicator

YES
Proximity Sensor

NO
Temperature Sensor

YES
Wi-Fi/BT (Built-in)

NO

FEATURE - SOFTWARE

ISM Method

YES
OS Ver. (webOS)

webOS 5.0
PBP

YES (2PBP)
PIP

YES

LANGUAGE

OSD

English, Korean

MECHANICAL SPECIFICATION

Bezel Color

Black
Bezel Width

T/R/L/B : 2.0/2.0/2.0/2.0mm (Off Bezel) T/R/L/B : 8.7/8.9/8.9/11.6mm (On Bezel)
Carton Dimensions (W x H x D)

1670 x 1108 x 200mm
Handle

YES
Monitor Dimensions (W x H x D)

1446.3 x 823.8 x 49mm (without Control Box) 1446.3 x 853.8 x 56.5mm (with Control Box)
Monitor Dimension with Stand (W x H x D)

1446.3 x 896.5 x 272mm
Packed Weight

45.5Kg
VESA Standard Mount Interface

300 x 300mm
Weight (Head)

31Kg
Weight (Head+Stand)

35Kg
