ProBeam 4K (3840x2160) Laser Projector with 5,000 ANSI Lumens Brightness

Features

Gallery

Specs

Support

Resource

Find a Dealer
Contact Us

ProBeam 4K (3840x2160) Laser Projector with 5,000 ANSI Lumens Brightness

Share This Content.

You Can Share The Items You Like With Your Friends

BU53PST

ProBeam 4K (3840x2160) Laser Projector with 5,000 ANSI Lumens Brightness

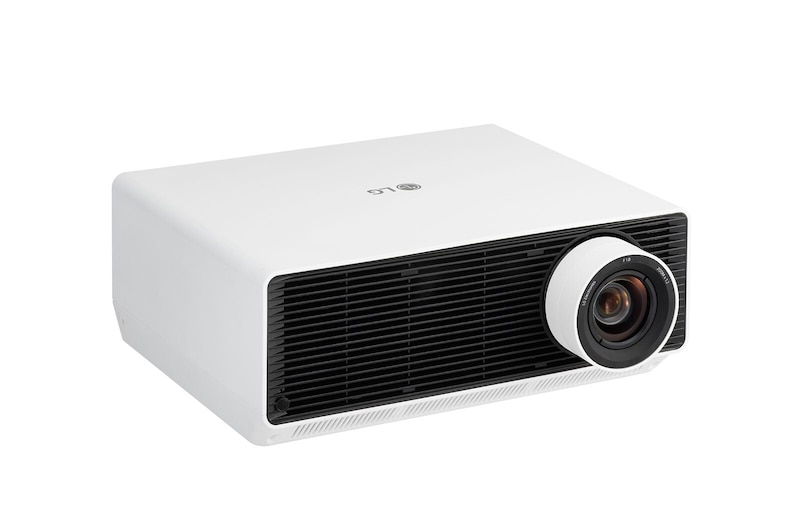

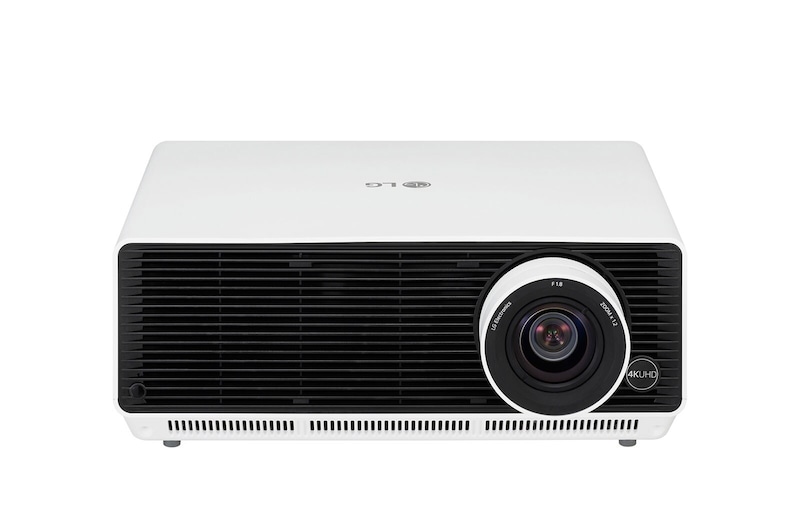

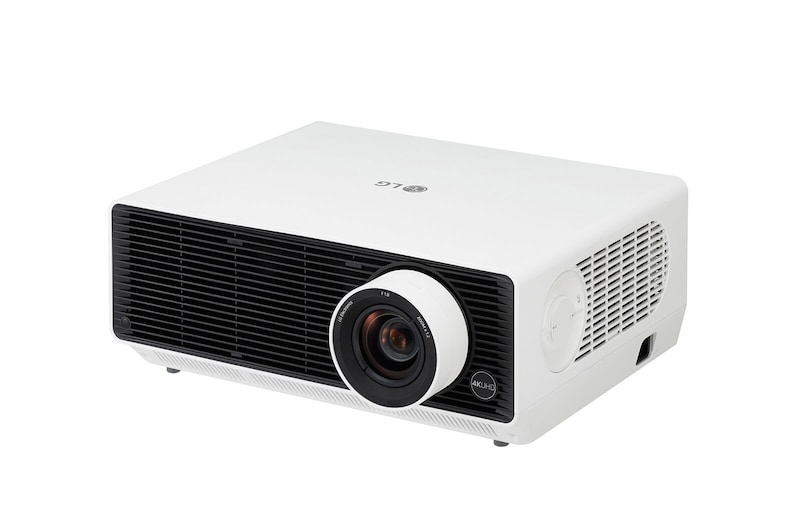

Front view

LG ProBeam

LG ProBeam

Designed for Business Innovation

Display

4K UHD(3840x2160) Laser
5,000 ANSI Lumens

Usability

Short Throw
Zoom x 1.2
Lens shift H ±20%, V ±50%

An immersive 4K UHD Experience with 0.94 Short Throw Ratio

Even in tight spaces, LG Short Throw Projector provides a high-definition large screen with a short projection distance.



Projector projection scene

*It can project an 40-inch screen from a distance of 0.79m, a 150-inch screen from a distance of 3.04m, and a 300-inch screen from a distance of 6.12m.

Real 4K Laser

High Definition Clarity to Large Audience

LG ProBeam brings a stunning visual quality even on up to 300-inch big screen with 8.3 million pixels utilizing 4K UHD Laser technology.

Supporting WUXGA 1920 X 1200, and 4K UHD 3840 X 2160

6,000 ANSI Lumens : Boost Power of Presentation

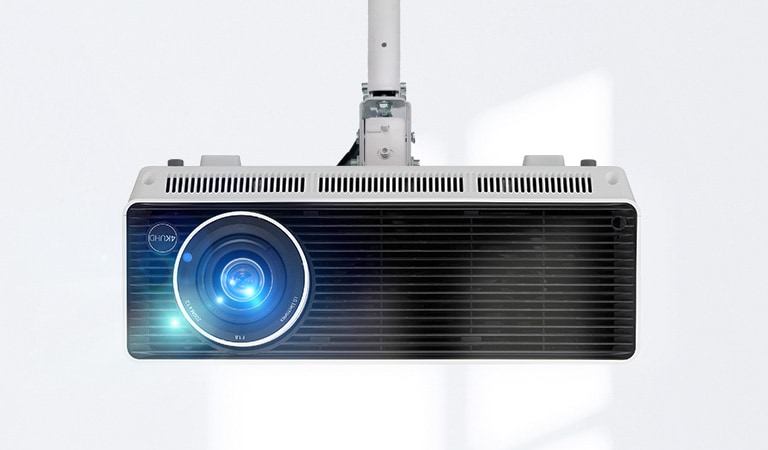

5,000 ANSI Lumens



Boost Power of Presentation

5,000 ANSI lumens of brightness delivers accuracy and clarity, even in brightly lit conference rooms without loss of picture quality, magnifying productivity of business meetings.

Scalable & Adaptive Projector

Fits to Any Business

Enterprise : Efficiency & Productivity
Education : Effective Audiovisual Class
Entertainment : Easy and accurate installation
Enterprise : Efficiency & Productivity
Education : Effective Audiovisual Class
Entertainment : Easy and accurate installation

Enterprise : Efficiency & Productivity

The corporate-quality projector is designed for business meeting, conferences, and collaboration. It allows users to boost work efficiency and productivity.

Education : Effective Audiovisual Class

Makes digital learning spaces where every student can be actively involved with the aid of visual and auditory stimulation as well as sharing their contents.

Entertainment : Easy and accurate installation

It provides a large screen at a closer distance by the short throw projection and helps to set the optimal indoor golf environment.

One Cable, Five Signals with HDBaseT™

HDBaseT™ is the global standard for the transmission of ultra-high-definition video & audio, Ethernet, controls, USB and up to 100W of power over a single, long-distance, cable. As adopting the latest HDBaseT™, LG Probeam can deliver quality of experience, eliminating cable clutter and without compromising performance and high quality regardless of its mounting location.

Flexible and Easy Installation

With Zoom x1.2 & Lens Shift (H ±20%, V ±50%) functionality, the user can install the device anywhere and set the screen to the exact size and location.

  • Zoom x1.2

  • Lens Shift (H ±20%, V ±50%)

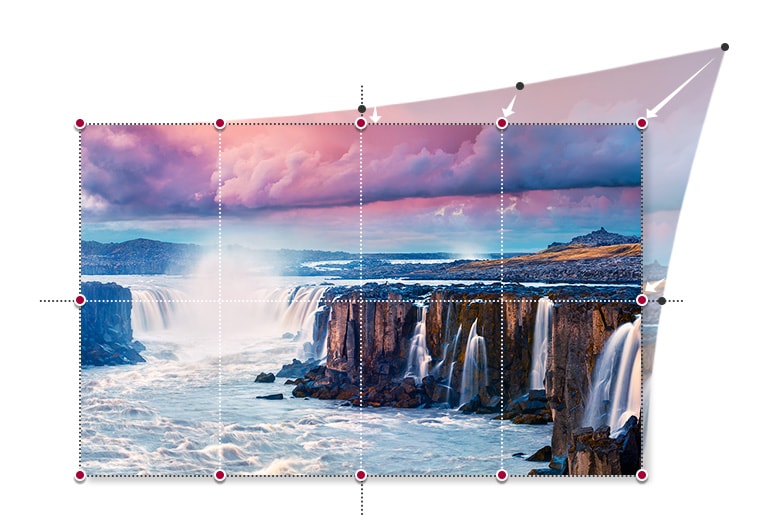

12 Point Warping : More Simply and Detailedly
12 Point Warping

More Simply and Detailedly

You can adjust screen distortion and set up a more precise screen by using the 12-point warping function on the screen.

The Smallest 4K 6,000 ANSI Projector : Sufficiently Compact Size

The Smallest 4K 5,000 ANSI Projector

Sufficiently Compact Size

LG BU53PST, has not only 16.7 liter compact body but also 4K high-resolution and 5,000 ANSI lumens brightness, perfectly matches any business space.

20,000 hrs. Longer-lasting Laser

Steady-Clear & Cost-Effect

The powerful laser light source displays brighter images and lasts up to 20,000 hours.

6,000 Movies without Light Source Change

If you play videos on this projector 8 hours a day, then the laser light source would last for 7 years.

The Initial Brightness Lasts Longer

The LG ProBeam with its laser light source keeps its initial brightness longer without the high cost of lamp replacements.

Key Feature

  • Laser 4K UHD
  • 8.3 Mega pixels (3840x2160)
  • 5,000 ANSI Lumens
  • Short Throw
  • Zoom x 1.2
  • Lens shift H ±20%, V ±50%
Print

All Spec

PROJECTION SYSTEM

  • Projection System

    DLP

NATIVE RESOLUTION

  • Native Resolution

    Full HD (1920x1080)

BRIGHTNESS (ANSI LUMEN)

  • Brightness (ANSI Lumen)

    2000

CONTRAST RATIO

  • Contrast Ratio

    150,000:1

NOISE

  • Energy Saving Max. (Eco)

    26dB(A)

  • Energy Saving Med.

    28dB(A)

  • Energy Saving Min. (Bright)

    30dB(A)

UNIFORMITY

  • Uniformity (JBMMA 9 Point)

    85%↑

PROJECTION LENS

  • Focus (Auto / Manual)

    Manual

  • Zoom

    1.1x

PROJECTION IMAGE

  • Screen Size

    30" ~ 120"

  • Standard (lens to wall)

    80"@2.46m, 100"@3.1~3.4m

  • Throw Ratio

    1.4

PROJECTION OFFSET

  • Projection Offset

    1

LIGHT SOURCE

  • Life Hours

    20,000 Hrs

  • Type

    Laser (LD + P/W)

ASPECT RATIO

  • Aspect Ratio Control

    16:9/Original/4:3/Vertical Zoom/4-Way Zoom

SOUND

  • Clear Voice

    YES (Clear Voice lll)

  • Output

    3W + 3W Stereo

POWER

  • Power Consumption (Max.)

    140W

  • Power Supply

    Adapter (100V – 240V @ 50~60 Hz)

  • Stand-by Power

    <0.5W

TEMPERATURE

  • Operation Temperature

    0 ~ 40℃

INPUT SIGNAL COMPATIBILITY

  • Digital(HDMI)

    Up to 1080p (60Hz, 24Hz)

INPUT/OUTPUT TERMINALS

  • Audio out

    1 (Φ3.5), S/PDIF 1(Optical)

  • HDMI

    2

  • RJ45

    1

  • USB Type-A

    2 (USB2.0)

DESIGN

  • Cabinet Color

    White

  • Ceiling mount hole (for bracket)

    YES

  • Kensington Lock

    YES

  • Leg-Stand

    YES (4 Leg)

  • Local Key

    Joystick

ACCESSORY

  • Conformances(Regulation)

    CE/CB

  • Manual (Full or Simple Book)

    Simple Book

  • Quick User Guide (Quick Set-up Guide)

    YES

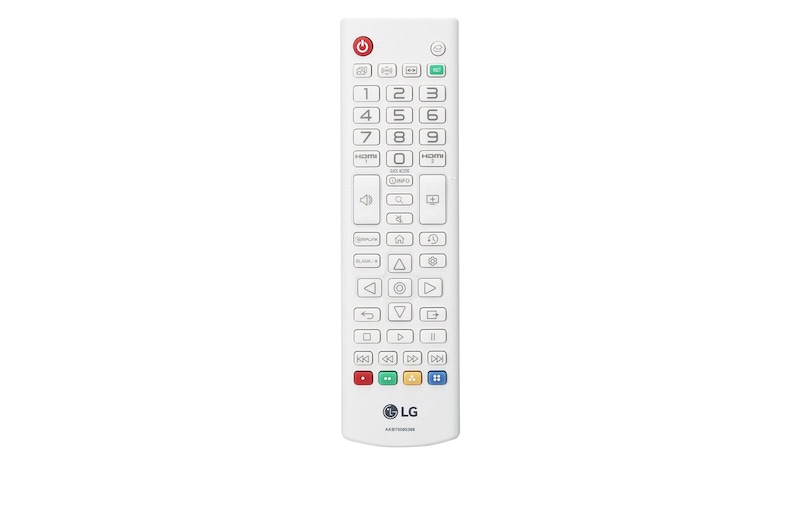

  • Remote Control - Motion

    YES

  • Warranty Card

    YES

FEATURES

  • LG Sound Sync(with Sound Bar)

    YES

  • Noise Reduction

    YES

  • Platform (OS, UI)

    webOS 4.0 (Smart)

  • Plug & Play(RGB/DVI/HDMI Auto Source Detection)

    YES

  • Premium CP

    YES

  • Processor

    Quad Core

  • Quick(Instant) Power on/off

    YES (on 10 Sec off 2 Sec)

  • Screen Share (Wireless Mirroring with MiraCast supporting device)

    YES

  • Self Diagnosis

    YES

  • Setting Guide

    YES (Bean Bird)

  • Store Mode

    YES

  • Super Resolution (Expert Control)

    YES (Full HD)

  • TruMotion

    YES (up to 1080p)

  • Upscaler

    YES (Full HD)

  • USB Host (Movie, Music, Photo)

    YES

  • White balance setting (Expert control)

    YES

  • Auto Keystone

    YES (Vertical)

  • Black Level Control

    YES

  • Bluetooth AV Sync Control

    YES

  • Bluetooth Sound out

    YES

  • Color gamut setting (Expert control)

    YES

  • Color Management System (Expert control)

    YES

  • Color Temperature Adjustment

    YES

  • Contents Sharing (with DLNA supporting device)

    YES

  • Contents Suggestion

    YES

  • Digital Keystone Correction

    4 coner Keystone (H/V)

  • Dynamic Color (Expert control)

    YES

  • Dynamic Contrast (Expert control)

    YES

  • Eco Function - Automatic Standby / Auto Power Off

    YES

  • Eco Function - Auto Off / Auto Sleep

    YES

  • Eco Function - Energy Saving Mode

    YES (Min/Med/Max)

  • Eco Function - Sleep Timer

    YES

  • Eco Function - Time Power On/Off

    YES (On / Off)

  • Gamma Correction (Expert control)

    YES

  • HDMI ARC(Audio Return Channel)

    YES

  • HDMI simplink(CEC)

    YES

  • HID (Keyboard/Mouse/GamePad Connection Thru USB)

    YES

  • Image Flip

    YES (Horizontal/Vertical)

  • Internet Browser

    YES

SIZE

  • Net Size (mm) (W x D x H)

    108 x 252.3x 140

WEIGHT

  • Net Weight (kg or g)

    2.1

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
