Microwave Oven Charcoal Filter

Features

Gallery

Specs

Reviews

Support

Microwave Oven Charcoal Filter

Microwave Oven Charcoal Filter

5230W1A003A
()
  • 15 degree view
  • front view
  • top view
15 degree view
front view
top view

Key Features

  • LG Microwave Oven Genuine Charcoal Filter
  • Replacement Part

Mounting Location

The actual installation location of this item may vary depending on product model.

For more detailed information, please refer to the product manual for your model.

The charcoal filter is located behind the vent grill

How to Replace

The replacement instruction for this item may differ slightly from the information below.

For more detailed information, please refer to the product manual for your model.

STEP 1

Unplug microwave oven or disconnect power.

Open the door and remove the two vent grille mounting screws. (2 middle screws)

Unplug microwave oven or disconnect power Open the door and remove the two vent grille mounting screws 2 middle screws

STEP 2

Slide the grille left and tip forward, then lift out to remove.

Remove old filter.

Slide the grille left and tip forward, then lift out to remove Remove old filter

STEP 3

Slide a new charcoal filter into place.

The filter should rest at the angle shown.

Slide a new charcoal filter into place The filter should rest at the angle shown

STEP 4

Slide the bottom of the grille into place.

Push the top and slide right until it snaps into place.

Replace the mounting screws.

Turn the power back on at the main power supply and set the clock.

How to Clean

For more detailed information, please refer to the product manual for your model.

The charcoal filter cannot be cleaned and should be replaced every 6-12 months.

* Product images and features may contain advertising expressions and may differ from the actual product. Product appearance, specifications, etc. may change without prior notice for product improvement.

* All product images are photo cuts and may differ from the actual product. Product color may vary depending on monitor resolution, brightness settings, and computer specifications.

* The performance of the product may vary depending on the usage environment, and availability may vary by store.

SUMMARY

Print

DIMENSIONS

All Spec

GENERAL

  • Part Number

    5230W1A003A

DIMENSIONS & WEIGHTS

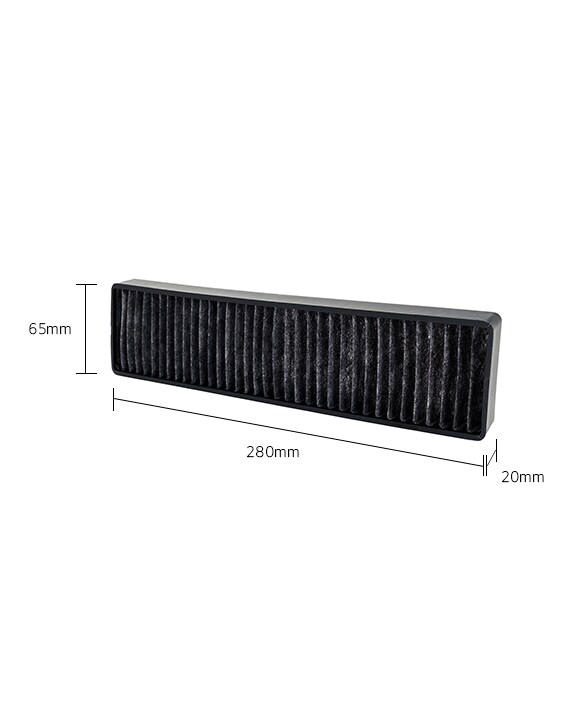

  • Product Dimension (W x H x D, mm)

    280 x 65 x 20

  • Net Weight (g)

    50
