Front view of 7.4 cu. ft. Ultra Large Capacity Smart Front Load Electric ENERGY STAR®Dryer, DLEX5500V
5.2 cu. ft. Capacity Smart Front Load ENERGY STAR® Washer with TurboWash® 360° and AI DD® Built-In Intelligence

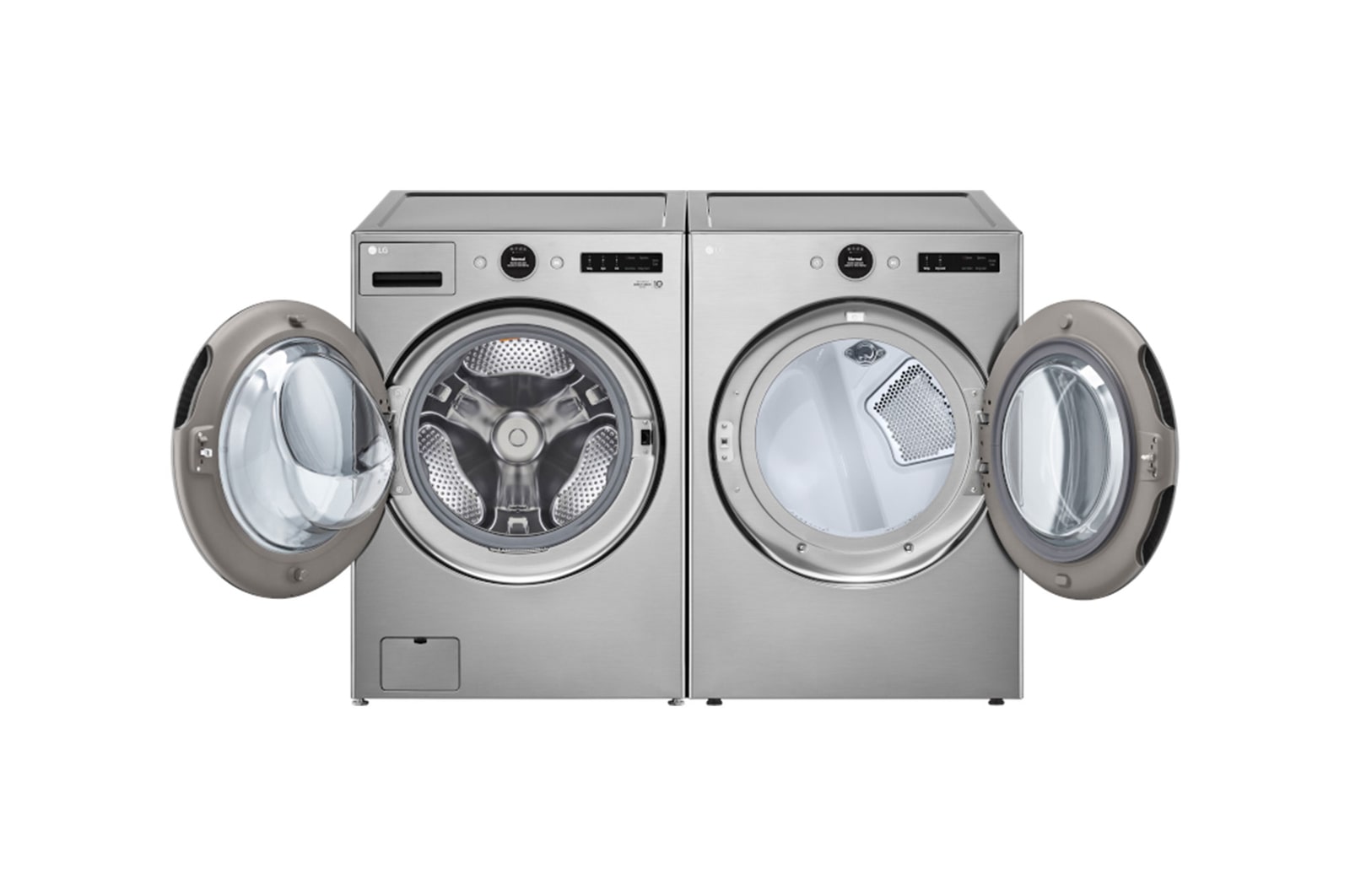

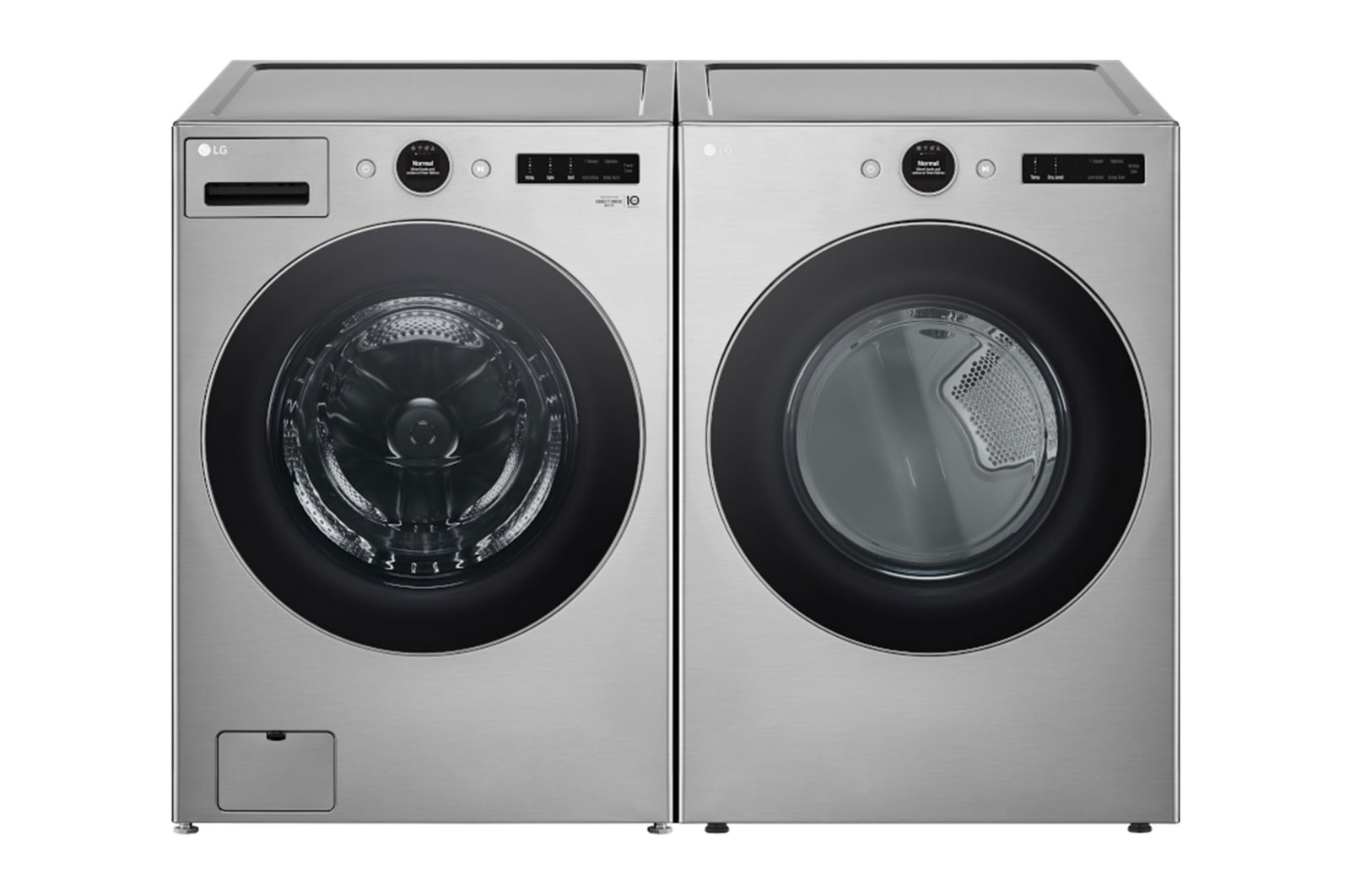

5.2 and 7.4 cu.ft. Ultra Large Capacity Front Load Laundry Pair

WD5500V-B

Key Features

Digital Dial Control LCD Display with Touch Button Control Panel
AI DD^®: AI Fabric and Weight Sensors with Smart Pairing
5.2 cu. ft. Ultra Large Capacity with TurboWash^® 360°
LG Sensor Dry Dryer, AI Sensor Dry, and Manual Dry
Steam Technology: LG TurboSteam^®, LG StreamFresh^®, SteamSanitary^®

All Spec

CAPACITY

Capacity: 7.4 cu. ft.

ENERGY

ENERGY STAR® Certified: Yes

CEF: 3.94

FABRIC CARE FEATURES

AI Sensor Dry™: Yes

Sensor Dry: Yes

Precise Temperature Control with Variable Heater: Yes

Precise Temperature Control with Variable Compressor: No

Steam: TurboSteam™

CONVENIENCE FEATURES

3 Minute Installation Check: Yes

End of Cycle Signal: Yes

Drum Light: Yes

Reversible Door: Yes

FlowSense® Duct Clogging Indicator: Yes

Wrinkle Care Option: Yes

Control Lock: Yes

Venting Option: 4 Way Venting

4 Adjustable Legs: Yes

Remaining Time Display/Status Indicator(s): Yes

MATERIALS AND FINISHES

Aluminized Alloy Steel Drum: No

NeveRust® Stainless Steel Drum: Yes

Cabinet: Painted Steel

Door: Tempered Glass Door

All Available Colors: Graphite Steel (V)

DIMENSIONS

Product (WxHxD): 27" x 39" x 29 3/4"

Depth with Door Open: 51 3/8"

Carton (WxHxD): 28 7/8" x 43 1/8" x 31 3/8"

Weight (Product): 124.3 lbs

Weight (Carton): 136.5 lbs

Pedestal (WxHxD): 27" x 13 5/8" x 28" (43 7/8" D with door open)

POWER SOURCE

Ratings: CSA Listed

Electrical Requirements: 120/240V, 60Hz, 26A (120/208V, 60Hz, 23A)

Type: Electric

SUMMARY

Type: Front Load Dryer, Electric

Vent Type: Vented

Matching Washer: WM5500HVA

Steam: Yes

Color: Graphite Steel (V)

On-Door Electronic Control Panel with LED Display: No

LCD Display: Yes

Hard Buttons: No

Dial-A-Cycle®: Yes

Touch Buttons: Yes

Full Touch Electronic Control Panel with LED Display: No

DRYER PROGRAMS

No. of Programs: 23

Programs (Sensor Dry): Normal, AI Dry, Bedding, Delicates, Towels, Quick Dry,Timed Dry, Power Dry, Perm.Press, SteamFresh™, Heavy Duty, Air Dry, Steam SanitaryTM, Super Dry, Active Wear, Jeans, Blanket Refresh, Low Temp Dry, Overnight Dry, Easy Ironing, Small Load, Large Load Dry,X Large Load Dry

No. of Options: 12

Options: Cycle Optimization, Damp Dry Signal, Wrinkle Care, Control Lock, Wi-Fi, Energy Saver, TurboSteam®, Reduce Static, Remote Start, Drum Light, Signal, Cycle List Edit

Temperature Settings: Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry

Drying Levels: Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry

Dry Mode: No

Manual Dry Times: 10 min ~ 100 min (10 min incremental)

OPTIONS/ACCESSORIES

Pedestal: WDP6V

THINQ® TECHNOLOGY

Smart Diagnosis™ (v3.0): Yes

WiFi: Yes

NFC Tag On Technology: No

Remote Start and Cycle Monitor: Yes

Energy Monitoring: Yes

WARRANTY & UPC

Parts & Labour: 1 Year

Drum: 3 Years

UPC: 195174056417

5.2 and 7.4 cu.ft. Ultra Large Capacity Front Load Laundry Pair

WD5500V-B

Key Features

Digital Dial Control LCD Display with Touch Button Control Panel
AI DD^®: AI Fabric and Weight Sensors with Smart Pairing
5.2 cu. ft. Ultra Large Capacity with TurboWash^® 360°
LG Sensor Dry Dryer, AI Sensor Dry, and Manual Dry
Steam Technology: LG TurboSteam^®, LG StreamFresh^®, SteamSanitary^®

All Spec

CAPACITY

Capacity: 5.2 cu.ft.

ENERGY

ENERGY STAR® Most Efficient: Yes

ENERGY STAR® Certified: Yes

CEE Tier: Tier2

IMEF: 2.92

IWF: 3.0

WASH PROGRAMS

No. of Programs: 25

Wash Programs: Normal, AI Wash, Bedding, Delicates, Towels, Quick Wash, Heavy Duty, Allergiene™, Perm.Press, Tub Clean, Bright Whites™, Sanitary, Rinse+Spin, Spin Only, Hand/Wool, Active Wear, Swimwear, Kids Wear, Jeans, Dresses, Color Care, Sweat Stains, Small Load, Large Load, X Large Load

No. of Options: 15

Options: TurboWash®, Steam, Fresh Care, Pre-wash, Remote Start, Delay Wash, Wi-Fi, Add Item, Extra Rinse, Control Lock, Drum Light, Cold Wash, Signal, Cycle List Edit, Cycle Optimization

No. of Wash/Rinse Temps: 5

Wash/Rinse Temps: Ex. Hot / Hot / Warm / Cold / Tap Cold

No. of Spin Speeds: 5

Spin Speeds: Ex. High / High / Medium / Low / No Spin

No. of Water Levels: Load Sensing

No. of Soil Levels: 5

FABRIC CARE FEATURES

AI DD™: Yes

TurboWash® 360 Technology:: Yes

Steam Technology: Yes

Allergiene™ Cycle: Yes

Sanitary Cycle: Yes

ColdWash™ Option: Yes

CONVENIENCE FEATURES

Vibration sensing(Cabinet Vibration sensor): Yes

TrueBalance® Anti-Vibration System: Yes

4 Tray Dispenser: Prewash, Main Wash (with liquid detergent cup), Bleach, Fabric Softener

End of Cycle Signal: Yes

LoadSense: Yes

Control Lock: Yes

Auto Suds Removal: Yes

Leveling Legs: 4 Adjustable Legs

Drum Light: Yes

MATERIALS AND FINISHES

NeveRust® Stainless Steel Drum: Yes

Cabinet: Painted Steel (One unit)

Top Plate: Painted Steel

Door / Rim: Glass/STS Silver

Door Cover: Tempered Glass Door

All Available Colors: White (W), Graphite Steel (V)

DIMENSIONS

Product (WxHxD): 27" x 39" x 30 1/4"

Depth with Door Open: 55"

Carton (WxHxD): 29 1/2" x 42 1/8" x 31 1/2"

Weight (Product/Carton): 200.8 / 214.4 lbs.

Pedestal (WxHxD): 27" x 13 5/8" x 28" (43 7/8" D with door open)

LG Sidekick™ Pedestal Washer (WxHxD): 27" x 14 1/8" x 30 3/4" (50 1/2 with drawer open)

POWER SOURCE

Ratings: UL Listed

Electrical Requirements: 120V, 10 Amps

Type: Electric

SUMMARY

Series: LG

Type: Front Load Washer, Electric

Matching Electric Dryer: DLEX5500V

Matching Gas Dryer: DLGX5501V

Color: Graphite Steel (V)

LCD Display: Yes

Touch Buttons: Yes

Dial-A-Cycle®: Yes

OPTIONS/ACCESSORIES

Pedestal: WDP6V

LG Sidekick™ Pedestal Washer: WD300CV

Stacking Kit: KSTK4

THINQ® TECHNOLOGY

SmartDiagnosis™: Yes

WiFi: Yes

Energy Monitoring: Yes

Tub Clean Coach: Yes

CERTIFICATION

Asthma Canada: Yes

MOTOR & AGITATOR

Motor Type: Inverter Direct Drive Motor

Axis: Horizontal

Max RPM: 1300

WARRANTY & UPC

Parts & Labour: 1 Year

Direct Drive Motor: 10 Years

Drum: 3 Years

UPC: 195174052976
