UltraGear™ Logo.
An image of a race car traveling at the speed of light inside an UltraGear monitor.
Redefine your game with on upgraded 180Hz refresh rate.
*The images simulated to enhance feature understanding. It may differ from actual use.
180Hz refresh rate
We have raised UltraGear's speed standard to 180Hz. You can enjoy ultra-clear and smooth images with a 180Hz refresh rate, which loads images 180 times in a second.
It is a comparison image of a fast-paced game with a low refresh rate and a clear image with a 180Hz high refresh rate.
*The images simulated to enhance feature understanding. It may differ from actual use.
*Comparison of 60Hz refresh rate (left image) and 180Hz refresh rate.
*The images simulated to enhance feature understanding. It may differ from actual use.
*1ms Motion Blur Reduction causes lowered luminance, and the following features cannot be used while it is activated : AMD FreeSync™ / DAS (Dynamic Action Sync)
*Flicker may occur during 1ms MBR operation.
HDR10
This monitor reproduces high-fidelity colours with HDR 10, allowing gamers to see the dramatic colours that the game developers intended regardless of the battlefield.
*The images simulated to enhance feature understanding. It may differ from actual use.
*The images simulated to enhance feature understanding. It may differ from actual use.
*Comparison of Mode 'OFF' (left image) and AMD FreeSync™.
Enhance your gaming experience with a 3-side virtually borderless design for an immersive view and tilt adjustable base to help you play the game more comfortably.
HDMI
DisplayPort
*The images simulated to enhance feature understanding. It may differ from actual use.

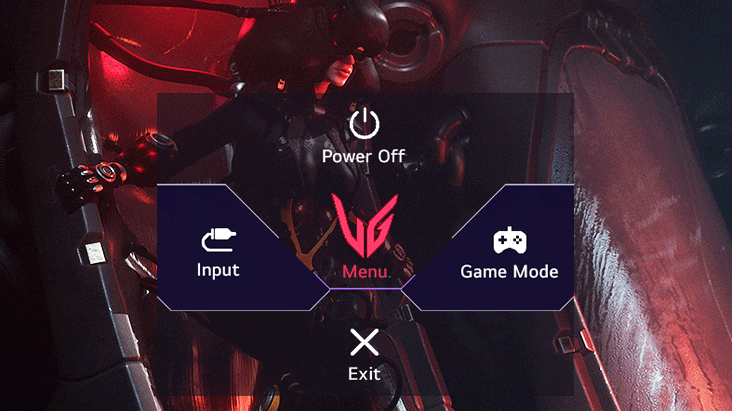

Gaming GUI
Gamers can use On-Screen Display and OnScreen Control to easily customize the setting from adjusting basic monitor options to registering ‘User Defined Key’ that user can set the shortcut.
*To download the latest OnScreen Control software, visit LG.COM.
*The images simulated to enhance feature understanding. It may differ from actual use.
Reducing input lag with Dynamic Action Sync, gamers can catch critical moments in real-time and respond quickly.
Black Stabilizer helps gamers to detect snipers lurking in the darkest corners and swiftly navigate flash explosions.
The target point is fixed in the center to enhance shooting accuracy.
The FPS Counter will let you see how well everything is loading. Whether you're editing, playing games, or watching a movie, every frame matters, and with the FPS Counter, you'll have real-time data.
*The images simulated to enhance feature understanding. It may differ from actual use.
*The Crosshair feature is unavailable while FPS Counter is activated.
*FPS Counter may display the value that exceeds the monitor’s maximum refresh rate.
*FPS (Frame Per Second) Counter: Measurement of frames per second.
Size [Inch]
27
Resolution
1920 x 1080
Aspect Ratio
16:9
Color Gamut (Typ.)
NTSC 72% (CIE1931)
Brightness (Typ.) [cd/m²]
250cd/㎡
Refresh Rate (Max.) [Hz]
180
Response Time
5ms (GtG at Faster)
Display Position Adjustments
Tilt
Product name
UltraGear
Year
Y24
Aspect Ratio
16:9
Brightness (Min.) [cd/m²]
200cd/㎡
Brightness (Typ.) [cd/m²]
250cd/㎡
Color Bit
8bit (6bit+FRC)
Color Depth (Number of Colors)
16.7M
Color Gamut (Min.)
NTSC 68%(CIE1931)
Color Gamut (Typ.)
NTSC 72% (CIE1931)
Contrast Ratio (Min.)
2400:1
Contrast Ratio (Typ.)
3000:1
Pixel Pitch [mm]
0.3114 x 0.3114
Refresh Rate (Max.) [Hz]
180
Resolution
1920 x 1080
Response Time
5ms (GtG at Faster)
Size [cm]
68.6
Size [Inch]
27
Surface Treatment
Anti-Glare
Viewing Angle (CR≥10)
178º(R/L), 178º(U/D)
Reader Mode
YES
AMD FreeSync™
FreeSync
Auto Input Switch
YES
Black Stabilizer
YES
Color Weakness
YES
Crosshair
YES
Dynamic Action Sync
YES
Flicker Safe
YES
FPS Counter
YES
HDR 10
YES
HDR Effect
YES
Motion Blur Reduction Tech.
YES
Smart Energy Saving
YES
User Defined Key
YES
DisplayPort
YES(1ea)
DP Version
1.4
HDMI
YES(2ea)
Headphone out
3-Pole(Sound only)
AC Input
100~240V (50/60Hz)
DC Output
19V 1.7A
Power Consumption (DC Off)
Less than 0.3W
Power Consumption (Sleep Mode)
Less than 0.5W
Type
External Power(Adapter)
Display Position Adjustments
Tilt
Borderless Design
3-Side Virtually Borderless Design
Wall Mountable [mm]
100 x 100
CE
YES
KC (for Rep. of Korea)
YES
UL (cUL)
YES
Dimension in Shiping (W x H x D) [mm]
776 x 156 x 435mm
Dimension without Stand (W x H x D) [mm]
613.69 x 364.09 x 39.3mm
Dimension with Stand (W x H x D) [mm]
613.69 x 201.61 x 456.05
Weight in Shipping [kg]
5.9kg
Weight without Stand [kg]
3.25kg
Weight with Stand [kg]
3.87kg
HDMI
YES
Adapter
Depend on Country
HDMI (Color/Length)
Black / 1.8m
Power Cord
Depend on Country
OnScreen Control (LG Screen Manager)
YES
