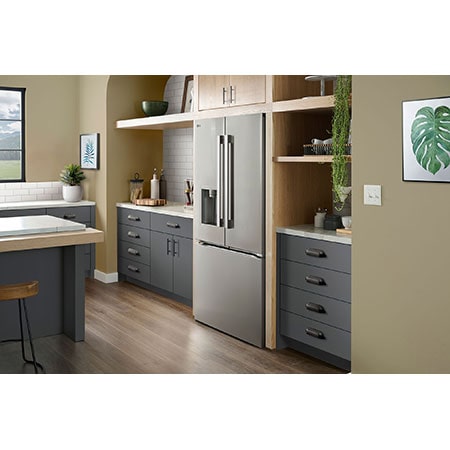

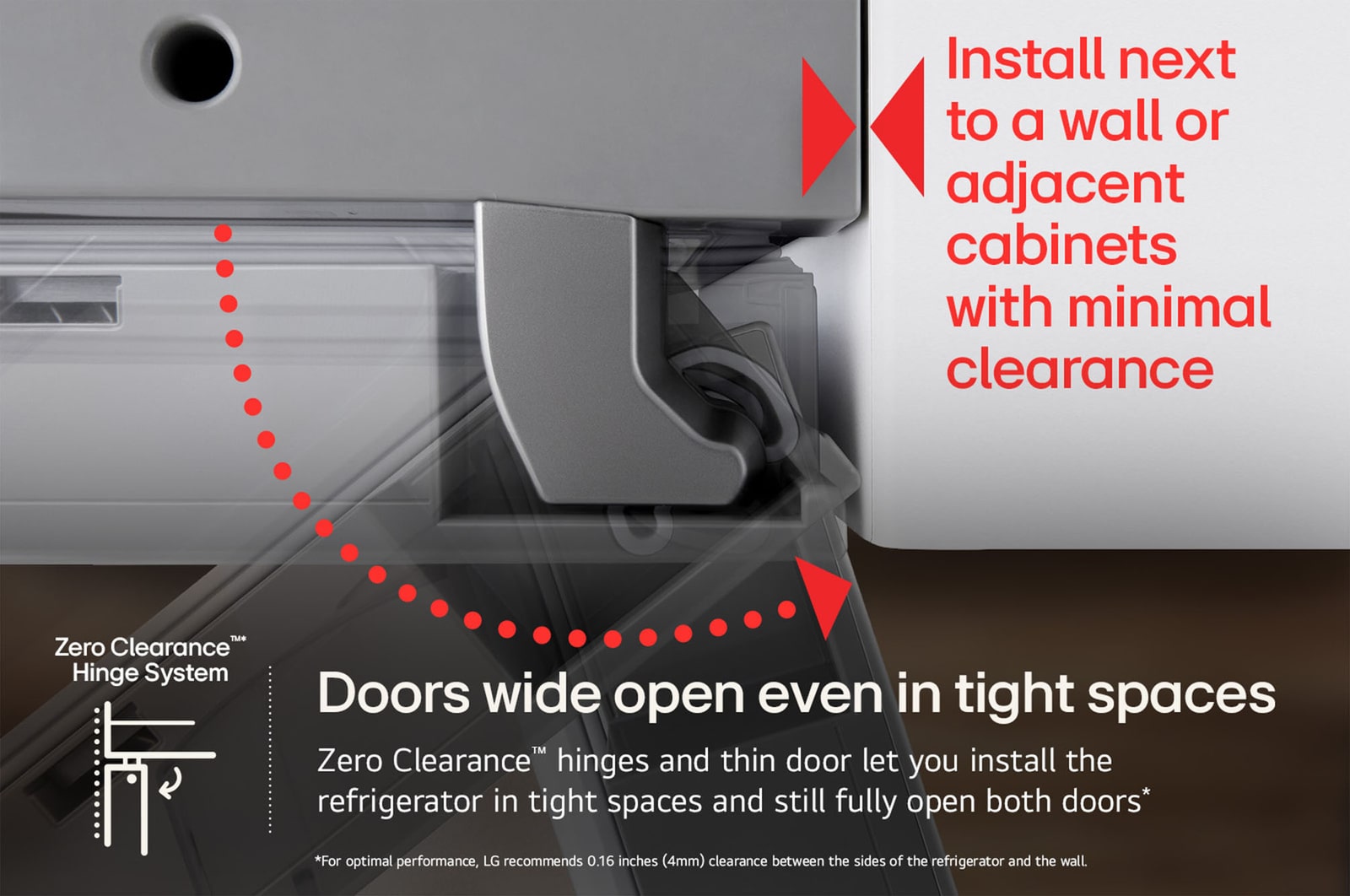

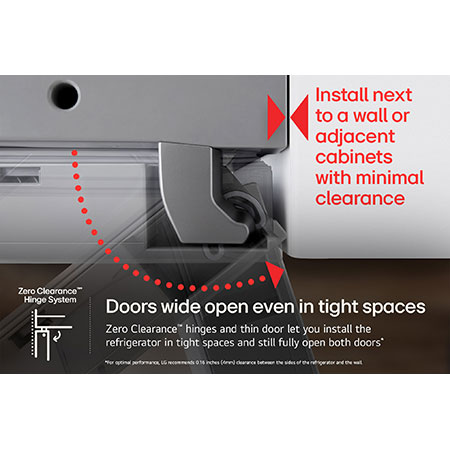

LG’s first-ever Counter-Depth MAX™ refrigerator with Zero Clearance™ Hinge System and thin door design brings the ultimate built-in look to your kitchen - without the built-in price. Now, you can install it near flush and still fully open both French doors with virtually no extra clearance needed*, even next to a wall or surrounding cabinetry.
*For optimal performance, LG recommends 0.16 inches (4 mm) clearance between the sides of the refrigerator and the wall.

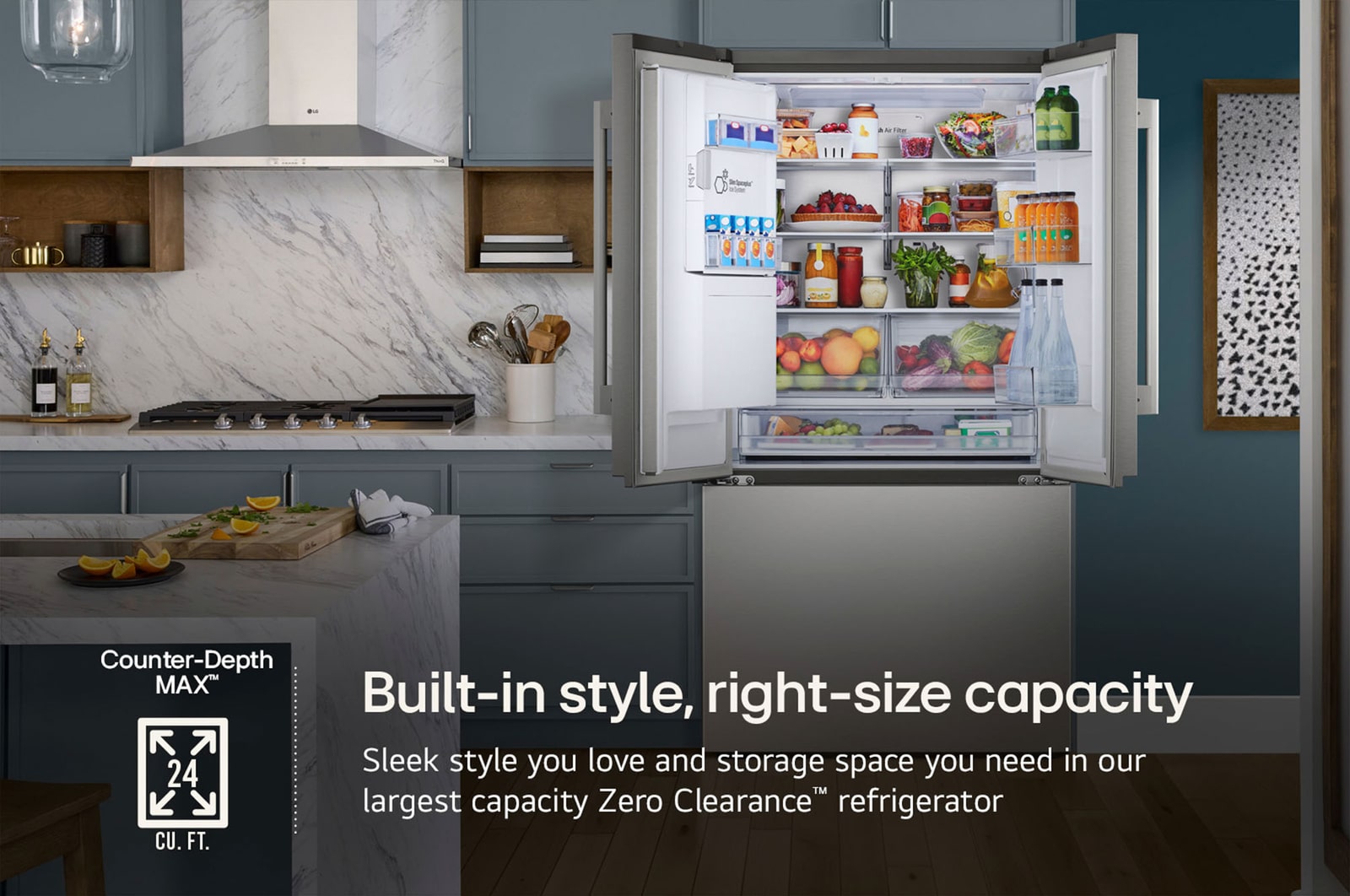

Counter-Depth MAX, 24 cu. ft.

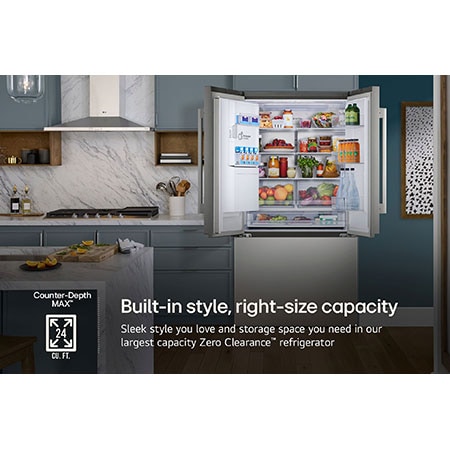

Striking the perfect balance between the sleek style you love and the storage space you need, this LG French door refrigerator offers LG's first and largest capacity freestanding counter-depth refrigerator with zero clearance™*. It gives you ample space for your family’s favorite foods and keeps them conveniently organized and within reach.
*For optimal performance, LG recommends 0.16 inches (4 mm) clearance between the side of the refrigerator and the wall.
3 Types of Ice including Craft Ice™
Enjoy drinks your way with 3 types of ice that are perfect for every occasion. Choose from standard ice cubes, crushed ice and LG's exclusive round Craft Ice™—crafted to melt slower, chill more efficiently and help beverages taste their best for longer. From craft cocktails and whiskey to soft drinks, lemonade, even iced coffee, give your beverages the perfect ice.

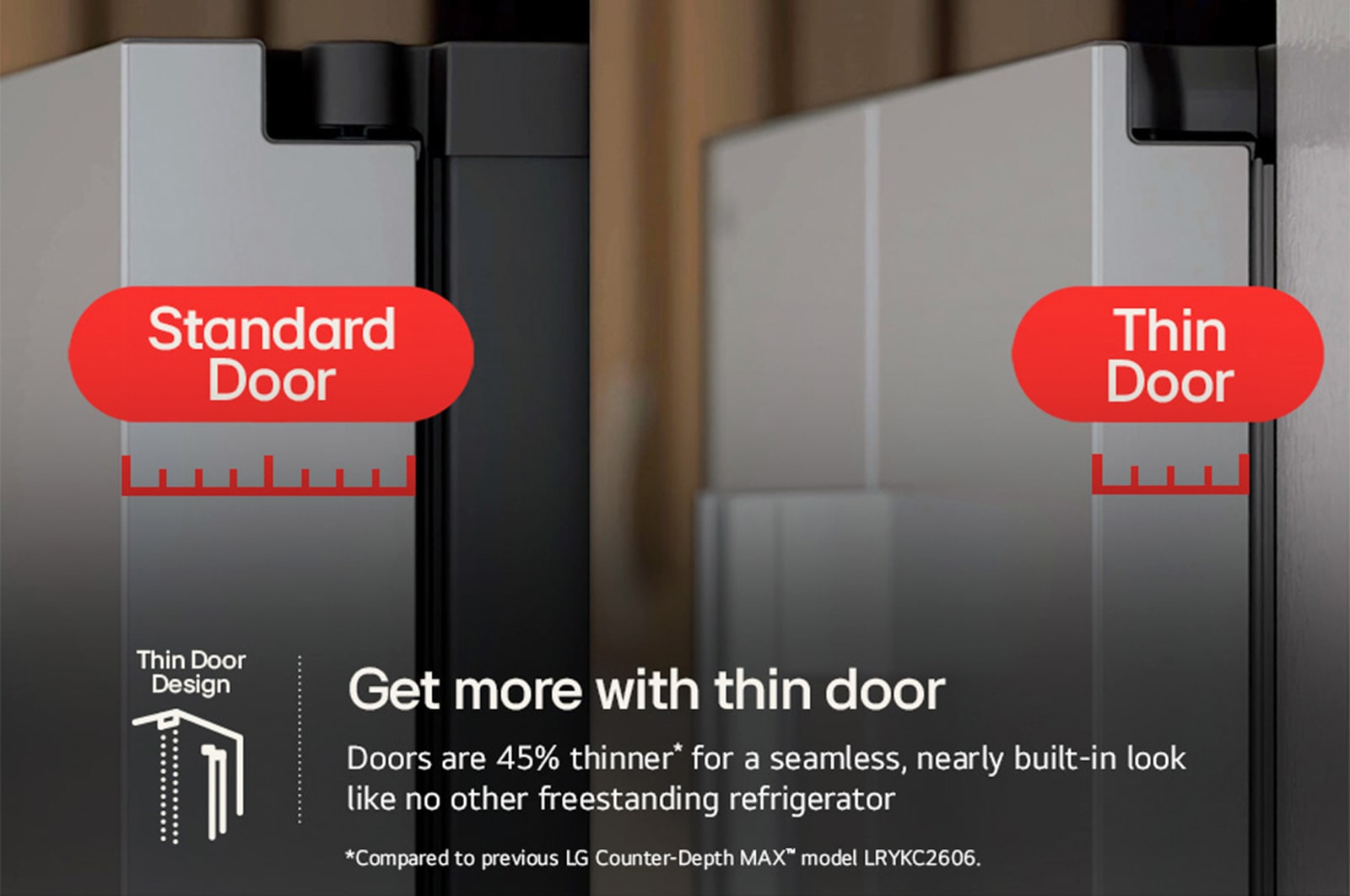

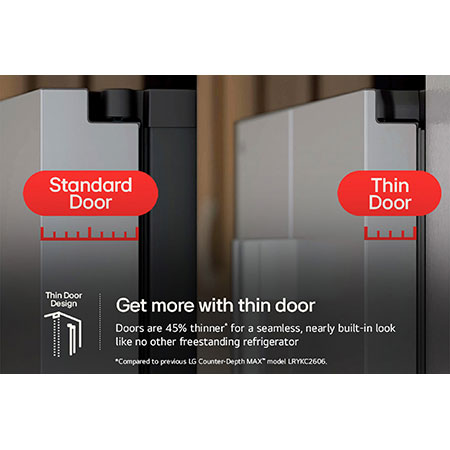

Thin Door Design
Doors are 45% thinner* so they take up less space while still providing the same daily ice production, easy ice and water access and energy efficiency you expect from LG. Combined with the zero clearance hinge system, you’ll enjoy a seamless, nearly built-in look like no other freestanding refrigerator.
*Compared to previous LG Counter-Depth MAX model LRYKC2606
Hybrid Handle Design
MAX out your fit with our hybrid handle design for easy opening and premium style. Restyled bar handles are slightly contoured to comfortably fit your hand while offering quick access. Discreet pocket handle on the freezer drawer makes it easy to slide it open, even when fully loaded. Together, they create a sleek look that complements the flat panel design.
Volume Total (cu.ft)
23.7
Packing Dimension (WxHxD, inch)
38" x 73" x 30"
Energy Consumption (kWh/Year)
699
ENERGY CONSUMPTION GRADE
ENERGY STAR
Compressor Type
Smart Inverter Compressor (BLDC)
InstaView
No
Door-in-Door
No
ThinQ (Wi-Fi)
Yes
Finish (Door)
Stainless Steel
Shelf_Folding
No
Door Basket_Moving Basket
No
Door Basket_Transparent
5
Refrigerator Light
Top LED
Shelf_Cantilevered
Yes (Hybrid)
Shelf_Tempered Glass
4 Split
Vegetable Box
Yes (2)
Wide Pantry
Yes
Bar Code
195174092453
Brand
LG
ENERGY CONSUMPTION GRADE
ENERGY STAR
Product Type
French Door (3Door)
Standard/Counter Depth
Counter Depth
Volume Total (cu.ft)
23.7
Volume Freezer (cu.ft)
7.9
Volume Refrigerator (cu.ft)
15.8
Internal LED Display
LED Display
Door alarm
Yes
Express Freeze
Yes
Product Weight (lb.)
261
Depth without door (inch)
24 3/4"
Depth without handle (inch)
27 1/2"
Depth with handle (inch)
29 7/8"
Gross Weight (lb.)
280.9
Height to Top of Case (inch)
68 7/8"
Height to Top of Hinge or Door Cap Deco (inch)
70 1/4"
Installation Clearance
Back 2"
Packing Dimension (WxHxD, inch)
38" x 73" x 30"

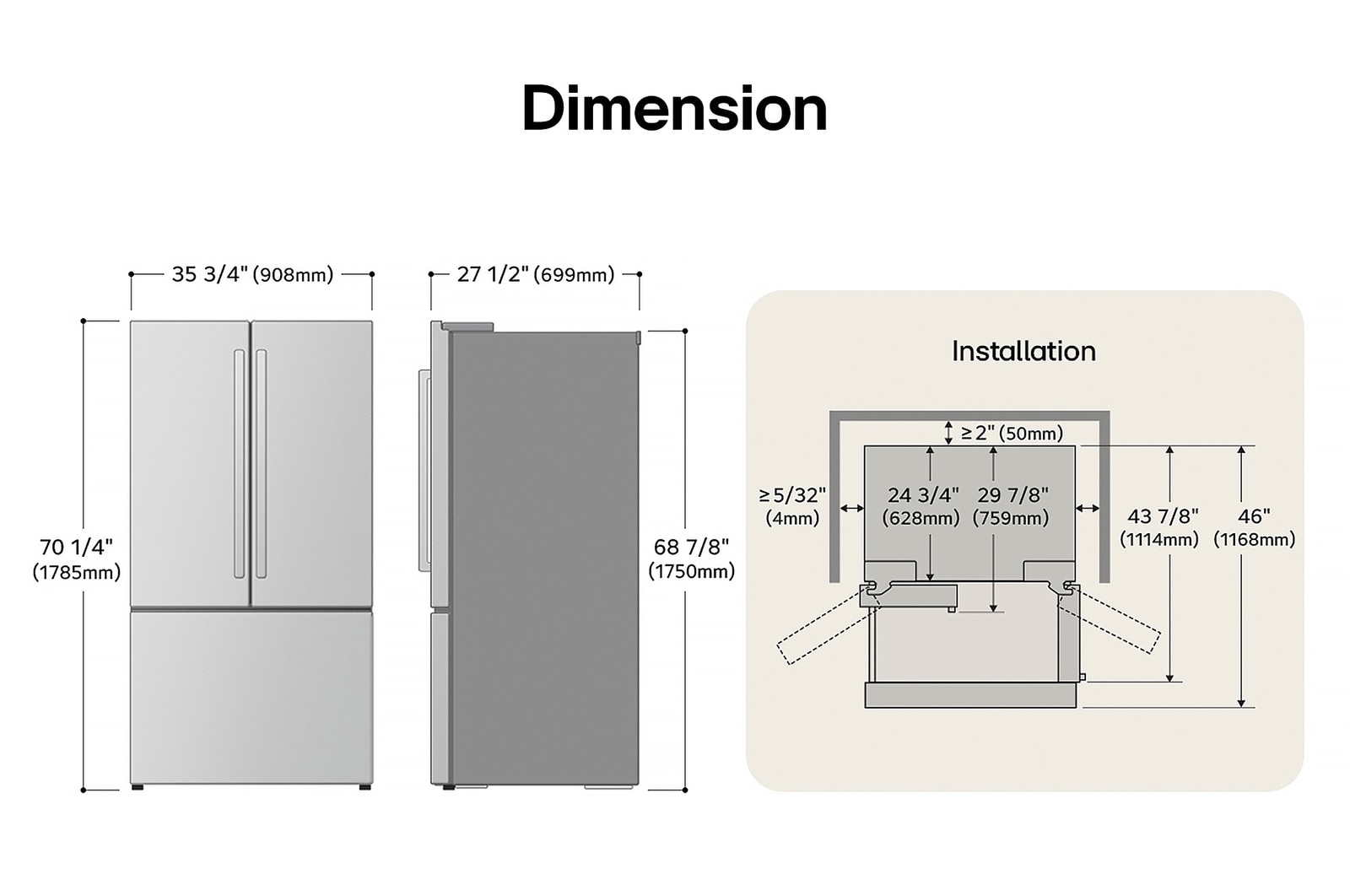

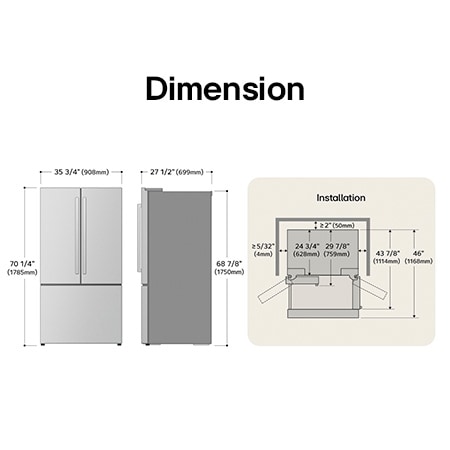

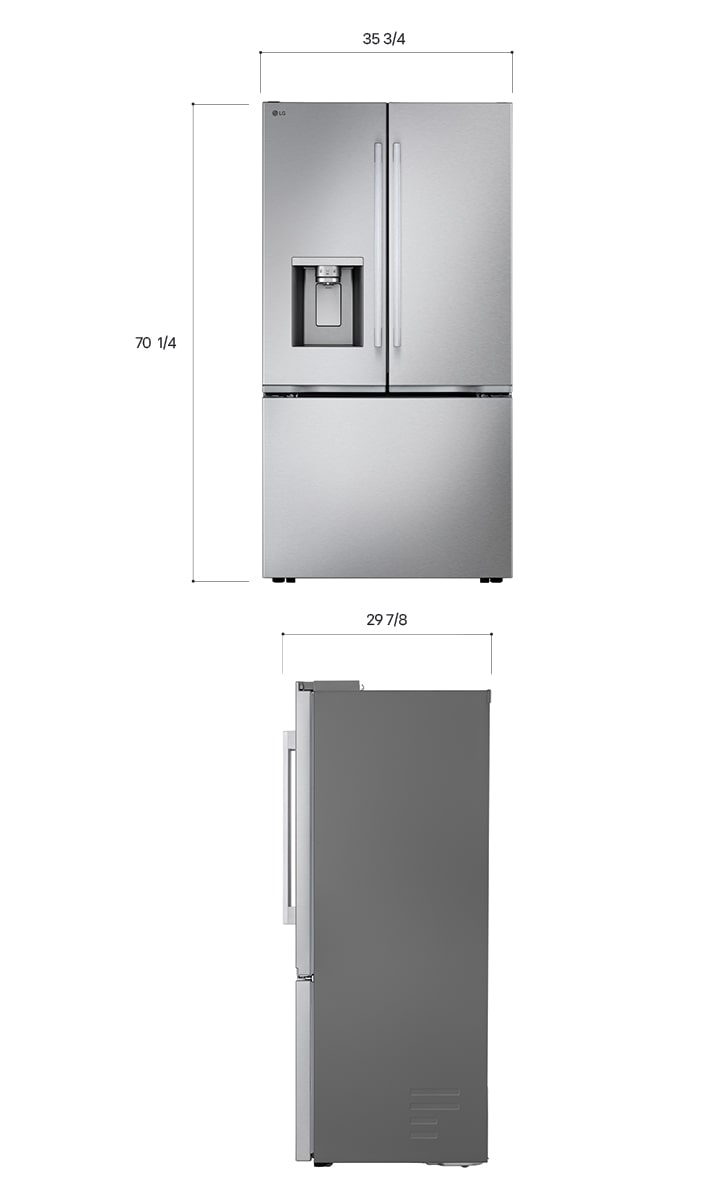

Product Dimension (WxHxD, inch)
35 3/4" x 70 1/4" x 29 7/8"
Total Depth with Door 90 Open (inch)
43 7/8"
Width door open 90 without Handle (inch)
35 1/8"
Width door open 90 with Handle (inch)
40"
Door Cooling+
Yes
Auto Closing Door Hinge
No
Door-in-Door
No
InstaView
No
Sabbath Mode
Yes
Door Type
Pull Drawer
Drawer Divider
Yes
Drawer_Freezer
1 Transparent
Durabase Solid Drawer Base
No
Freezer Light
Top LED
Water Only Dispenser
No
Automatic Ice Maker
Yes (In Cabinet, Factory Installed)
Daily Ice Production (lb.)
0.7 Craft Ice, 3.0 / 3.3 (IcePlus)
Dispenser Light
No
Dual lce Maker
Yes (Craft Ice)
Ice Maker_Manual
No
Ice Storage Capacity (lb.)
4.0
Ice & Water Dispenser
Cube & Crushed Ice
Water Filter Model Name
LT1000P
Water Filtration System
Internal (1 stage)
Handle Type
Bar + Pocket (Hybrid)
Contour Door
Flat
Fingerprint & Smudge Resistant Exterior
Yes
Finish (Door)
Stainless Steel
Flat Metal Duct (Metal Fresh)
R Metal
Convertible Drawer
No
Full-Convert Drawer
No
Energy Consumption (kWh/Year)
699
Compressor Type
Smart Inverter Compressor (BLDC)
ThinQ (Wi-Fi)
Yes
Proactive Customer Care
Yes
Smart Diagnosis
Yes
Smart Learner Ver.
No
