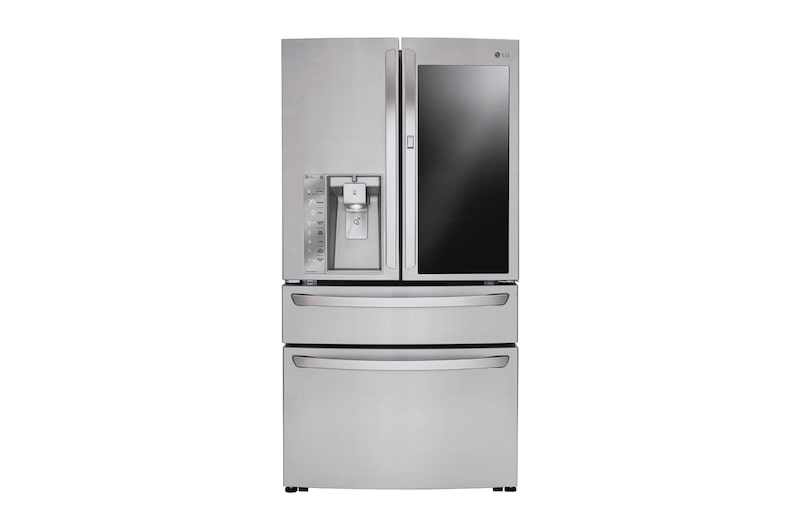

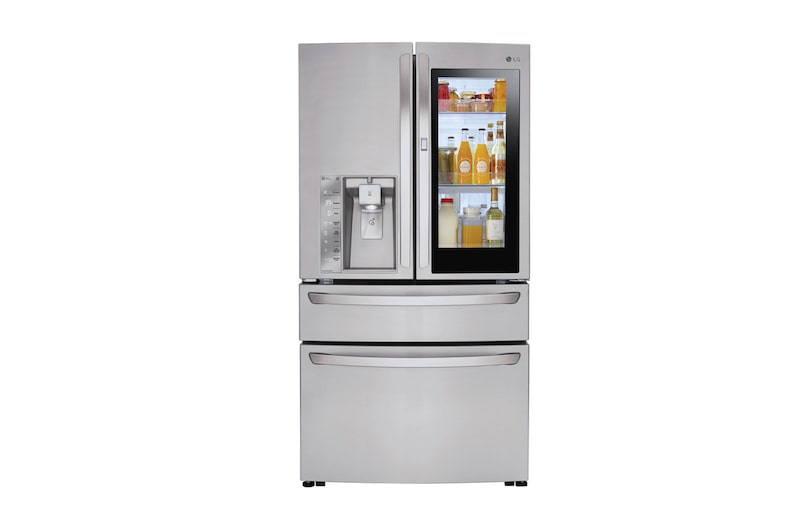

36" French Door Refrigerator with InstaView™
Door-in-Door®, 30 cu.ft.

36" French Door Refrigerator with InstaView™
Door-in-Door®, 30 cu.ft.

LMXS30796S

36" French Door Refrigerator with InstaView™
Door-in-Door®, 30 cu.ft.

SUMMARY

DIMENSIONS

LMXS30796S
CAPACITY
29.7 cu.ft.
MEASUREMENTS (WxHxD)
35 3/4" x 68 7/8" x 36 5/8"
InstaView®
Yes
ThinQ®
Yes

All Spec

BRAND

  • LG STUDIO

    No

  • LG Brand

    Yes

WIDTH

  • 36"

    Yes

DEPTH

  • Standard Depth

    Yes

  • Counter Depth

    No

CAPACITY(CU.FT.)

  • 30

    Yes

REFRIGERATOR FEATURE

  • InstaView Door-in-Door®

    Yes

  • Dispenser

    Ice & Water

  • ThinQ®

    Wi-Fi

  • Smudge Resistant Finish

    No

  • ENERGY STAR®

    Yes

CAPACITY

  • Refrigerator

    17.1 cu. ft.

  • CustomChill® Drawer

    3.8 cu. ft.

  • Freezer

    8.8 cu. ft.

  • Total

    29.7 cu. ft.

FEATURES

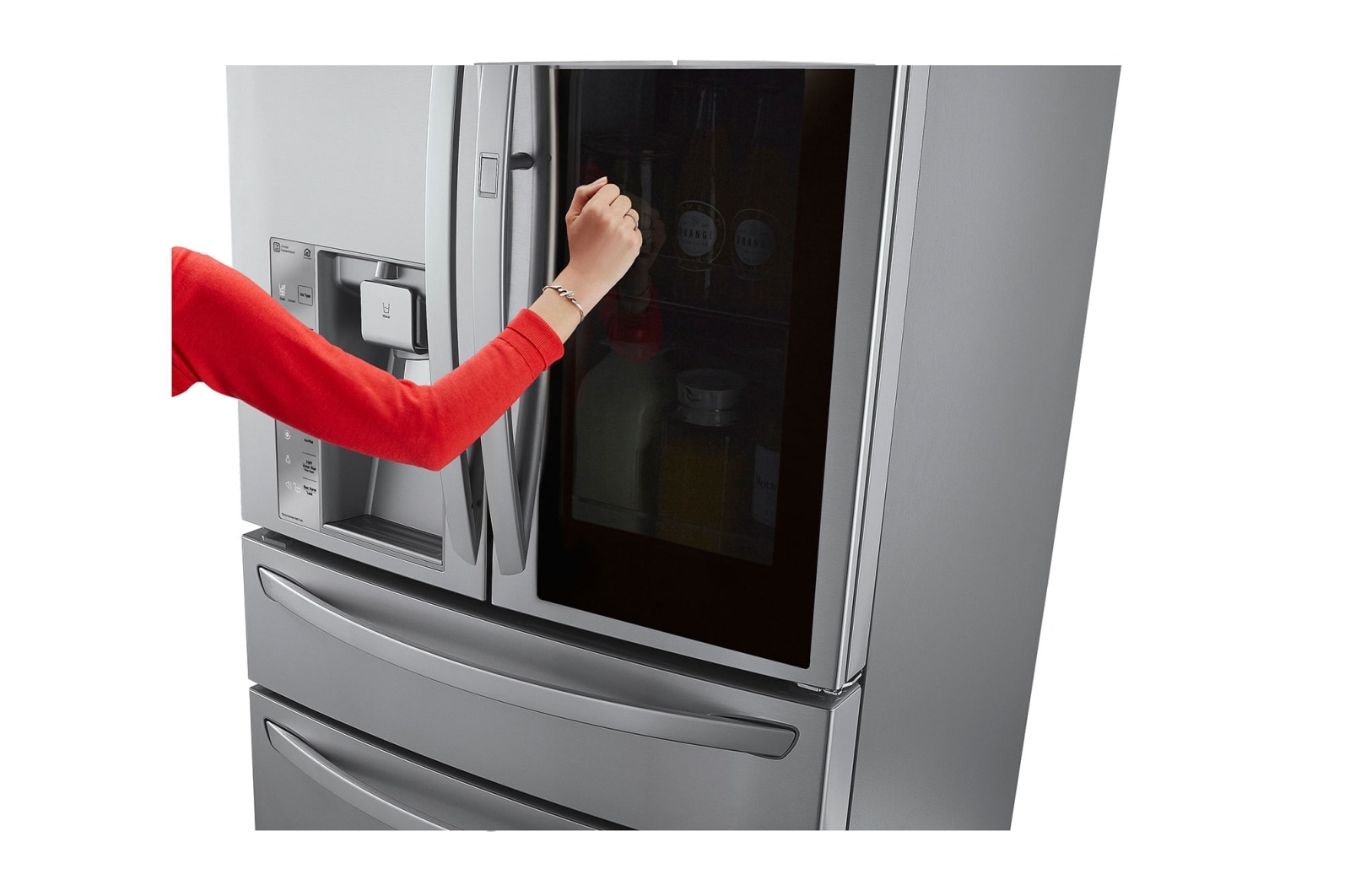

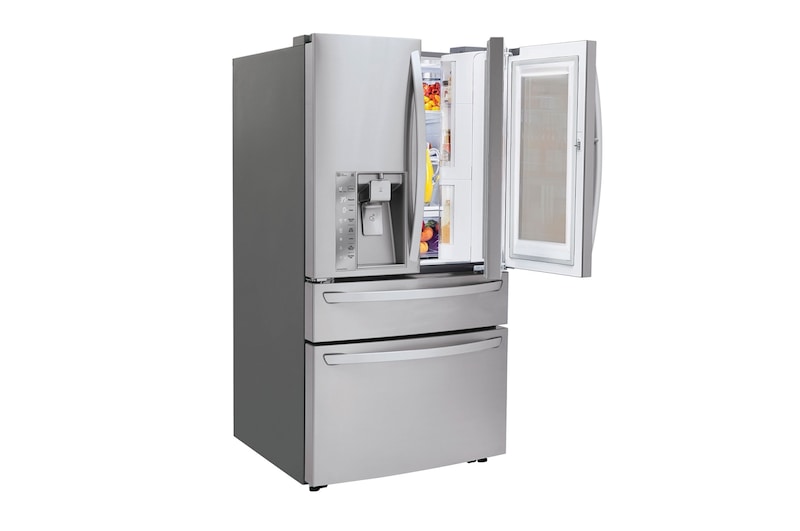

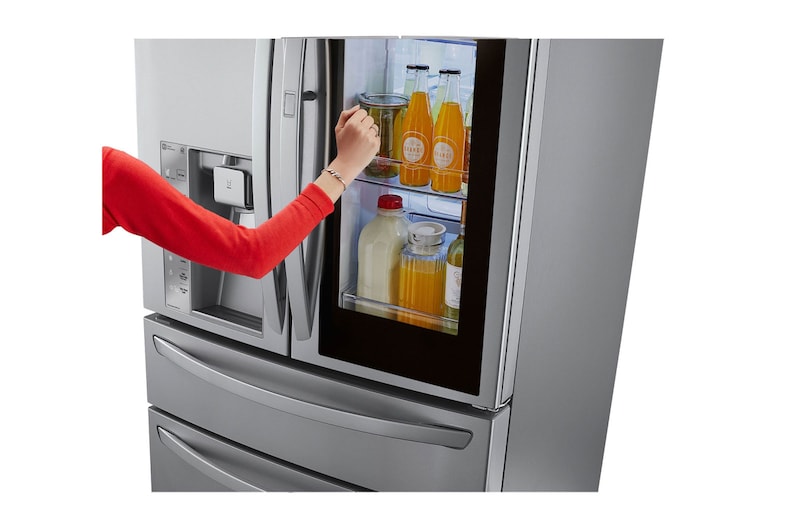

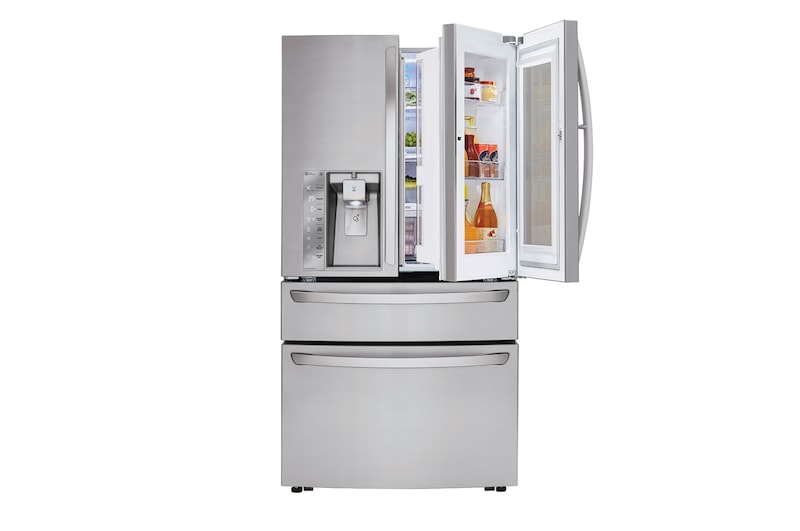

  • InstaView™ Door-in-Door® w/ ColdSaver™ Panel

    Yes (w/ Glass Panel)

  • CustomChill® Drawer

    Yes

  • Energy Consumption (kWh/Year)

    776

  • Ice & Water Dispenser

    Yes

  • Dispenser Type

    Integrated Tall Ice & Water Dispenser®

  • Ice System

    Slim SpacePlus®

  • Daily Ice Production

    3.5 lbs / 3.8 (IcePlus™)

  • Ice Storage Capacity

    3.0 lbs

  • Water Filtration System

    Compact Filter LT1000P

  • Smart Cooling Plus® System

    Yes

  • Multi Air Flow Cooling

    Yes

  • Temperature Sensors

    9

  • Linear Compressor

    Yes

  • Fresh Air Filter

    Yes

  • Dual Evaporator

    Yes

  • Display Type

    Smooth Touch Control (White LED)

CONVENIENCE

  • Temperature Controls

    Electronic/Digital

  • Door Alarm

    Yes

  • Child Lock

    Yes

  • LoDecibel™ Quiet Operation

    Yes

  • Smart Diagnosis™

    Yes

  • Auto Closing Door Hinge

    Yes

  • Wi-Fi Enabled (Smart Grid Available)

    Yes

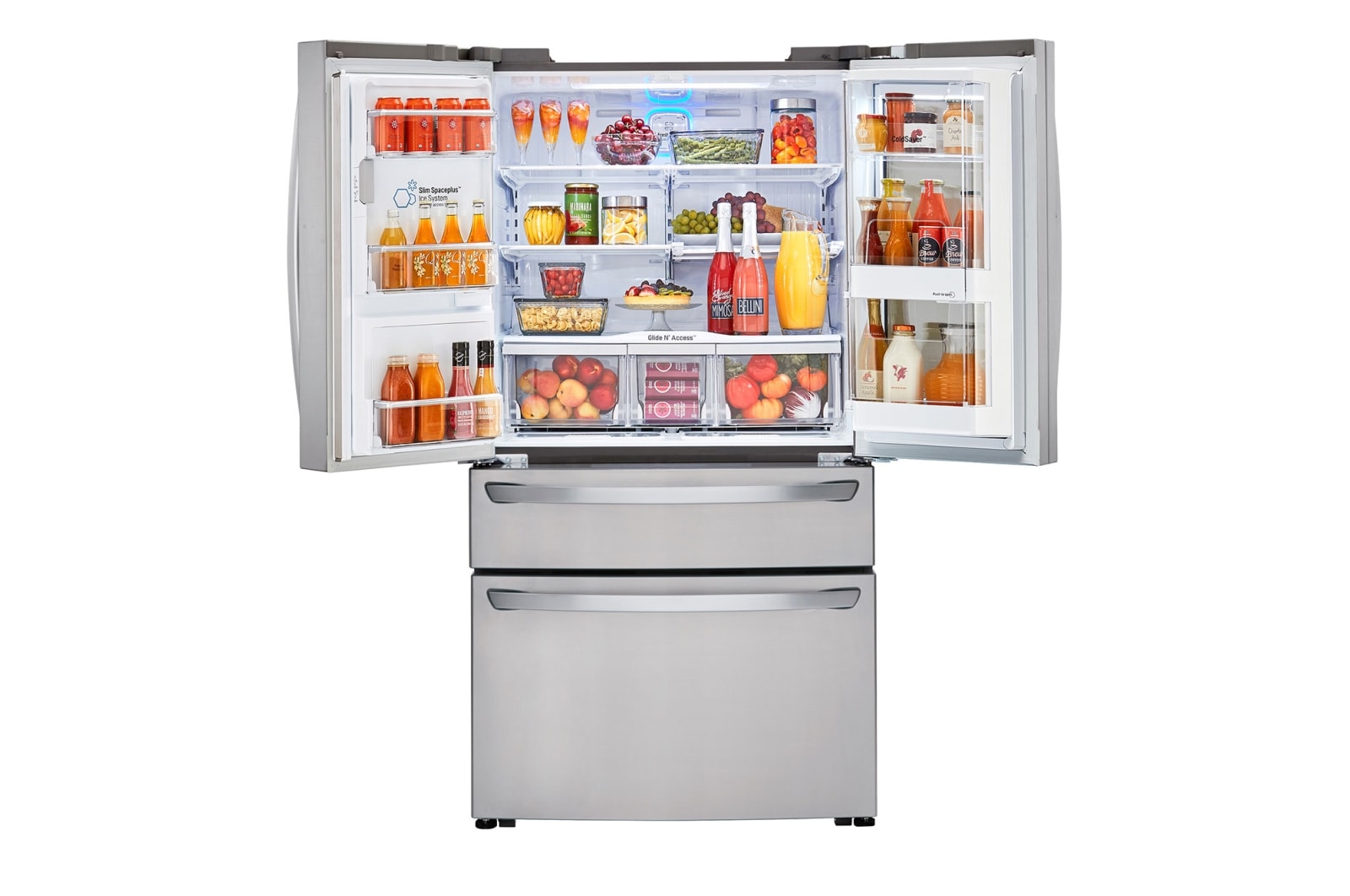

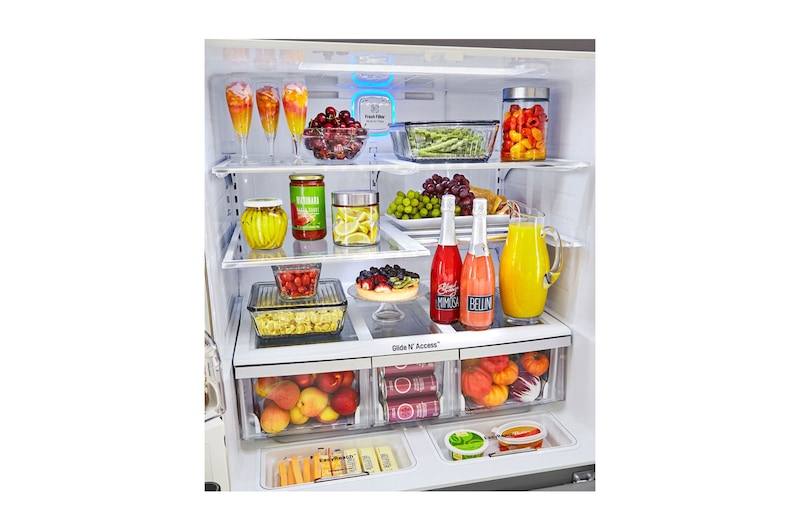

REFRIGERATOR

  • No. of Shelves

    4 Split (3 Fixed/1 Folding)

  • Folding Shelf

    Yes

  • Cantilevered Shelves

    Yes

  • Shelf Construction

    SpillProtector™ Tempered Glass

  • Crisper Bins

    2 Crispers/1 Bonus Drawer

  • Glide N' Access® Shelf

    Yes

  • EasyReach™ Bins

    2

  • Refrigerator Light

    Premium LED (Ceiling and Side)

REFRIGERATOR DOOR

  • No. of Shelves/Bin

    6 Total (2 Gallon Sized, 1 Regular, 3 Half)

  • Door Bin Construction

    Clear , Opaque, Silver Deco

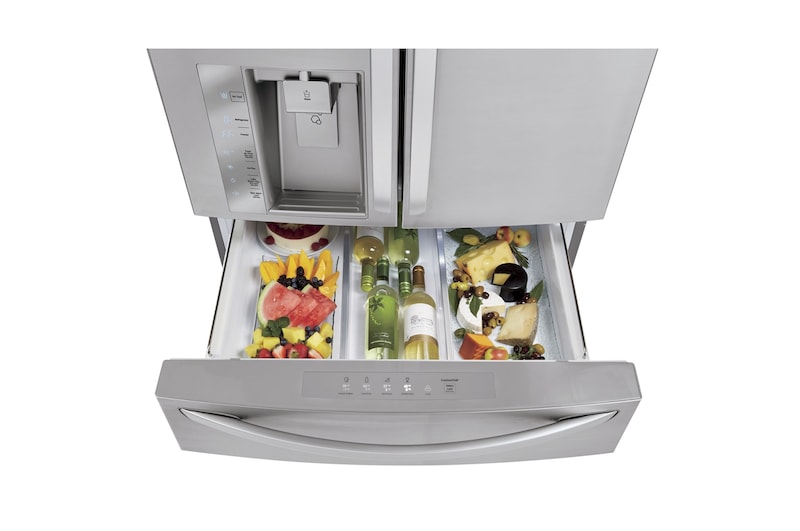

CUSTOMCHILL™ DRAWER

  • Dividers

    2

  • Temperature Range

    29˚, 33˚, 37˚, 42˚ F

  • Handle

    SmartPull®

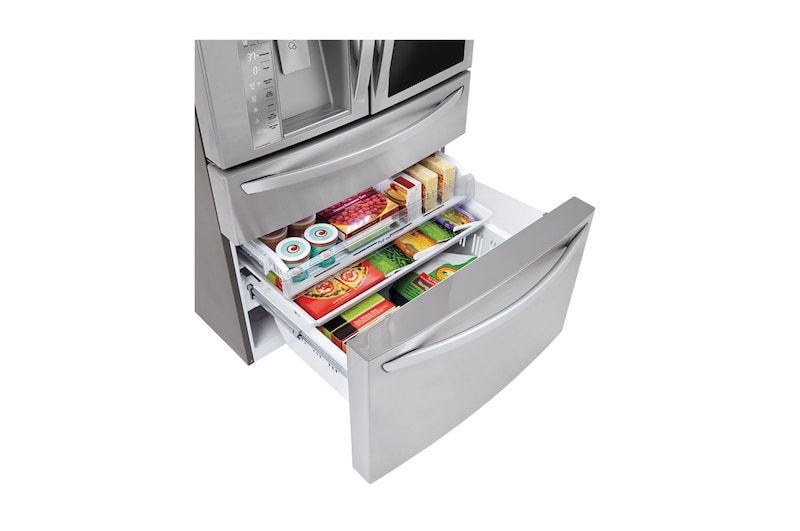

FREEZER

  • Door Type

    Pull Drawer

  • Drawers

    3-Tier Organization®

  • Handle

    SmartPull® Freezer Handle

  • DuraBase™ Solid Drawer Base

    Yes

  • Drawer Divider

    Yes

  • Freezer Light

    Premium LED

THINQ®

  • Smart Diagnosis™

    Yes

MATERIALS AND FINISHES

  • Contour Door

    Yes

  • Hidden Hinges

    Yes

  • Surface

    Coated Metal

  • Back

    Flush & Metal Cover Over Mechanical Parts

  • Available Colours

    Stainless Steel (S)

  • Handles

    Matching Commercial Handles

DIMENSIONS/CLEARANCES/WEIGHTS

  • Depth with Handles

    39 1/8"

  • Depth without Handles

    36 5/8"

  • Depth without Door

    31 3/4"

  • Depth (Total with Door Open)

    51"

  • Height to Top of Case

    68 7/8"

  • Height to Top of Door Hinge

    70 1/4"

  • Width

    35 3/4"

  • Width (Door Open 90˚ with Handle)

    45"

  • Width (Door Open 90˚ without Handle)

    40"

  • Door Edge Clearance with Handle

    4 5/8"

  • Door Edge Clearance without Handle

    2 1/4"

  • Installation Clearance

    Sides 1/8", Top 1", Back 2"

  • Weight (Unit/Carton)

    404 lbs / 437 lbs.

  • Carton Dimensions (WxHxD)

    38" x 73" x 40"

LIMITED WARRANTY

  • WARRANTY

    1 Year Parts and Labour, 7 Years on the Sealed System 10 Years on Linear Compressor

UPC CODES

  • Stainless Steel

    048231 788854
