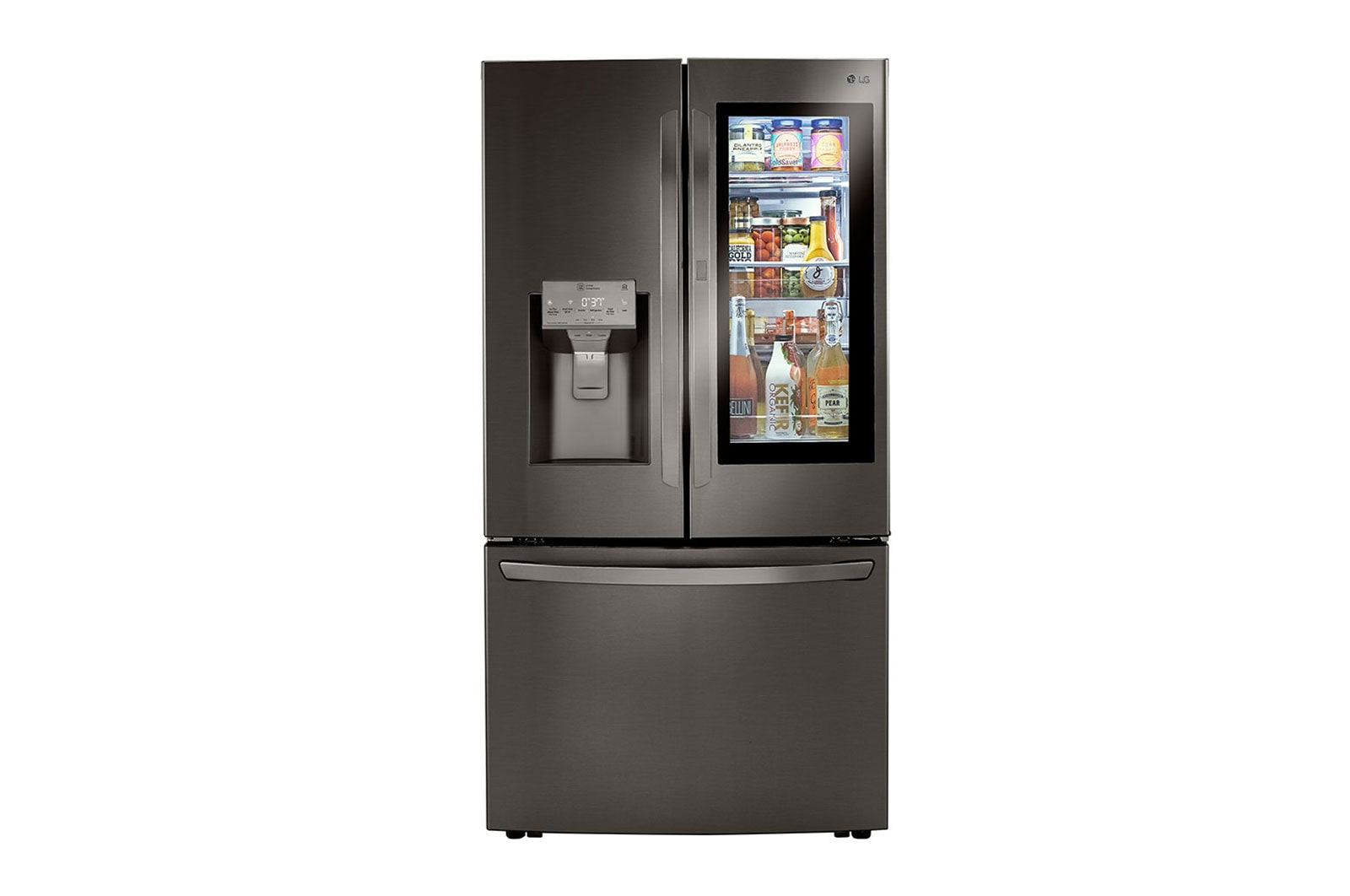

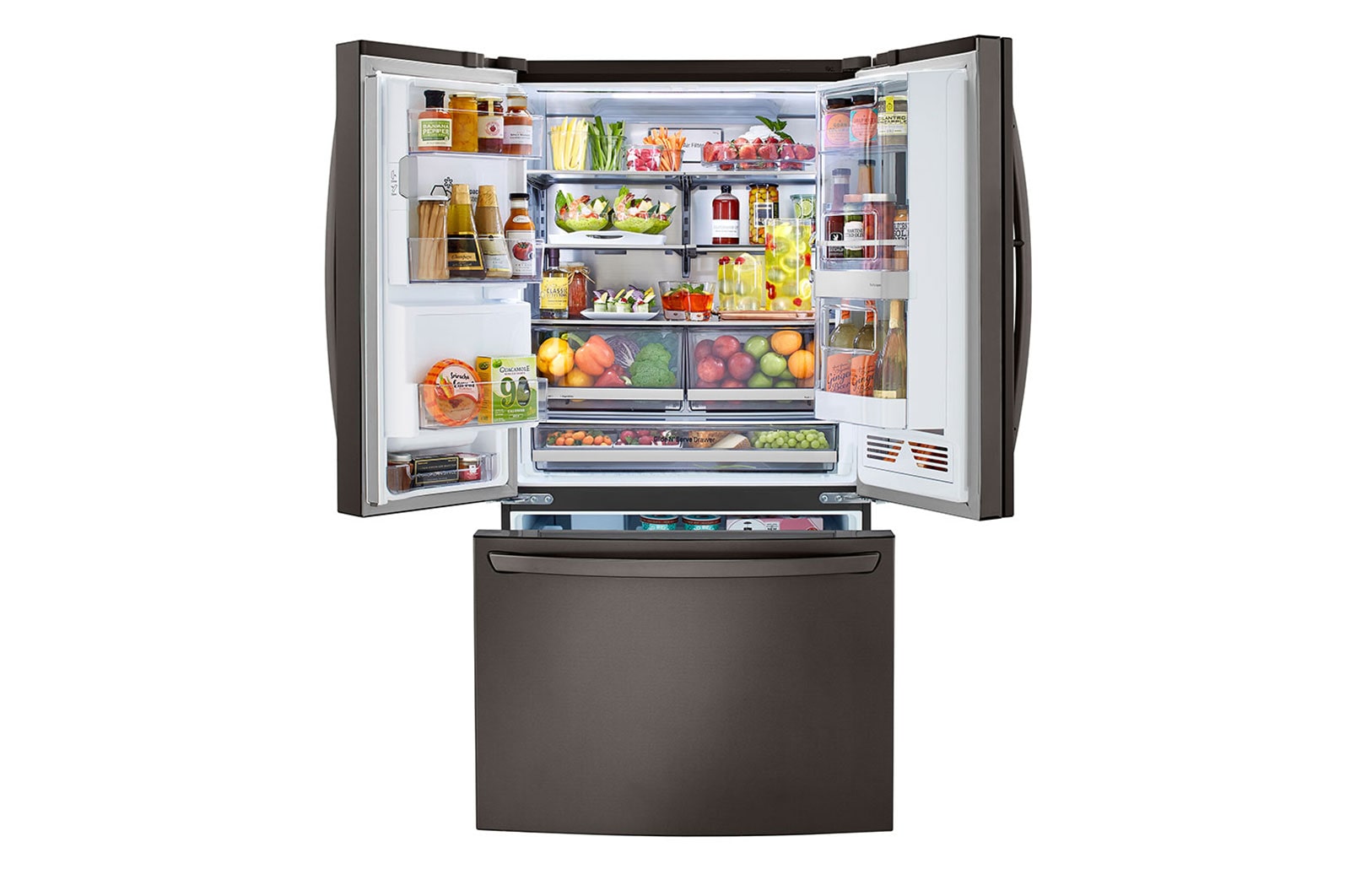

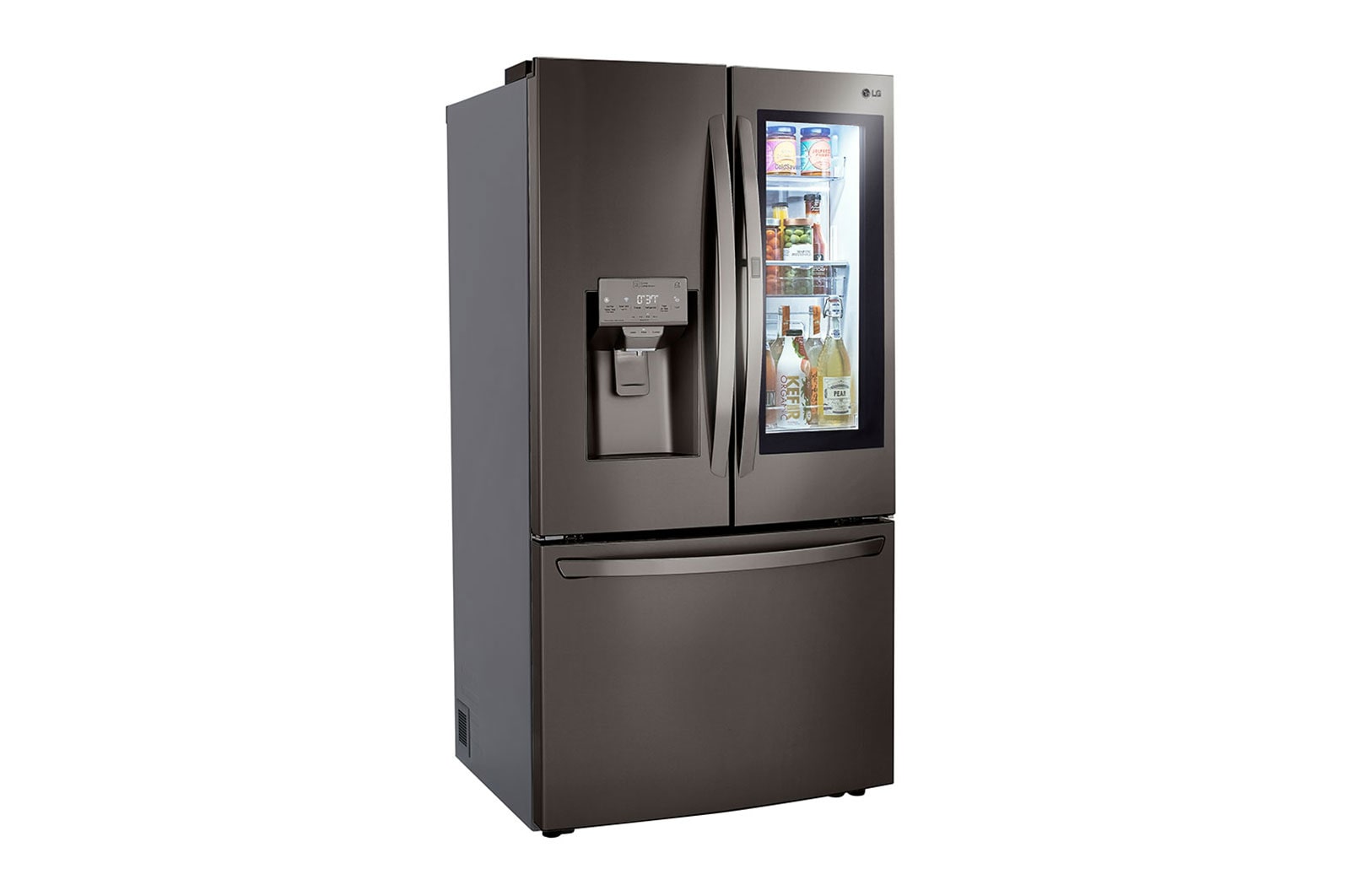

36" InstaView® Door-in-Door® with Craft Ice Maker

Specs

Reviews

Support

36" InstaView® Door-in-Door® with Craft Ice Maker

LRFVC2406D

36" InstaView® Door-in-Door® with Craft Ice Maker

(2)

SUMMARY

Print
CAPACITY
23.5 cu.ft.
MEASUREMENTS (WxHxD)
35 3/4" x 70 1/4"x 30 3/4"
InstaView®
Yes
ThinQ®
Yes

All Spec

CAPACITY

  • Refrigerator (cu.ft.)

    15.4

  • Freezer (cu.ft.)

    8.1

  • Total Capacity (cu.ft.)

    23.5

ENERGY

  • Energy Consumption (kWh/year)

    717

  • ENERGY STAR® Qualified

    Yes

WATER & ICE SYSTEM

  • Ice & Water Dispenser

    Yes

  • Dispenser Type

    Integrated Ice & Water Dispenser

  • Measured Fill

    Yes

  • Daily Ice Production (lbs)

    3.5 lbs

  • Craft Ice™ Daily Ice Production (lbs)

    0.4 lbs

  • IcePlus™ Production (lbs)

    3.8 lbs

  • Ice Storage Capacity (lbs)

    3.0 lbs + 3.5 lbs

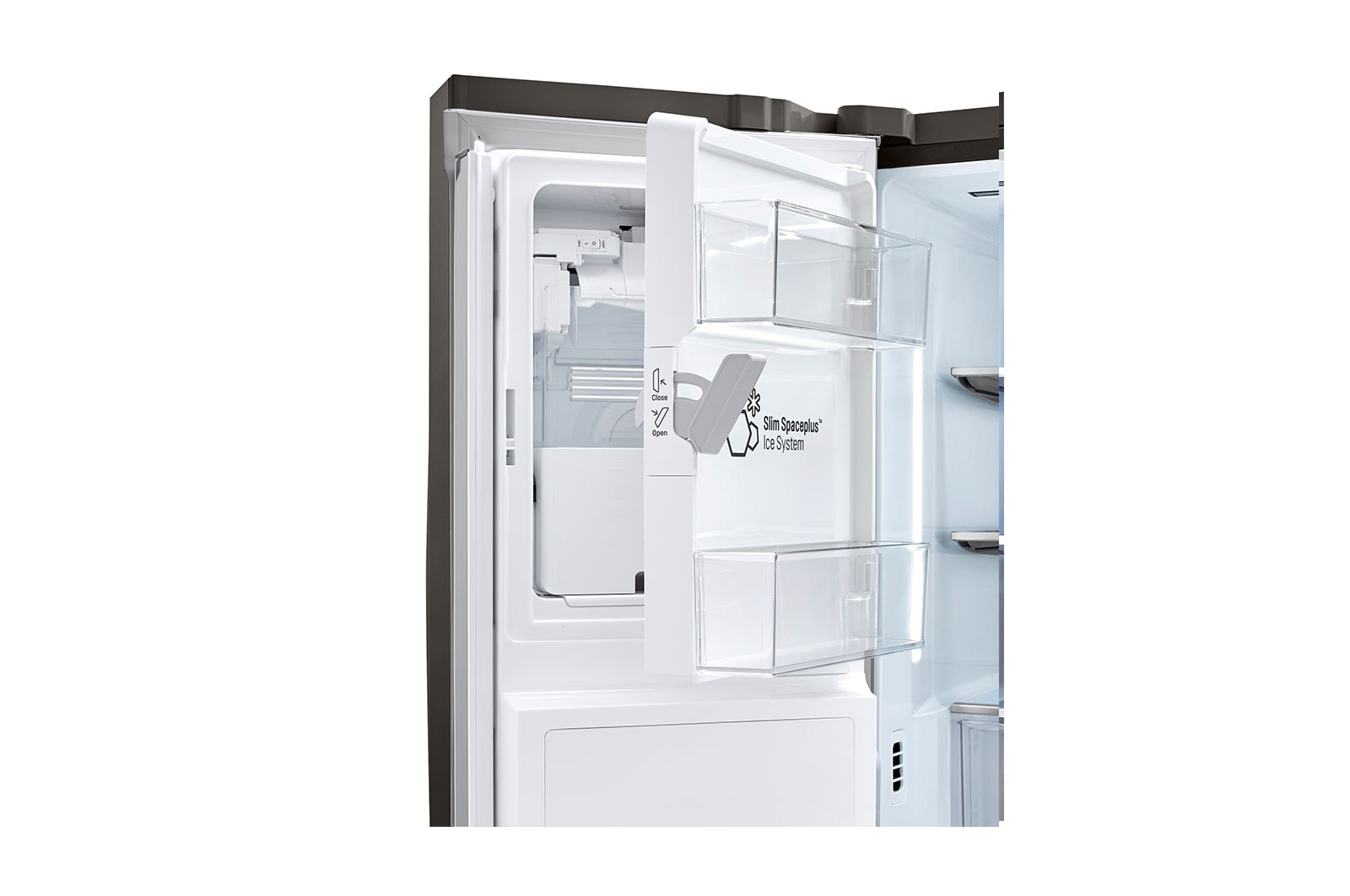

  • Ice System

    Slim SpacePlus®

  • Dual Ice Maker with Craft Ice

    Yes

  • Dispenser Light

    Yes

  • Water Filter

    LT1000P

COOLING

  • Inverter Linear Compressor

    Yes

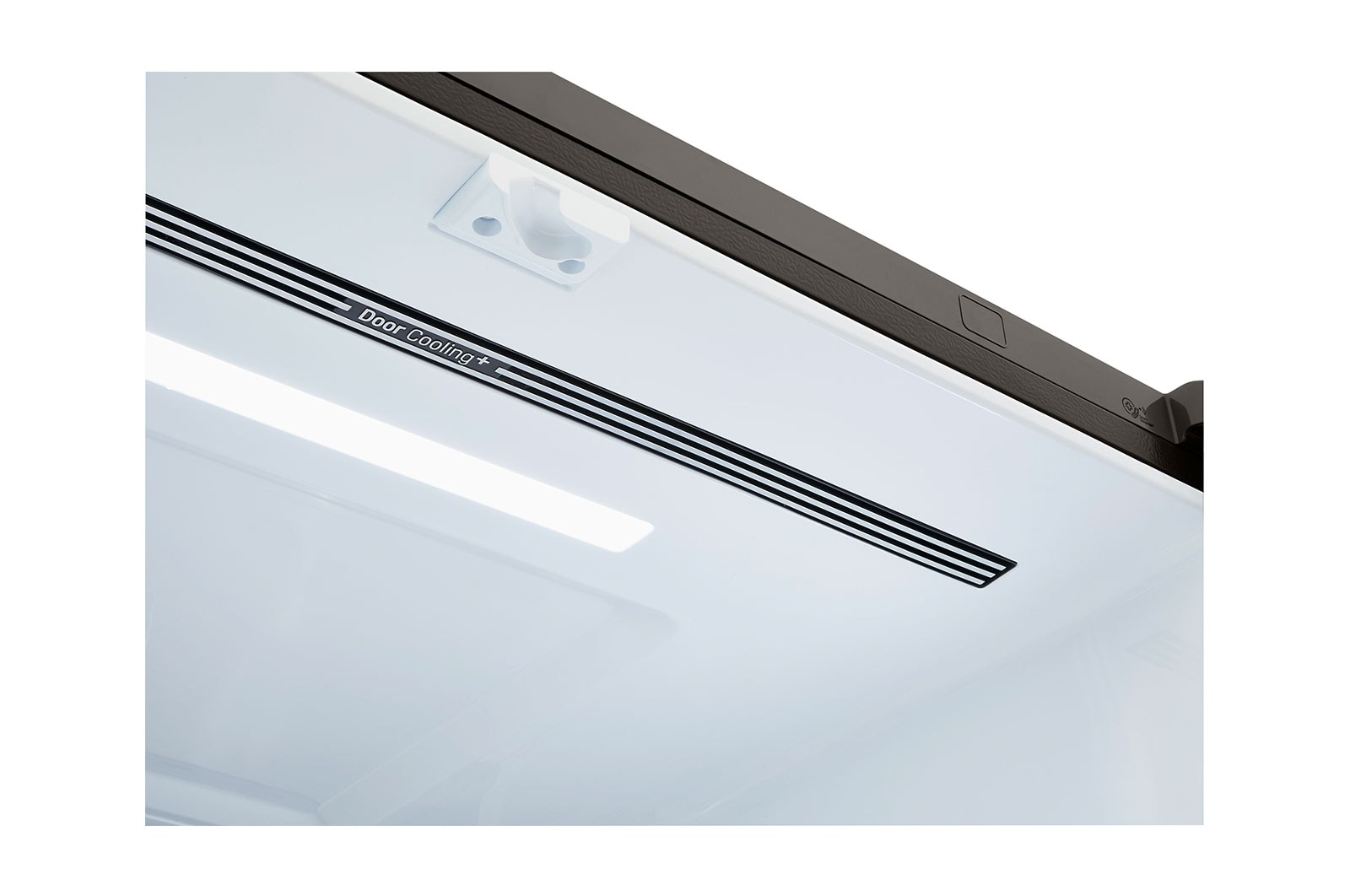

  • Door Cooling+

    Yes

  • Smart Cooling Plus™ System

    Yes

  • Temperature Sensors

    9

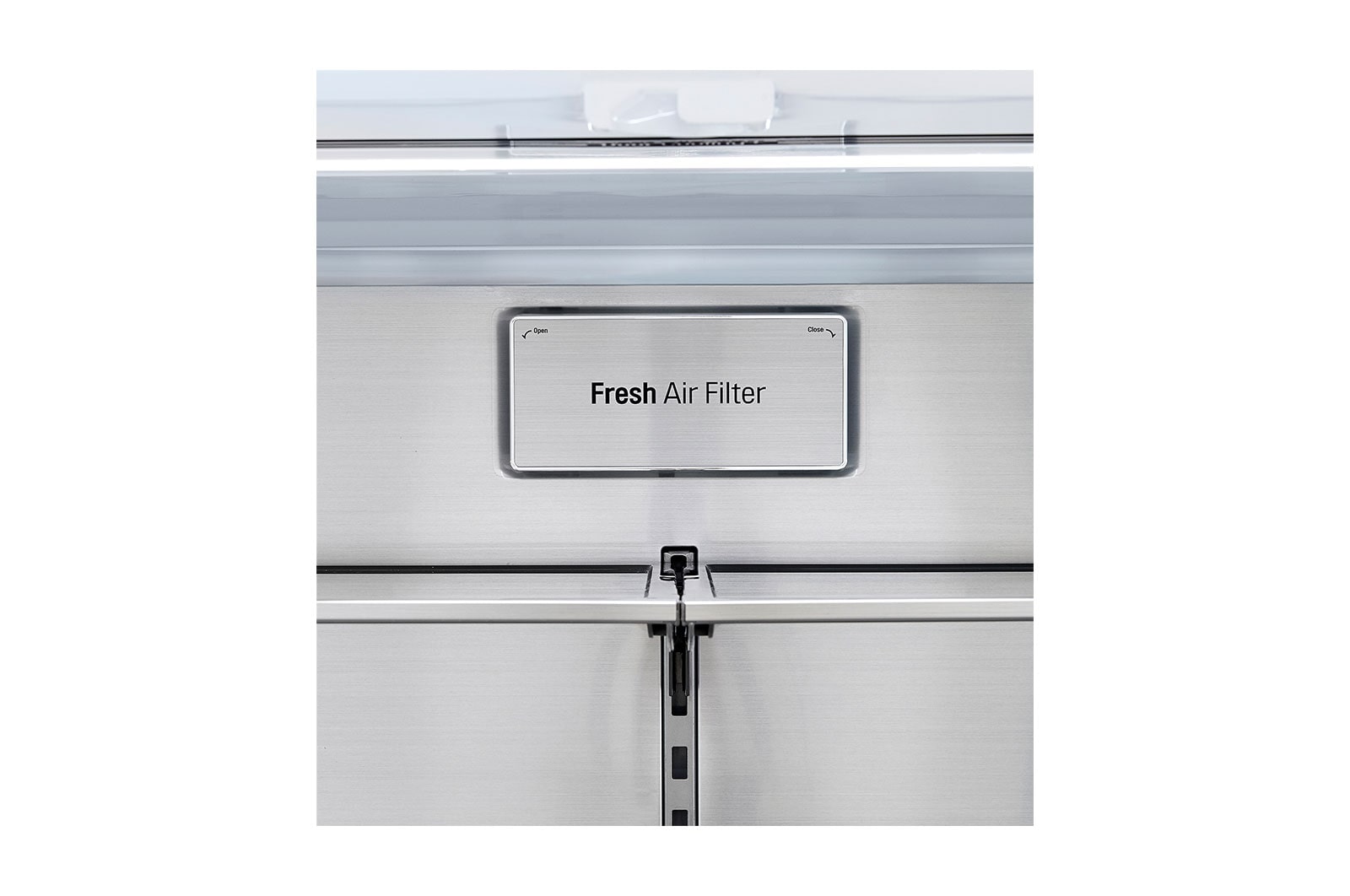

  • Fresh Air Filter

    Yes

  • Evaporator

    2

CONVENIENCE

  • Display Type

    Slim SpacePlus®

  • Temperature Controls

    Electronic/Digital

  • Door Alarm

    Yes

  • Child Lock

    Yes

  • Auto Closing Door Hinge

    Yes

  • Sabbath Mode

    Yes

  • LoDecibel™ Quiet Operation

    Yes

REFRIGERATOR

  • No. of Shelves

    4 Split (3 Fixed+1 Folding)

  • Folding Shelf

    1

  • Cantilevered Shelves

    Yes

  • Shelf Construction

    Spill Protector™ Tempered Glass

  • Crisper Bins

    2 Humidity Crisper

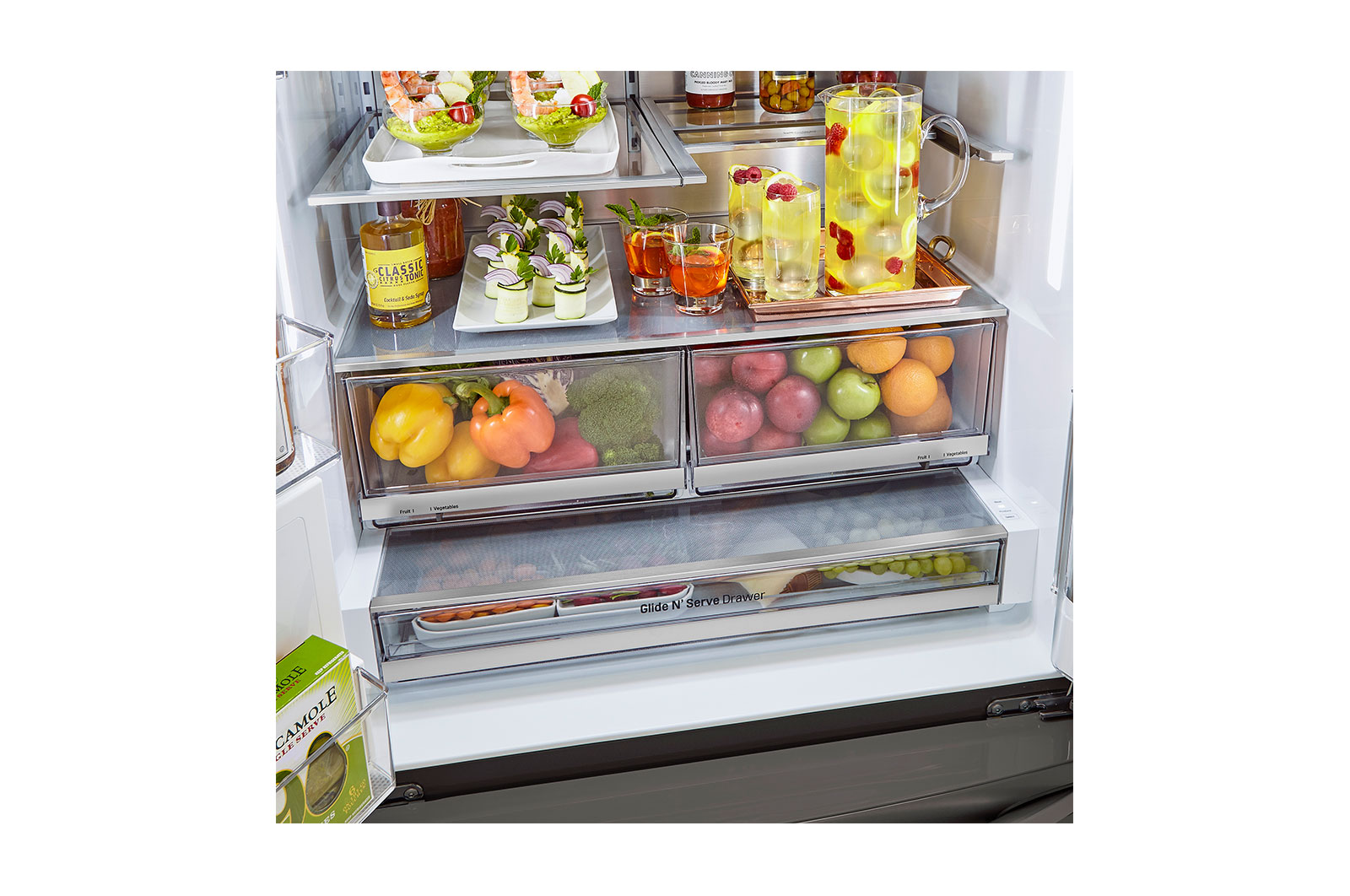

  • Glide N’ Serve™ Drawer

    Yes

  • Temperature Control Pantry

    Digital Control

  • ColdSaver™ Glass Panel

    Yes

  • Refrigerator Light

    Micro Surface LED

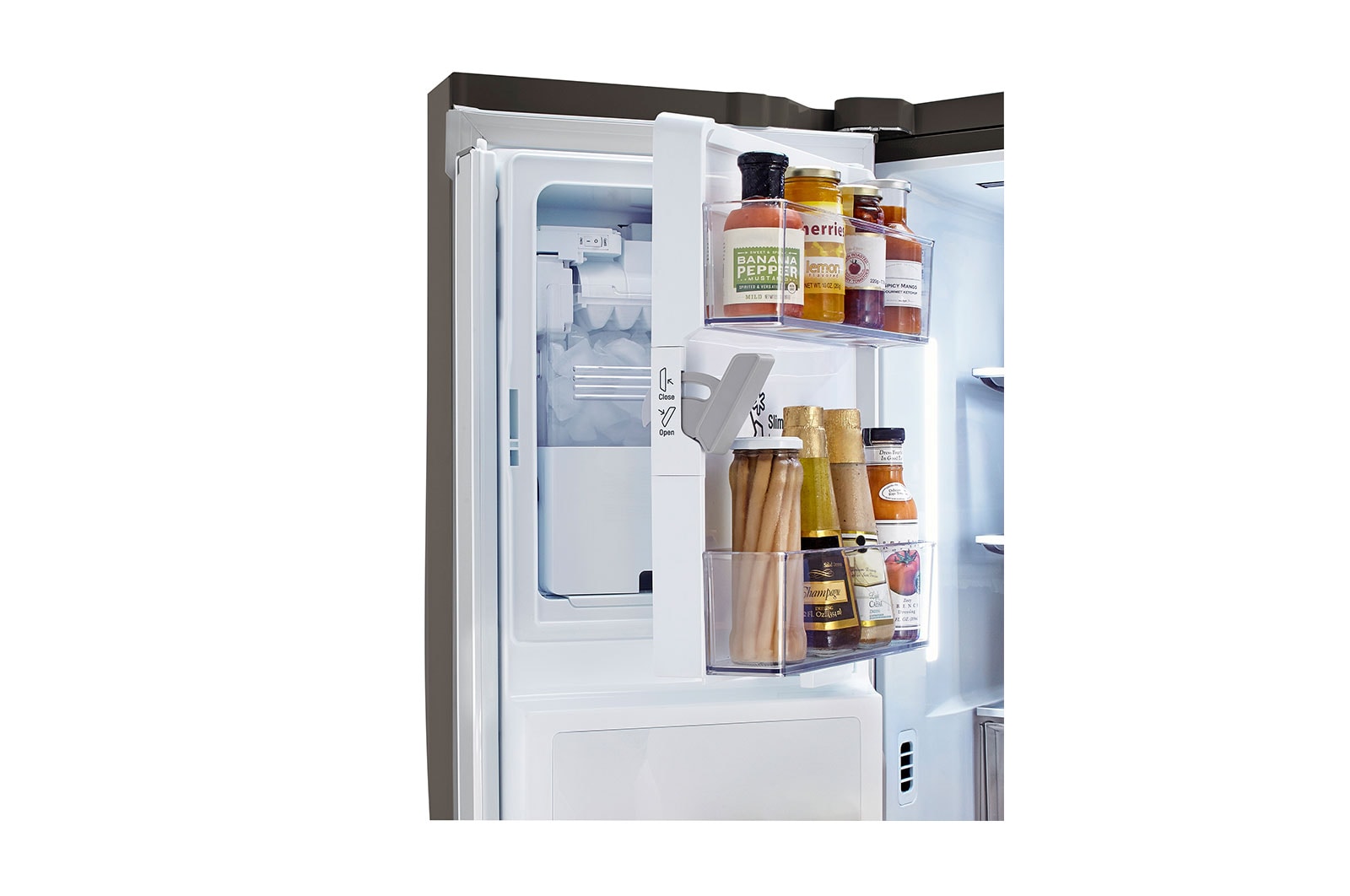

REFRIGERATOR DOOR

  • InstaView® Door-in-Door®

    Yes

  • Door-In-Door® with ColdSaver™Panel

    Yes

  • Adjustable Door-in-Door® Bins

    Yes

  • No. of Bins

    8

  • Door Bin Construction

    1 Piece (Clear)

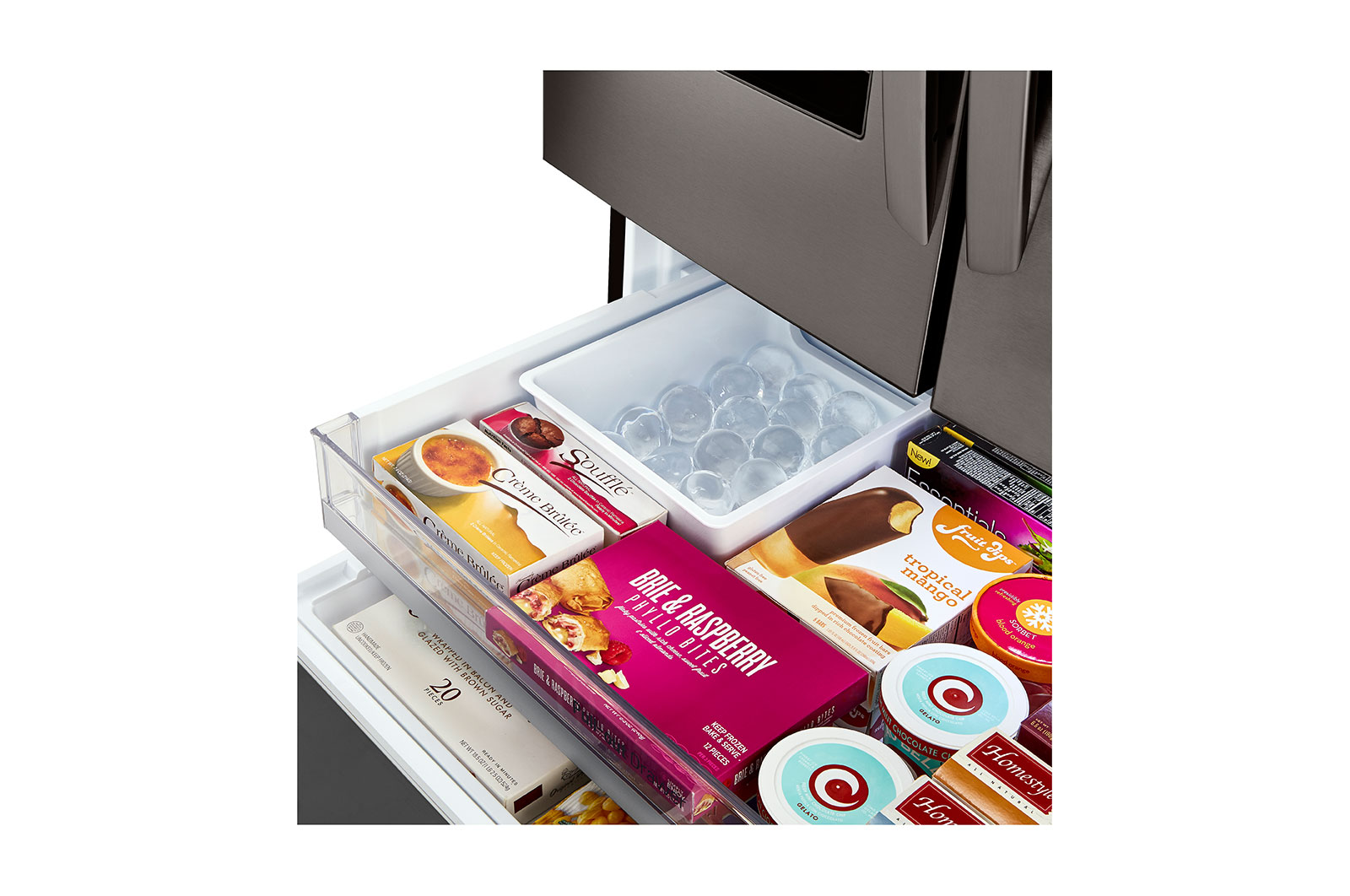

FREEZER

  • Door Type

    Pull Drawer

  • Drawers

    3-Tier Organization

  • DuraBase™ Solid Drawer Base

    Yes

  • Drawer Divider

    Yes

  • Dual Ice Maker

    Yes

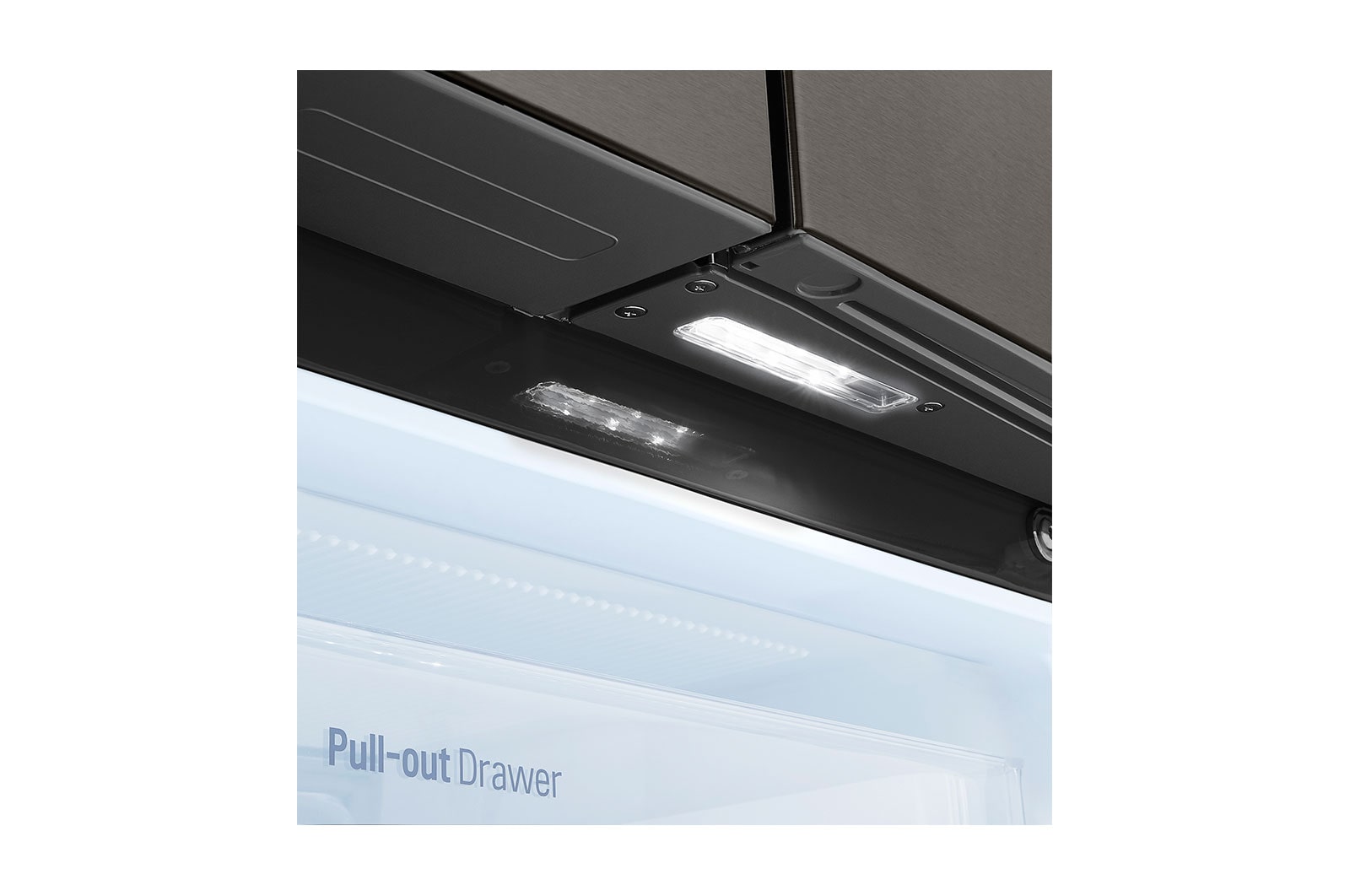

  • Freezer Light

    Premium LED

  • Freezer Handle

    SmartPull™ Handle

SMART FEATURES

  • WiFi Enabled

    Yes

  • SmartThinQ®

    Yes

  • Works with

    Google Assistant, Amazon Alexa

  • SmartDiagnosis™

    Yes

MATERIALS AND FINISHES

  • Contour Door

    Yes

  • Hidden Hinges

    Yes

  • Surface

    Smooth

  • Fingerprint & Smudge Resistant Exterior

    Yes

  • Handles

    Matching Commercial Handles

  • All Available Colors

    Smudge Resistant Stainless Steel Black Stainless Steel

DIMENSIONS/CLEARANCES/WEIGHTS

  • Depth with Handles

    30 3/4"

  • Depth without Handles

    28 1/4"

  • Depth without Door

    24"

  • Depth (Total with Door Open)

    42 5/8"

  • Height to Top of Case

    68 7/8"

  • Height to Top of Door Hinge

    70 1/4"

  • Width

    35 3/4"

  • Width (Door Open 90˚ with Handle)

    44 1/4"

  • Width (Door Open 90˚ without Handle)

    40"

  • Door Edge Clearance with Handle

    4 1/4"

  • Door Edge Clearance without Handle

    2 1/8"

  • Installation Clearance

    Sides 1/8", Top 1", Back 2"

  • Carton Dimensions (WxHxD)

    38" x 73" x 33"

LIMITED WARRANTY

  • Parts & Labor

    1 Year

  • Sealed System

    7 Years

  • Inverter Linear Compressor

    10 Years

BRAND

  • LG Brand

    Yes

WIDTH

  • 36"

    Yes

DEPTH

  • Counter Depth

    Yes

UPC CODES

  • LRFVC2406D.ASBCNA0

    048231803397

  • LRFVC2406S.ASTCNA0

    048231803380
