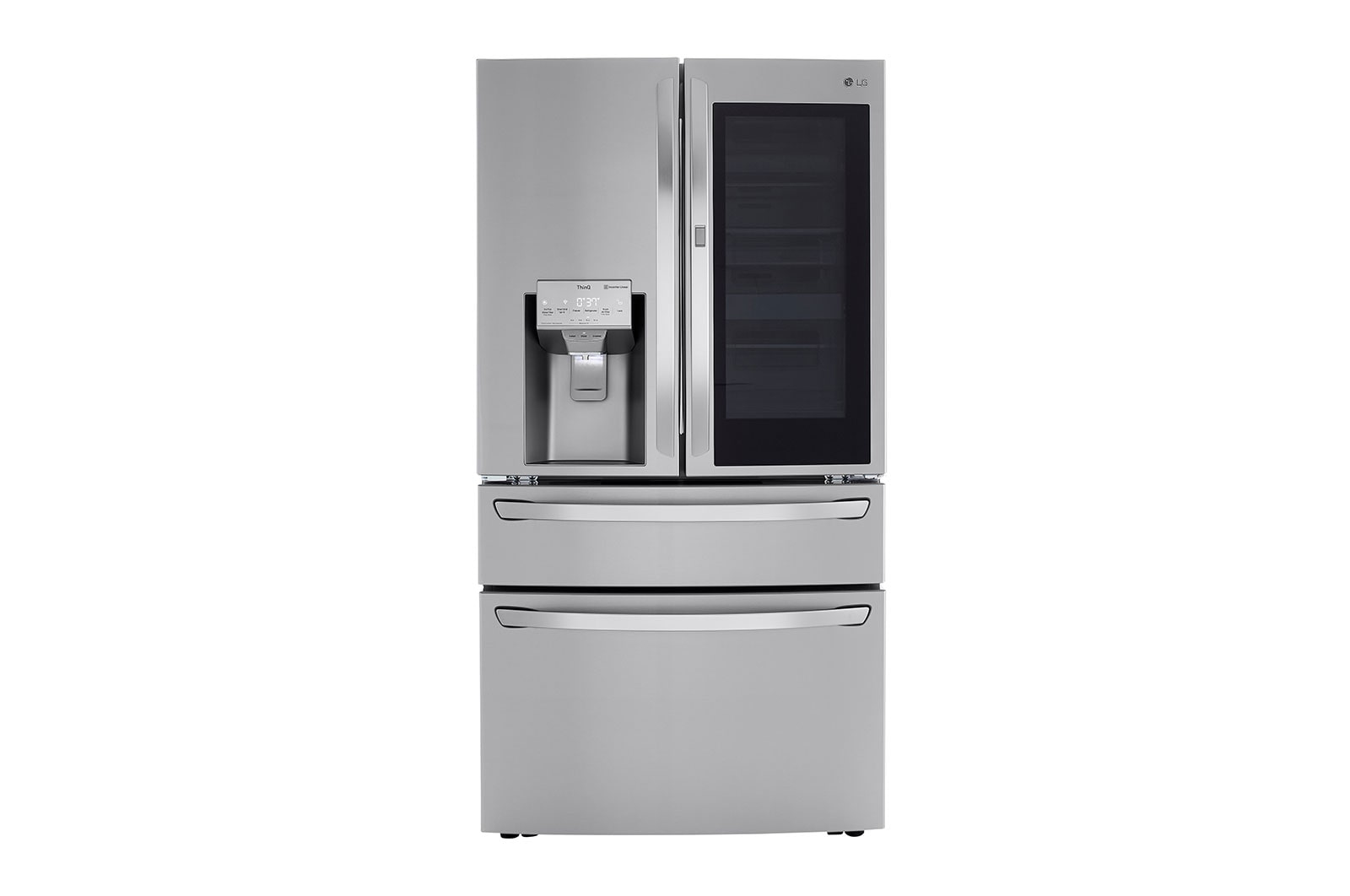

23 cu. ft. Smart wi-fi Enabled InstaView® Door-in-Door® Counter-Depth Refrigerator with Craft Ice™ Maker
SUMMARY
Key Spec
Volume Total (cu.ft)
22.5
Packing Dimension (WxHxD, inch)
38 x 73 x 33
Energy Consumption (kWh/Year)
716
ENERGY CONSUMPTION GRADE
ENERGY STAR®
Compressor Type
Linear Compressor
InstaView
Yes
Door-in-Door
Yes
ThinQ (Wi-Fi)
Yes
All Spec
BASIC SPEC
Brand
LG
ENERGY CONSUMPTION GRADE
ENERGY STAR®
Product Type
French Door
Standard/Counter Depth
No/Yes
MATERIAL & FINISH
Handle Type
Matching Commercial Handles
Contour Door
Yes
Fingerprint & Smudge Resistant Exterior
Yes
CAPACITY
Volume Total (cu.ft)
22.5
Custom Chill
2.8
Volume Freezer (cu.ft)
6.5
Volume Refrigerator (cu.ft)
13.2
FEATURES
Door Cooling+
Yes
Auto Closing Door Hinge
Yes
Door-in-Door
Yes
InstaView
Yes
Sabbath Mode
Yes
PERFORMANCE
Energy Consumption (kWh/Year)
716
Compressor Type
Linear Compressor
DIMENSIONS & WEIGHT
Product Weight (lb.)
333
Depth without door (inch)
24
Depth without handle (inch)
28.875
Depth with handle (inch)
31.25
Gross Weight (lb.)
355
Height to Top of Case (inch)
69.125
Height to Top of Hinge or Door Cap Deco (inch)
70.25
Installation Clearance
Sides 1/8", Top 1", Back 2"
Packing Dimension (WxHxD, inch)
38 x 73 x 33
Total Depth with Door 90 Open (inch)
43.125
Width door open 90 without Handle (inch)
40
Width door open 90 with Handle (inch)
45.375
SMART TECHNOLOGY
ThinQ (Wi-Fi)
Yes
Smart Diagnosis
Yes
REFRIGERATOR COMPARTMENT
Shelf_Folding
1
Door Basket_Transparent
1 Piece (Clear)
Refrigerator Light
Micro Surface LED
Shelf_Cantilevered
Yes
Vegetable Box
2 Humidity Crispers
BAR CODE
Bar Code
048231806183
FREEZER COMPARTMENT
Door Type
Pull Drawer
Drawer Divider
Yes
Drawer_Freezer
2Tier Organization
Durabase Solid Drawer Base
Yes
Freezer Light
Premium LED
ICE & WATER SYSTEM
Daily Ice Production (lb.)
3.5
Dispenser Light
Yes
Ice Storage Capacity (lb.)
6.6
Ice & Water Dispenser
Yes
Water Filter Model Name
LT1000P
CONTROL & DISPLAY
Door alarm
Yes
Express Freeze
Yes
