*2 Years parts and labour on the product + 3 years on sealed refrigeration system (compressor, evaporator, dryer and tubing) parts only + 5 years on compressor (part only).
*Based on TÜV Rheinland test results using LG's internal test method to measure the time it took to achieve a 5% weight loss rate for pak choi on the shelf in the fresh produce compartment of the LGE LinearCooling Model GSXV91NSAE. The result may vary during actual use.
*Based on UL test results using LG’s internal testing method of measuring the time it took to reach the 5% weight reduction rate on the shelf of the fresh food compartment of LGE Linear Cooling model GBB72NSDFN, B607S, GF-6570PL, GSX961MCVZ..
The result may vary in actual usage.
*Based on TÜV Rheinland test results using LG’s internal testing method comparing time for the temperature of the water container placed in the top basket to drop between DoorCooling+™ and Non-DoorCooling+™ models. Applicable models only.
*The images of the product are for illustration purposes only and may differ from the actual product.
*DoorCooling+™ is supposed to stop when the door is opened.
*Based on UL test results using LG’s internal testing method comparing the timeneeded for temperature of the top door basket to drop from 24.8℃ to 8℃ between LGE’s Non-DoorCooling+ model (GBB60NSZHE) and DoorCooling+ model (GBB72NSDFN).
The images of the product are for illustration purpose only and may differ from the actual product.
Door Cooling+ is supposed to stop working when the door is opened.
Gallery
SUMMARY
DIMENSIONS
All Spec
BRAND
-
LG Brand
Yes
WIDTH
-
Width
35 3/4"
DEPTH
-
Standard Depth
Yes
CAPACITY
-
Refrigerator (cu.ft.)
19.5
-
Freezer (cu.ft.)
9.5
-
Total Capacity (cu.ft.)
29
ENERGY
-
ENERGY STAR® Qualified
Yes
-
Energy Consumption (kWh/year)
653
WATER & ICE SYSTEM
-

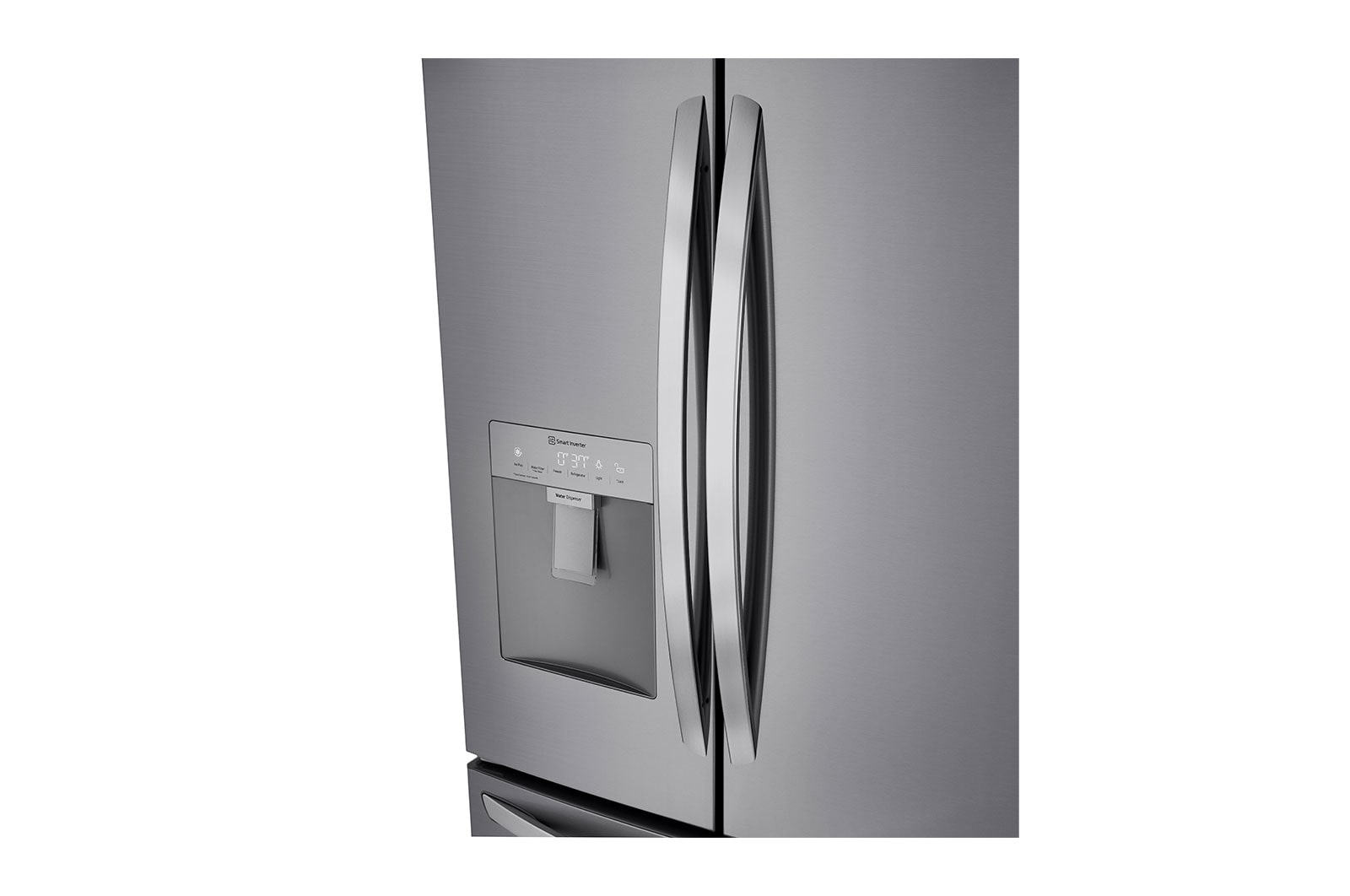

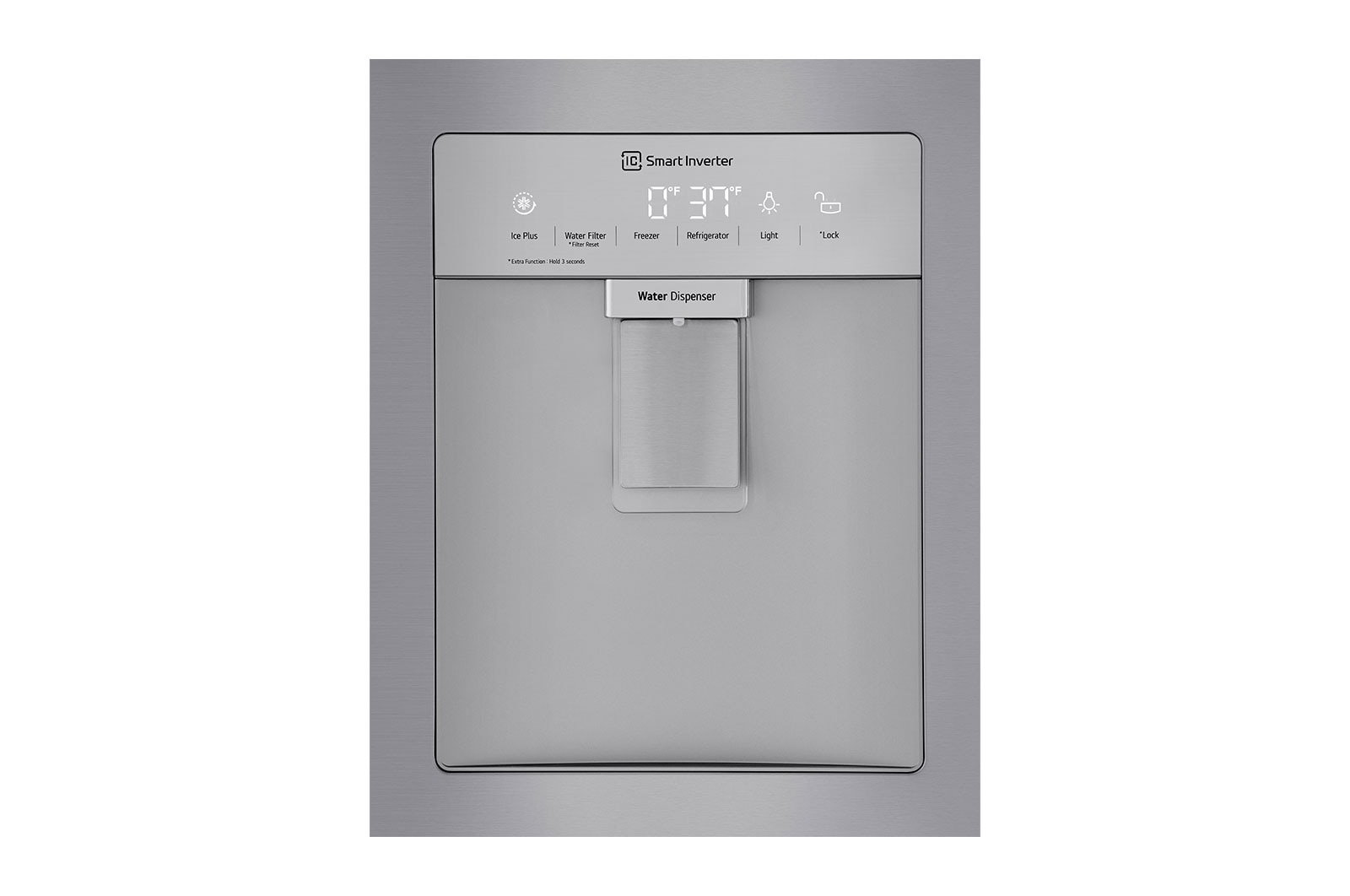

Ice & Water Dispenser
Water Dispenser
-
Dispenser Type
Integrated Tall Water Dispenser
-
Daily Ice Production (lbs)
2.5 lbs
-
IcePlus™ Production (lbs)
2.7 lbs
-
Ice Storage Capacity (lbs)
4.0 lbs
-
Dispenser Light
Yes
-

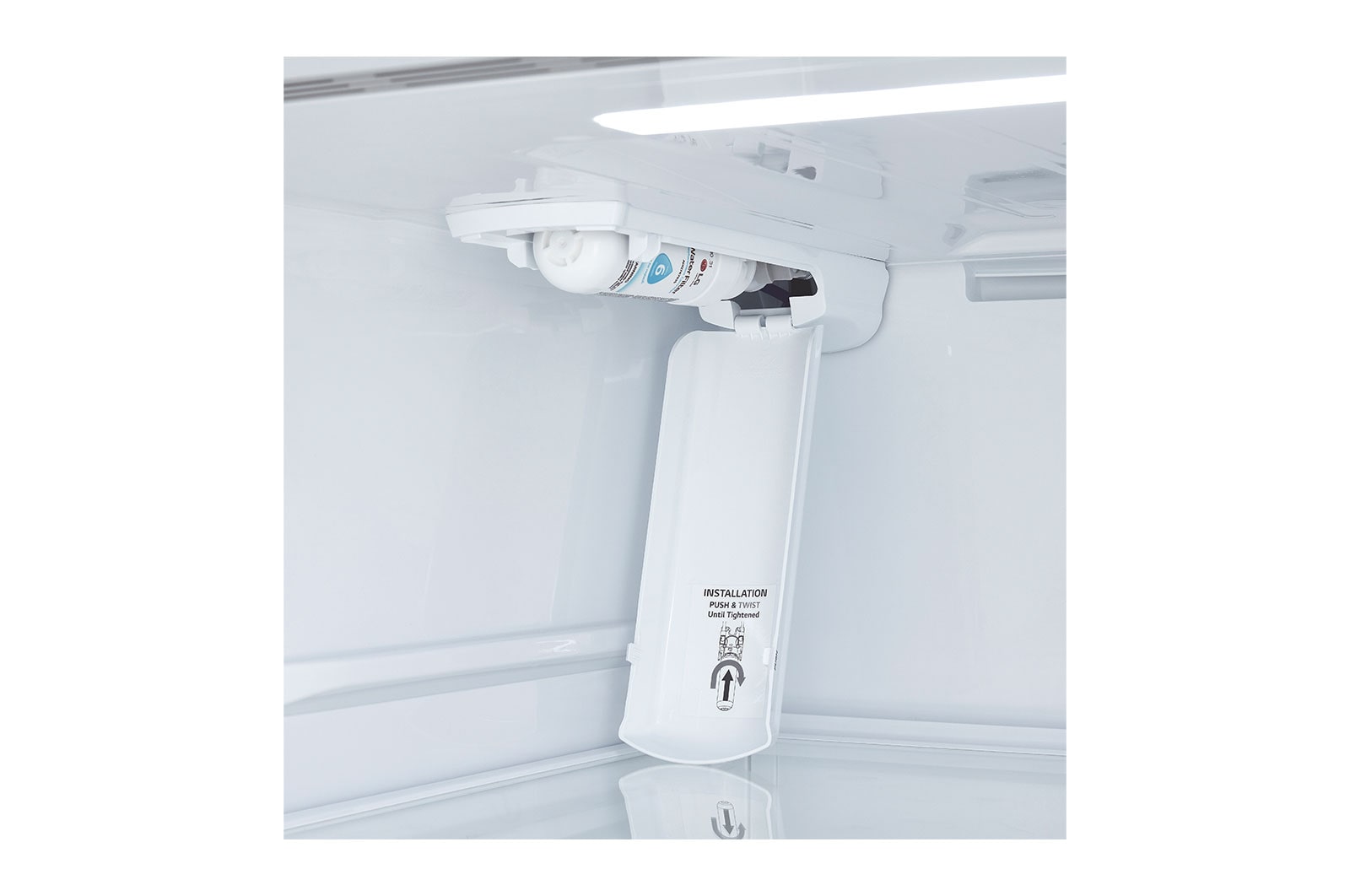

Water Filter
LT1000P
COOLING
-
Type
Smart Cooling™ System
-
Smart Inverter Compressor
Yes
-
Door Cooling+
Yes
-

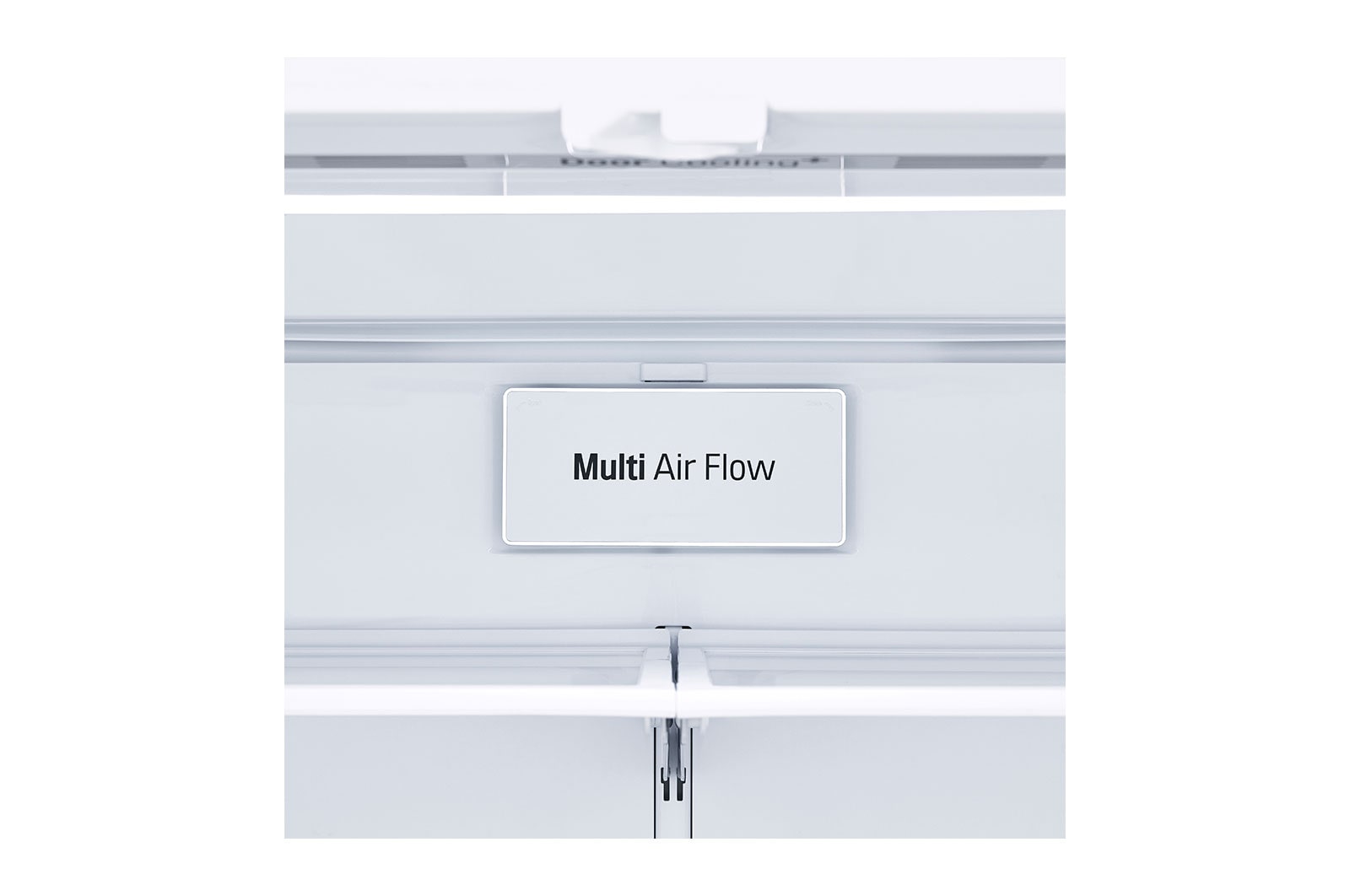

Multi-Air Flow™ System
Yes
-
Temperature Sensors
6
-
Fresh Air Filter
Yes
-
Evaporator
1
CONVENIENCE
-
Display Type
Membrane / White LED
-
Temperature Controls
Electronic/Digital
-
Door Alarm
Yes
-
Child Lock
Yes
-
Auto Closing Door Hinge
Yes
-
Sabbath Mode
Yes
-
LoDecibel™ Quiet Operation
Yes

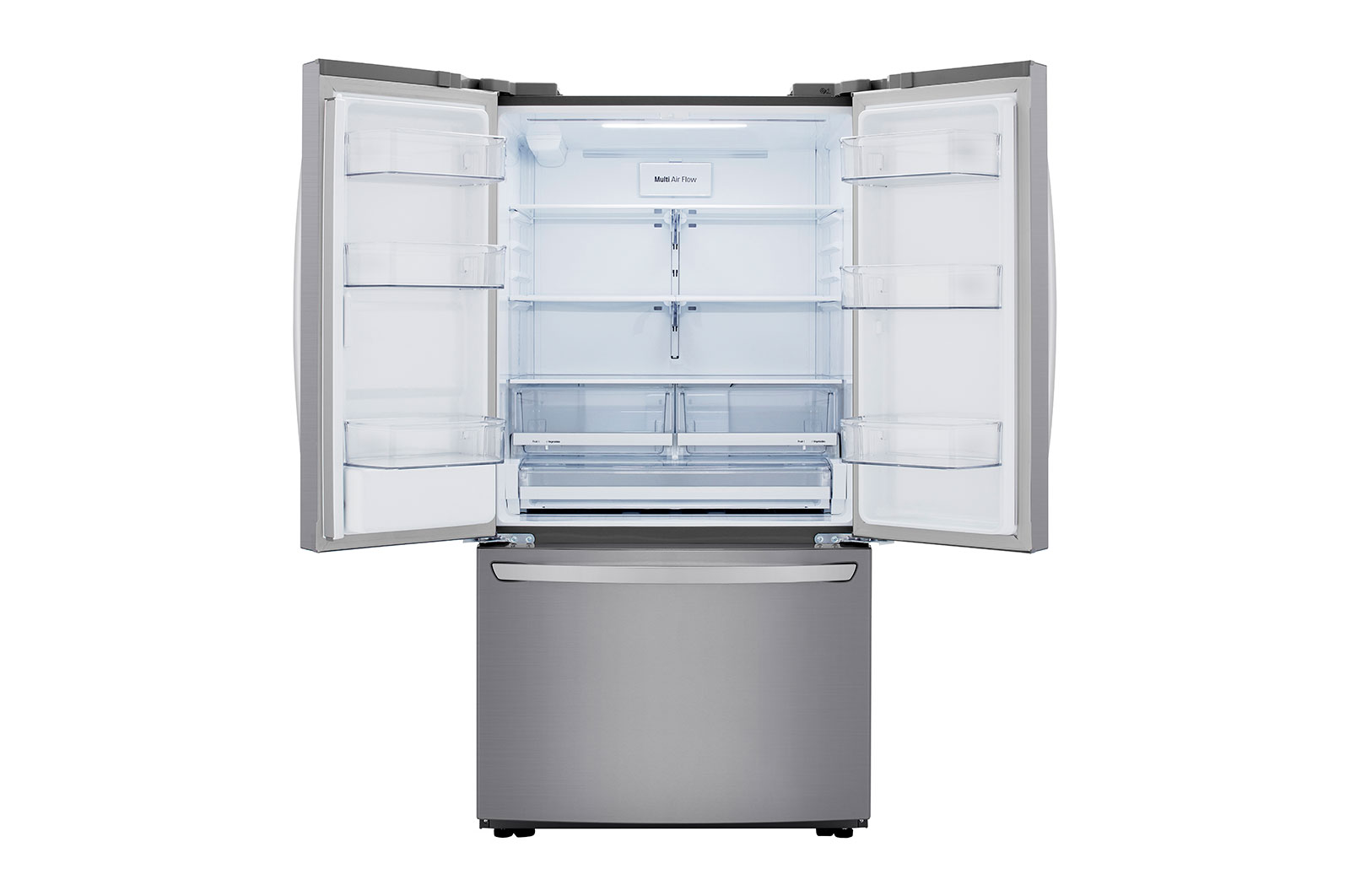

REFRIGERATOR
-
No. of Shelves
4 Split
-
Cantilevered Shelves
Hybrid Cantilevered
-
Shelf Construction
Spill Protector™ Tempered Glass
-

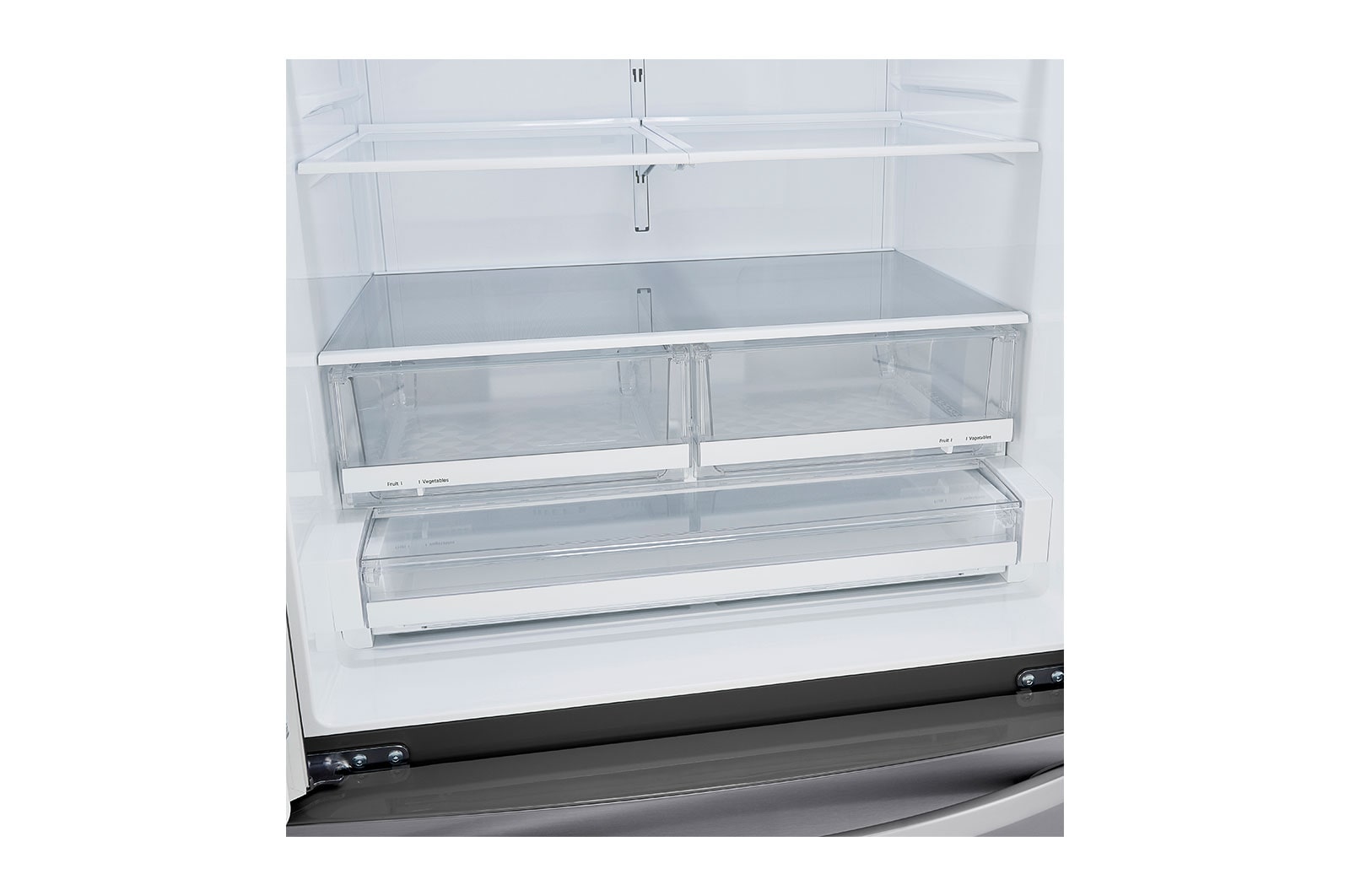

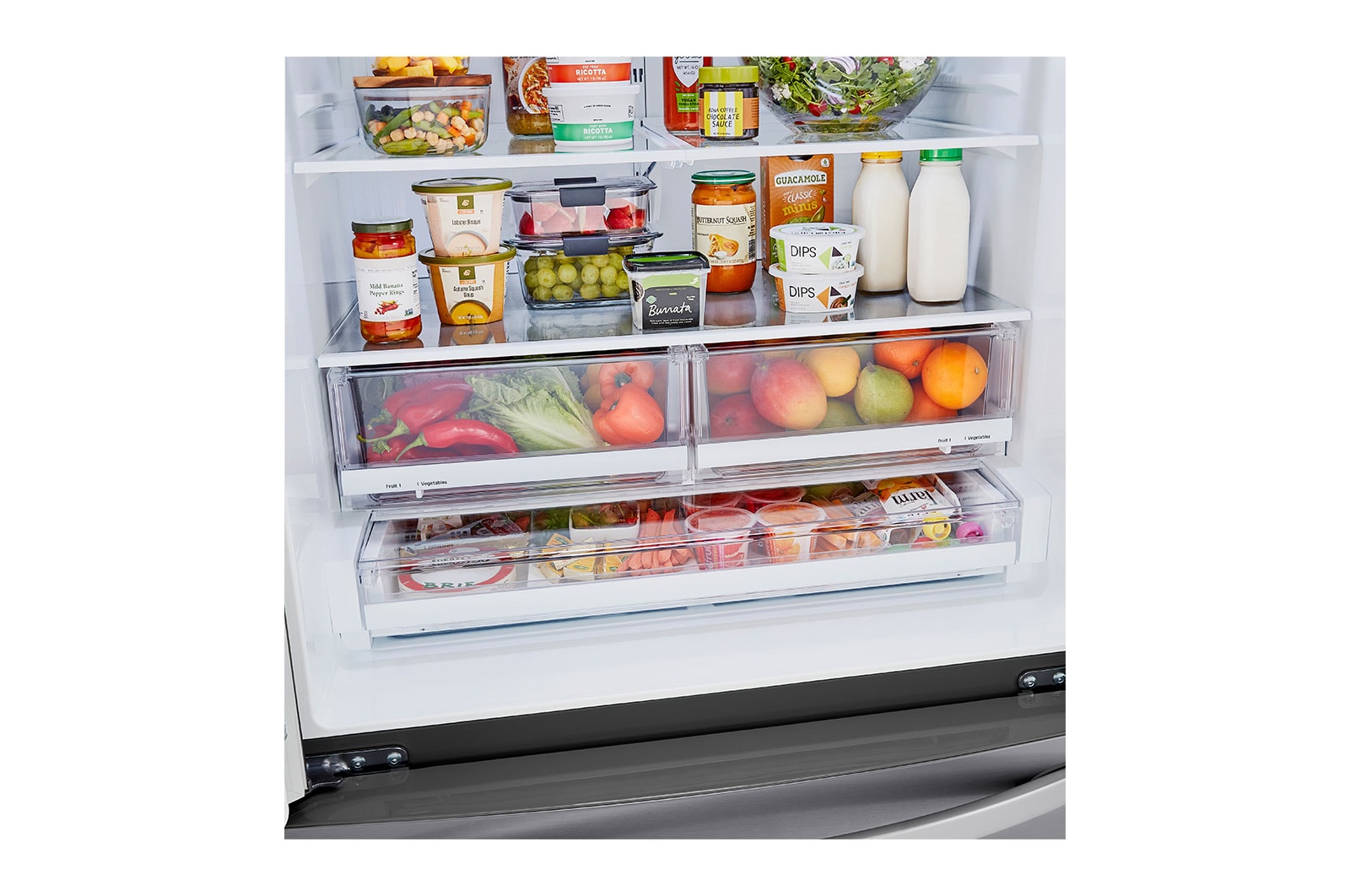

Crisper Bins
2 Humidity Crispers
-
Glide N’ Serve® Drawer
Yes
-

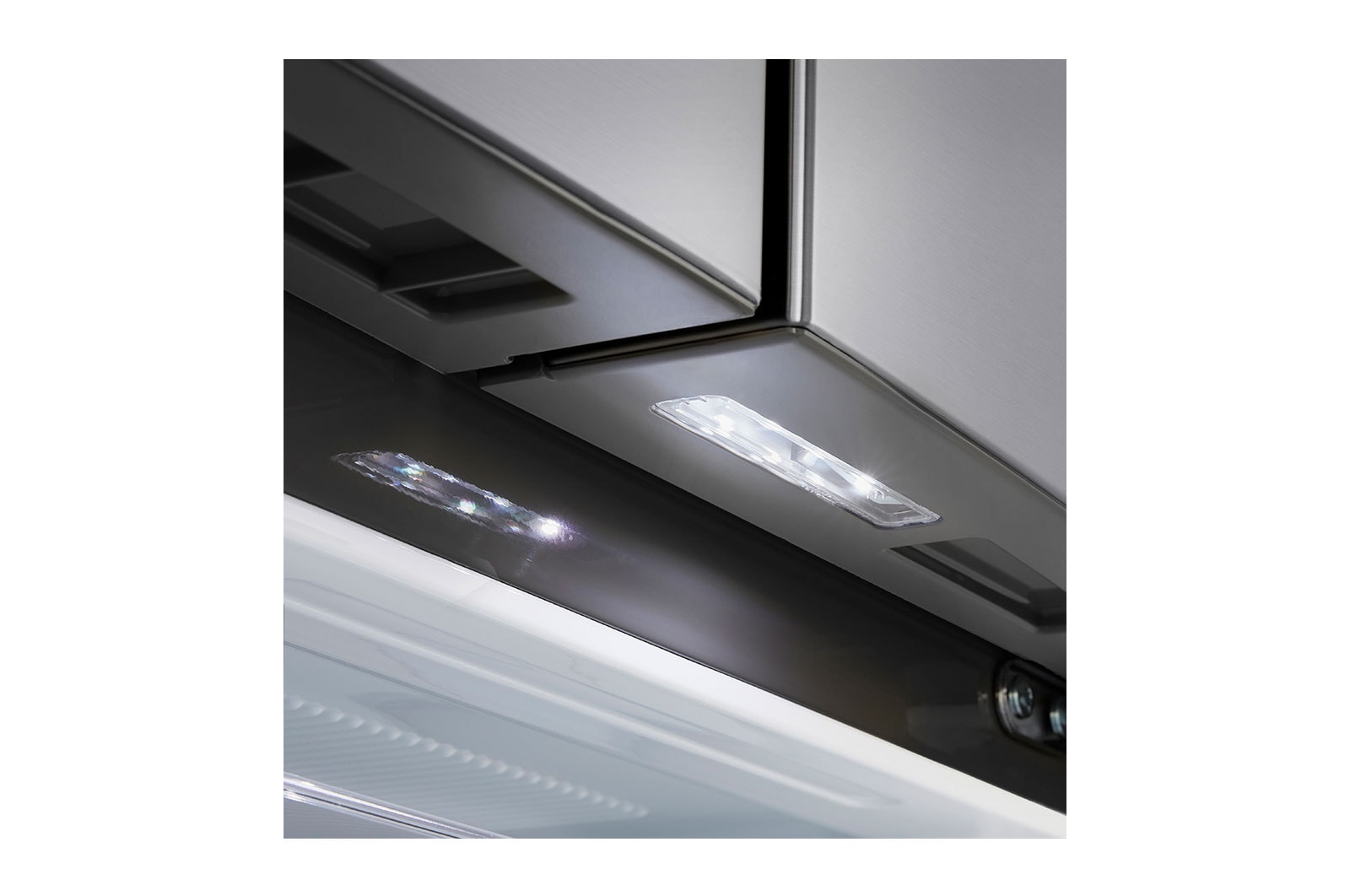

Refrigerator Light
Ceiling LED
-
Handle Type
Bar
REFRIGERATOR DOOR
-
Number of Bins
6 Total (2 Adjustable Gallon Sized)
-
Door Bin Construction
1 Piece (Clear)

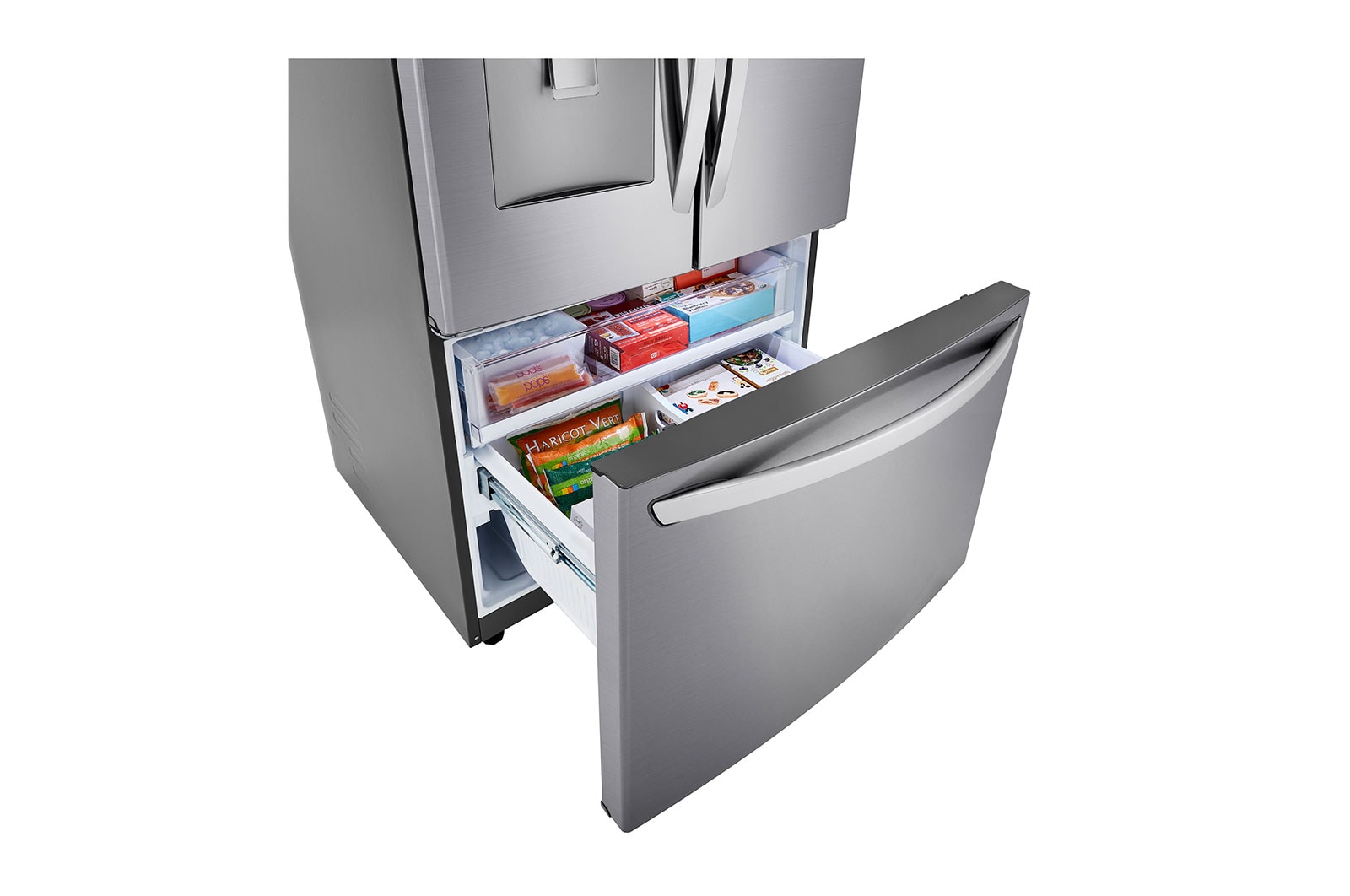

FREEZER
-
Door Type
Pull Drawer
-

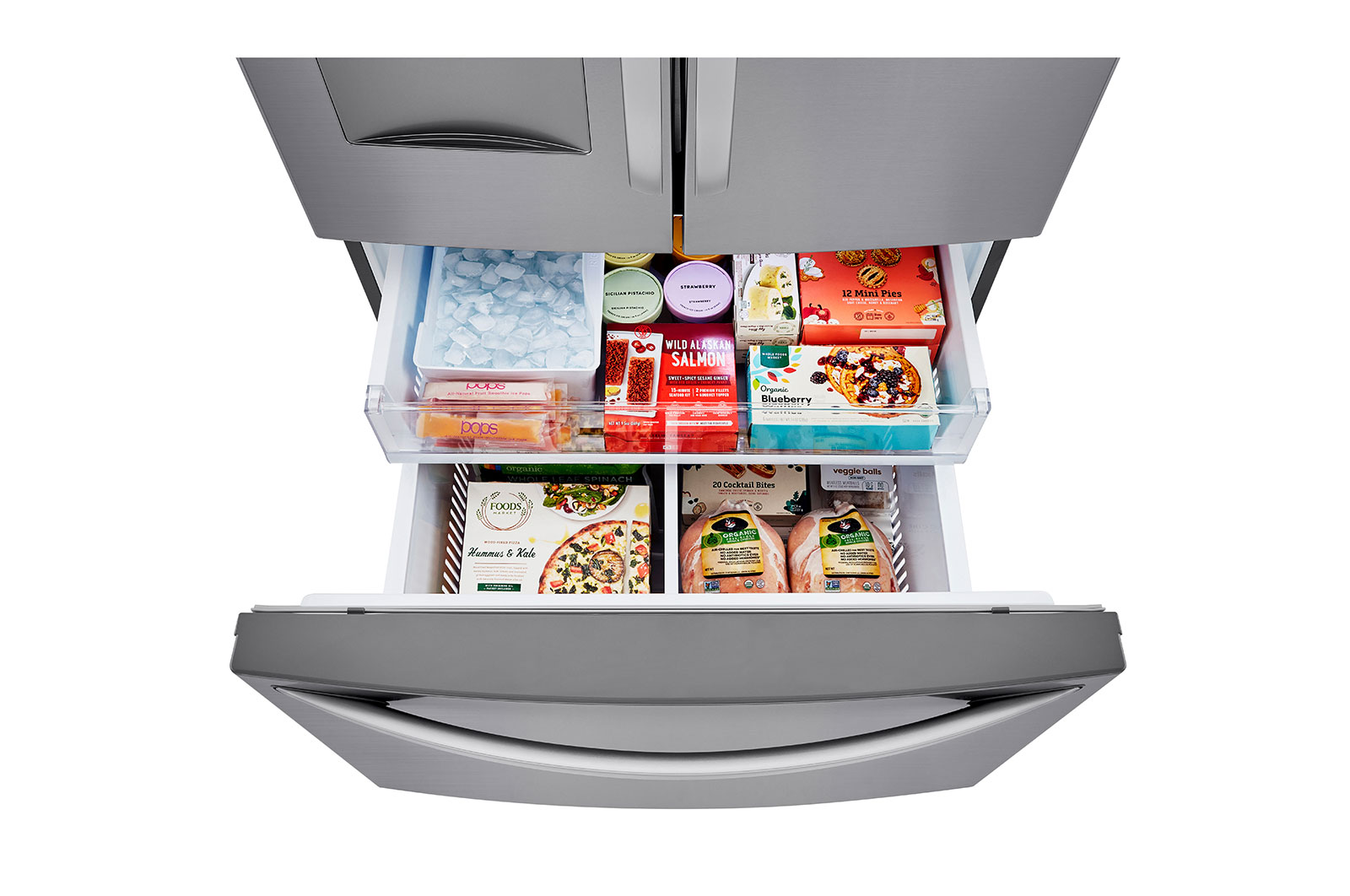

Drawers
2-Tier Organization
-
DuraBase™ Solid Drawer Base
Yes
-
Drawer Divider
Yes
-
Ice Bin / In-Door Ice
Ice Bin
-
Freezer Light
LED Lighting
-
Freezer Handle
SmartPull™ Handle
SMART FEATURES
-
Smart Diagnosis™
Yes
MATERIALS AND FINISHES
-
Contour Door
Yes
-
Hidden Hinges
Yes
-
Surface
Smooth
-
Handles
Matching Commercial Handles
-
Available Colour

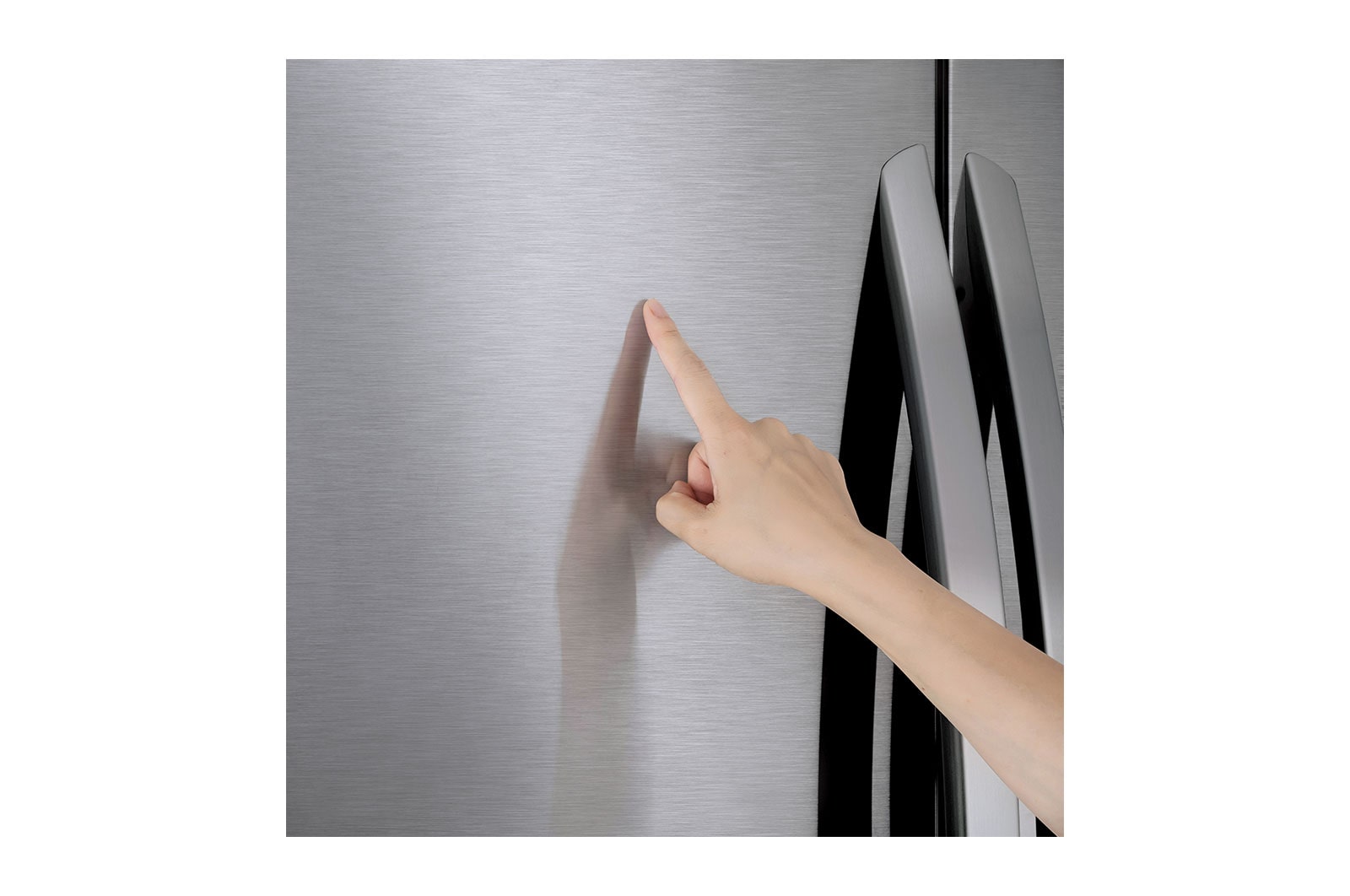

Smudge Resistant Stainless Steel (S), Platinum Silver Steel (V)
DIMENSIONS/CLEARANCES/WEIGHTS
-
Depth with Handles
36 1/4”
-
Depth without Handles
33 3/4”
-
Depth without Door
29 7/8”
-
Depth (Total with Door Open)
48 5/8”
-
Height to Top of Case
68 1/2”
-
Height to Top of Door Hinge
69 3/4”
-
Width
35 3/4”
-
Width (Door Open 90 with Handle)
44 1/4”
-
Width (Door Open 90 without Handle)
39 1/4”
-
Door Edge Clearance with Handle
4 1/2”
-
Door Edge Clearance without Handle
1 3/8”
-
Installation Clearance
Sides 1/8", Top 1", Back 2"
-
Weight (Unit/Carton)
295 lbs. / 320 lbs.
-
Carton Dimensions (WxHxD)
38” x 73” x 39”
LIMITED WARRANTY
-
Parts & Labour
1 Year
-
Sealed System (Parts)
7 Years
-
Smart Inverter Compressor (Parts Only)
10 Years
UPC CODES
-
LRFWS2906V (Platinum Silver Steel)
195174011225
