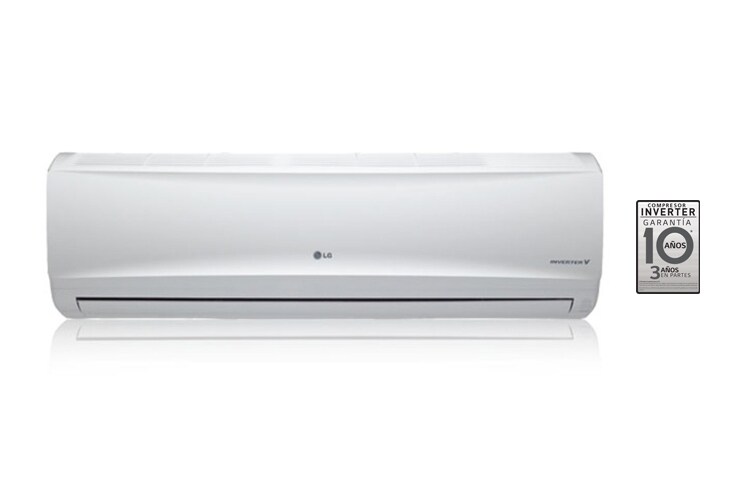

Econo Inverter V de LG, es el aire acondicionado que no solo brinda un ahorro de hasta 50%, sino que también te protege cuando duermes.

Características principales

component-OBScountrySelectDesc

Econo Inverter V de LG, es el aire acondicionado que no solo brinda un ahorro de hasta 50%, sino que también te protege cuando duermes.
COOLING CAPACITY
  • kW
    0.89~2.64~3.70
    Btu/h.
    3,070~9,000~12,620
HEATING CAPACITY
  • kW
    0.89~3.2~5.0
    Btu/h.
    3,070~10,920~17,060
POWER INPUT (COOLING/HEATING)
  • W
    550/700
RUNNING CURRENT (COOLING/HEATING)
  • A
    2.4/3.1
STARTING CURRENT (COOLING/HEATING)
  • A
    2.4/3.1
EER
  • W/W (Btu/h.W)
    4.1 (13.2)
COP
  • W/W
    4.57
POWER SUPPLY
  • Ø / V / Hz
    1/220/60
POWER FACTOR
  • %
    94.7
AIRFLOW RATE INDOOR,MAX
  • m3/min(CFM)
    11.0(388)
AIRFLOW RATE OUTDOOR,MAX
  • m3/min(CFM)
    27.0(953)
MOISTURE REMOVAL
  • l/h
    1.1
SOUND LEVEL INDOOR, H/M/L
  • dB(A)±3
    39 / 33 / 24 / 19
SOUND LEVEL OUTDOOR, MAX
  • dB(A)±3
    47
REFRIGERANT & CHARGE AT 5M
  • g(oz)
    R410A, 900(25.5)
ADDITIONAL REFRIGERANT CHARGE
  • g/m(oz/ft)
    20(0.22)
COMPRESSOR
  • Type
    Rotary
    Model
    GA102DBA
  • Motor Type
    Brushless DC Motor
    Oil Type
    PVE(FVC68D)
  • Oil Charge (cc)
    310
FAN (INDOOR)
  • Type
    Cross Flow Fan
    Motor Output (W)
    20
FAN (OUTDOOR)
  • Type
    Propeller
    Motor Type
    BLDC
  • Motor Output (W)
    43
CIRCUIT BREAKER*
  • A
    15
POWER SUPPLY CABLE
  • No.*mm2
    3*1.0
POWER AND TRANSMISSION CABLE NO.*MM2
  • No.*mm2
    4*1.0 (Including Earth)
PIPING CONNECTIONS LIQUID SIDE
  • mm(in)
    6.35(1/4)
PIPING CONNECTIONS GAS SIDE
  • mm(in)
    9.52(3/8)
DRAIN HOSE(O.D / I.D.)
  • mm(in)
    21.5 / 16.0(0.85 / 0.63)
DIMENSIONS INDOOR (W*H*D)
  • mm
    895*285*195
    inch
    35.2*11.2*7.7
DIMENSIONS OUTDOOR (W*H*D)
  • mm
    717*483*230
    inch
    28.2*19.0*9.1
NET WEIGHT (INDOOR/OUTDOOR)
  • kg(lbs)
    11(24.5)/28(61.7)
OPERATION RANGE COOLING(OUTDOOR)
  • °C
    10~48(50~118.4)
OPERATION RANGE HEATING(OUTDOOR)
  • °C
    -10 ~ 24
PIPING LENGTH (MIN/MAX)
  • m(ft)
    7.5(24.6)/15(49.2)
CHARGELESS
  • m(ft)
    12.5 (41.0)
MAX. ELEVATION DIFFERENCE
  • m(ft)
    7 (23)
TOOL CODE(CHASSIS) (COOLING/HEATING)
  • Indoor + Outdoor
    SB + UA3
FUNCTIONS
  • Temperature Control
    Thermistor
    Prefilter(washable/anti-fungus)
    Yes
  • Anti Allergy free filter
    Yes
    Auto Clean
    Yes
  • CHAOS Wind(Auto Wind)
    Yes
    Steps, Fan/Cool/Heat
    3/4/3
  • Airflow Direction Control(up& Down)
    Auto
    Airflow Direction Control(left & right)
    Manual
  • Remote Controller Type
    Wireless LCD
    Setting Temperature Range (Cooling/Heating)
    18°C-30°C/16°C-30°C
  • Auto Operation (Micom Control)
    Yes
    Auto Changeover (Micom Control)
    Yes
  • Timer
    24Hr,ON/OFF
    Sleep Operation
    Yes
  • Soft Dry Operation
    Yes
    Restart Delay(minute)
    3
  • Deice Control(Defrost)
    Yes
    Hot Start
    Yes
  • Jet Cool
    Yes
