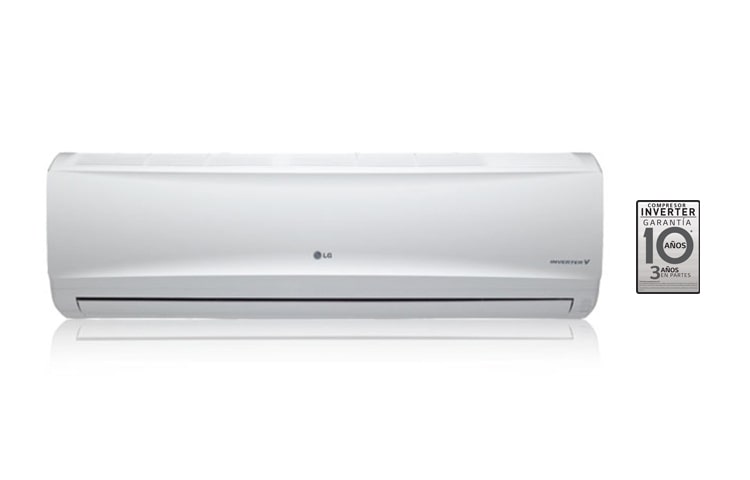

La vida se disfruta más con Econo Inverter V de LG, el nuevo aire acondicionado que refresca tu mundo y puede reducir el consumo de energía hasta en un 50%.

Características principales

component-OBScountrySelectDesc

La vida se disfruta más con Econo Inverter V de LG, el nuevo aire acondicionado que refresca tu mundo y puede reducir el consumo de energía hasta en un 50%.
COOLING CAPACITY
  • kW
    3.517 (12,000)
HEATING CAPACITY
  • kW
    3.517 (12,000)
POWER INPUT (COOLING/HEATING)
  • W
    1,125/1,200
RUNNING CURRENT (COOLING/HEATING)
  • A
    5.4/5.5
EER
  • W/W (Btu/h.W)
    2.95 (10.00)
COP
  • W/W
    2.93
POWER SUPPLY
  • Ø / V / Hz
    1,220,60
POWER FACTOR
  • %
    96
AIRFLOW RATE INDOOR,MAX
  • m3/min(CFM)
    8
MOISTURE REMOVAL
  • l/h
    1.8
SOUND LEVEL INDOOR, H/M/L
  • dB(A)±3
    41/39/36
SOUND LEVEL OUTDOOR, MAX
  • dB(A)±3
    53
REFRIGERANT & CHARGE AT 5M
  • g(oz)
    R22,520(18.4)
ADDITIONAL REFRIGERANT CHARGE
  • g/m(oz/ft)
    20(0.22)

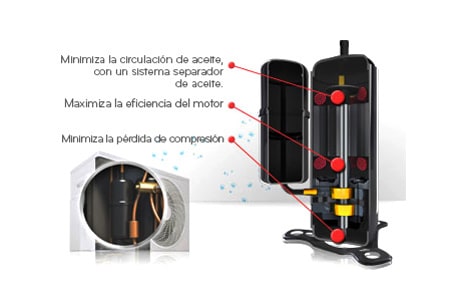

COMPRESSOR
  • Type
    Rotary
    Model
    QK173KAG
  • Motor Type
    PSC
    Oil Type
    Suniso 4GSI
  • Oil Charge (cc)
    350
    O.L.P. name
    MRA12074-12027
FAN (INDOOR)
  • Type
    Cross Flow Fan
    Motor Output (W)
    13.5
FAN (OUTDOOR)
  • Type
    Propeller
    Motor Output (W)
    30
CIRCUIT BREAKER*
  • A
    15
POWER SUPPLY CABLE
  • No.*mm2
    3*1.0
POWER AND TRANSMISSION CABLE NO.*MM2
  • No.*mm2
    3*1.0
PIPING CONNECTIONS LIQUID SIDE
  • mm(in)
    6.35(1/4)
PIPING CONNECTIONS GAS SIDE
  • mm(in)
    12.7(1/2)
DRAIN HOSE(O.D / I.D.)
  • mm(in)
    21.5 / 16.0(0.85 / 0.63)
DIMENSIONS INDOOR (W*H*D)
  • mm
    895*282*166
    inch
    35.2*11.1*6.5
DIMENSIONS OUTDOOR (W*H*D)
  • mm
    717*498*229
    inch
    28.2*19.6*9
NET WEIGHT (INDOOR/OUTDOOR)
  • kg(lbs)
    9/28
OPERATION RANGE COOLING(OUTDOOR)
  • °C
    21-48
OPERATION RANGE HEATING(OUTDOOR)
  • °C
    1-24
PIPING LENGTH (MIN/MAX)
  • m(ft)
    3.6(11.8)/15(49.2)
CHARGELESS
  • m(ft)
    11.4(37.4)
MAX. ELEVATION DIFFERENCE
  • m(ft)
    7 (22.96)
TOOL CODE(CHASSIS) (COOLING/HEATING)
  • Indoor + Outdoor
    ST+UA3/SY+UL
FUNCTIONS
  • Temperature Control
    Thermistor

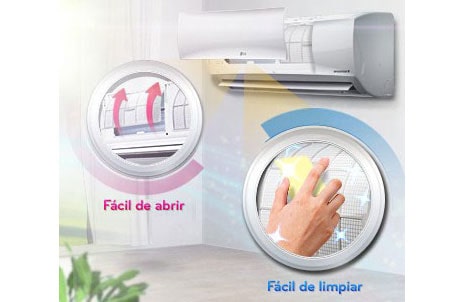

    Prefilter(washable/anti-fungus)
    Yes
  • Anti Allergy free filter
    Yes
    Auto Clean
    Yes
  • CHAOS Wind(Auto Wind)
    Yes
    Steps, Fan/Cool/Heat
    3/4/3
  • Airflow Direction Control(up& Down)
    Auto
    Airflow Direction Control(left & right)
    Manual
  • Remote Controller Type
    Wireless LCD
    Setting Temperature Range (Cooling/Heating)
    18°C-30°C/16°C-30°C
  • Auto Operation (Micom Control)
    Yes
    Auto Changeover (Micom Control)
    Yes
  • Timer
    24Hr,ON/OFF
    Sleep Operation
    Yes
  • Soft Dry Operation
    Yes
    Restart Delay(minute)
    3
  • Deice Control(Defrost)
    Yes
    Hot Start
    Yes
  • Jet Cool
    Yes
