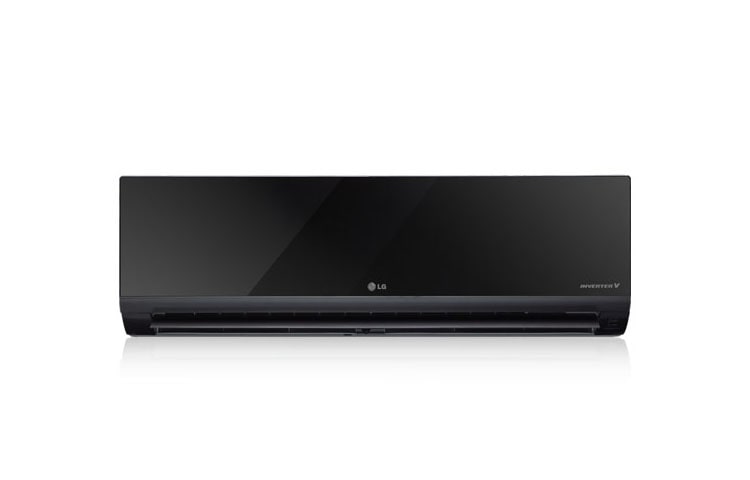

LG ha creado el impresionante Art Cool Inverter V, el nuevo aliado que necesitas para proteger a tu familia de alérgenos, virus y bacterias. Cuenta con filtro antivirus, filtro Pl

Características principales

component-OBScountrySelectDesc

LG ha creado el impresionante Art Cool Inverter V, el nuevo aliado que necesitas para proteger a tu familia de alérgenos, virus y bacterias. Cuenta con filtro antivirus, filtro Pl
COOLING CAPACITY
  • kW
    3,070~12,000~13,600
    Btu/h.
    0.90~3.52~3.99
HEATING CAPACITY
  • kW
    3,070 ~ 14,000 ~ 17,400
    Btu/h.
    0.89~4.10~5.10
POWER INPUT (COOLING/HEATING)
  • W
    1,010 / 1,050
RUNNING CURRENT (COOLING/HEATING)
  • A
    4.60 / 4.80
STARTING CURRENT (COOLING/HEATING)
  • A
    4.60 / 4.80
EER
  • W/W (Btu/h.W)
    3.41/11.6
COP
  • W/W
    1/220/60
SEER
  • SEER
    15
POWER FACTOR
  • %
    97.1
AIRFLOW RATE INDOOR,MAX
  • m3/min(CFM)
    11.0(388)
AIRFLOW RATE OUTDOOR,MAX
  • m3/min(CFM)
    28 (989)
MOISTURE REMOVAL
  • l/h
    1.1
SOUND LEVEL INDOOR, H/M/L
  • dB(A)±3
    39 / 33 / 24 / 19
SOUND LEVEL OUTDOOR, MAX
  • dB(A)±3
    48
REFRIGERANT & CHARGE AT 5M
  • g(oz)
    R410A, 830 (29.3)
ADDITIONAL REFRIGERANT CHARGE
  • g/m(oz/ft)
    10(0.11)
COMPRESSOR
  • Type
    Rotary
    Model
    GA102MAA
  • Motor Type
    Brushless DC Motor
    Oil Type
    FVC68D
  • Oil Charge (cc)
    310
FAN (INDOOR)
  • Type
    Cross Flow Fan
    Motor Output (W)
    20
FAN (OUTDOOR)
  • Type
    Propeller
    Motor Type
    AC
  • Motor Output (W)
    24.5
CIRCUIT BREAKER*
  • A
    15
POWER SUPPLY CABLE
  • No.*mm2
    3*1.0
POWER AND TRANSMISSION CABLE NO.*MM2
  • No.*mm2
    4*1.0 (Including Earth)
PIPING CONNECTIONS LIQUID SIDE
  • mm(in)
    6.35(1/4)
PIPING CONNECTIONS GAS SIDE
  • mm(in)
    9.52(3/8)
DRAIN HOSE(O.D / I.D.)
  • mm(in)
    21.5 / 16.0(0.85 / 0.63)
DIMENSIONS INDOOR (W*H*D)
  • mm
    885*285*210
    inch
    34.84*11.22*8.26
DIMENSIONS OUTDOOR (W*H*D)
  • mm
    717*499*230
    inch
    28.22*19.64*9.05
NET WEIGHT (INDOOR/OUTDOOR)
  • kg(lbs)
    10 (22.04)/24 (52.91)
OPERATION RANGE COOLING(OUTDOOR)
  • °C
    18 ~ 48 ( 64.4 ~ 118.4)
OPERATION RANGE HEATING(OUTDOOR)
  • °C
    -10 ~ 24
PIPING LENGTH (MIN/MAX)
  • m(ft)
    7.5(24.6)/15(49.2)
MAX. ELEVATION DIFFERENCE
  • m(ft)
    7 (22.96)
TOOL CODE(CHASSIS) (COOLING/HEATING)
  • Indoor + Outdoor
    SB + UA3
FUNCTIONS
  • Temperature Control
    Thermistor
    Prefilter(washable/anti-fungus)
    Yes
  • Anti Allergy free filter
    Yes
    Deodorizer Filter(Triple Filter)
    Yes
  • H1N1 Filter
    Yes
    Auto Clean
    Yes
  • CHAOS Wind(Auto Wind)
    Yes
    Steps, Fan/Cool/Heat
    3/4/4
  • Airflow Direction Control(up& Down)
    Auto
    Airflow Direction Control(left & right)
    Manual
  • Remote Controller Type
    LCD Remocon
    Setting Temperature Range (Cooling/Heating)
    18°C-30°C/16°C-30°C
  • Auto Operation (Micom Control)
    Yes
    Auto Changeover (Micom Control)
    Yes
  • Self Diagnosis
    Yes
    Timer
    24Hr,ON/OFF
  • Sleep Operation
    Yes
    Soft Dry Operation
    Yes
  • Restart Delay(minute)
    3
    Deice Control(Defrost)
    Yes
  • Hot Start
    Yes
    Jet Cool
    Yes
  • Low Ambient Operation
    Yes
